DTC B1613 LOST COMMUNICATION WITH CLU, BUS FAILURE

COMPONENT LOCATION

Fig. 83: Locating IPM & Cluster Connector
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

Refer to DTC B1602.

DTC DESCRIPTION

The ECM sets DTC B1613 if Cluster module haven't transmitted DATA for 10sec in normal CAN
communicating.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

Item

Detecting Condition

Possible Cause

DTC Strategy

-



Faulty IPM



Open/short in Cluster module power harness



Faulty Cluster module



Poor connection of connected part

Enable Conditions

-

Threshold value

-

Detecting time

-



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 105

© 2006 Mitchell Repair Information Company, LLC.

3. Select "Diagnostic Trouble Codes (DTC s)" mode and monitor "DTC Status" parameter.

4. Is the DTC B1613 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B1102.

SIGNAL CIRCUIT INSPECTION

Refer to DTC B1605.

POWER SUPPLY CIRCUIT INSPECTION

1. Check for open or short in power harness

1. Ignition "OFF".

2. Connect Cluster module

3. Measure voltage value between terminal "M04-2-7" of FAM and chassis ground.

Specification: 9-16V

Fig. 84: Measuring Voltage Value Between Terminal M04-2-7 Of FAM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 106

© 2006 Mitchell Repair Information Company, LLC.

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for open or short in power harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. Check Cluster module

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Substitute with a known-good Cluster module and Check if the DTC is erased.

4. Is the DTC erased?

YES

Substitute with a known-good Cluster module and check for proper operation.

If the problem is corrected, replace Cluster module and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

NO

Go to step 2.

2. Check IPM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Substitute with a known-good IPM and Check if the DTC is erased.

4. Is the DTC erased?

YES

Substitute with a known-good IPM and check for proper operation.

If the problem is corrected, replace IPM and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 107

© 2006 Mitchell Repair Information Company, LLC.

Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B1102.

DTC B1624 EEPROM FAILURE

COMPONENT LOCATION

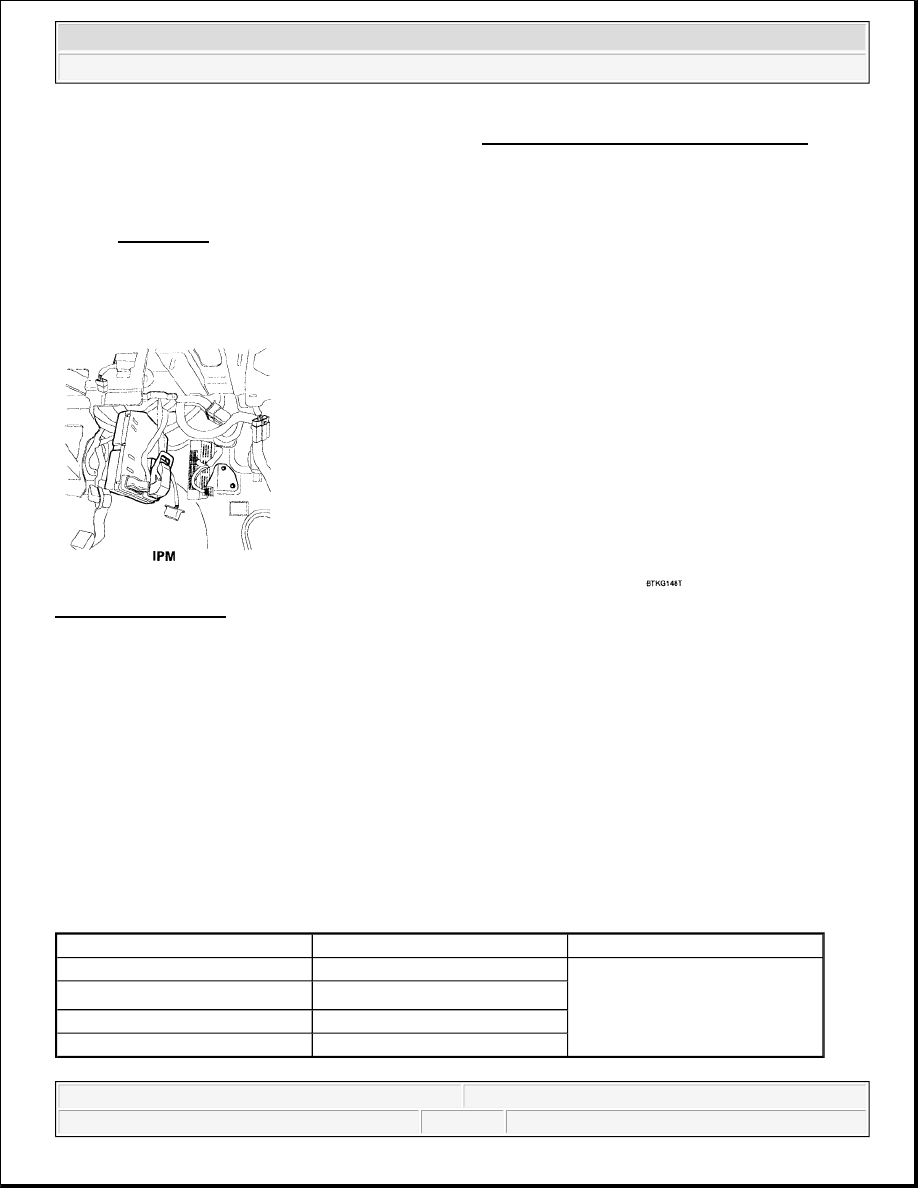

Fig. 85: Locating IPM
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

IPM is a component of BCM that consists of DDM, ADM, FAM, RAM, IMS and cluster module. Each
component of BCM controls relative unit and share information by CAN communication line. IPM is
abbreviation of Instrument Panel Module. it is located at the lower part of steering column and controls front
area electronic unit.

DTC DESCRIPTION

The ECM sets DTC B1624 if there's any fault in writing/reading IPM EEPROM data procedure.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

Item

Detecting Condition

Possible Cause

DTC Strategy

-



Faulty IPM

Enable Conditions



IGN: ON, ENG: OFF

Threshold value

-

Detecting time

-
