Fig. 57: Measuring Voltage Value Between Terminal C01-1 Of Alternator And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

5. Is the measured voltage within specifications?

YES

Go to step 2.

NO

Check Powertrain fuse in FAM (7.5A) and check for open in pertinent circuit harness and then go
to "VERIFICATION OF VEHICLE REPAIR" procedure.

2. Check lamp terminal of alternator.

1. IGN: OFF

2. Disconnect alternator connector

3. IGN: ON

4. Measure voltage value between terminal "C01-2" of alternator and chassis ground.

Specification: 10.5-12.0V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 65

© 2006 Mitchell Repair Information Company, LLC.

Fig. 58: Measuring Voltage Value Between Terminal C01-2 Of Alternator And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

5. Is the measured voltage within specifications?

YES

Go to step 3.

NO

Check IG1 fuse in IPM (7.5A), alternator resistor and check for open in pertinent circuit harness
and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

3. Check descent of voltage

1. Ignition "ON" & Engine "ON".

2. Measure voltage value between terminal "C02" of alternator and "+" terminal of battery.

Specification: 0.2V or less

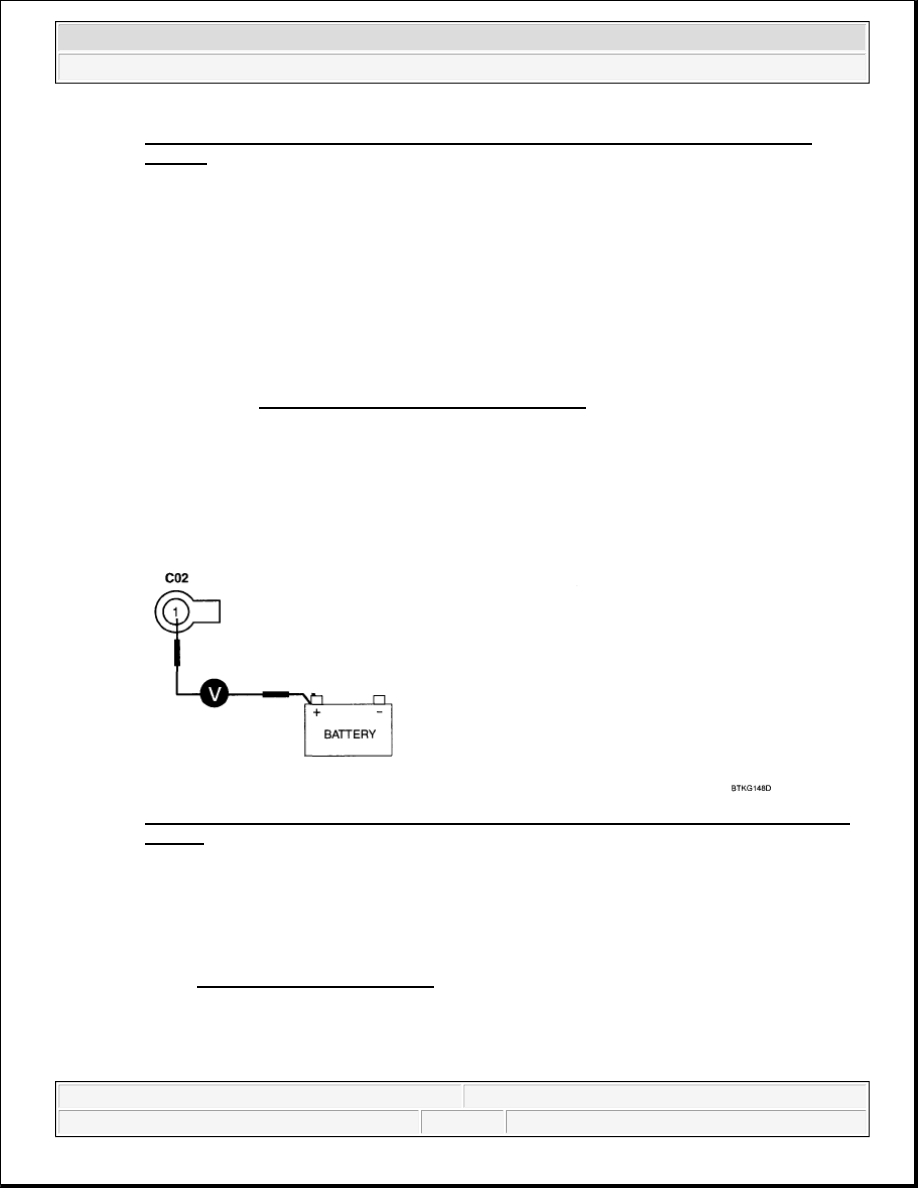

Fig. 59: Measuring Voltage Value Between Terminal C02 Of Alternator And + Terminal Of
Battery
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured voltage within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for corrosion and deterioration of alternator cable. Repair or replace as necessary and then



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 66

© 2006 Mitchell Repair Information Company, LLC.

go to "VERIFICATION OF VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. Check battery

1. Connect scan tool to Data Link Connector (DLC).

2. Engine: ON

3. Operate headlamp, rear defogger, blower motor.

4. Measure voltage value of battery at 2000 RPM

Specification: 12.5-14.5V

5. Is the measured voltage within specifications?

YES

Go to step 2.

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

2. Check IPM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Substitute with a known-good IPM and Check if the DTC is erased.

4. Is the DTC erased?

YES

Substitute with a known-good IPM and check for proper operation.

If the problem is corrected, replace IPM and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 67

© 2006 Mitchell Repair Information Company, LLC.

After a repair, it is essential to verify that the fault has been corrected.

1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode and then clear DTC.

2. Operate the vehicle and monitor the DTC on the scan tool.

3. Are any DTCs present?

YES

Go to the applicable troubleshooting procedure.

NO

System is performing to specification at this time.

DTC B1588 FRONT WIPER/WASHER MF SWITCH ERROR

COMPONENT LOCATION

Fig. 60: Identifying Multifunction Switch
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

To make system be more efficient, Body Control Module (hereinafter referred to BCM) applies CAN
(Controller Area Network) communication system. CAN is a kind of communication system which can make
related component share system information with just two line instead of complex individual signal line. It
consists of related component and CAN BUS which consists of CAN_high line and CAN_low line. Each
component can send and receive information by binary signal via CAN BUS. The related components for BCM
are IPM, ADM, DDM, FAM, RAM, IMS and cluster module, multifunction switch is sub-module of IPM. It
translates lamp, wiper, washer control signal from driver to IPM and according to this signal, IPM controls
units.

DTC DESCRIPTION
