Kia Sedona (2008 year). Manual - part 148





3. Remove the keyless antenna cable and IPM (Instrument Panel Module) (A) after loosening 3 nuts and

disconnecting 5 connectors.

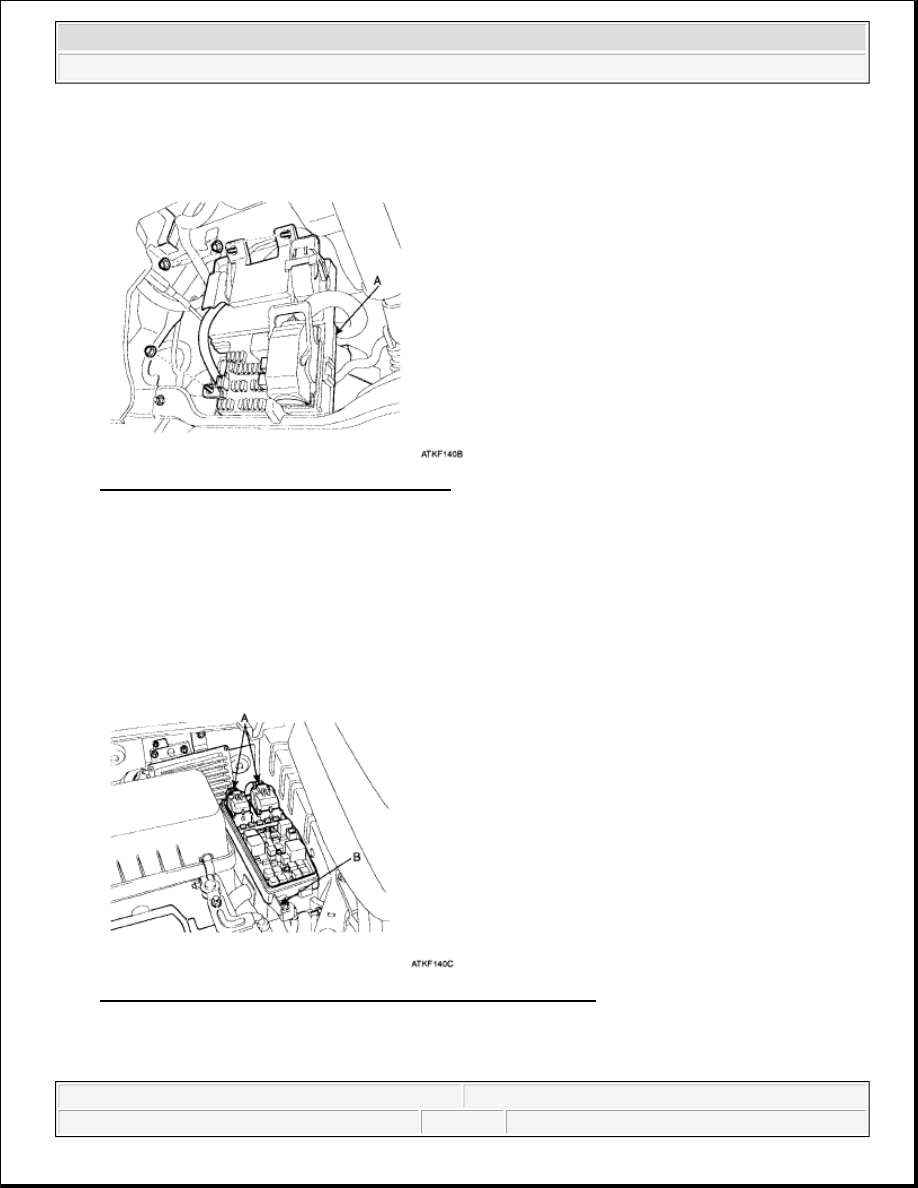

Fig. 52: Identifying Instrument Panel Module
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

FAM (FRONT AREA MODULE)

1. Disconnect the negative (-) battery terminal.

2. Remove the FAM cover from the engine room.

3. Remove the 2 FAM connectors (A) and battery terminal nut (B).

Fig. 53: Identifying FAM Connectors And Battery Terminal Nut
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the IPM (B) from the splash shield (C) after loosening the 3 IPM mounting bolts (A) and the

IPM mounting clip.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 61

© 2006 Mitchell Repair Information Company, LLC.

Fig. 54: Identifying IPM Mounting Bolts And Splash Shield
Courtesy of KIA MOTORS AMERICA, INC.

5. Disconnect the connector from the splash shield.

6. Installation is the reverse of removal.

RAM (REAR AREA MODULE)

1. Disconnect the negative (-) battery terminal.

2. Remove the left luggage side trim. Refer to INTERIOR TRIM .

3. Remove the RAM (A) after loosening the 7 connectors and the 3 RAM mounting bolts (A).

Fig. 55: Identifying Ram Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

DTC CODES



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 62

© 2006 Mitchell Repair Information Company, LLC.

DTC B1102 BATTERY VOLTAGE LOW

COMPONENT LOCATION

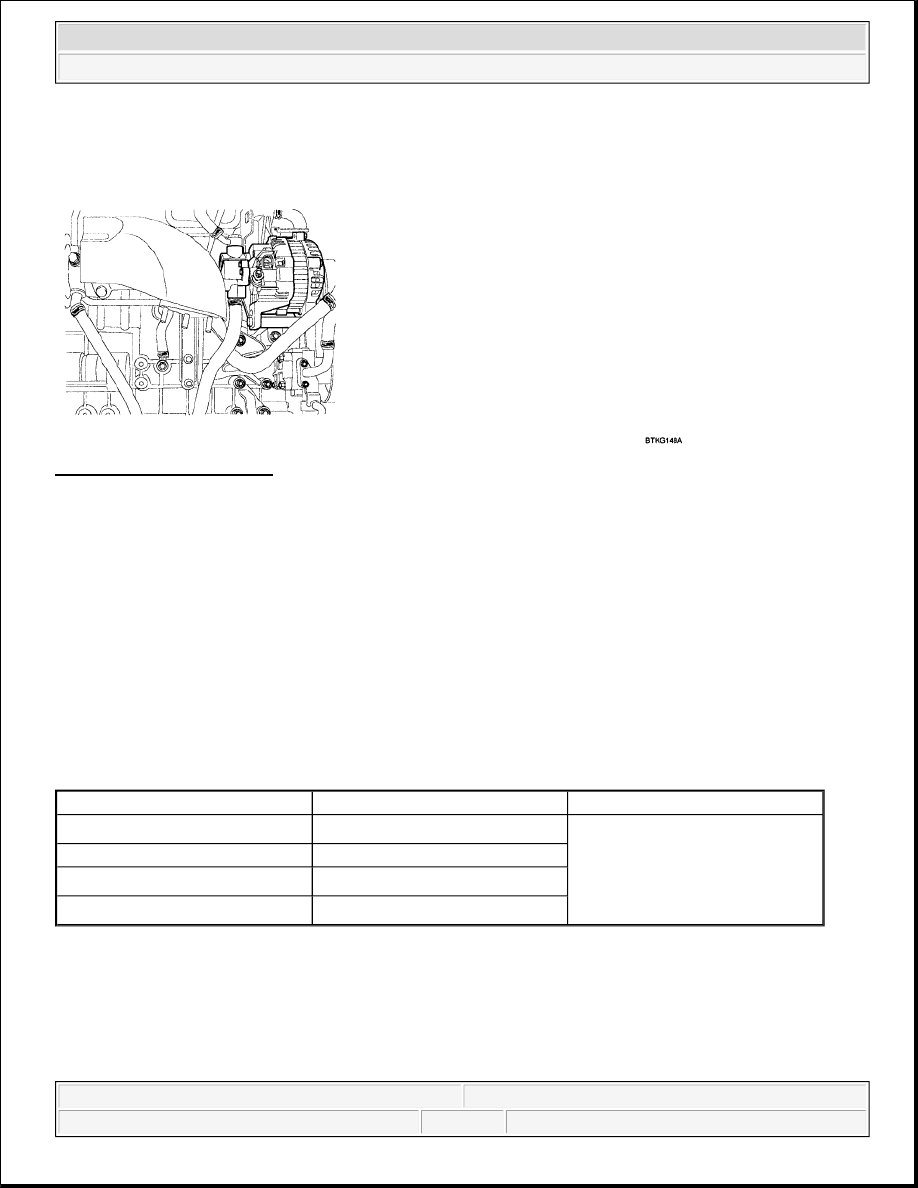

Fig. 56: Locating Alternator
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

IPM is a component of BCM that consists of DDM, ADM, FAM, RAM, IMS and cluster module. Each
component of BCM controls relative unit and share information by CAN communication line. IPM is
abbreviation of Instrument Panel Module, it is located at the lower part of steering column and controls front
area electronic unit.

DTC DESCRIPTION

The ECM sets DTC B1102 if voltage measured at IPM power line is less than threshold value.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Select "Diagnostic Trouble Codes (DTCs)" mode and monitor "DTC Status" parameter.

4. Is the DTC B1102 present?

Item

Detecting Condition

Possible Cause

DTC Strategy

Check voltage

-

Enable Conditions

-

Threshold value

9V

Detecting time

500 msec



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 63

© 2006 Mitchell Repair Information Company, LLC.

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness and terminals.

Faults can also be caused by interference from other electrical systems, and mechanical or chemical
damage.

2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,

deterioration, or damage.

3. Has a problem been found?

YES

Repair as necessary and go to "VERIFICATION VEHICLE REPAIR" procedure.

NO

Go to POWER SUPPLY CIRCUIT INSPECTION procedure.

POWER SUPPLY CIRCUIT INSPECTION

1. Check sensing terminal of alternator.

1. IGN: OFF

2. Disconnect alternator connector

3. IGN: ON

4. Measure voltage value between terminal "C01-1" of alternator and chassis ground.

Specification: 11.5-13.5V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 64

© 2006 Mitchell Repair Information Company, LLC.
