SCHEMATIC DIAGRAM

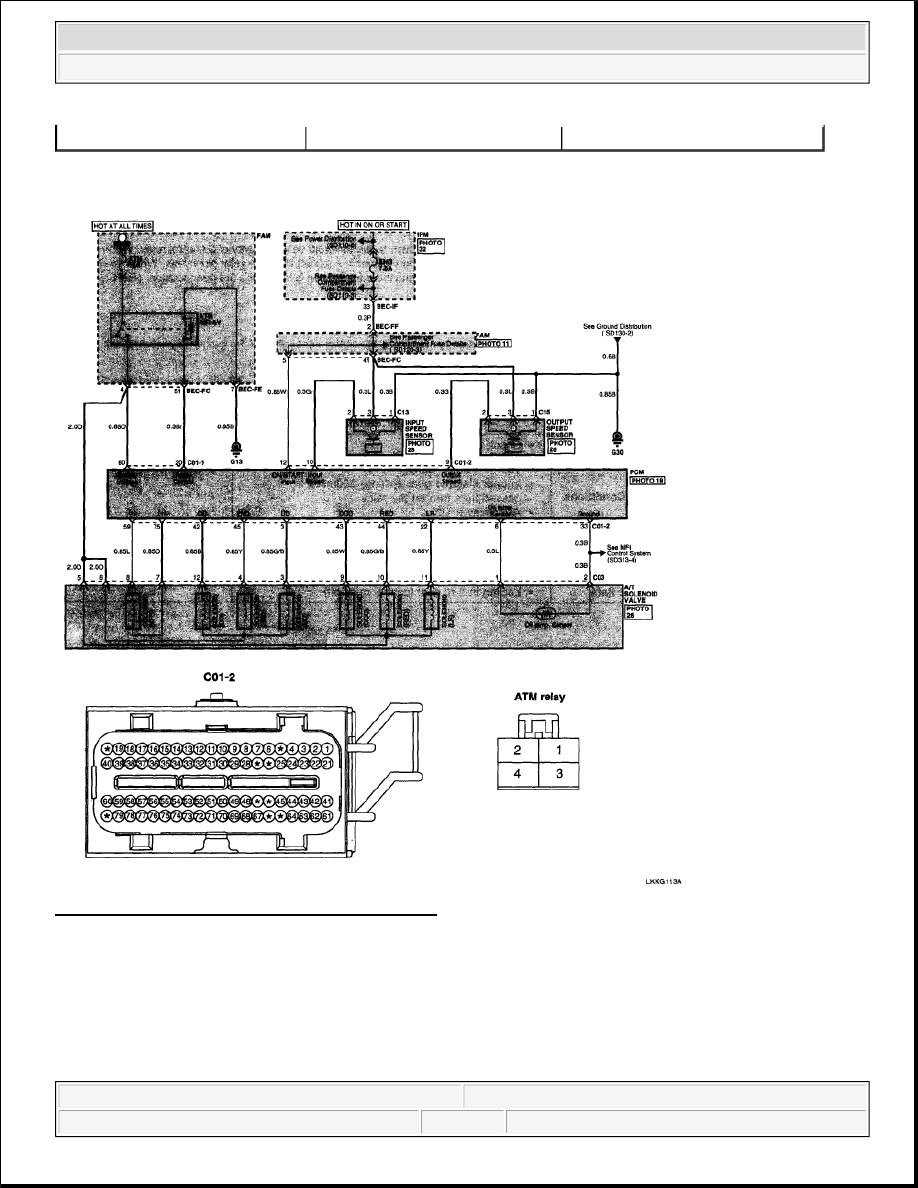

Fig. 118: A/T Relay Circuit Malfunction Diagram
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

1. Connect scan tool to data link connector (DLC).

2. Ignition "ON" & Engine "OFF".

3. Monitor the "A/T CON. RELAY VOLT" parameter on the scan tool.

relay off)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 135

© 2006 Mitchell Repair Information Company, LLC.

Specification: Approx. B+

Fig. 119: Scan Tool Display - A/T Con. Relay Volt
Courtesy of KIA MOTORS AMERICA, INC.

4. Is A/T RELAY VOLT within specifications?

YES



Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was
repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness,
poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as
necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Go to "TERMINAL & CONNECTOR INSPECTION" procedure.

TERMINAL & CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness and terminal condition. Faults can

also be caused by interference from other electrical systems, and mechanical or chemical damage.

2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,

deterioration, or damage.

3. Has a problem been found?

YES



Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Go to "POWER CIRCUIT INSPECTION" procedure.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 136

© 2006 Mitchell Repair Information Company, LLC.

POWER SUPPLY CIRCUIT INSPECTION

1. Ignition "ON" & Engine "OFF".

2. Disconnect the "A/T CONTROL RELAY" connector.

3. Measure the voltage between terminal "1" of the "A/T CONTROL RELAY" harness connector and

chassis ground.

Specification: Approx. B+

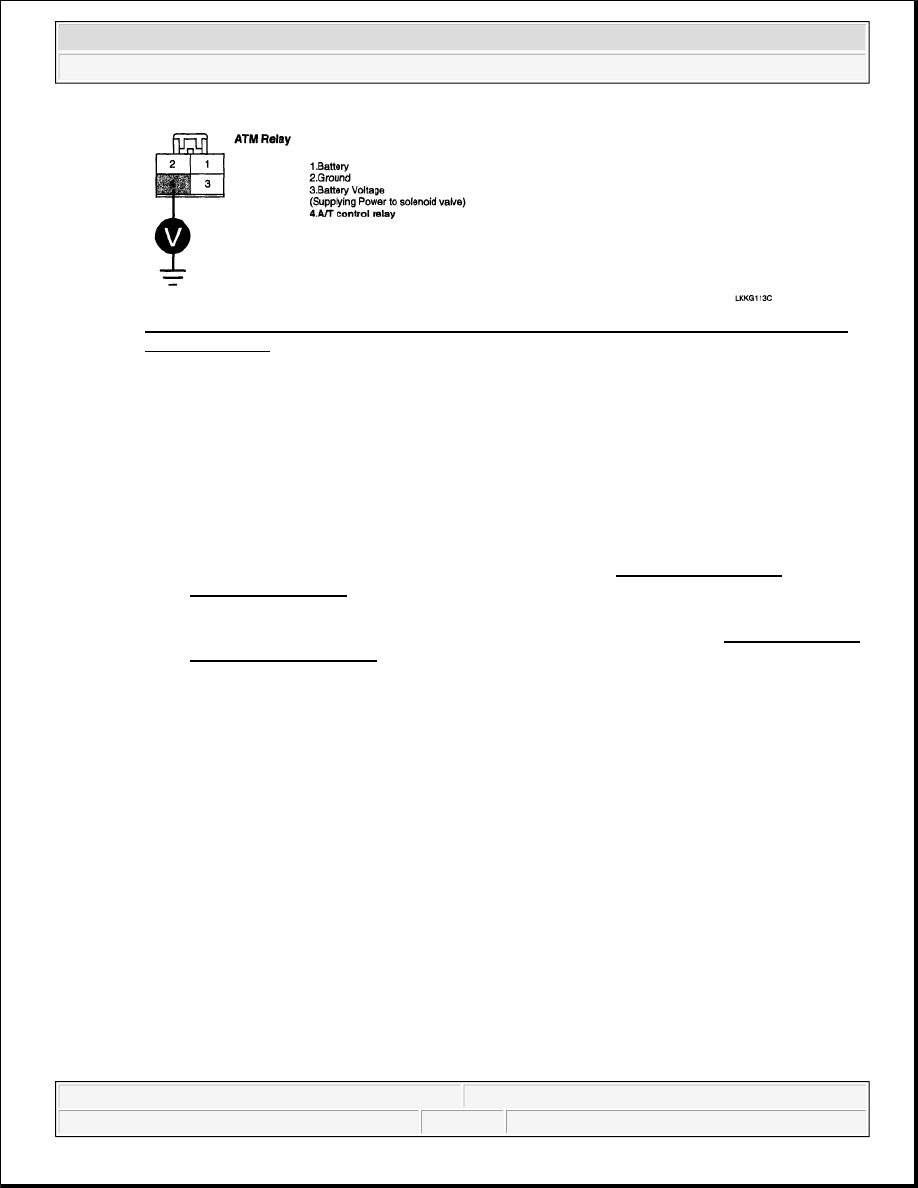

Fig. 120: Measuring Voltage Between Terminal A/T Control Relay Harness Connector And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is voltage within specifications?

YES



Go to "SIGNAL CIRCUIT INSPECTION" procedure.

NO



Check that A/T-20A Fuse in engine room junction is installed or not blown.



Check for Open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

SIGNAL CIRCUIT INSPECTION

1. CHECK A/T control relay harness

1. Ignition "OFF".

2. Disconnect the "A/T CONTROL RELAY" connector.

3. Measure the voltage between terminal "4" of the "A/T CONTROL RELAY" harness connector and

chassis ground.

4. Turn ignition switch OFF --> ON

Specification: 12V is measured only for approx. 0.5sec



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 137

© 2006 Mitchell Repair Information Company, LLC.

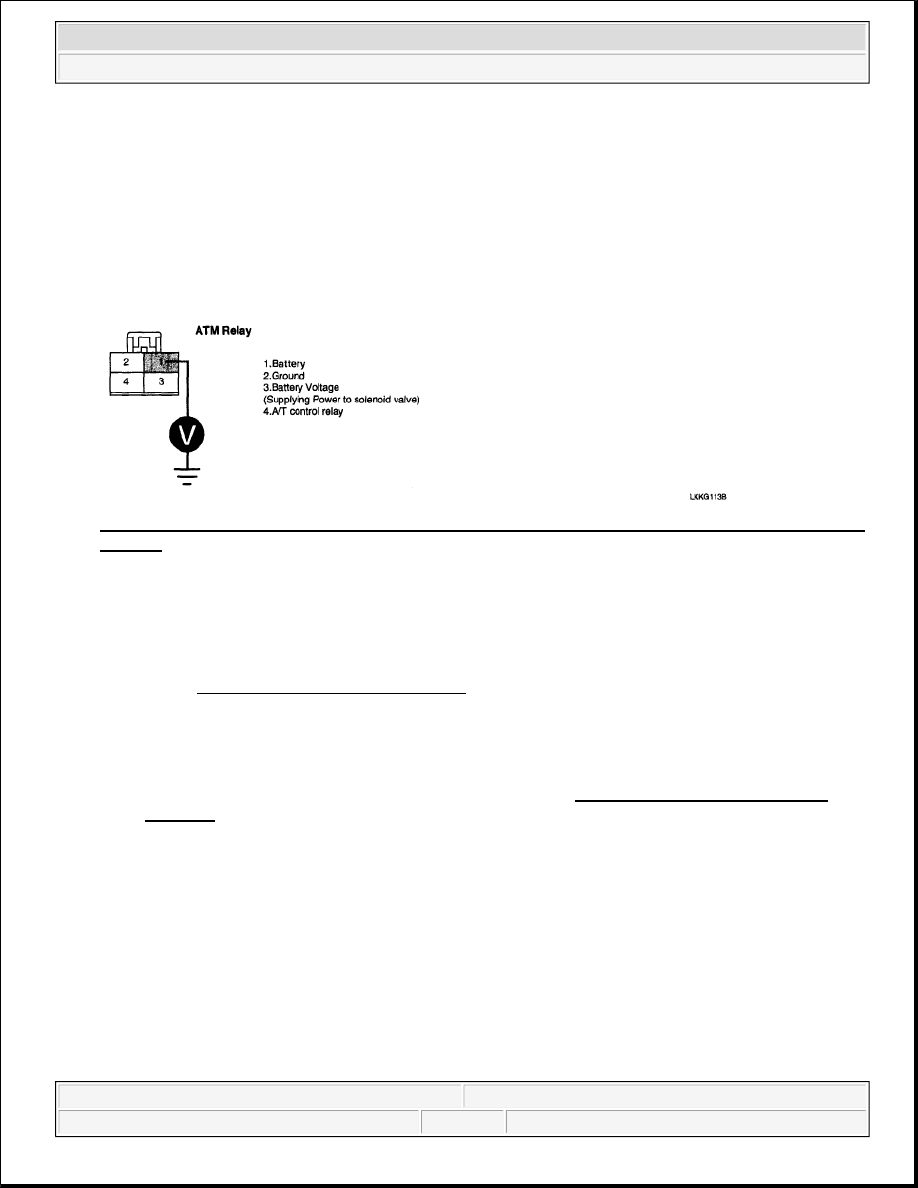

Fig. 121: Measuring Voltage Between Terminal A/T Control Relay Harness Connector And
Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

5. Is voltage within specifications?

YES



Go to step 2.

NO



Check for open in harness. Repair as necessary and Go to "VERIFICATION OF
VEHICLE REPAIR" procedure.



If signal circuit is OK, Substitute with a known-good PCM/TCM and check for proper
operation. If the problem is corrected, replace PCM/TCM and then go to "VERIFICATION
OF VEHICLE REPAIR" procedure.

2. CHECK Supplying Power to solenoid valve harness

1. Ignition "OFF".

2. Disconnect the "A/T CONTROL RELAY" and PCM/TCM connector.

3. Measure the resistance between terminal "3" of the "A/T CONTROL RELAY" harness connector

and terminal "60" of the PCM/TCM harness connector.

Specification: Approx. 0 ohms
