poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as
necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Go to "TERMINAL & CONNECTOR INSPECTION" procedure.

TERMINAL & CONNECTOR INSPECTION

Refer to DTC P0750.

POWER SUPPLY CIRCUIT INSPECTION

Refer to DTC P0750.

SIGNAL CIRCUIT INSPECTION

1. Check signal circuit open inspection

1. Ignition "OFF".

2. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

3. Measure resistance between terminal "10" of the ATM SOLENOID VALVE harness connector and

terminal "44" of the PCM/TCM harness connector.

Specification: approx. 0 ohms

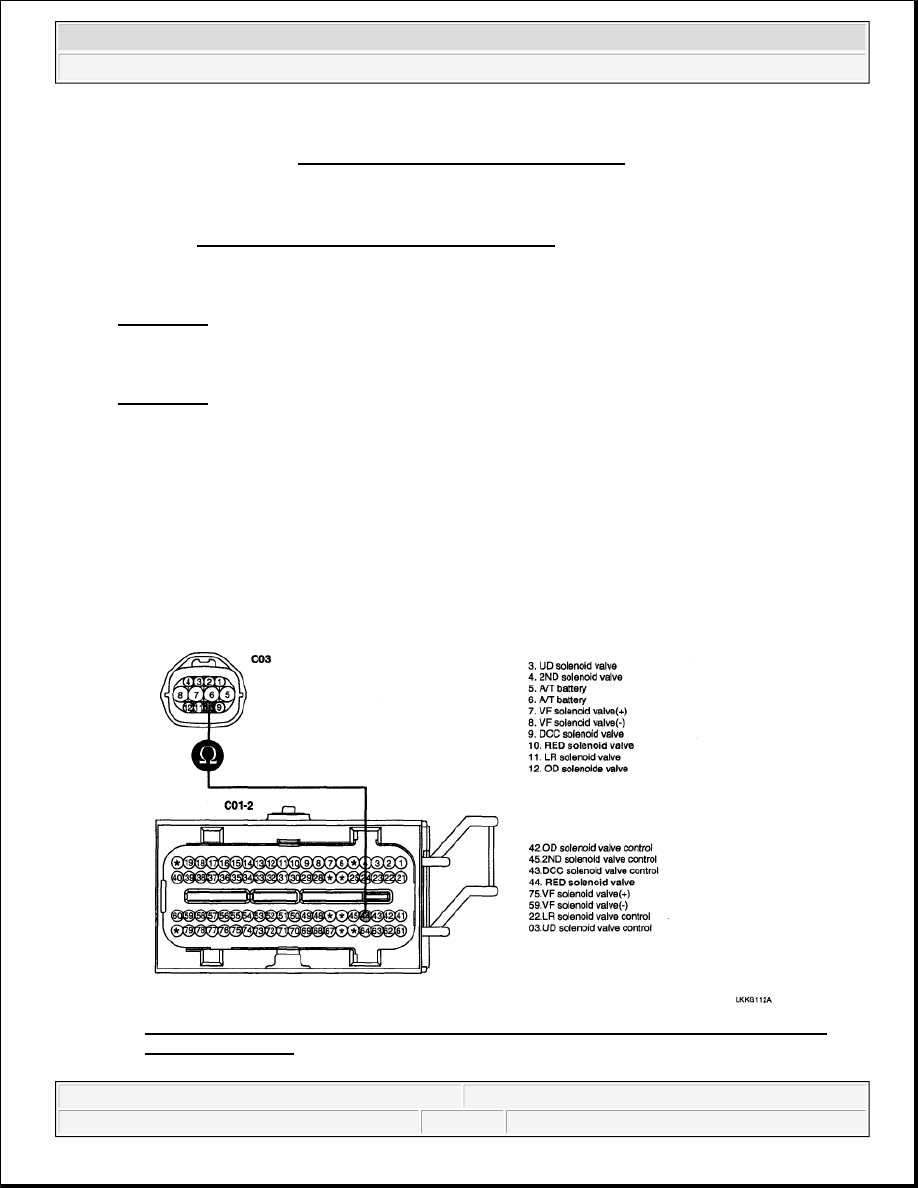

Fig. 115: Measuring Resistance Between Terminal ATM Solenoid Valve And PCM/TCM
Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 131

© 2006 Mitchell Repair Information Company, LLC.

4. Is resistance within specifications?

YES



Go to step 2.

NO



Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

2. Check signal circuit short inspection

1. Ignition "OFF".

2. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

3. Measure resistance between terminal "10" of the ATM SOLENOID VALVE harness and chassis

ground.

Specification: Infinite

Fig. 116: Measuring Resistance Between Terminal ATM Solenoid Valve Harness And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is resistance within specifications?

YES



Go to "COMPONENT INSPECTION" procedure.

NO



Check for short to ground in harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. CHECK SOLENOID VALVE



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 132

© 2006 Mitchell Repair Information Company, LLC.

1. Ignition "OFF".

2. Disconnect "A/T SOLENOID VALVE" connector.

3. Measure resistance between terminal "6" and terminal "10" of the ATM SOLENOID VALVE

harness connector.

Specification: Approximately 2.7-3.4 ohms [20°C (68°F)]

Fig. 117: Measuring Resistance Between Terminal ATM Solenoid Valve Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Is resistance within specification?

YES



Go to step 2.

NO



Replace RED SOLENOID VALVE as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. CHECK PCM/TCM

1. Connect scan tool to data link connector (DLC).

2. Ignition "ON" & Engine "OFF".

3. Select A/T solenoid valve actuator test and operate actuator test.

4. Can you hear operating sound for RED SOLENOID VALVE actuator testing function?

YES



Go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Replace PCM/TCM as necessary and go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

ACTUATOR TEST CONDITION



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 133

© 2006 Mitchell Repair Information Company, LLC.

1. IG SWITCH ON

2. TRANSAXLE RANGE SWITCH is normal

3. P RANGE

4. Vehicle Speed 0mph (0km/h)

5. Throttle position sensor < 1V

6. IDLE SWITCH ON

7. ENGINE RPM 0

VERIFICATION OF VEHICLE REPAIR

Refer to DTC P0750.

DTC P0885 A/T RELAY CIRCUIT MALFUNCTION

GENERAL DESCRIPTION

The HIVEC Automatic Transmission supplies the power to the solenoid valves by way of a control relay. When
the TCM sets the relay to ON, the relay operates and the battery power is supplied to all the solenoid valves.
When the TCM sets the relay to OFF, all solenoid valve power is shut off and the transmission is held in the 3rd
gear position. (Fail Safe Mode).

DTC DESCRIPTION

The TCM checks the A/T control relay signal by monitoring the control signal. If, after the ignition key is
turned on, a voltage value that is out of specification is detected, the TCM sets this code.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

Item

Detecting Condition

Possible cause

DTC Strategy



Check voltage range



Open or short in circuit



Faulty A/T control relay



Faulty PCM/TCM

Enable Conditions



16V > Voltage Battery >
11V



In gear state (no gear
shifting) 500msec is passed
from turn on the relay



A/T Relay = ON



Engine state = RUN

Threshold value



16V > Voltage Battery >
11V

Diagnostic Time



1 second

Fail Safe



Locked in 3rd gear (control
