1. Connect the Dummy and the Dummy Adapter on PAB harness connector.

2. Measure resistance between the terminal 7 and 8 of SRSCM harness connector (A).

Specification (resistance): 1.6-4.7 ohms

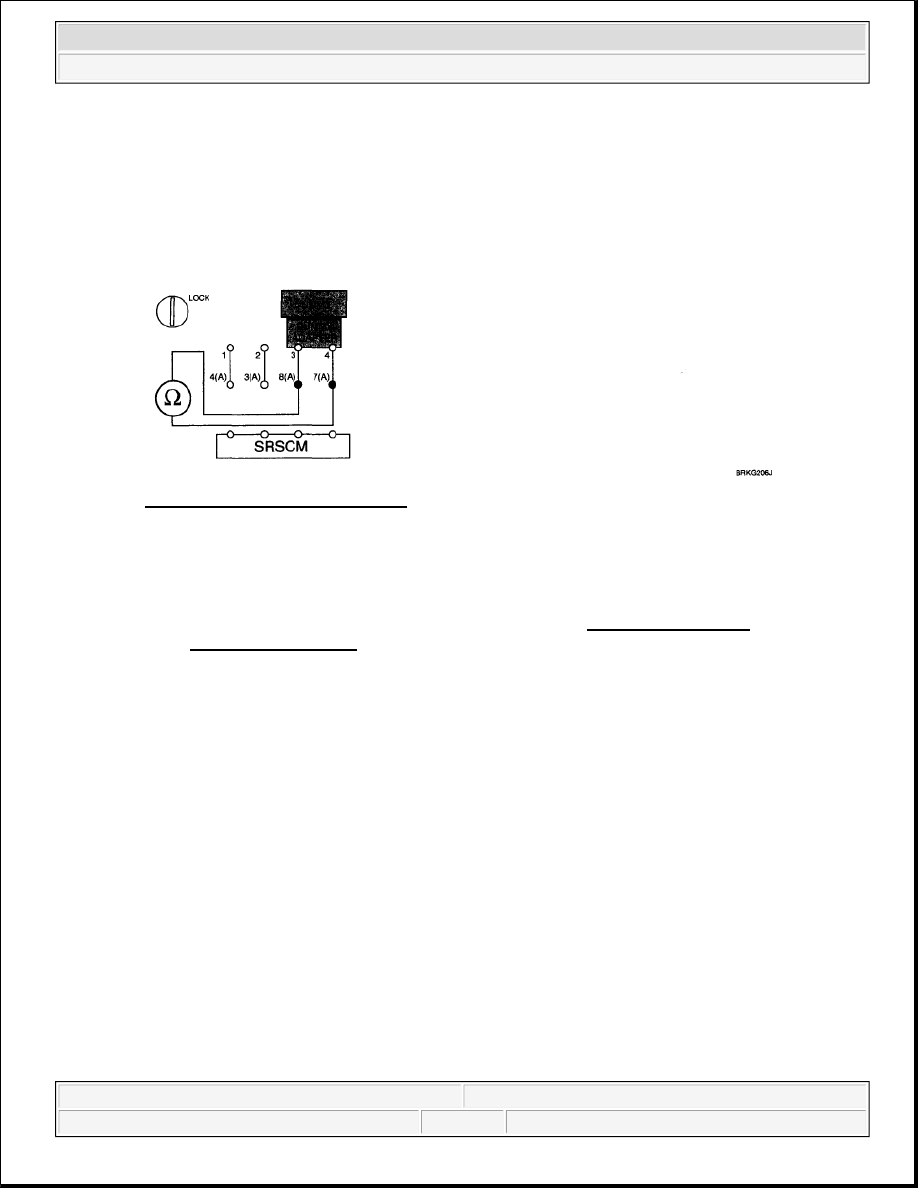

Fig. 71: Checking PAB Resistance

3. Is the measured resistance within specification?

YES



Replace the Passenger Airbag (PAB) module. Refer to AIR BAG MODULE
(PASSENGER SIDE) .

NO



Check open circuit.

3. CHECK OPEN CIRCUIT

1. Measure resistance between the terminal 3 of PAB harness connector and the terminal 8 of SRSCM

harness connector (A).

2. Measure resistance between the terminal 4 of PAB harness connector and the terminal 7 of SRSCM

harness connector (A).

Specification (resistance): below 1 ohms

(squib) even if you are using the specified tester.



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:02 PM

Page 79

© 2006 Mitchell Repair Information Company, LLC.

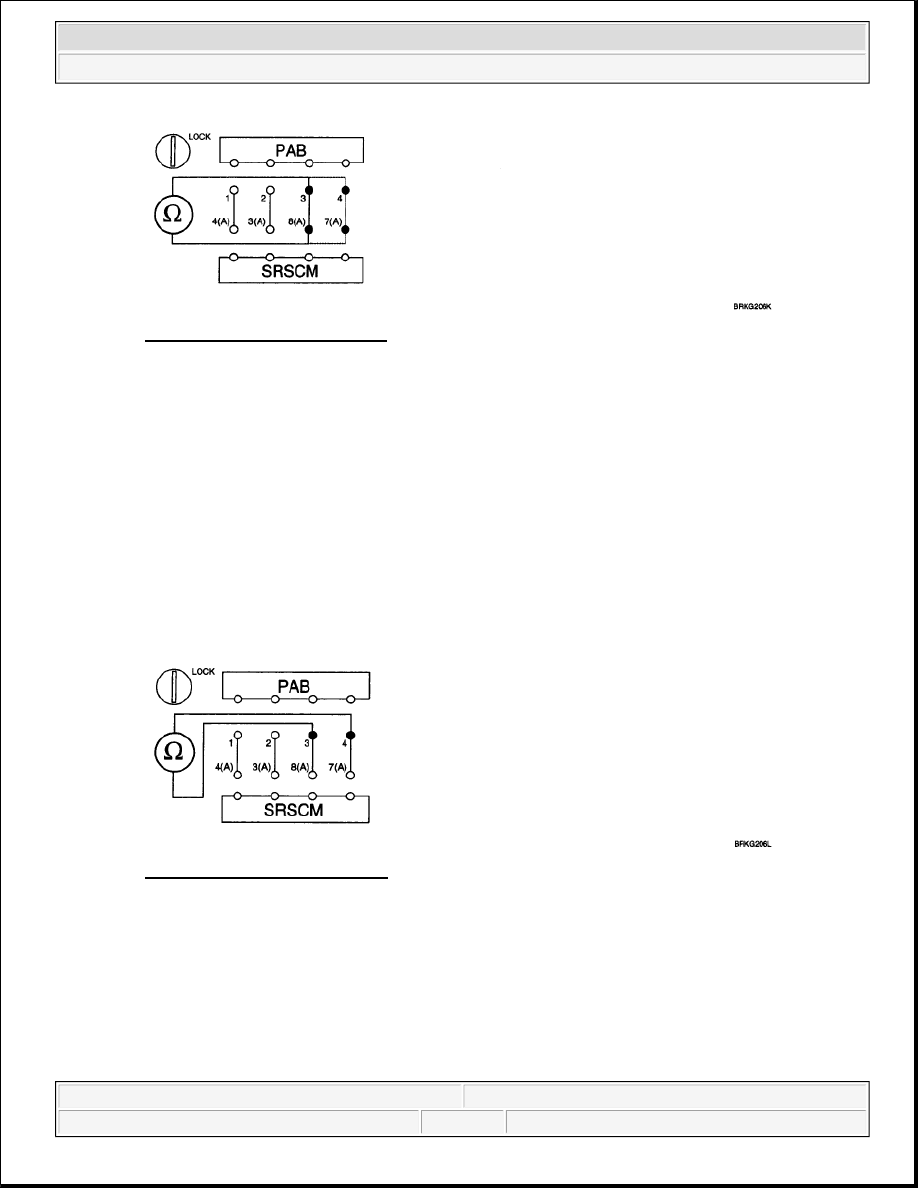

Fig. 72: Checking Open Circuit

3. Is the measured resistance within specification?

YES



Check short circuit.

NO



Repair or replace the wiring harness between the PAB and the SRSCM.

4. CHECK SHORT CIRCUIT

1. Measure resistance between the terminal 3 and 4 of PAB harness connector.

Specification (resistance): infinite

Fig. 73: Checking Short Circuit

2. Is the measured resistance within specification?

YES



Go to next step.

NO



Repair or replace the wiring harness between the PAB and the SRSCM.



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:02 PM

Page 80

© 2006 Mitchell Repair Information Company, LLC.

5. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN

Refer to CLEAR THE DTC AND CHECK THE VEHICLE AGAIN.

DTC B1511 SEAT BELT BUCKLE SWITCH [DRIVER] OPEN OR SHORT TO BATTERY; DTC
B1513 SEAT BELT BUCKLE SWITCH [PASSENGER] OPEN OR SHORT TO BATTERY

DTC DESCRIPTION

The Seat Belt Buckle Switch (BS) circuit consists of the SRSCM and two BS. The SRSCM sets above DTC (s)
if it detects open or short to battery line on the BS circuit. This system decides whether the driver or passenger
seat belt is buckled or not.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

SCHEMATIC DIAGRAM

DTC

Condition

Probable cause

B1511
B1513



Open between BS and SRSCM (Current | <
2.98 mA).



Short to battery line between BS and SRSCM
(Current | < 2.98 mA)



Seat Belt Buckle Switch (BS) Malfunction



SRSCM Malfunction



Open or short to battery line circuit
on wiring harness



Seat Belt Buckle Switch (BS)



SRSCM



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:02 PM

Page 81

© 2006 Mitchell Repair Information Company, LLC.

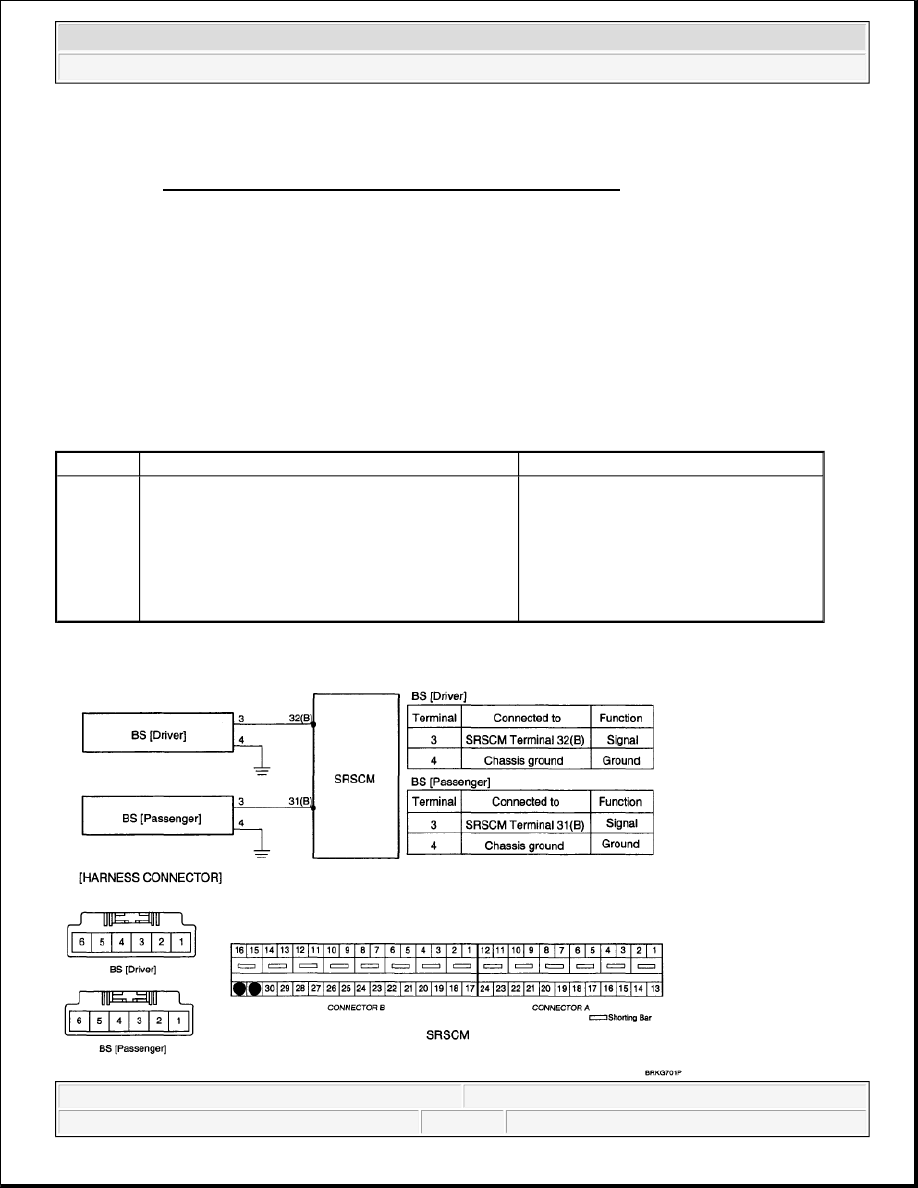

Fig. 74: Seat Belt Buckle Switch - Schematic Diagram

SPECIFICATION

SEAT BELT BUCKLE SWITCH CURRENT SPECIFICATION

TERMINAL & CONNECTOR INSPECTION

Refer to TERMINAL & CONNECTOR INSPECTION.

INSPECTION PROCEDURE

1. PREPARATION

Refer to PREPARATION OF INSPECTION.

2. CHECK OPEN CIRCUIT

1. Disconnect the BS connector.

2. Measure resistance between the terminal 3 of BS harness connector and the terminal 32 (31) of

SRSCM harness connector (B).

specification (Resistance): below 1 ohms

Fig. 75: Checking Open Circuit

3. Is the measured resistance within specification?

YES



Go to next step.

BS Status

Current (mA)

Related DTC

Open or Short to Battery

< 2.98

B1511, B1513

Unbuckled

4-7



Defect

8.9-9.7

B1515, B1516

Buckled

12-18



Short or Short to Ground

> 22.0

B1512, B1514
