Kia Sedona (2008 year). Manual - part 68

Fig. 66: Driver Airbag - Schematic Diagram

SPECIFICATION

DAB resistance: 1.6-4.7 ohms

TERMINAL & CONNECTOR INSPECTION

Refer to TERMINAL & CONNECTOR INSPECTION.

INSPECTION PROCEDURE

1. PREPARATION

Refer to PREPARATION OF INSPECTION.

2. CHECK DAB RESISTANCE

1. Connect the Dummy and the Dummy Adapter on DAB harness connector.

2. Measure resistance between the terminal 9 and 10 of SRSCM harness connector (A).

Specification (resistance): 1.6-4.7 ohms

CAUTION: Never attempt to measure the circuit resistance of the airbag module

(squib) even if you are using the specified tester.



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:02 PM

Page 75

© 2006 Mitchell Repair Information Company, LLC.

Fig. 67: Checking DAB Resistance

3. Is the measured resistance within specification?

YES



Check open circuit.

NO



Replace the Driver Airbag (DAB) module.

3. CHECK OPEN CIRCUIT

1. Measure resistance between the terminal 2 of DAB harness connector and the terminal 9 of

SRSCM harness connector (A).

2. Measure resistance between the terminal 1 of DAB harness connector and the terminal 10 of

SRSCM harness connector (A).

Specification (resistance): below 1 ohms

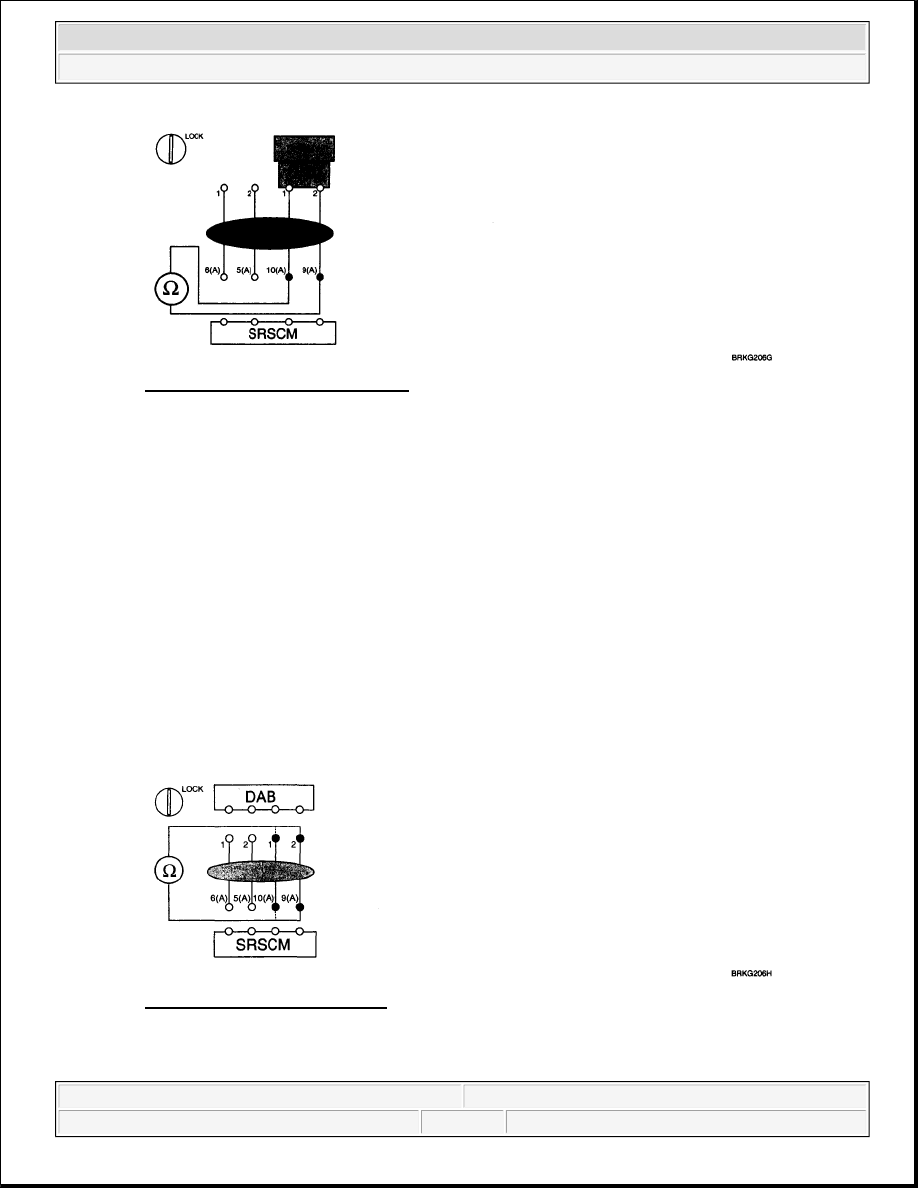

Fig. 68: Checking Open Circuit

3. Is the measured resistance within specification?



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:02 PM

Page 76

© 2006 Mitchell Repair Information Company, LLC.

YES



Check short circuit.

NO



Repair or replace the wiring harness between the DAB and the clockspring or between the
clockspring and the SRSCM.

4. CHECK SHORT CIRCUIT

1. Measure resistance between the terminal 1 and 2 of DAB harness connector.

Specification (resistance): ohms

Fig. 69: Checking Short Circuit

2. Is the measured resistance within specification?

YES



Go to next step.

NO



Repair or replace the wiring harness between the DAB and the clockspring or between the
clockspring and the SRSCM.

5. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN

Refer to CLEAR THE DTC AND CHECK THE VEHICLE AGAIN.

DTC B1485 (2ND STAGE) PASSENGER AIRBAG RESISTANCE TOO HIGH; DTC B1486 (2ND
STAGE) PASSENGER AIRBAG RESISTANCE TOO LOW

DTC DESCRIPTION

The Passenger Airbag circuit consists of the SRSCM and the Passenger Airbag (PAB) which has two squib
circuits. The SRSCM sets above DTC (s) if it detects that the resistance of PAB squib is too high or low.



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:02 PM

Page 77

© 2006 Mitchell Repair Information Company, LLC.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

SCHEMATIC DIAGRAM

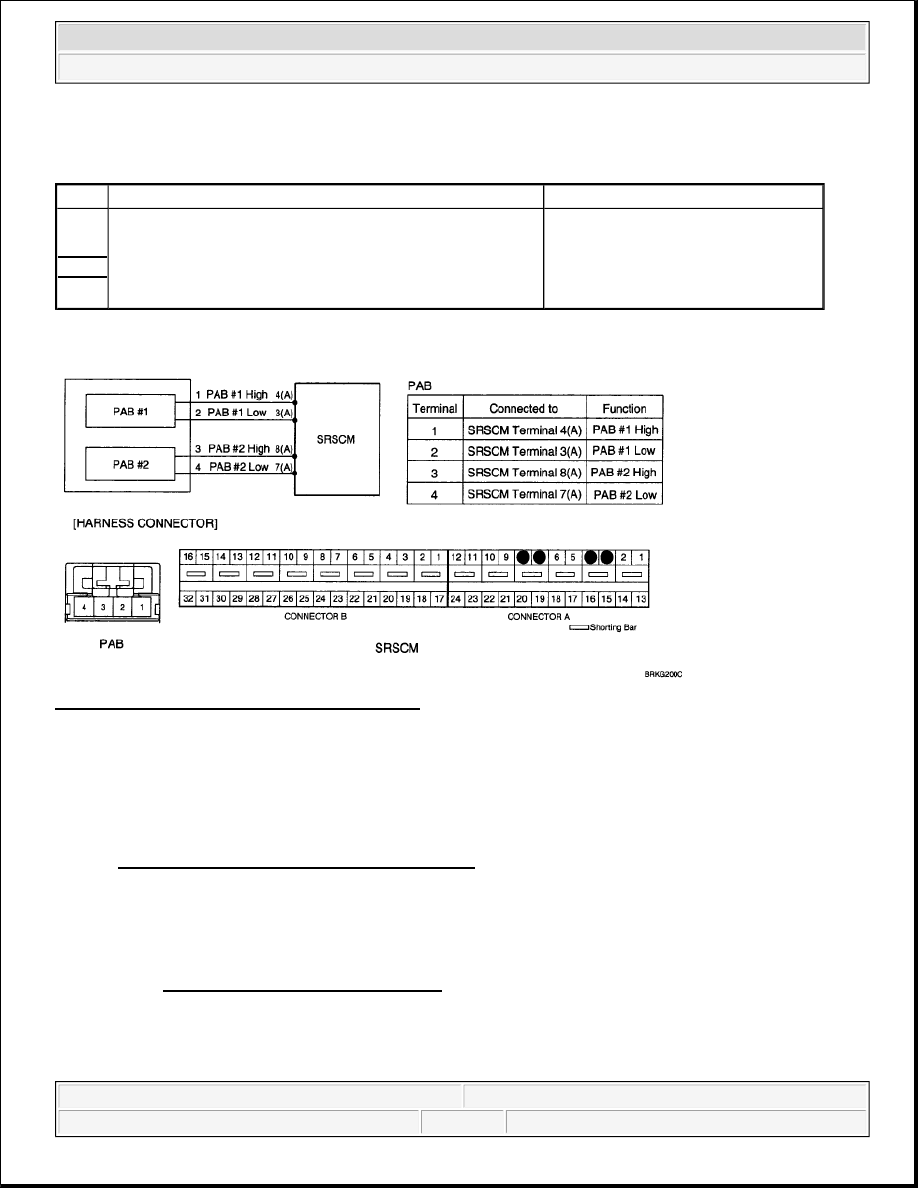

Fig. 70: Passenger Airbag - Schematic Diagram

SPECIFICATION

PAB resistance: 1.6-4.7 ohms

TERMINAL & CONNECTOR INSPECTION

Refer to TERMINAL & CONNECTOR INSPECTION.

INSPECTION PROCEDURE

1. PREPARATION

Refer to PREPARATION OF INSPECTION.

2. CHECK PAB RESISTANCE

DTC

Condition

Probable cause

B1485
B1486



Too high or low resistance between PAB high (+)
and PAB low (-)



Passenger Airbag (PAB) Malfunction



SRSCM Malfunction



Open or short circuit on wiring
harness



Passenger Airbag (PAB) squib



SRSCM

CAUTION: Never attempt to measure the circuit resistance of the airbag module
