The Side Impact Sensor (SIS) system consists of two front SIS which are installed inside the Center Pillar (LH
and RH). They are remote sensors that detect acceleration due to collision at their mounting locations. The
primary purpose of the Side Impact Sensor (SIS) is to provide an indication of a collision. The Side Impact
Sensor (SIS) sends acceleration data to the SRSCM.

COMPONENTS

Fig. 3: Identifying Front And Rear Side Impact Sensors
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

FRONT SIDE IMPACT SENSOR



2008 Kia Sedona EX

2008 RESTRAINTS SRS Control System - Sedona



Microsoft



Monday, May 24, 2010 3:54:16 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

2. Remove the door scuff trim. Refer to INTERIOR TRIM .

3. Remove the center pillar trim. Refer to INTERIOR TRIM .

4. Disconnect the Side Impact Sensor connector.

5. Remove the SIS mounting bolt then remove the Side Impact Sensor.

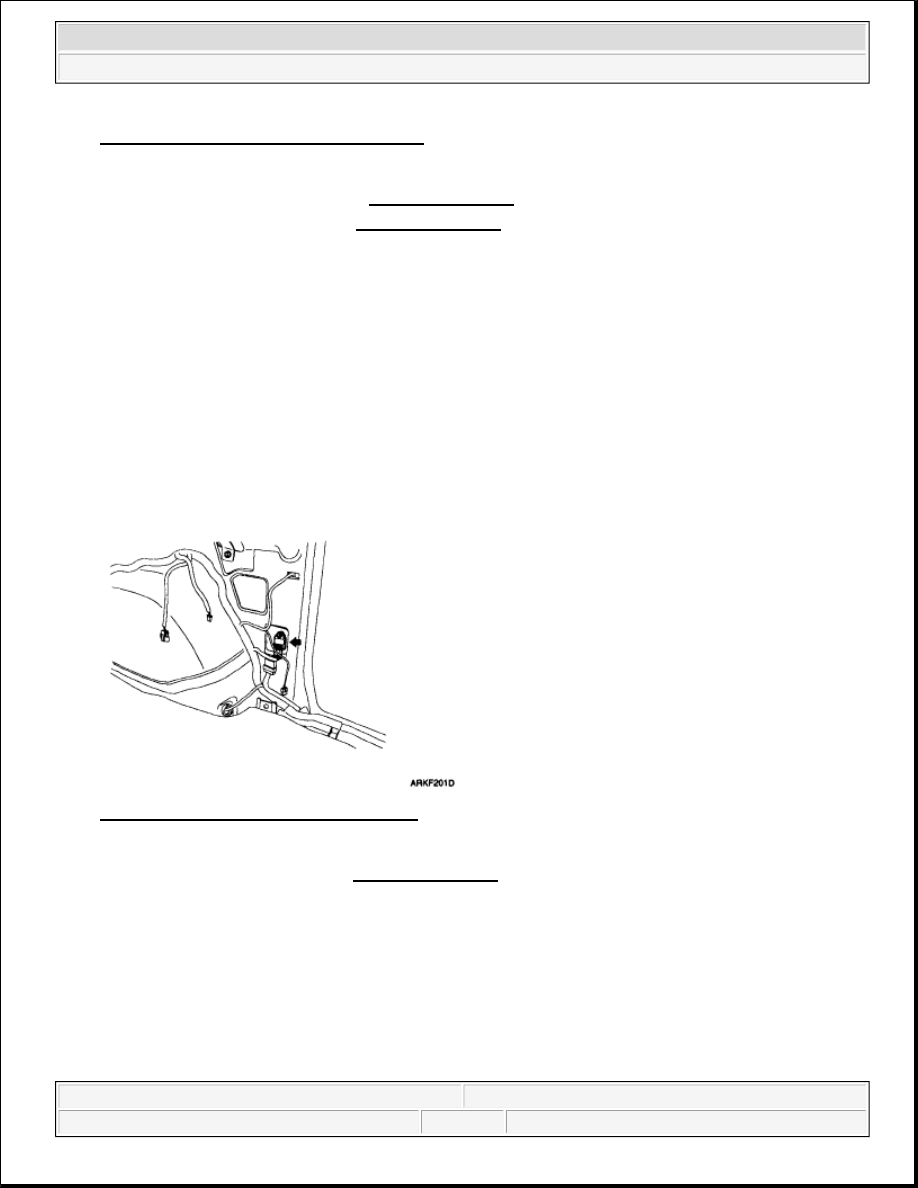

Fig. 4: Locating Front Side Impact Sensor
Courtesy of KIA MOTORS AMERICA, INC.

REAR SIDE IMPACT SENSOR

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

2. Remove the rear pillar trim. Refer to INTERIOR TRIM .

3. Disconnect the Side Impact Sensor connector.

4. Remove the SIS mounting bolt then remove the Side Impact Sensor.

CAUTION:



Removal of the airbag must be performed according to the
precautions/procedures described previously.



Before disconnecting the side impact sensor connector(s),
disconnect the side airbag connector(s).



Do not turn the ignition switch ON and do not connect the battery
cable while replacing the side impact sensor.



2008 Kia Sedona EX

2008 RESTRAINTS SRS Control System - Sedona



Microsoft



Monday, May 24, 2010 3:54:16 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

Fig. 5: Locating Rear Side Impact Sensor
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

FRONT SIDE IMPACT SENSOR

1. Install the new Side Impact Sensor with the bolt then connect the SRS harness connector to the Side

Impact Sensor.

Tightening torque:

1.0-1.4 kgf.m (9.5-13.6 N.m, 7.0-10.0 lb.ft)

CAUTION:



Ensure that the harness is installed and routed properly to prevent
damage to the wiring.



Do not turn the ignition switch ON and do not connect the battery
cable while replacing the side impact sensor.



2008 Kia Sedona EX

2008 RESTRAINTS SRS Control System - Sedona



Microsoft



Monday, May 24, 2010 3:54:16 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

Fig. 6: Locating Front Side Impact Sensor
Courtesy of KIA MOTORS AMERICA, INC.

2. Install the center pillar trim. Refer to INTERIOR TRIM .

3. Install the door scuff trim. Refer to INTERIOR TRIM .

4. Reconnect the battery negative cable.

5. After installing the Side Impact Sensor, confirm proper system operation: Turn the ignition switch ON,

the SRS indicator light should be turned on for about six seconds and then go off.

REAR SIDE IMPACT SENSOR

1. Be sure that the battery negative cable is disconnected.

2. Install the new Side Impact Sensor with the bolt then connect the SRS harness connector to the Side

Impact Sensor.

Tightening torque:

1.0-1.4 kgf.m (9.5-13.6 N.m, 7.0-10.0 lb.ft)

Fig. 7: Locating Rear Side Impact Sensor
Courtesy of KIA MOTORS AMERICA, INC.

3. Install the rear pillar trim. Refer to INTERIOR TRIM .

4. Reconnect the battery negative cable.

5. After installing the Side Impact Sensor, confirm proper system operation: Turn the ignition switch ON,

the SRS indicator light should be turned on for about six seconds and then go off.

SEAT TRACK POSITION SENSOR (STPS)

DESCRIPTION

The STPS operates via a non-contacting magnetic proximity sensing device combined with a simple electronic
