7. Secure the Driver Airbag (DAB) with the new mounting bolts.

Tightening Torque (DAB Mounting Bolt)

: 0.8-1.1 kgf.m (7.9-10.8 N.m, 5.8-8.0 lb. ft)

Fig. 6: Locating Airbag Module Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

8. Connect the battery negative cable.

9. After installing the airbag, confirm proper system operation:



Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and
then go off.



Make sure horn button works.

INSPECTION

DRIVER AIRBAG (DAB)

If any improper parts are found during the following inspection, replace the airbag module with a new one.

1. Check pad cover for dents, cracks or deformities.

2. Check the airbag module for denting, cracking or deformation.

3. Check hooks and connectors for damage, terminals for deformities, and harness for binds.

4. Check airbag inflator case for dents, cracks or deformities.

CAUTION: Never attempt to measure the circuit resistance of the airbag module

(squib) even if you are using the specified tester. If the circuit resistance is
measured with a tester, accidental airbag deployment will result in serious
personal injury.



2008 Kia Sedona EX

2008 RESTRAINTS Air Bag Module (Driver Side) - Sedona



Microsoft



Monday, May 24, 2010 3:51:36 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

Fig. 7: Identifying Front And Rear View Of Airbag Module
Courtesy of KIA MOTORS AMERICA, INC.

5. Install the airbag module to the steering wheel to check for fit or alignment with the wheel.

CLOCKSPRING

1. If, as a result of the following checks, even one abnormal point is discovered, replace the clock spring

with a new one.

2. Check connectors and protective tube for damage, and terminals for deformities.

Fig. 8: Identifying Clock Spring
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 RESTRAINTS Air Bag Module (Driver Side) - Sedona



Microsoft



Monday, May 24, 2010 3:51:36 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

2008 RESTRAINTS

SRS Control System - Sedona

FRONT IMPACT SENSOR (FIS)

DESCRIPTION

The front impact sensors (FIS) are installed in the side member.

They are remote sensors that detect acceleration due to a collision at their mounting locations. The primary
purpose of the Front Impact Sensor (FIS) is to provide an indication of a collision. The Front Impact Sensor
(FIS) sends acceleration data to the SRSCM.

COMPONENTS

Fig. 1: Identifying Front Impact Sensor Location
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

CAUTION:



Removal of the airbag must be performed according to the
precautions/procedures described previously.



Before disconnecting the front impact sensor connector, disconnect
the front airbag connectors.



Do not turn the ignition switch ON and do not connect the battery



2008 Kia Sedona EX

2008 RESTRAINTS SRS Control System - Sedona





2008 Kia Sedona EX

2008 RESTRAINTS SRS Control System - Sedona



Microsoft



Monday, May 24, 2010 3:54:16 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 3:54:19 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

2. Disconnect Front Impact Sensor connector.

3. Remove the FIS mounting bolt then remove the Front Impact Sensor.

Fig. 2: Locating Front Impact And Sensor Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Install the new Front Impact Sensor with bolt then connect the SRS harness connector to the Front Impact

Sensor.

Tightening torque:

1.0-1.4 kgf.m (9.5-13.6 N.m, 7.0-10.0 lb.ft)

2. Reconnect the negative battery cable.

3. After installing the Front Impact Sensor, confirm proper system operation: Turn the ignition switch ON

the SRS indicator light should be turned on for about six seconds and then go off.

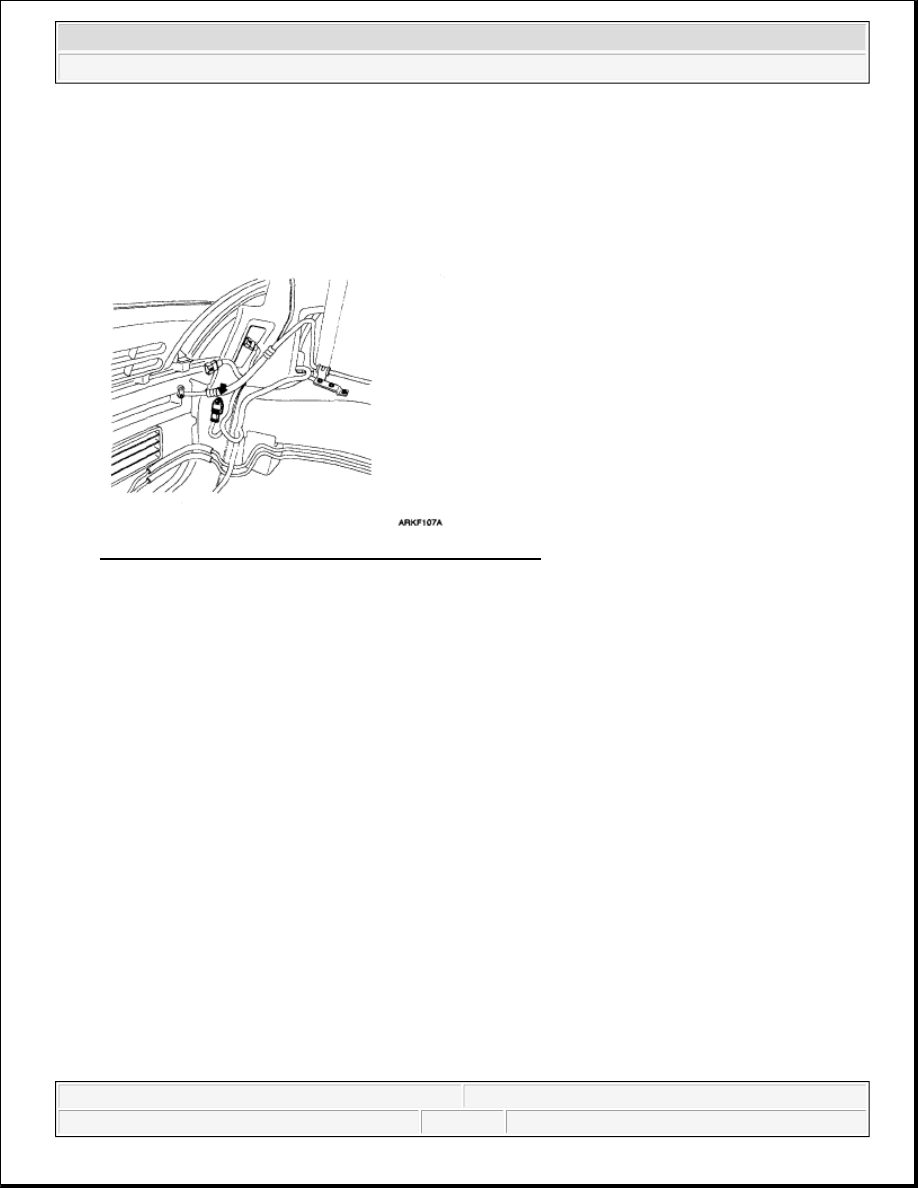

SIDE IMPACT SENSOR (SIS)

DESCRIPTION

cable while replacing the front impact sensor.

CAUTION:



Ensure that the harness is installed and routed properly to prevent
damage to the wiring.



Do not turn the ignition switch ON and do not connect the battery
cable while replacing the front impact sensor.
