Tightening torque :
Bolt A : 27~39lb-ft (37~53N·m 3.8~5.4kg-m)
Nut B : 14~19lb-ft (19~25N·m 2.0~2.6kg-m)
Nut C : 24~34lb-ft (32~46N·m 3.3~4.7kg-m)

Vehicle without power steering

1. Loosen nut A.

2. Turn adjusting bolt B and adjust deflection of drive belt to within specification.

3. Tighten nut A.

Belt

Deflection : When applying moderate pressure 22lb (98N)

New

0.31~0.35in (8~9mm)

Used

0.35~0.39in (9~10mm)

Tightening torque : Bolt A : 23~25lb-ft (31~34N·m 3.2~3.5kg-m)

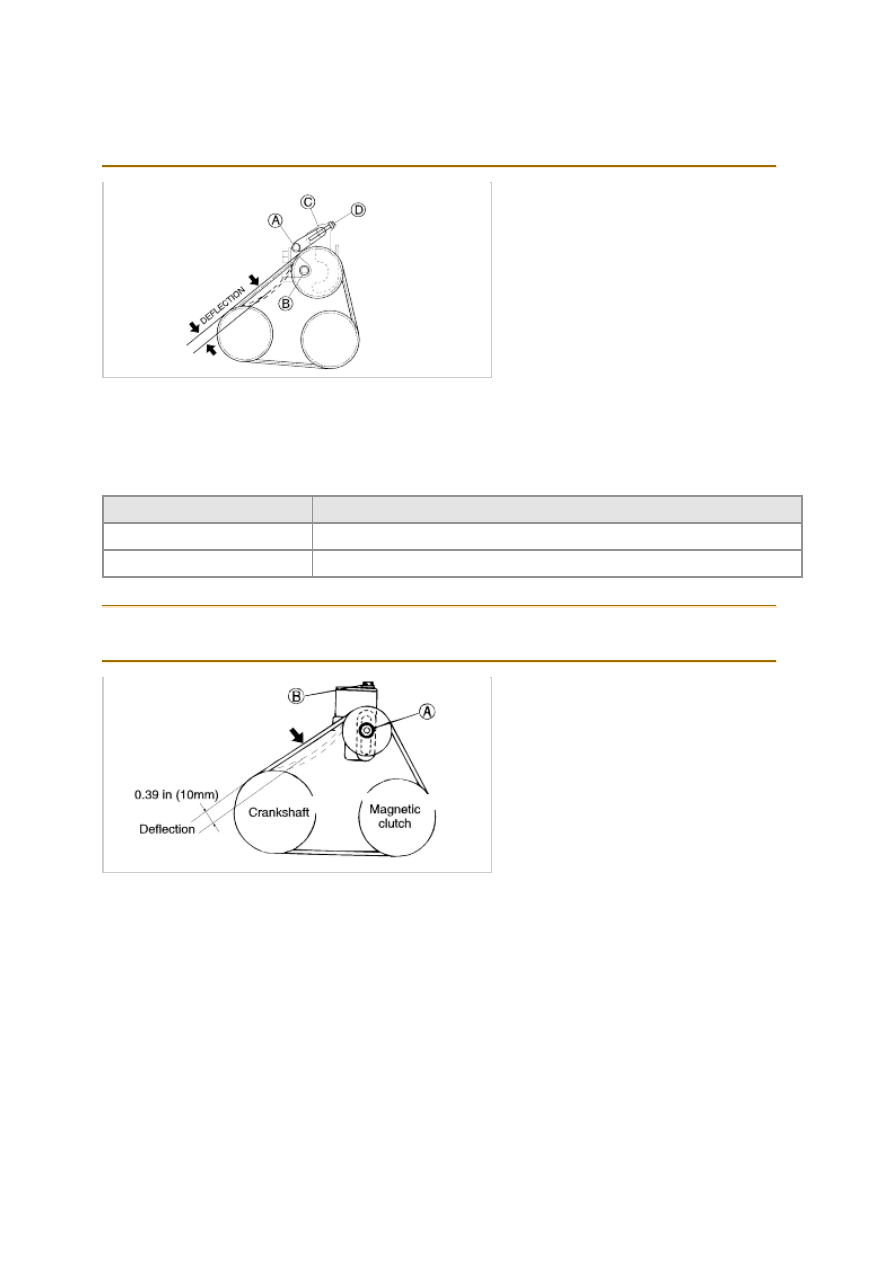

ADJUSTMENT

Adjust deflection of drive belt as follows.

VEHICLE WITH POWER STEERING

1. Loosen bolt A and nuts B and C.

2. Turn adjusting bolt D and adjust deflection of drive belt to withinspecification.

Belt

Deflection: When applying moderate pressure 22 lb (98 N)

New

0.31~0.35 in (8~9 mm)

Used

0.35~0.39 in (9~10 mm)

3. Tighten bolt A and nuts B and C.

Tightening torque:
Bolt A: 27~39 lb·ft (37~53 N·m, 3.8~5.4 kg·m)
Nut B: 14~19 lb·ft (19~25 N·m, 2.0~2.6 kg·m)
Nut C: 24~34 lb·ft (32~46 N·m, 3.3~4.7 kg·m)

VEHICLE WITHOUT POWER STEERING

1. Loosen nut A.

2. Turn adjusting bolt B and adjust deflection of drive belt to withinspecification.

3. Tighten nut A.

Belt

Deflection: When applying moderate pressure 22 lb (98 N)

New

0.31~0.35 in (8~9 mm)

Used

0.35~0.39 in (9~10 mm)

Tightening torque:
Bolt A: 23~25 lb·;ft (31~34 N·m, 3.2~3.5 kg·m)

Heating,Ventilation, Air Conditioning

Air Conditioning System - Compressor

Heating,Ventilation, Air Conditioning

  2001 > 1.8L DOHC >



COMPONENT
