Kia Carens. Manual - part 315

Heating,Ventilation, Air Conditioning

Air Conditioning System

Heating,Ventilation, Air Conditioning

  2001 > 1.8L DOHC >

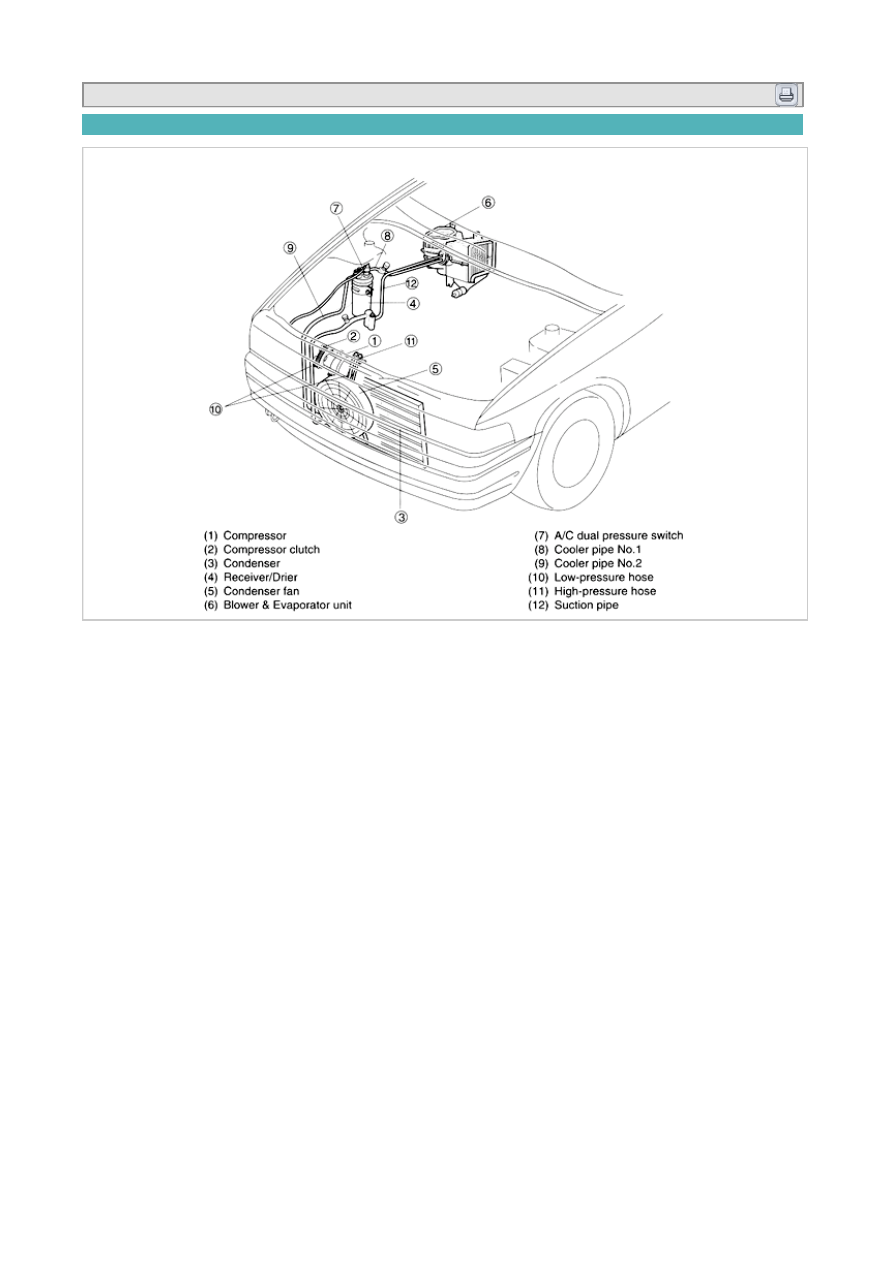

COMPONENT

Heating,Ventilation, Air Conditioning

Air Conditioning System - Drive Belt

Heating,Ventilation, Air Conditioning

  2001 > 1.8L DOHC >



REMOVAL

1. Remove drive belt as follows.

Vehicle with power steering

1. Loosen bolt A.

2. Loosen nut C.

3. Loosen nut B.

4. Loosen bolt D.

5. Remove drive belt.

Vehicle without power steering

1. Loosen nut A.

2. Loosen bolt B.

3. Remove drive belt.

INSTALLATION

Vehicle without power steering

Adjust deflection of drive belt as follows.

Vehicle with power steering

1. Loosen bolt A and nuts B and C.

2. Turn adjusting bolt D amd adjust deflection of drive belt to with specification.

Belt

Deflection : When applying moderate pressure 22lb (98N)

New

0.31~0.35in (8~9mm)

Used

0.35~0.39in (9~10mm)

3. Tighten bolt A and nuts B and C.
