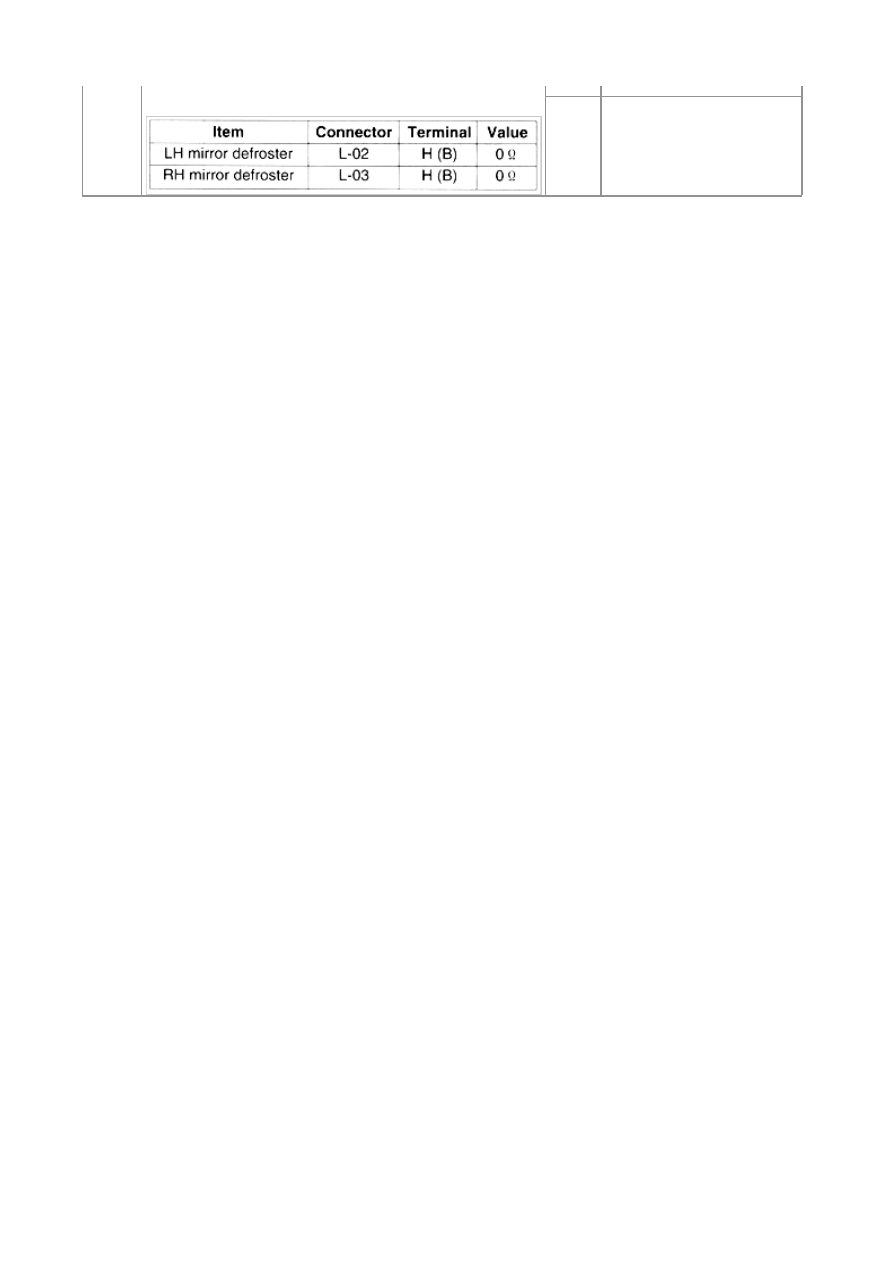

Is continuity present?

No

Check for a poor connection
at ground. If OK, repair open
in the wire "B" or replace.

Body Electrical System

Rear Window Defogger - Rear Window Defogger
Printed Heater

Body Electrical System

  2001 > 1.8L DOHC >



Inspection

Grid electrical system

1. With engine running, push defroster switch "ON".

2. Connect negative (-) terminal of a voltmeter to vehicle ground.

3. Using voltmeter positive (+) probe, test center of each grid line for about 6 volts.

4. If voltmeter reading is more than 6 volts, grid line is broken between center and grounded (GND) end.

5. If voltmeter reading is less than 6 volts, or 0 volts, grid line is broken between center and battery feed wire

end.
