Kia Carens. Manual - part 250

  2001 > 1.8L DOHC >



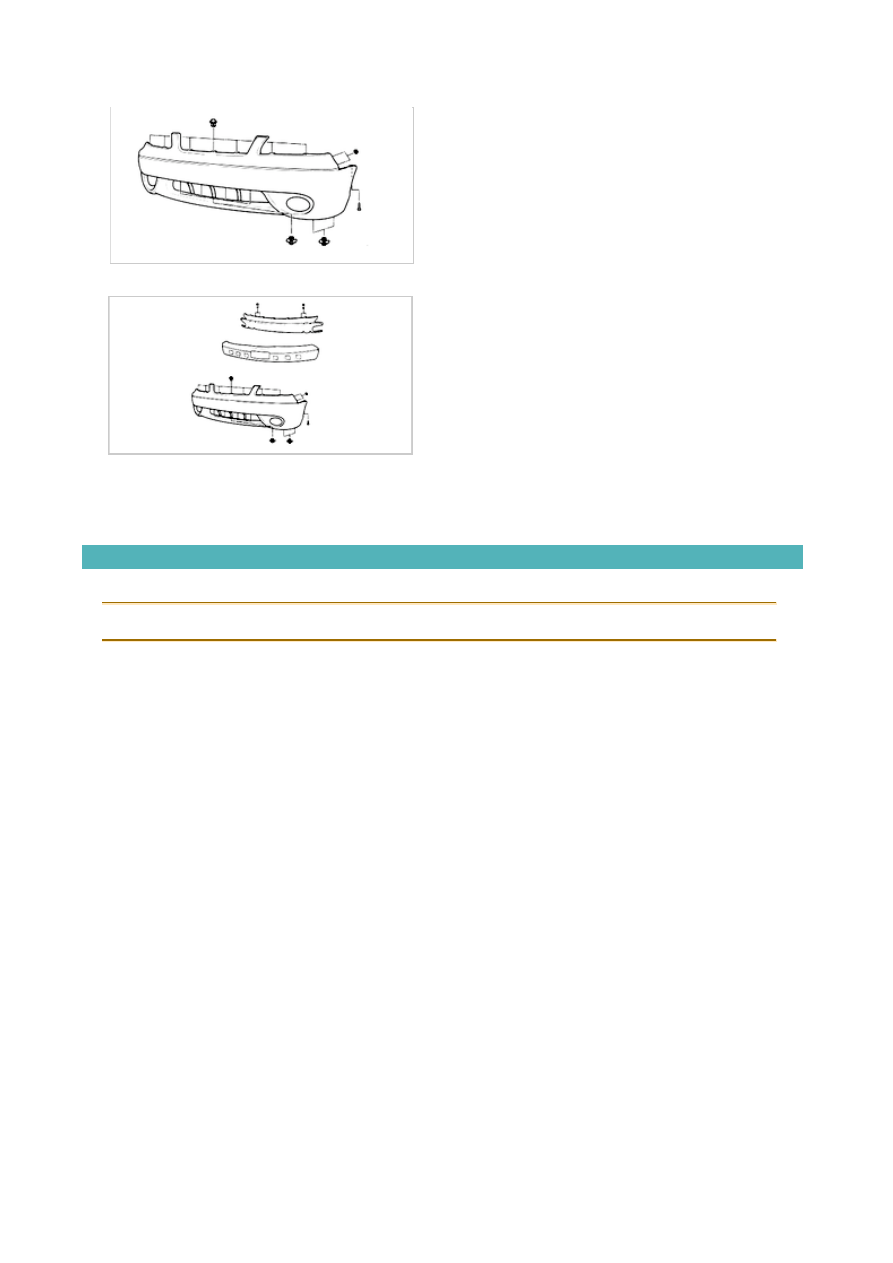

Inspection

1. Inspect front bumper face for damage and check that front bumper is securely mounted.

2. Inspect front bumper for missing attaching hardware.

Removal

1. Remove radiator grille.

2. Remove left turn signal light assembly.

3. Repeat for right side.

4. Remove left headlight assembly.

5. Repeat for right side.

6. Remove two nuts from top of left side of bumper.

7. Repeat for right side.

8. Remove thre fasteners and one screw from bottom of left mudgard.

9. With pulling mudgard, remove one screw from left side of bumper.

10. Repeat for right side.

11. Remove four fasteners from bottom of bumper.

12. Remove two bolts from left-hand bumper stay.

13. Repeat for right side.

14. Remove front bumper.

Installation

1. Install front bumper in reverse order of removal.

Tightening torque : 23~34 lb-ft 31~46 N-m, 3.2~4.7 kg-m)
