6. Remove two fasteners on front trim.

7. Remove one screw on front trim.

8. Unfasten front door trim.

9. Remove front door trim by lifting front door trim up.

10. Disconnect window operating switch connectors.

Removal

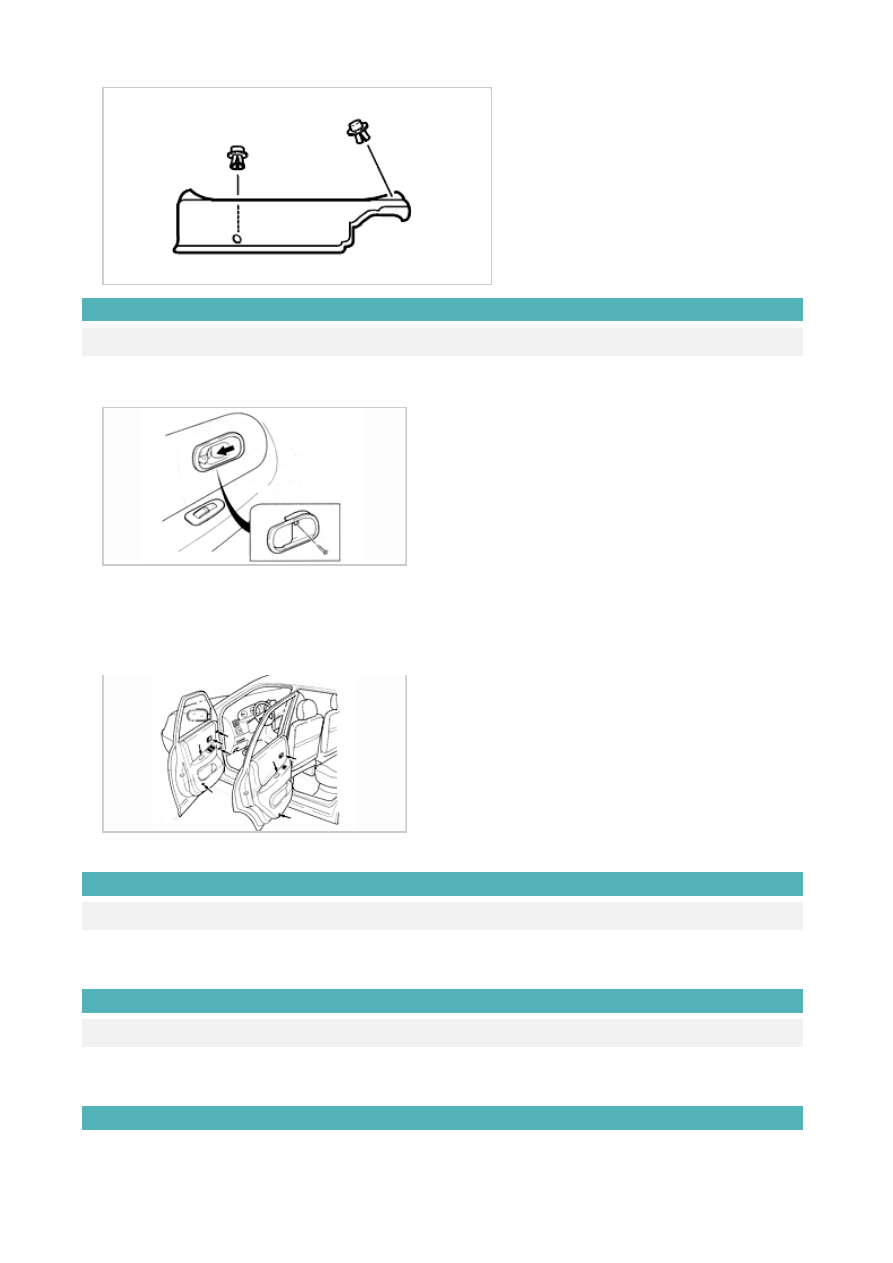

Front scuff plate

1. Remove four fasteners on front scuff plate.

2. Unfasten front scuff plate.

3. Remove front scuff plate.

Removal

Rear door trim

1. Remove one screw on inside door handle cover.

2. Remove inside door handle cover.

3. Remove one screw in pull door handle.

4. Remove pull door handle.

5. Install one screw on rear door trim.

6. Unfasten rear door trim.

7. Disconnect window operating switch connector.

Installation

A-pillar trim

1. Position A-pillar trim.

2. Press A-pillar trim into fasten clips.

Installation

B-pillar lower trim

1. Position B-pillar lower trim.

2. Press B-pillar lower trim in to fasten clips.

Installation

Front side trim

1. Position front side trim.

2. Install one fastener on front side trim.

3. Install front scuff plate.

Installation

B-pillar upper trim

1. Position B-pillar upper trim

2. Install one screw.

3. Install seat belt anchor:

A. Install one bolt on seat belt anchor.

Tightening torque : 40~47 lb-ft (54~64 N-m, 5.5~6.5 kg-m)

4. Position B-pillar lower trim.

5. Press B-pillar lower trim in to fasten clips.

Installation

C-pillar trim

1. Install C-pillar trim.

2. Install seat belt anchor.

3. Install seat belt anchor bolt.

Tightening torque : 40~47 lb-ft (54~64 N-m, 5.5~6.5 kg-m)

4. Install rear quarter trim.

5. Install two screw and one fastener from rear quarter trim.

Tightening torque : 40~47 lb-ft (54~64 N-m, 5.5~6.5 kg-m)

Installation

Footrest trim

1. Position footrest trim.

2. Install one nut.

3. Install rubber cap.

Installation

Front door trim

1. Connect window operating switch connectors.

2. Place front door trim.
