Body (Interior and Exterior)

Exterior - Mirror

Body (Interior and Exterior)

  2001 > 1.8L DOHC >

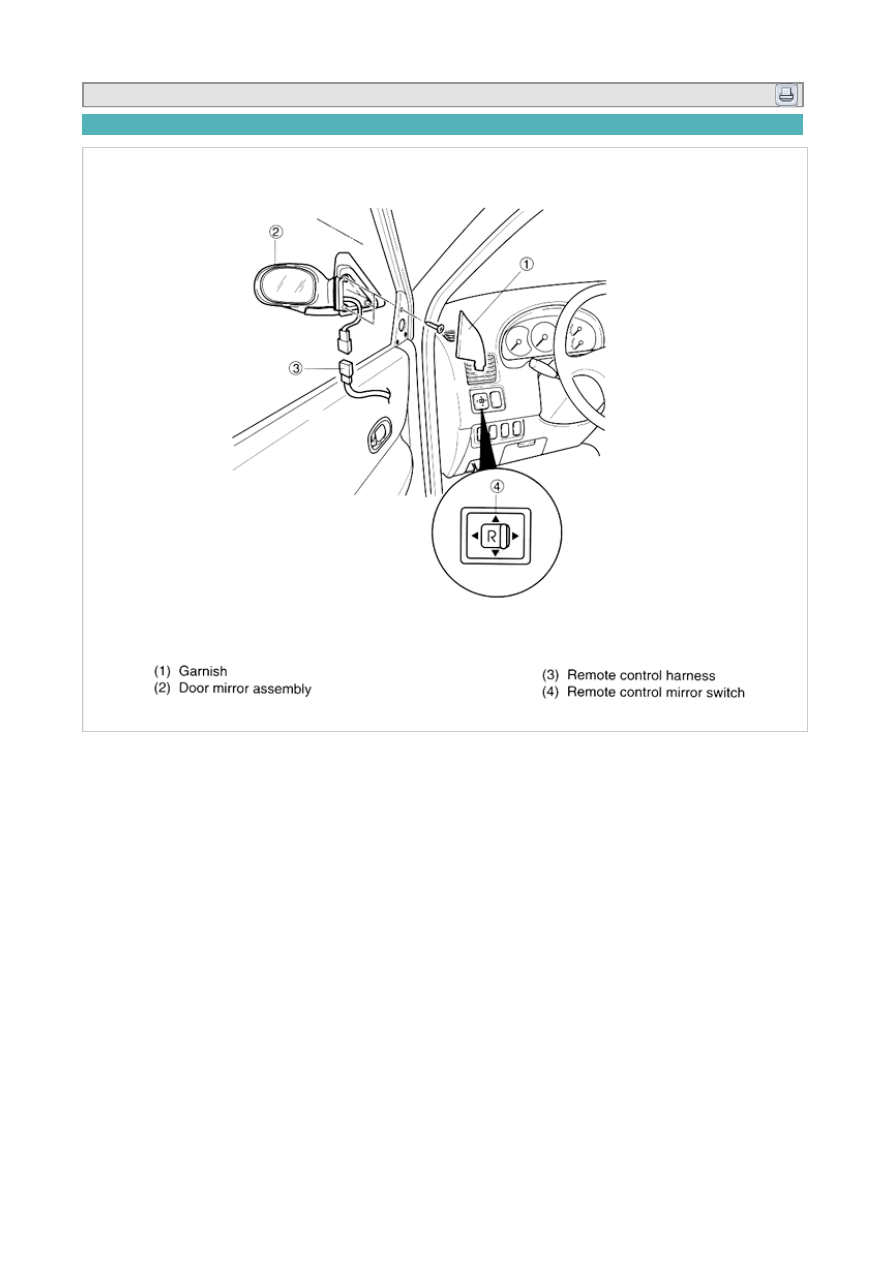

Component

Outside rearview mirror assembly is comprised of mirror glass, a mirror frame (which holds mirror glass), a motor and a
wire harness. Each outside rearview mirror can be adjusted in four directions from inside vehicle.

  2001 > 1.8L DOHC >



Removal

Outside rearview mirror assembly

1. Disconnect negative battery cable.

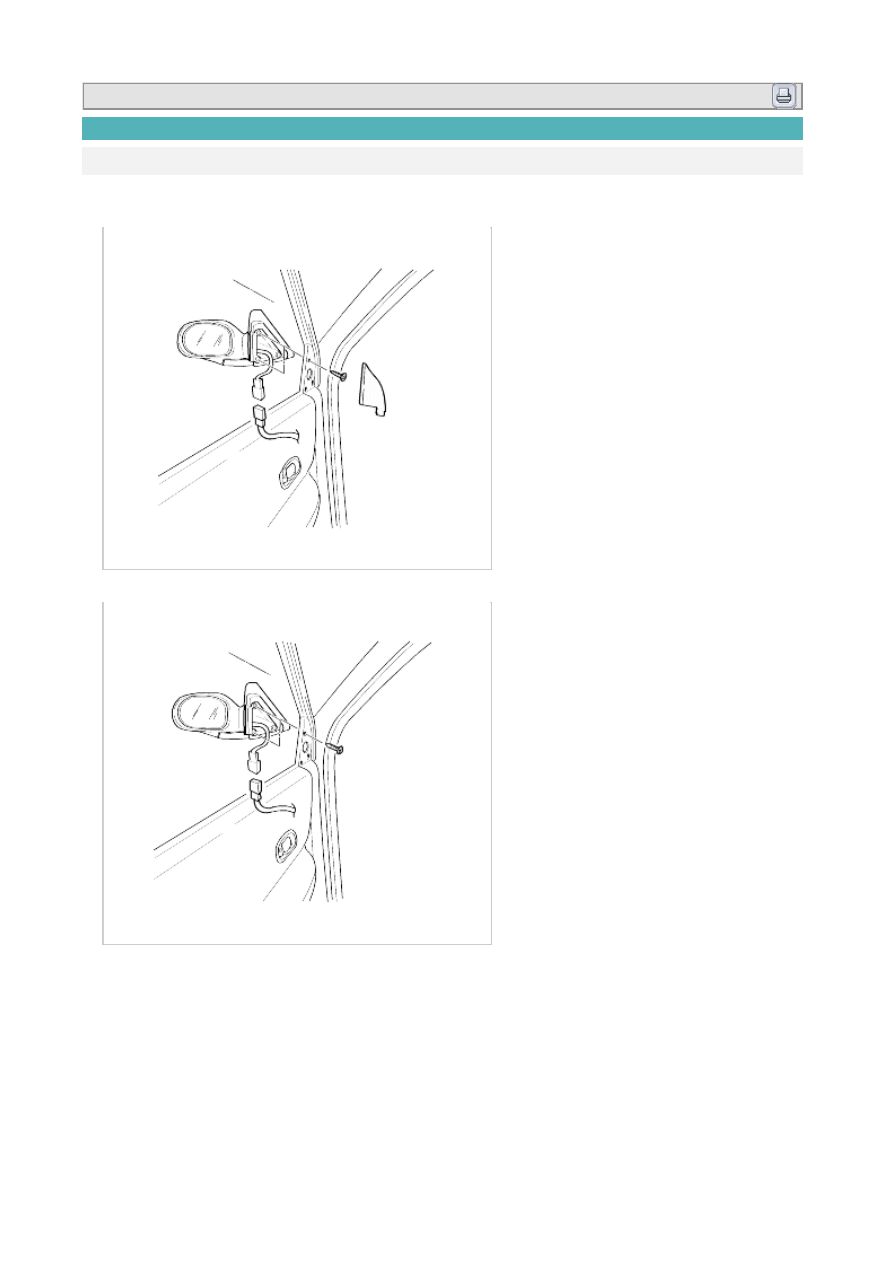

2. Remove garnish.

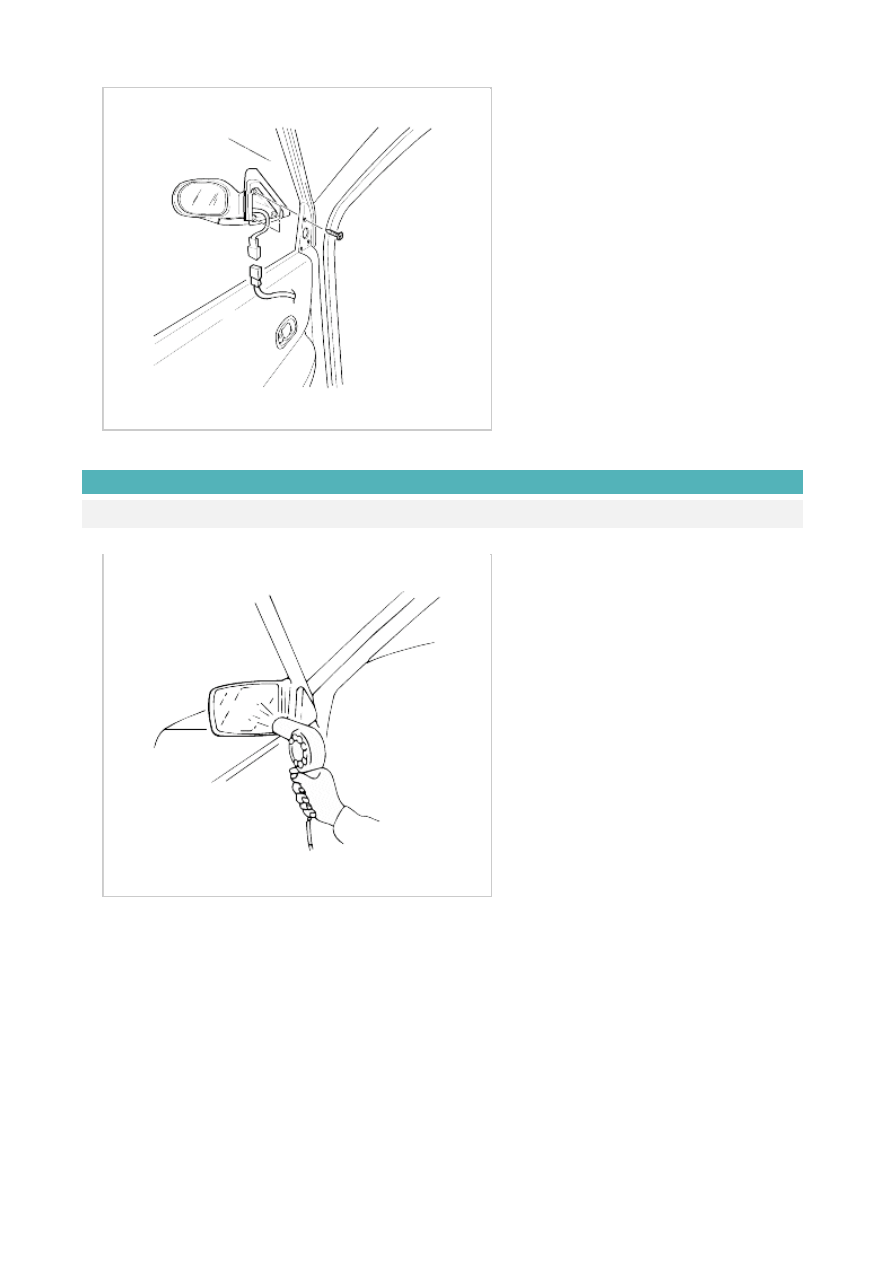

3. Remove three rearview mirror assembly retaining bolts.

4. Pull out outside rearview mirror assembly and disconnect harness connector.

5. Remove outside rearview mirror assembly.

Removal

Outside rearview mirror glass

1. Heat frame and mirror glass using a heat gun.

2. Loosen mirror glass y inserting a plstic scraper between frame and mirror glass.
