Kia Carens. Manual - part 194

  2001 > 1.8L DOHC >



Mechanical specifications

Item

Specifications

Driver air bag installation bolts

69~104 lb-in (8~12 N·m, 80~120 kg-cm)

Passenger air bag installation bolts

69~104 lb-in (8~12 N·m, 80~120 kg-cm)

Steering wheel installation nut

29~36 lb-ft (39~49 N·m, 4.0~5.0 kg-m)

ADU installation nuts

69~120 lb-in (8~14 N·m, 80~140 kg-cm)

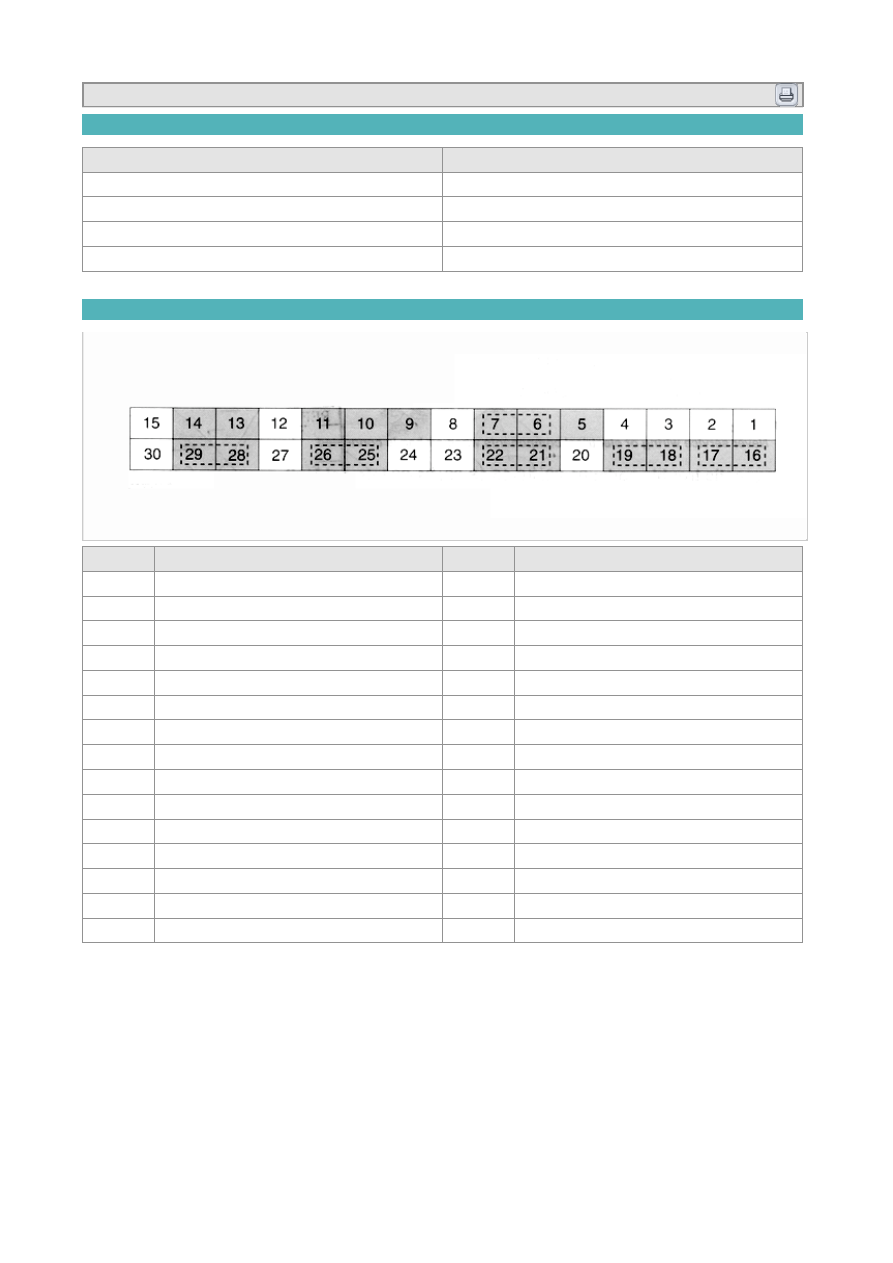

Connector pin

No.

Description

No.

Description

1

-

16

Short bar (harness side)

2

-

17

Short bar (harness side)

3

-

18

Short bar (harness side)

4

-

19

Short bar (harness side)

5

Supply Power (IG1) +

20

-

6

Ground (Air bag warning light LOW)

21

Short bar (harness side)

7

Air bag warning light

22

Short bar (harness side)

8

-

23

-

9

Communication (K-line)

24

-

10

Driver air bag module +

25

Short bar (harness side)

11

Driver air bag module -

26

Short bar (harness side)

12

-

27

-

13

Passenger air bag module +

28

Short bar (harness side)

14

Passenger air bag module -

29

Short bar (harness side)

15

-

30

-

*There is a short bar between terminal 6 and 7.

Restraint

Supplemental Restraint System Control Module
(SRnodeM)

Restraint

  2001 > 1.8L DOHC >



Air bag diagnostic trouble code (DTC) chart

Diagnostic

Trouble

Code

Fault Description

Possible Cause

Warning

Light

Mode

Corrective Action

01~03
10~15

ADU Fault

Internal Fault

1

Replace Air Bag Diagnostic
Unit (ADU)

18~29
31~32

ADU Fault

Internal Fault

1

Replace Air Bag Diagnostic
Unit (ADU)

33

Power Supply Low

Power supply voltage below
8.0 volts

5

Repair or replace battery or
harness

34

Power Supply High

Power supply High voltage
above 16 volts

5

Repair or replace battery or
harness harness

35

Warning Light Short

Warning Light damaged, or
short circuit in harness

5

Repair or replace warning
light or harness

36

Warning Light Open

Driver Module damaged, or
circuit shorted to ground

5

Repair or replace warning
light or harness

53

Driver Module Short to
ground

Driver Module damaged, or
circuit shorted to battery

5

Repair or replace warning
light or harness

54

Driver Module Short to
battery

Driver Module damaged, or
circuit shorted to harness

5

Repair or replace warning
light or harness

55

Driver Module Short

Driver Module damaged, or
circuit shorted to harness

5

Repair or replace warning
light or harness

56

Driver Module Open

Driver Moudule damaged, or
circuit shorted to harness

5

Repair or replace warning
light or harness

57

Passenger Module
Short to ground

Passenger Module damaged,
or circuit shorted to ground

5

Repair or replace warning
light or harness

58

Passenger Module
Short to battery

Passenger Module damaged,
or circuit shorted to battery

5

Repair or replace warning
light or harness

59

Passenger Module
Short

Passenger Module damaged,
or circuit shorted to harness

5

Repair or replace warning
light or harness

60

Passenger Module
Open

Passenger Module damaged,
or circuit shorted to harness

5

Repair or replace warning
light or harness

78

ADU
Inconsistency(exclusive
of PAB)

ADU unmatching, PAB
Installed in DAB-only ADU
vehicle

5

Replace Air Bag Diagnostic
Unit (ADU)

Warning light operating modes:
Mode 1 : Warning Light be illuminated for reminder ON cycle, but it will not be illuminated after next ignition ON
cycle if fault has self-corrected.
Mode 5 : Warning Light will be illuminated for reminder of ignition ON cycle, but it will go out approximately 10
seconds later if fault has corrected at the same ignition ON cycle.

Air bag diagnostic trouble code troubleshooting

SERVICING AIR BAG SYSTEM INPROPERLY MAY CAUSE IT TO DEPLOY, WHICH CAUSE SERIOUS
INJURY OR DEATH.MUST READ AND FOLLOW ALL SERVICE WARNINGS, BEFORE SERVICING.

Never service wiring or electrical components when air bag is connected.

Air bag diagnostic trouble code erasure

Disconnecting battery will not erase Air Bag Diagnostic Trouble Codes. This procedures can only be
performed using Hi-Scan Pro tool equipped with appropriate software.
