Air bag deployment and disposal

1) FAILURE TO FOLLOW ALL WARNINGS, CAUTIONS, NOTICES AND PROCEDURES COULD

RESULT IN PERSONAL INJURY OR DEATH.

2) SURFACE OF A DEPLOYED AIR BAG MAY CONTAIN SMALL AMOUNTS OF SODIUM

HYDROXIDE(NAOH).PREVENT CONTACT OF AIR BAG MODULE WITHLIQUIDS, COMBUSTIBLES,
AND FLAMMABLE MATERIALS.IMMEDIATELY WASH HANDS AND EXPOSED SKIN AREAS WITH
MILD SOAP AND WATER.FLUSH EYES WITH WATER IF EXPOSED TO BY PRODUCTS. FAILURE
TO FOLLOWING THESE INSTRUCTIONS COULD RESULT IN CHEMICAL BURNS AND PERSONAL
INJURY.

3) A LIVE(UNDEPLOYED) AIR BAG MODULE MAY ACCIDENTLY DEPLOY DURING

HANDLING.WHEN CARRYING A LIVE AIR BAG MODULE, POINT TRIM COVER AWAY FROM
YOUR BODY TO LESSEN CHACE OF INJURY IN CASE OF ACCIDENTAL DEPLOYMENT. NEVER
CARRY MODULE BY ITS WIRING OR CONNECTORS.

4) ALWAYS PLACE LIVE AIR BAG MODULES FACE UP TO LESSEN MOTION OF MODULE IN CASE

OF ACCIDENTAL DEPLOYMENT. KEEP AREA CLEAR OF PARTS, TOOLS, AND DEATH.

5) NEVER PLACE ITEMS ON OR ABOVE TRIM COVER OF A LIVE AIR BAG MODULE INCASE OF

ACCIDENTAL DEPLOYMENT, SUCH ITEMS MAY CAUSE SERIOUS INJURY OR DEATH.

6) DAMAGED AIR BAG MODULES SHOULD BE STORED AWAY FROM ALL ACIDS, HALOGENS,

HEAVY METALS, AND METAL SALTS. DAMAGED UNITS MAYPRODUCE HYDROZOIC ACID IF
EXPOSED TO LIQUIDS. IF AN UNDEPLOYED OR TAMPERED WITH, REFER TO PARTICULAR
MODULE'S MSDS(MATERIAL SAFETY DATA SHEET) FOR IMPORTANT INFORMATION
CONCERNING CONSTITUENTS OF UNDEPLOYED MODULES. EXPOSURE TO HIGH
CONCENTRATIONS OF PROPELLANT MIXTURE CAN CAUSE HEADACHES, NAUSEA, BLURRED
VISION, FAINTNESS, CYANOSIS, LOWERING OF BLOOD PRESSURE OR
TACHYCARDIA.FAILURE TO COMPLY WITH THIS WARNING CAN RESULT IN FIRE, NOXIOUS
FUMES, SEVERE PERSONAL INJURY, OR DEATH.

7) AIR BAG MODULE COMPONENTS ARE VERY HOT AFTER DEPLOYMENT. UNITS SHOULD BE

DEPLOYED OUTDOORS OR IN AN OPEN AREA TO PREVENTFIRES. ALLOW COMPONENTS AT
LEAST TWENTY MINUTES TO THOROGHLY COOL. COOLING MODULES SHOULD BE
CONTINUOUSLY MONITORED TO ENSURE HOT COMPONENTS DO NOT CREATE FIRES WITH
SPILLED LIQUIDS OR OTHER DEBRIS. FAILURE TO ALLOW UNIT TO COOL COULD RESULT IN
BURNS, FIRES OR PERSONAL INJURY.

8) ALWAYS WEAR RUBBER GLOVES AND SAFETY GLASSES WHEN HANDLING A DEPLOYED AIR

BAG AND MODULE.

Storage, transportation, disposal and recyclinf of air bag module and components must be performed in
accordance with all applicable state and local regulations including, bet not limited to, environmental
protection, occupational health and safety, and transportation.

FAILURE TO FOLLOW THE FOLLOWING PROCEDURES COULD RESULT IN PERSONAL INJURY OR
DEATH.

1. Remove battery.

2. Wait 10 minutes before proceeding.

3. Disconnect appropriate Air Bag Module, and remove from vehicle. For Driver air bag module.

For passenger Air Bag Module.

4. Locate air bag in an area that will provide protection to personnel when it deploys. An example of a safe

deployment site is a stack of used tires, 6-8 high, with undeployed bag located inside column of tires.

5. Cut the air bag connector wires and strip 25mm of insulator from the ends.

6. Obtain two wires at least 6mm long. Connect one end of wires to the air bag module wires.

7. Place the air bag with the trim cover facing upward on a flat surface in a remote area such as a parking lot

or field.

DO NOT PLACE THE AIR BAG WITH THE TRIM COVER FACING DOWN, AS THE FORCE OF THE
DEPLOYING AIR BAG CAUSE IT TO RICOCHET AND CAUSE PERSONAL INJURY.

8. Remaining at least 6m away from the air bag, deploy the air bag by touching the other ends of the two wires

to the terminals of a 12 volt vehicle battery.

9. If air bag successfully deployed, allow minimum of twenty minutes for bag to cool before handling.

Monitor bag throughout cool-down period to ensure that hot components do not start a fire.

10. If air bag did not deploy, keep area around deployment site clear of personnel for a minimum of 30

minutes.

11. Remove the air bag from the stack of tires carefully, wearing rubber gloves and eye/face protection to

protect yourself from possible chemical exposure.

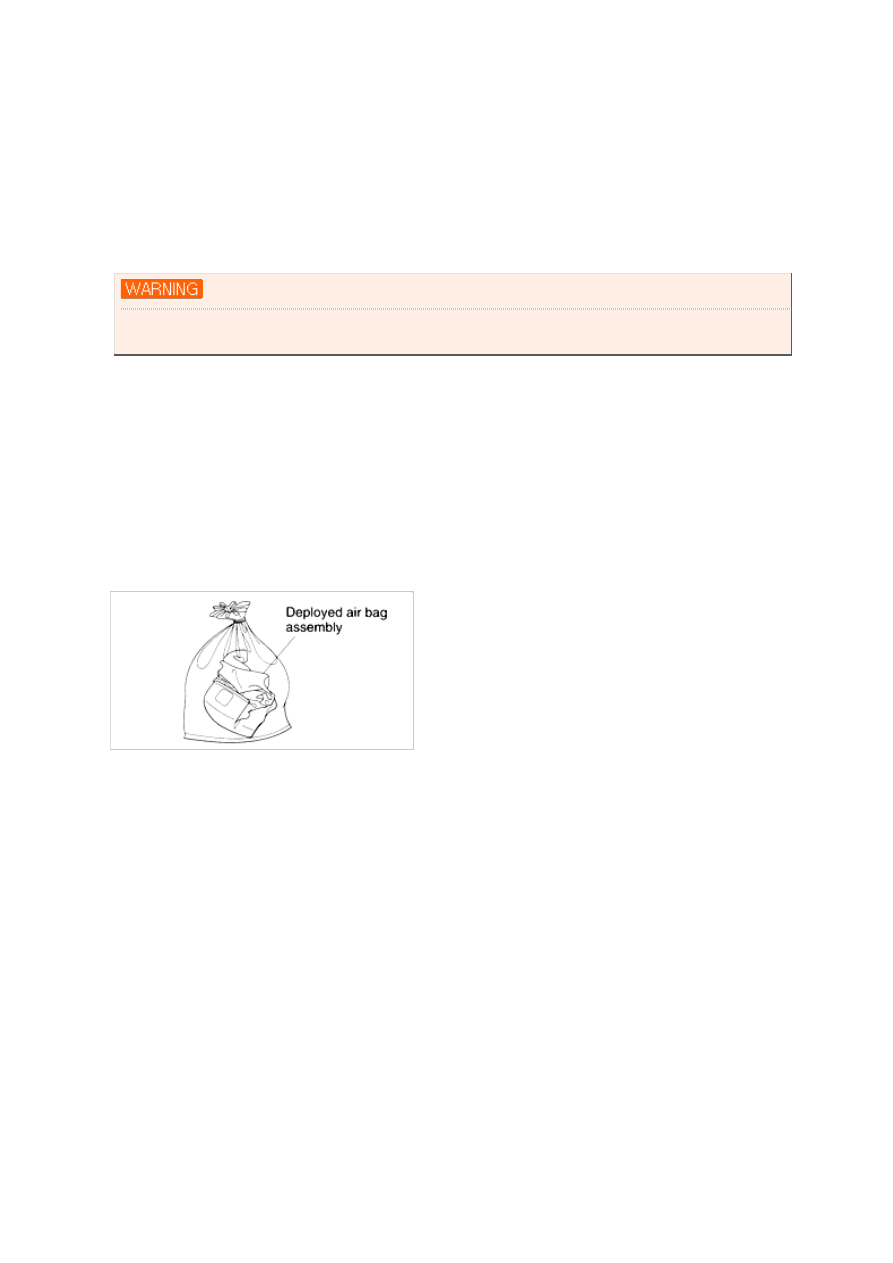

12. Dispose of the complete air bag assembly. No part of the air bag may be reused. Place the air bag into a

sturdy plastic bag and seal securely. Dispose of the deployed air bag according to each region regulations.
