38. Remove differential assembly.

39. Remove bearing housing.

A. Remove roll pin with a pin punch.
B. Remove (11) bolts securing bearing housing.

C. Remove bearing housing by tapping lightly with a plastic hammer.

40. Remove idler gear assembly and output gear assembly by tapping out from torque converter side.

41. Remove bearing cover.

A. Remove bearing cover bolts.
B. Remove converter housing from SST (0K130 175 011A).

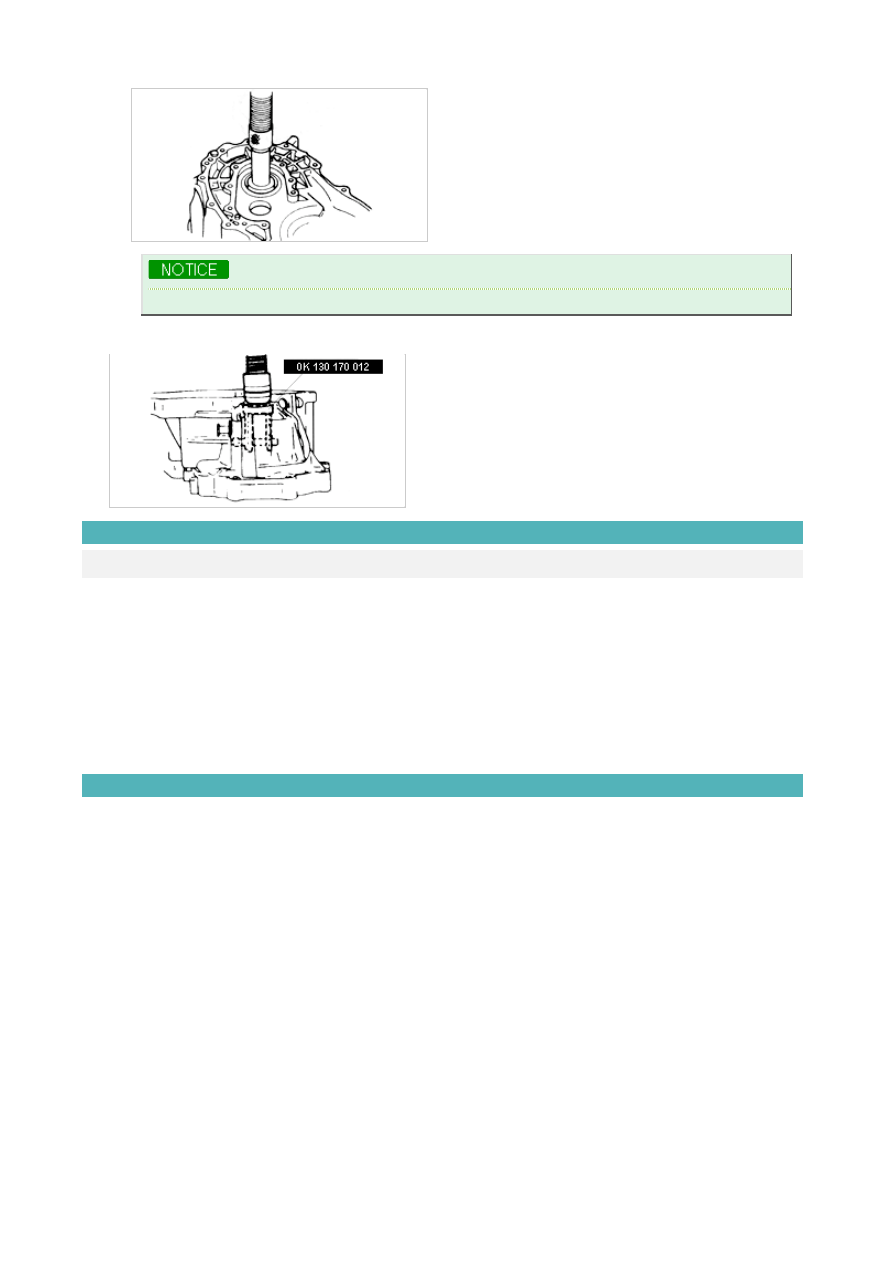

C. Press bearing cover assembly out of converter housing.

Install bearing outer race during reassembly to adjust preload.

42. Press out bearing outer races by using SST (0K130 170 012).

Reassembly

Precaution

1. If drive plates or brake band are replaced with new ones, soak new part in ATF for at least two hours before

installation.

2. Before assembly, apply ATF to all seal rings, rotating parts, O-rings, and sliding parts.

3. All O-rings, seals, and gaskets must be replaced with new ones.

4. Use petroleum jelly, not grease, during reassembly.

5. When it is necessary to replace a bushing, replace the subassembly that includes that bushing.

6. Assemble housing within 10 minutes after applying sealant and allow it to cure at least 30 minutes after

assembly before filling transaxle with ATF.

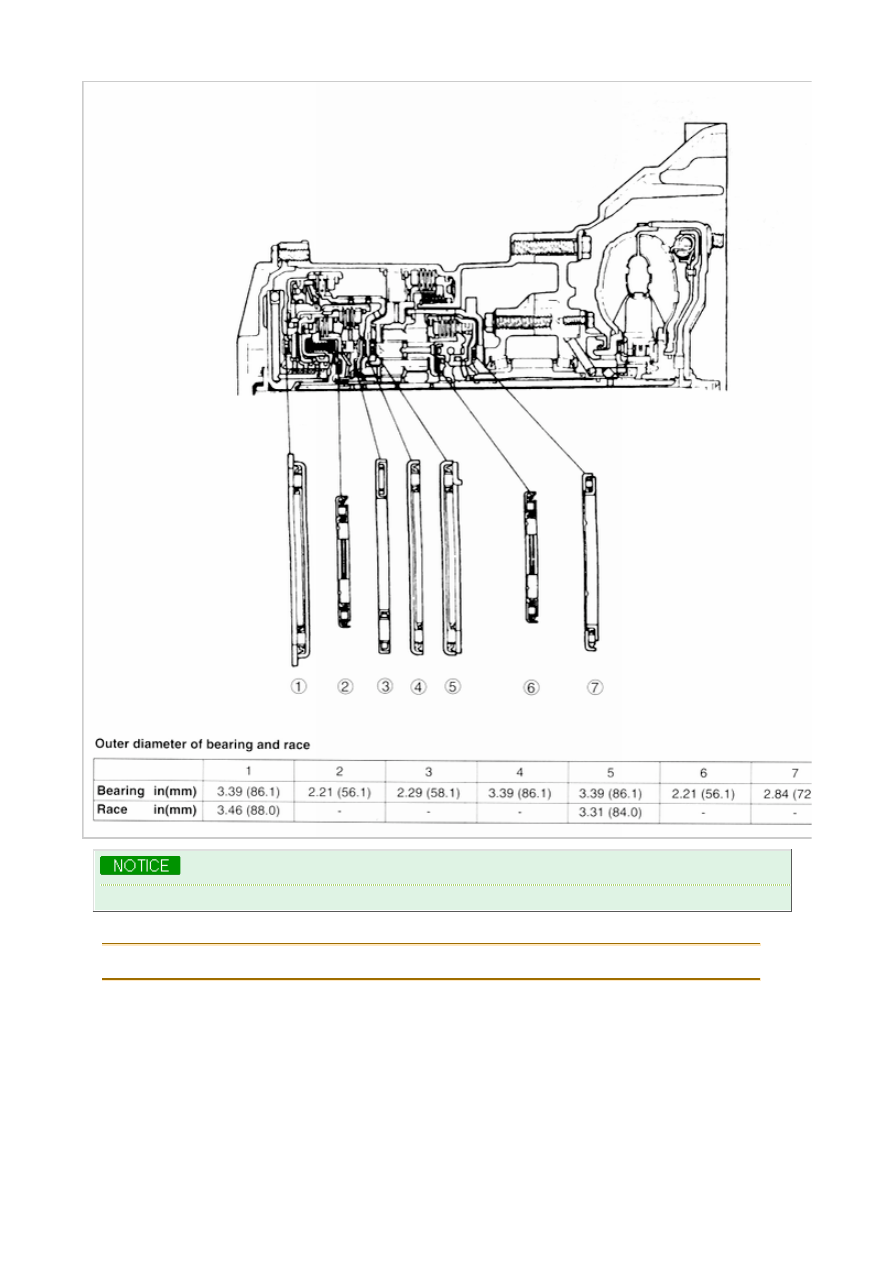

Bearing and Race Locations

Bearing and race at location 2, 3, 4, 6 and 7 are one-piece units.

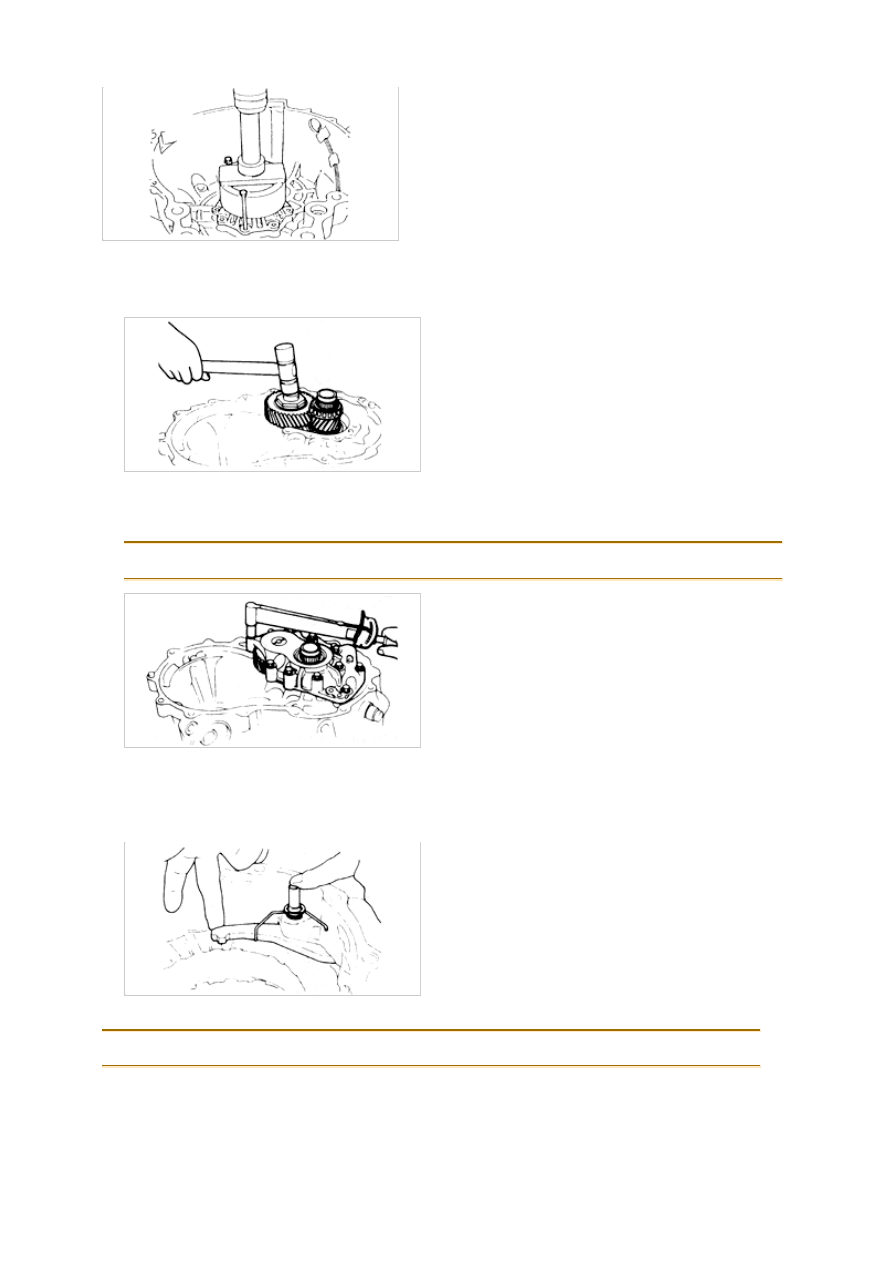

1. Align bush cover with guide bolts as shown, and press it in.

Tightening torque : 96~120 lb-in (10.8~13.7 N·m, 110~140 kg-cm)

2. Install idler gear and output gear as an assembly by tapping it with a plastic hammer.

3. Install bearing housing.

A. Install bearing housing on converter housing.

B. Align groove on idler shaft with mark on bearing housing.

C. Tap a new roll pin in with a pin punch and hammer.
D. Install 11 mounting bolts.

Tightening torque : 14~18 lb-ft (19~25 N·m, 1.9~2.6 kg-m)

4. Install parking pawl.

A. Install parking pawl and shaft.
B. Install spring and snap ring.

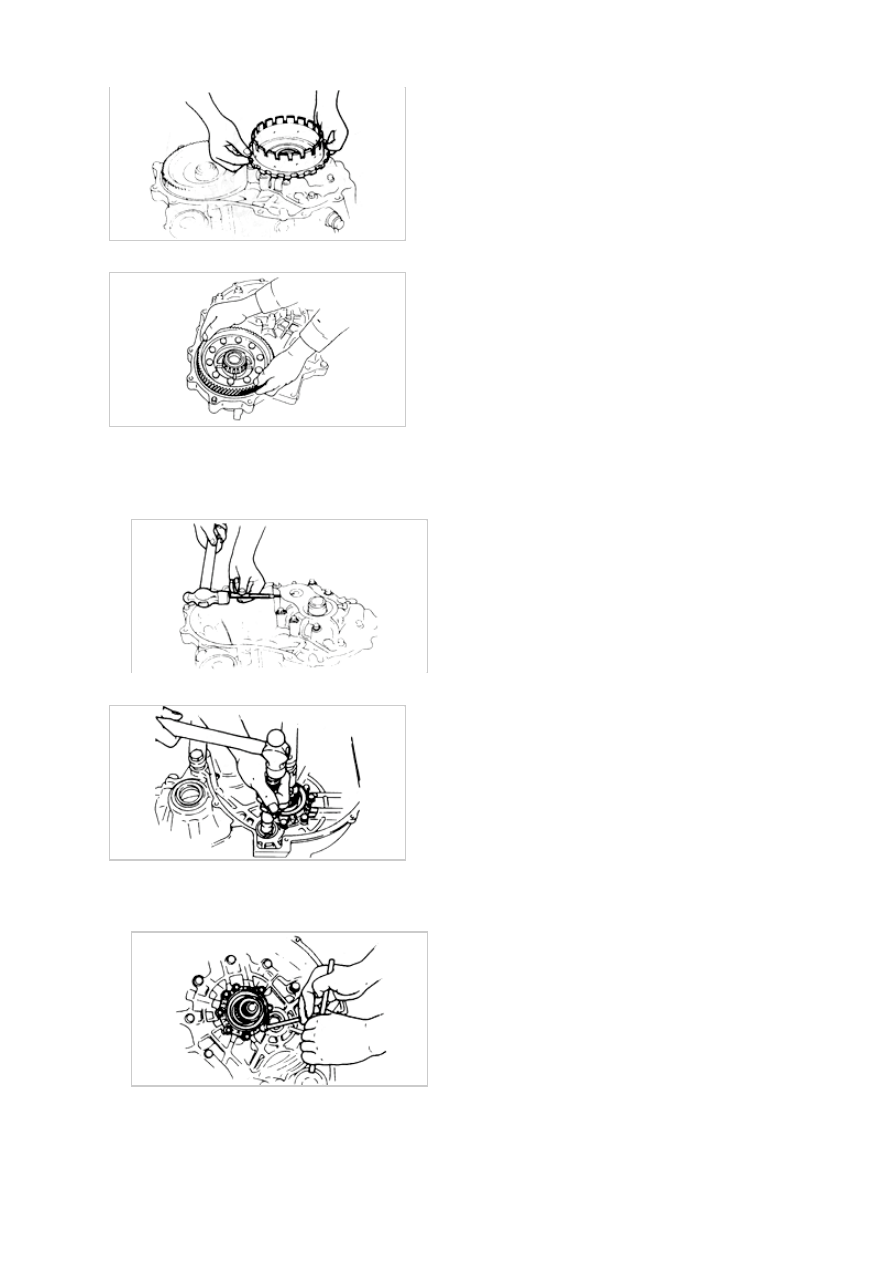

C. Move manual shaft and verify that parking pawl operates.

5. Install actuator support with new bolts.

Tightening torque : 11~13 lb-ft (15~17 N·m, 1.5~1.8 kg-m)
