Kia Carens. Manual - part 140

18. Remove strainer (three bolts).

19. Remove A, B and C bolts and brackets shown in figure.

Bolt length (Measured from below head) :
A : 1.18 in (30 mm)
B : 1.67 in (50 mm)
C : 0.55 in (14 mm)

20. Remove control valve body.

21. Remove manual shaft and manual plate.

A. Loosen nut and pull out manual shaft.
B. Remove nut, washer, and manual plate.

22. Remove bolt and parking pawl lever holder.

23. Remove parking pawl lever (two bolts).

24. Remove detent lever and return spring.

25. Remove actuator support.

26. Remove oil pump assembly (10 bolts).

27. Remove reverse/forward clutch assembly.

A. Remove turbine shaft snap ring.

B. Pull reverse/forward drum and remove clutch assembly.

28. Removesmall sun gear and one-way clutch No. 1.

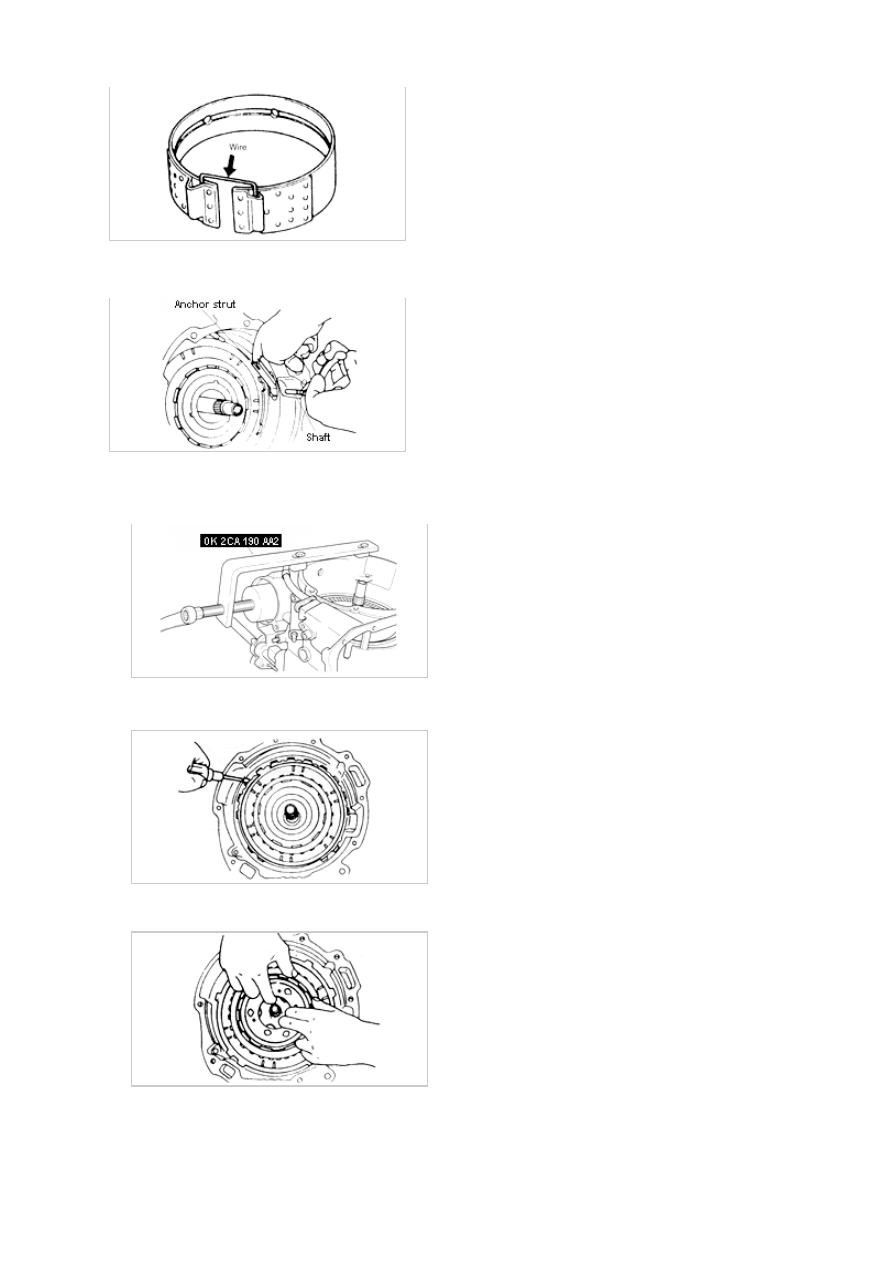

Use a piece of wire to secure brake band so that it is not damaged by being stretched.

29. Remove 2-4 brake band.

30. Pull anchor shaft holding strut.

31. Remove strut.

32. Remove servo with SST (0K2CA 190 AA2).

A. Compress servo piston and remove snap ring.
B. Remove servo retainer, servo piston, and spring.

33. Remove one-way clutch No. 2 and planetary carrier assembly.

A. Remove snap ring.

B. Remove one-way clutch No. 2 together with planetary carrier assembly.

C. Remove friction plate.

34. Remove internal gear.

A. Remove snap ring.

B. Remove internal gear from output shell.

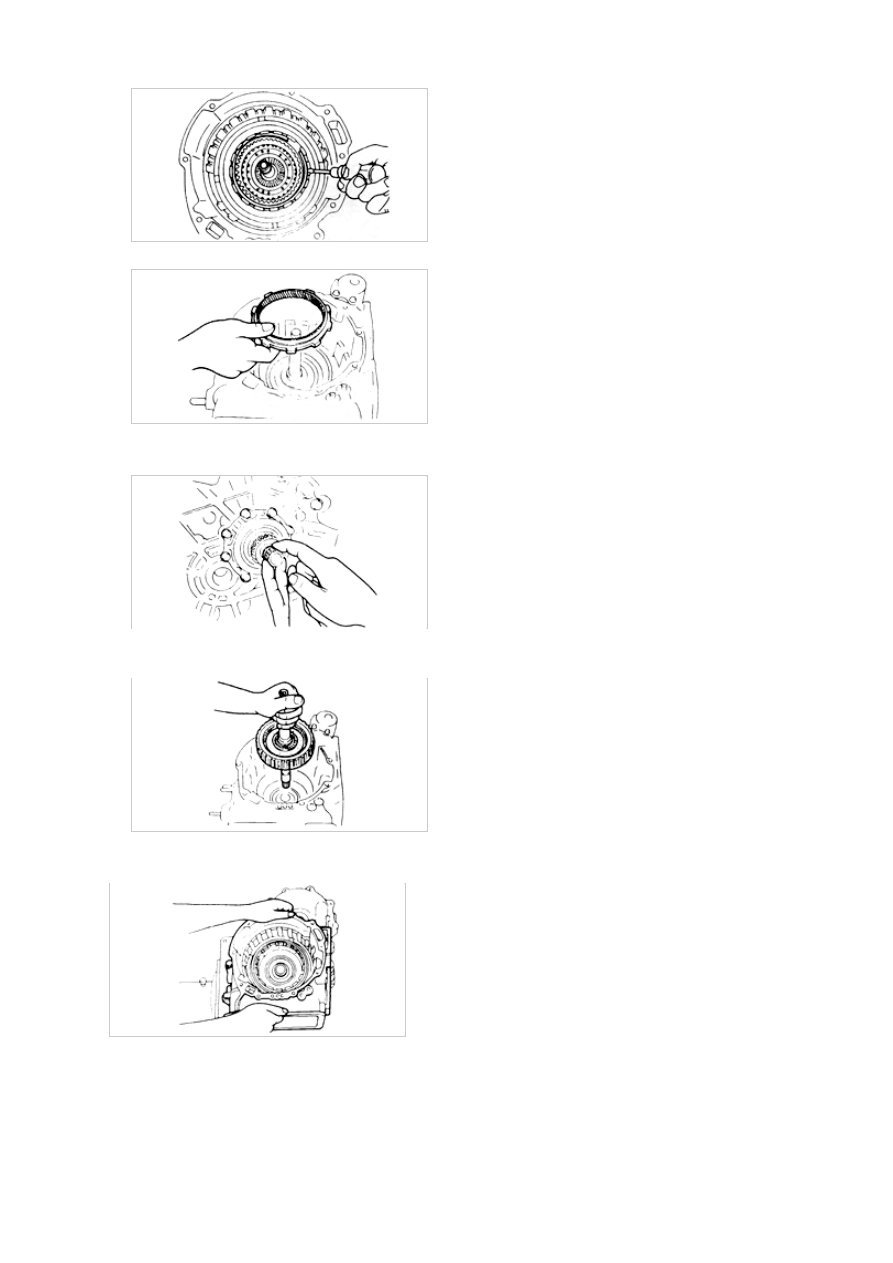

35. Remove 3-4 clutch assembly.

A. Remove O-ring from turbine shaft at converter housing side.

B. Pull out turbine shaft to remove 3-4 clutch assembly.

C. Remove 3-4 clutch assembly from turbine shaft.

36. Remove bolts (converter housing side : eight bolts transaxle case side : seven bolts) and remove transaxle

case by tapping lightly with a plastic hammer.

37. Remove output shell from output gear.
