Kia Carens. Manual - part 129

  2001 > 1.8L DOHC >



Overhaul

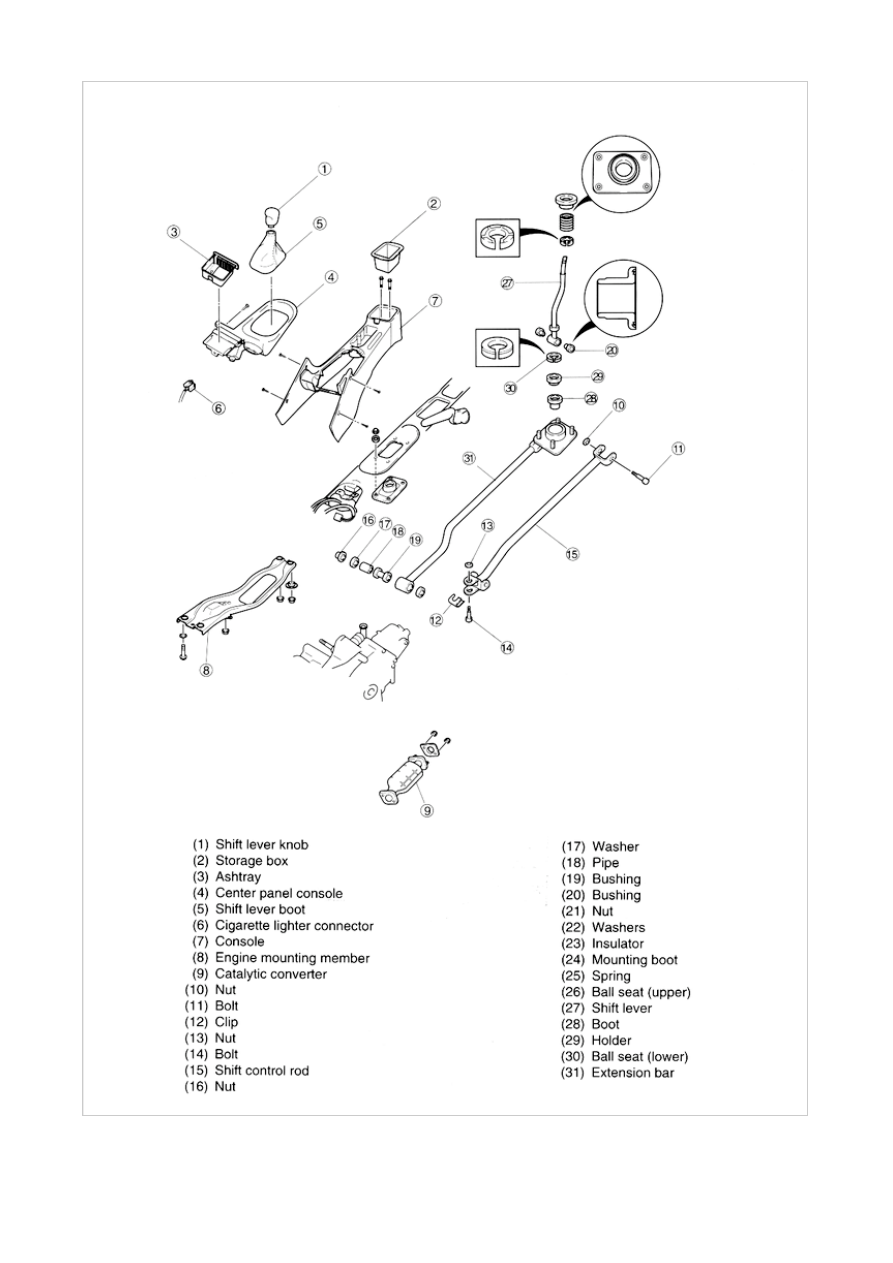

1. Disassemble in the order shown in the figure.

2. Inspect all parts and repair or repalce as necessary.

3. Assemble in the reverse order of disassembly, refer to Assembly note.

Assembly note

Extension bar

1. Install the extension bar to the floor, and ten onto the transaxle. Tighten the extension bar nut at the

transaxle,

Tightening torque : 23~34 lb-ft (31~46 N·m, 3.2~4.7kg-cm)

2. Tighten the shifter bracket nuts to the specified torque.

Tightening torque : 86.9~130.2 lb-in (9.8~14.7N·m, 100~150 kg-cm)

Spring

Make sure that the hooked part of the spring is properly seated in the bracket groove, as shown in the figure.

Automatic Transaxle System

General Information

Automatic Transaxle System

  2001 > 1.8L DOHC >



Special service tools

Automatic transaxle

Tool (Name and Number)

Illustration

Use

0K2CA 089 HSP
Hi-Scan pro

0K130 283 021
Puller, ball joint

Used to remove tie-rod end.

0K130 990 007
Stand, engine

Used to disassemble transaxle.

0K670 990 AA0
Puller set, bearing

Used to remove bearing

0K201 190 AA0
Gauge set, oil pressure

Used to measure line pressure.

0K201 270 014
Holder, diff. side gear

Used to hold differential side gear.
