Kia Carens. Manual - part 125

Do not damage dust boots.

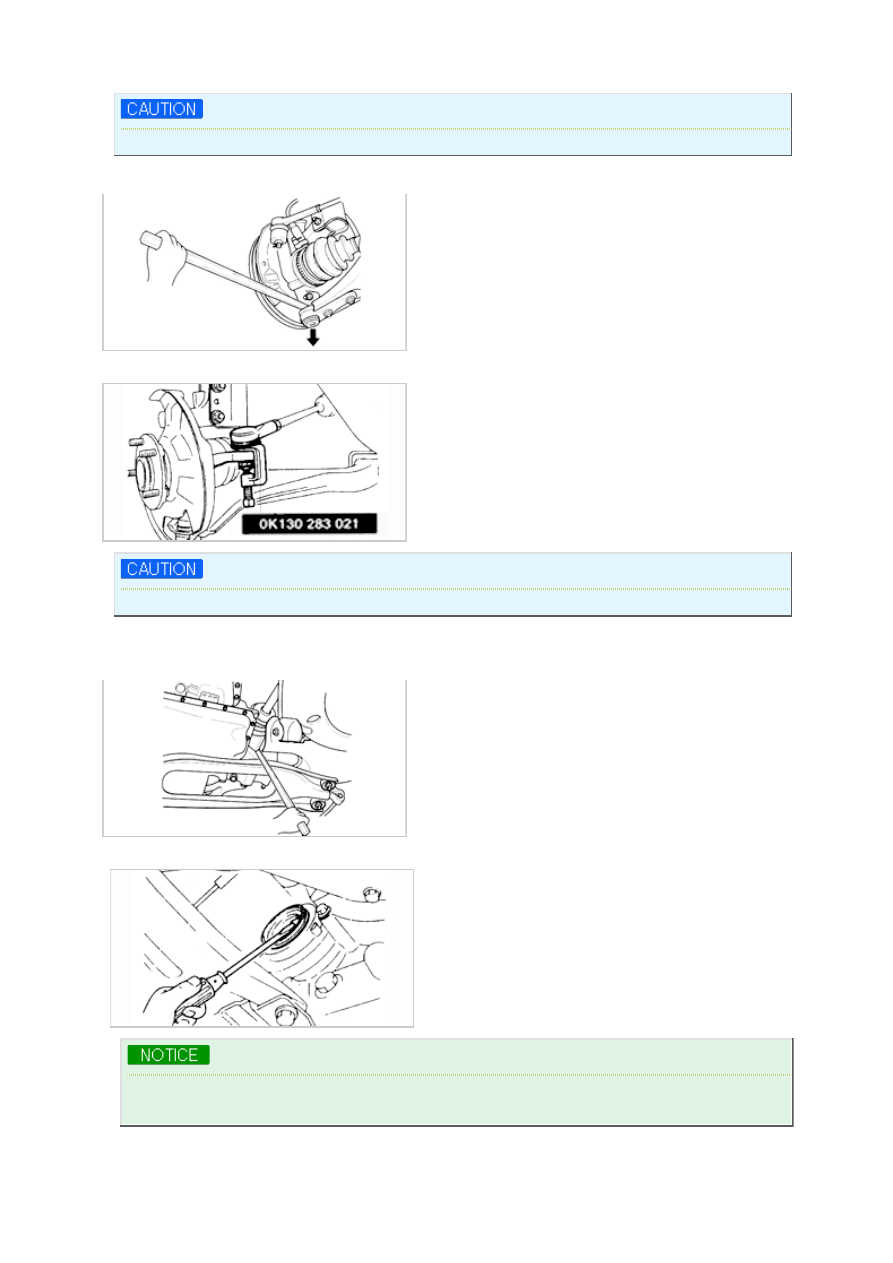

6. Remove pinch bolt and pull lower arm downward to separate knuckle from lower cotnrol arm ball joint.

7. Loosen nut and disconnect tie-rod end with SST(0K130 283 021).

Do not subject CV joint to shock when removing driveshaft.

8. Insert pry bar between outer ring and transaxle and pry driveshaft from transaxle.

9. Suspend driveshaft with rope.

10. Remove oil seal with screwdriver.

1) Tap in until oil seal is flush with case.
2) Coat oil seal lip with transaxle oil.

11. Tap new oil seal into transaxle case with SST(0K201 170 AA1).

12. Replace driveshaft end clip and install driveshaft into transaxle with end-gap of clip facing upward.

Manual Transaxle System

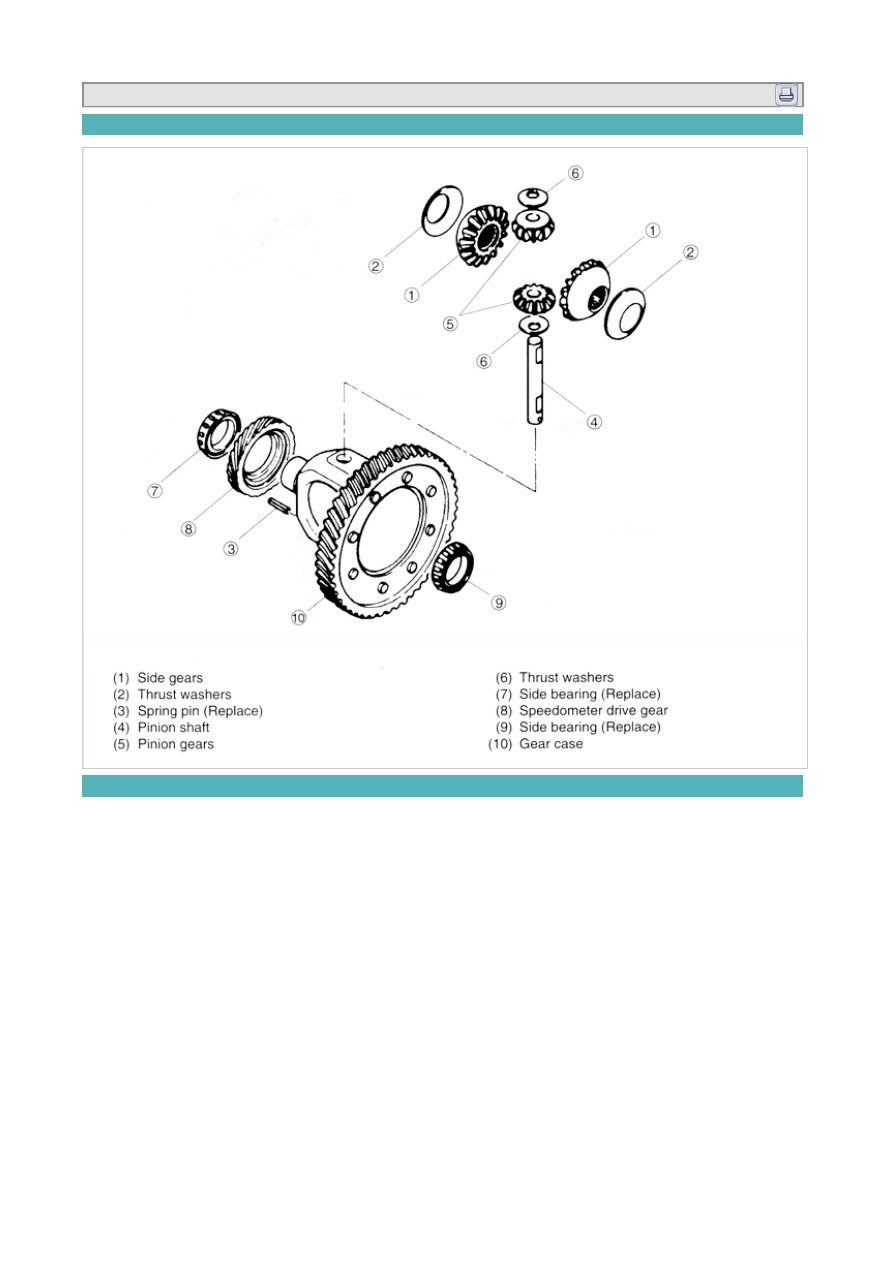

Manual Transaxle Gear System - Differential
