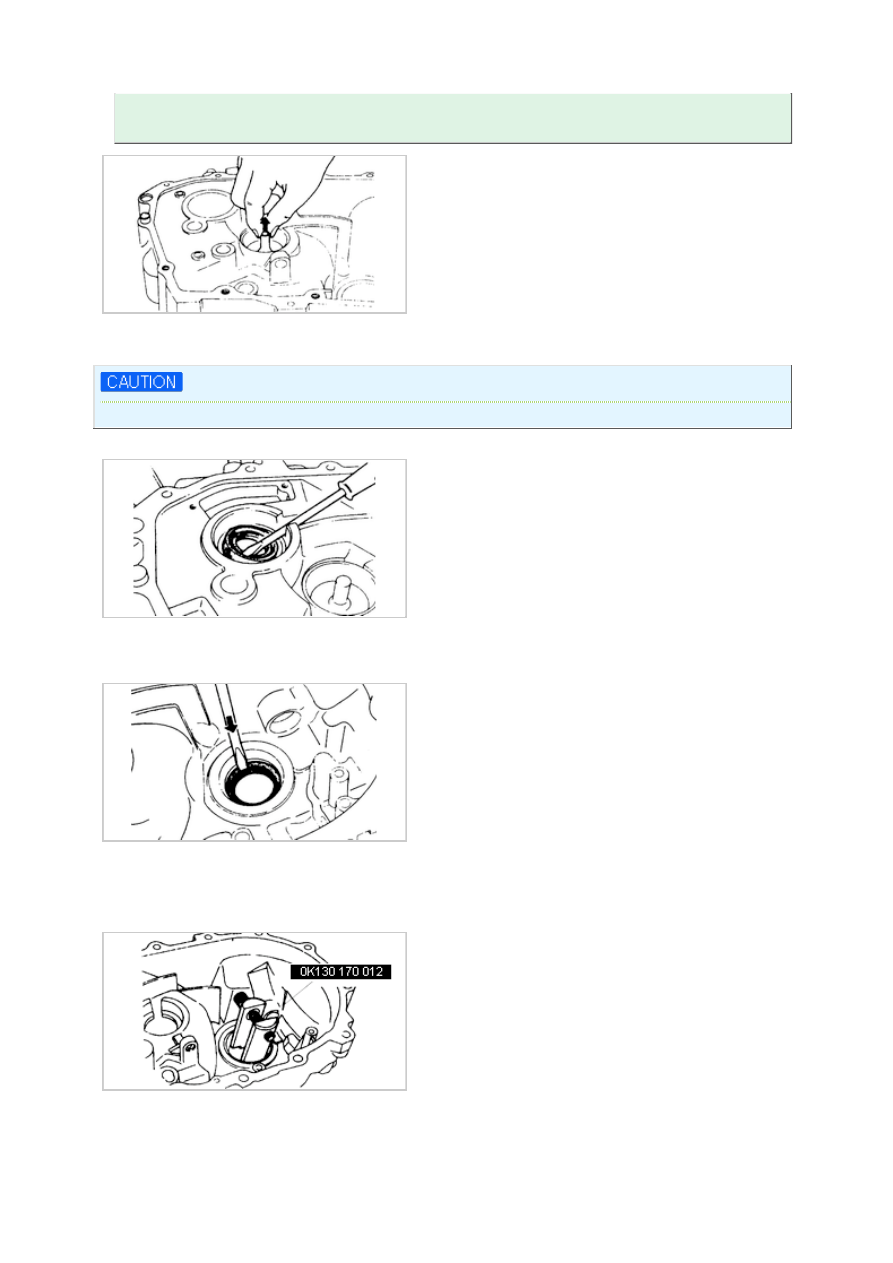

• Insert screwdriver between clutch housing and bearing outer race.
• Pry bearing outer race free.

Oil seal(Primary shaft)

Do not damage clutch housing.

1. Remove oil seal with screwdriver.

Oil seal (Differential)

1. Remove oil seal with screwdriver.

Bearing outer race (Differential)

1. Install SST(0K130 170 012) to bearing outer race.

2. Remove bearing outer race.

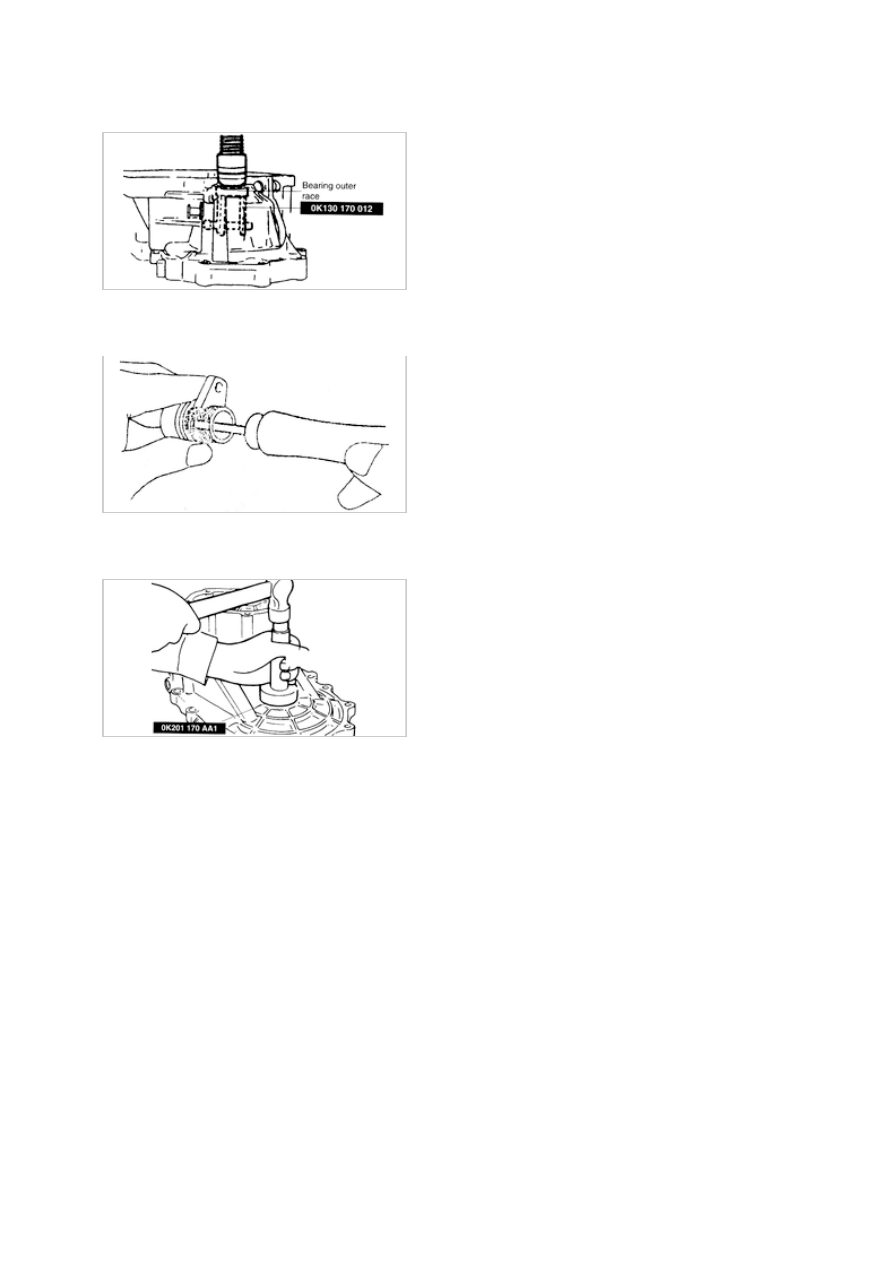

Bearing outer race and adjust shim(Differential)

1. Install SST(0K130 170 012) to bearing outer race.

2. Remove bearing outer race and adjust shim.

Oil seal(Speedometer gear case)

1. Remove oil seal.

Transaxle case oil seal (Differential side)

1. Assemble oil seal using SST (0K201 170 AA1).

  2001 > 1.8L DOHC >



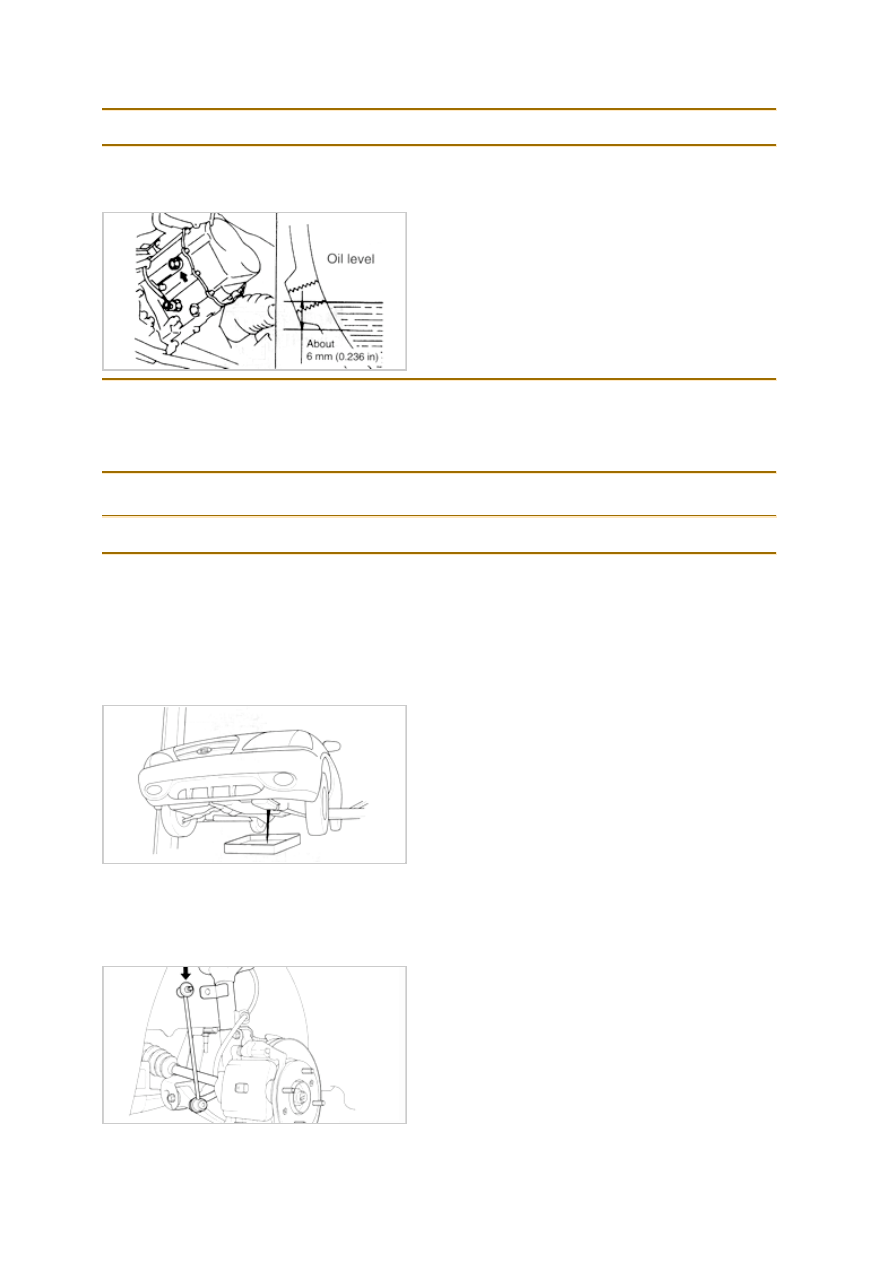

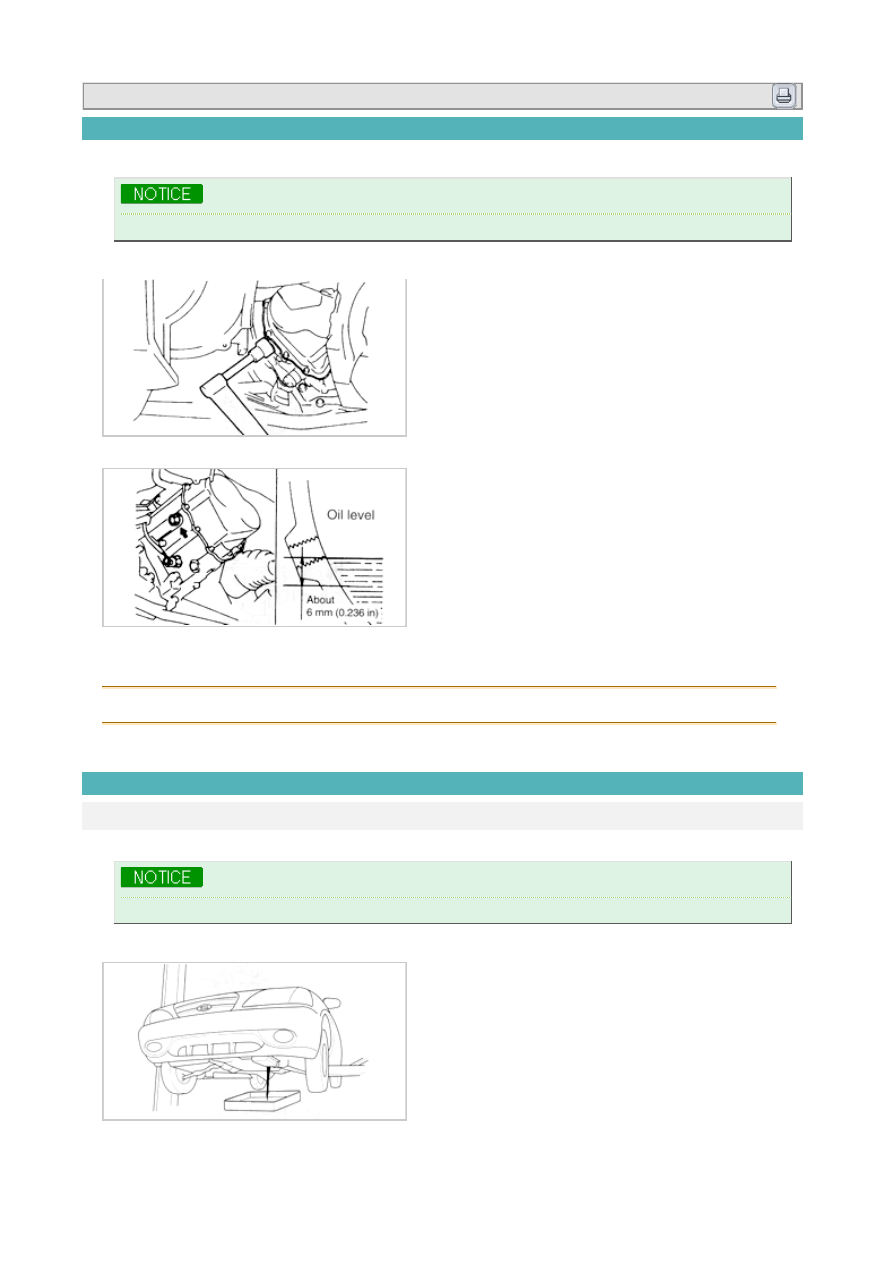

Oil inspection

1. Raise vehicle and support it with safety stands.

Keep vehicle level when checking oil level.

2. Remove oil level plug and washer.

3. Verify that oil level is near bottom of plug hole.

4. If oil level is low, fill specified amount and type of oil until level reaches bottom of hole.

5. Install new washer on oil level plug and reinstall plug in case.

Tightening torque : 29~43 lb-ft(40~58 N·m, 4.0~6.0 kg-m)

6. Lower vehicle.

Replacement

Oil change

1. Raise vehicle and support it with safety stands.

Keep vehicle level when checking oil level.

2. Remove drain plug at bottom of transaxle case and drain fluid into suitabel container.

3. Install new washer on drain plug and reinstall plug in case.

Tightening torque : 29~43 lb-ft(40~58 N·m, 4.0~6.0 kg-m)

4. Remove oil level plug from transaxle case.

5. Add specified amount and type of oil into oil level plug hole until level reaches bottom of hole.

Specified oil :
Grade : API Service GL-4
Viscosity : SAE 75W-90
Capacity : 2.9 US qt (2.7 I, 2.4 lmp qt)

6. Install new washer on plug and reinstall plug in case.

Tightening torque : 29~43 lb-ft (40~58 N·m, 4.0~6.0 kg-m)

7. Warm up vehicle until transaxle oil reaches its normal temperature, then check for leakage of transaxle oil.

8. Lower vehicle

Oil seal change

1. Jack up vehicle and support it with safety stands.

2. Remove drain plug at bottom of transaxle case and drain fluid into a container.

3. Remove front wheel.

4. Remove splash shield under the left side of vehicle.

5. Remove the stabilizer control link from bracket attached to shock absorber after loosening the control link

nut.
