  2001 > 1.8L DOHC >



Component

  2001 > 1.8L DOHC >



Inspection

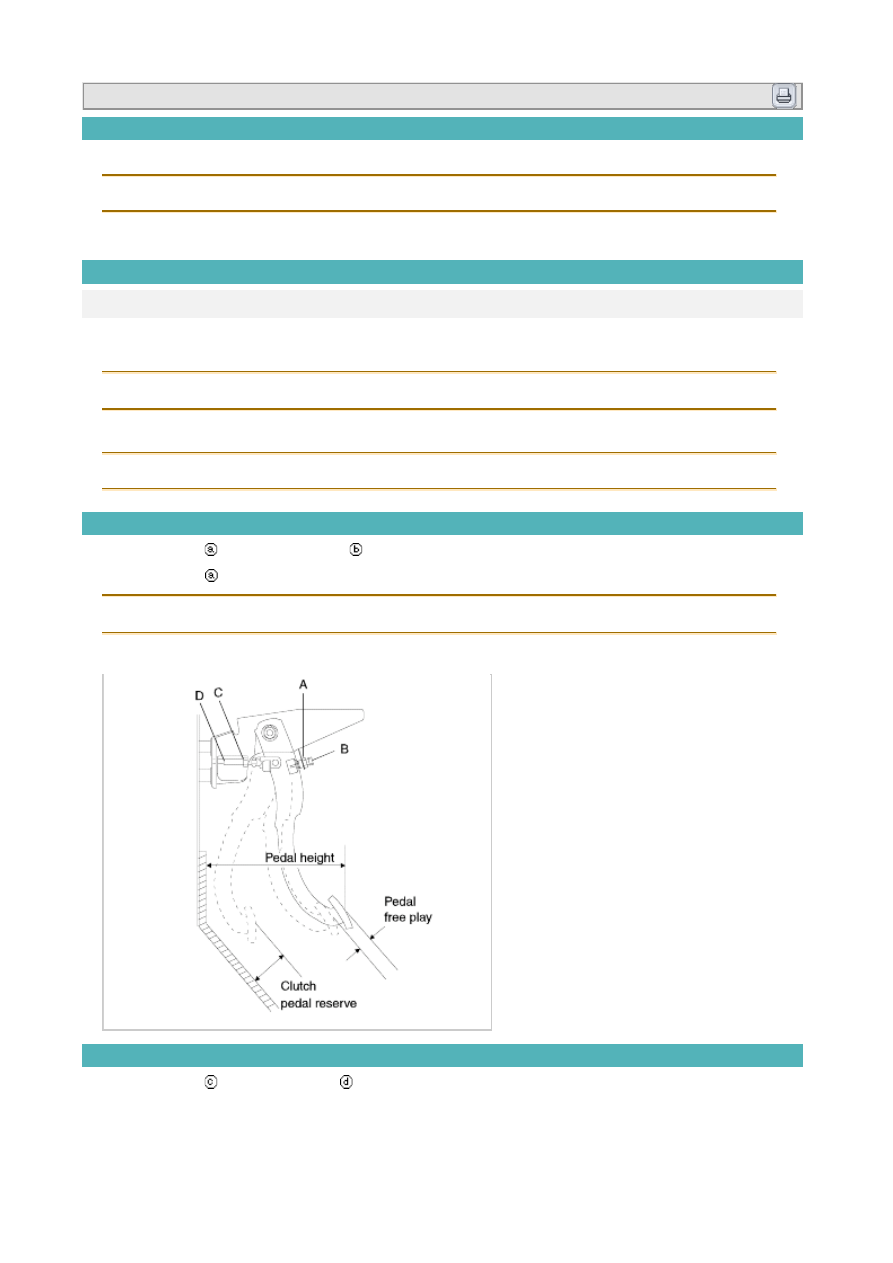

1. Measure distance from front surface of pedal to vehicle carpet.

Pedal height : 8.78~8.98 in (223~28 mm)

2. If necessary, adjust pedal height.

Inspection

Clutch pedal free play

1. Lightly depress clutch pedal by hand until clutch resistance is felt.

2. If necessary, adjust pedal free play.

Total pedal free play : 0.12~0.20 in (3.0~5.0 mm)

3. Check that the pedal pad stroke is met when loading peal pad with 2kgf.

Peal pad stoke : 7.7~16.6 mm

Adjustment

1. Loosen locknut   and turn adjust bolt   until height is correct.

2. Tighten locknut  .

Tightning torque : 122~156 lb-in (14~18 N·m, 143~183 kg-cm)

3. After adjustment, measure pedal free play.

Adjustment

1. Loosen locknut   and turn push rod   until pedal free play is correct.

2. Check that the minimum clutch pedal reserve (from front surface of pedal to carpet) is met when pedal is

fully depressed.

Minimum clutch pedal reserve : 1.99 in (50.6 mm)

3. Tighten locknut  .

Tightening torque : 104~147 lb-in (12~17 N·m, 120~170 kg-cm)

4. After adjustment, inspect pedal height.

Removal

1. Remove parts in order shown in figure below.

2. Inspect all parts and repair or replace as necessary.

Apply a thin coat of lithium grease to bushing and pins before installation.

3. Install in reverse order of removal.

Clutch System

Clutch Release Bearing

Clutch System
