Clutch System

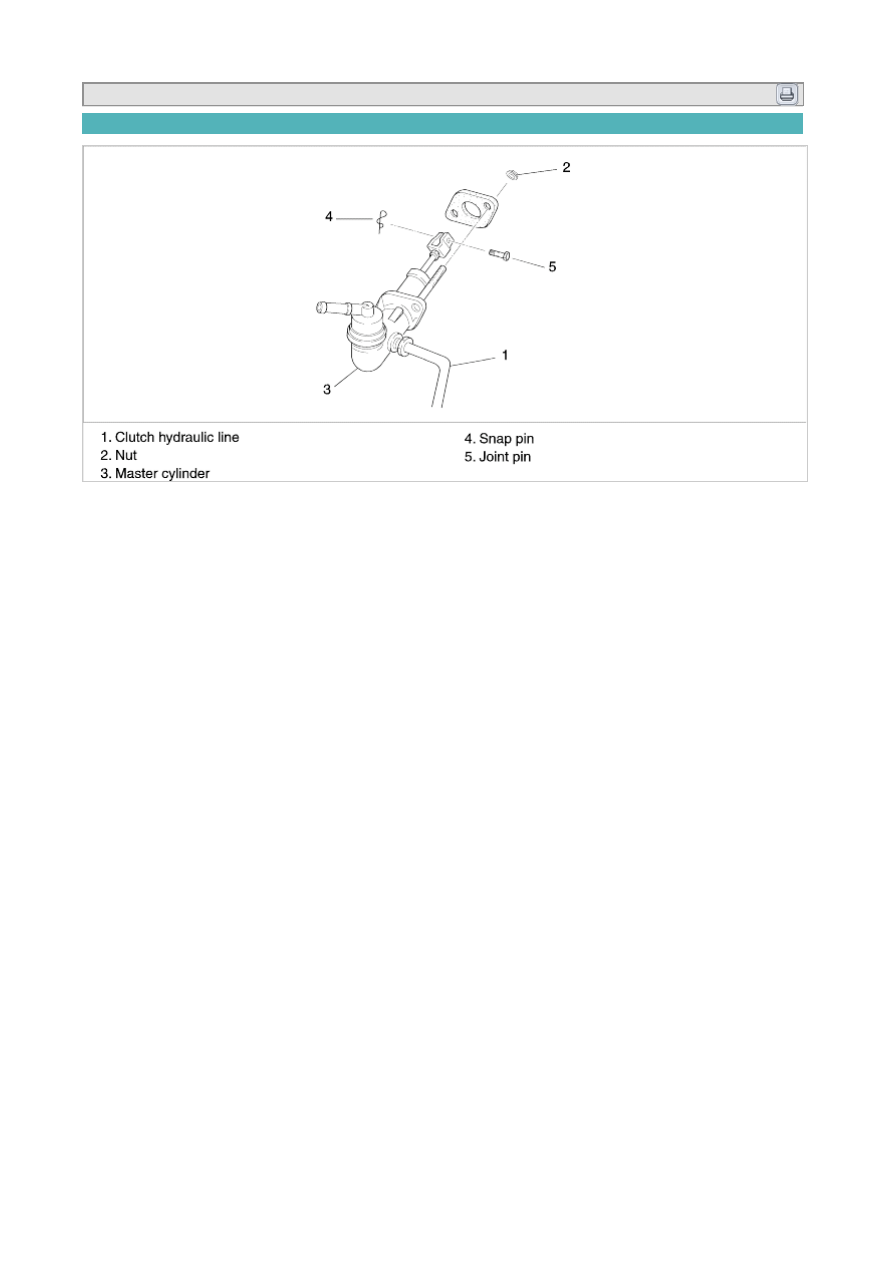

 Clutch Master Cylinder

Clutch System

  2001 > 1.8L DOHC >



Component

  2001 > 1.8L DOHC >



Removal

1. Disconnect cable.

2. Pull locktab then remove fuse box.

3. Remove Snap pin and Joint pin from master cylinder push rod.

4. Remove master cylinder mounting nuts.

Clutch brake fluid will damage painted surfaces so use a container or shop towels for fluid collection.
If fluid gets on a painted surface, rinse immediately with clear water to prevent damage.

5. Disconnect clutch master cylinder hose.

6. Disconnect clutch hydraulic line with SST(0K130 430 019).

7. Remove clutch master cylinder.

Installation

1. Install clutch master cylinder.

2. Tighten master cylinder mounting nuts.

3. Insert Snap pin and Joint pin into master cylinder push rod.

4. Tightening torque : 9.4~15.9 lb-ft (12.7~21.5 N·m, 1.3~2.2 kg-m)

5. Connect clutch master cylinder hose.

6. Install fuse box.

7. Install cable.

8. Perform clutch hydraulic line bleeding. (Refer to hydraulic line bleeding)

9. Verify that there is no leakage.

10. Perform a road test.
