FANUC I/O Unit–MODEL A CONNECTION AND MAINTENANCE MANUAL MARMGIOMA12801E REV. F (B-61813EN/06)

B-61813E/06

CONNECTION 8.HIGH-SPEED COUNTER MODULE

8.9

EXAMPLE OF STARTING UP ACT01A

8.9.1

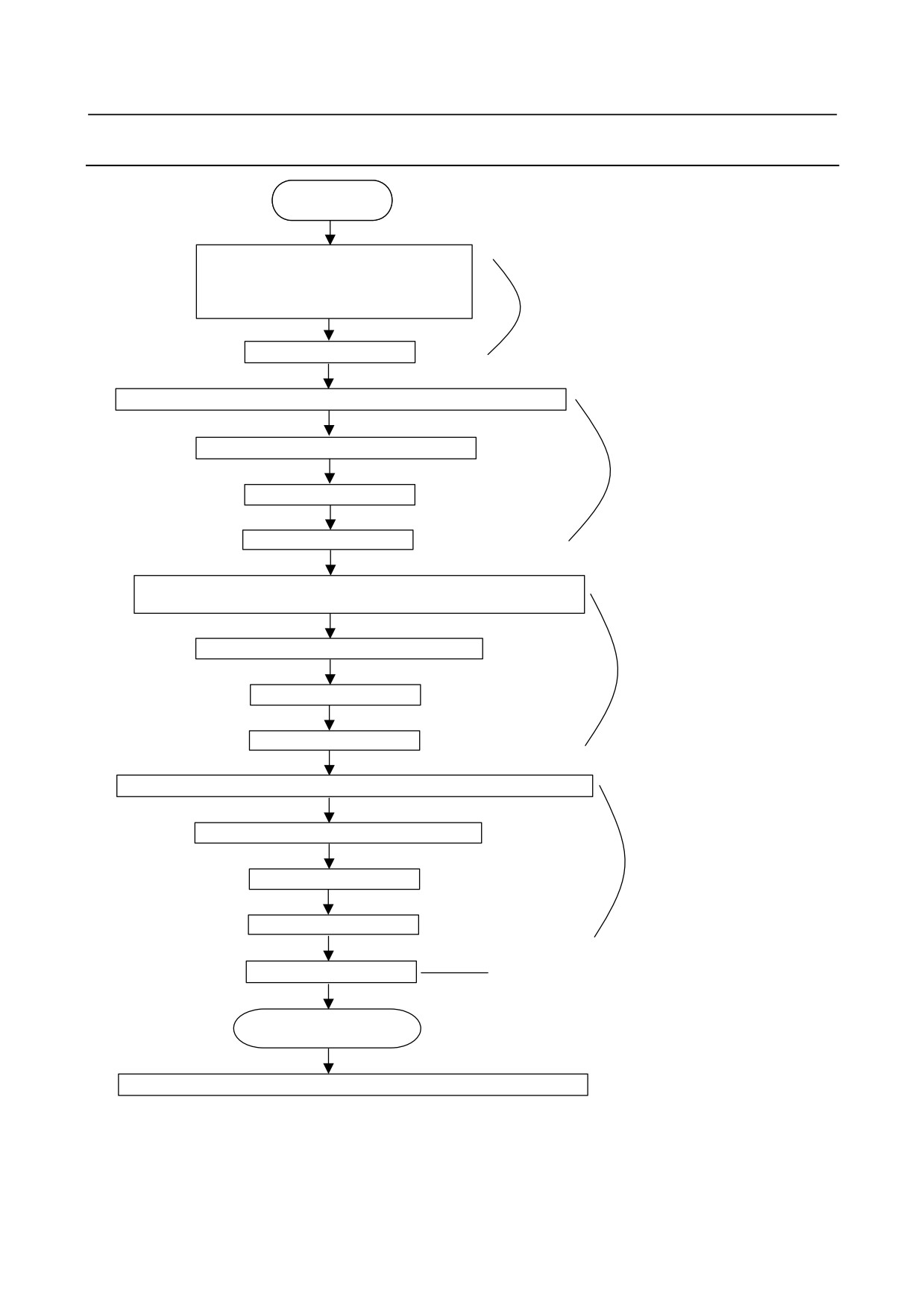

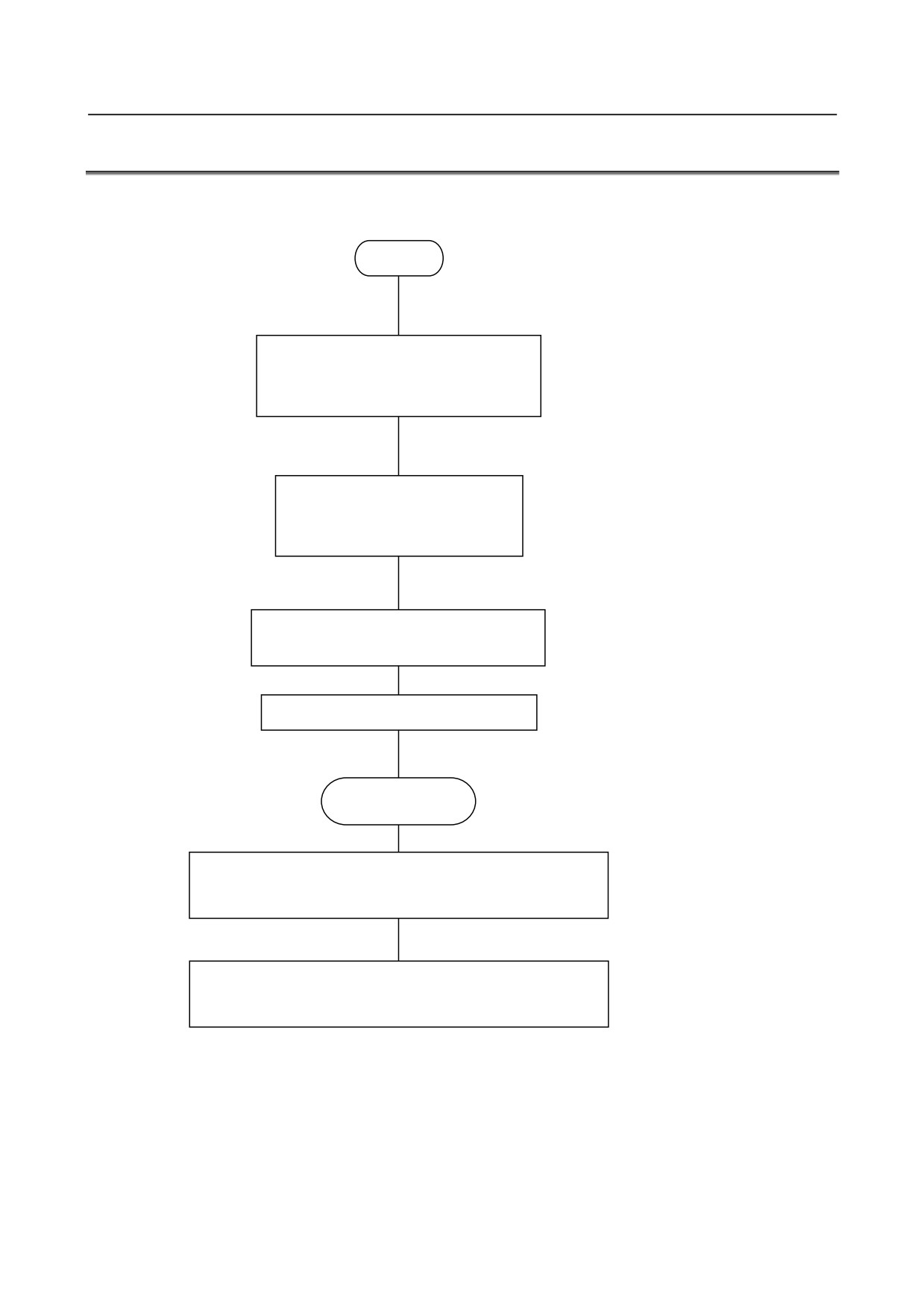

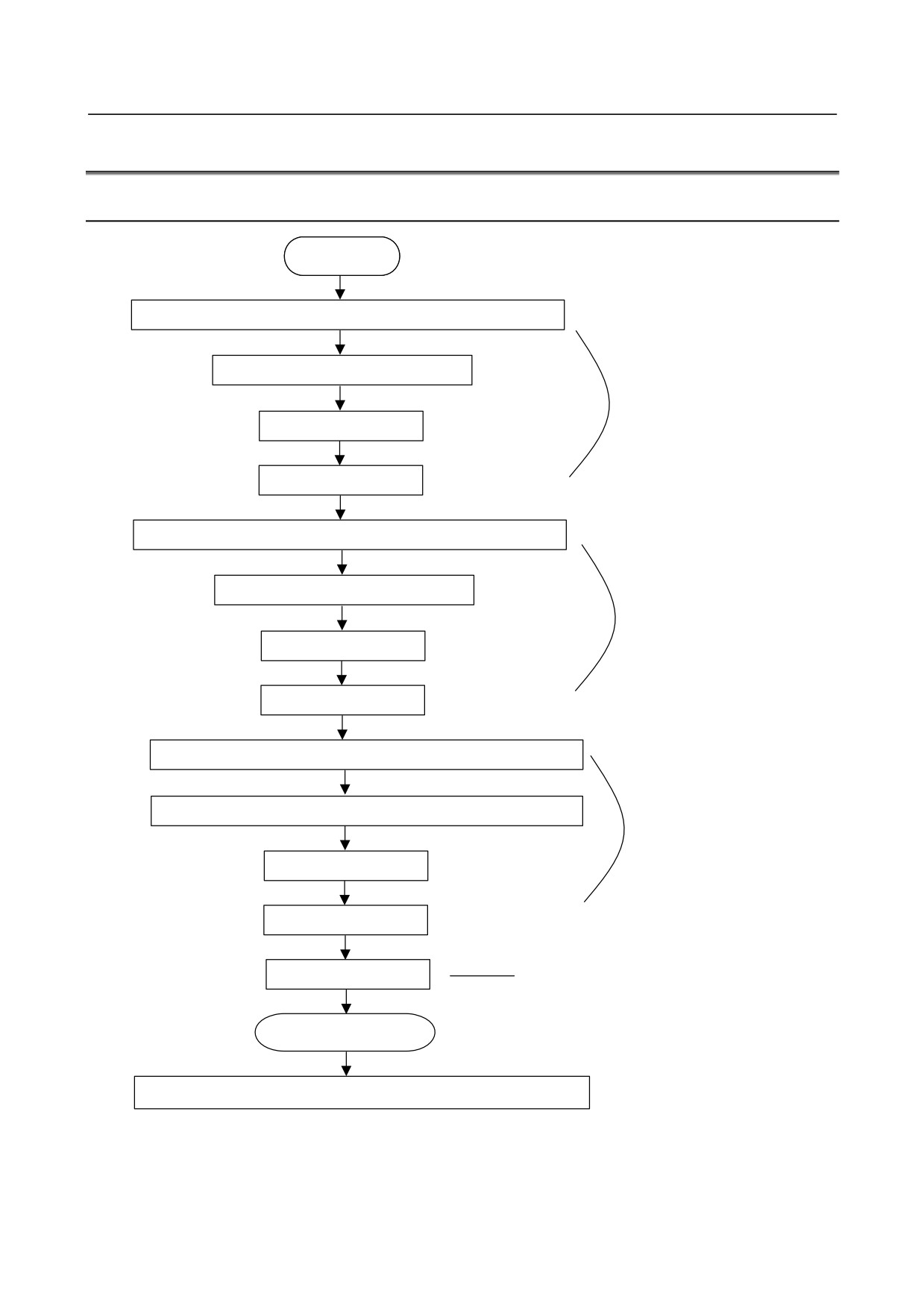

Mode A Startup Flowchart

Start

Note: The PRS bit is reset to "0" at the start.

Load DTOH, DTOM, and DTOL with desired preset values.

Set SELECT to 001.

Preset values are specified.

Set PRS to 1.

Wait for 2 scan cycles.

Load DTOH bits 0 to 2 with desired value.

Set SELECT to 000.

Compare output

values are specified.

Set PRS to 0.

Wait for 2 scan cycles.

Load DTOH, DTOM, and DTOL with desired comparison values.

Comparison values are specified.

Note: If compare registers B and

Set SELECT to 010 (to select compare register A).

C are also to be used,

repeat these steps for

them with different

SELECT values.

Set PRS to 1.

Note: The PRS bit is inverted (0

→ 1 or 1 → 0) each time a

value is specified.

Wait for 2 scan cycles.

Set CE to 1.

Counting is enabled.

Start counting.

*1 The CNTH is the 7 low-order bits

Count values are the CNTH^(*1), CNTM, and CNTL that are read when TRA = TRB.

of the CNTS.

- 125 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/06

8.9.2

Example of Mode A Ladder

Allotment

Address

Group

Base

Slot

Module name Address

Group

Base

Slot

Module name

The ACT01A is allocated to X0010 to X0013 and Y0010 to Y0013. Y0000 to Y0003 are the addresses used

to confirm count values.

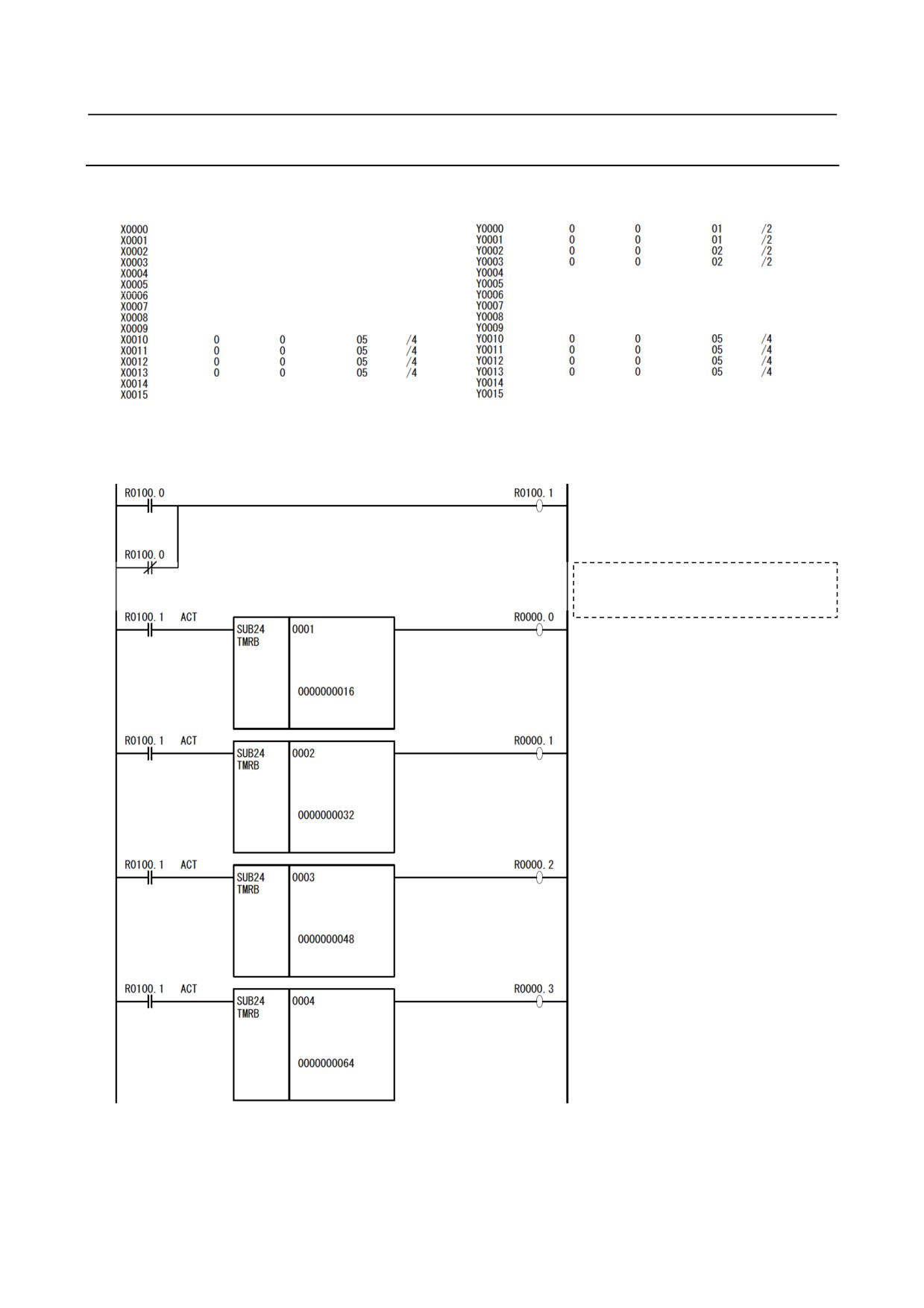

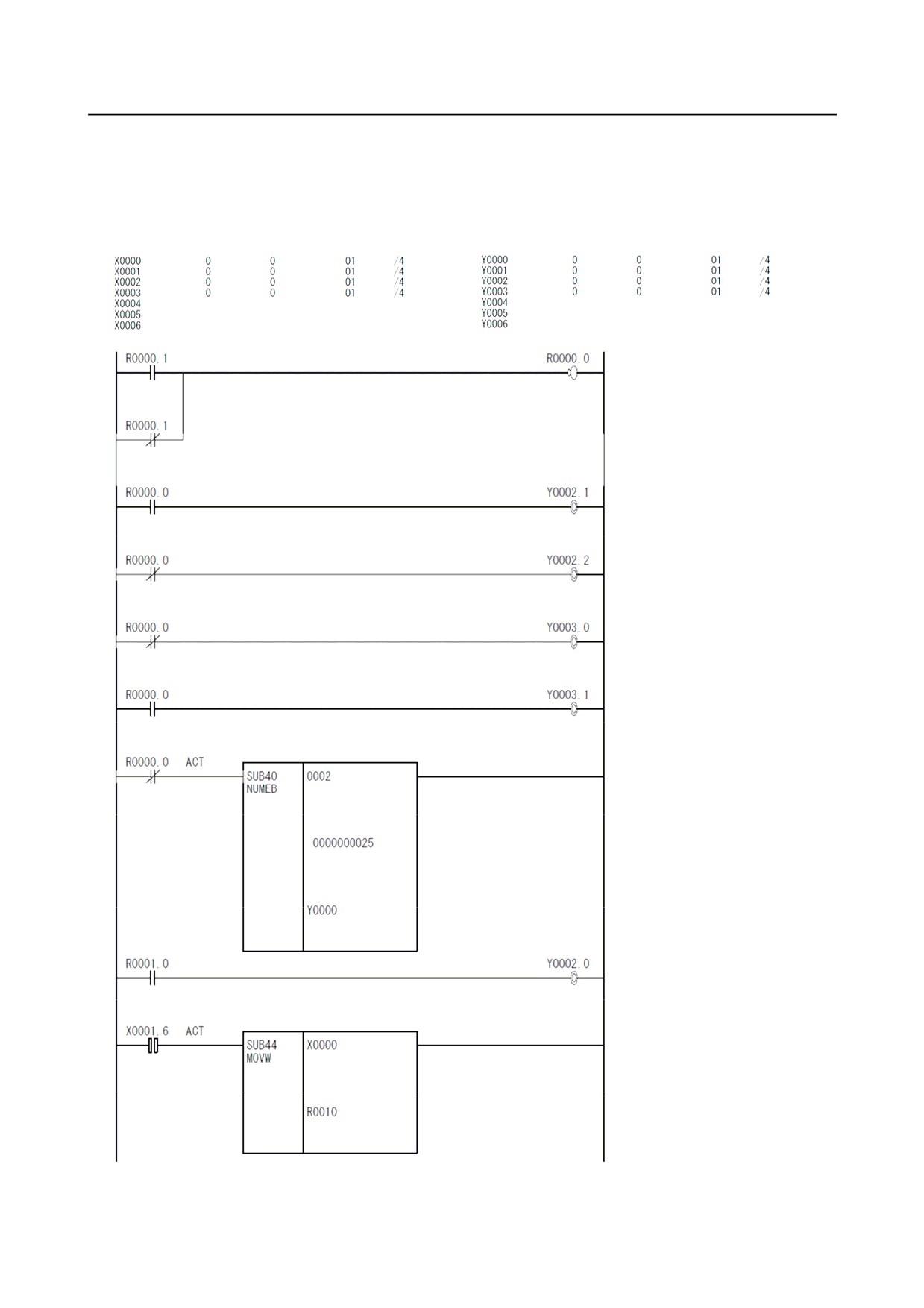

Ladder example

R0100.1 is used as a normally ON coil.

The timer is used to generate a timing

signal at intervals of 16 ms (2 scan cycles).

R0000.0 is turned on 16 ms (2 scan cycles)

after RUN.

R0000.1 is turned on 32 ms (4 scan cycles)

after RUN.

R0000.2 is turned on 48 ms (6 scan cycles)

after RUN.

R0000.3 is turned on 64 ms (8 scan cycles)

after RUN.

- 126 -

B-61813E/06

CONNECTION 8.HIGH-SPEED COUNTER MODULE

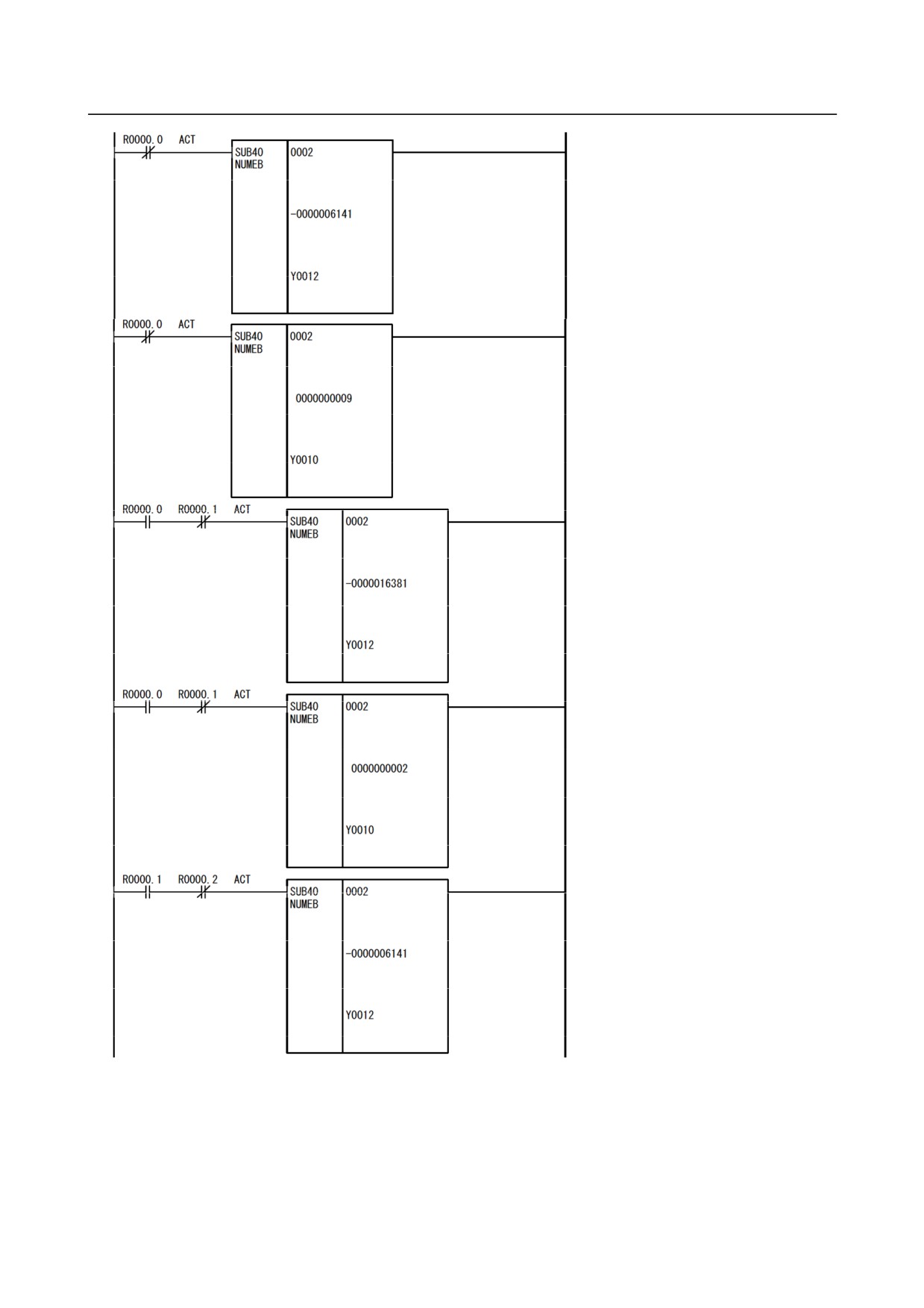

A preset value is specified right after RUN.

A preset value of +1000 is used here.

If +1000 → 0003E8h, the following are

written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← E8h

If Y0012 to Y0013 have 1-word data,

E803h → -6141 is written.

In addition, if SELECT = 001 and PRS = 1,

Y0010:00001001 is set to 9 (Y0011 is 0).

Compare register A is loaded with a

comparison value 2 scan cycles after RUN.

A preset value of +960 is used here.

If +960 → 0003C0h, the following are

written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← C0h

If Y0012 to Y0013 have 1-word data, C003h

→ -16381 is written.

In addition, if SELECT = 010 and PRS = 0,

Y0010:00000010 is set to 2 (Y0011 is 0).

Compare register B is loaded with a

comparison value 4 scan cycles after RUN.

A preset value of +1000 is used here.

If +1000 → 0003E8h, the following are

written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← E8h

If Y0012 to Y0013 have 1-word data, E803h

6141 i

itt

- 127 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/06

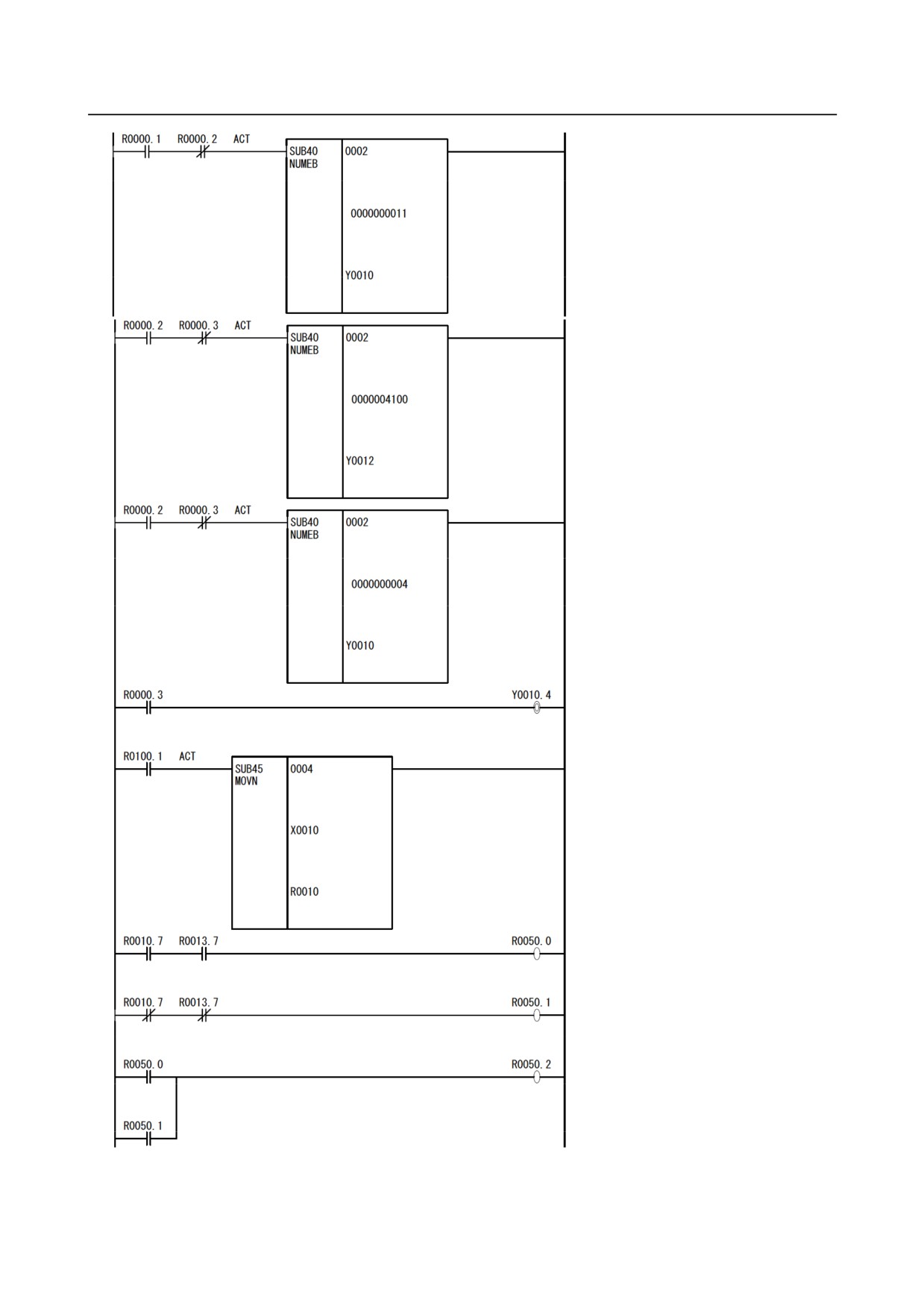

In addition, if SELECT = 011 and PRS = 1,

Y0010:00001011 is set to 11 (Y0011 is 0).

Compare register C is loaded with a

comparison value 6 scan cycles after RUN.

A preset value of +1040 is used here.

If +1040 → 000410h, the following are

written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 04h

Y0013: DTOL ← 10h

If Y0012 to Y0013 have 1-word data, 1004h

→ +4100 is written.

In addition, if SELECT = 100 and PRS = 0,

Y0010:00000100 is set to 4 (Y0011 is 0).

The counter is enabled 8 scan cycles after

RUN.

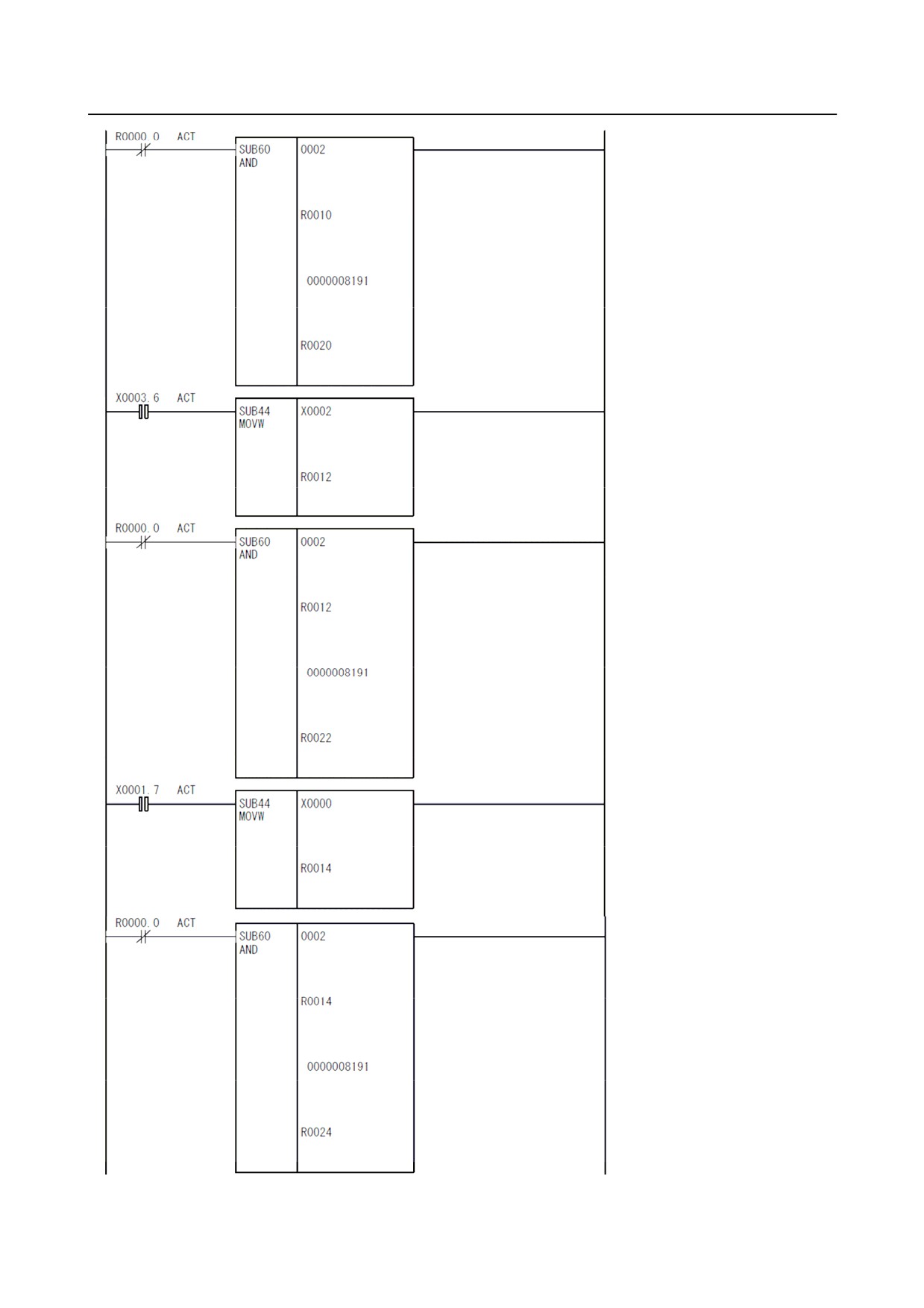

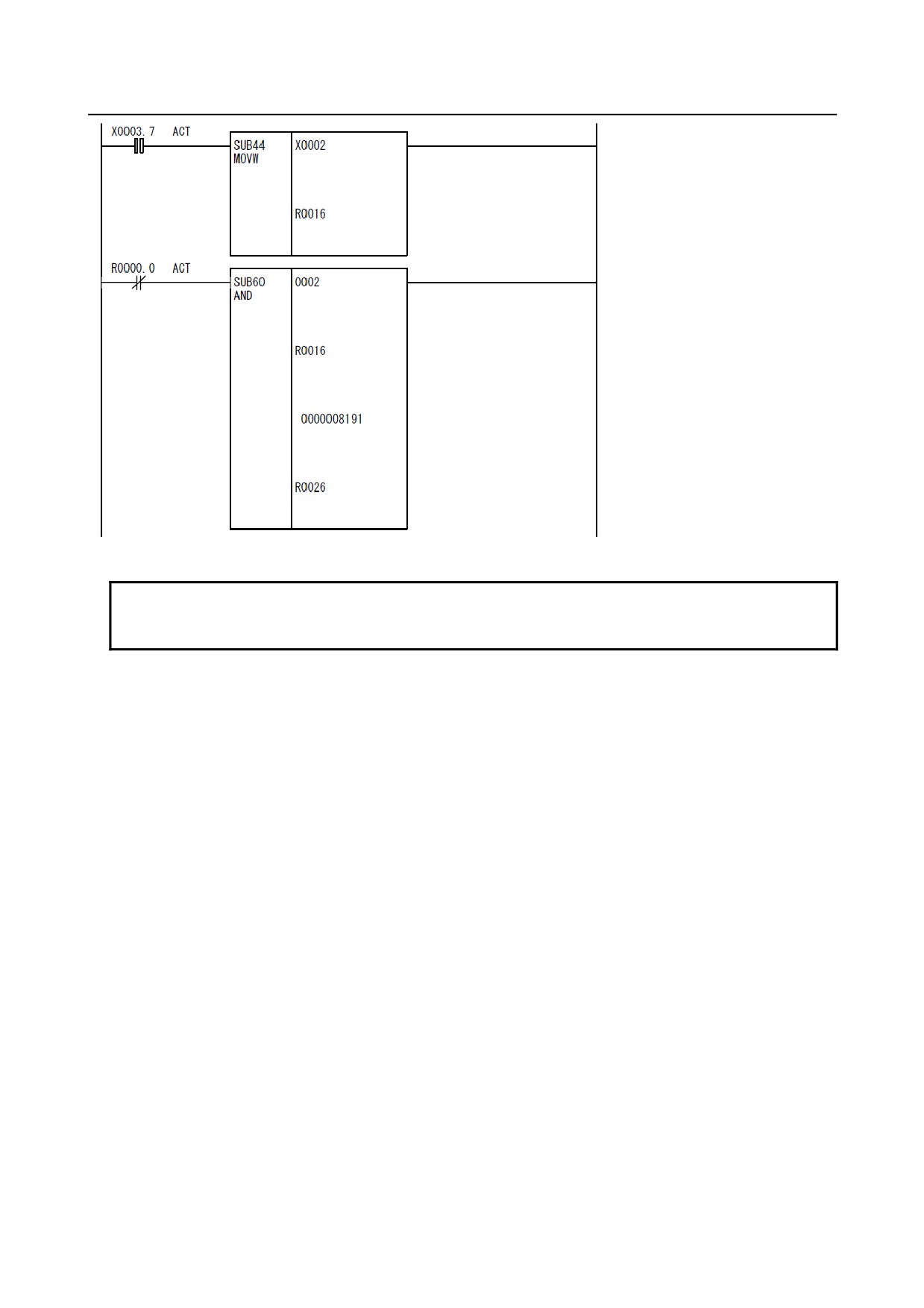

X0010 to X0013 are sent to R0010 to

R0013 to maintain data consistency.

A timing signal indicating TRA = TRB is

generated.

If TRA = TRB = 1 or TRA = TRB = 0, R50.2

becomes 1.

- 128 -

B-61813E/06

CONNECTION 8.HIGH-SPEED COUNTER MODULE

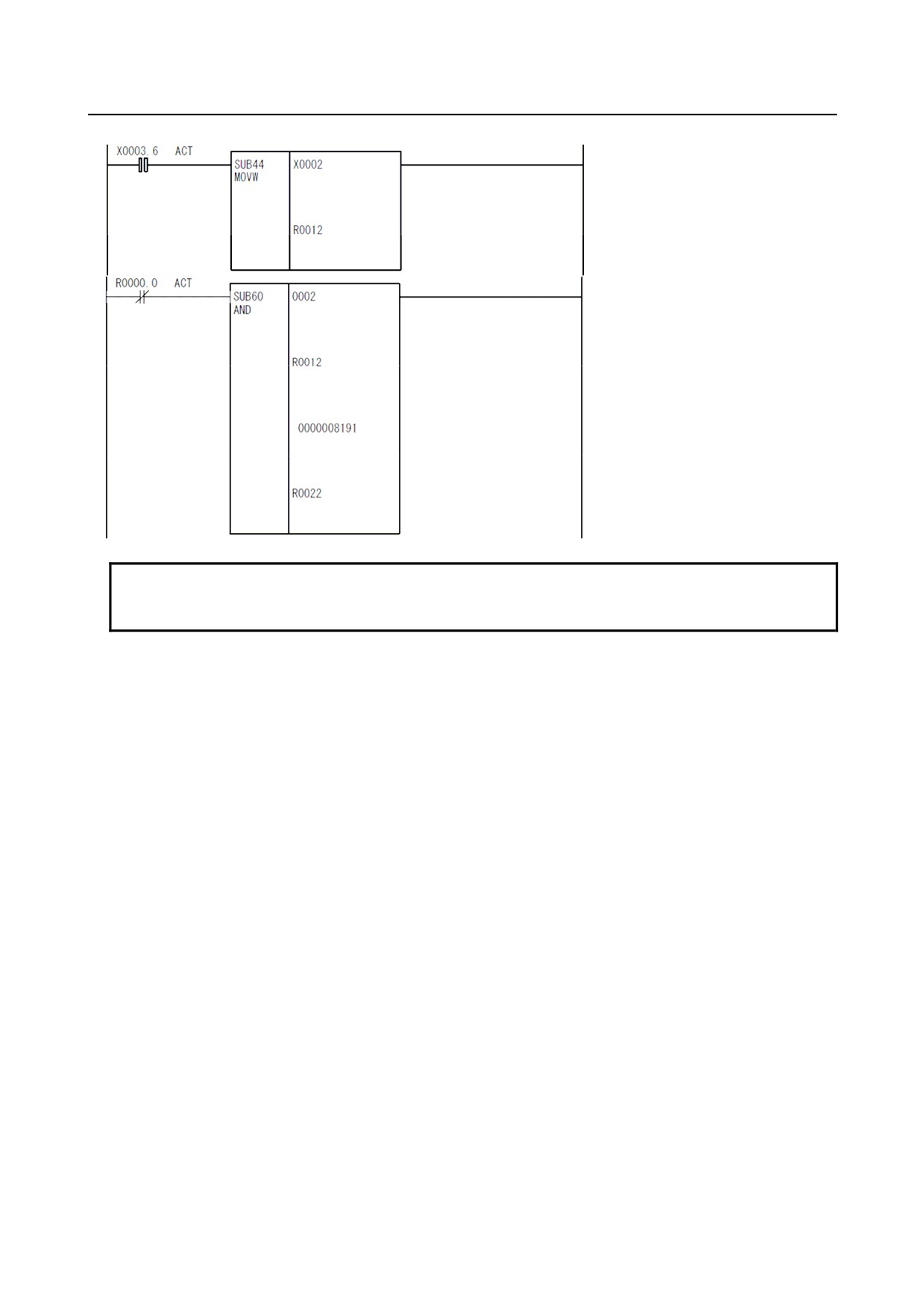

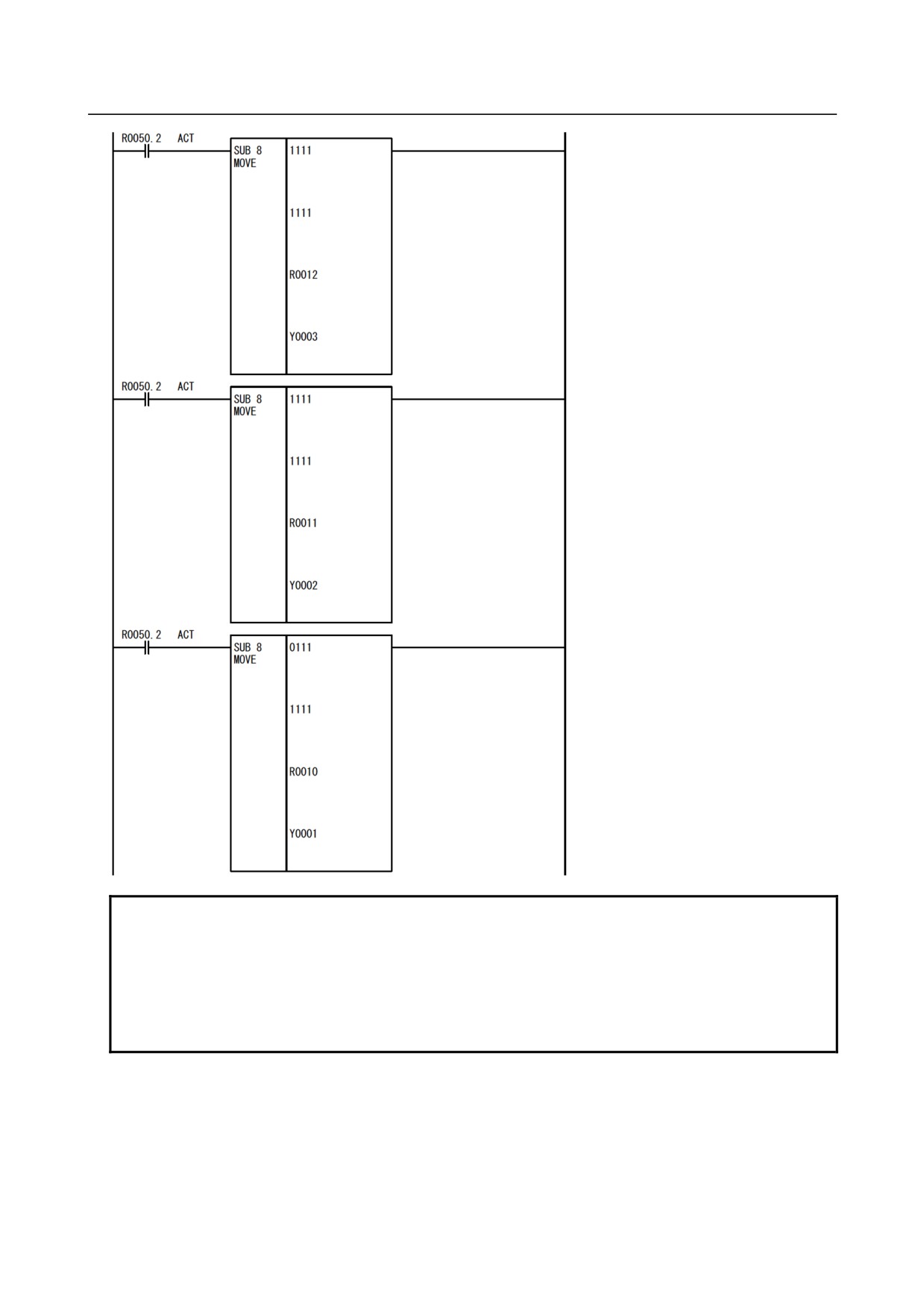

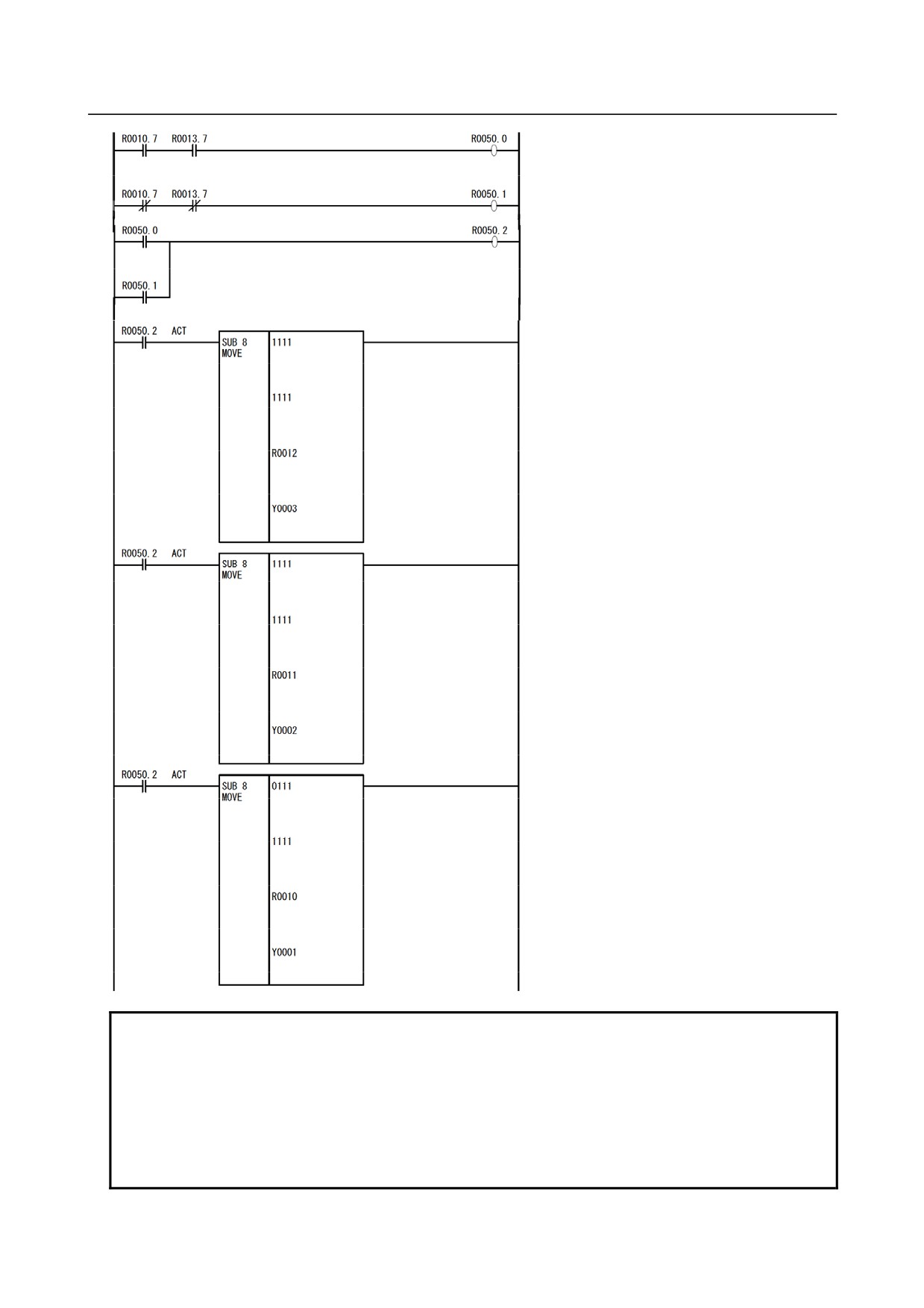

The counter value is output to Y0001 to

Y0003 when TRA = TRB.

CNTH→Y0001

CNTM→Y0002

CNTL→Y0003

The highest-order bit (TRA) is masked

because CNTH is 7-bit data.

NOTE

1 This sample ladder does not specify what the compare output is. To have it

specify, perform the same operation as for setting the compare register by

changing the SELECT value. Note that it is necessary to invert the PRS bit (0 → 1

or 1 → 0) each time a value is specified.

2 The compare output value and comparison value can be specified in any order

until CE = 1 (counter enable).

- 129 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/06

8.9.3

Mode B Startup Flowchart

Start

Note: For both modes A and B, the PRS bit is reset to "0" at the start.

CTRL:0Fh (SELECT=7, PRS=1)

DTOH:01h

DTOM:00h

DTOL:00h

Mode B is entered.

Write the above values.

Wait for 2 scan cycles.

Load DTOH, DTOM, and DTOL with desired preset values.

Preset values are specified.

Set SELECT to 22(16Hex).

Note: The PRS bit hereafter

works as the PRS bit (bit

5) for mode B.

Set PRS to 1.

Wait for 2 scan cycles.

Set DTOH, DTOM, and DTOL with compare results (8 bits) output,

Compare result output values are

respectively, for partition #0, #1, and #2.

specified.

Note: If compare result output

values for other partitions

Set SELECT to 16(10Hex).

(#3 to #16) are to be used,

repeat the same operation

by changing the SELECT

Set PRS to 0.

value.

Note: The PRS bit is inverted (0 →

1 or 1 →0) each time a

Wait for 2 scan cycles.

value is specified.

Comparison values are specified.

Set DTOH, DTOM, and DTOL with desired comparison values for partition #0.

Note: If comparison values for

other partitions (#1 to #15)

Set SELECT to 0.

are to be used, repeat the

same operation by

changing the SELECT

Set PRS to 1.

value.

Note: The PRS bit is inverted (0

→ 1 or 1 → 0) each time a

Wait for 2 scan cycles.

value is specified.

Set CE to 1.

Counting is enabled.

Start counting.

(*1)

The CNTH is the 7 low-order bits

Count values are the CNTH^(*1), CNTM, and CNTL that are read when TRA = TRB.

of the CNTS.

- 130 -

B-61813E/06

CONNECTION 8.HIGH-SPEED COUNTER MODULE

8.9.4

Example of Mode B Ladder

Allotment

Address

Group

Base

Slot

Module name Address

Group

Base

Slot

Module name

The ACT01A is allocated to X0010 to X0017 and Y0010 to Y0013. Y0000 to Y0003 are the addresses used

to confirm count values.

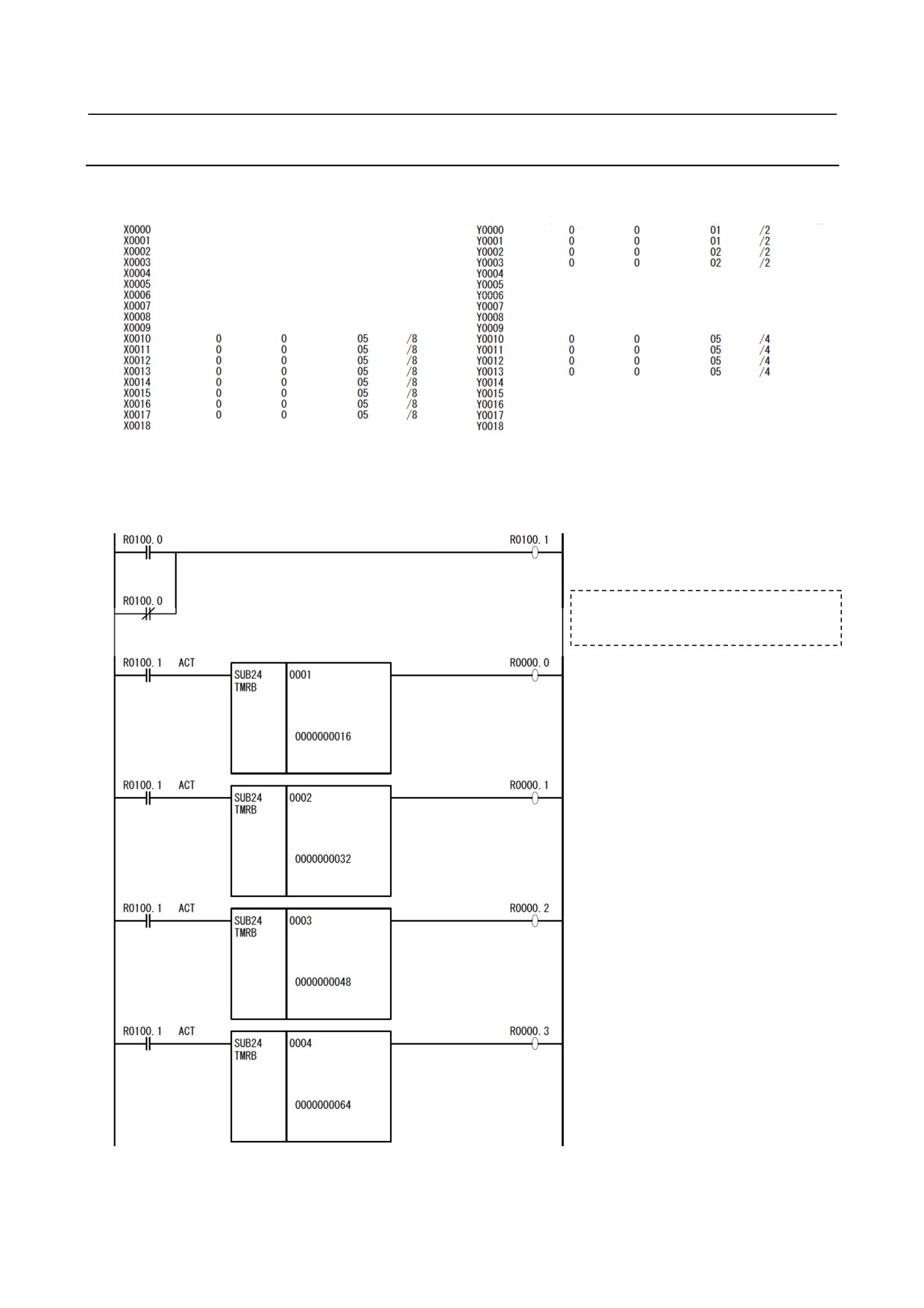

Ladder example

R0100.1 is used as a normally ON coil.

The timer is used to generate a timing signal

at intervals of 16 ms (2 scan cycles).

R0000.0 is turned on 16 ms (2 scan cycles)

after RUN.

R0000.1 is turned on 32 ms (4 scan cycles)

after RUN.

R0000.2 is turned on 48 ms (6 scan cycles)

after RUN.

R0000.3 is turned on 64 ms (8 scan cycles)

after RUN.

- 131 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/06

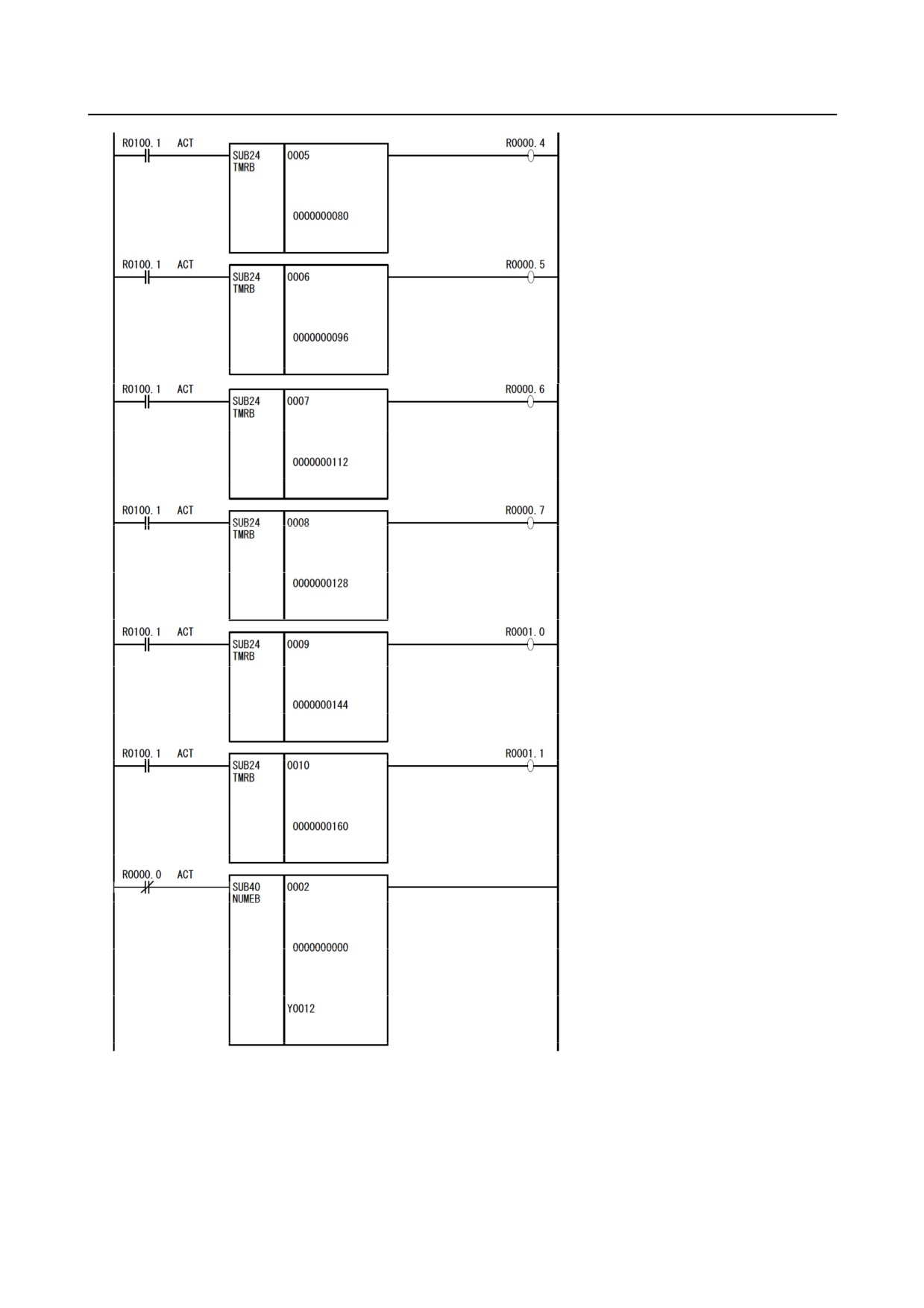

R0000.4 is turned on 80 ms (10 scan cycles)

after RUN.

R0000.5 is turned on 96 ms (12 scan

cycles) after RUN.

R0000.6 is turned on 112 ms (14 scan

cycles) after RUN.

R0000.7 is turned on 128 ms (16 scan

cycles) after RUN.

R0001.0 is turned on 144 ms (18 scan

cycles) after RUN.

R0001.1 is turned on 160 ms (20 scan

cycles) after RUN.

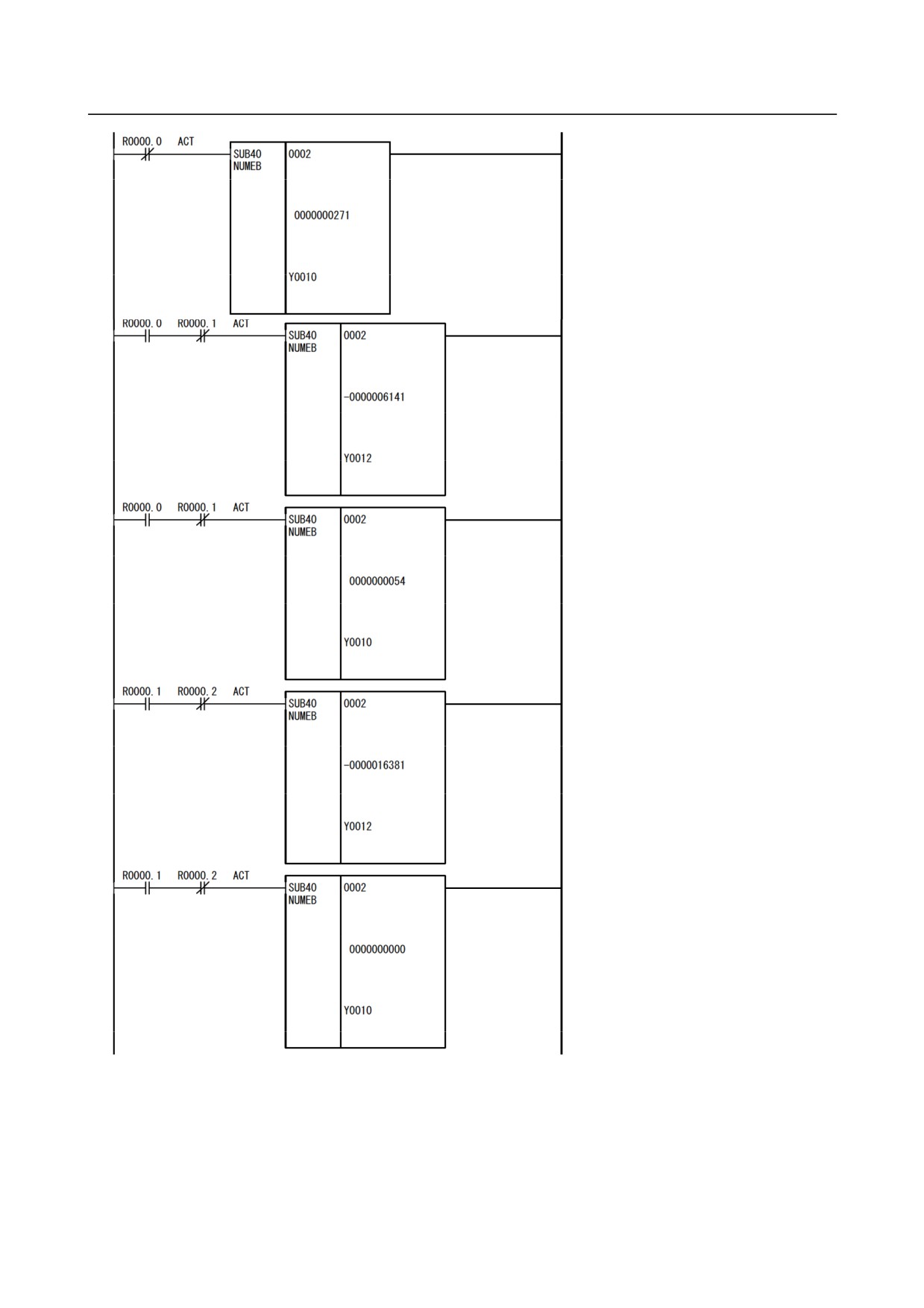

Mode B is entered right after RUN.

The following are written:

CTRL: 0Fh (SELECT = 7 and PRS = 1)

DTOH: 01h

DTOM: 00h

DTOL: 00h

- 132 -

B-61813E/06

CONNECTION 8.HIGH-SPEED COUNTER MODULE

Continued from mode B writing

A preset value is specified 2 scan cycles after

RUN.

A preset value of +1000 is used here.

If +1000 → 0003E8h, the following are

written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← E8h

If Y0012 to Y0013 have 1-word data, E803h

→ -6141 is written.

In addition, if SELECT = 22(16h) and PRS =

1, Y0010:00110110 is set to 36h → +54

(Y0011 is 0).

A comparison value for partition #0 is

specified 4 scan cycles after RUN.

A comparison value of +960 is used here. (A

range from 0 to +960 becomes partition #0.)

If +960 → 0003C0h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← C0h

If Y0012 to Y0013 have 1-word data, C003h

→ -16381 is written.

In addition, if SELECT = 0 and PRS = 0,

Y0010 is set to 0 (Y0011 is 0).

- 133 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/06

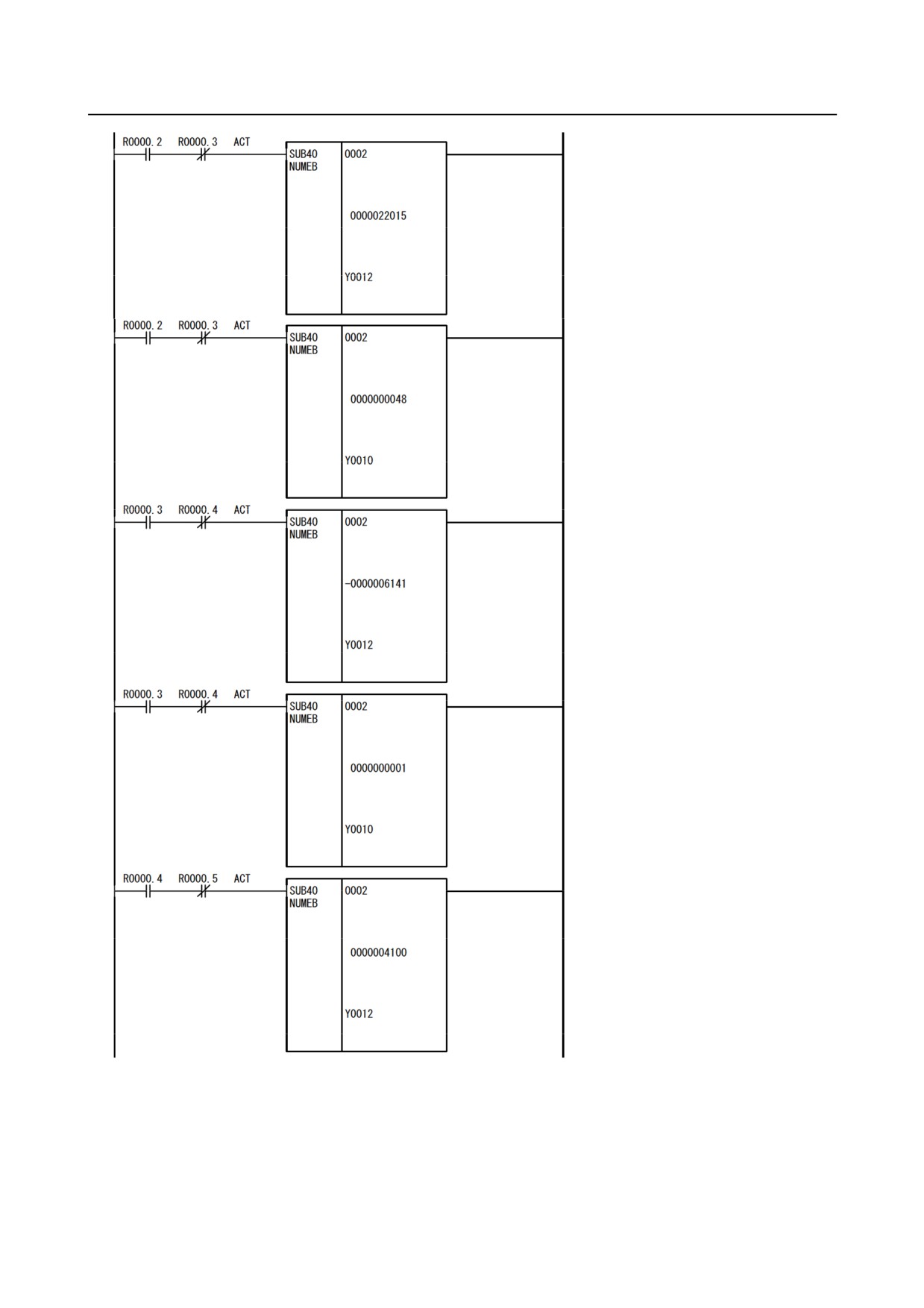

An output value for partition #0 to #2 is

specified 6 scan cycles after RUN.

To be specific, the following are output.

Partition #0: Y0011 ← 00h

Partition #1: Y0012 ← FFh

Partition #2: Y0013 ← 55h

If Y0012 to Y0013 have 1-word data, 55FFh

→ +22015 is written.

In addition, if SELECT = 16(10h) and PRS =

1, Y0010=0011000 is set to 30h → +48

(Y0011 is 0).

A comparison value for partition #1 is specified

8 scan cycles after RUN.

A comparison value of +1000 is used here. (A

range from +960 to +1000 becomes partition

#1.)

If +1000 → 0003E8h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← E8h

If Y0012 to Y0013 have 1-word data, E803h →

-6141 is written.

In addition, if SELECT = 1 and PRS = 0, Y0010

is set to 00000001 (Y0011 is 0).

A comparison value for partition #2 is

specified 10 scan cycles after RUN.

A comparison value of +1040 is used here. (A

range from +1000 to +1040 becomes

partition #2.)

If +1040 → 000410h, the following are

written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 04h

Y0013: DTOL ← 10h

If Y0012 to Y0013 have 1-word data, 1004h

→ +4100 is written.

- 134 -

B-61813E/06

CONNECTION 8.HIGH-SPEED COUNTER MODULE

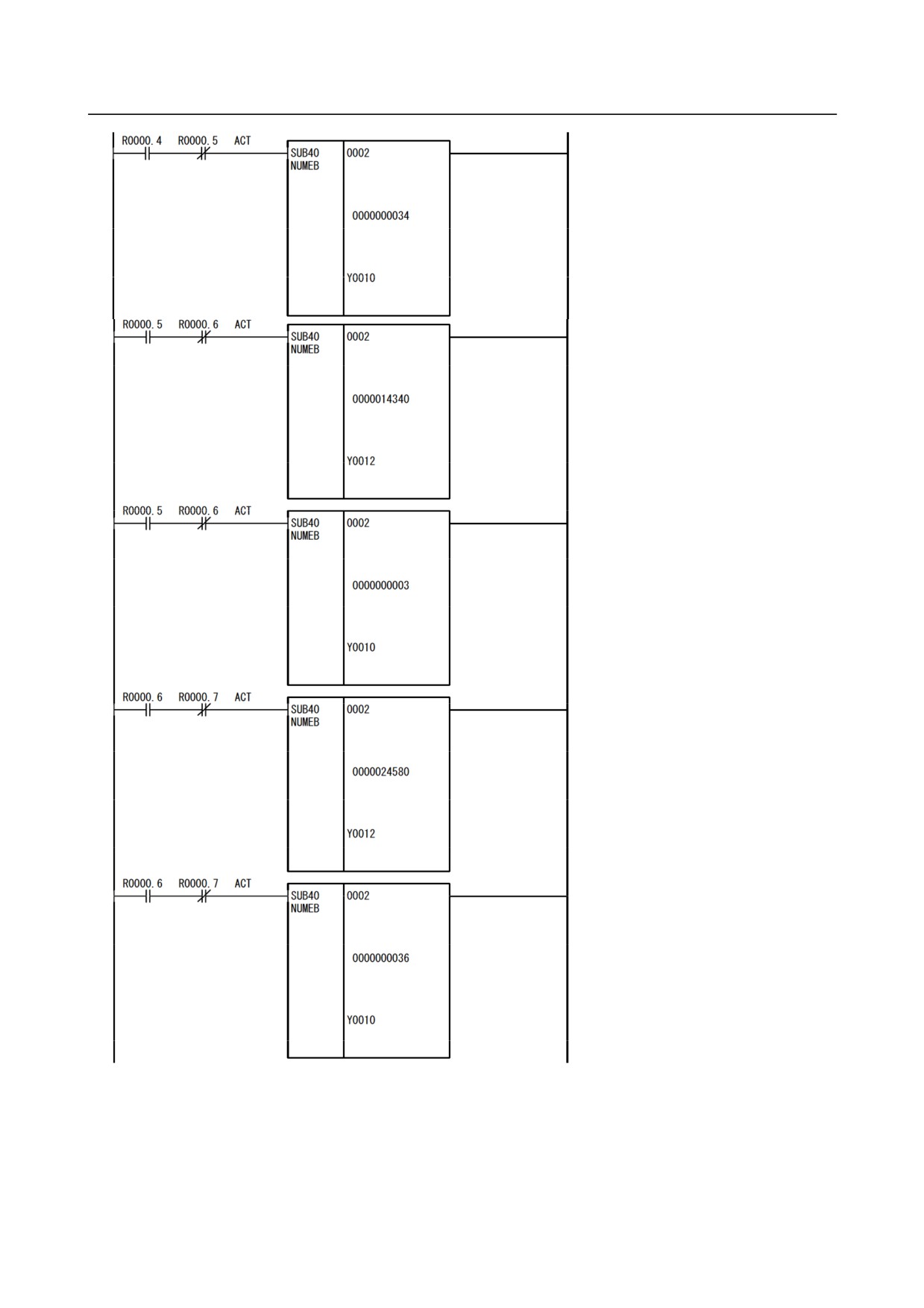

In addition, if SELECT = 2 and PRS = 1,

Y0010=00100010 is set to 22h → +34

(Y0011 is 0).

A comparison value for partition #3 is

specified 12 scan cycles after RUN.

A comparison value of +1080 is used here.

(A range from +1040 to +1080 becomes

partition #3.)

If +1080 → 000438h, the following are

written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 04h

Y0013: DTOL ← 38h

If Y0012 to Y0013 have 1-word data, 3804h

→ +14340 is written.

In addition, if SELECT = 3 and PRS = 0,

Y0010=00000011 is set to +3 (Y0011 is 0).

A comparison value for partition #4 is

specified 14 scan cycles after RUN.

A comparison value of +1120 is used here.

(A range from +1080 to +1120 becomes

partition #4.)

If +1120 → 000460h, the following are

written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 04h

Y0013: DTOL ← 60h

If Y0012 to Y0013 have 1-word data, 6004h

→ +24580 is written.

In addition, if SELECT = 4 and PRS = 1,

Y0010=00100100 is set to 24h → +36

(Y0011 is 0).

- 135 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/06

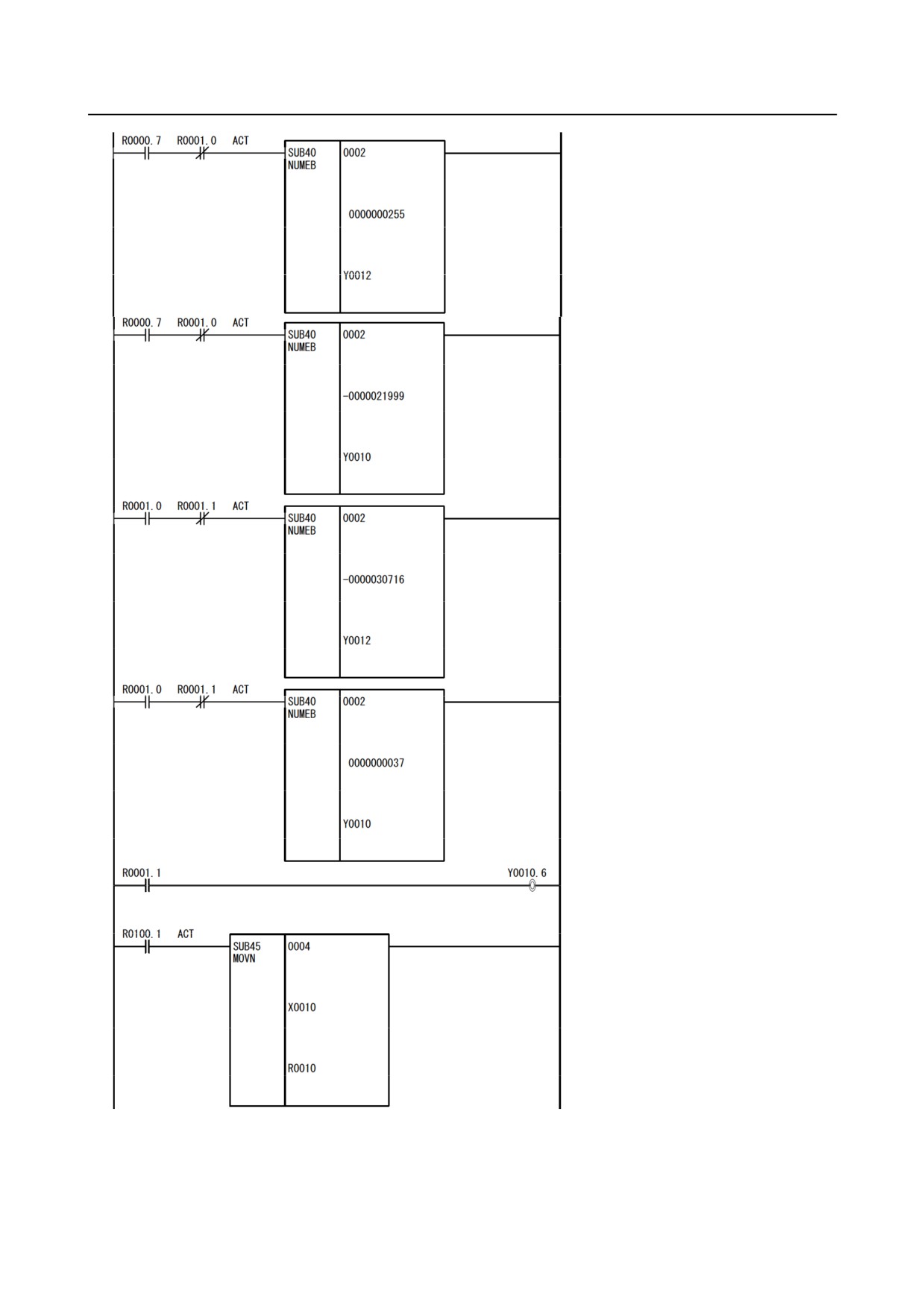

An output value for partition #3 to #5 is

specified 16 scan cycles after RUN.

To be specific, the following are output.

Partition #3: Y0011 ← AAh

Partition #4: Y0012 ← FFh

Partition #5: Y0013 ← 00h

If Y0012 to Y0013 have 1-word data, 00FFh

→ +255 is written.

In addition, if SELECT = 17(11h) and PRS =

0, 1-word data AA11h → -21999 is written to

Y0010 to Y0011 because Y0010 = 0001001

= 11h and Y0011 = AAh.

A comparison value for partition #5 is

specified 18 scan cycles after RUN.

A comparison value of +1160 is used here.

(A range from +1120 to +1160 becomes

partition #5.)

If +1160 → 000488h, the following are

written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 04h

Y0013: DTOL ← 88h

If Y0012 to Y0013 have 1-word data, 8804h

→ -30716 is written.

In addition, if SELECT = 5 and PRS = 1,

Y0010=00100101 is set to 25h → +37

(Y0011 is 0).

The counter is enabled 20 scan cycles after

RUN.

X0010 to X0013 are sent to R0010 to R0013

to maintain data consistency.

- 136 -

B-61813E/06

CONNECTION 8.HIGH-SPEED COUNTER MODULE

A timing signal indicating TRA = TRB is generated.

If TRA = TRB = 1 or TRA = TRB = 0, R50.2

becomes 1.

The counter value is output to Y0001 to Y0003

when TRA = TRB.

CNTH → Y0001

CNTM → Y0002

CNTL → Y0003

The highest-order bit (TRA) is masked because

CNTH is 7-bit data.

NOTE

1 This sample ladder does not set a comparison value or output value for partition #6

and above. If comparison and output values for these partitions are to be used,

repeat the same operation as for partition #6 and below by changing the SELECT

value.

Be sure to invert the PRS bit (0 → 1 or 1 → 0) each time a value is specified.

2 The comparison and compare output values for each partition can be specified in

any order until CE = 1 (counter enable).

- 137 -

9.TEMPERATURE INPUT MODULE CONNECTION

B-61813E/06

9 TEMPERATURE INPUT MODULE

9.1

OVERVIEW

A temperature input module is used to measure the temperature of machine tools and similar equipment.

The temperature input module can be either of the following, depending on the type of the sensor used.

• Thermoresistance-type temperature input module: ATI04A

• Thermocouple-type temperature input module: ATI04B

These modules can measure temperature on up to four channels. For the thermoresistance-type temperature

input module, either JPt100Ω or Pt100Ω can be selected. For the thermocouple-type temperature input

module, either K or J thermocouple input can be selected. This selection is made using the PMC user

program (ladder).

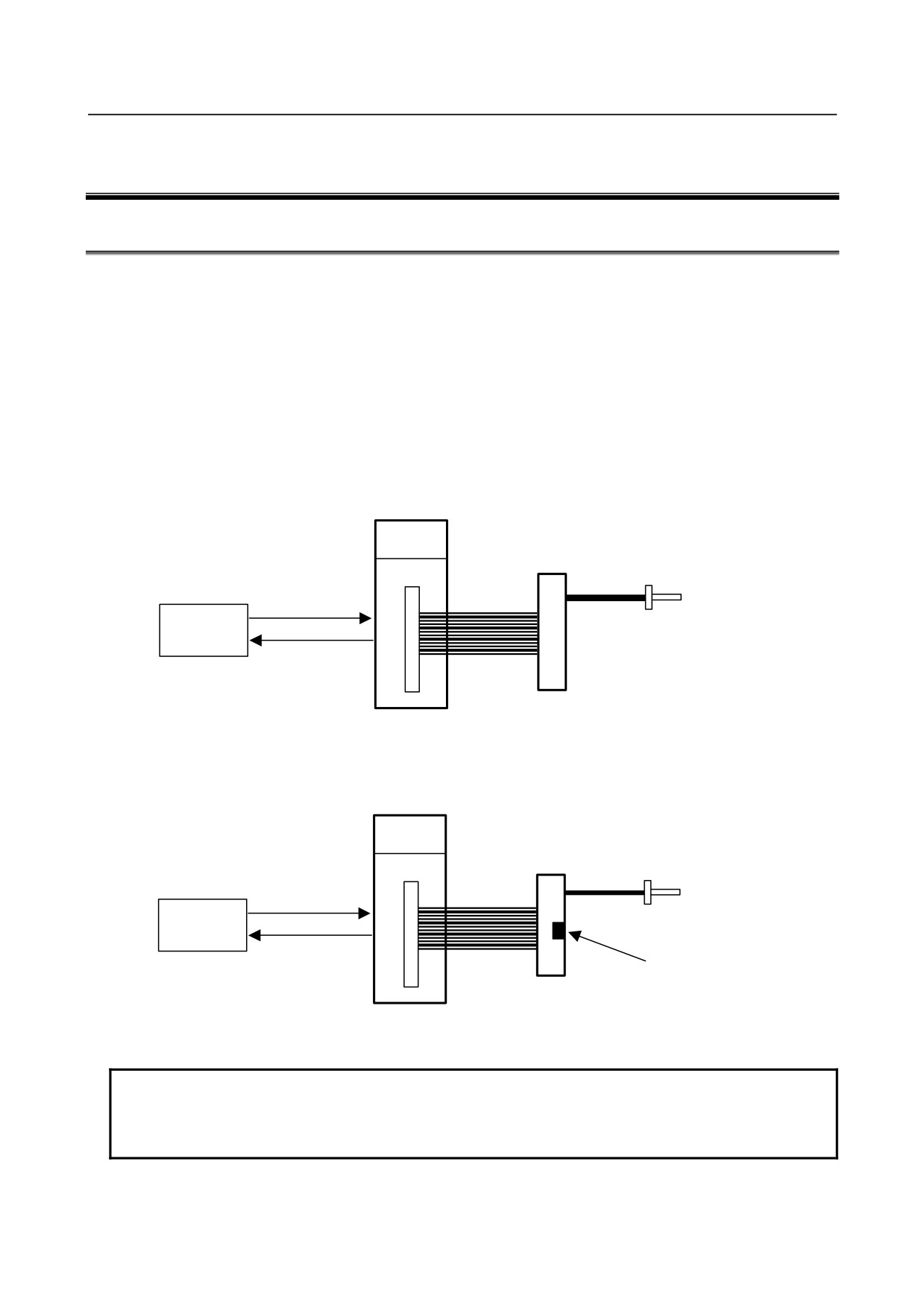

ATI04A

ATB04A

CA48

Module setting

Flat cable

CNC

Resistance

temperature

sensor

Temperature data

(3-wire type)

Terminal unit

Temperature input module

(for resistance

(for resistance temperature sensor)

temperature sensor)

ATI04B

ATB04B

CA47

Module setting

Flat cable

CNC

Tthermo couple sensor

(2-wire type)

Temperature data

Cold junction

compensation element

Terminal unit*

(build-in product)

(for thermo couple)

Temperature input module

(for thermo couple)

NOTE

The terminal unit for thermo couple is necessary for the temperature input module

for thermo couple because the module requires the cold junction compensation

element.

- 138 -

B-61813E/06

CONNECTION

9.TEMPERATURE INPUT MODULE

9.2

TEMPERATURE INPUT MODULE SPECIFICATION

Input signal types and number of

• Types ATI04A

input channels

Three-wire thermoresistance (JPt100Ω)

Three-wire thermoresistance (Pt100Ω)

ATI04B

J thermocouple (can also be used with the tip grounded)

K thermocouple (can also be used with the tip grounded)

• Number of input channels

2/4, for all for which the input is the same

Input signal switching method

• User program (ladder)

Temperature measurement range

• Thermoresistance type (ATI04A)

and precision

-50 to 300.0°C

Resolution

0.1°C

Overall precision

±1%FS

• Thermocouple type (ATI04B)

0 to 600.0°C

Resolution

0.1°C

Overall precision

±1%FS

Data sampling period setting ^(Note)

• 0.3 s per two channels

• 0.5 s per four channels to 10 s per four channels

(4 s per four channels is assumed if no specification is made)

System failure check

• Self-diagnosis

A watchdog timer is used.

• Abnormal temperature (including sensor input disconnection)

Failure information about each abnormal channel is sent to the PMC.

Interface with the PMC

• PMC → temperature module

Information format: Binary or bit

Signals: 32 points

• Temperature module → PMC

Information format: Binary or bit

Signals: 32 points

External connection

Connector

(Hirose Electric : HIF3BA-34PA-2.54DS)

NOTE

The actual response time is the sum of the time required for the signal to pass the

filter and the scan time that is determined depending on the system1

- 139 -

9.TEMPERATURE INPUT MODULE CONNECTION

B-61813E/06

9.3

PMC INTERFACE

9.3.1

PMC I/O Area

This temperature module uses an input/output area consisting of four bytes for input and the same number

of bytes for output. Each byte of the input/output area has the following meanings. The terms "input" and

"output" are used in reference to the PMC. When input/output addresses are assigned to the module, "/4" is

used as the module name.

(1) Output (PMC → temperature module)

Addresses in the module

DO07 to DO00

Period for 4-channel automatic measurement mode (lower 8 bits)

DO15 to DO08

Period for 4-channel automatic measurement mode (higher 8 bits)

DO23 to DO16

Module setting data and timing data

DO31 to DO24

Module setting data and timing data

(2) Input (temperature module → PMC)

Addresses in the module

DI07 to DI00

CH1 temperature data, CH3 temperature data, or abnormality data (lower 8 bits)

DI12 to DI08

CH1 temperature data, CH3 temperature data, or abnormality data (higher 5 bits)

DI15 to DI13

Status signal

DI23 to DI16

CH2 temperature data, CH4 temperature data, or abnormality data (lower 8 bits)

DI28 to DI24

CH2 temperature data, CH4 temperature data, or abnormality data (higher 5 bits)

DI31 to DI29

Status signal

NOTE

If you are using the PMC-N, NA, or QA (PMC for the Series 15 (Series 15

preceding the i series) and F-D Mate), all addresses up to those listed above can

be used without modifying them if the data is manipulated in byte (8-bit) units.

When manipulating data in word (16-bit) units, note that the byte addresses are

transposed as shown below.

Addresses for word-unit operation in the PMC-N, NA, and QA

PMC → Temperature module

Temperature module → PMC

High-order bits

Low-order bits

High-order bits

Low-order bits

Addresses in the module

DO07 to DO00

DO15 to DO08

DI07 to DI00

DI15 to DI08

DO23 to DO16

DO31 to DO24

DI23 to DI16

DI31 to DI24

9.3.2

Measurement Mode

This temperature module can operate in any of the following three measurement modes. The mode to use

can be selected using a user program (ladder).

(1)

2-channel measurement mode

This mode uses two channels, CH1 and CH2, for measurement. Data on each channel is updated every

0.3 s.

- 140 -

B-61813E/06

CONNECTION

9.TEMPERATURE INPUT MODULE

(2)

4-channel automatic measurement mode

This mode uses four channels, CH1 to CH4, for measurement. Input switching from CH1 and CH2

data to CH3 and CH4 data and vice versa is performed automatically. Data on each channel is updated

at a specified interval, say, every 0.5 to 10 s.

(3)

4-channel manual measurement mode

This mode uses four channels, CH1 to CH4, for measurement. The PMC can reference CH1 and CH2

data or CH3 and CH4 data at the desired timing.

9.3.3

Details of Output Signals (PMC → Temperature Module)

DO07

DO06

DO05

DO04

DO03

DO02

DO01

DO00

DO15

DO14

DO13

DO12

DO11

DO10

DO09

DO08

DO22

DO19

DO18

DO17

DO16

DO26

DO25

DO24

(1)

Before setting the module setting data bit (NC READY (DO16)) to "1", set the following bits.

DO00 (LSB) to DO15 (MSB):

Channel switching period for 4-channel automatic measurement mode

These bits are set with a binary number representing the channel switching period for the

4-channel automatic measurement mode. They need not be set for the 2-channel mode.

The period can be varied in a range between 0.5 s and 10 s. When setting the bits, use a value ten

times the desired period.

(Example) 2 s → 20 (14h)

The valid data range is between 5 and 100 (64h). Any value out of this range is regarded as being

40 (28h), that is, 4 s. If nothing is specified, a period of 4 s is again assumed.

DO17 : Module type

This bit is set according to the type of the temperature module being used.

0 : Thermocouple-type module (ATI04B)

1 : Thermoresistance-type module (ATI04A)

DO18 : Sensor type

This bit is set according to the type of the temperature sensor being used.

• ATI04A

0 : Pt

1 : JPt

• ATI04B

0 : K

1 : J

DO19 : Reserved for future use

This bit must always be set to "0".

DO24 : Number of channels

This bit is used to specify the number of channels to be measured.

0 :

2 channels

1 :

4 channels (if 1 is selected, DO25 must also be used.)

- 141 -

9.TEMPERATURE INPUT MODULE CONNECTION

B-61813E/06

DO25 :

4-channel mode specification

This bit is used to select the 4-channel mode to be used.

0 : Automatic measurement (the period is specified using DO00 to DO15.)

1 : Manual measurement (a request is issued using DO22 and DO26 at every data read.)

Timing data

DO16 : NC READY

When the power is switched on, this bit is set to "1" to cause the module setting data to be set in

the temperature module.

The NC READY bit is enabled only once after the power is switched on. To rewrite the module

setting data, switch the power off and then on again.

DO22 : READ request

This bit serves as the timing signal used in 4-channel manual measurement mode. Setting the bit

to "1" issues a request for temperature data. When the input signal data READY signal becomes

"1", read the temperature data.

This bit need not be set for 2-channel mode.

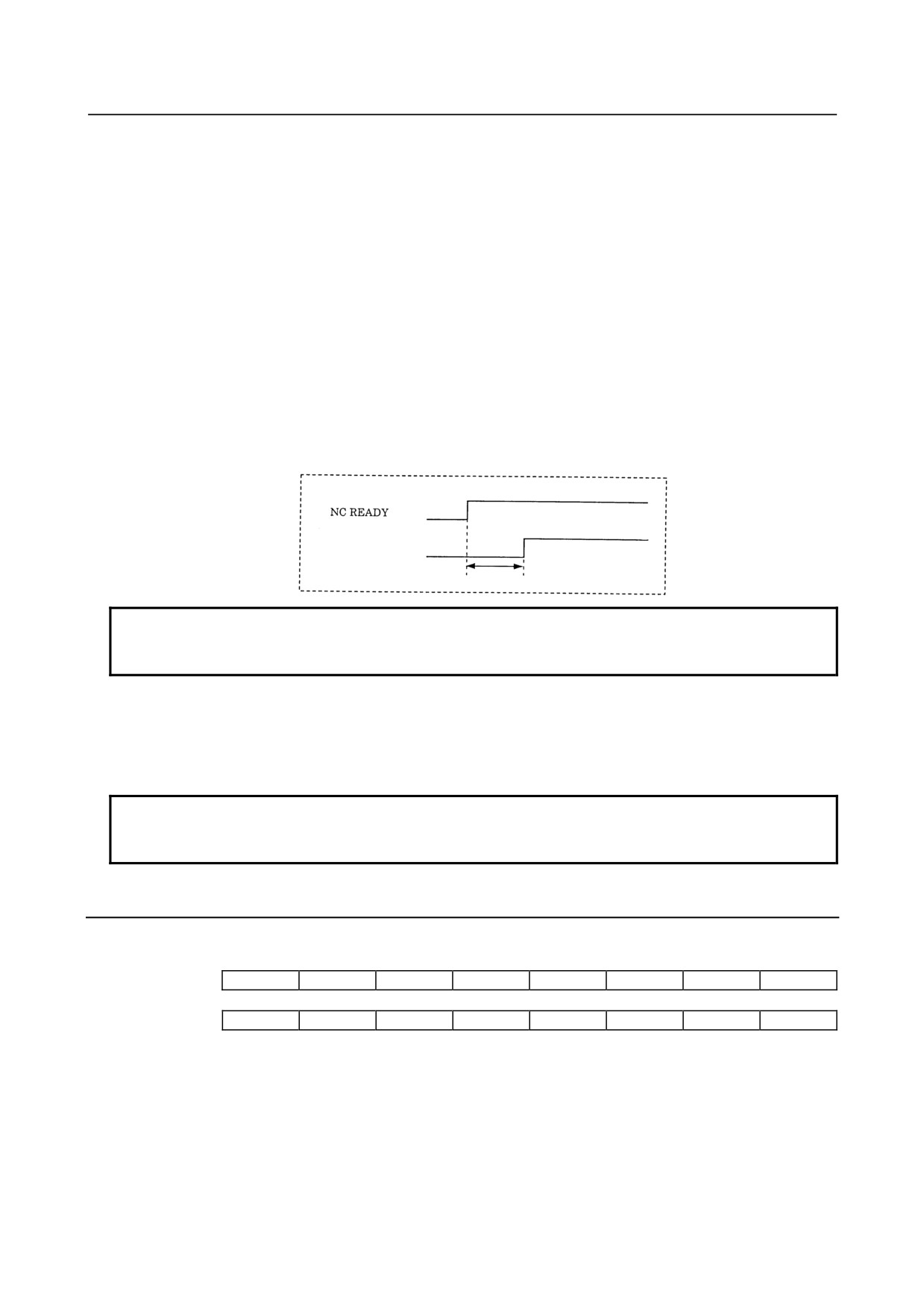

READ request

1 s or longer

NOTE

After setting the NC READY bit to "1", wait for one second, and then set the READ

request to "1".

DO26 : Channel select

This bit is used to specify channel switching for 4-channel manual measurement mode.

0: Channels 1 and 2

1: Channels 3 and 4

NOTE

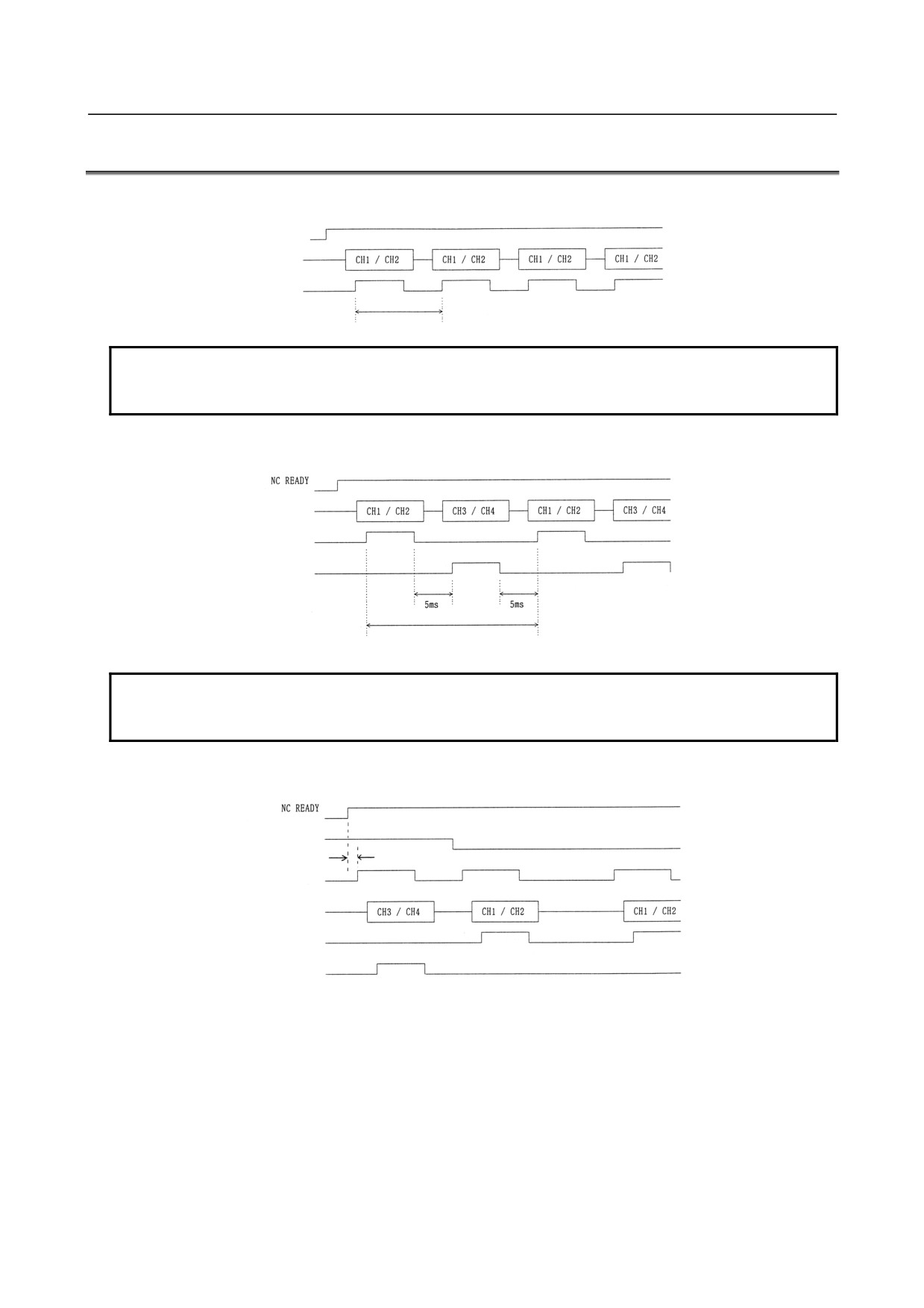

See Section 9.5, "Timing Charts," for concrete explanations about how to handle

the timing data.

9.3.4

Details of Input Signals (Temperature Module → PMC)

(1) Status signals and CH1 temperature data, CH3 temperature data, or abnormality data

DI07

DI06

DI05

DI04

DI03

DI02

DI01

DI00

DI15

DI14

DI13

DI12

DI11

DI10

DI09

DI08

•

Status signals

DI13 : Abnormality sign bit

1 : This bit is set to "1" when the temperature input is abnormal. DI00 to DI12 are used to

describe the abnormality.

0 : DI00 to DI12 are used to indicate the temperature data.

DI14 : CH1 data READY

1 : Read the CH1 temperature data from DI00 to DI12 when this bit is set to "1".

- 142 -

B-61813E/06

CONNECTION

9.TEMPERATURE INPUT MODULE

DI15 : CH3 data READY

1 : Read the CH3 temperature data from DI00 to DI12 when this bit is set to "1".

•

CH1 temperature data, CH3 temperature data, or abnormality data

DI00 (LSB) to DI12 (MSB):

These bits indicate temperature input data (CH1/CH3) or abnormality data.

Temperature input data

The temperature input data is in binary. It is ten times the actual temperature.

Example

(83EDh → 1005 → 100.5°C)

The highest three bits are status signals.

For the thermoresistance-type module (ATI04A), the DI12 bit is a sign bit. (Negative data is represented in

two's complement.)

Example

(9F9Ch → -10.0°C)

The highest three bits are status signals.

Abnormality data

If an abnormality occurs in the input data or in the module, the DI13 bit (status signal) becomes "1",

resulting in the display changing from temperature input data to abnormality data. Abnormality data is

assigned to these bits as listed below:

DI00 : CH1 input out of scale--the current temperature falls outside the measurable range.

DI01 : CH1 input burn-out--the cable or connector has been detached.

DI02 : CH3 input out of scale--the current temperature falls outside the measurable range.

DI03 : CH3 input burn-out--the cable or connector has been detached.

DI04 : Cold-junction abnormality (only for thermocouple-type input module)—

The ambient temperature of the terminal unit is out of the measurable range (0°C to 55°C).

Alternatively, a wire between the temperature input module and the terminal unit is broken or

short-circuited, or the cold-junction compensation element is damaged.

DI05 : System error--the internal circuit is abnormal.

DI06 : Wrong module--other than the correct module has been installed.

(2) Status signals, CH2 temperature data, CH4 temperature data, or abnormality data

DI23

DI22

DI21

DI20

DI19

DI18

DI17

DI16

DI31

DI30

DI29

DI28

DI27

DI26

DI25

DI24

•

Status signals

DI129 : Abnormality sign bit

1 : This bit becomes "1" when the temperature input becomes abnormal. DI16 to DI28 are used

to describe the abnormality.

0 : DI16 to DI28 are used to indicate the temperature data.

DI30 : CH2 data READY

1 : Read the CH2 temperature data from DI16 to DI28 when this bit is set to "1".

DI31 : CH4 data READY

1 : Read the CH4 temperature data from DI16 to DI28 when this bit is set to "1".

•

CH2 temperature data, CH4 temperature data, or abnormality data

DI16 (LSB) to DI28 (MSB):

These bits indicate temperature input data (CH2/CH4) or abnormality data.

- 143 -

9.TEMPERATURE INPUT MODULE CONNECTION

B-61813E/06

Temperature input data

The temperature input data is in binary. It is ten times the actual temperature.

Example

(41F3h → 0499 → 49.9°C)

The highest three bits are status signals.

For a thermoresistance-type module (ATI04A), the DI28 bit is a sign bit. (Negative data is represented in

two's complement.)

Example

(5FFBh → -0.5°C)

The highest three bits are status signals.

Abnormality data

If an abnormality occurs in the input data or the module, the DI29 bit (status signal) is set to "1", resulting in

the display changing from temperature input data to abnormality data. Abnormality data is assigned to these

bits as listed below:

DI16 : CH2 input out of scale--the current temperature falls outside the measurable range.

DI17 : CH2 input burn-out--the cable or connector has been detached.

DI18 : CH4 input out of scale--the current temperature falls outside the measurable range.

DI19 : CH4 input burn-out--the cable or connector has been detached.

DI20 : Cold-junction abnormality (only for thermocouple-type input module)—

The ambient temperature of the terminal unit is out of the measurable range (0°C to 55°C).

Alternatively, a wire between the temperature input module and the terminal unit is broken or

short-circuited, or the cold-junction compensation element is damaged.

DI21 : System error--the internal circuit is abnormal.

DI22 : Wrong module--other than the correct module has been installed.

9.4

COMPLETE CONNECTION OF TEMPERATURE INPUT

MODULE

9.4.1

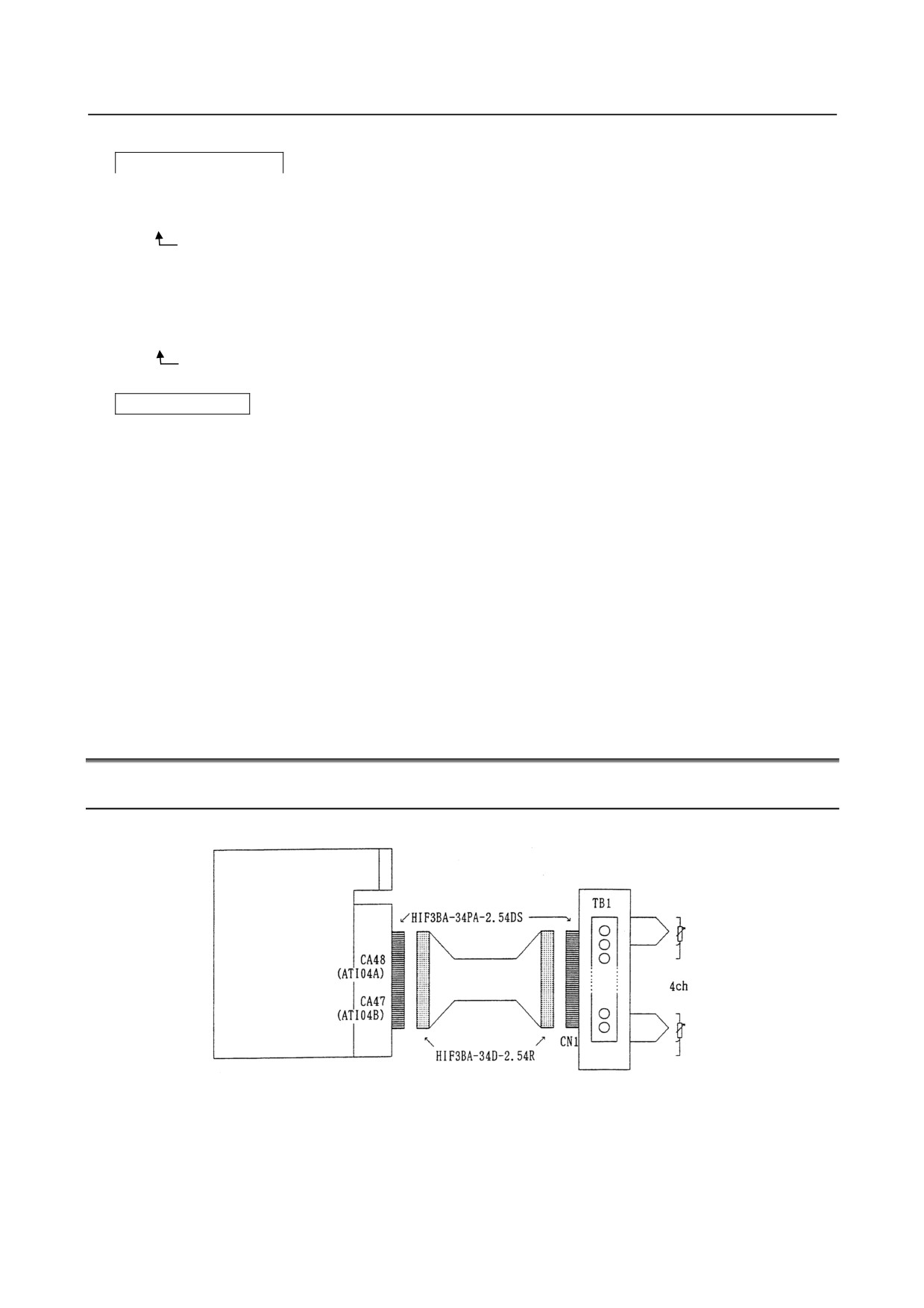

Temperature Input Module Connection Diagram

Temperature sensors

•Thermoresistance

•J/K thermocouple

Temperature input module

Hirose Electric Co., Ltd.

Cable

Hirose

Electric Co., Ltd.

Terminal unit

(There are two types of terminal board units, the first for a thermoresistance-type module

and the second for a thermocouple-type module.)

See Section 9.7 for explanations about the dimensions of the terminal unit.

- 144 -

B-61813E/06

CONNECTION

9.TEMPERATURE INPUT MODULE

9.4.2

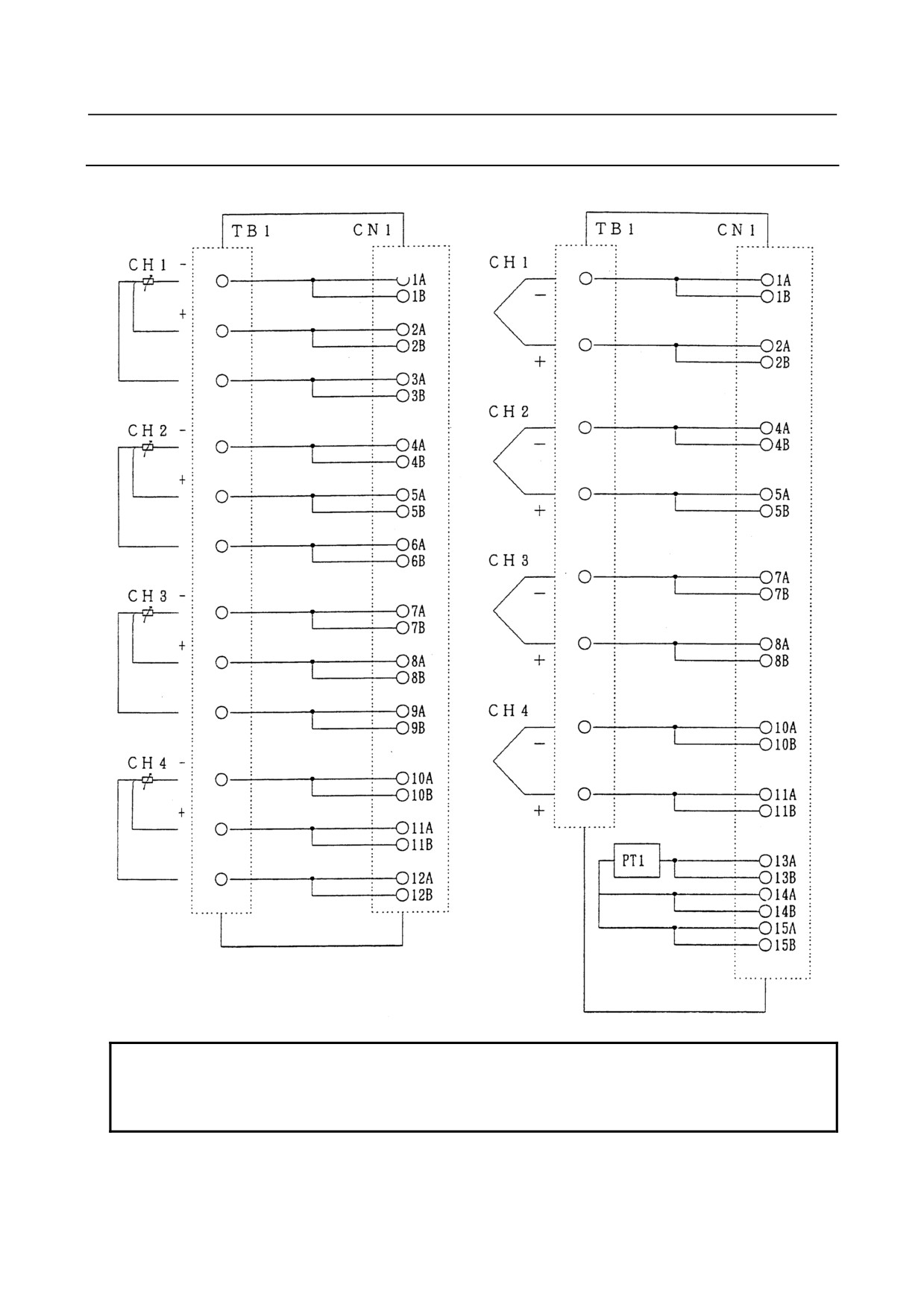

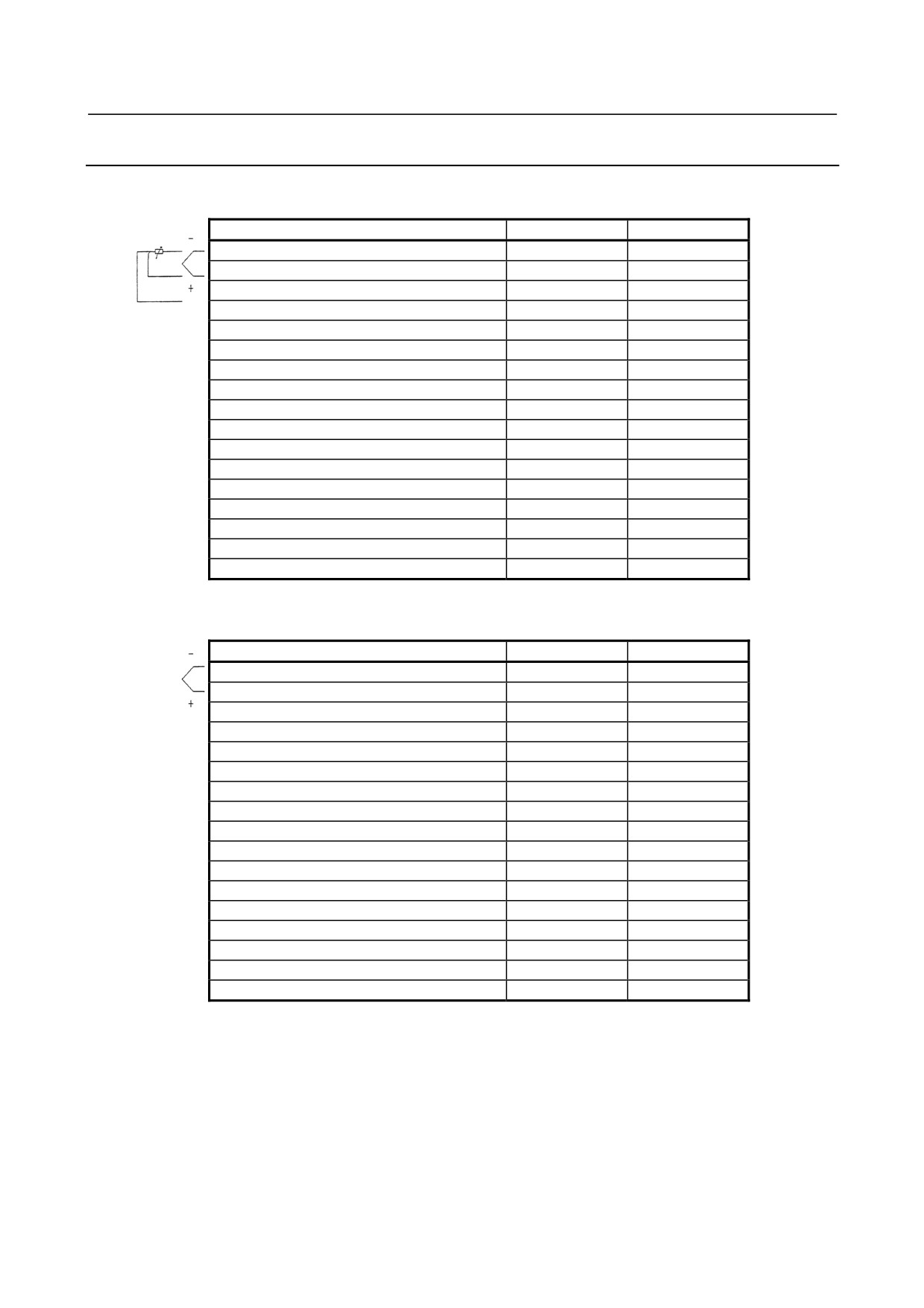

Connector Signal Lists

(1)

Thermoresistance input module

ATI04A

Channel

Pin No.

Channel 1 -

Channel 1 +

Channel 2 -

Channel 2 +

Channel 3 -

Channel 3 +

Channel 4 -

10A

10B

Channel 4 +

11A

11B

Channel 4 +

12A

12B

Unusable

13A

13B

Unusable

14A

14B

Unusable

15A

15B

Unusable

16A

16B

Unusable

17A

17B

(2)

Thermocouple input module

ATI04B

Channel

Pin No.

Channel 1 -

Channel 1 +

Unusable

Channel 2 -

Channel 2 +

Unusable

Channel 3 -

Channel 3 +

Unusable

Channel 4 -

10A

10B

Channel 4 +

11A

11B

Unusable

12A

12B

Cold-junction compensation element A

13A

13B

Cold-junction compensation element B1

14A

14B

Cold-junction compensation element B2

15A

15B

Unusable

16A

16B

Unusable

17A

17B

- 145 -

B-61813E/06

CONNECTION

9.TEMPERATURE INPUT MODULE

9.5

TIMING CHARTS

(1)

2-channel mode

NC READY

Temperature data

CH1/CH2 data

READY

(Note)

0.3s

NOTE

The actual response time is the sum of the time required to pass the filter and the

scan time that is determined depending on the system.

(2)

4-channel automatic measurement mode

Temperature data

CH1/CH2 data

READY

CH3/CH4 data

READY

Specified period (0.5 to 10 s)

(Note)

NOTE

The actual response time is the sum of the time required to pass the filter and the

scan time that is determined depending on the system.

(3)

4-channel manual measurement mode

Channel select

1 s or longer

READ request

Temperature

data

CH1/CH2 data

READY

CH3/CH4 data

READY

- 147 -

9.TEMPERATURE INPUT MODULE CONNECTION

B-61813E/06

9.6

MEASUREMENT EXAMPLES

(1)

2-channel mode

(a) Flowchart

START

*Check that NC READY

(DO16) and DO19 are "0".

Specify the module type (DO17).

0 : Thermocouple module

1 : Thermoresistance module

Specify the sensor type (DO18).

0 : Pt/K

1 : JPt/J

Reset the number of channels bit

(DO24) to "0".

Set NC READY (DO16) to "1".

Now ready to

measure.

When CH1 data READY (DI14 of input signal) becomes

"1", input signals DI00 to DI12 represent CH1 data.

When CH2 data READY (DI30 of input signal) becomes

"1", input signals DI16 to DI28 represent CH2 data.

- 148 -

B-61813E/06

CONNECTION

9.TEMPERATURE INPUT MODULE

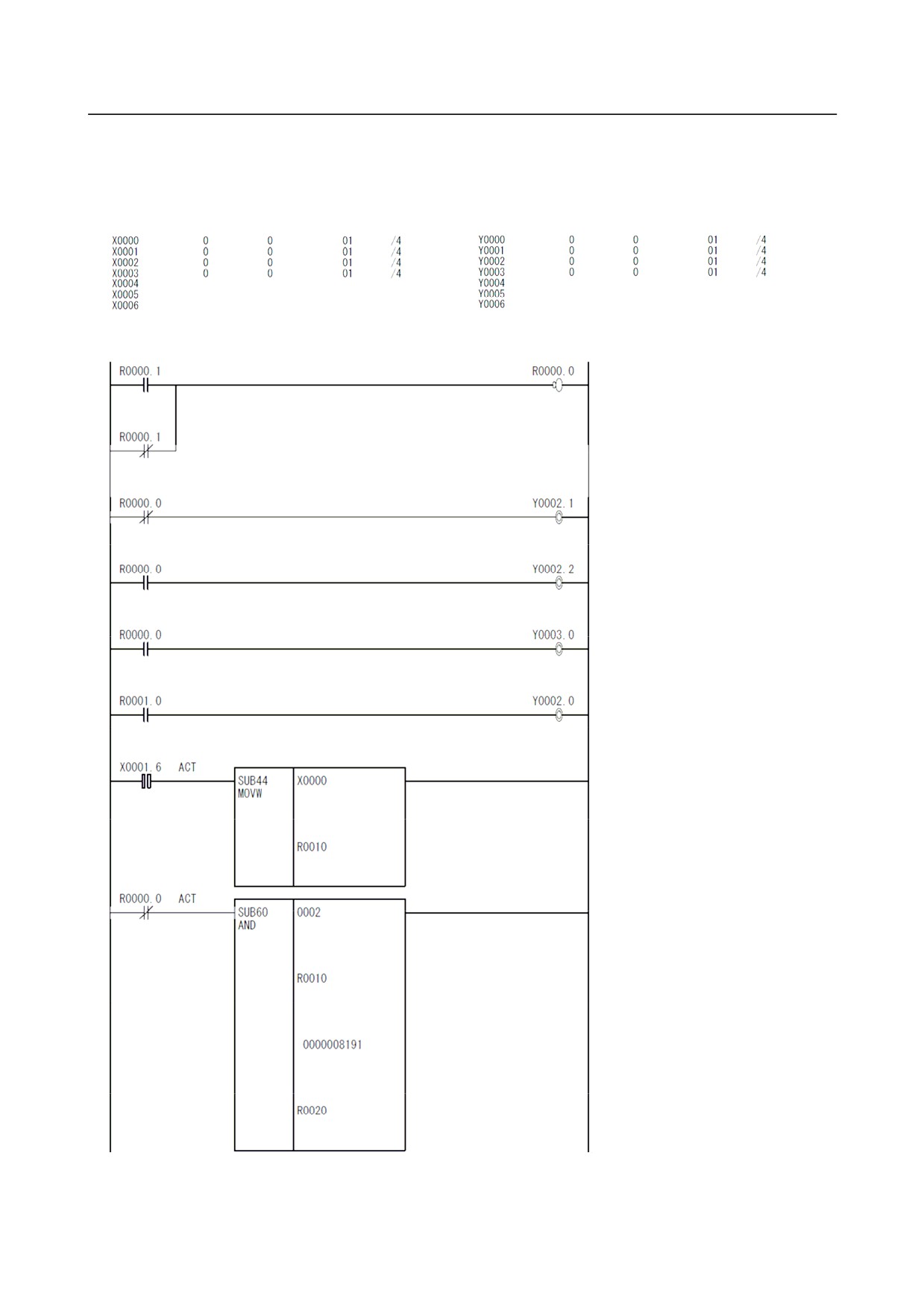

(b) Ladder example

The following measurement and ladder examples apply when a thermoresistance module with Pt

sensor is used for measurement.

PMC measurement

Address

Group

Base

Slot

Module name Address

Group

Base

Slot

Module name

Use R0000.0 as a full-time OFF coil.

Specify the module

(thermoresistance-type module).

Specify the sensor (Pt).

Specify the number of channels (two

channels).

NC READY (When R1.0 becomes "1",

NC READY becomes "1" to start

measurement.)

When CH1 data READY is "1", CH1

temperature data is sent to R10 to R11.

Mask three bits of the status signal

(1FFFh (8191) is ANDed with R10 and

R11) and transfer the temperature data

of CH1 to R20 and R21.

- 149 -

B-61813E/06

CONNECTION

9.TEMPERATURE INPUT MODULE

(2)

4-channel automatic measurement mode

(a) Flowchart

START

* Check that NC READY

(DO16) and DO19 are "0".

Specify the module type (DO17).

0 : Thermocouple module

1 : Thermoresistance module

Specify the sensor type (DO18).

0 : Pt/K

1 : JPt/J

Set the number of channels bit (DO24) to

"1".

Set the 4-channel mode specification bit (DO25)

to "0".

Specify the channel switching period (DO00 to

DO15).

Set NC READY (DO16) to "1".

Now ready to

measure.

When CH1 data READY (DI14 of input signal) becomes

"1", input signals DI00 to DI12 represent CH1 data.

When CH2 data READY (DI30 of input signal) becomes

"1", input signals DI16 to DI28 represent CH2 data.

When CH3 data READY (DI15 of input signal) becomes

"1", input signals DI00 to DI12 represent CH3 data.

When CH4 data READY (DI31 of input signal) becomes

"1", input signals DI16 to DI28 represent CH4 data.

- 151 -

9.TEMPERATURE INPUT MODULE CONNECTION

B-61813E/06

(b) Ladder example

The following measurement and ladder examples apply when a J thermocouple module is used

for measurement.

PMC assignment

Address

Group

Base

Slot

Module name Address

Group

Base

Slot

Module name

Use R0000.0 as a full-time OFF coil.

Specify the module.

(thermocouple-type module)

Specify the sensor (J

thermocouple).

Specify the number of channels

(four channels).

Specify a 4-channel mode

(automatic measurement).

Specify the channel switching

period for 4-channel automatic

measurement.

Specify 25 to provide a period of

2.5 s.

NC READY (When R1.0 is set to "1",

NC READY becomes "1" to start

measurement.)

When CH1 data READY is set to "1",

CH1 temperature data is sent to R10

to R11.

- 152 -

B-61813E/06

CONNECTION

9.TEMPERATURE INPUT MODULE

Mask three bits of the status signal

(1FFFh (8191) is ANDed with R10

and R11) and transfer the

temperature data of CH1 to R20

and R21.

When CH2 data READY is "1", CH2

temperature data is sent to R12 to

R13.

Mask three bits of the status signal

(1FFFh (8191) is ANDed with R12

and R13) and transfer the

temperature data of CH2 to R22

and R23.

When CH3 data READY is "1", CH3

temperature data is sent to R14 to

R15.

Mask three bits of the status signal

(1FFFh (8191) is ANDed with R14

and R15) and transfer the

temperature data of CH3 to R24

and R25.

- 153 -

FANUC I/O Unit–MODEL A CONNECTION AND MAINTENANCE MANUAL MARMGIOMA12801E REV. F (B-61813EN/06) - page 6
