FANUC Series 0i-MODEL D, Series 0i Mate-MODEL D. CONNECTION MANUAL (HARDWARE) - page 14
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

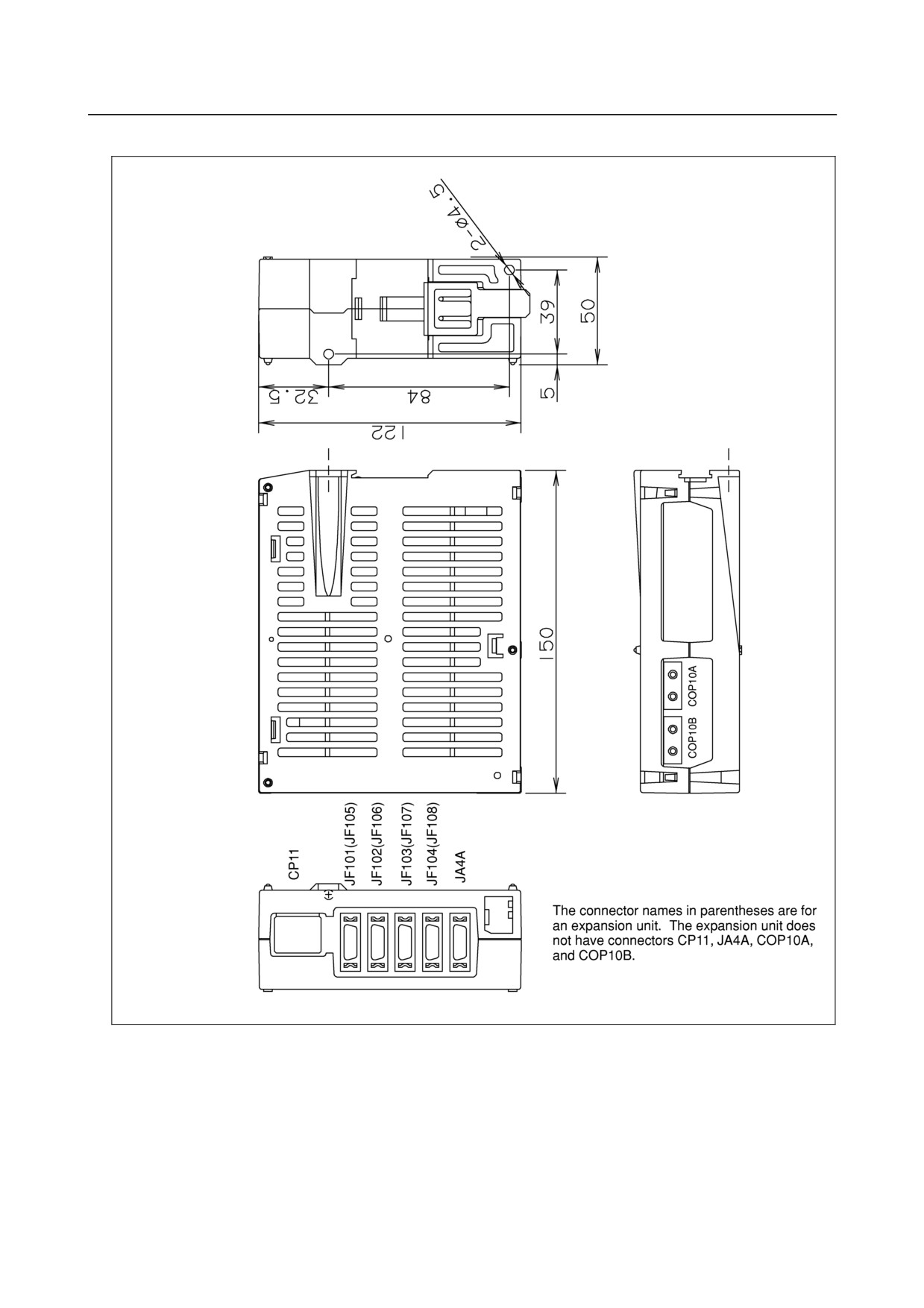

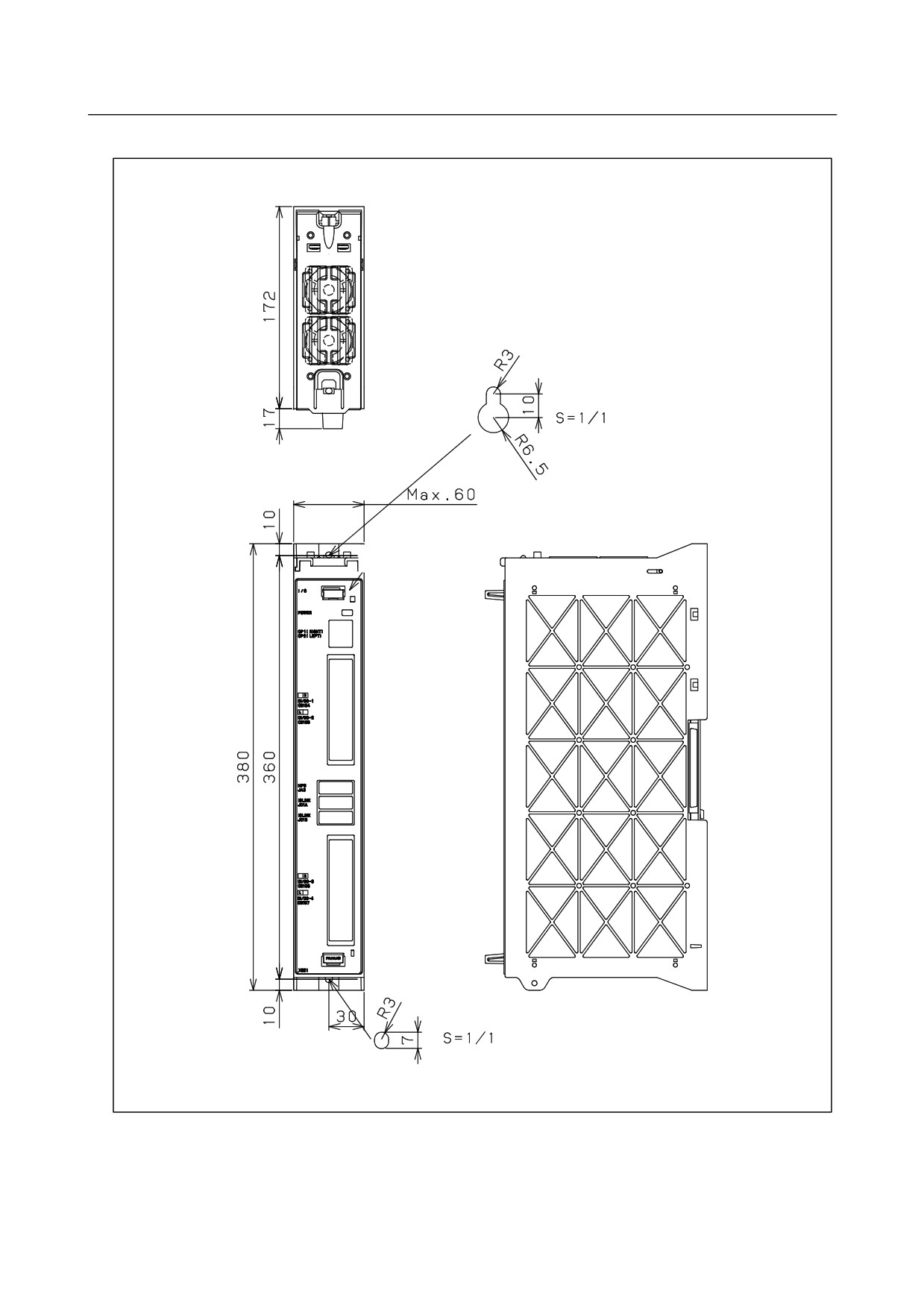

Fig. U7
I/O unit for 0i
Slot 1
Weight: 1.2kg
- 377 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03

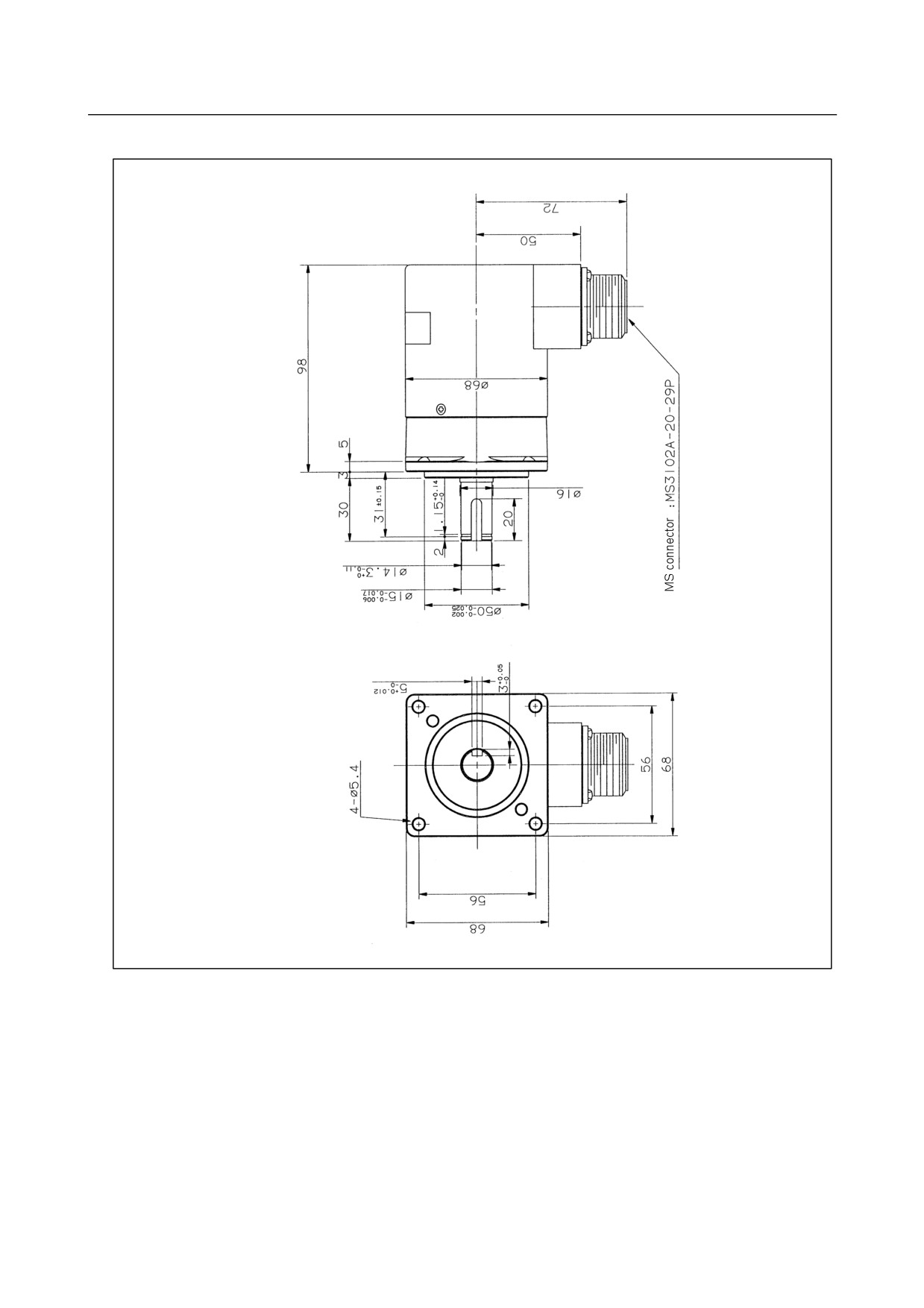

Fig. U17 αi position coder
- 378 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

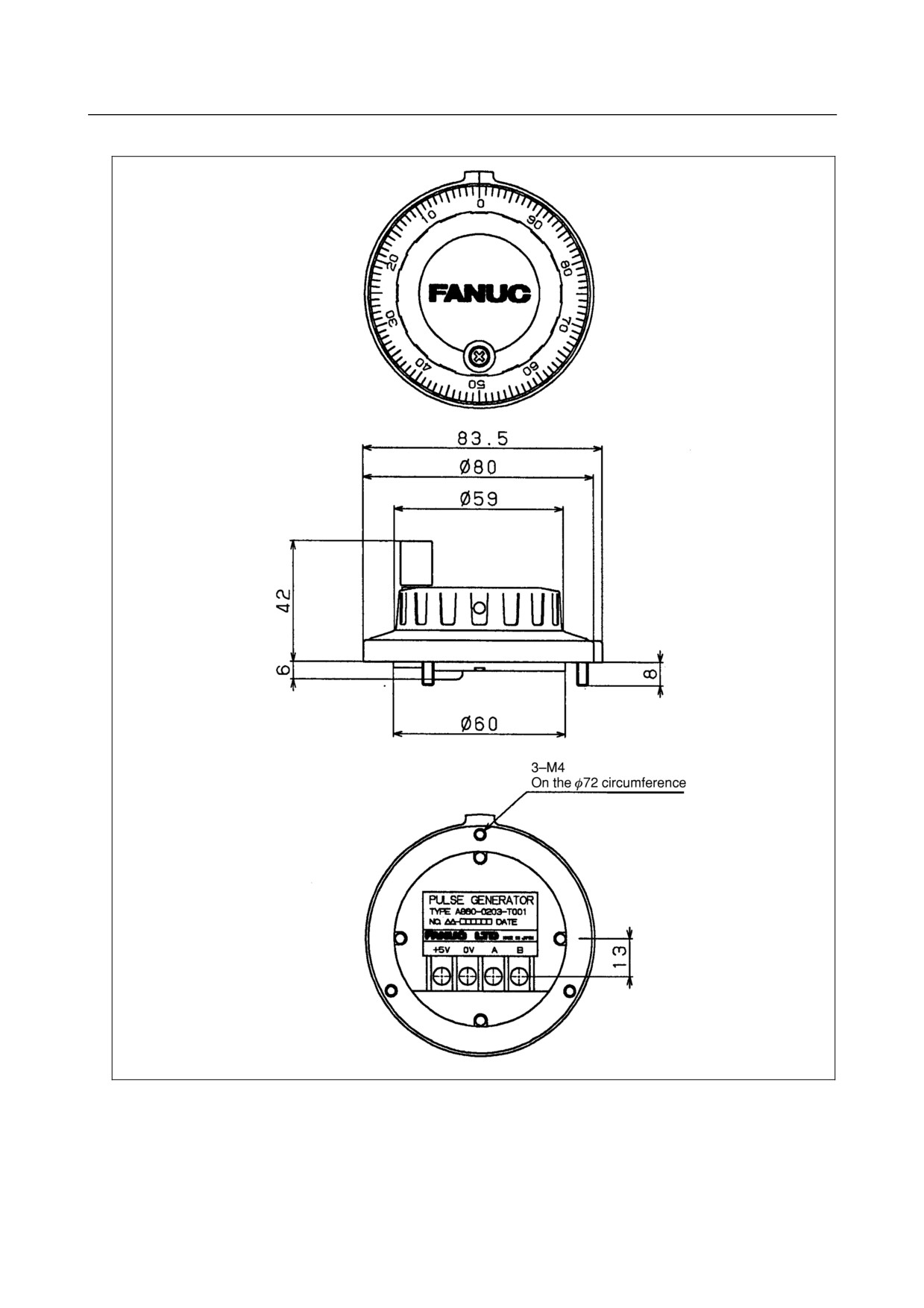

Fig. U18 Manual pulse generator
- 379 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03

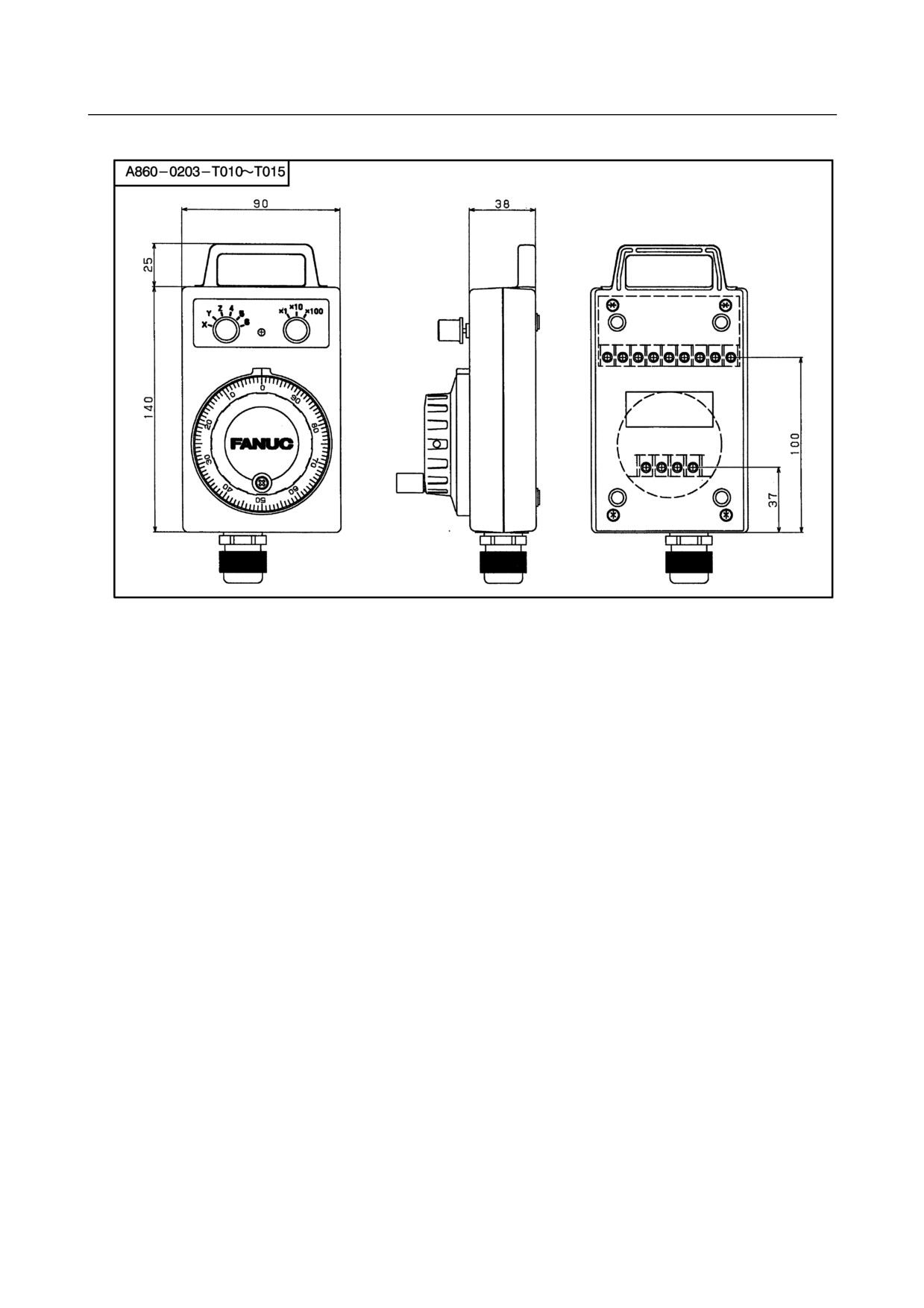

Fig. U19 Pendant type manual pulse generator
Weight: 0.4kg
(Unit: mm)
- 380 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT
Fig. U20 Separate detector interface unit
Weight: 0.4kg
(Unit: mm)
- 381 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03
Fig. U21
Battery case for separate detector interface unit (ABS)
4-φ4.3 mounting hole
Minus terminal wi
3-M3 screw holes
Plus terminal wi
screw holes
4-M4 counter sinking
Positive polarity indication
Negative polarity indication
Weight: 0.4kg (The battery is not include
Mounting panel hole drilling
(Unit: mm)
- 382 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

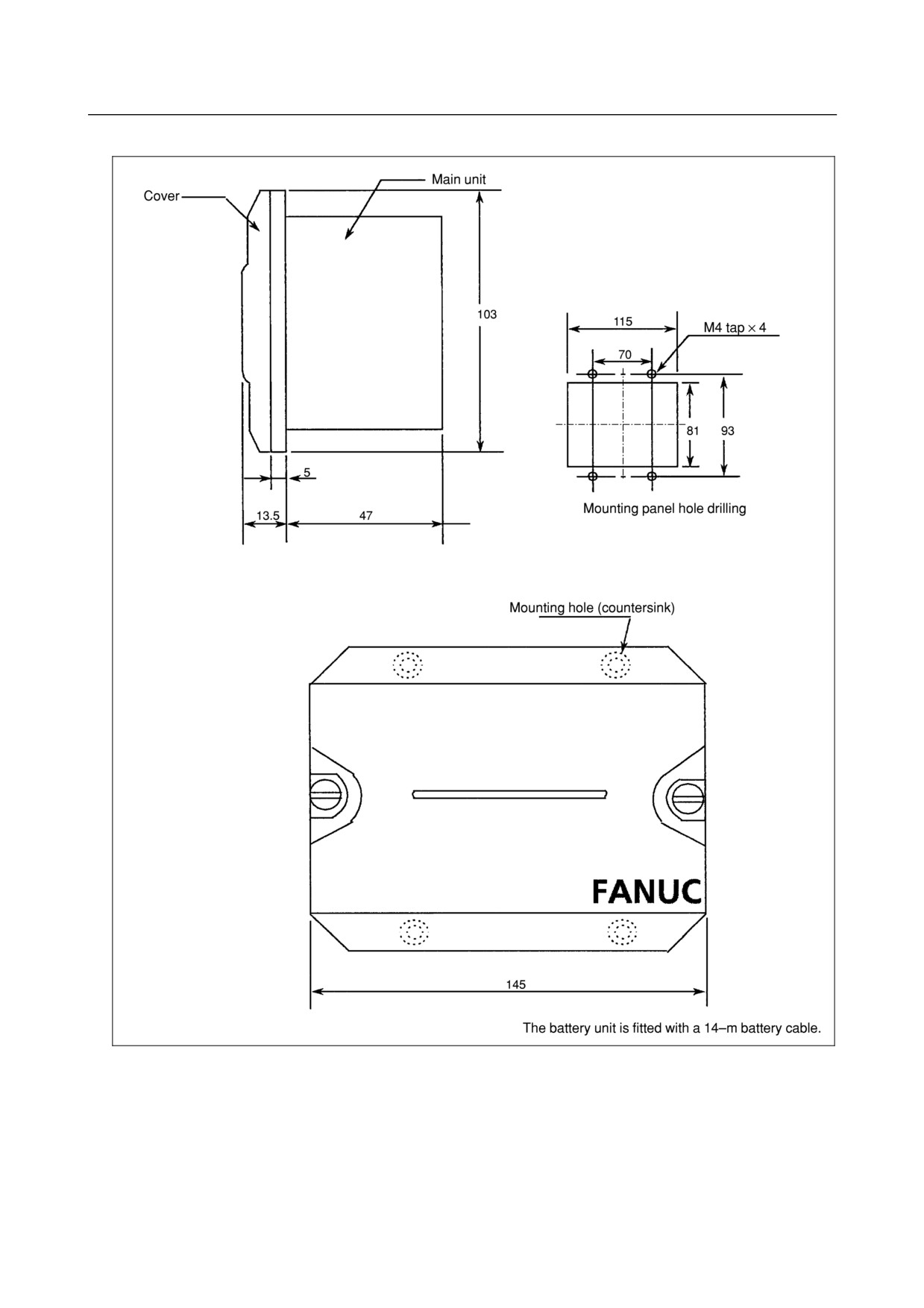

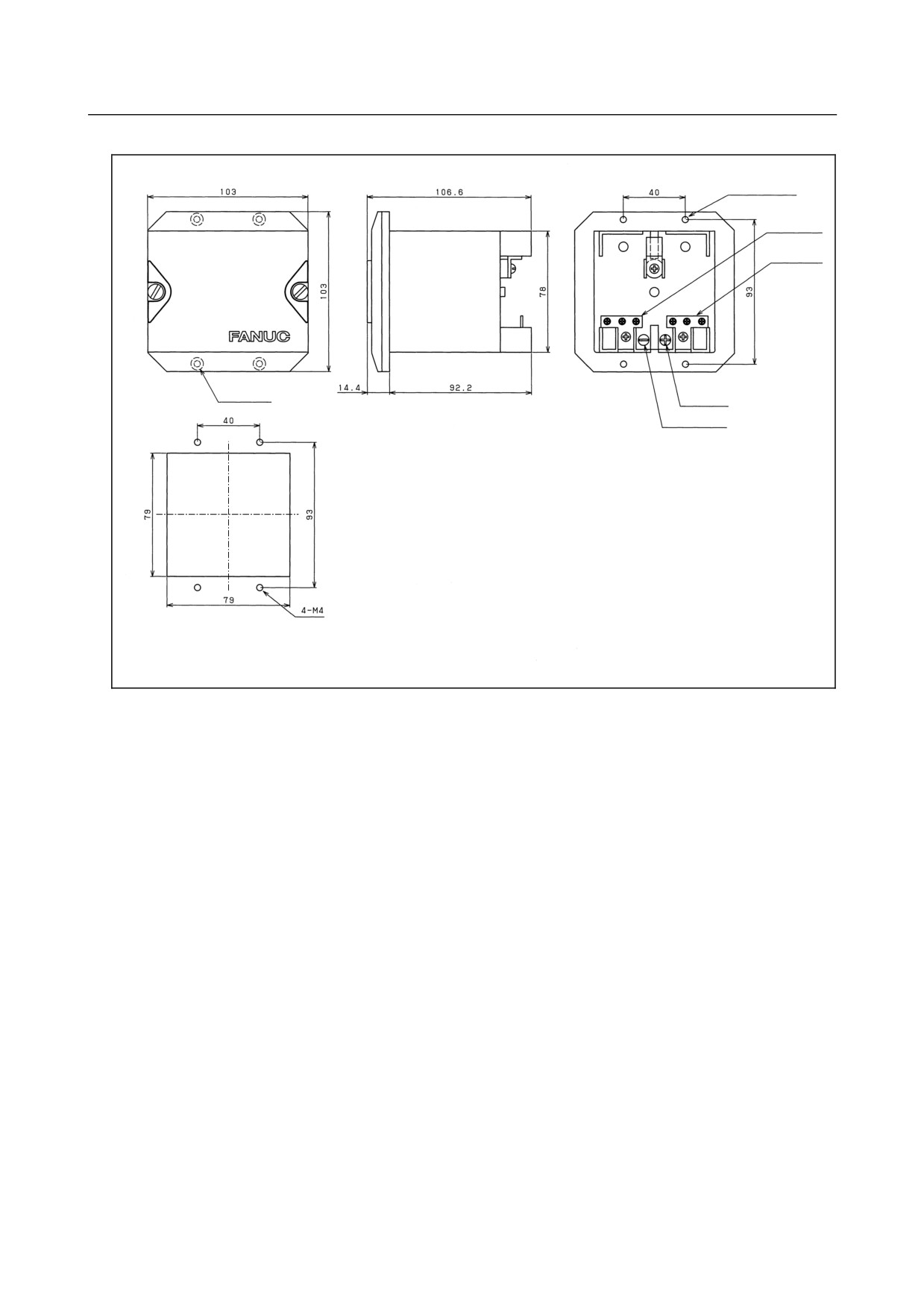

Fig. U22 CNC battery unit for external installation
Weight: 0.9kg (case only)
(Unit: mm)
- 383 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03

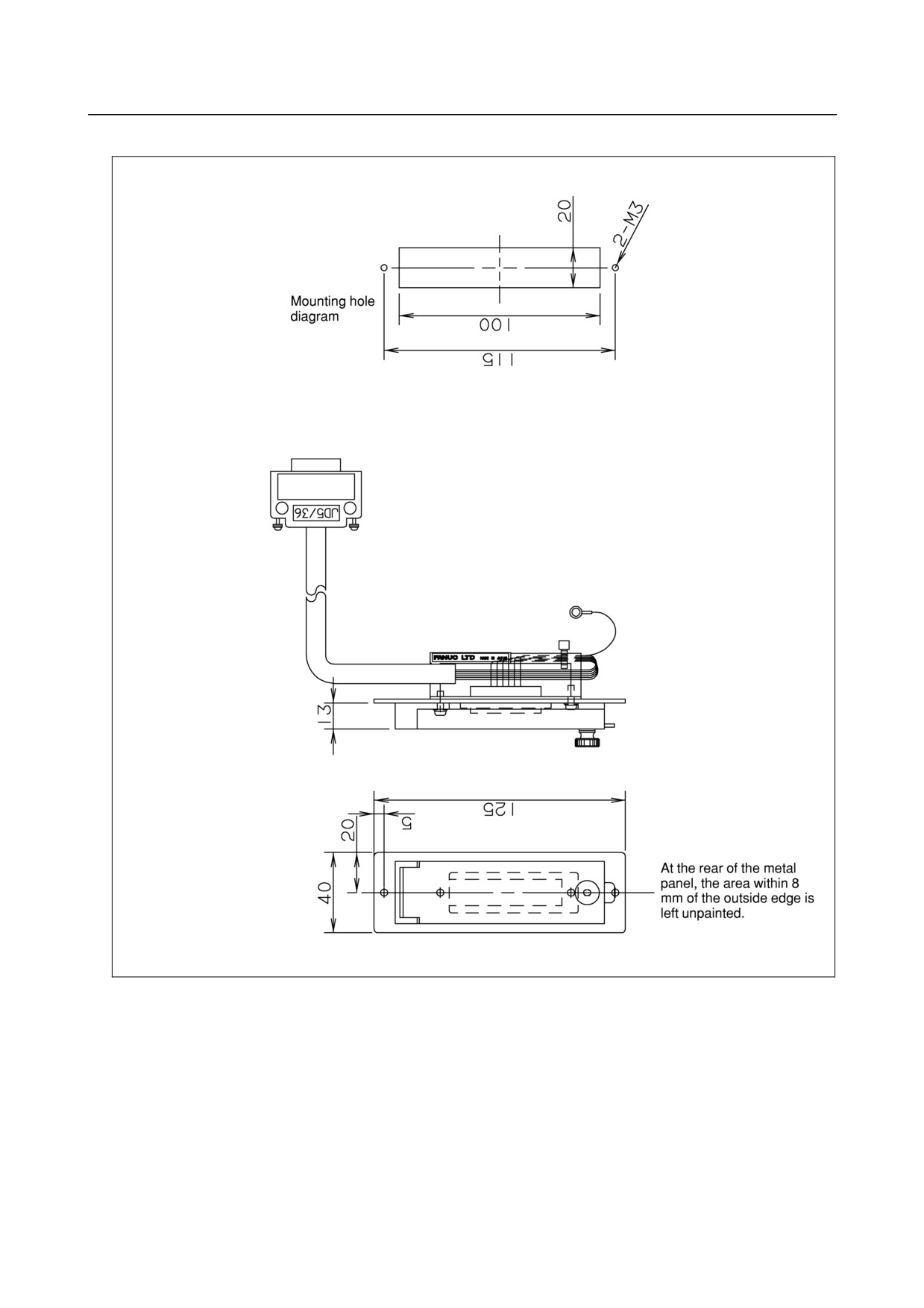

Fig. U24 Punch panel Narrow width type
- 384 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

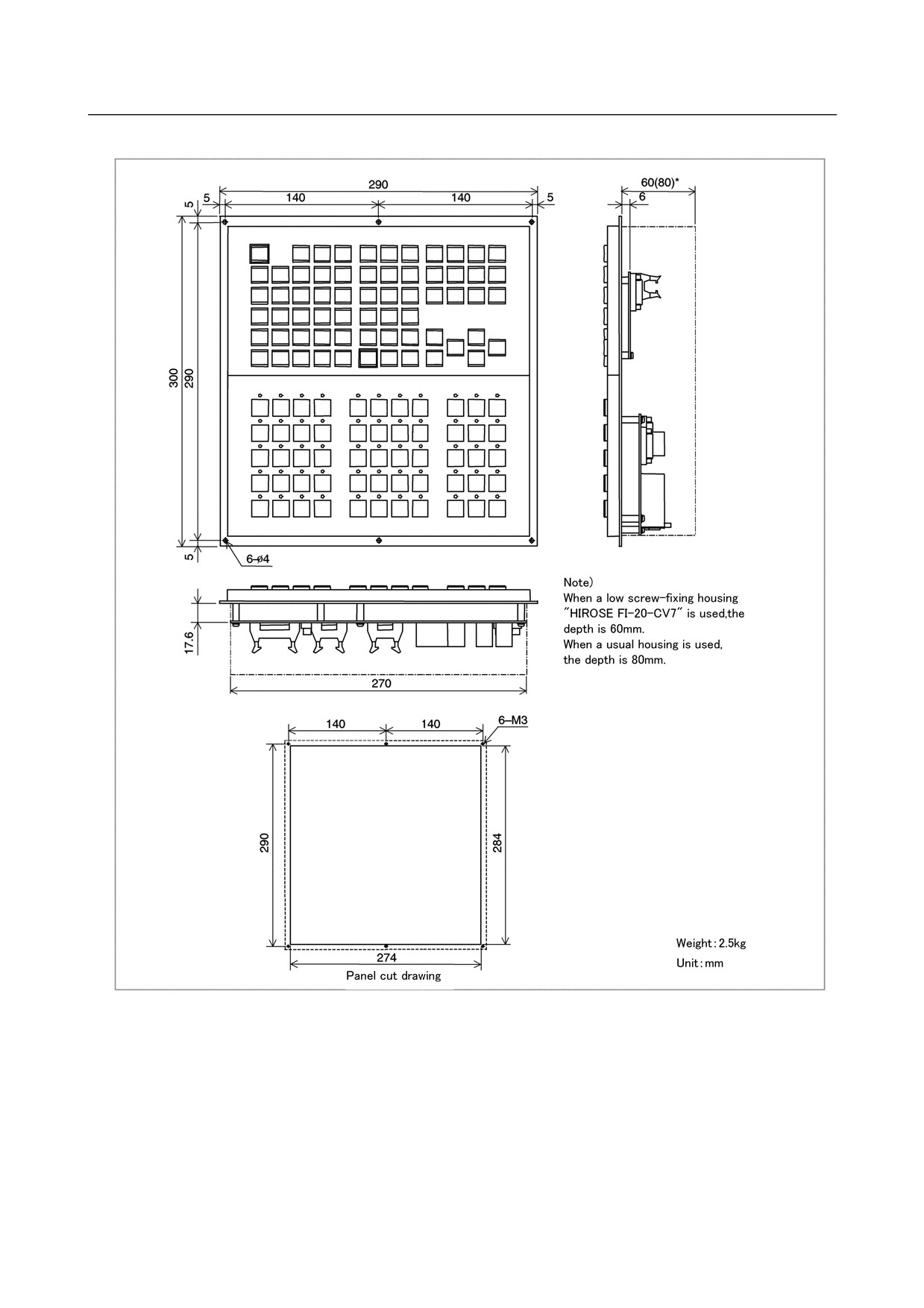

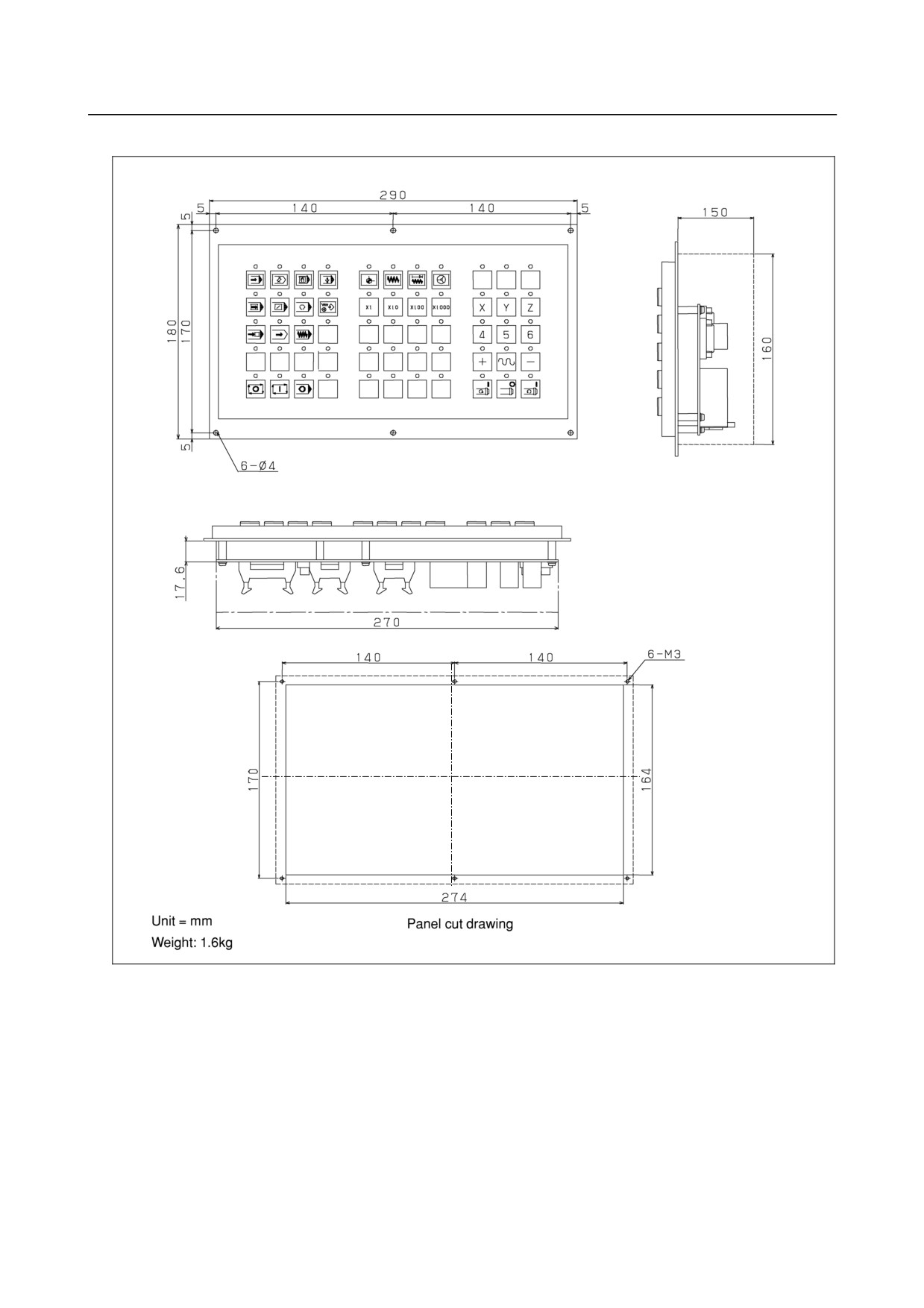

Fig. U25 Machine operator's panel: Main panel A
- 385 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03
Fig. U26 Machine operator's panel: Main panel B
- 386 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

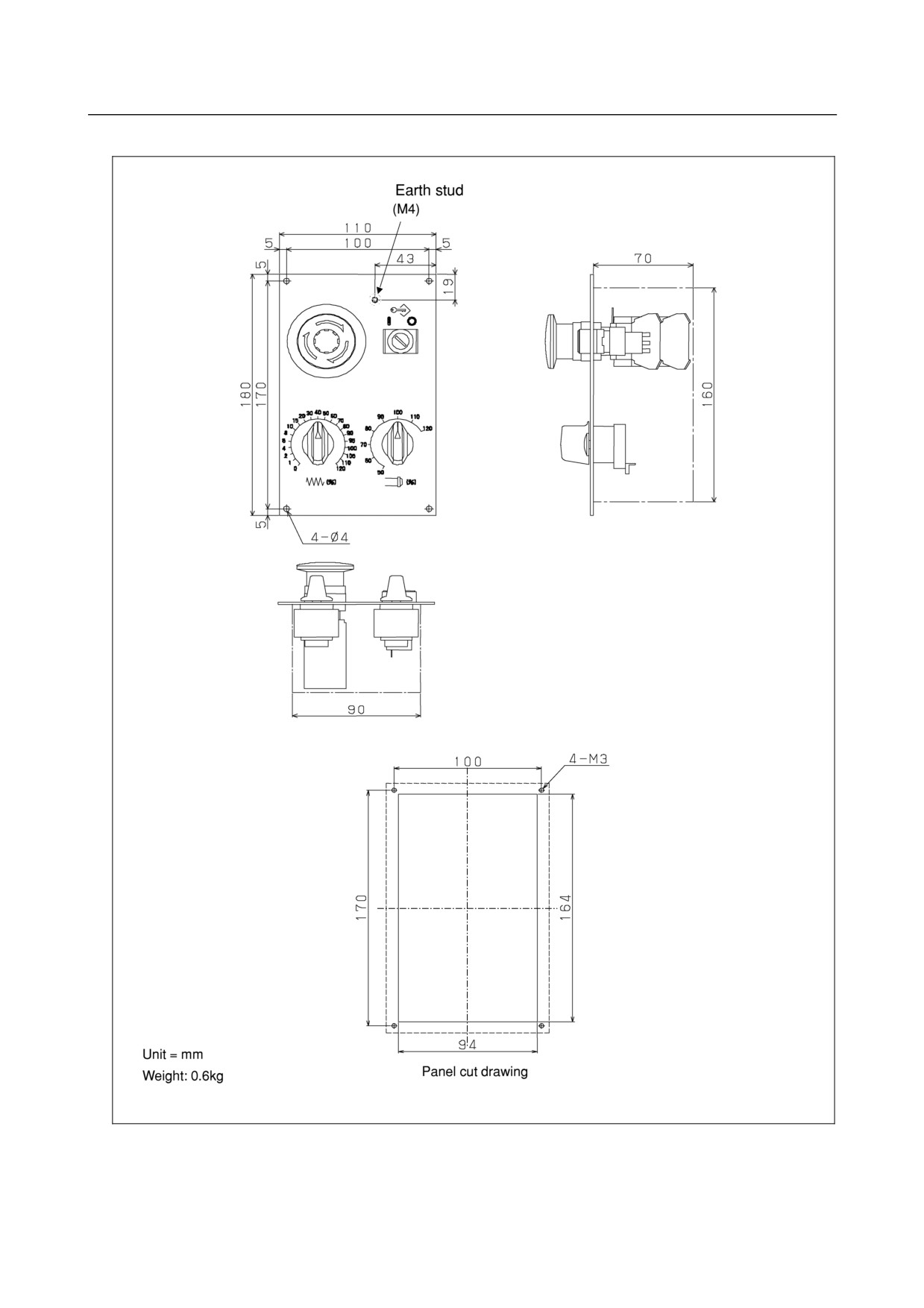

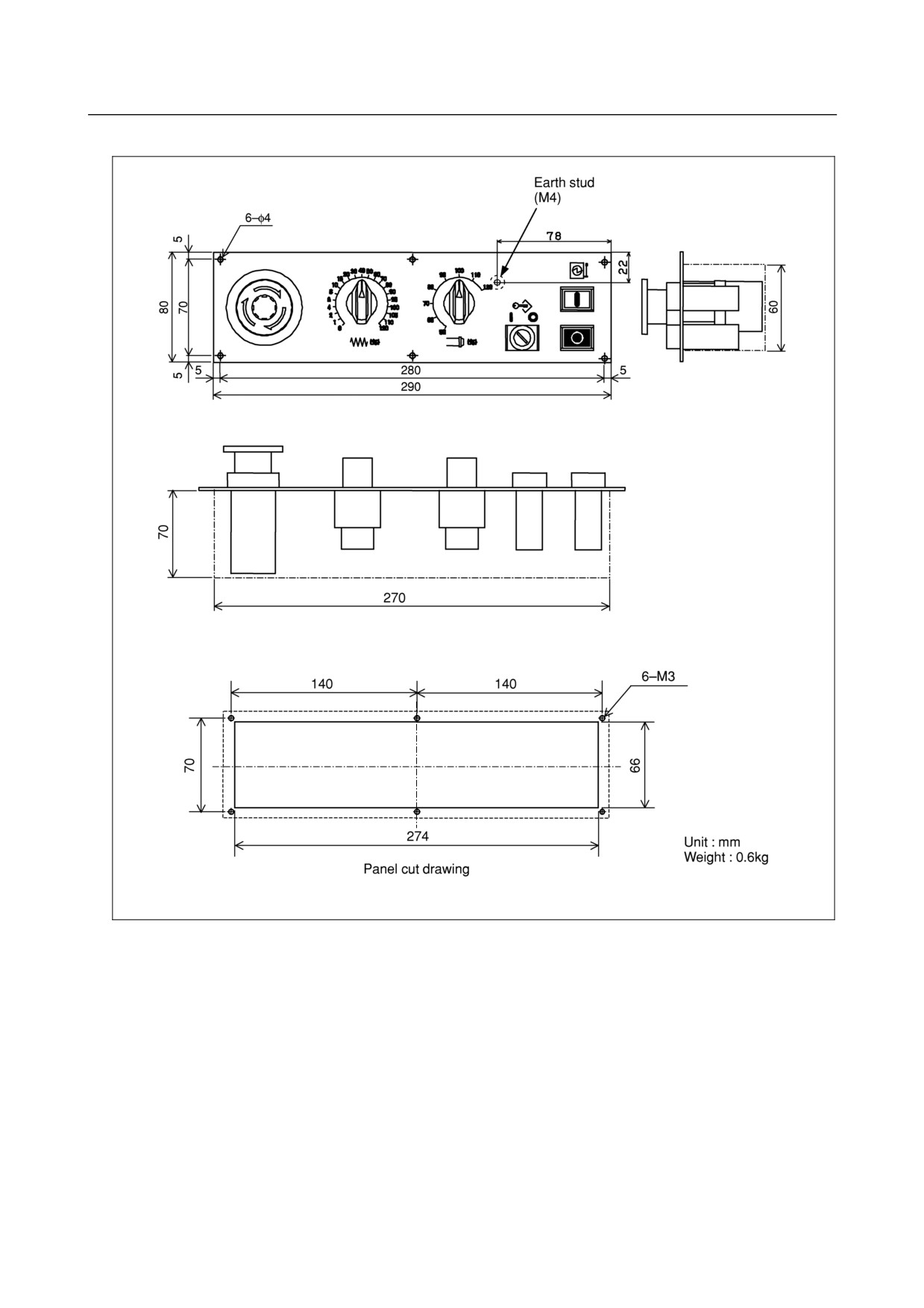

Fig. U27 Machine operator's panel: Sub panel A
- 387 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03
Fig. U28 Machine operator's panel: Sub panel B1
- 388 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

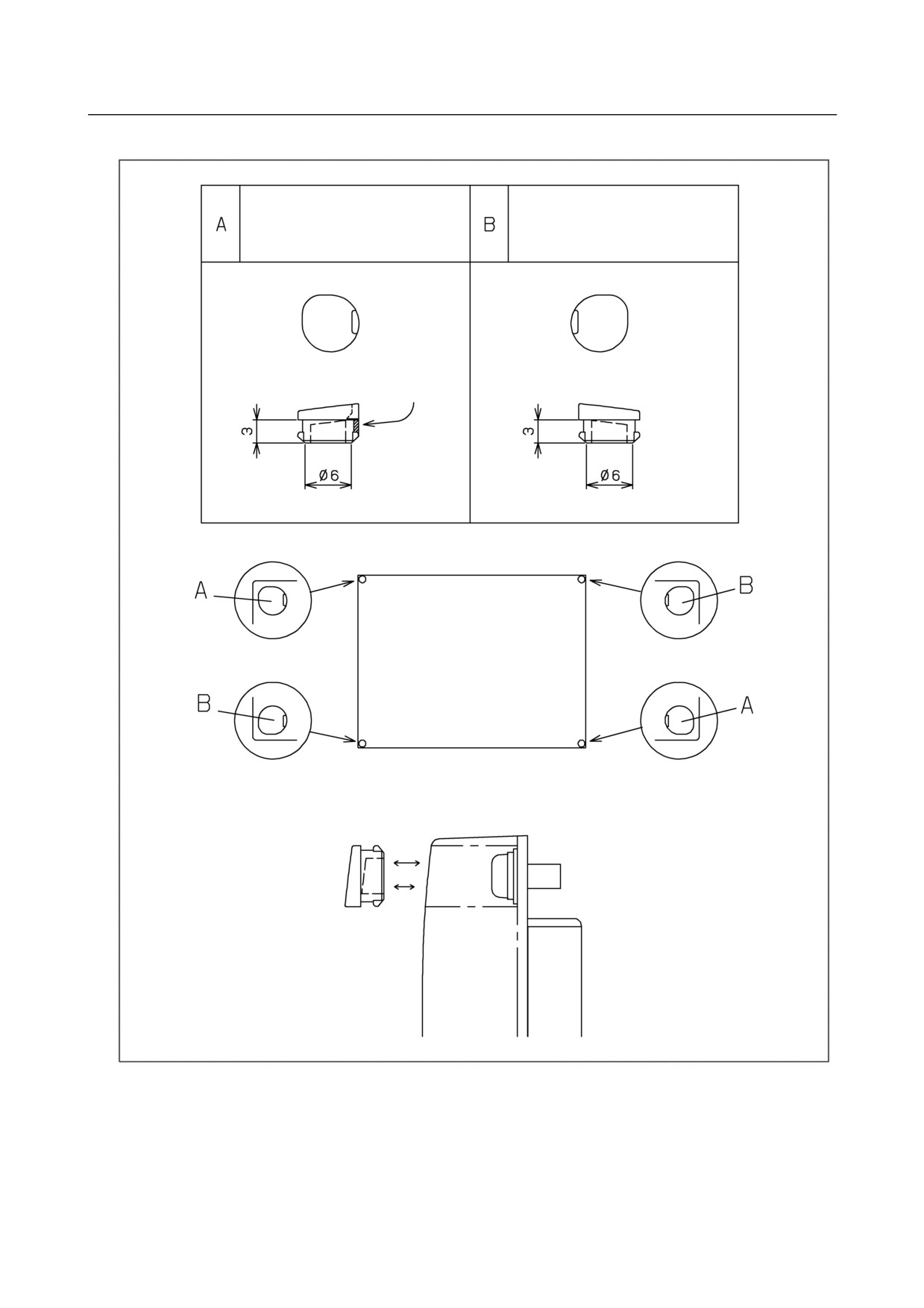

Fig. U29 Screw cap (for small MDI unit)
Screw cap for the
Screw cap for the
top-left and
top-right and
lower-right corners
lower-left corners
For cap type identification, a
projection is provided only on type A.
Pay attention to the cap direction.
- 389 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03
Connectors
Specification drawing
Outline drawing name
Fig.
number
PCR connector (soldering type)
PCR-E20FS
Fig. C1 (a)
FI40 connector
FI40-2015S
Fig. C1 (b)
Connector case (HONDA PCR type)
PCR-V20LA/PCR-V20LB
Fig. C2 (a)
Connector case (HIROSE FI type)
FI-20-CV
Fig. C2 (b)
Connector case (FUJITSU FCN type)
FCN-240C20-Y/S
Fig. C2 (c)
Connector case (PCR type (Hirose Electric))
FI-20-CV7
Fig. C2 (d)
AMP connector (1): On the servo side
AMP1-178128-3
Fig. C3 (a)
AMP connector (2): On the servo side
AMP2-178128-3
Fig. C3 (b)
AMP connector (3): For +24 V power supply
AMP1-178288-3
Fig. C3 (c)
AMP connector (4): For +24 V power supply
AMP2-178288-3
Fig. C3 (d)
Contact for AMP connector
AMP1-175218-2/5
Fig. C3 (e)
AMP1-175196-2/5
HONDA connector (case)
Fig. C4 (a)
Honda connector (angled-type case)
Fig. C4 (b)
HONDA connector (male)
Fig. C4 (c)
HONDA connector (female)
Fig. C4 (d)
HONDA connector (terminal layout)
Fig. C4 (e)
Connector made by FCI Japan (3 pins,black)
SMS3PN-5
Fig. C5
Connector for HIROSE Flat cable
HIF3BB-50D-2.54R
Fig. C6
HIF3BB-34D-2.54R
Punch panel connector for reader/puncher interface
Fig. C8 (a)
Locking plate plate for reader/puncher interface connector
Fig. C8 (b)
Honda connector (for the distributed I/O connector printed circuit
MRH-50FD
Fig. C9
board)
- 390 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

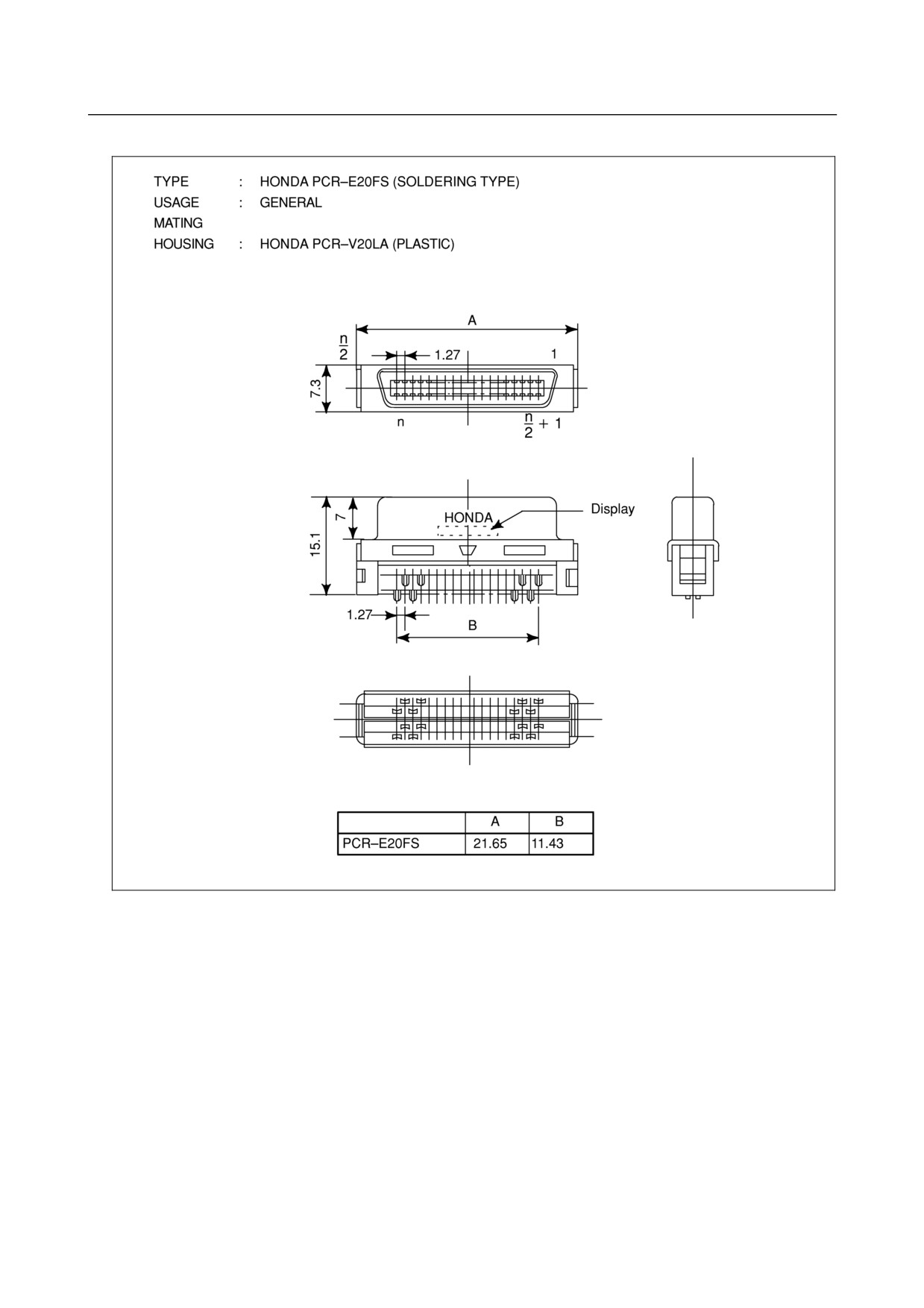

Fig. C1 (a) PCR connector (soldering type)
- 391 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03

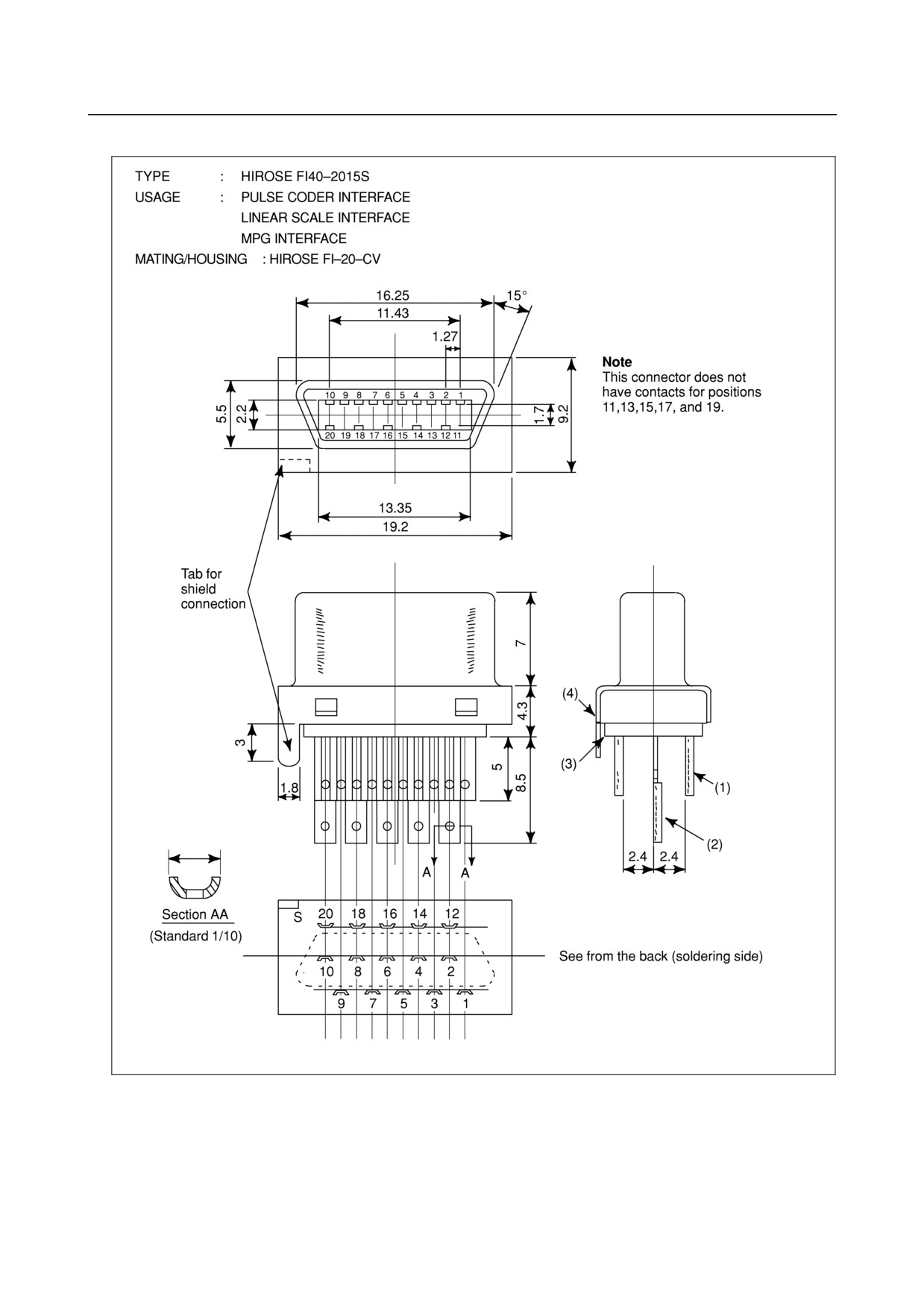

Fig. C1 (b) FI40 connector
- 392 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

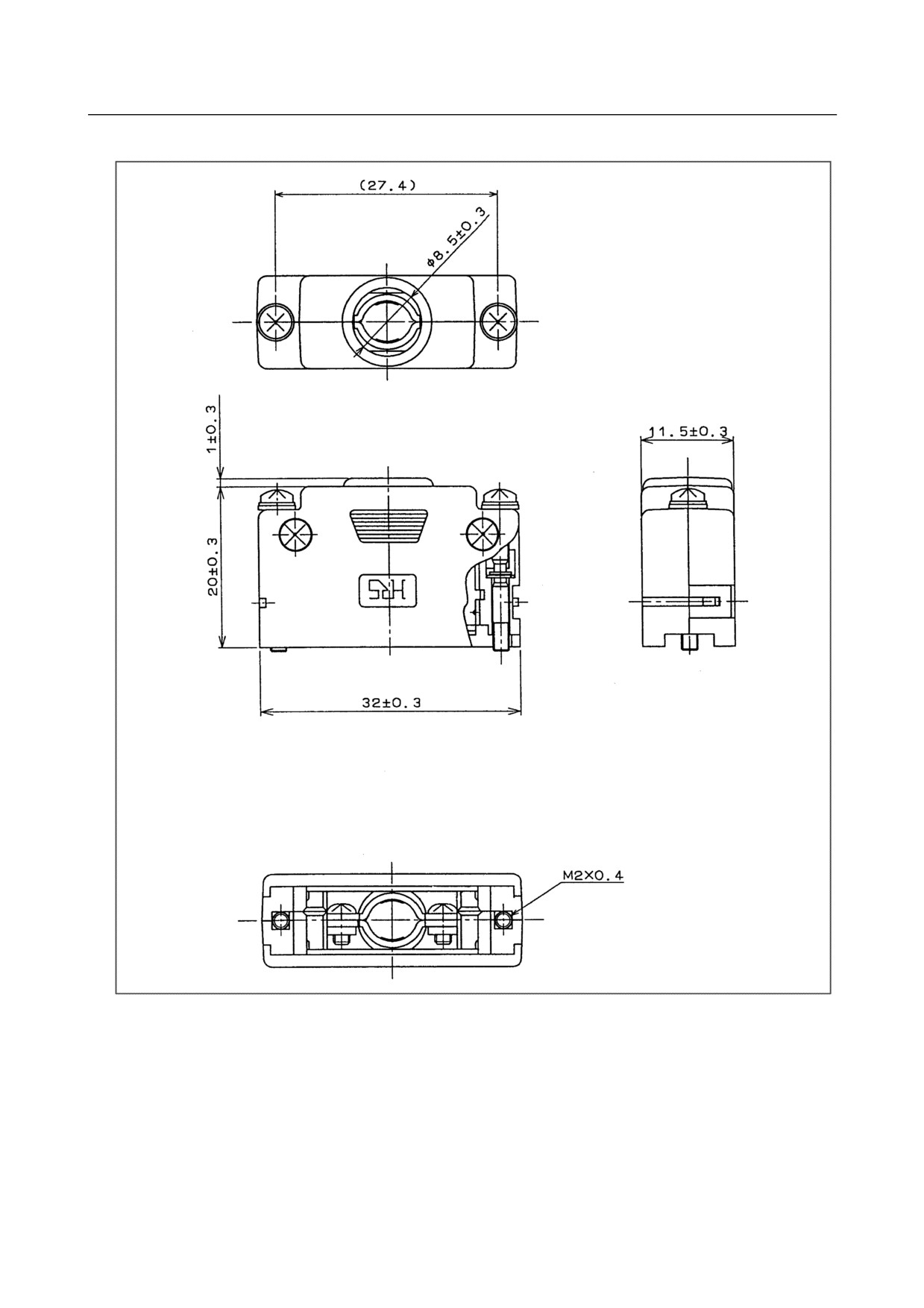

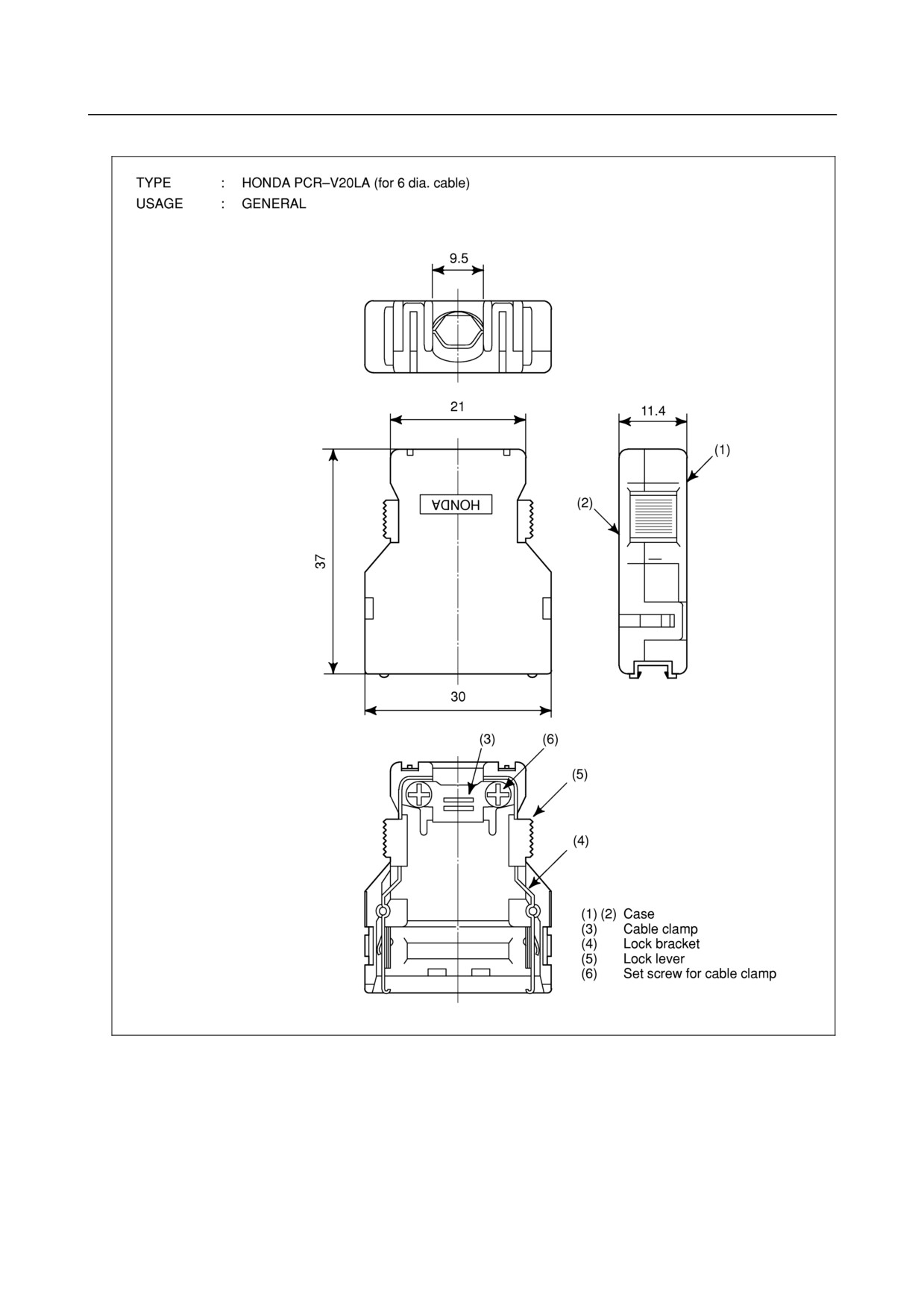

Fig. C2 (a) Connector case (HONDA PCR type)
- 393 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03

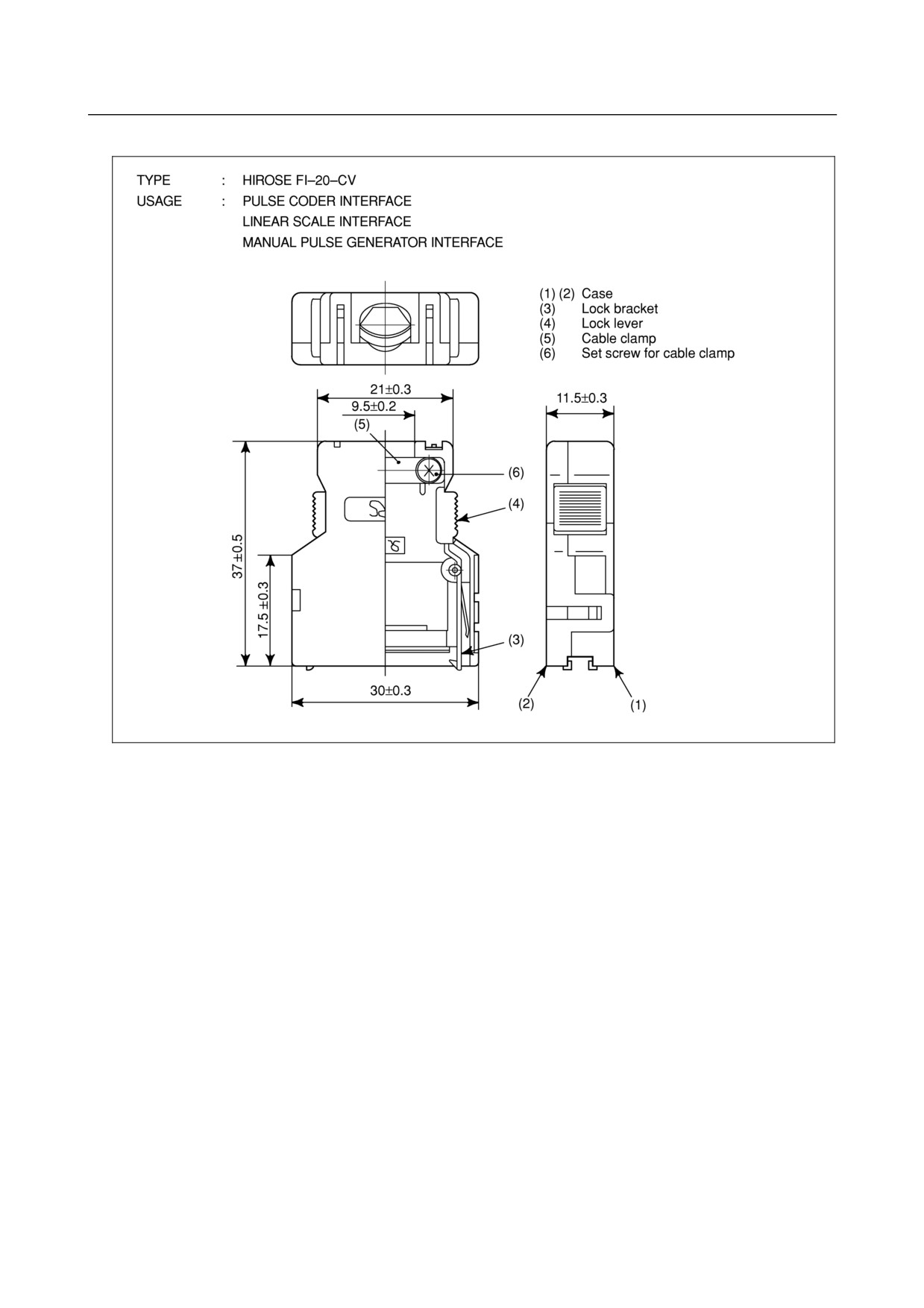

Fig. C2 (b) Connector case (HIROSE FI type)
- 394 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

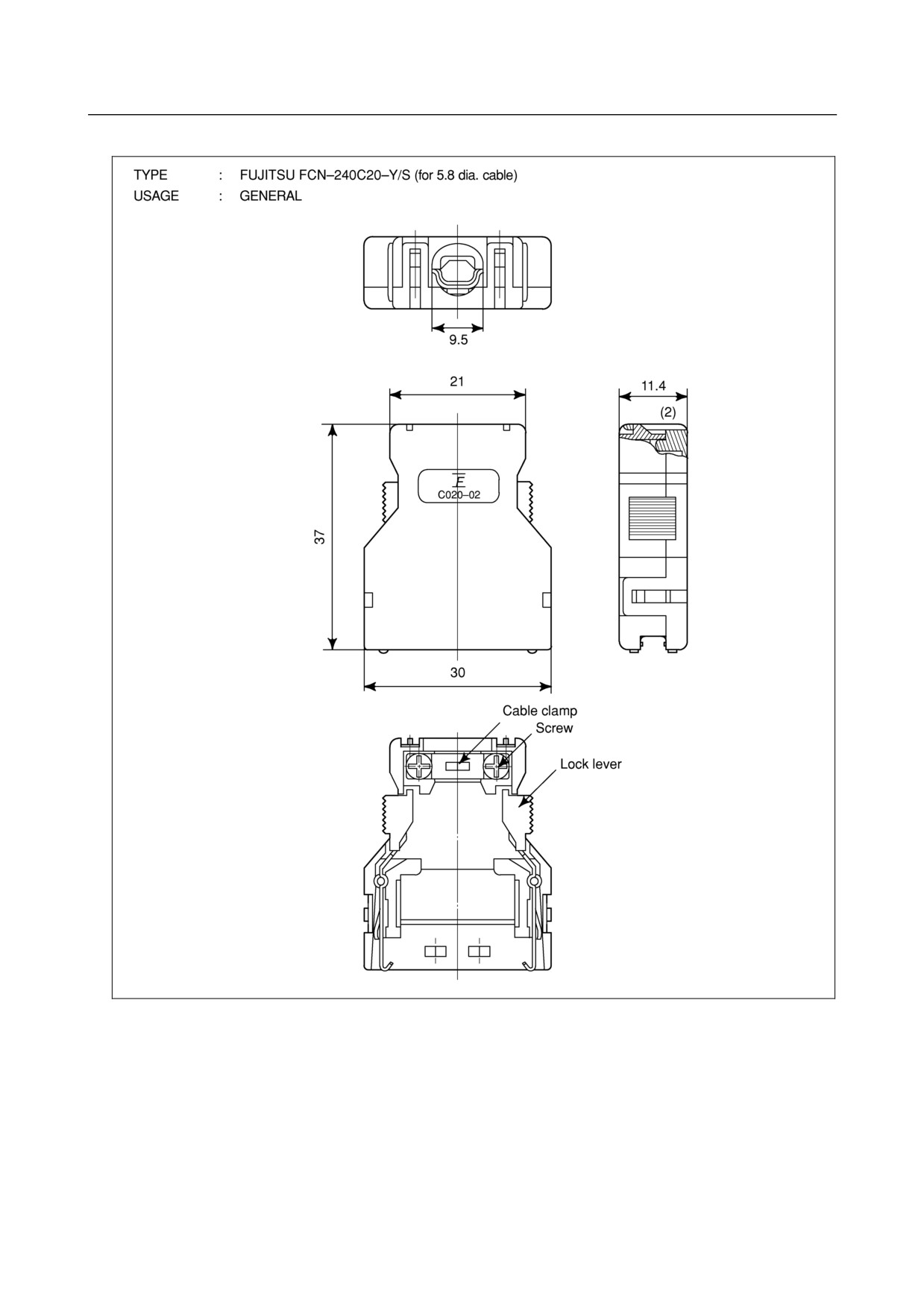

Fig. C2 (c) Connector case (FUJITSU FCN type)
- 395 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03
Fig. C2 (d) Connector case (PCR type (Hirose Electric))
- 396 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

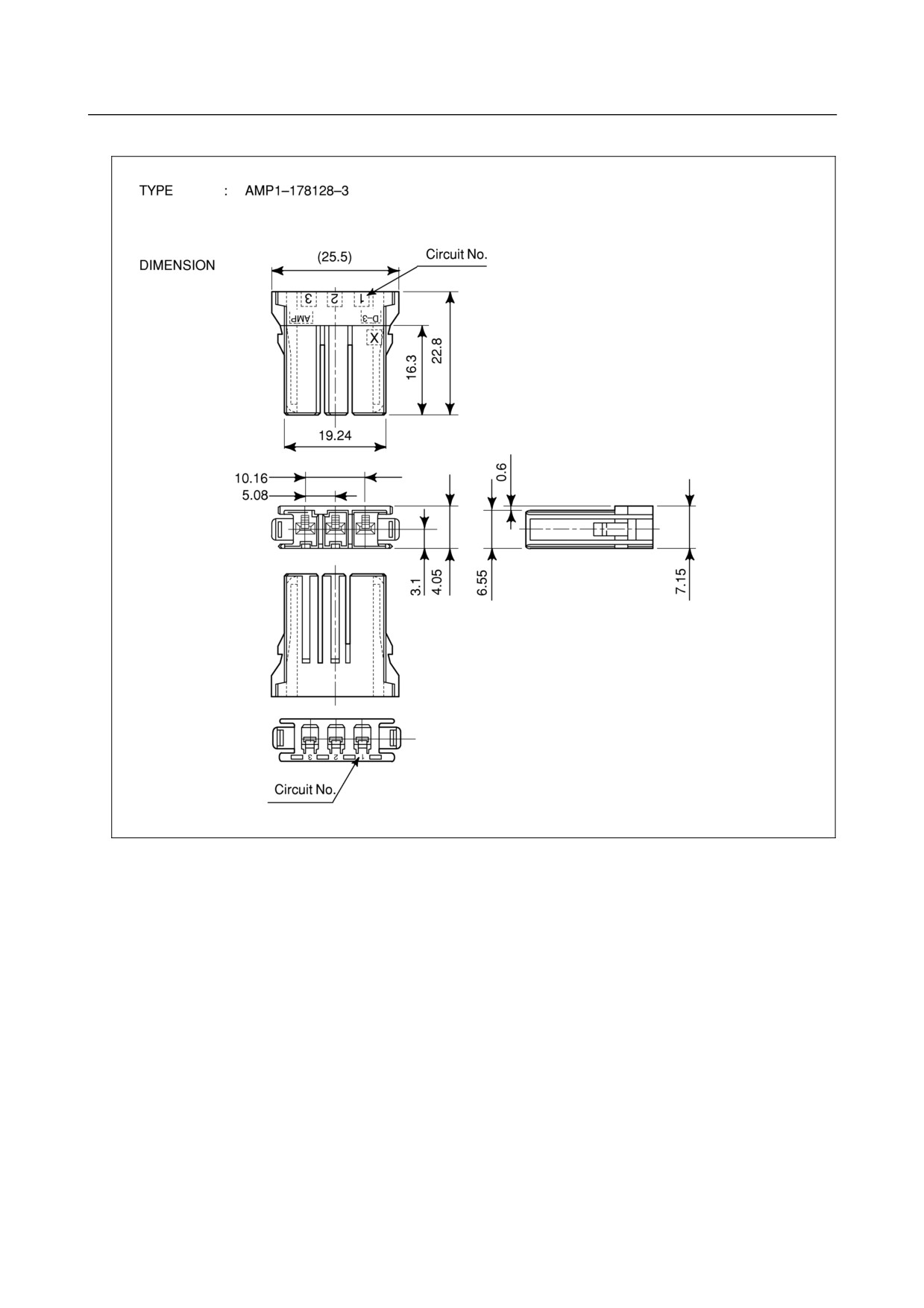

Fig. C3 (a) AMP connector (1): On the servo side
- 397 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03
Fig. C3 (b) AMP connector (2): On the servo side
- 398 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

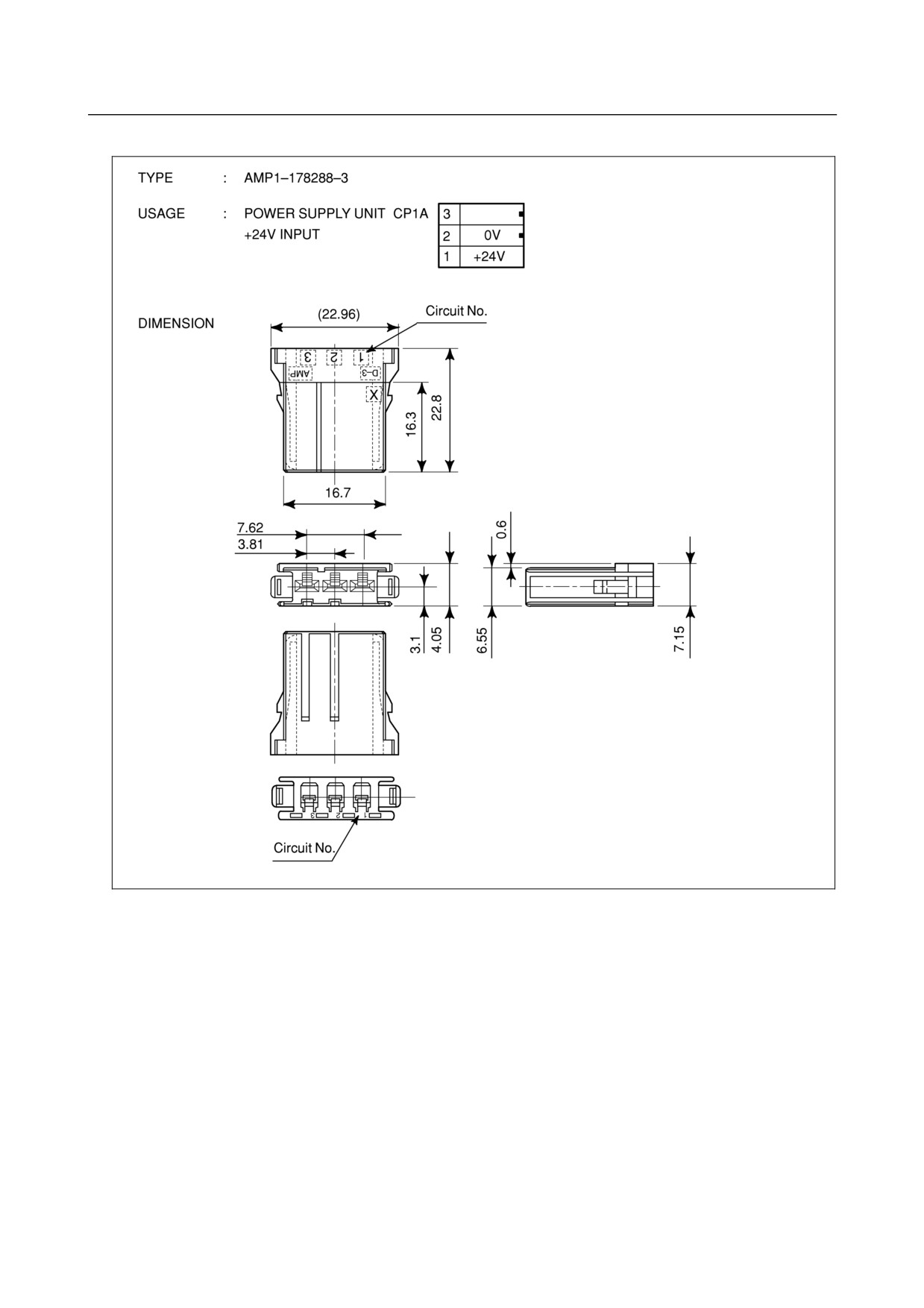

Fig. C3 (c) AMP connector (3): For +24 V power supply
- 399 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03

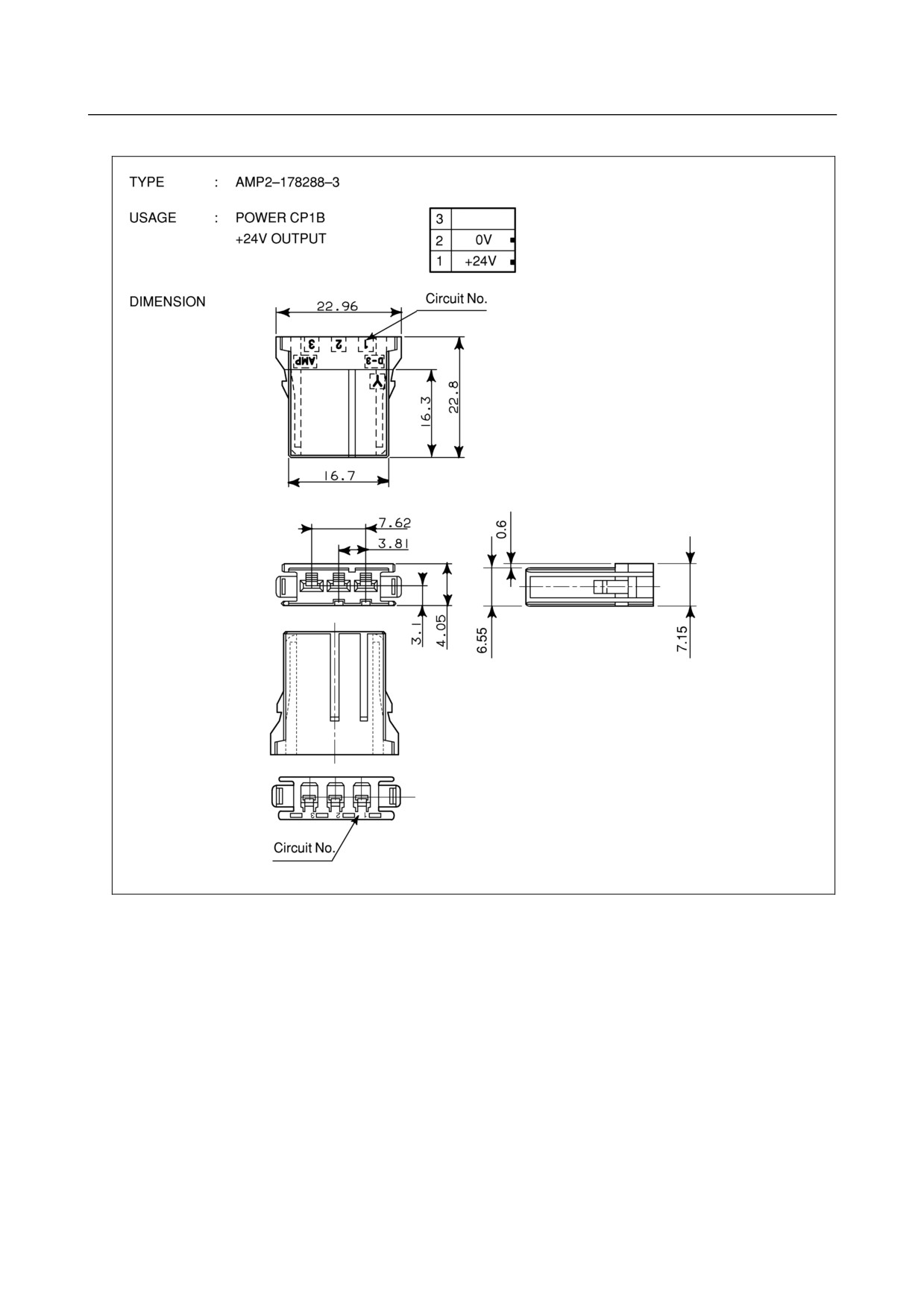

Fig. C3 (d) AMP connector (4): For +24 V power supply
- 400 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

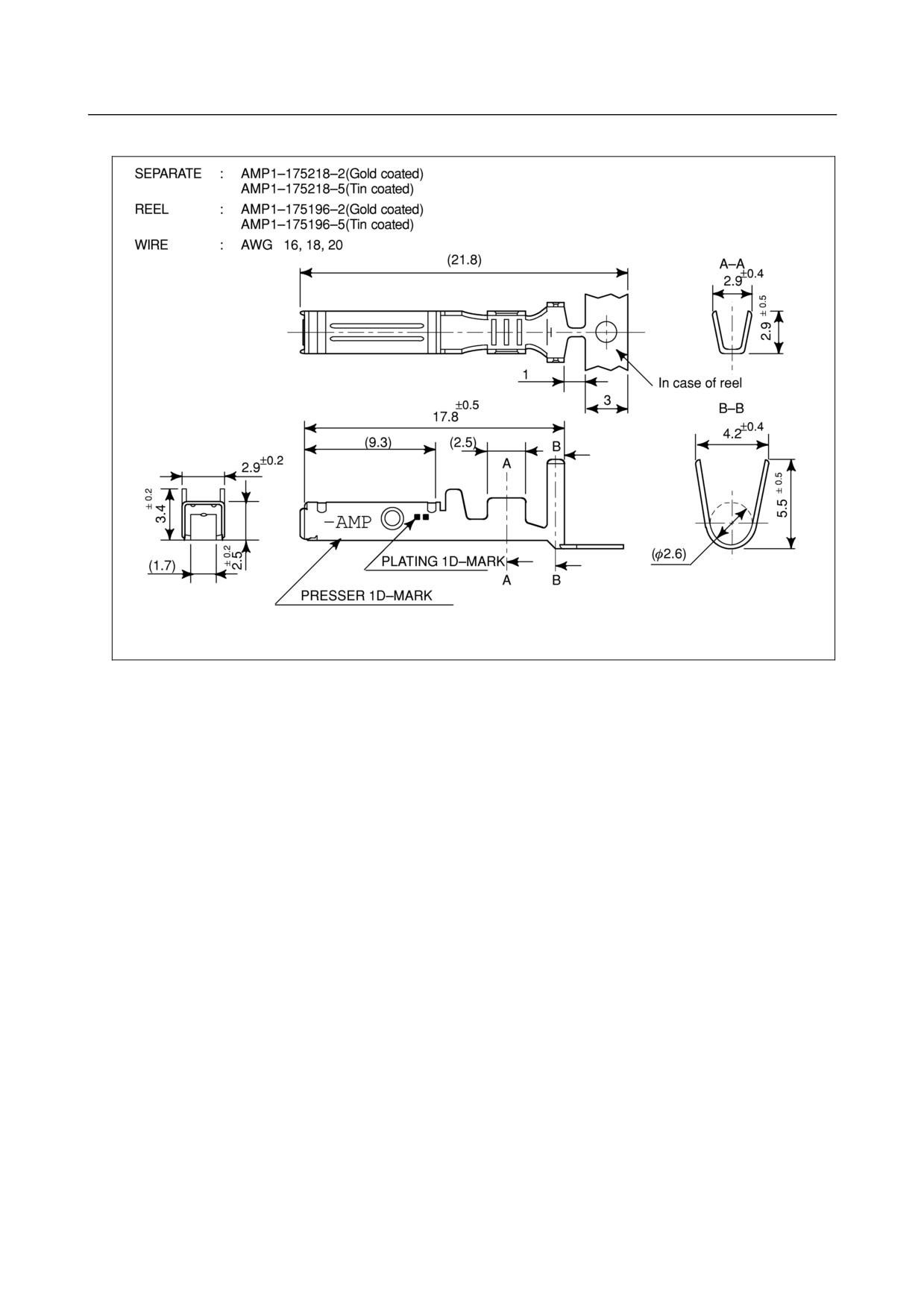

Fig. C3 (e) Contact for AMP connector
- 401 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03

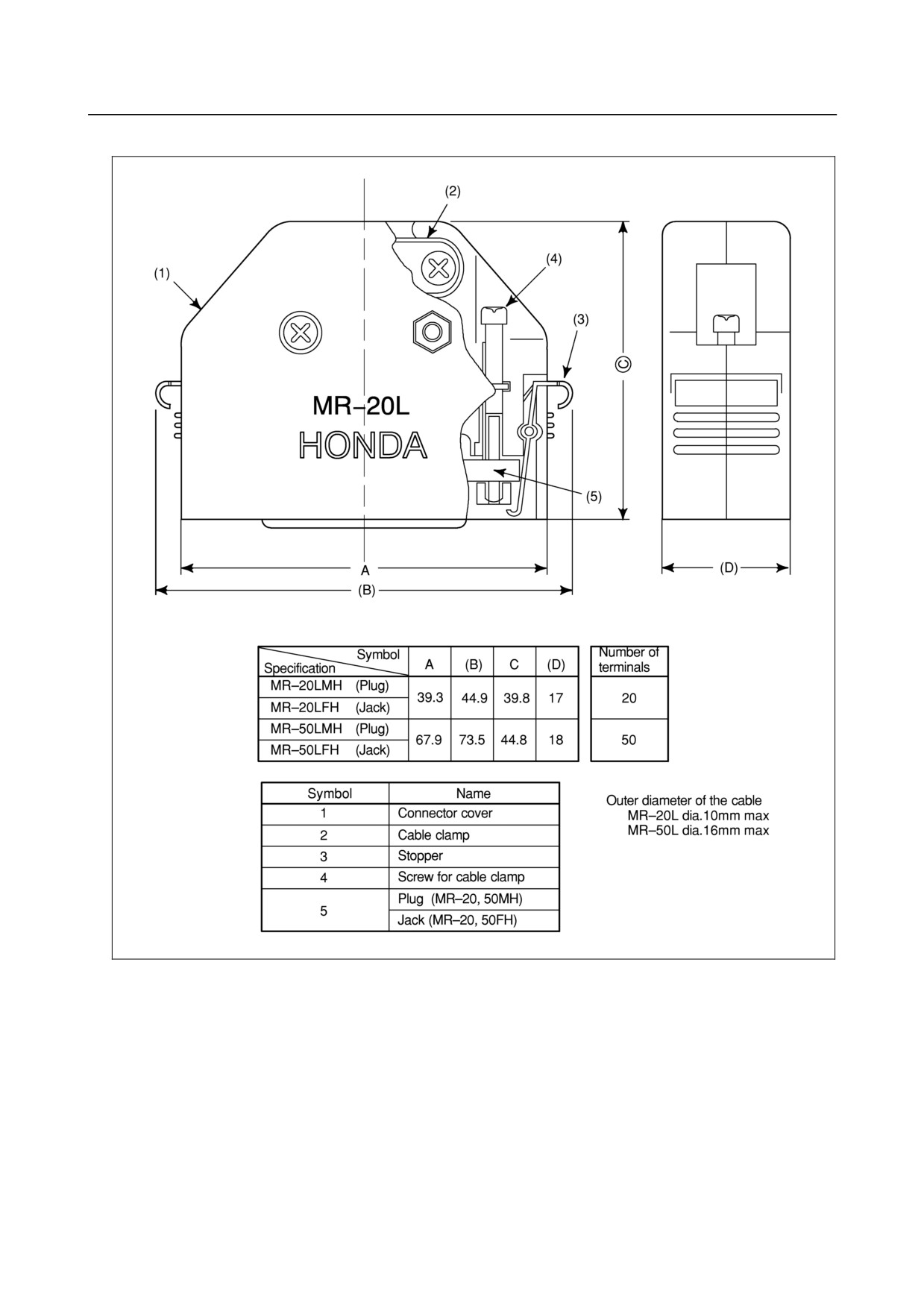

Fig. C4 (a) HONDA connector (case)
- 402 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

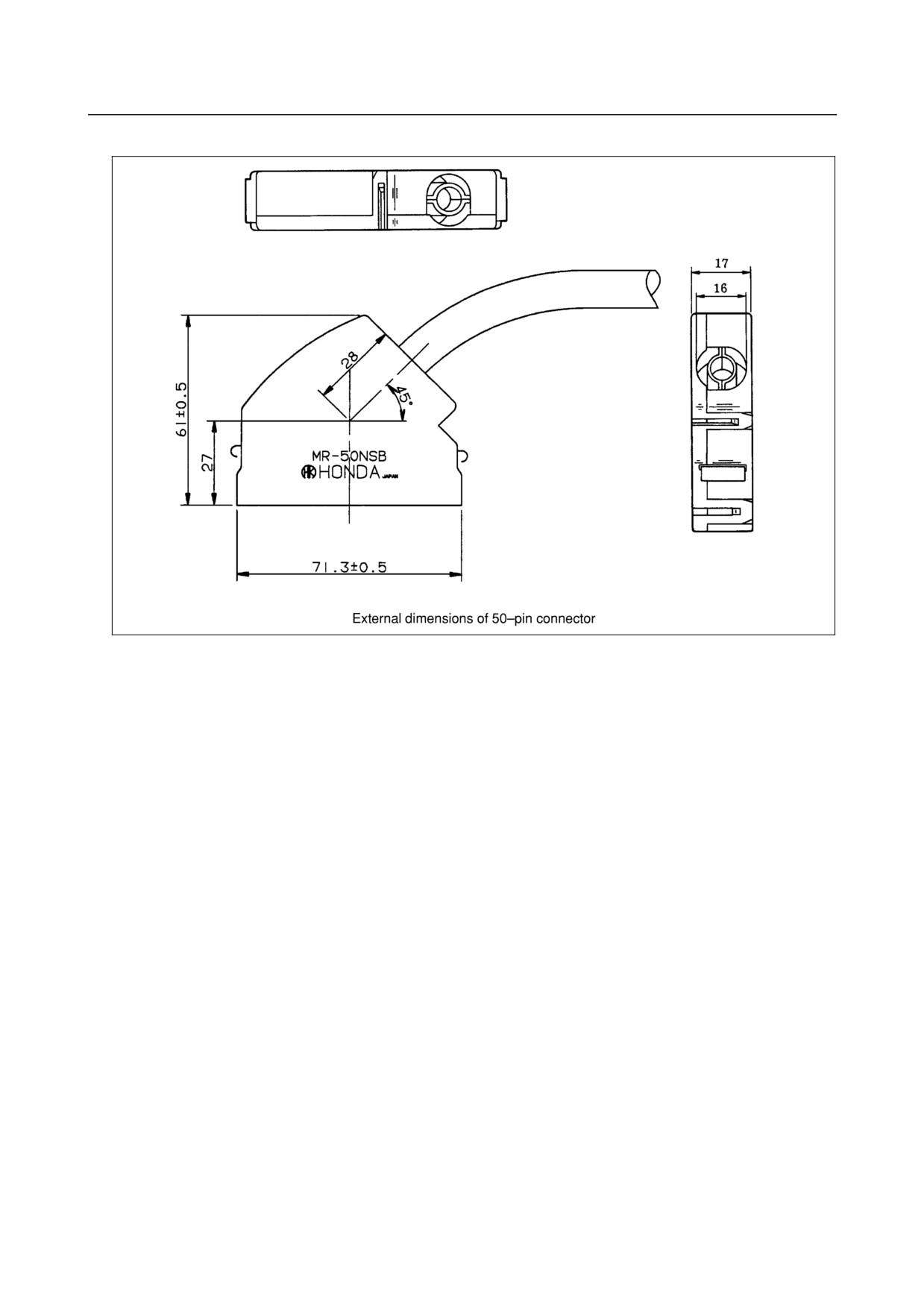

Fig. C4 (b) Honda connector (angled-type case)
- 403 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03

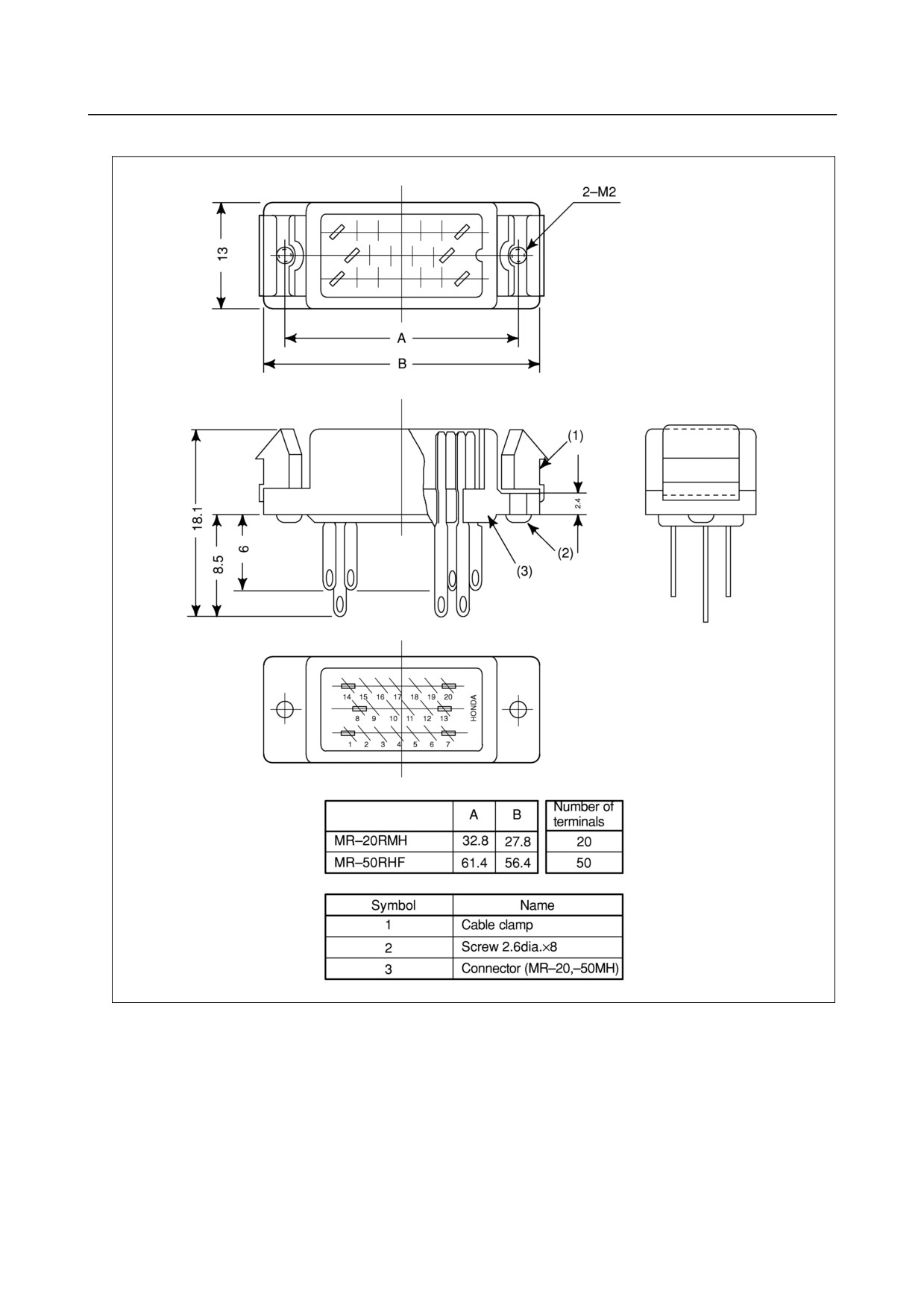

Fig. C4 (c) HONDA connector (male)
- 404 -
A.EXTERNAL DIMENSIONS
B-64303EN/03
APPENDIX
OF EACH UNIT

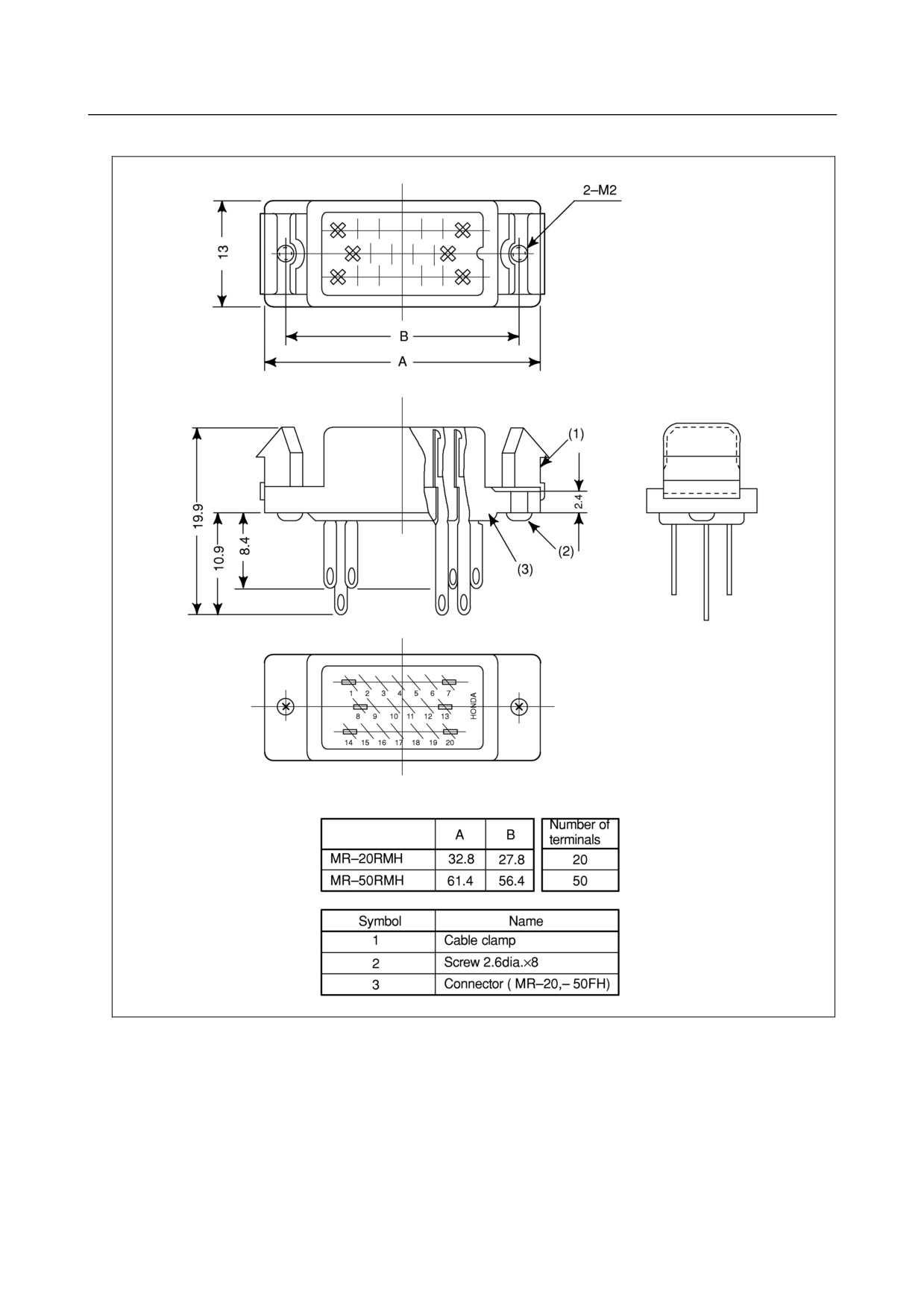

Fig. C4 (d) HONDA connector (female)
- 405 -
A. EXTERNAL DIMENSIONS
OF EACH UNITTABLE
APPENDIX
B-64303EN/03

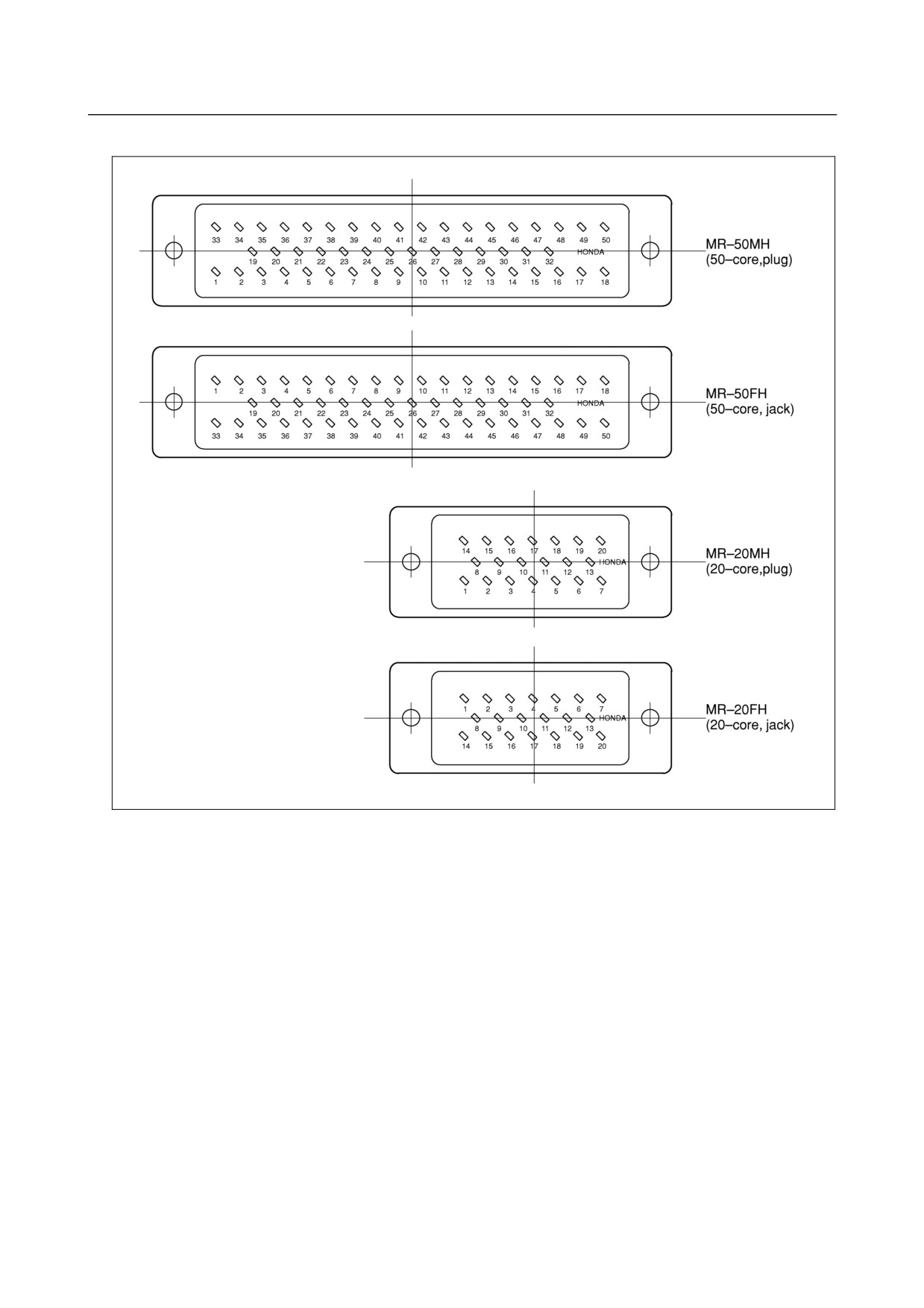

Fig. C4 (e) HONDA connector (terminal layout)
- 406 -
