FANUC Series Series 16i-TB, Series 18i-TB, Series 160i-TB, Series 180i-TB. OPERATOR’S MANUAL

7. ALARM AND SELF-DIAGNOSIS

B-63524EN/01

OPERATION

FUNCTIONS

ALARM AND SELF-DIAGNOSIS FUNCTIONS

When an alarm occurs, the corresponding alarm screen appears to indicate

the cause of the alarm. The causes of alarms are classified by error codes.

Up to 25 previous alarms can be stored and displayed on the screen (alarm

history display).

The system may sometimes seem to be at a halt, although no alarm is

displayed. In this case, the system may be performing some processing.

The state of the system can be checked using the self-diagnostic function.

579

7. ALARM AND SELF-DIAGNOSIS

FUNCTIONS

OPERATION

B-63524EN/01

7.1

ALARM DISPLAY

Explanations

D Alarm screen

When an alarm occurs, the alarm screen appears.

ALARM MESSAGE

O0000

00000

100

PARAMETER WRITE ENABLE

510

OVER TRAVEL

:+X

520

OVER TRAVEL

:+2

530

OVER TRAVEL

:+3

0 T0000

MDI

* * * *

* * * * * *

ALM

18 : 52 : 05

ALARM

MSG

HISTRY

D Another method for

In some cases, the alarm screen does not appear, but an ALM is displayed

alarm displays

at the bottom of the screen.

PARAMETER (RS232C INTERFACE)

O1000 N00010

0100

ENS

NCR

CTV

0101

NFD

ASI

SB2

0102 DEVICE NUM. (CH0)

0103 BAUDRATE (CH0)

0111

NFD

ASI

SB2

0112 DEVICE NUM. (CH1)

0113 BAUDRATE (CH1)

0 T0000

MEM * * * *

* * *

ALM

08 : 41 : 27

NO.SRH

ON:1

OFF:0

+INPUT

INPUT

In this case, display the alarm screen as follows:

Press the function key

MESSAGE

Press the chapter selection soft key [ALARM].

580

7. ALARM AND SELF-DIAGNOSIS

B-63524EN/01

OPERATION

FUNCTIONS

D Reset of the alarm

Error codes and messages indicate the cause of an alarm. To recover from

an alarm, eliminate the cause and press the reset key.

D Error codes

The error codes are classified as follows:

No. 000 to 255: P/S alarms (Program errors)*¹

No. 300 to 349: Absolute pulse coder (APC) alarms

No. 350 to 399: Serial pulse coder (SPC) alarms

No. 400 to 499: Servo alarms

No. 500 to 599: Overtravel alarms

No. 700 to 749: Overheat alarms

No. 750 to 799: Spindle alarms

No. 900 to 999: System alarms

No. 5000 to : P/S alarms (Program errors)

*1:For an alarm (No. 000 to 232) that occurs in association with

background operation, the indication “xxxBP/S alarm” is provided

(where xxx is an alarm number). Only a BP/S alarm is provided for

No. 140.

See the error code list in the Appendix G for details of the error codes.

581

7. ALARM AND SELF-DIAGNOSIS

FUNCTIONS

OPERATION

B-63524EN/01

Up to 25 of the most recent CNC alarms are stored and displayed on the

7.2

screen.

ALARM HISTORY

Display the alarm history as follows:

DISPLAY

Procedure for Alarm History Display

MESSAGE

Press the function key

Press the chapter selection soft key [HISTRY].

The alarm history appears.

The following information items are displayed.

(1)The date the alarm was issued

(2)Alarm No.

(3)Alarm message (some contains no message)

(4)Page number

Change the page by page key

or ^PAGE

PAGE

To delete the recorded information, press the softkey [(OPRT)]

then the [DELETE] key.

ALARM HISTORY

O0100 N00001

(1)94.02.14 16:43:48

PAGE=1

(2)010 (3)MPROPER G-CODE

(4)

94.02.13 8:22:21

506 OVER TRAVEL : +X

94.02.12 20:15:43

417 SERVO ALARM : X AXIS DGTL PARAM

MEM * * * *

* * *

19 : 47 : 45

ALARM

MSG

HISTRY

(OPRT)

582

7. ALARM AND SELF-DIAGNOSIS

B-63524EN/01

OPERATION

FUNCTIONS

The system may sometimes seem to be at a halt, although no alarm has

7.3

occurred. In this case, the system may be performing some processing.

CHECKING BY

The state of the system can be checked by displaying the self-diagnostic

SELF-DIAGNOSTIC

screen.

SCREEN

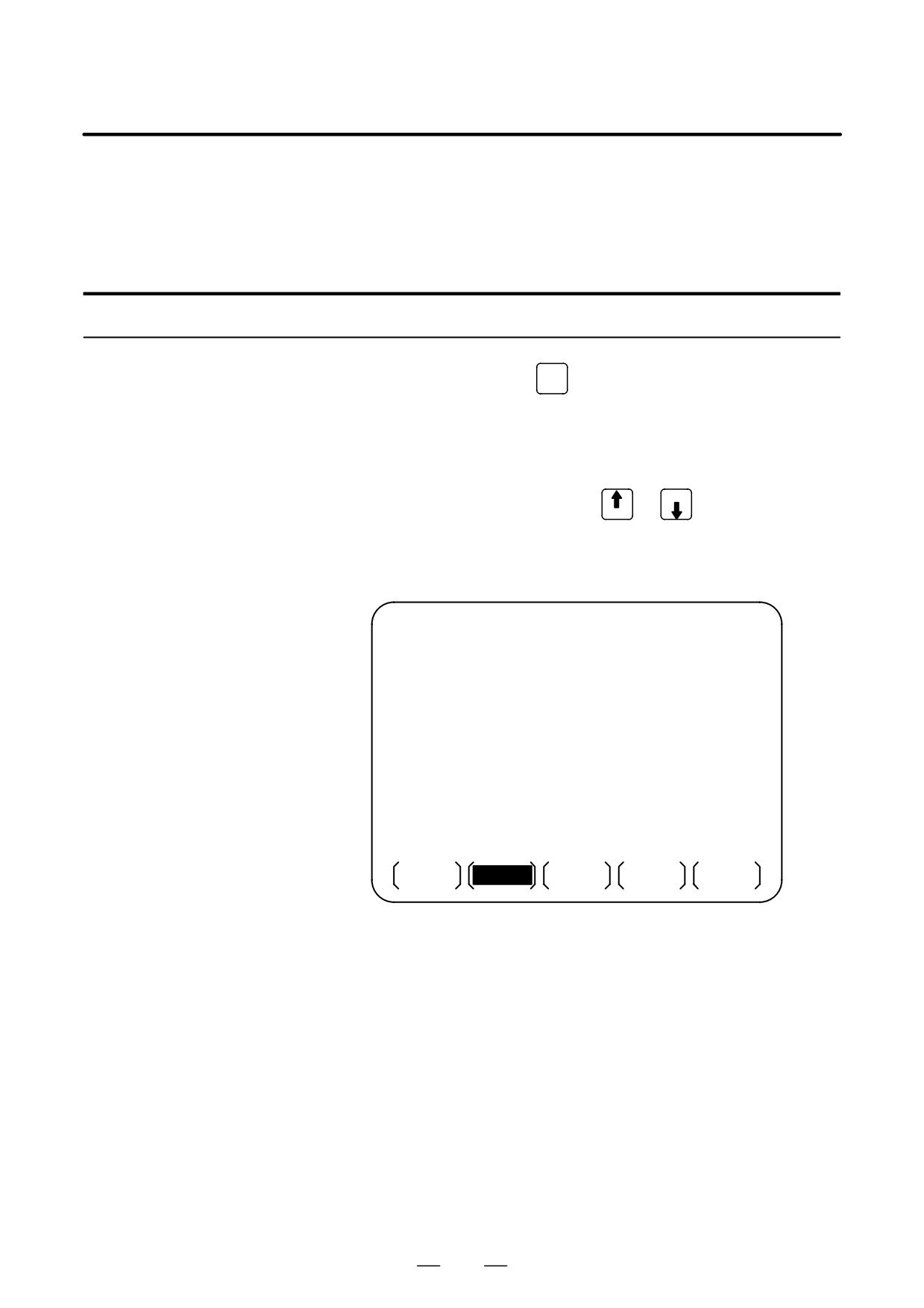

Procedure for Diagnostic

Press the function key

SYSTEM

Press the chapter select key [DGNOS].

The diagnostic screen has more than 1 pages. Select the screen by the

following operation.

(1) Change the page by page key

or ^PAGE

PAGE

(2) Method by soft key

- Key input the number of the diagnostic data to be displayed.

- Press [N SRCH].

DIAGNOSTIC (GENERAL)

O0000 N00000

000 WAITING FOR FIN SIGNAL

001 MOTION

002 DWELL

003 IN-POSITION CHECK

004 FEEDRATE OVERRIDE 0%

005 INTERLOCK/START-LOCK

006 SPINDLE SPEED ARRIVAL CHECK

EDIT

* * * *

* * *

14 : 51 : 55

PARAM

DGNOS

PMC

SYSTEM

(OPRT)

Explanations

D Self diagnostic screen at

For the two-path control, the diagnostic screen for the tool post selected

2-path control

with the tool post selection switch is displayed. When displaying the

diagnostic screen for the other tool post, specify the tool post with the tool

post selection switch.

583

7. ALARM AND SELF-DIAGNOSIS

FUNCTIONS

OPERATION

B-63524EN/01

Explanations

Diagnostic numbers 000 to 015 indicate states when a command is being

specified but appears as if it were not being executed. The table below

lists the internal states when 1 is displayed at the right end of each line on

the screen.

Table 7.3 (a) Alarm displays when a command is specified but appears as if it were not being executed

No.

Display

Internal status when 1 is displayed

000

WAITING FOR FIN SIGNAL

M, S. T function being executed

001

MOTION

Move command in automatic operation being executed

002

DWELL

Dwell being executed

003

IN-POSITION CHECK

In-position check being executed

004

FEEDRATE OVERRIDE 0%

Cutting feed override 0%

005

INTERLOCK/START-LOCK

Interlock ON

006

SPINDLE SPEED ARRIVAL CHECK

Waiting for spindle speed arrival signal to turn on

010

PUNCHING

Data being output via reader puncher interface

011

READING

Data being input via reader puncher interface

012

WAITING FOR (UN) CLAMP

Waiting for index table clamp/unclamp before B axis index

table indexing start/after B axis index table indexing end to

complete

013

JOG FEEDRATE OVERRIDE 0%

Jog override 0%

014

WAITING FOR RESET.ESP.RRW.OFF

Emergency stop, external reset, reset & rewind, or MDI

panel reset key on

015

EXTERNAL PROGRAM

External program number searching

NUMBER SEARCH

Diagnostic numbers 020 to 025 indicate the states when automatic

operation is stopped or paused.

Table 7.3 (b) Alarm displays when an automatic operation is stopped or paused

No.

Display

Internal status when 1 is displayed

020

CUT SPEED UP/DOWN

Set when emergency stop turns on or when servo alarm

occurs

021

RESET BUTTON ON

Set when reset key turns on

022

RESET AND REWIND ON

Reset and rewind turned on

023

EMERGENCY STOP ON

Set when emergency stop turns on

024

RESET ON

Set when external reset, emergency stop, reset, or reset &

rewind key turns on

025

STOP MOTION OR DWELL

A flag which stops pulse distribution. It is set in the follow-

ing cases.

(1)External reset turned on.

(2)Reset & rewind turned on.

(3)Emergency stop turned on.

(4)Feed hold turned on.

(5)The MDI panel reset key turned on.

(6)Switched to the manual mode(JOG/HANDLE/INC).

(7)Other alarm occurred. (There is also alarm which is not

set.)

584

7. ALARM AND SELF-DIAGNOSIS

B-63524EN/01

OPERATION

FUNCTIONS

The table below shows the signals and states which are enabled when each

diagnostic data item is 1. Each combination of the values of the diagnostic

data indicates a unique state.

020

CUT SPEED UP/DOWN

021

RESET BUTTON ON

022

RESET AND REWIND ON

023

EMERGENCY STOP ON

024

RESET ON

025

STOP MOTION OR DWELL

Emergency stop signal input

External reset signal input

MDI reset button turned on

Reset & rewind input

Servo alarm generation

Changed to another mode or feed hold

Single block stop

Diagnostic numbers 030 and 031 indicate TH alarm states.

No.

Display

Meaning of data

030

CHARACTER NUMBER

The position of the character which caused

TH DATA

TH alarm is displayed by the number of

characters from the beginning of the block

at TH alarm

031

TH DATA

Read code of character which caused TH

alarm

585

8. DATA INPUT/OUTPUT

OPERATION

B-63524EN/01

DATA INPUT/OUTPUT

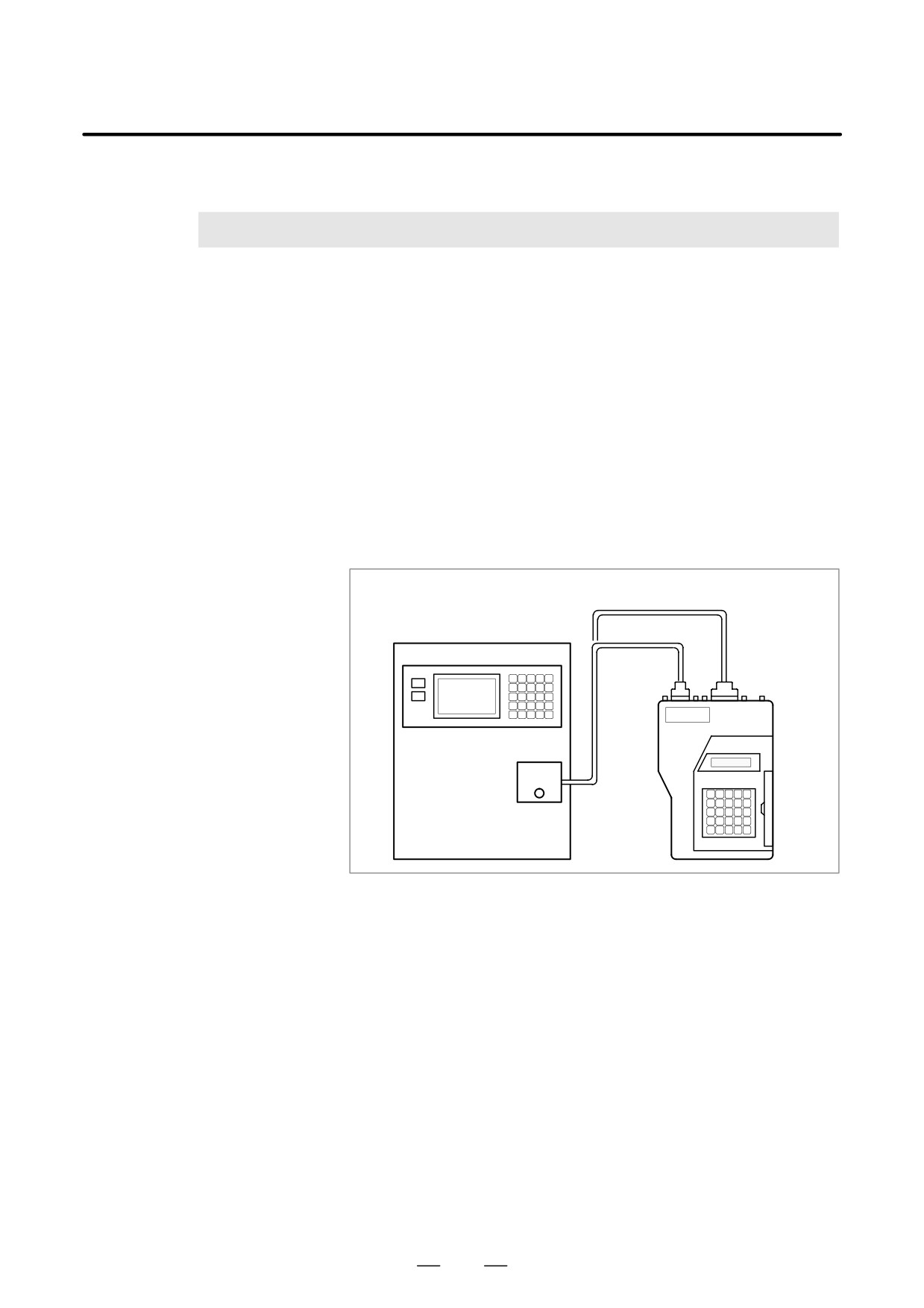

NC data is transferred between the CNC and external input/output devices

such as the Handy File.

The following types of data can be entered and output :

1. Program

2. Offset data

3. Parameter

4. Pitch error compensation data

5. Custom macro common variable

Before an input/output device can be used, the input/output related

parameters must be set.

For how to set parameters, see Chapter III-2.

RS-422

interface

RS-232-C

interface

FANUC

Handy File

RS-232-C or

RS-422 interface

(Punch panel etc...)

586

B-63524EN/01

OPERATION

8. DATA INPUT/OUTPUT

Of the external input/output devices, the FANUC Handy File use floppy

8.1

disks as their input/output medium.

FILES

In this manual, an input/output medium is generally referred to as a

floppy.

Unlike an NC tape, a floppy allows the user to freely choose from several

types of data stored on one medium on a file-by-file basis.

Input/output is possible with data extending over more than one floppy

disk.

Explanations

What is a File

The unit of data, which is input/output between the floppy and the CNC

by one input/output operation (pressing the VREADW or VPUNCHW

key), is called a HfileI. When inputting CNC programs from, or

outputting them to the floppy, for example, one or all programs within the

CNC memory are handled as one file.

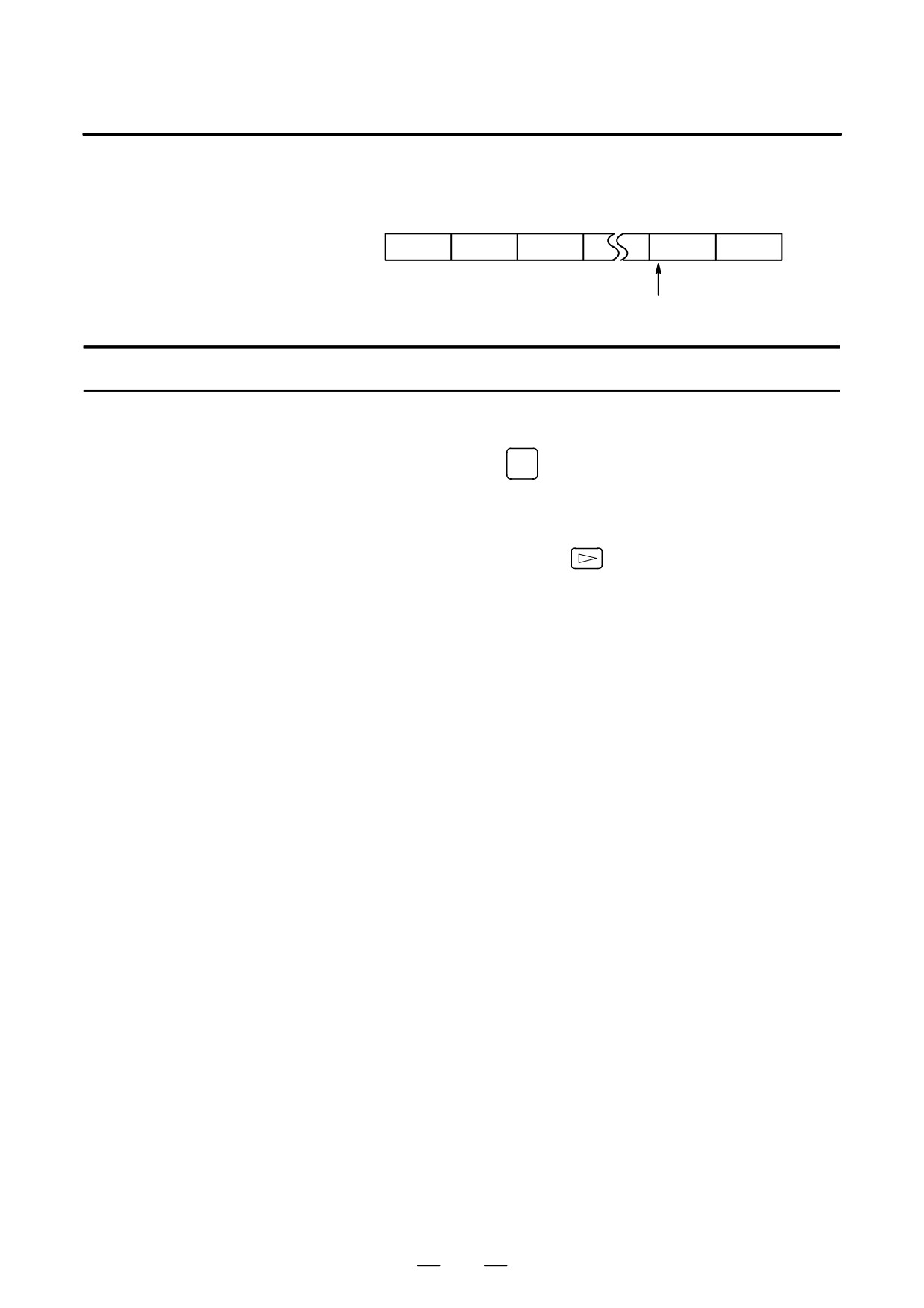

Files are assigned automatically file numbers 1, 2, 3, 4 and so on, with the

lead file as 1.

File 1

File 2

File 3

File n

Blank

Request for floppy

When one file has been entered over two floppies, LEDs on the adaptor

replacement

flash alternately on completion of data input/output between the first

floppy and the CNC, prompting floppy replacement. In this case, take the

first floppy out of the adaptor and insert a second floppy in its place. Then,

data input/output will continue automatically.

Floppy replacement is prompted when the second floppy and later is

required during file search-out, data input/output between the CNC and

the floppy, or file deletion.

Floppy 1

File 1

File 2

File 3

File (k-1)

File k

Floppy 2

Continua-

File (k+1)

File n

Blank

tion of file k

Since floppy replacement is processed by the input/output device, no

special operation is required. The CNC will interrupt data input/output

operation until the next floppy is inserted into the adaptor.

When reset operation is applied to the CNC during a request for floppy

replacement, the CNC is not reset at once, but reset after the floppy has

been replaced.

587

8. DATA INPUT/OUTPUT

OPERATION

B-63524EN/01

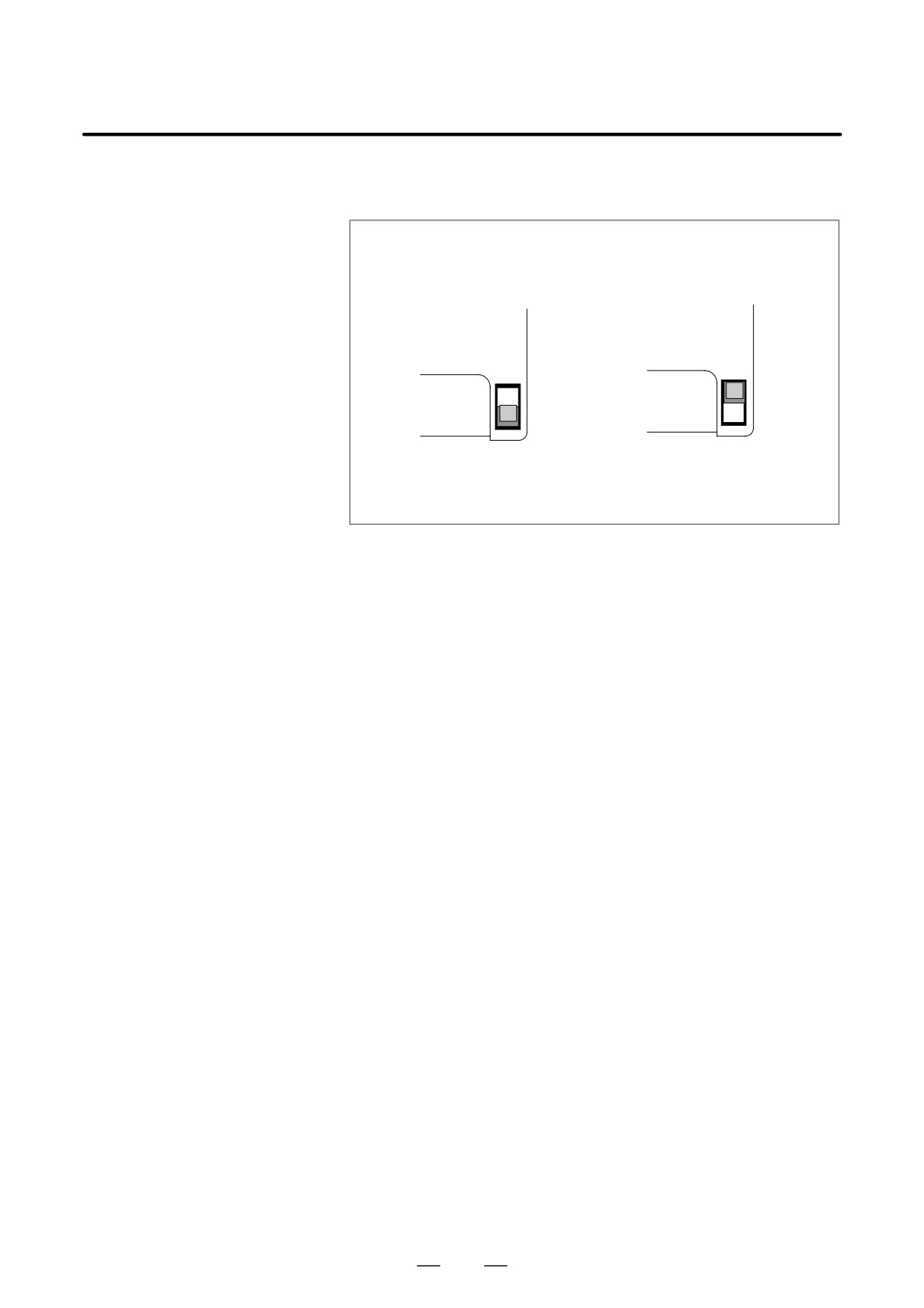

D Protect switch

The floppy is provided with the write protect switch. Set the switch to

the write enable state. Then, start output operation.

Write protect switch of a cassette

(1) Write-protected

(2) Write-enabled (Reading, writ-

(Only reading is

ing, and deletion are possible.)

possible.)

Fig. 8.1 Protect switch

D Writing memo

Once written in the cassette or card, data can subsequently be read out by

correspondence between the data contents and file numbers. This

correspondence cannot be verified, unless the data contents and file

numbers are output to the CNC and displayed. The data contents can be

displayed with display function for directory of floppy disk (See Section

III-8.8).

To display the contents,write the file numbers and the contents on the

memo column which is the back of floppy.

(Entry example on MEMO)

File 1

NC parameters

File 2

Offset data

File 3

NC program O0100

⋅

File (n-1) NC program O0500

File n NC program O0600

588

B-63524EN/01

OPERATION

8. DATA INPUT/OUTPUT

When the program is input from the floppy, the file to be input first

8.2

must be searched.

FILE SEARCH

For this purpose, proceed as follows:

File 1

File 2

File 3

File n

Blank

File searching of the file n

Procedure for File Heading

Press the EDIT or MEMORY switch on the machine operator’s panel.

Press function key

PROG

, then the program contents display screen or

program check screen appears.

Press soft key [(OPRT)]

Press the rightmost soft key

(next-menu key).

Enter address N.

Enter the number of the file to search for.

⋅ N0

The beginning of the cassette or card is searched.

⋅ One of N1 to N9999

Of the file Nos. 1 to 9999, a designated file is searched.

⋅ N-9999

The file next to that accessed just before is searched.

⋅ N-9998

When N-9998 is designated, N-9999 is automatically inserted

each time a file is input or output. This condition is reset by the

designation of N1,N1 to 9999, or N*9999 or reset.

Press soft keys [FSRH] and [EXEC]

The specified file is searched for.

Explanations

D File search by N-9999

The same result is obtained both by sequentially searching the files by

specifying Nos. N1 to N9999 and by first searching one of N1 to N9999

and then using the N-9999 searching method. The searching time is

shorter in the latter case.

589

B-63524EN/01

OPERATION

8. DATA INPUT/OUTPUT

Files stored on a floppy can be deleted file by file as required.

8.3

FILE DELETION

Procedure for File Deletion

Insert the floppy into the input/output device so that it is ready for

writing.

Press the EDIT switch on the machine operator’s panel.

Press function key

PROG

, then the program contents display screen

appears.

Press soft key [(OPRT)]

Press the rightmost soft key

(next-menu key).

Enter address N.

Enter the number (from 1 to 9999) of the file to delete.

Press soft key [DELETE], then press soft key [EXEC].

The file specified in step 7 is deleted.

Explanations

D File number after the file

When a file is deleted, the file numbers after the deleted file are each

is deleted

decremented by one. Suppose that a file numbered k was deleted. In this

case, files are renumbered as follows:

Before deletion . . . after deletion

1 to (k-1)

Deleted

(k+1) to n

k to (n-1)

D Protect switch

Set the write protect switch to the write enable state to delete the files.

591

8. DATA INPUT/OUTPUT

OPERATION

B-63524EN/01

8.4

PROGRAM

INPUT/OUTPUT

8.4.1

This section describes how to load a program into the CNC from a floppy

or NC tape.

Inputting a Program

Procedure for Inputting a Program

Make sure the input device is ready for reading.

For the two-path control, select the tool post for which a program to

be input is used with the tool post selection switch.

Press the EDIT switch on the machine operator’s panel.

When using a floppy, search for the required file according to the

procedure in Section III-8.2.

Press function key

PROG

, then the program contents display screen or

program directory screen appears.

Press soft key [(OPRT)]

Press the rightmost soft key

(next-menu key).

After entering address O, specify a program number to be assigned to

the program. When no program number is specified here, the

program number used on the floppy or NC tape is assigned.

Press soft keys [READ] and [EXEC]

The program is input and the program number specified in step 7 is

assigned to the program.

Explanations

D Collation

If a program is input while the data protect key on the machine operator’s

panel turns ON, the program loaded into the memory is verified against

the contents of the floppy or NC tape.

If a mismatch is found during collation, the collation is terminated with

an P/S alarm (No. 79).

If the operation above is performed with the data protection key turns

OFF, collation is not performed, but programs are registered in memory.

D Inputting multiple

When a tape holds multiple programs, the tape is read up to ER (or %).

programs from an NC

tape

ER(%)

O1111

M02;

O2222

M30;

O3333

M02;

592

B-63524EN/01

OPERATION

8. DATA INPUT/OUTPUT

D Program numbers on a

S When a program is entered without specifying a program number.

NC tape

S The O-number of the program on the NC tape is assigned to the

program. If the program has no O-number, the N-number in the first

block is assigned to the program.

S When the program has neither an O-number nor N-number, the

previous program number is incremented by one and the result is

assigned to the program.

S When the program does not have an O-number but has a five-digit

sequence number at the start of the program, the lower four digits of

the sequence number are used as the program number. If the lower four

digits are zeros, the previously registered program number is

incremented by one and the result is assigned to the program.

S When a program is entered with a program number

The O-number on the NC tape is ignored and the specified number is

assigned to the program. When the program is followed by additional

programs, the first additional program is given the program number.

Additional program numbers are calculated by adding one to the last

program.

D Program registration in

The method of registration operation is the same as the method of

the background

foreground operation. However, this operation registers a program in the

background editing area. As with edit operation, the operations described

below are required at the end to register a program in foreground program

memory.

[(OPRT)] [BG-END]

D Additional program input

You can input a program to be appended to the end of a registered

program.

Registered program

Input program

Program after input

f1234 ;

f5678 ;

f1234 ;

jjjjjjj ;

fffffff ;

jjjjjjj ;

jjjjj ;

fffff ;

jjjjj ;

jjjj ;

ffff ;

jjjj ;

jjj ;

fff ;

jjj ;

f5678 ;

fffffff ;

fffff ;

ffff ;

fff ;

In the above example, all lines of program O5678 are appended to the end

of program O1234. In this case, program number O5678 is not registered.

When inputting a program to be appended to a registered program, press

the [READ] soft key without specifying a program number in step 8.

Then, press the [CHAIN] and [EXEC] soft keys.

S In entire program input, all lines of a program are appended, except for

its O number.

S When canceling additional input mode, press the reset key or the [CAN]

or [STOP] soft key.

S Pressing the [CHAIN] soft key positions the cursor to the end of the

registered program. Once a program has been input, the cursor is

positioned to the start of the new program.

593

8. DATA INPUT/OUTPUT

OPERATION

B-63524EN/01

S Additional input is possible only when a program has already been

registered.

D Defining the same

If an attempt has been made to register a program having the same number

program number as that

as that of a previously registered program, P/S alarm 073 is issued and the

of an existing program

program cannot be registered.

Alarm

No.

Description

The size of memory is not sufficient to store the input programs

An attempt was made to store a program with an existing pro-

gram number.

The verification operation found a mismatch between a pro-

gram loaded into memory and the contents of the program on

the floppy or NC tape.

594

B-63524EN/01

OPERATION

8. DATA INPUT/OUTPUT

8.4.2

A program stored in the memory of the CNC unit is output to a floppy or

NC tape.

Outputting a Program

Procedure for Outputting a Program

Make sure the output device is ready for output.

For the two-path control, select the tool post for which a program to

be output is used with the tool post selection switch.

To output to an NC tape, specify the punch code system (ISO or EIA)

using a parameter.

Press the EDIT switch on the machine operator’s panel.

Press function key

PROG

, then the program contents display screen or

program directory screen appears.

Press soft key [(OPRT)].

Press the rightmost soft key

(next-menu key).

Enter address O.

Enter a program number. If -9999 is entered, all programs stored in

memory are output.

To output multiple programs at one time, enter a range as follows :

O∆∆∆∆,OVVVV

Programs No. ∆∆∆∆ to No. VVVV are output.

The program library screen displays program numbers in ascending

order when bit 4 (SOR) of parameter No. 3107 is set to 1.

Press soft keys [PUNCH] and [EXEC]

The specified program or programs are output.

Explanations

(Output to a floppy)

D File output location

When output is conducted to the floppy, the program is output as the new

file after the files existing in the floppy. New files are to be written from

the beginning with making the old files invalid, use the above output

operation after the N0 head searching.

D An alarm while a

When P/S alarm (No. 086) occurs during program output, the floppy is

program is output

restored to the condition before the output.

D Outputting a program

When program output is conducted after N1 to N9999 head searching, the

after file heading

new file is output as the designated n-th position. In this case, 1 to n-1

files are effective, but the files after the old n-th one are deleted. If an

alarm occurs during output, only the 1 to n-1 files are restored.

D Efficient use of memory

To efficiently use the memory in the cassette or card, output the program

by setting parameter NFD (No. 0101#7, No. 0111#7 or 0121#7) to 1. This

parameter makes the feed is not output, utilizing the memory efficiently.

595

8. DATA INPUT/OUTPUT

OPERATION

B-63524EN/01

D On the memo record

Head searching with a file No. is necessary when a file output from the

CNC to the floppy is again input to the CNC memory or compared with

the content of the CNC memory. Therefore, immediately after a file is

output from the CNC to the floppy, record the file No. on the memo.

D Punching programs in

Punch operation can be performed in the same way as in the foreground.

the background

This function alone can punch out a program selected for foreground

operation.

<O> (Program No.) [PUNCH] [EXEC]: Punches out a specified program.

<O> H-9999I [PUNCH] [EXEC]: Punches out all programs.

Explanations

(Output to an NC tape)

D Format

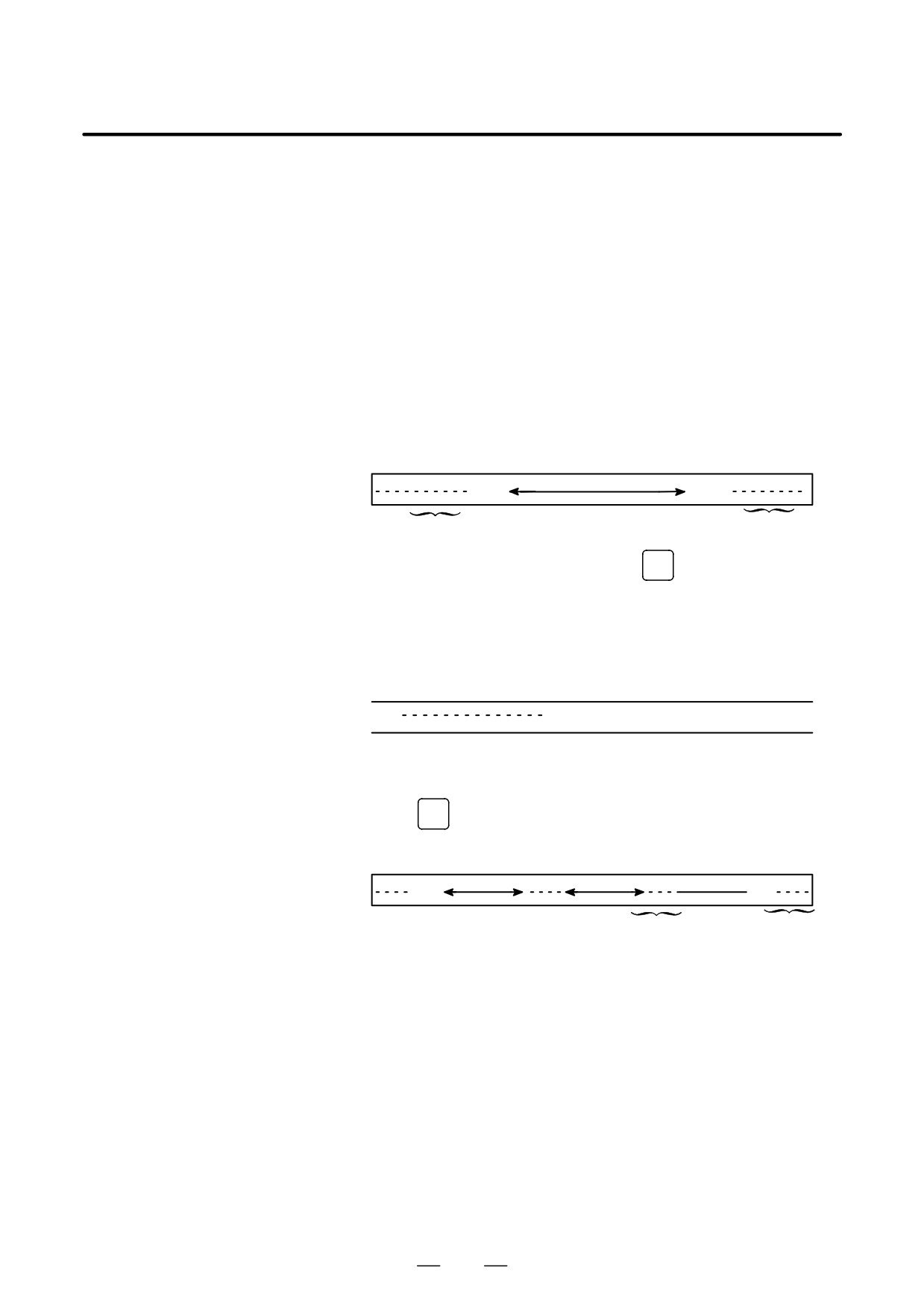

A program is output to paper tape in the following format:

Program

(%)

Feed of 3 feet

If three-feet feeding is too long, press the

CAN

key during feed

punching to cancel the subsequent feed punching.

D TV check

A space code for TV check is automatically punched.

D ISO code

When a program is punched in ISO code, two CR codes are punched after

an LF code.

LF CR CR

By setting NCR (bit 3 of parameter No. 0100), CRs can be omitted so that

each LF appears without a CR.

D Stopping the punch

Press the

RESET

key to stop punch operation.

D Punching all programs

All programs are output to paper tape in the following format.

ER Program

Program

Program ER

(%)

Feed of 1-feet

Feed of 3-feet

The sequence of the programs punched is undefined.

596

B-63524EN/01

OPERATION

8. DATA INPUT/OUTPUT

8.5

OFFSET DATA INPUT

AND OUTPUT

8.5.1

Offset data is loaded into the memory of the CNC from a floppy or NC

tape. The input format is the same as for offset value output. See section

Inputting Offset Data

III-8.5.2. When an offset value is loaded which has the same offset

number as an offset number already registered in the memory, the loaded

offset data replaces existing data.

Procedure for Inputting Offset Data

Make sure the input device is ready for reading

For the two-path control, select the tool post for which offset data to

be input is used with the tool post selection switch.

Press the EDIT switch on the machine operator’s panel.

When using a floppy, search for the required file according to the

procedure in Section III-8.2.

OFFSET

Press function key

SETTING

to display tool offset screeen.

Press soft keys [(OPRT)], then the tool compensation screen appears.

Press rightmost soft key

(next menu key).

Press soft keys [READ] and [EXEC].

The input offset data will be displayed on the screen after completion

of input operation.

597

8. DATA INPUT/OUTPUT

OPERATION

B-63524EN/01

8.5.2

All offset data is output in a output format from the memory of the CNC

to a floppy or NC tape.

Outputting Offset Data

Procedure for Outputting Offset Data

Make sure the output device is ready for output.

For the two-path control, select the tool post for which offset data to

be output is used with the tool post selection switch.

Specify the punch code system (ISO or EIA) using a parameter.

Press the EDIT switch on the machine operator’s panel.

OFFSET

Press function key

SETTING

to display tool offset screen.

Press soft key [(OPRT)].

Press the rightmost soft key

(next-menu key)

Press soft keys [PUNCH] and [EXEC].

Offset data is output in the output format described below.

Explanations

D Output format

Output format is as follows:

Format

G10P_X_Y_Z_R_Q_;

P: Offset number

. . . . Work sheet : P=0

. . . . For wear offset amount : P=Wear offset number

. . . . For geometry offset amount : p=10000+geometry offset number

X:Offset value on X axis

Y: Offset value on Y axis

Z:Offset value on Z axis

Q:Imaginary tool nose number

R:Tool nose radius offset value

The L1 command may be used instead of L11 for format compatibility of

the conventional CNC.

D Output file name

When the floppy disk directory display function is used, the name of the

output file is OFFSET.

598

B-63524EN/01

OPERATION

8. DATA INPUT/OUTPUT

Parameters and pitch error compensation data are input and output from

8.6

different screens, respectively. This chapter describes how to enter them.

INPUTTING AND

OUTPUTTING

PARAMETERS AND

PITCH ERROR

COMPENSATION

DATA

8.6.1

Parameters are loaded into the memory of the CNC unit from a floppy or

NC tape. The input format is the same as the output format. See Subsec.

Inputting Parameters

III-8.6.2. When a parameter is loaded which has the same data number

as a parameter already registered in the memory, the loaded parameter

replaces the existing parameter.

Procedure for Inputting Parameters

Make sure the input device is ready for reading.

For the two-path control, select the tool post for which parameters to

be input are used with the tool post selection switch.

When using a floppy, search for the required file according to the

procedure in Section III-8.2.

Press the EMERGENCY STOP button on the machine operator’s panel.

OFFSET

Press function key

SETTING

Press the soft key [SETING] for chapter selection, then the setting

screen appears.

Enter 1 in response to the prompt for “PARAMETER WRITE (PWE)”

in setting data. P/S alarm (No. 100 (indicating that parameters can be

written)) appears.

SYSTEM

Press soft key

Press chapter selection soft key [PARAM], then the parameter screen

appears.

Press soft key [(OPRT)].

Press the rightmost soft key

(next-menu key).

Press soft keys [READ] and [EXEC].

Parameters are read into memory. Upon completion of input, the

“INPUT” indicator at the lower-right corner of the screen disappears.

OFFSET

Press function key

SETTING

Press soft key [SETING] for chapter selection.

Enter 0 in response to the prompt for “PARAMETER WRITE

(PWE)” in setting data.

599

8. DATA INPUT/OUTPUT

OPERATION

B-63524EN/01

Turn the power to the NC back on.

Release the EMERGENCY STOP button on the machine operator’s

panel.

8.6.2

All parameters are output in the defined format from the memory of the

CNC to a floppy or NC tape.

Outputting Parameters

Procedure for Outputting Parameters

Make sure the output device is ready for output.

For the two-path control, select the tool post for which parameters to

be input are used with the tool post selection switch.

Specify the punch code system (ISO or EIA) using a parameter.

Press the EDIT switch on the machine operator’s panel.

SYSTEM

Press function key

Press chapter selection soft key [PARAM] to display the parameter

screen.

Press soft key [(OPRT)].

Press rightmost soft key

(next-menu key).

Press soft key [PUNCH].

To output all parameters, press the [ALL] soft key. To output only

parameters which are set to other than 0, press the [NON-0] soft key.

Press soft key [EXEC].

All parameters are output in the defined format.

Explanations

D Output format

Output format is as follows:

N . . P . . ;

N . . A1P . . . A2P . . . AnP . .

;

N . . P . . ;

N:Parameter No.

A:Axis No. (n is the number of control axis)

P:Parameter setting value .

D Suppressing output of

To suppress the output of the following parameters, press the [PUNCH]

parameters set to 0

soft key then [NON-0] soft key.

Other than axis type

Axis type

Bit type

Parameter for which all bits

Parameter for an axis for

are set to 0

which all bits are set to 0.

Value type

Paramter whose value is 0.

Parameter for an axis for

which the value is 0.

600

B-63524EN/01

OPERATION

8. DATA INPUT/OUTPUT

D Output file name

When the floppy disk directory display function is used, the name of the

output file is PARAMETER.

Once all parameters have been output, the output file is named ALL

PARAMETER. Once only parameters which are set to other than 0 have

been output, the output file is named NON-0. PARAMETER.

8.6.3

Pitch error compensation data are loaded into the memory of the CNC from

a floppy or NC tape. The input format is the same as the output format. See

Inputting Pitch Error

Section 8.6.4. When a pitch error compensation data is loaded which has the

Compensation Data

corresponding data number as a pitch error compensation data already

registered in the memory, the loaded data replaces the existing data.

Procedure for Pitch Error Compensation Data

Make sure the input device is ready for reading.

For the two-path control, select the tool post for which pitch error

compensation data to be input is used with the tool post selection switch.

When using a floppy, search for the required file according to the

procedure in Section III-8.2.

Press the EMERGENCY STOP button on the machine operator’s panel.

OFFSET

Press function key

SETTING

Press the soft key [SETING] for chapter selection.

Enter 1 in response to the prompt for “PARAMETER WRITE

(PWE)” in setting data. P/S alarm

(No. 100 (indicating that

parameters can be written)) appears.

SYSTEM

Press soft key

Press the rightmost soft key

(next-menu key)and press chapter

selection soft key [PITCH].

Press soft key [(OPRT)].

Press the rightmost soft key

(next-menu key).

Press soft keys [READ] and [EXEC].

Pitch error compensation data are read into memory. Upon completion

of input, the ”INPUT” indicator at the lower-right corner of the screen

disappears.

OFFSET

Press function key

SETTING

Press soft key [SETING] for chapter selection.

Enter 0 in response to the prompt for “PARAMETER WRITE (PWE)”

of setting data.

Turn the power to the NC back on.

601

8. DATA INPUT/OUTPUT

OPERATION

B-63524EN/01

Release the EMERGENCY STOP button on the machine operator’s

panel.

Explanations

D Pitch error

Parameters 3620 to 3624 and pitch error compensation data must be set

compensation

correctly to apply pitch error compensation correctly

(See subsec. III-11.5.2)

8.6.4

All pitch error compensation data are output in the defined format from

the memory of the CNC to a floppy or NC tape.

Outputting Pitch Error

Compensation Data

Procedure for Outputting Pitch Error Compensation Data

Make sure the output device is ready for output.

For the two-path control, select the tool post for which pitch error

compensation data to be output is used with the tool post selection

switch.

Specify the punch code system (ISO or EIA) using a parameter.

Press the EDIT switch on the machine operator’s panel.

SYSTEM

Press function key

Press the rightmost soft key

(next-menu key) and press chapter

selection soft key [PITCH].

Press soft key [(OPRT)].

Press rightmost soft key

(next-menu key).

Press soft keys [PUNCH] and [EXEC].

All pitch error compensation data are output in the defined format.

Explanations

D Output format

Output format is as follows :

N10000 P

;

N11023 P

;

N : Pitch error compensation point + 10000

P : Pitch error compensation data

When bi-directional pitch error compensation is used, output format is

as follows :

N20000 P

;

N21023 P

;

N23000 P

;

N24023 P

;

N : Pitch error compensation point + 20000

P : Pitch error compensation data

D Output file name

When the floppy disk directory display function is used, the name of the

output file is “PITCH ERROR”.

602

B-63524EN/01

OPERATION

8. DATA INPUT/OUTPUT

8.7

INPUTTING /

OUTPUTTING

CUSTOM MACRO

COMMON

VARIABLES

The value of a custom macro common variable (#500 to #999) is loaded

8.7.1

into the memory of the CNC from a floppy or NC tape. The same format

Inputting Custom

used to output custom macro common variables is used for input. See

Macro Common

Subsec. III-8.7.2. For a custom macro common variable to be valid, the

Variables

input data must be executed by pressing the cycle start button after data

is input. When the value of a common variable is loaded into memory,

this value replaces the value of the same common variable already

existing (if any) in memory.

Procedure for Inputting Custom Macro Common Variables

III-8.7.2, in memory according to the program input procedure

described in Section III-8.4.1.

Press the MEMORY switch on the machine operator’s panel upon

completing input.

Press the cycle start button to execute the loaded program.

Display the macro variable screen to check whether the values of the

common variables have been set correctly.

Display of the macro variable screen

OFFSET

⋅ Press function key

SETTING

⋅ Press the rightmost soft key (next-menu key).

⋅ Press soft key [MACRO].

⋅ Select a variable with the page keys or numeric keys and soft

key [NO.SRH].

Explanations

D Common variables

The common variables (#500 to #531) can be input and output.

When the option for adding a common variable is specified, values from

#500 to #999 can be input and output.

#100 to #149 can be input and output when bit 3 (PU5) of parameter No.

6001 is set to 1.

When the option for adding a common variable is specified, values from

#100 to #199 can be input and output.

603

8. DATA INPUT/OUTPUT

OPERATION

B-63524EN/01

8.7.2

Custom macro common variables (#500 to #999) stored in the memory

of the CNC can be output in the defined format to a floppy or NC tape.

Outputting Custom

Macro Common

Variable

Procedure for Outputting Custom Macro Common Variable

Make sure the output device is ready for output.

Specify the punch code system (ISO or EIA) using a parameter.

Press the EDIT switch on the machine operator’s panel.

OFFSET

Press function key

SETTING

Press the rightmost soft key

(next-menu key), then press soft

key [MACRO].

Press soft key [(OPRT)].

Press the rightmost soft key

(next-menu key).

Press soft keys [PUNCH] and [EXEC].

Common variables are output in the defined format.

Explanations

D Output format

The output format is as follows:

;

#500=[25283:65536+65536]/134217728

(1)

#501=#0; .

(2)

#502=0; .

(3)

#503= .

;

#531= .

;

M02;

(1) The precision of a variable is maintained by outputting the value of the

variable as <expression>.

(2) Undefined variable

(3) When the value of a variable is 0

D Output file name

When the floppy disk directory display function is used, the name of the

output file is “MACRO VAR”.

D Common variable

The common variables (#500 to #531) can be input and output.

When the option for adding a common variable is specified, values from

#500 to #999 can be input and output.

#100 to #149 can be input and output when bit 3 (PU5) of parameter No.

6001 is set to 1.

When the option for adding a common variable is specified, values from

#100 to #199 can be input and output.

604

8. DATA INPUT/OUTPUT

OPERATION

B-63524EN/01

8.8.1

Displaying the

FANUC Series Series 16i-TB, Series 18i-TB, Series 160i-TB, Series 180i-TB. OPERATOR’S MANUAL - page 21
