FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 289

A.PARAMETERS

 APPENDIX

B-63944EN/03





- 2268 -



#7 #6 #5 #4 #3 #2 #1 #0

27363





BTP





[Input type]  Parameter input

 [Data

type]

Bit



        # 0

BTP

  When a round-nose tool is drawn in animated simulation, the tip is:

0:  Positioned on the front.
1:  Positioned on the rear.


Front



Rear

Tip



Holder

Holder







27364



Holder length applied when a round-nose tool is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the holder length applied when a round-nose tool
is drawn in animated simulation.


Holder length



Tip



Holder




When 0 is set, 50 mm for metric input or 1.9685 inch for inch input is
assumed.


B-63944EN/03

 APPENDIX

A.PARAMETERS





- 2269 -

27365



Holder width applied when a round-nose tool is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the holder width applied when a round-nose tool
is drawn in animated simulation.


Holder width



Tip



Holder




When 0 is set, 14 mm for metric input or 0.5512 inch for inch input is
assumed.




#7 #6 #5 #4 #3 #2 #1 #0

27366





STP





[Input type]  Parameter input

 [Data

type]

Bit



        # 0

STP

  When a point nose straight tool is drawn in animated simulation, the

tip is:
0:  Positioned on the front.
1:  Positioned on the rear.


Front



Rear

Tip



Holder

Holder







A.PARAMETERS

 APPENDIX

B-63944EN/03





- 2270 -

27367



Cutting edge length applied when a point nose straight tool is drawn in

animated simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the cutting edge length applied when a point nose
straight tool is drawn in animated simulation.


Cutting edge length



Tip



Holder




When 0 is set, 12 mm for metric input or 0.4724 inch for inch input is
assumed.


27368



Holder length applied when a point nose straight tool is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the holder length applied when a point nose
straight tool is drawn in animated simulation.


Holder length



Tip



Holder




When 0 is set, 50 mm for metric input or 1.9685 inch for inch input is
assumed.


B-63944EN/03

 APPENDIX

A.PARAMETERS





- 2271 -

27369



Holder width applied when a point nose straight tool is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the holder width applied when a point nose
straight tool is drawn in animated simulation.


Holder width



Tip



Holder




When 0 is set, 14 mm for metric input or 0.5512 inch for inch input is
assumed.


27370

  Holder length 2 applied when a point nose straight tool is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the holder length 2 applied when a point nose
straight tool is drawn in animated simulation.


Holder length 2



Tip



Holder







A.PARAMETERS

 APPENDIX

B-63944EN/03





- 2272 -

27371

  Holder width 2 applied when a point nose straight tool is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the holder width 2 applied when a point nose
straight tool is drawn in animated simulation.


Holder width 2

Tip



Holder



Holder width







27372



Length of cut applied when a drill tool is drawn in animated simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the length of cut applied when a drill tool is drawn
in animated simulation.


Length of cut




When 0 is set, 50 mm for metric input or 1.9685 inch for inch input is
assumed.


B-63944EN/03

 APPENDIX

A.PARAMETERS





- 2273 -

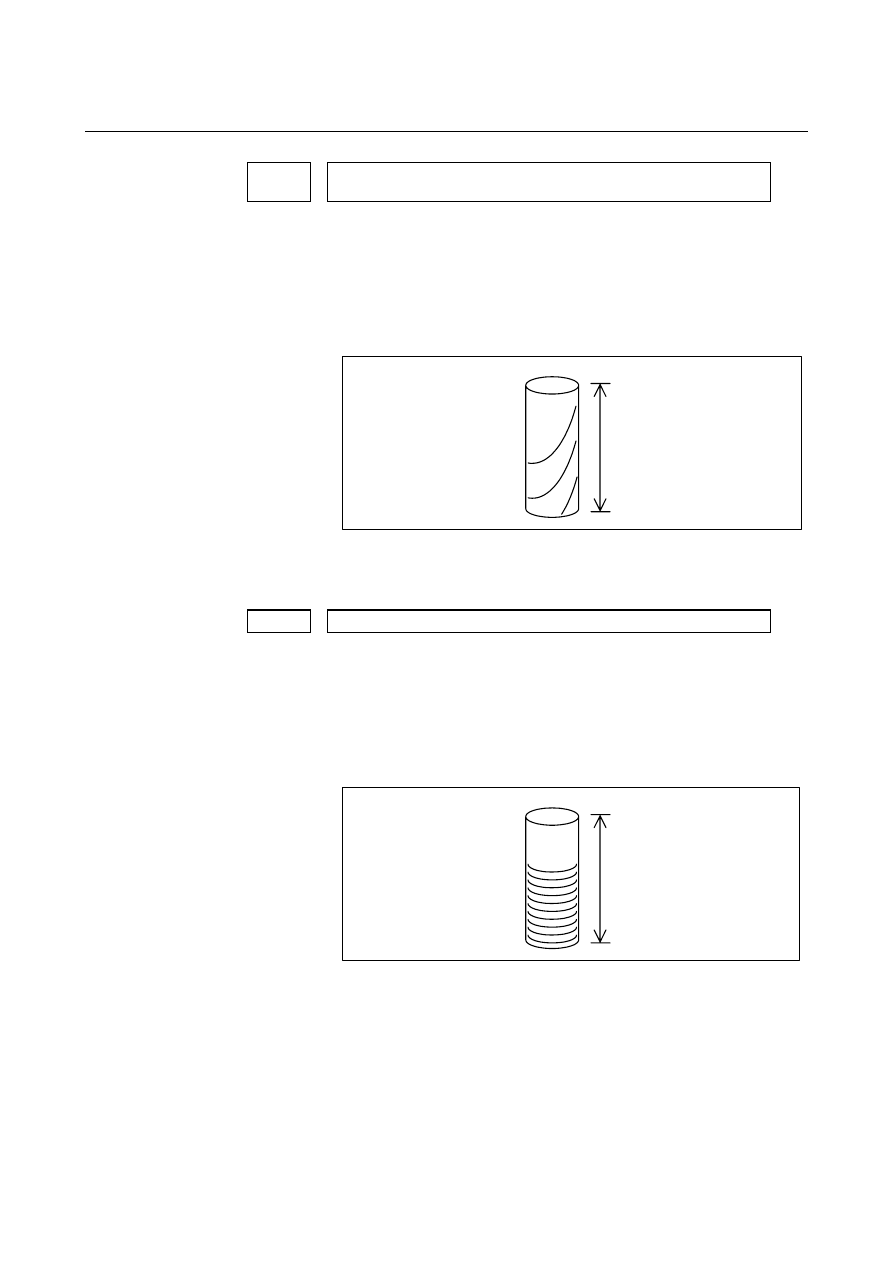

27373



Length of cut applied when a flat end milling cutter is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the length of cut applied when a flat end milling
cutter is drawn in animated simulation.


Length of cut




When 0 is set, 50 mm for metric input or 1.9685 inch for inch input is
assumed.


27374



Length of cut applied when a tapping tool is drawn in animated simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the length of cut applied when a tapping tool is
drawn in animated simulation.


Length of cut




When 0 is set, 50 mm for metric input or 1.9685 inch for inch input is
assumed.


A.PARAMETERS

 APPENDIX

B-63944EN/03





- 2274 -

27375



Included angle applied when a chamfering tool is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  degree

  [Valid data range]  0 to 90

This parameter sets the included angle applied when a a chamfering
tool is drawn in animated simulation.


Included angle





27376



Length of cut applied when a chamfering tool is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the length of cut applied when a chamfering tool
is drawn in animated simulation.


Length of cut




When 0 is set, 26 mm for metric input or 1.0236 inch for inch input is
assumed.


B-63944EN/03

 APPENDIX

A.PARAMETERS





- 2275 -

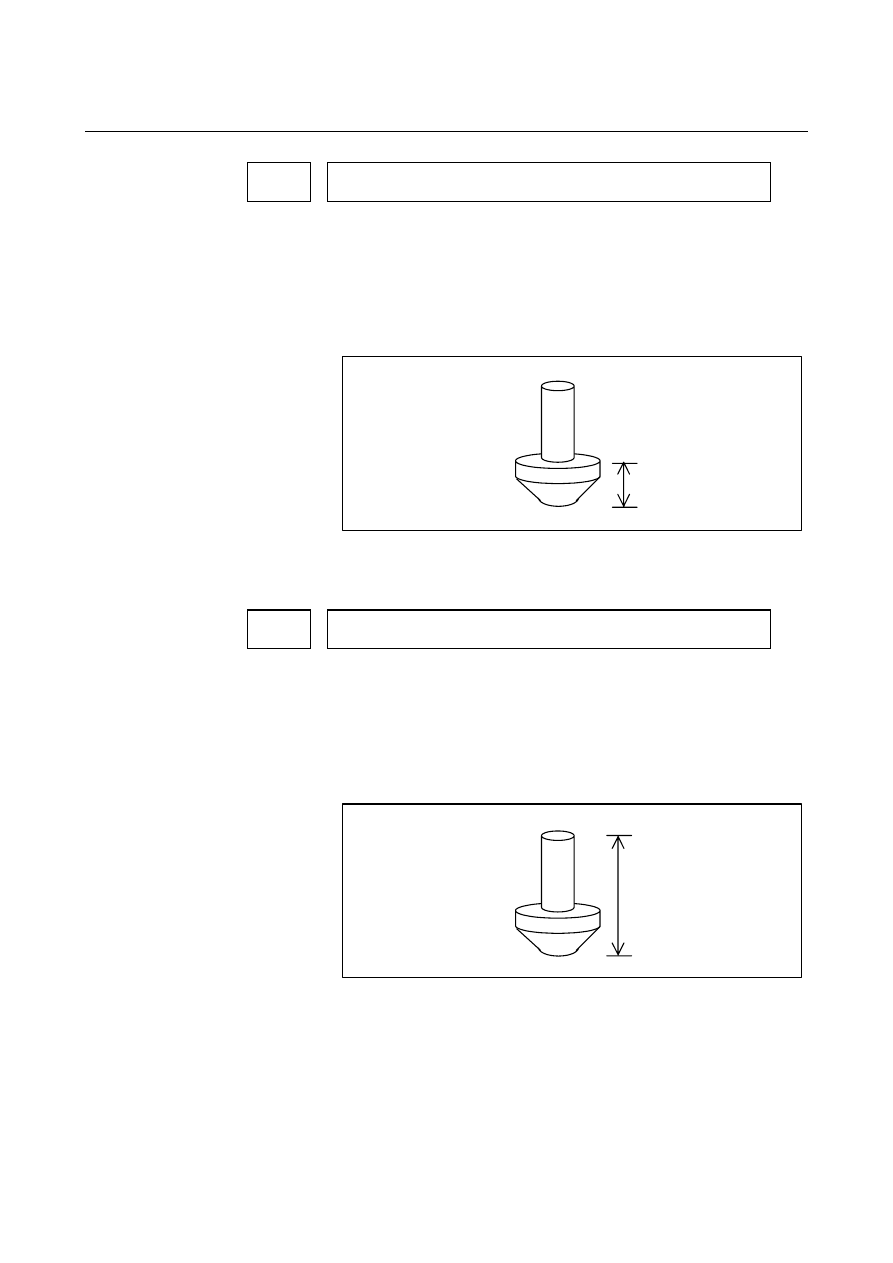

27377



Cutter length applied when a chamfering tool is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the cutter length applied when a chamfering tool is
drawn in animated simulation.


Cutter length




When 0 is set, 50 mm for metric input or 1.9685 inch for inch input is
assumed.


27378



Shank length applied when a chamfering tool is drawn in animated

simulation





[Input type]  Parameter input

 [Data

type]

2-word



[Unit of data]  0.001mm (metric input), 0.0001inch (inch input)

  [Valid data range]  0 or larger

This parameter sets the shank length applied when a chamfering tool
is drawn in animated simulation.


Shank length




When 0 is set, 130 mm for metric input or 5.1181 inch for inch input
is assumed.
