FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 265

A.PARAMETERS

APPENDIX

B-63944EN/03

- 2076 -

4960

M code specifying the spindle orientation

[Input type] Parameter input

[Data type] 2-word spindle

[Valid data range] 6 to 97

Set an M code for switching to the spindle positioning mode.

NOTE

1 Do not set an M code that duplicates other M

codes used for spindle positioning.

2 Do not set an M code used with other functions

(such as M00-05, 30, 98, and 99, and M codes for
calling subprograms).

4961

M code releasing the spindle positioning mode

[Input type] Parameter input

[Data type] 2-word spindle

[Valid data range] 6 to 97

Set an M code for canceling the spindle positioning mode on the
spindle positioning axis.

NOTE

1 Do not set an M code that duplicates other M

codes used for spindle positioning.

2 Do not set an M code used with other functions

(such as M00-05, 30, 98, and 99, and M codes for
calling subprograms).

B-63944EN/03

APPENDIX

A.PARAMETERS

- 2077 -

4962

M code for specifying a spindle positioning angle

[Input type] Parameter input

[Data type] 2-word spindle

[Valid data range] 6 to 9999999

Two methods are available for specifying spindle positioning. One
method uses axis address for arbitrary-angle positioning. The other
use an M code for half-fixed angle positioning. This parameter sets an
M code for the latter method.
In this parameter, set an M code to be used for half-fixed angle
positioning based on M codes.
Six M code from M

to M(

+5) are used for half-fixed angle

positioning, when

is the value of this parameter.

•

When the number of M codes is set in parameter No. 4964, let

be the value set in parameter No. 4962, and let

be the value set

in parameter No. 4964. Then,

M codes from M

to M(

-1)

are used as M codes for half-fixed angle positioning based on M
codes.

The table below indicates the relationship between the M codes and
positioning angles.

M code

Positioning angle

Example:

Positioning angle

when

= 30

+1) 2

+2) 3

+3) 4

120

+4) 5

150

+5) 6

180

: : :

-1)

β×θ

β×

represents the number of M codes set in parameter No. 4964.

(When parameter No. 4964 is set to 0,

= 6.)

represents the basic angular displacement set in parameter No.4963.

NOTE

1 Do not set an M code that duplicates other M

codes used for spindle positioning.

2 Do not set an M code used with other functions

(such as M00-05, 30, 98, and 99, and M codes for
calling subprograms).

4963

Basic angle for half-fixed angle positioning

[Input type] Parameter input

[Data type] Real spindle

[Unit of data] Degree

[Minimum unit of data] Depend on the increment system of the applied axis

[Valid data range] 0 to 60

This parameter sets a basic angular displacement used for half-fixed
angle positioning using M codes.

A.PARAMETERS

APPENDIX

B-63944EN/03

- 2078 -

4964

Number of M codes for specifying a spindle positioning angle

[Input type] Parameter input

[Data type] 2-word spindle

[Valid data range] 0 to 255

This parameter sets the number of M codes used for Half-fixed angle
positioning using M codes.
As many M codes as the number specified in this parameter, starting
with the M code specified in parameter No.4962, are used to specify
half-fixed angle positioning.
Let

be the value of parameter No.4962, and let

be the value of

parameter No.4964. That is, M codes from M

to M(

-1) are used

for half-fixed angle positioning.
Setting this parameter to 0 has the same effect as setting 6. That is, M
code from M

to M(

+5) are used for half-fixed angle positioning.

NOTE

1 Make sure that M codes from M

to M (

-1) do

not duplicate other M codes.

2 Do not set an M code that duplicates other M

codes used for spindle positioning.

3 Do not set an M code used with other functions

(such as M00-05, 30, 98, and 99, and M codes for
calling subprograms).

#7 #6 #5 #4 #3 #2 #1 #0

EVO

5001

EVO

TAL TLB TLC

[Input type] Parameter input

[Data type] Bit path

# 0

TLC

# 1

TLB

These bits are used to select a tool length compensation type.

Type TLB

TLC

Tool length compensation A

Tool length compensation B

Tool length compensation C

The axis to which cutter compensation is applied varies from type to
type as described below.
Tool length compensation A :

Z-axis at all times

Tool length compensation B :

Axis perpendicular to a specified plane (G17/G18/G19)

Tool length compensation C :

Axis specified in a block that specifies G43/G44

# 3

TAL

Tool length compensation C

0: Generates an alarm when two or more axes are offset
1: Not generate an alarm even if two or more axes are offset

B-63944EN/03

APPENDIX

A.PARAMETERS

- 2079 -

# 6

EVO

If a tool compensation value modification is made for tool length

compensation A or tool length compensation B in the offset mode
(G43 or G44):
0: The new value becomes valid in a block where G43, G44, or an

H code is specified next.

1: The new value becomes valid in a block where buffering is

performed next.

#7 #6 #5 #4 #3 #2 #1 #0

LWT

LGN

5002

[Input type] Parameter input

[Data type] Bit path

# 1

LGN

Geometry offset number of tool offset

0: Is the same as wear offset number
1: Specifies the geometry offset number by the tool selection

number

NOTE

This parameter is valid when the option for tool
geometry compensation or tool wear compensation
is specified.

# 2

LWT

Tool wear compensation is performed by:

0: Moving the tool.
1: Shifting the coordinate system.

NOTE

This parameter is valid when the option for tool
geometry compensation or tool wear compensation
is specified.

A.PARAMETERS

APPENDIX

B-63944EN/03

- 2080 -

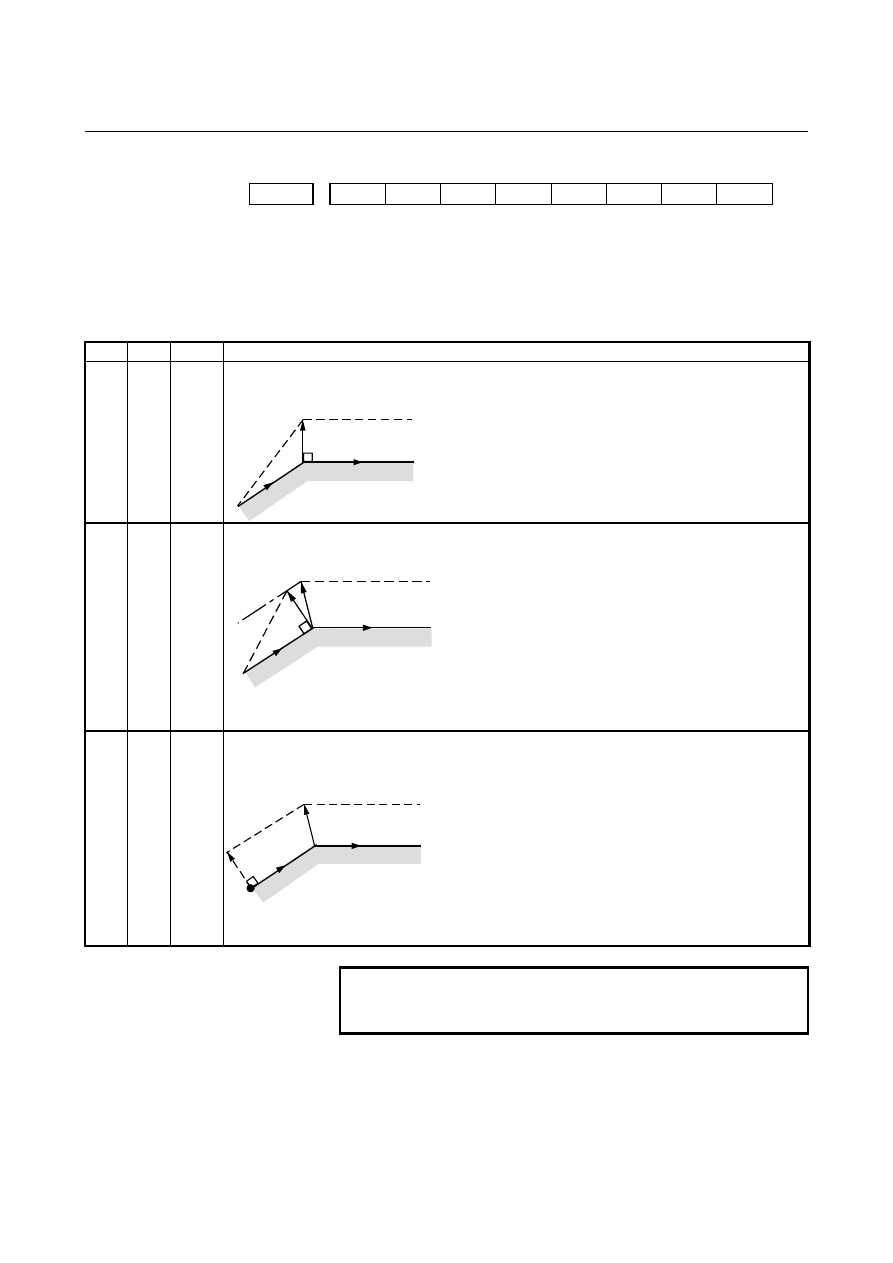

#7 #6 #5 #4 #3 #2 #1 #0

5003

SUV

SUP

[Input type] Parameter input

[Data type] Bit path

# 0

SUP

# 1

SUV

These bits are used to specify the type of startup/cancellation of tool

radius

⋅

tool nose radius compensation.

SUV SUP Type

Operation

Type A A compensation vector perpendicular to the block next to the startup block or the block preceding

the cancellation block is output.

Type B A compensation vector perpendicular to the startup block or cancellation block and an

intersection vector are output.

1 0

Type C When the startup block or cancellation block specifies no movement operation, the tool is shifted

by the cutter compensation amount in a direction perpendicular to the block next to the startup or
the block before cancellation block.

When the block specifies movement operation, the type is set according to the SUP setting; if
SUP is 0, type A is set, and if SUP is 1, type B is set.

NOTE

When SUV,SUP = 0,1 (type B), an operation
equivalent to that of FS16

-T is performed.

Tool nose radius center path /
Tool center path

Programmed path

G41

Intersection point

Shift

G41

Tool nose radius center path /
Tool center path

Intersection point

G41

Programmed path

Tool nose radius center path /
Tool center path

B-63944EN/03

APPENDIX

A.PARAMETERS

- 2081 -

#7 #6 #5 #4 #3 #2 #1 #0

ORC

5004

ODI

[Input type] Parameter input

[Data type] Bit path

# 1

ORC

The setting of a tool offset value is corrected as:

0: Diameter

value

1: Radius

value

NOTE

This parameter is valid only for an axis based on
diameter specification. For an axis based on radius
specification, specify a radius value, regardless of
the setting of this parameter.

# 2

ODI

The setting of a tool radius

⋅

tool nose radius compensation value is

corrected as:
0: Radius

value

1: Diameter

value

#7 #6 #5 #4 #3 #2 #1 #0

5008

MCR

[Input type] Parameter input

[Data type] Bit path

# 4

MCR

If G41/G42 (tool radius

⋅

tool nose radius compensation) is specified

in the MDI mode, an alarm is:
0: Not

raised.

1: Raised. (alarm PS5257)

A.PARAMETERS

APPENDIX

B-63944EN/03

- 2082 -

Number of digits of an offset number used with a T code command

5028

[Input type] Parameter input

[Data type] Byte path

[Valid data range] 0 to 3

Specify the number of digits of a T code portion that is used for a tool
offset number (wear offset number when the tool geometry/wear
compensation function is used).
When 0 is set, the number of digits is determined by the number of
tool compensation values.
When the number of tool compensation values is 1 to 9: Lower 1 digit
When the number of tool compensation values is 10 to 99: Lower 2
digits
When the number of tool compensation values is 100 to 999: Lower 3
digits
Example :

When an offset number is specified using the lower 2 digits of a
T code, set 2 in parameter No. 5028.

Txxxxxx

xxxxxx : Tool selection

yy : Tool offset number

NOTE

A value longer than the setting of parameter No.
3032 (allowable number of digits of a T code) cannot
be set.

B-63944EN/03

APPENDIX

A.PARAMETERS

- 2083 -

5029

Number of tool compensation value memories common to paths

NOTE

When this parameter is set, the power must be
turned off before operation is continued.

[Input type] Parameter input

[Data

type]

Word

[Valid data range] 0 to 999

When using memories common to paths, set the number of common
tool compensation values in this parameter.
Ensure that the setting of this parameter does not exceed the number
of tool compensation values set for each path (parameter No. 5024).
[Example 1]

When parameter No. 5029 = 10, parameter No. 5024 (path 1) =
15, and parameter No. 5024 (path 2) = 30 in a 2-path system, tool
compensation numbers 1 to 10 of all paths are made common.

[Example 2]

When parameter No. 5029 = 20 and the other conditions are the
same as for Example 1, tool compensation numbers 1 to 15 are
made common.

NOTE

1 When a multi-path system involving the machining

center system and lathe system is used, memories
are made common in each system.

2 In each of the machining center system and lathe

system, the same unit of tool compensation values
needs to be used.

3 Ensure that the setting of parameter No. 5029 does

not exceed the number of tool compensation
values for each path (parameter No. 5024). If the
setting of parameter No. 5029 exceeds the number
of compensation values of a path, the least of the
numbers of compensation values in all paths is
made common.

4 When 0 or a negative value is set, memories

common to paths are not used.
