- 2068 -

3623



Magnification for pitch error compensation for each axis



NOTE



When this parameter is set, the power must be
turned off before operation is continued.





[Input type]  Parameter input



[Data type]  Byte axis

  [Valid data range]  0 to 100

Set the magnification for pitch error compensation for each axis.
If the magnification is set to 1, the same unit as the detection unit is
used for the compensation data.
If 0 is set, compensation is not performed.


3624



Interval between pitch error compensation positions for each axis



NOTE



When this parameter is set, the power must be
turned off before operation is continued.





[Input type]  Parameter input



[Data type]  Real axis



[Unit of data]  mm, inch, degree (machine unit)



[Minimum unit of data]  Depend on the increment system of the applied axis

  [Valid data range]  See the description below.

The pitch error compensation positions are arranged with equal
spacing. The space between two adjacent positions is set for each axis.
The minimum interval between pitch error compensation positions is
limited and obtained from the following equation:
Minimum interval between pitch error compensation positions =
maximum feedrate/7500
Unit : mm, inch, deg or mm/min, inch/min, deg/min
Example:

When the maximum feedrate is 15000 mm/min, the minimum
interval between pitch error compensation positions is 2 mm.



B-63944EN/03

 APPENDIX

A.PARAMETERS





- 2069 -

3625



Travel distance per revolution in pitch error compensation of rotation axis type



NOTE



When this parameter is set, the power must be
turned off before operation is continued.





[Input type]  Parameter input



[Data type]  Real axis



[Unit of data]  mm, inch, degree (machine unit)



[Minimum unit of data]  Depend on the increment system of the applied axis

  [Valid data range]  See the description below.

If the pitch error compensation of rotation axis type is performed (bit
1 (ROSx) of parameter No.1006 is set to 0 and bit 0 (ROTx) of
parameter No.1006 is set to 1), set the travel distance per revolution.
The travel distance per revolution does not have to be 360 degrees,
and a cycle of pitch error compensation of rotation axis type can be
set.
However, the travel distance per revolution, compensation interval,
and number of compensation points must satisfy the following
condition:
(Travel distance per revolution)
  = (Compensation interval)

×

 (Number of compensation points)

The compensation at each compensation point must be set so that the
total compensation per revolution equals 0.


NOTE



If 0 is set, the travel distance per revolution becomes
360 degrees.



3626

  Number of the both-direction pitch error compensation position at extremely

negative position (for movement in the negative direction)



NOTE



When this parameter is set, the power must be
turned off before operation is continued.





[Input type]  Parameter input



[Data type]  Word axis

  [Valid data range]  0 to 1023, 3000 to 4023

When using both-direction pitch error compensation, set the number
of compensation point at the farthest end in the negative direction for
a movement in the negative direction.


NOTE

1  For a movement in the positive direction, set the

compensation point number at the farthest end in the
negative direction in parameter No.3621.

2  A set of compensation data items for a single axis

should not be set to lie astride 1023 to 3000.



A.PARAMETERS

 APPENDIX

B-63944EN/03





- 2070 -

3627



Pitch error compensation at reference position when a movement to the

reference position is made from the direction opposite to the direction of

reference position return



NOTE



When this parameter is set, the power must be
turned off before operation is continued.





[Input type]  Parameter input



[Data type]  Word axis



[Unit of data]  Detection unit

  [Valid data range]  -32768 to 32767

Set the absolute value of pitch error compensation at reference
position when a movement to the reference position is made from the
negative direction if the direction of reference position return (bit 5
(ZMI) of parameter No.1006) is positive or from the positive direction
if the direction of reference position return is negative.




#7 #6 #5 #4 #3 #2 #1 #0

3700





NRF

CRF





[Input type]  Parameter input



[Data type]  Bit path



        # 0

CRF

  Reference position setting at an arbitrary position under Cs contour

control is:
0: Not

used.

1: Used.


NOTE



When this function is used, an attempt to specify
G00 for a Cs contour control axis without
performing a reference position return operation
even once after switching the serial spindle to the
Cs contour control mode results in the alarm
(PS0303) even if bit 1 (NRF) of parameter No.
3700 is set to 0. Be sure to perform a reference
position return operation by specifying G28.



        # 1

NRF

  With the first move command (G00) after switching the series spindle

to Cs contour control mode:
0:  A reference position return operation is once performed then

positioning is performed.

1:  A normal positioning operation is performed.


B-63944EN/03

 APPENDIX

A.PARAMETERS





- 2071 -



#7 #6 #5 #4 #3 #2 #1 #0

3702





EMS







[Input type]  Parameter input



[Data type]  Bit path



        # 1

EMS

  The multi-spindle control function is:

0: Used.
1: Not

used.







#7 #6 #5 #4 #3 #2 #1 #0

3716





A/Ss





[Input type]  Parameter input



[Data type]  Bit spindle



NOTE



When this parameter is set, the power must be
turned off before operation is continued.



        # 0

A/Ss

  Spindle motor type is :

0: Analog

spindle.

1: Serial

spindle.



NOTE

1  When an analog spindle is used, the option for

spindle analog output is required.

2  When a serial spindle is used, the option for

spindle serial output is required.

3  The option for the number of controlled spindles

needs to be specified.



3717



Motor number to each spindle



NOTE



When this parameter is set, the power must be
turned off before operation is continued.





[Input type]  Parameter input



[Data type]  Byte spindle

  [Valid data range]  0 to Maximum number of controlled axes

Set a spindle amplifier number to be assigned to each spindle.
0:  No spindle amplifier is connected.
1:  Spindle motor connected to amplifier number 1 is used.
2:  Spindle motor connected to amplifier number 2 is used.
to
n:  Spindle motor connected to amplifier number n is used.


A.PARAMETERS

 APPENDIX

B-63944EN/03





- 2072 -

3741



Maximum spindle speed for gear 1



3742



Maximum spindle speed for gear 2



3743



Maximum spindle speed for gear 3



3744



Maximum spindle speed for gear 4





[Input type]  Parameter input



[Data type]  2-word spindle



[Unit of data]  min

-1



  [Valid data range]  0 to 99999999

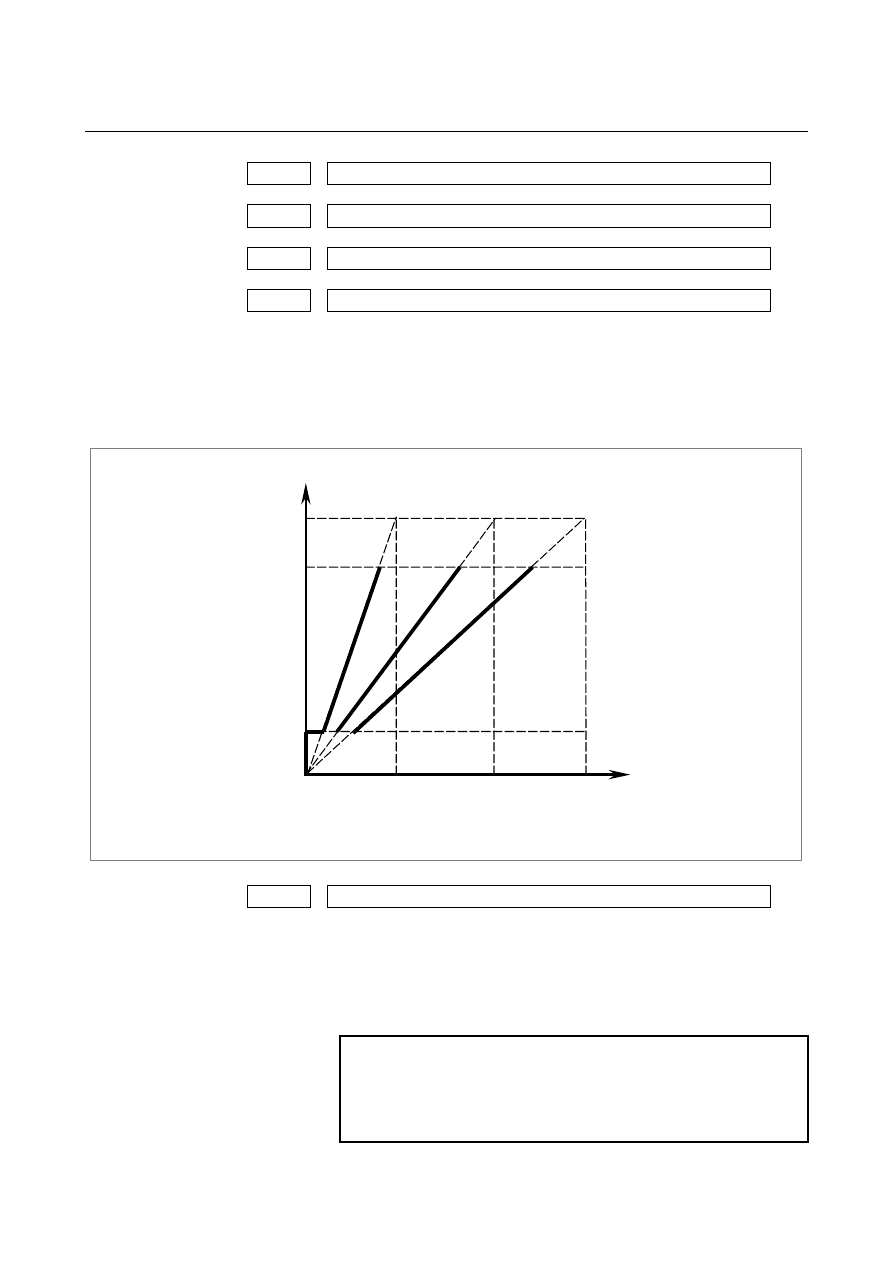

Set the maximum spindle speed corresponding to each gear.


Spindle motor max. clamp speed
(Parameter No.3736)

Spindle speed command
(S command)

Max. speed (4095, 10V)

Spindle motor minimum clamp speed
(Parameter No.3735)

Spindle motor speed

Gear 1
Max. speed
(Parameter
No.3741)

Gear 2
Max. speed
(Parameter
No.3742)

Gear 3
Max. speed
(Parameter
No.3743)





3770



Axis as the calculation reference in constant surface speed control





[Input type]  Parameter input



[Data type]  Byte path

  [Valid data range]  0 to Number of controlled axes

Set the axis as the calculation reference in constant surface speed
control.



NOTE



When 0 is set, constant surface speed control is
always applied to the X-axis. In this case,
specifying P in a G96 block has no effect on the
constant surface speed control.



B-63944EN/03

 APPENDIX

A.PARAMETERS





- 2073 -

3781



P code for selecting the spindle in multi-spindle control





[Input type]  Parameter input



[Data type]  Word spindle

  [Valid data range]  0 to 32767

If bit 3 (MPP) of parameter No. 3703 is set to 1, set the P code to
select each spindle under multi-spindle control. Specify the P code in
a block containing the S command.

Example)

If the P code value for selecting the second spindle is set to 3,

 S1000

P3;



causes the second spindle to rotate at S1000.



NOTE

1  This parameter is valid if bit 3 (MPP) of parameter

No. 3703 is set to 1.

2  If this parameter is set to 0, the corresponding

spindle cannot be selected by a P code.

3  Under multipath control, the P code specified here

is valid for each path.



For instance, if the P code to select the first spindle
of path 2 is set to 21, specifying S1000 P21; in
path 1 causes the first spindle of path 2 to be
rotated at S1000.

4  Identical P code values cannot be used for

different spindles. (Identical P code values cannot
be used even if the paths are different.)

5  When this parameter is used (when bit 3 (MPP) of

parameter No. 3703 is set to 1), the spindle
command selection signal is invalid.

6  To use this parameter, the multi-spindle control

function is needed.



A.PARAMETERS

 APPENDIX

B-63944EN/03





- 2074 -



Parameters Nos. 4000 to 4799 below are basically used with the serial
spindle amplifier. For details of these parameters, refer to either of the
following manuals and other related documents, depending on the
spindle that is actually connected.

•

  FANUC AC SPINDLE MOTOR

α

i

 series Parameter Manual

(B-65280EN)





#7 #6 #5 #4 #3 #2 #1 #0

4900





FLRs





[Input type]  Parameter input



[Data type]  Bit spindle



        # 0

FLRs

  When the spindle speed fluctuation detection function is used, the unit

of an allowable ratio (q) and fluctuation ratio (r) set by parameter No.
4911 and No. 4912 is:
0: 1%
1: 0.1%


4911

Allowable speed ratio (q) used to assume that the spindle has reached a

specified speed





[Input type]  Parameter input



[Data type]  Word spindle



[Unit of data]  1%, 0.1%

  [Valid data range]  1 to 100, 1 to 1000

When the spindle speed fluctuation detection function is used, set an
allowable speed ratio (q) used to assume that the spindle has reached a
specified speed.


NOTE



The unit of data is determined by bit 0 (FLR) of
parameter No. 4900.



4912

Spindle variation ratio (r) for not issuing a spindle speed fluctuation

detection alarm





[Input type]  Parameter input



[Data type]  Word spindle



[Unit of data]  1%, 0.1%

  [Valid data range]  1 to 100, 1 to 1000

When the spindle speed fluctuation detection function is used, set a
spindle fluctuation ratio (r) for not issuing an alarm.


NOTE



The unit of data is determined by bit 0 (FLR) of
parameter No. 4900.



B-63944EN/03

 APPENDIX

A.PARAMETERS





- 2075 -

4913

Spindle speed fluctuation width (i) for not issuing a spindle speed

fluctuation detection alarm





[Input type]  Parameter input



[Data type]  2-word spindle



[Unit of data]  min

-1



  [Valid data range]  0 to 99999

When the spindle speed fluctuation detection function is used, set an
allowable fluctuation width (i) for not issuing an alarm.


4914

Time (p) from the change of a specified speed until spindle speed fluctuation

detection is started





[Input type]  Parameter input



[Data type]  2-word spindle



[Unit of data]  msec

  [Valid data range]  0 to 999999

When the spindle speed fluctuation detection function is used, set a
time (p) from the change of a specified speed until spindle speed
fluctuation detection is started. In other words, spindle speed
fluctuation detection is not performed until a set time has elapsed after
a specified speed is changed. However, when the actual spindle speed
is assumed to have reached a specified value within a set time (p),
spindle speed fluctuation detection is started.




#7 #6 #5 #4 #3 #2 #1 #0

4950





ISZs

IDMs

IORs





[Input type]  Parameter input



[Data type]  Bit spindle



        # 0

IORs

  Resetting the system in the spindle positioning mode

0:  Does not release the mode.
1:  Releases the mode


        # 1

IDMs

  The direction of spindle positioning (half-fixed angle positioning

based on M codes) is:
0: Plus

direction.

1: Minus

direction.



        # 2

ISZs

  When an M code for switching to the spindle positioning mode is

specified for spindle positioning:
0:  The spindle is switched to the spindle positioning mode, and

spindle orientation operation is performed.

1:  Only the switching of the spindle to the spindle positioning mode

is performed. (Spindle orientation operation is not performed.)
