FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 247

13

.

GRAPHIC

 FUNCTION

 OPERATION

B-63944EN/03





- 1932 -

Explanation

Use the following procedure to check the tool position during
operation on the PATH GRAPHIC (TOOL POSITION) screen:

(1)  Select a drawing target program for operation.
(2)  Draw the tool path of the selected program on the PATH

GRAPHIC screen.

(3)  After the end of drawing, switch the screen display to the PATH

GRAPHIC (TOOL POSITION) screen.

(4)  Start automatic operation with the program executed for tool path

drawing.


After automatic operation is started, the blinking cursor moves along
the drawn tool path as the tool moves.  The cursor blinking rate is
fast when the tool is moving, and the cursor blinking rate is slow when
the tool is stopped.

The following items displayed on the screen are provided for the
program under automatic operation:

•

 Current

coordinates

•



Feedrate and M/S/T/D code specification information



NOTE

1  A tool path drawn by setting the tool offset

parameter to 1 (to disable the tool offset function) is
different from the actual tool path.    In this case,
the cursor indicating the tool position may not move
along the drawn tool path.

2  The tool path cannot be drawn correctly if a

command not supporting drawing or a command
that specifies operation different from operation
performed during drawing is specified or if an
operation dependent on the operation state or
setting on the machine side is performed.    So, the
tool path in actual operation may differ from a
drawn tool path.    In this case, the cursor indicating
the tool position does not move along the drawn
tool path.

3  When the graphic parameter of the graphic

coordinate system, scale, graphic range center,
blank figure / position / dimensions and rotation
angle is changed, the drawn tool path drawn is
erased.
Therefore, please draw the tool path again on the
PATH GRAPHIC screen to display the tool position
by setting the changed graphic parameter.



B-63944EN/03

 OPERATION

13.GRAPHIC FUNCTION





- 1933 -

13.2.2

Animation



Overview

For animation drawing, make necessary settings and perform
operations for drawing execution on the following screens:


•



GRAPHIC PARAMETER (DYNAMIC GRAPHIC) screen
On this screen, data required to execute animation drawing can
be set.

•



ANIMATION GRAPHIC screen
This screen is used for animation drawing.
On this screen, the graphic range can be reduced/enlarged, and
the graphic coordinate system can be rotated.


13

.

GRAPHIC

 FUNCTION

 OPERATION

B-63944EN/03





- 1934 -

13.2.2.1

GRAPHIC PARAMETER (DYNAMIC GRAPHIC) SCREEN


This screen is used to set graphic parameters needed for animation
drawing.
Data set using this screen is made valid by displaying the
ANIMATION GRAPHIC screen or executing drawing.
Graphic parameter data once set is preserved even if the power is
turned off.


Graphic Parameter (Dynamic Graphic) Screen Procedure

Procedure

1 Press

the

function

key   (or

  when a small MDI unit

is used) to display the GRAPHIC PARAMETER (DYNAMIC
GRAPHIC) screen.





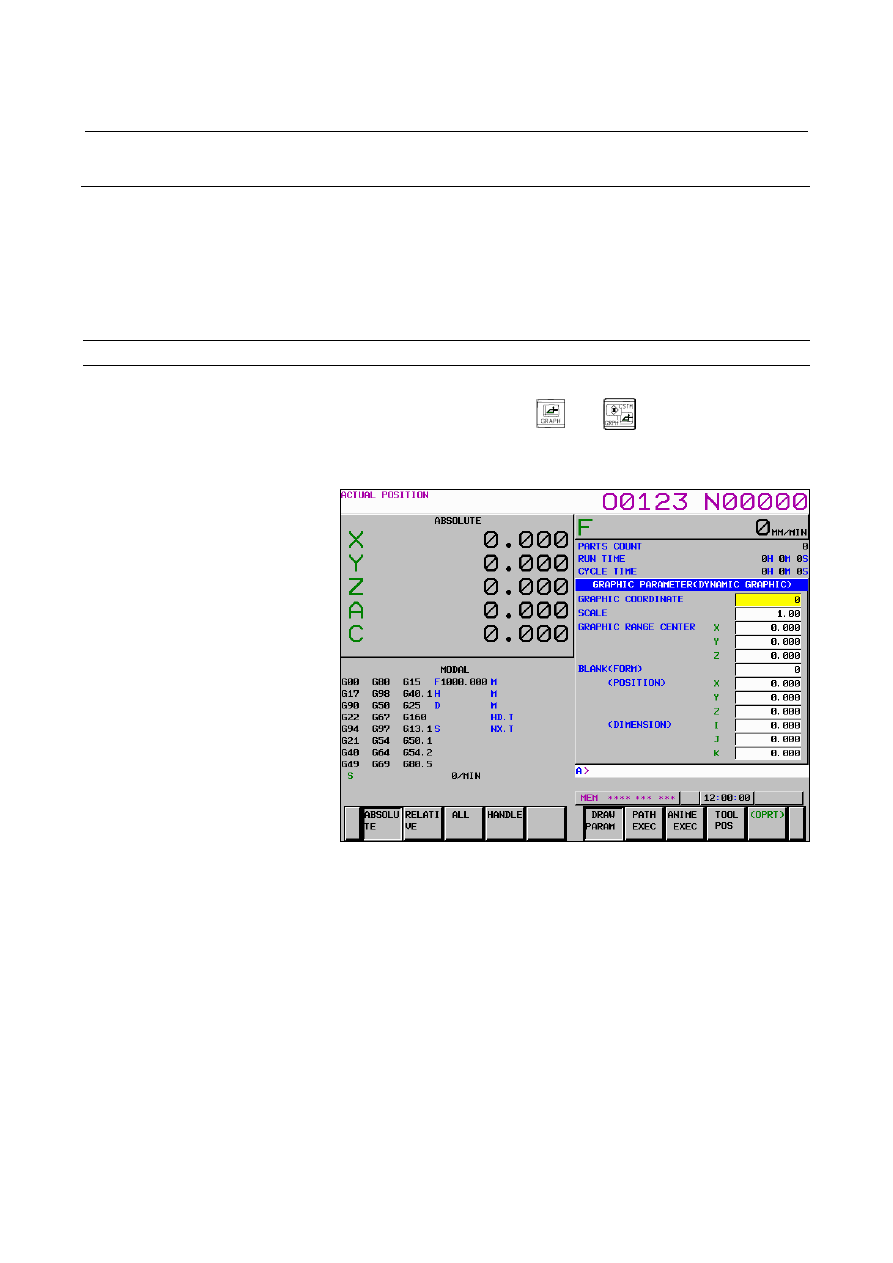

Fig. 13.2.2.1 (a)    GRAPHIC PARAMETER screen (first page)



B-63944EN/03

 OPERATION

13.GRAPHIC FUNCTION





- 1935 -

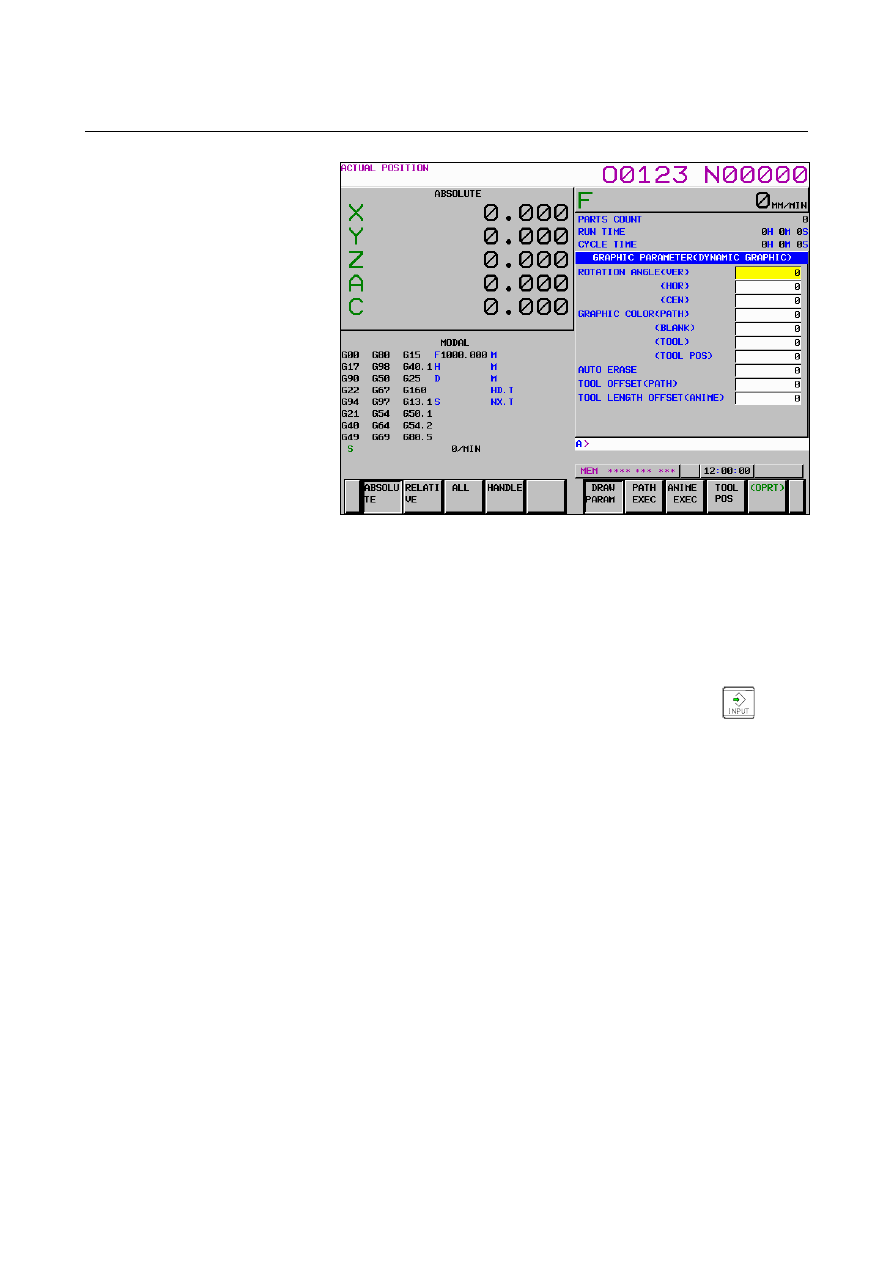

Fig. 13.2.2.1 (b)    GRAPHIC PARAMETER screen (second page)


2

Two screens are used for the GRAPHIC PARAMETER screen.
Use the MDI page keys to switch between the screens for display
of a desired setting item.


3

Move the cursor to a desired setting item with the MDI cursor
keys then key in a desired value with the numeric keys.


4

For direct input of the value set in step 3, press the

 key or

the [INPUT] soft key.
For incremental input of the value set in step 3, press the
[+INPUT] soft key.


For each setting item, see the explanation.


13

.

GRAPHIC

 FUNCTION

 OPERATION

B-63944EN/03





- 1936 -

Explanation

The setting items on the GRAPHIC PARAMETER screen are
described below.
However, the graphic parameters listed below are shared for tool path
drawing.  So, refer to the explanation of the GRAPHIC
PARAMETER screen for tool path drawing.

•



Graphic coordinate system

•

 Scale

•



Graphic range center

•



Rotation angles (vertical plane, horizontal plane, screen center)



 - Blank figure

With a drawing program, set the figure, position, and dimensions of a
blank to be machined.


NOTE

1  With a lathe system, no rectangular parallelepiped

can be set.

2  With a lathe system, the Y-axis, one of the basic

three axes, may not exist.    In such a case, the
Y-axis for the reference position of a blank need
not be set.

3  When a figure or dimension is set, a scale value

and screen center coordinates are automatically
set as the initial graphic range values so that the
blank figure is located within the graphic range on
the screen.    Until a modification is made to the
blank figure, dimension or the setting of the graphic
coordinate system, the graphic range is determined
by the set scale and screen center coordinates.



    Figure

Select a type of blank figure from the following and set the
corresponding value:


Setting Figure

0

Column or cylinder

(parallel with the Z-axis)

1 Rectangular

parallelepiped



    Position

Set the reference position of a blank with coordinates (X,Y,Z) in the
workpiece coordinate system.


NOTE



Set the reference position of a blank with
coordinates (X,Y,Z) in the machine coordinate
system in case of bit 3 (BGM) of parameter
No.11329=1.

B-63944EN/03

 OPERATION

13.GRAPHIC FUNCTION





- 1937 -



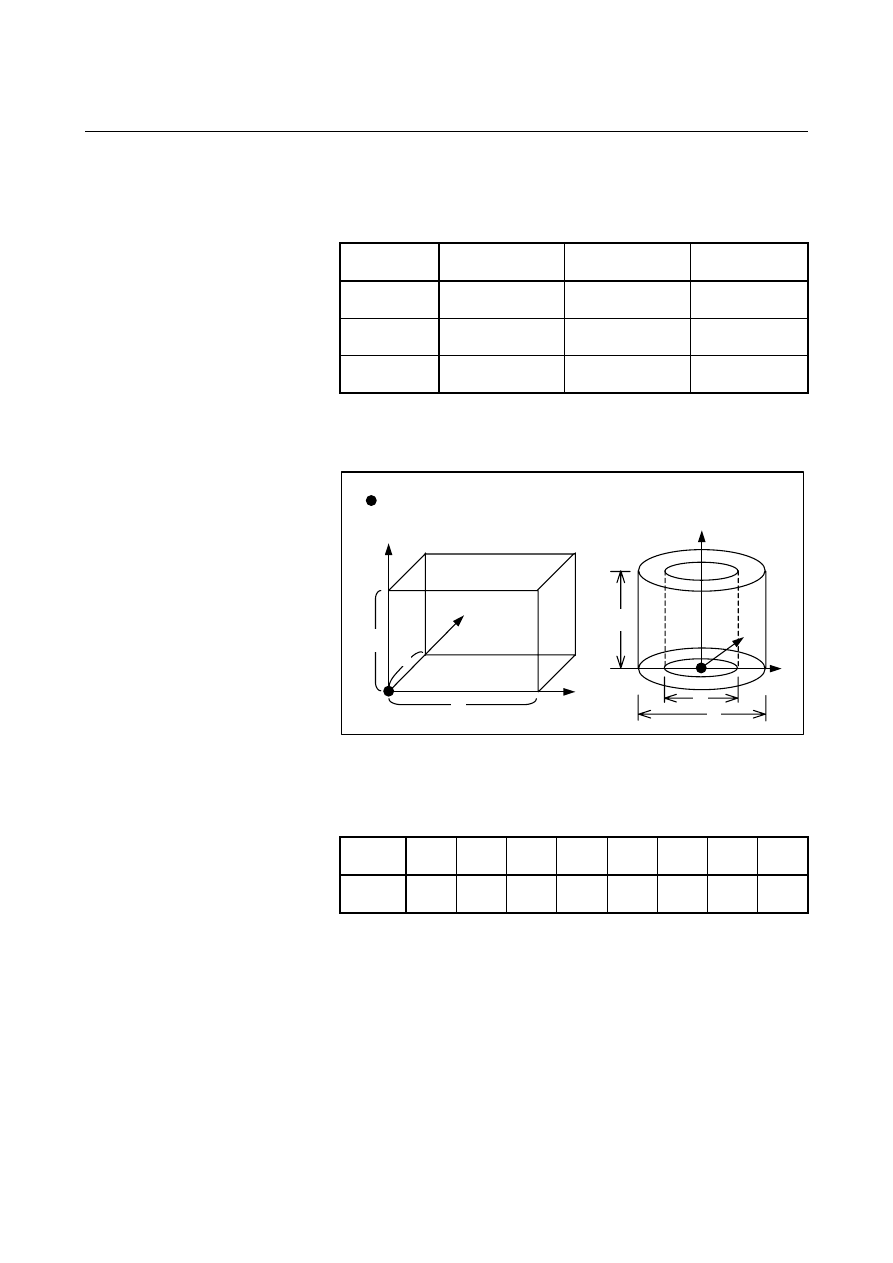

    Dimensions

Set the dimensions of each type of blank figure as indicated below.


Type of

blank figure

Dimension I

Dimension J

Dimension K

Rectangular

parallelepiped

Length in X-axis

direction

Length in Y-axis

direction

Length in Z-axis

direction

Column

Diameter of

column

0

Length of

column

Cylinder

Diameter of outer

circle of cylinder

Diameter of inner

circle of cylinder

Length of

cylinder


The relationship between the position and dimensions of a blank is
shown below.


ｖ



J

K

: Reference position (X,Y,Z)

I

X

Z

Y

X

Z

Y

I

J

K





 - Graphic color

Set colors to be used for animation drawing.
The colors that can be set are indicated below together with their
setting values:

Graphic

color

White

Red

Green Yellow

Blue Purple

Light

blue

White

Setting

value

0 1 2 3 4 5 6 7



    Blank

Set the color of a blank to be drawn in animation drawing.


    Tool

Set the color of a tool to be drawn in animation drawing.


13

.

GRAPHIC

 FUNCTION

 OPERATION

B-63944EN/03





- 1938 -

  - Tool length offset (Anime)

For animation drawing, whether to enable or disable the tool length
offset can be selected.
Setting 0:    The tool length offset is disabled for drawing.

1:    The tool length offset is enabled for drawing.



NOTE



In animation drawing, the cutter/tool-noise radius
compensation is always enabled for drawing.



B-63944EN/03

 OPERATION

13.GRAPHIC FUNCTION





- 1939 -

13.2.2.2

ANIMATION GRAPHIC screen


The ANIMATION GRAPHIC screen is used to draw a animation.
The following operations can be performed:

•



Starting/ending animation drawing

•



Rewind of a drawing target program

•



Initializing a blank

•



Enlarging/reducing/moving the graphic range

•



Rotating the graphic coordinate system


The screen configuration is as follows:
(1) Drawing

area

(2)  Status display of Background operation
(3)  Program name and sequence number for drawing execution
(4)  Current coordinates (absolute coordinates)
(5)  Feedrate and M/S/T/D code instruction information
(6)  Graphic coordinate system
(7)  Material position, Material dimension, Scale, Graphic range

center of graphic Parameter

(8) Tool

name





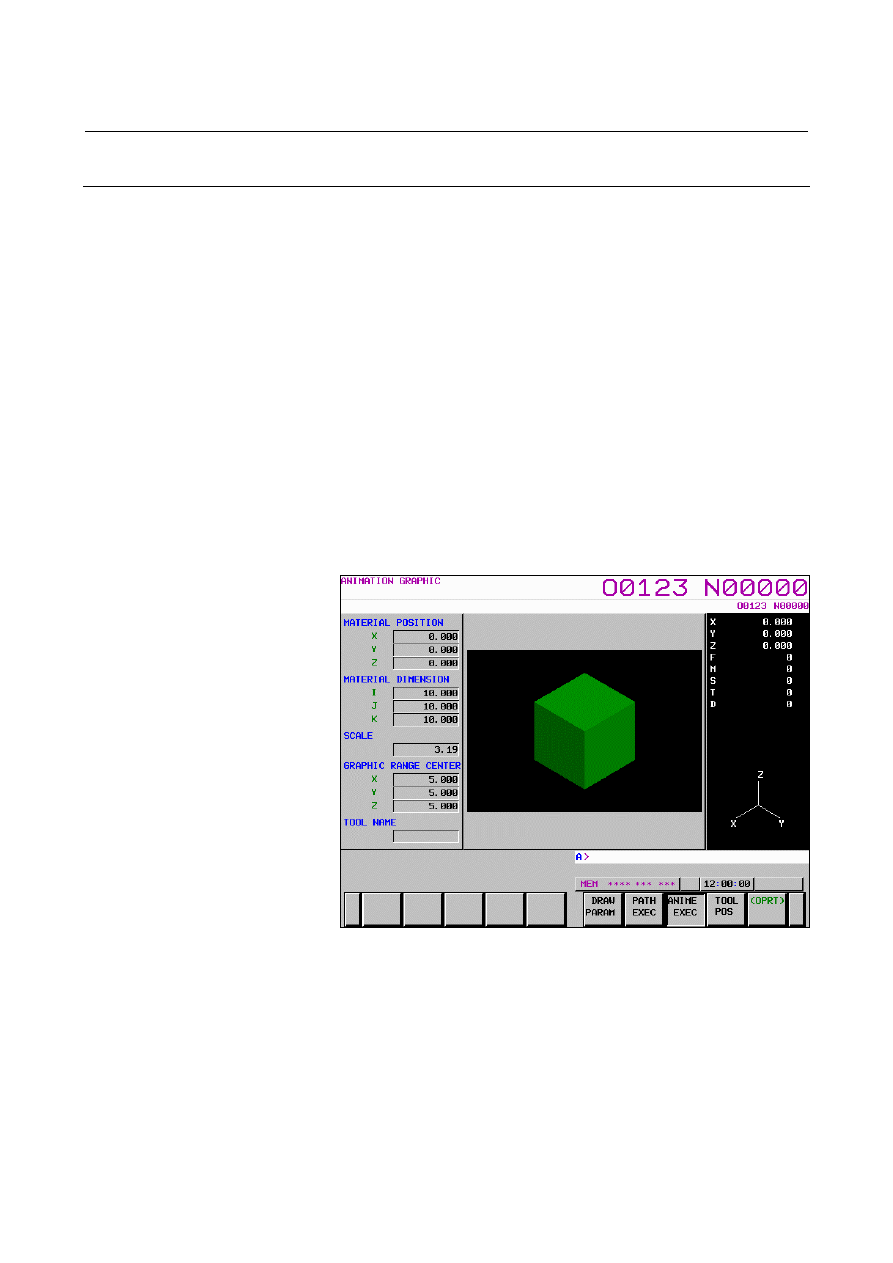

Fig. 13.2.2.2 (a)    ANIMATION GRAPHIC screen
