12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1844 -

*1 : The value 1 is set for the paths as many as the number of loader

paths starting from the greatest path number. For path 1, the value 0
is set at all times.
Example) When the number of loader paths is 3 in a 10-path system:

The value 1 is set for paths 8 to 10. The value 0 is set for
others.

*2 : When intra-path axis number

≤

8, (path number - 1)*10+(intra-path

axis number - 1)
When intra-path axis number

≥

9, no standard value is available.

Example) When path 1 has 9 axes, and path 2 has 3 axes:
0,1,...,7,(none) for axes of path 1, 10,11,12 for axes of path 2

*3 : When intra-path spindle number

≤

4, (path number -

1)*10+(intra-path spindle number - 1)
When intra-path spindle number

≥

5, no standard value is available.

Example) When path 1 has 5 spindles, and path 2 has 1 spindle:

0,1,...,4,(none) for spindles of path 1, 10 for spindle of path
2

*4 : When (path number

≤

3) and (intra-path axis number

≤

Axes of path 1:    9
Axes of path 2:    7
Axes of path 3:    10
Other axes:    No standard value is available.

Example) When path 1 has 9 axes, and path 2 has 3 axes:
9,9,9,9,9,9,9,9,(none) for axes of path 1, 7,7,7 for axes of

path 2

*5 : When (path number

≤

3) and (intra-path axis number

≤

(Intra-path axis number - 1)
Other axes: No standard value is available.

Example) When path 1 has 9 axes, and path 2 has 3 axes:

0,1,...,7,(none) for axes of path 1, 0,1,2 for axes of path 2

Table 12.4.27 (b) Parameters displayed for parameter tuning (2)

Menu Group

Parameter

No.

Name Brief

description

Standard

setting

3716#0

A/Ss Sets the type of spindle motor: 0:Analaog/1:Serial.

3717

Sets a motor number to be assigned to each spindle.

SPINDLE

SETTING

Spindle

setting

3706#4

GTT Specifies a spindle gear selection method.

0:M type/1:T type

3718

Sets a suffix to be added to spindle speed display on a screen
such as the position display screen.

3735

Sets the minimum clamp speed of the spindle motor.

3736

Sets the maximum clamp speed of the spindle motor.

3741

Sets the maximum spindle speed for gear 1.

3742

Sets the maximum spindle speed for gear 2.

3743

Sets the maximum spindle speed for gear 3.

3744

Sets the maximum spindle speed for gear 4.

3772

Sets the maximum speed of the spindle.
When 0 is set, the speed is not clamped.

4133

Sets the motor model code of the serial spindle.
(This setting is not required for an analog spindle.)

4019#7

***

The parameters for the serial spindle are:
0:Not automatically set/1:Automatically set
(This setting is not required for an analog spindle.)

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1845 -

Table 12.4.27 (c) Parameters displayed for parameter tuning (3)

Menu Group

Parameter

No.

Name Brief

description

Standard

setting

AXIS

SETTING

Basic

1001#0

INM Least command increment on linear axes:

0:Metric (millimeter machine) 1:Inch (inch machine)

1005#0

ZRNx When an automatic operation (other than G28) is executed before

reference position return:
0:Alarm is issued (PS0224) 1:No alarm is issued.

1005#1

DLZx Reference position return without dogs: 0:Disabled 1:Enabled

1006#0

ROTx Setting of linear axes or rotary axis:

0:Linear axis 1:Rotation axis

1006#3

DIAx

Setting

the amount of travel:

0:Radius specification 1: Diameter specification

1006#5

ZMIx Reference position return direction:

0:Plus direction 1:Minus direction

1008#0

ROAx Rotation axis roll-over function: 0:Disabled 1:Enabled

1008#2

RRLx With the amount of travel per revolution, relative coordinates are:

0:Not rounded 1:Rounded

1013#0

ISAx Sets the least input increment and least command increment:

0:IS-B 1:IS-A

1013#1

ISCx Sets the least input increment and least command increment:

0:IS-B 1:IS-C

1013#2

ISDx Sets the least input increment and least command increment:

0:IS-B 1:IS-D

1013#3

ISEx Sets the least input increment and least command increment:

0:IS-B 1:IS-E

1020

Program

name

1022

Sets each axis in the basic coordinate system.

1023

Servo axis number

1815#1

OPTx A separate pulse coder is: 0:Not used 1:Used

1815#4

APZx The correspondence between machine positions and

absolute-position detector positions is: 0:Not established
1:Established

1815#5

APCx The position detector used is: 0:Other than an absolute-position

detector 1:Absolute-position detector

1825

Servo loop gain

1826

Effective

area

1828

Positional deviation limit during travel

1829

Positional deviation limit during stop

500

*1 : For the M series: 88(X),89(Y),90(Z) sequentially starting with the

first axis (no standard value for the fourth axis and
up)

For the T series: 88(X),90(Z) (no standard value for the third axis

and up)

*2 : For the M series: 1,2,3 sequentially starting with the first axis (no

standard value for the fourth axis and up)

For the T series: 1,3 (no standard value for the third axis and up)

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1846 -

Table 12.4.27 (d) Parameters displayed for parameter tuning (4)

Menu Group

Parameter

No.

Name

Brief description

Standard

setting

AXIS SETTING Coordinate

1240

Machine coordinate of the first reference position

1241

Machine coordinate of the second reference position

1260

Amount of travel per revolution of a rotary axis

360.000

1320

Coordinate of the boundary of stored stroke check 1 in the
positive direction

1321

Coordinate of the boundary of stored stroke check 1 in the
negative direction

Feedrate

1401#6

RDR For a rapid traverse command, dry run is:

0:Disabled 1:Enabled

1410

Dry run feedrate

1420

Rapid traverse rate

1421

Rapid traverse override F0 rate

1423

Jog

feedrate

1424

Manual rapid traverse rate

1425

FL feedrate for reference position return

1428

Reference position return feedrate

1430

Maximum cutting feedrate

Acceleration/

deceleration

1610#0

CTLx Acceleration/deceleration for cutting feed is:

0:Exponential acceleration/deceleration
1:Linear acceleration/deceleration after interpolation

1610#4

JGLx Acceleration/deceleration for jog feed is:

0:Exponential acceleration/deceleration
1:Same as acceleration/deceleration for cutting feed
(The settings of bit 1 (CTBx) and bit 0 (CTLx) of parameter
No. 1610 are followed.)

1620

Time constant for linear acceleration/deceleration for rapid
traverse

1622

Time constant for acceleration/deceleration for cutting feed

1623

FL feedrate for acceleration/deceleration after interpolation
for cutting feed

1624

Time constant for acceleration/deceleration for jog feed

1625

FL feedrate for exponential acceleration/deceleration for
jog feed

MISCELLANY MISC

3030

Allowable

number of digits of an M code

3111#0

SVS The servo setting screen is: 0:Not displayed

1:Displayed

3111#1

SPS The spindle setting screen is: 0:Not displayed

1:Displayed

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1847 -

12.4.28

Periodic Maintenance Screen (15-inch Display Unit)

Periodic maintenance screens are used for managing consumables
(such as the backlight of a LCD unit and backup batteries). By setting
the name of a consumable, its life time, and the method for counting
down the life time, the life of the consumable can be counted down in
the appropriate method set for the consumable, and the remaining life
time can be displayed.
With these screens, the user can easily manage consumables that
require periodic replacement.

Explanation

There are four periodic maintenance screens: the status screen, the
setting screen, the machine menu screen, and the NC menu screen.

•

Status

screen:

Item names, remaining times, and count statuses are displayed,
and item names are set.

•

Setting

screen:

Life times, remaining times, and count types (count-down
method) are set.

•

Machine menu screen:

The names of consumables in the machine can be registered.

•

NC menu screen:

The names of consumables in the NC are already registered.

Using periodic maintenance screens

<1> Referencing a periodic maintenance screen

Display the status screen. For the meanings of items on the status
screen, see

Status screen

<2> Adding the name of a new consumable item to a periodic

maintenance screen or editing an existing consumable item on
the screen

The name of a consumable item can be added or edited on the
machine menu screen. For details, see

Machine menu screen

<3> Adding or editing a life time, remaining time, and a method of

counting down the remaining time for a consumable on a
periodic maintenance screen

A life time and remaining time can be added or edited on the
setting screen. For details, see

Setting screen

<4> Newly displaying the item name and remaining time of a

consumable on a periodic maintenance screen.
1

Setting an item name
Select the item name of a consumable to be displayed from
the machine menu screen or NC menu screen, or enter the
name using the MDI keys. For the procedure, see

Item

name

Status screen

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1848 -

Setting a life time, remaining time, and count type
Select the life time, remaining time, and count type of a
consumable to be displayed from the setting screen. For the
procedure, see

Remaining time

Status screen

Procedure for displaying a periodic maintenance screen

Press function key

Press vertical soft key [NEXT PAGE] several times to display
[PERIOD MAINTE].

3 Press vertical soft key [PERIOD MAINTE] to display the

periodic maintenance screen.

Status screen

When vertical soft key [STATUS] is pressed, the status screen is
displayed. The status screen shows the item names, count statuses, and
remaining times of managed consumables.

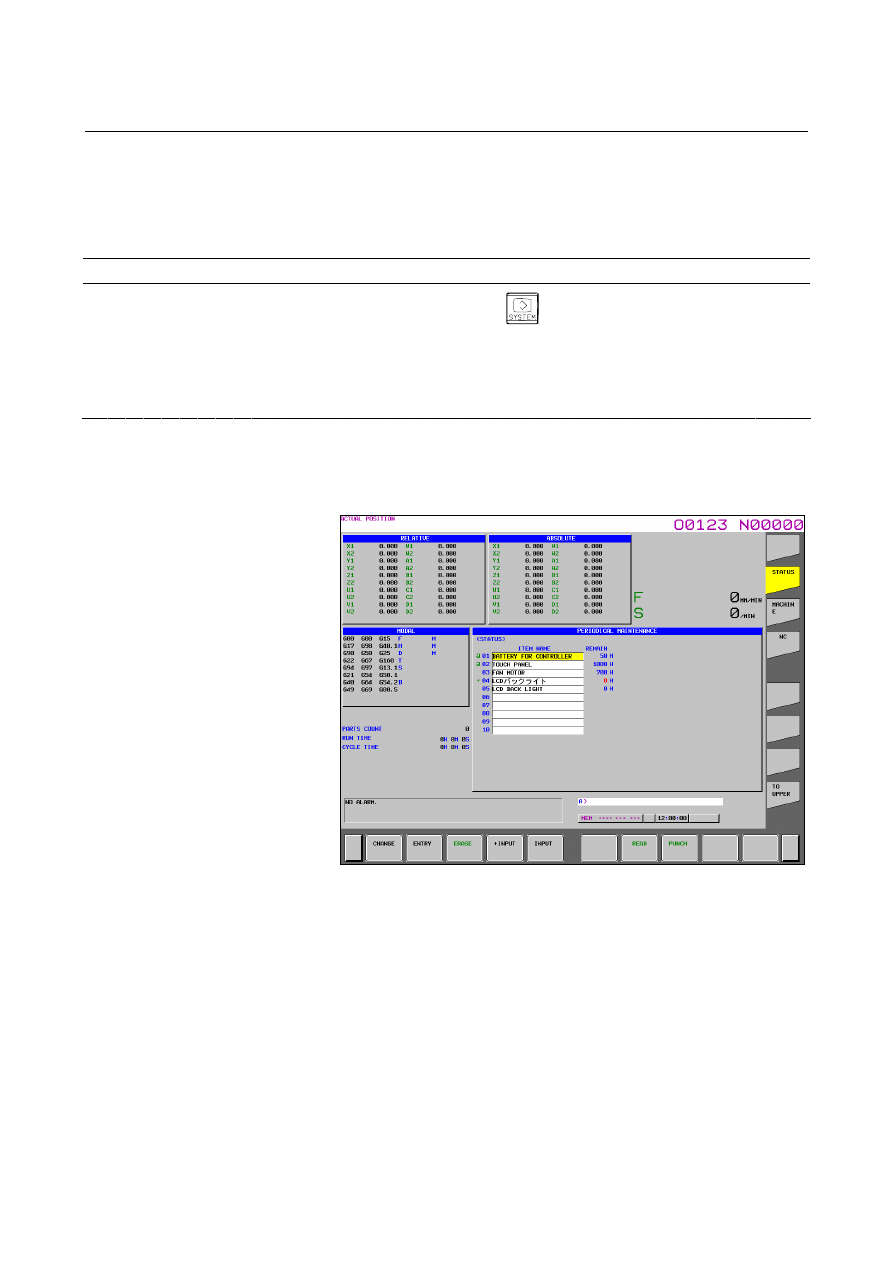

Fig. 12.4.28 (a) Status screen

- Item name

As the item name, set the name of a consumable to be managed by
periodic maintenance. To set an item name, select a name from the
machine menu screen or NC menu screen, or directly enter the name
using the MDI keys.

Setting an item name from a menu screen

On the status screen, move the cursor to the name of the item to
be set, and press horizontal soft key [ENTRY].

2 Press vertical soft key [MACHINE] or [NC] to display the

machine menu screen or NC menu screen.

Move the cursor to an item name registered on the menu screen,
and press horizontal soft key [SELECT] then [EXEC]
successively.

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1849 -

The screen display returns to the status screen, and the item name
selected on the menu screen is added to the status screen.

Initially, there is no item name set on the machine menu screen, so
item names must be registered in advance. For the registration method,
see the description of the procedure for registering item names on the
machine menu screen.

Setting an item name using the MDI keys

1 Type the alphanumeric characters to be input, then press

horizontal soft key [INPUT].

The entered item name is registered on the status screen.

When horizontal soft key [+INPUT] is pressed instead of horizontal
soft key [INPUT], the entered characters can be added to an existing
item name.
When typing 2-byte characters, type "*" before and after the character
codes. The character codes must conform to FANUC codes. (See
Appendix G, "FANUC 2-BYTE CHARACTER CODE TABLE".)
An item name to be registered must be up to 24 characters long if it
consists of alphanumeric characters only; or it must be up to 12
characters long if it consists of 2-byte characters only.
Example: To register "LCD

バックライト

", enter the following:

>LCD

＊

110E10F410CC114010B610FE

＊

NOTE

1 An asterisk "*" is used as a control code, so it

cannot be used in item names. In addition,
characters "[", "]", "(", and ")" cannot be used in
item names.

2 When an item name consisting of both

alphanumeric characters and 2-byte characters is
registered, the warning "DATA OUT OF RANGE"
may be output.

Deleting an item name

To delete a registered item name, move the cursor to the item name,
press horizontal soft key [ERASE], then press horizontal soft key
[EXEC].
When an item name is deleted, its life time, remaining time, and count
type are deleted at the same time.

- Remaining time

As the remaining time, the period of time left until the time for
replacement is reached by count down operation is displayed.
If the percentage of the remaining time to the life time has reached to
the value (%) specified by parameter No. 8911, or smaller, the
remaining time is displayed in red.
Even after the life time has expired, count down operation continues.

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1850 -

Setting the remaining time

On the status screen, place the cursor on an item for which the
remaining time is to be set (the item name must have been set in
advance).

Press horizontal soft key [CHANGE].

The screen display changes to the setting screen.

Set the life time, remaining time, and count type. For the setting
method and other information, see

Setting screen

NOTE

On the status screen, the remaining time and life
time cannot be set.

These items must be set on the setting screen.

- Count status

The count status is indicated on the left side of the item number as
follows:

Indication Count

status

Blank Counting

stopped

Counting in progress

＊

Life expired

Setting screen

On the setting screen, the life time, remaining time, and count type of
a managed consumable are set.

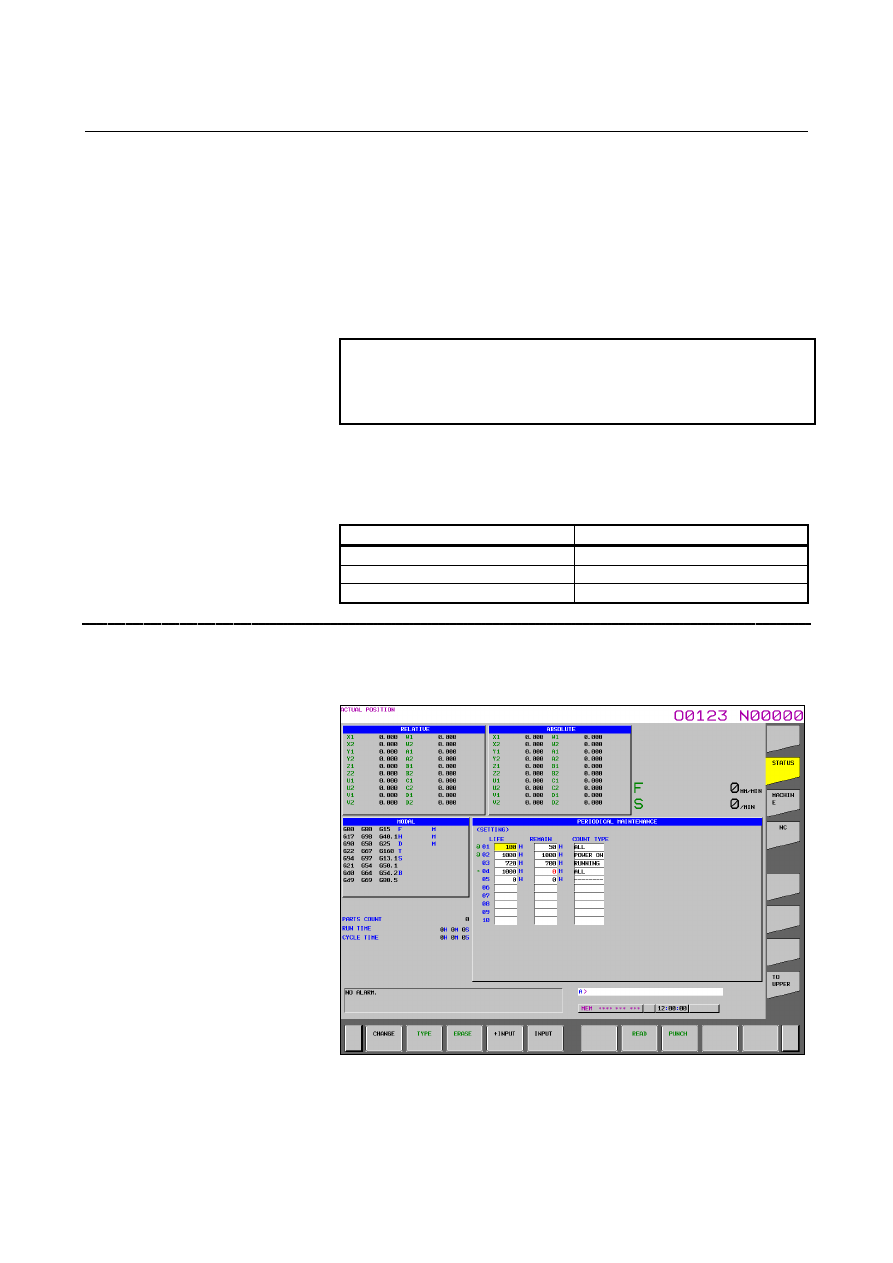

Fig. 12.4.28 (b) Setting screen

Display procedure

Press horizontal soft key [CHANGE].

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1851 -

- Life time

Set the life time of a consumable.
Move the cursor to an existing item, type a life time, then press
horizontal soft key [INPUT] (or the

key). The life time is then

set, and the same value is set also as the remaining time.
At this time, "------" is indicated in the count type field.
When horizontal soft key [+INPUT] is pressed, the entered value can
be added to the life time already set. The same value as the added
value is added also to the remaining time.
A value ranging from 0 to 65535 (in hours) can be set.

NOTE

1 If a setting operation is attempted when the item

name is not registered, the warning "EDIT
REJECTED" is issued.

2 If a value exceeding the valid range is entered, the

warning "DATA IS OUT OF RANGE" is issued.

3 If soft key [ERASE] or [TYPE] is pressed, the

warning "EDIT REJECTED" is issued.

- Remaining time

The period of time left until the time for replacement is reached by
count down operation is indicated.
If the percentage of the remaining time to the life time has reached the
value (%) specified by parameter No. 8911, or smaller, the remaining
time is displayed in red.
Even after the life time has expired, count down operation continues.
Move the cursor to the remaining time of a target registered number,
type a remaining time, then press horizontal soft key [INPUT] (or the

key). The remaining time is then set.

When horizontal soft key [+INPUT] is pressed, the entered value can
be added to the remaining time already set.
A value ranging from 0 to (life time) can be set.
When horizontal soft key [ERASE] then horizontal soft key [EXEC]
are pressed, the same value as the life time is set.

NOTE

1 If a setting operation is attempted when the item

name or life time is not registered, the warning
“EDIT REJECTED” is issued.

2 When a value exceeding the valid range is entered,

the warning “DATA IS OUT OF RANGE” is issued.

3 If horizontal soft key [TYPE] is pressed, the

warning “EDIT REJECTED” is issued.

Content .. 234 235 236 237 ..
