12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1772 -

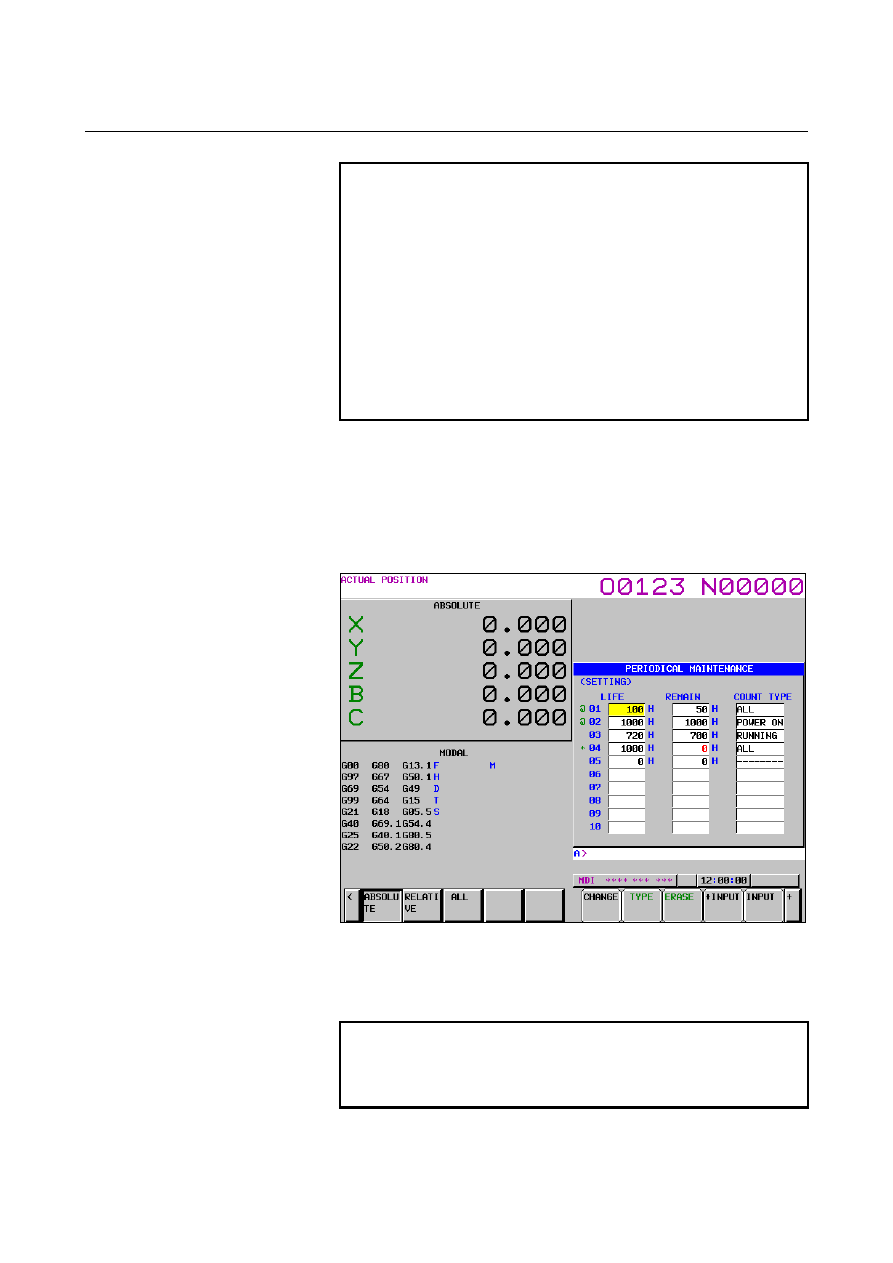

 - Life time

Set the life time of a consumable.
Move the cursor to an existing item, type a life time, then press soft
key [INPUT] (or the

 key). The life time is then set, and the

same value is set also as the remaining time.
At this time, "------" is indicated in the count type field.
When soft key [+INPUT] is pressed, the entered value can be added to
the life time already set. The same value as the added value is added
also to the remaining time.
A value ranging from 0 to 65535 (in hours) can be set.


NOTE

1  If a setting operation is attempted when the item

name is not registered, the warning "EDIT
REJECTED" is issued.

2  If a value exceeding the valid range is entered, the

warning "DATA IS OUT OF RANGE" is issued.

3  If soft key [ERASE] or [TYPE] is pressed, the

warning "EDIT REJECTED" is issued.



 - Remaining time

The period of time left until the time for replacement is reached by
count down operation is indicated.
If the percentage of the remaining time to the life time has reached the
value (%) specified by parameter No. 8911, or smaller, the remaining
time is displayed in red.
Even after the life time has expired, count down operation continues.
Move the cursor to the remaining time of a target registered number,
type a remaining time, then press soft key [INPUT] (or the



key). The remaining time is then set.
When soft key [+INPUT] is pressed, the entered value can be added to
the remaining time already set.
A value ranging from 0 to (life time) can be set.
When soft key [ERASE] then soft key [EXEC] are pressed, the same
value as the life time is set.


NOTE

1  If a setting operation is attempted when the item

name or life time is not registered, the warning
“EDIT REJECTED” is issued.

2  When a value exceeding the valid range is entered,

the warning “DATA IS OUT OF RANGE” is issued.

3  If soft key [TYPE] is pressed, the warning “EDIT

REJECTED” is issued.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1773 -

 - Count type

As the count type, select the way of counting.
Place the cursor on the count type of a target registration number, then
press soft key [TYPE]. Count types are displayed as soft keys as
shown below.  Select one of these soft keys, then press soft key
[EXEC].


Soft key

Meaning

Indication

[NO CNT]

Counting is not performed (stopped)

— — — — — —

[ALL]

Counting is performed at all times

All times

[POWER ON]

Counting is performed when power

is on.

When power is on

[RUN]

Counting is performed when

operation is in progress.

When operation is

in progress

[CUT]

Counting is performed when cutting

is being performed.

When cutting is

being performed



NOTE

1  If a setting operation is attempted when the item

name or life time is not registered, the warning
“EDIT REJECTED” is issued.

2  Soft keys [INPUT] and [+INPUT] have no effect.
3  When counting is performed at all times, a 24-hour

error is generated in leap year.

4  If soft key [ERASE] is pressed, the warning “EDIT

REJECTED” is issued.



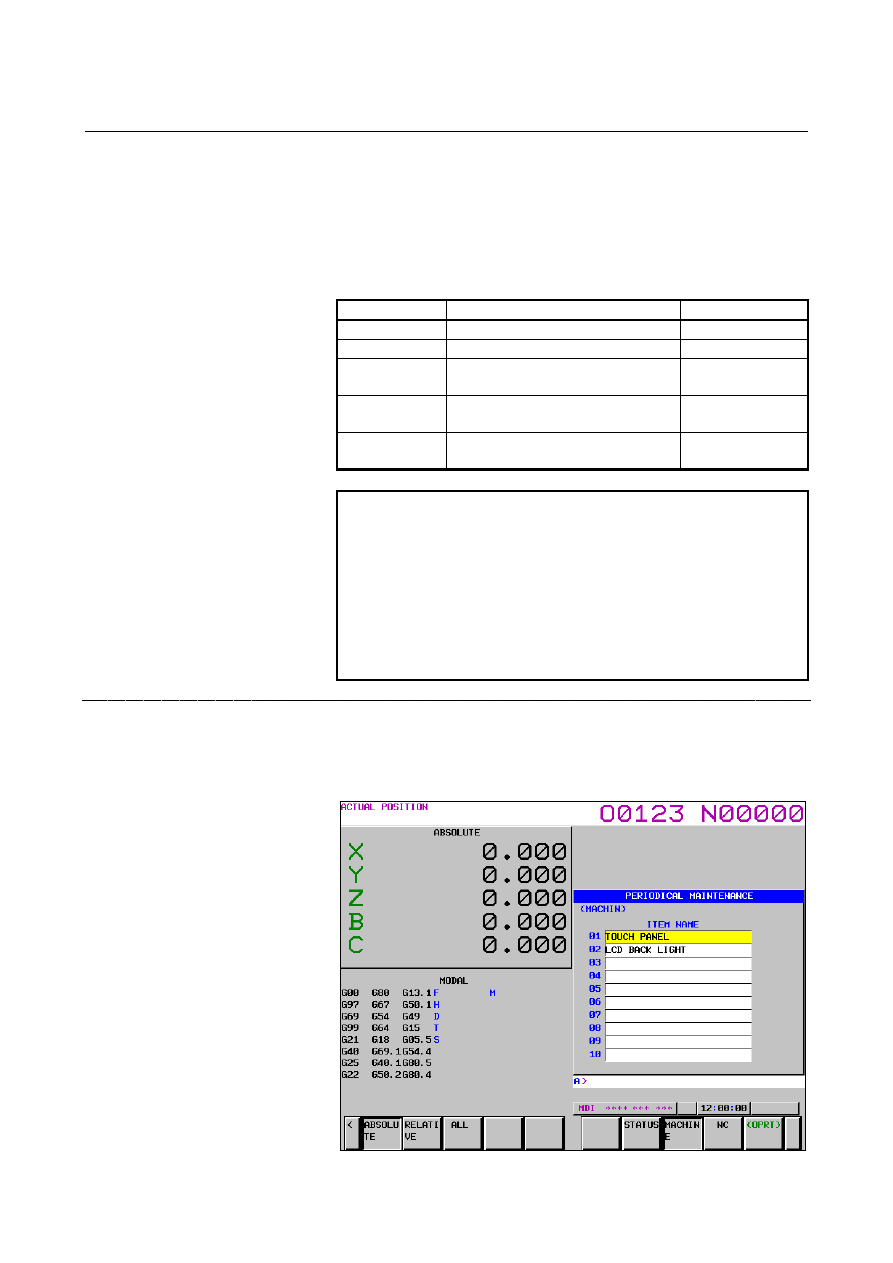

Machine menu screen

On the machine menu screen, the names of consumables of the
machine are registered. From this screen, item names can be added to
the status screen. For the method of addition to the status screen, see
the description of the status screen.



Fig. 12.4.13 (c) Machine menu screen

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1774 -



  - Displaying the screen

1

When the status screen is displayed, press soft key [MACHINE].


On the machine menu screen, item names can be registered using one
of the following two methods:

•



Registration from a program

•



Registration using the MDI keys



  - Registration from a program

By executing a program having the following format, an item name
can be registered in the menu of the machine:




Format

G10 L61 Px [n]

X  Registration number
n  Item name, format:

[alphanumeric-characters*2-byte-characters*alphanumeric-characters]



  - Registration using the MDI keys

An item name can be registered on the menu screen of the machine by
typing the item name in the format shown below on the machine menu
screen, then pressing soft key [INPUT] (or the

 key).


When soft key [+INPUT] is pressed, the typed characters can be
added to an already registered item name.





Format

Alphanumeric-characters*2-byte-characters*alphanumeric-characters


Two-byte codes must conform to FANUC codes. (See Appendix G,
"FANUC 2-BYTE CHARACTER CODE TABLE".)
When typing 2-byte characters, type an asterisk "*" before and after
the character codes. An item name to be registered must be up to 24
characters long if it consists of alphanumeric characters only; or it
must be up to 12 characters long if it consists of 2-byte characters only.

Example:


To register "LCD

バックライト

", enter the following:

 >LCD

＊

110E10F410CC114010B610FE

＊

_



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1775 -

NOTE

1  An asterisk "*" is used as a control code, so it

cannot be used in item names. In addition,
characters "[", "]", "(", and ")" cannot be used in
item names.

2  When an item name consisting of both

alphanumeric characters and 2-byte characters is
registered, the warning

“

DATA IS OUT OF

RANGE

”

  may be output.

3  When a blank item name is selected on the

machine screen, the warning “EDIT REJECTED” is
issued.


To delete a registered item name, move the cursor to the item name,
press soft key [ERASE], then press soft key [EXEC].

From this screen, an item name can be registered on the status screen.
For the method of registration to the status screen, see the description
of the status screen.




Fig. 12.4.13 (d) NC menu screen



  - Displaying the screen

1

When the status screen is displayed, press soft key [NC].



NOTE



On the NC screen, the registration, deletion, and
I/O of item names cannot be performed.



When a blank item name is selected, a blank is set.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1776 -

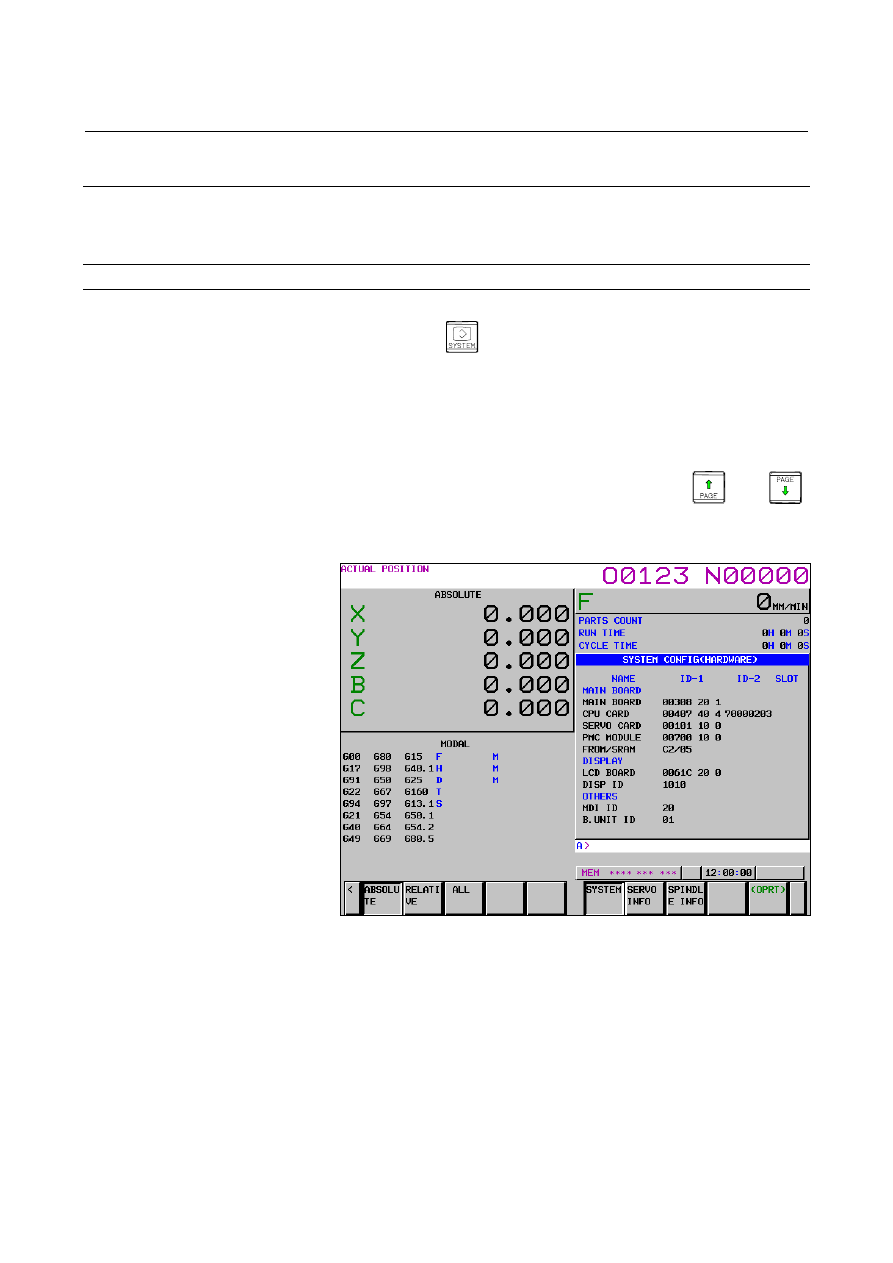

12.4.14

System Configuration Screen


The system configuration screen provides information about the types
of installed hardware and software.


Procedure for displaying the screen

Procedure

1 Press

the

 key to display a screen that shows parameters

and other information.

2

Press soft key [SYSTEM]. The system configuration screen is
displayed.


There are two types of system configuration screens: the hardware
configuration screen and the software configuration screen. The screen
display can switch between these screens by using

 and

.

When soft key [SERVO INFO] or [SPINDLE INFO] is pressed,
information about the connected servo system or spindles is displayed.


Fig. 12.4.14 (a) System configuration screen



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1777 -

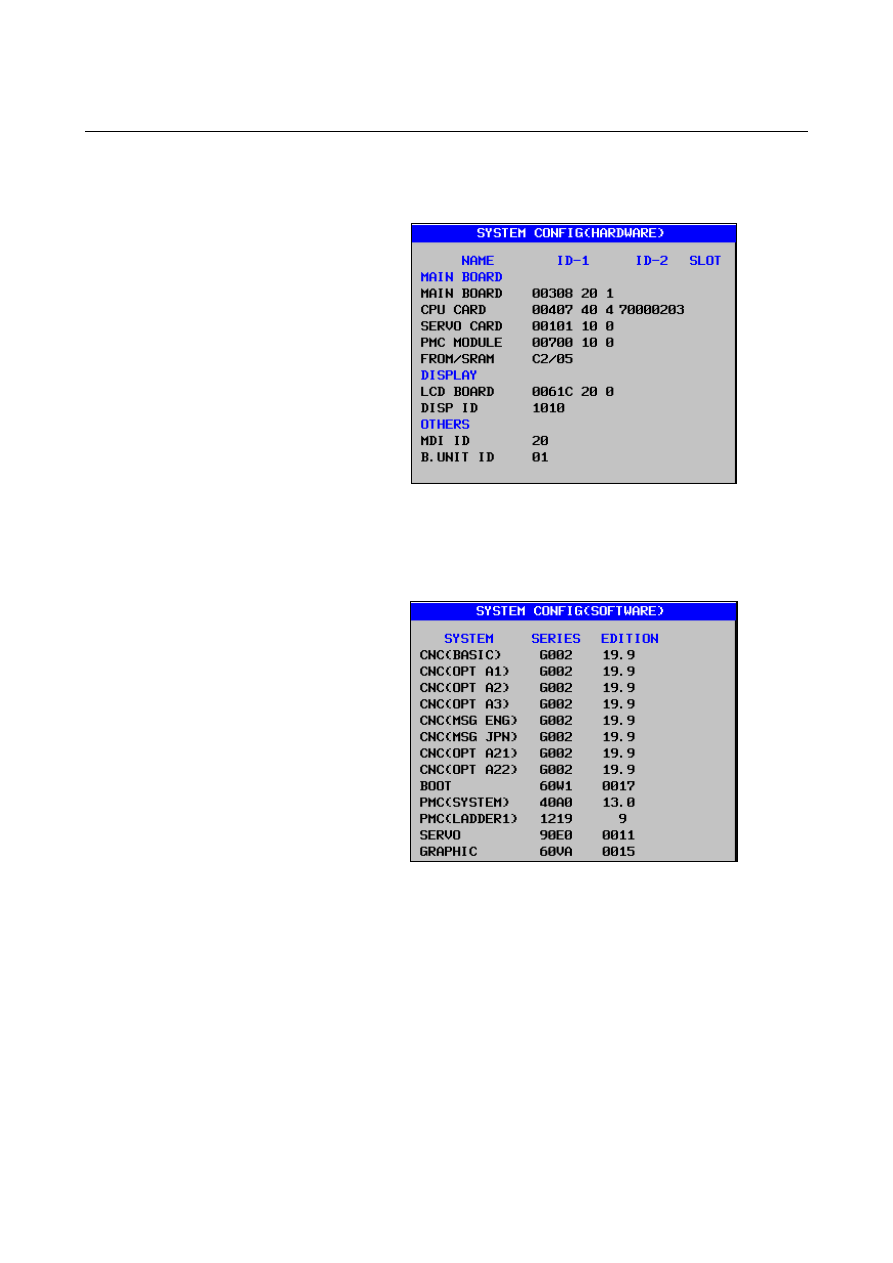

Hardware configuration screen

This screen shows the names and IDs of the hardware used by the NC.




Fig. 12.4.14 (b) Hardware configuration screen



Software configuration screen

This screen shows the names and series/editions of the software used
by the NC.




Fig. 12.4.14 (c) Software configuration screen



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1778 -

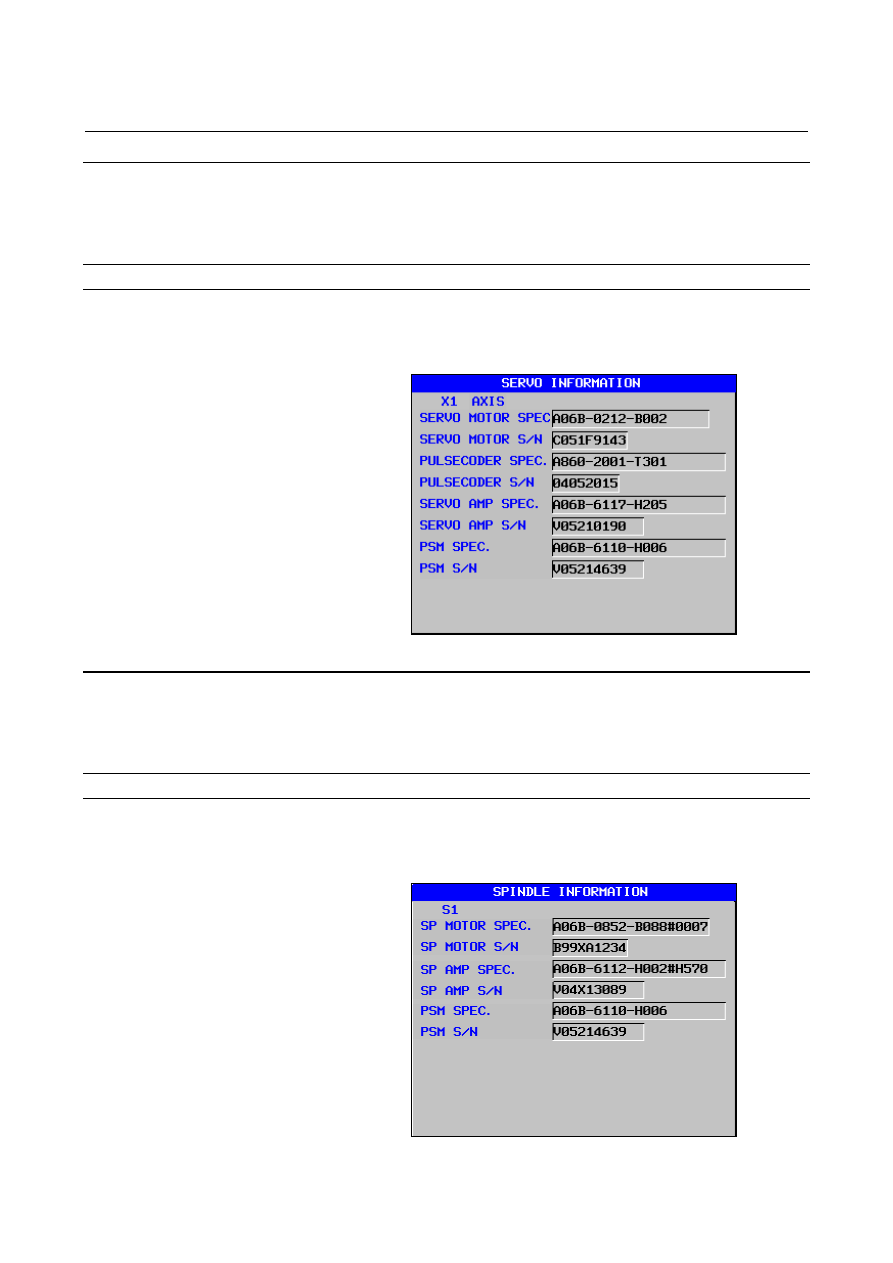

Servo information screen

When a servo system is connected to the NC, ID information of the
connected servo devices (servo motors and servo amplifier modules)
can be displayed on the NC.


Displaying the screen

1  When the system configuration screen is displayed, press soft

key [SERVO INFO].

2

The servo information screen is displayed.





Fig. 12.4.14 (d) Servo information screen



Spindle information screen

When a spindle system is connected to the NC, the ID information of
the connected spindle devices (spindle motors and spindle amplifier
modules) can be displayed on the NC.


Displaying the screen

1  When the system configuration screen is displayed, press soft

key [SPINDLE INFO].

2

The spindle information screen is displayed.





Fig. 12.4.14 (e) Spindle information screen

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1779 -

12.4.15

Overview of the History Function


The history function makes it possible to record a history of
operations performed by the operator, alarms and external operator
messages issued, and other history data, check the history, and output
history data.



1

Conditions for recording history
a Display

screen



A history of screens other than the operation history screen
is recorded.

b Signal

selection



Up to 60 I/O signals can be selected so that they can be
recorded in history data.

c Parameter

setting



With parameters, it is possible to separately set whether to
record an MDI key operation history and an external
operator message history, add external alarms and messages,
and record data modification histories such as operation
histories of parameters, tool offsets, workpiece offsets
(workpiece shift amounts), custom macro common variables,
and I/O signals.

d Storage

capacity



When the storage capacity becomes full, data is deleted in
order from the oldest data.Up to about 8000 items of history
data can be recorded if the data consists of history data of
MDI key operations only.


2 Data

output



All history data stored can be output to external input/output
devices. (See Subsection 12.4.15.5, "Outputting all history
data".)


3

Erasure of history data



If bit 7 (EKE) of parameter No. 3195 is set to 1, soft key
[CLEAR] is displayed, allowing the user to erase history data.





#7 #6 #5 #4 #3 #2 #1 #0

3195



EKE





 [Data

type]

Bit


        # 7

EKE

  Soft key [ALL CLEAR] for clearing all history data is:

0: Not

displayed.

1: Displayed.
