12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1764 -

Explanation
  - Parameters displayed for parameter tuning



Table 12.4.12 (a) Parameters displayed for parameter tuning (1)

Menu Group

Parameter

No.

Name Brief

description

Standard

setting

981



Sets the path of each axis.



982



Sets the path of each spindle.



983



Sets the T series/M series of each path.    0:T series/1:M series



984#0

LCP  Sets the attribute of each path.  0:Normal/1:Loader control



*1

3021



Sets the G/F signal address of each axis.

*2

3022



Sets the G/F signal address of each spindle.

*3

3006#0

GDC  The deceleration signal for reference position return is:

0:X signal/1:G signal

1

3008#2

XSGx  The signal address allocated to address X is:

0:Fixed/1:Set by the parameter

1

3013



Address allocated to the deceleration signal for reference position
return

*4

SYSTEM

SETTING

System

setting

3014



Bit position allocated to the deceleration signal for reference
position return

*5



*1 : The value 1 is set for the paths as many as the number of loader

paths starting from the greatest path number. For path 1, the value 0
is set at all times.
Example) When the number of loader paths is 3 in a 10-path system:

The value 1 is set for paths 8 to 10. The value 0 is set for
others.

*2 : When intra-path axis number

≤

 8, (path number - 1)*10+(intra-path

axis number - 1)
When intra-path axis number

≥

 9, no standard value is available.

Example) When path 1 has 9 axes, and path 2 has 3 axes:
0,1,...,7,(none) for axes of path 1, 10,11,12 for axes of path 2

*3 : When intra-path spindle number

≤

 4, (path number -

1)*10+(intra-path spindle number - 1)
When intra-path spindle number

≥

 5, no standard value is available.

Example) When path 1 has 5 spindles, and path 2 has 1 spindle:

0,1,...,4,(none) for spindles of path 1, 10 for spindle of path
2

*4 : When (path number

≤

 3) and (intra-path axis number

≤

 8)

Axes of path 1:    9
Axes of path 2:    7
Axes of path 3:    10
Other axes:    No standard value is available.

Example) When path 1 has 9 axes, and path 2 has 3 axes:
 9,9,9,9,9,9,9,9,(none) for axes of path 1, 7,7,7 for axes of

path 2

*5 : When (path number

≤

 3) and (intra-path axis number

≤

 8)

(Intra-path axis number - 1)
Other axes:    No standard value is available.

Example) When path 1 has 9 axes, and path 2 has 3 axes:


0,1,...,7,(none) for axes of path 1, 0,1,2 for axes of path 2



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1765 -

Table 12.4.12 (b) Parameters displayed for parameter tuning (2)

Menu Group

Parameter

No.

Name Brief

description

Standard

setting

3716#0

A/Ss  Sets the type of spindle motor: 0:Analaog/1:Serial.



3717



Sets a motor number to be assigned to each spindle.



SPINDLE

SETTING

Spindle

setting

3706#4

GTT  Specifies a spindle gear selection method.

0:M type/1:T type







3718



Sets a suffix to be added to spindle speed display on a screen
such as the position display screen.







3735



Sets the minimum clamp speed of the spindle motor.







3736



Sets the maximum clamp speed of the spindle motor.







3741



Sets the maximum spindle speed for gear 1.







3742



Sets the maximum spindle speed for gear 2.







3743



Sets the maximum spindle speed for gear 3.







3744



Sets the maximum spindle speed for gear 4.







3772



Sets the maximum speed of the spindle.
When 0 is set, the speed is not clamped.







4133



Sets the motor model code of the serial spindle.
(This setting is not required for an analog spindle.)





4019#7

***



The parameters for the serial spindle are:
0:Not automatically set/1:Automatically set
(This setting is not required for an analog spindle.)






12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1766 -

Table 12.4.12 (c) Parameters displayed for parameter tuning (3)

Menu Group

Parameter

No.

Name Brief

description



Standard

setting

AXIS

SETTING

Basic

1001#0

INM  Least command increment on linear axes:

0:Metric (millimeter machine)    1:Inch (inch machine)







1005#0

ZRNx  When an automatic operation (other than G28) is executed before

reference position return:
0:Alarm is issued (PS224)    1:No alarm is issued.

0





1005#1

DLZx  Reference position return without dogs:  0:Disabled  1:Enabled







1006#0

ROTx  Setting of linear axes or rotary axis:

0:Linear axis  1:Rotation axis





1006#3

DIAx

Setting

of

the amount of travel:

0:Radius specification    1: Diameter specification







1006#5

ZMIx  Reference position return direction:

0:Plus direction  1:Minus direction







1008#0

ROAx  Rotation axis roll-over function:  0:Disabled  1:Enabled

1





1008#2

RRLx  With the amount of travel per revolution, relative coordinates are:

0:Not rounded  1:Rounded

1





1013#0

ISAx  Sets the least input increment and least command increment:

0:IS-B  1:IS-A







1013#1

ISCx  Sets the least input increment and least command increment:

0:IS-B  1:IS-C







1013#2

ISDx  Sets the least input increment and least command increment:

0:IS-B  1:IS-D







1013#3

ISEx  Sets the least input increment and least command increment:

0:IS-B  1:IS-E





1020



Program

name

*1





1022



Sets each axis in the basic coordinate system.

*2





1023



Servo axis number







1815#1

OPTx  A separate pulse coder is:  0:Not used  1:Used







1815#4

APZx  The correspondence between machine positions and

absolute-position detector positions is:    0:Not established
1:Established







1815#5

APCx  The position detector used is: 0:Other than an absolute-position

detector  1:Absolute-position detector







1825



Servo loop gain





1826



Effective

area







1828



Positional deviation limit during travel







1829



Positional deviation limit during stop

500



*1 : For the M series:  88(X),89(Y),90(Z) sequentially starting with the

first axis (no standard value for the fourth axis and
up)

For the T series:  88(X),90(Z) (no standard value for the third axis

and up)

*2 : For the M series:  1,2,3 sequentially starting with the first axis (no

standard value for the fourth axis and up)

For the T series:  1,3 (no standard value for the third axis and up)




B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1767 -

Table 12.4.12 (d) Parameters displayed for parameter tuning (4)

Menu Group

Parameter

No.

Name

Brief description

Standard

setting

AXIS SETTING  Coordinate

1240



Machine coordinate of the first reference position







1241



Machine coordinate of the second reference position







1260



Amount of travel per revolution of a rotary axis

360.000





1320



Coordinate of the boundary of stored stroke check 1 in the
positive direction







1321



Coordinate of the boundary of stored stroke check 1 in the
negative direction





Feedrate

1401#6

RDR For a rapid traverse command, dry run is:

0:Disabled  1:Enabled

0





1410



Dry run feedrate







1420



Rapid traverse rate







1421



Rapid traverse override F0 rate





1423



Jog

feedrate







1424



Manual rapid traverse rate







1425



FL feedrate for reference position return







1428



Reference position return feedrate







1430



Maximum cutting feedrate



 Acceleration/

deceleration

1610#0

CTLx Acceleration/deceleration for cutting feed is:

  0:Exponential acceleration/deceleration
  1:Linear acceleration/deceleration after interpolation





1610#4

JGLx Acceleration/deceleration for jog feed is:

  0:Exponential acceleration/deceleration
    1:Same as acceleration/deceleration for cutting feed
(The settings of bit 1 (CTBx) and bit 0 (CTLx) of parameter
No. 1610 are followed.)







1620



Time constant for linear acceleration/deceleration for rapid
traverse







1622



Time constant for acceleration/deceleration for cutting feed







1623



FL feedrate for acceleration/deceleration after interpolation
for cutting feed







1624



Time constant for acceleration/deceleration for jog feed







1625



FL feedrate for exponential acceleration/deceleration for
jog feed



MISCELLANY MISC

3030

Allowable

number of digits of an M code

3





3111#0

SVS The servo setting screen is:    0:Not displayed

1:Displayed

1





3111#1

SPS The spindle setting screen is:    0:Not displayed

1:Displayed

1



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1768 -

12.4.13

Periodic Maintenance Screen


Periodic maintenance screens are used for managing consumables
(such as the backlight of a LCD unit and backup batteries). By setting
the name of a consumable, its life time, and the method for counting
down the life time, the life of the consumable can be counted down in
the appropriate method set for the consumable, and the remaining life
time can be displayed.
With these screens, the user can easily manage consumables that
require periodic replacement.


Explanation

There are four periodic maintenance screens: the status screen, the
setting screen, the machine menu screen, and the NC menu screen.

•

 Status

screen:



Item names, remaining times, and count statuses are displayed,
and item names are set.

•

 Setting

screen:



Life times, remaining times, and count types (count-down
method) are set.

•



Machine menu screen:



The names of consumables in the machine can be registered.

•



NC menu screen:



The names of consumables in the NC are already registered.



Using periodic maintenance screens

<1>  Referencing a periodic maintenance screen


Display the status screen. For the meanings of items on the status
screen, see

Status screen

.


<2> Adding the name of a new consumable item to a periodic

maintenance screen or editing an existing consumable item on
the screen



The name of a consumable item can be added or edited on the
machine menu screen. For details, see

Machine menu screen

.


<3> Adding or editing a life time, remaining time, and a method of

counting down the remaining time for a consumable on a
periodic maintenance screen



A life time and remaining time can be added or edited on the
setting screen. For details, see

Setting screen

.


<4> Newly displaying the item name and remaining time of a

consumable on a periodic maintenance screen.
1

Setting an item name
Select the item name of a consumable to be displayed from
the machine menu screen or NC menu screen, or enter the
name using the MDI keys. For the procedure, see

Item

name

in

Status screen

.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1769 -

2

Setting a life time, remaining time, and count type
Select the life time, remaining time, and count type of a
consumable to be displayed from the setting screen. For the
procedure, see

Remaining time

in

Status screen

.



Procedure for displaying a periodic maintenance screen

1

Press function key

.

2  Press the continuous menu key

 several times to display

[PERIOD MAINTE].

3  Press soft key [PERIOD MAINTE] to display the periodic

maintenance screen.



Status screen

When soft key [STATUS] is pressed, the status screen is displayed.
The status screen shows the item names, count statuses, and remaining
times of managed consumables.




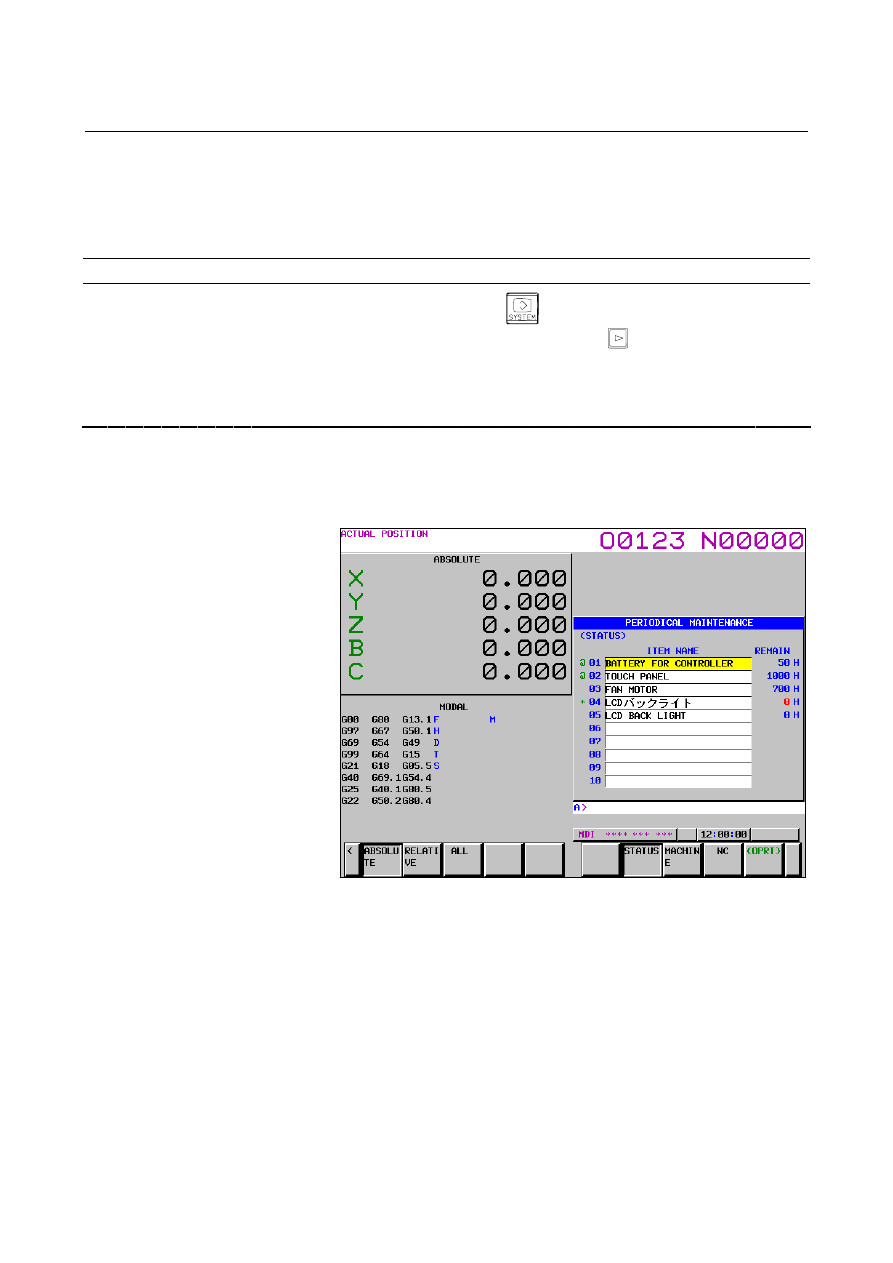

Fig. 12.4.13 (a) Status screen

 - Item name

As the item name, set the name of a consumable to be managed by
periodic maintenance. To set an item name, select a name from the
machine menu screen or NC menu screen, or directly enter the name
using the MDI keys.


    Setting an item name from a menu screen

1

On the status screen, move the cursor to a target item name, press
soft key [(OPRT)], then press soft key [ENTRY].

2

Press soft key [MACHINE] or [NC] to display the machine menu
screen or NC menu screen.

3

Move the cursor to an existing item name on the menu screen,
press soft key [(OPRT)], and press soft key [SELECT] then
[EXEC] successively.

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1770 -

4

The screen display returns to the status screen, and the item name
selected on the menu screen is added to the status screen.


Initially, there is no item name set on the machine menu screen, so
item names must be registered in advance. For the registration method,
see the description of the procedure for registering item names on the
machine menu screen.


    Setting an item name using the MDI keys

1

Press soft key [(OPRT)].

2

Type the alphanumeric characters to be input, then press soft key
[INPUT].

3

The entered item name is registered on the status screen.


When soft key [+INPUT] is pressed instead of soft key [INPUT], the
entered characters can be added to an existing item name.
When typing 2-byte characters, type "*" before and after the character
codes. The character codes must conform to FANUC codes. (See
Appendix G, "FANUC 2-BYTE CHARACTER CODE TABLE".)
An item name to be registered must be up to 24 characters long if it
consists of alphanumeric characters only; or it must be up to 12
characters long if it consists of 2-byte characters only.
Example:  To register "LCD

バックライト

", enter the following:

 >LCD

＊

110E10F410CC114010B610FE

＊

_



NOTE

1  An asterisk "*" is used as a control code, so it

cannot be used in item names. In addition,
characters "[", "]", "(", and ")" cannot be used in
item names.

2  When an item name consisting of both

alphanumeric characters and 2-byte characters is
registered, the warning "DATA OUT OF RANGE"
may be output.



    Deleting an item name

To delete a registered item name, move the cursor to the item name,
press soft key [ERASE], then press soft key [EXEC].
When an item name is deleted, its life time, remaining time, and count
type are deleted at the same time.


 - Remaining time

As the remaining time, the period of time left until the time for
replacement is reached by count down operation is displayed.
If the percentage of the remaining time to the life time has reached to
the value (%) specified by parameter No. 8911, or smaller, the
remaining time is displayed in red.
Even after the life time has expired, count down operation continues.


B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1771 -

    Setting the remaining time

1

On the status screen, place the cursor on an item for which the
remaining time is to be set (the item name must have been set in
advance).

2

Press soft key [(OPRT)], then press soft key [CHANGE].

3

The screen display changes to the setting screen.

4

Set the life time, remaining time, and count type. For the setting
method and other information, see

Setting screen

.



NOTE



On the status screen, the remaining time and life
time cannot be set.



These items must be set on the setting screen.



 - Count status

The count status is indicated on the left side of the item number as
follows:


Indication Count

status

Blank Counting

stopped

@

Counting in progress

＊



Life expired



Setting screen

On the setting screen, the life time, remaining time, and count type of
a managed consumable are set.




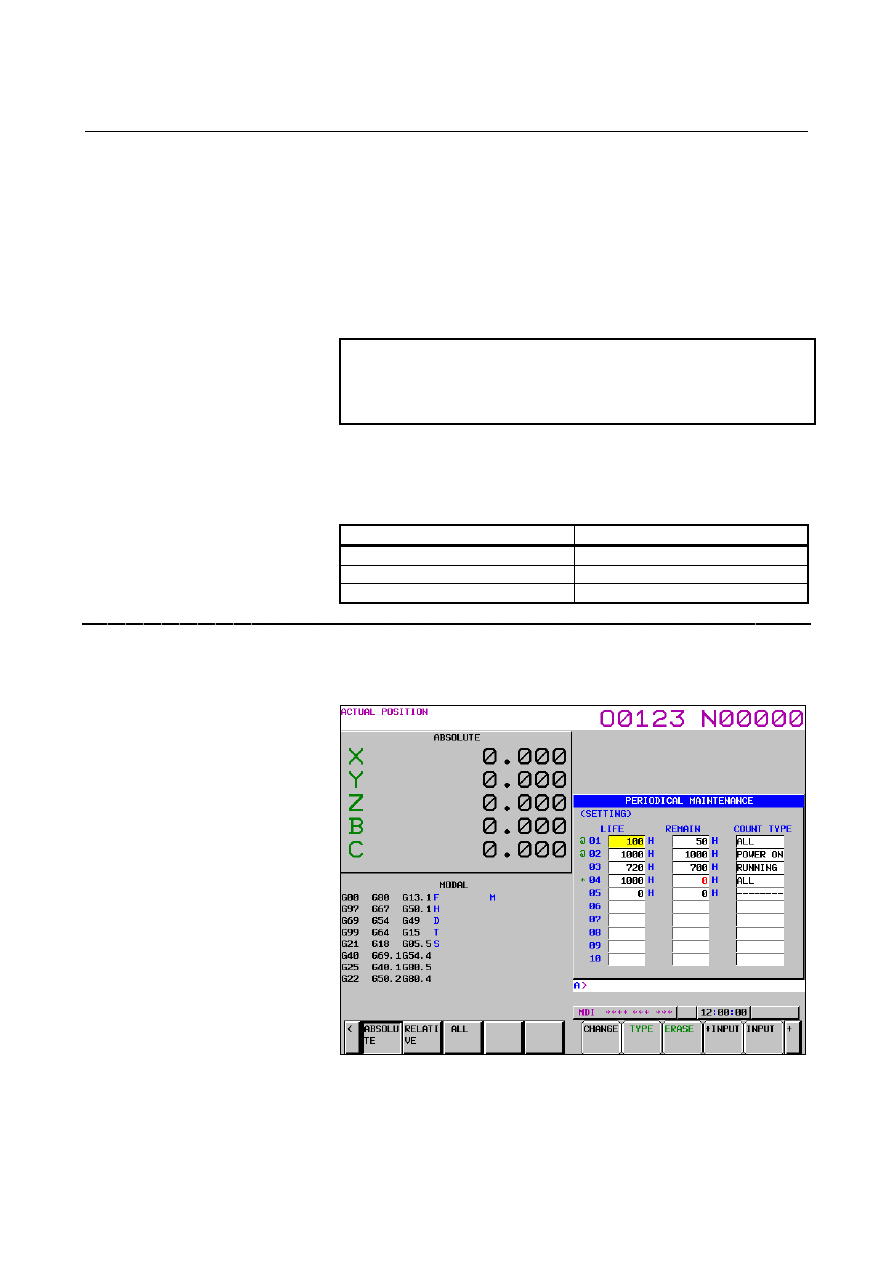

Fig. 12.4.13 (b) Setting screen



Display procedure

1

When the status screen is displayed, press soft key [(OPRT)].

2

Press soft key [CHANGE].
