FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 158

6.SAFETY FUNCTIONS

 OPERATION

B-63944EN/03





- 1220 -


If the set effective data range is invalid for any of the reasons listed
below, the input data range check is not performed normally and the
input data is rejected.

•

  There is a tool offset number overlap.

•

  The upper and lower limit values are reversed.

•

  The values are not effective (e.g., more pairs of offset numbers

than allowed are set).

•

  Either of the tool offset numbers is 0.


Also, the input data range check is invalidated in the following cases.

•

  Both the upper and lower limit values for the tool offset number

are 0.

•

  The upper and lower offset limit values are identical.



Explanation
 - System configuration

What to set differs for each of the following system configurations:

M



•

  Tool offset memory A

•

  Tool offset memory B

•

  Tool offset memory C

T



•

  Without geometry and wear offset

•

  With geometry and wear offset





B-63944EN/03

 OPERATION

6.SAFETY FUNCTIONS





- 1221 -

M



  - What to set with tool offset memory A

With tool offset memory A, an effective data range is specified using
the following four items.

Displayed item

What to set

FROM

RANGE

TO

Specify a tool offset number range.

LOW-LIMIT

-

UP-LIMIT

Specify a valid tool offset value range in connection
with a specified tool offset number range.



  - What to set with tool offset memory B

With tool offset memory A, an effective data range is specified using
the following six items.

Displayed item

What to set

FROM

RANGE

TO

Specify a tool offset number range.

LOW-LIMIT

GEOM

UP-LIMIT

Specify a valid tool offset value range for geometry in
connection with a specified tool offset number range.

LOW-LIMIT

WEAR

UP-LIMIT

Specify a valid tool offset value range for wear in
connection with a specified tool offset number range.



  - What to set with tool offset memory C

With tool offset memory C, an effective data range is specified using
the following ten items.

Displayed item

What to set

FROM

RANGE

TO

Specify a tool offset number range.

LOW-LIMIT

LENGTH

UP-LIMIT

Specify a valid tool offset value range for geometry
length in connection with a specified tool offset number
range.

LOW-LIMIT

GEOM

RADIUS

UP-LIMIT

Specify a valid tool offset value range for geometry
radius in connection with a specified tool offset number
range.

LOW-LIMIT

LENGTH

UP-LIMIT

Specify a valid tool offset value range for wear length in
connection with a specified tool offset number range.

LOW-LIMIT

WEAR

RADIUS

UP-LIMIT

Specify a valid tool offset value range for wear radius in
connection with a specified tool offset number range.


In the case of this configuration, all the information needed to set an
input data range cannot be displayed in a single screen page.    Set the
information while switching pages using the [SWITCH] soft key.
The screen provides an indication that lets you know which part of the
information is currently displayed.


6.SAFETY FUNCTIONS

 OPERATION

B-63944EN/03





- 1222 -

T



  - What to set without geometry/wear offset

Without geometry/wear offset, an effective data range is specified
using the following eight items.

Displayed item

What to set

FROM

RANGE

TO

Specify a tool offset number range.

LOW-LIMIT

X

UP-LIMIT

Specify a valid tool offset value range for the X-axis in
connection with a specified tool offset number range.

LOW-LIMIT

Z

UP-LIMIT

Specify a valid tool offset value range for the Z-axis in
connection with a specified tool offset number range.

LOW-LIMIT

RADIUS

UP-LIMIT

Specify a valid tool offset value range for tool-nose radius in
connection with a specified tool offset number range.



NOTE

The radius-related items are not displayed if the
cutter or tool nose radius compensation is not used.



  - What to set with geometry/wear offset

With geometry/wear offset, an effective data range is specified using
the following 12 items.

Displayed item

What to set

FROM

RANGE

TO

Specify a tool offset number range.

LOW-LIMIT

X

UP-LIMIT

Specify a valid tool offset value range for the geometry
X-axis in connection with a specified tool offset number
range.

LOW-LIMIT

Z

UP-LIMIT

Specify a valid tool offset value range for the geometry
Z-axis in connection with a specified tool offset number
range.

LOW-LIMIT

GEOM

RADIUS

UP-LIMIT

Specify a valid tool offset value range for geometry
tool-nose radius in connection with a specified tool offset
number range.

LOW-LIMIT

X

UP-LIMIT

Specify a valid tool offset value range for the wear X-axis
in connection with a specified tool offset number range.

LOW-LIMIT

Z

UP-LIMIT

Specify a valid tool offset value range for the wear Z-axis
in connection with a specified tool offset number range.

LOW-LIMIT

WEAR

RADIUS

UP-LIMIT

Specify a valid tool offset value range for wear tool-nose
radius in connection with a specified tool offset number
range.

In the case of this system, all the information needed to set an input
data range cannot be displayed in a single screen page.  Set the
information while switching pages using the [SWITCH] soft key.
The screen provides an indication that lets you know which part of the
information is currently displayed.

NOTE



The radius-related items are not displayed if the
tool nose radius compensation option is not
displayed.



B-63944EN/03

 OPERATION

6.SAFETY FUNCTIONS





- 1223 -

  - Example of setting an input data range

For example, suppose that the following values are set with offset
memory A.

FROM : TO  LOW-LIMIT : UP-LIMIT
     1 : 20         0.000 : 100.000


In this case, the tool offset input screen accepts only offset values
from 0.000 to 100.000 for offset numbers 1 to 20.
If you attempt to input any other value, the warning message "DATA
IS OUT OF RANGE" is displayed.


6.SAFETY FUNCTIONS

 OPERATION

B-63944EN/03





- 1224 -

6.5.3.3

Workpiece origin offset range setting screen


This screen displays the setting status of workpiece origin offset and
external workpiece origin offset effective data ranges and lets you
change their settings.  (Hereinafter, the screen is referred to as the
workpiece origin offset range setting screen.)

Up to six pairs of values can be specified to identify workpiece
coordinate ranges for the workpiece origin offset, and an effective
offset value range can be defined for each of the axes of these six pairs.
As for the external workpiece origin offset, an effective offset value
range can be specified for each axis.


Displaying and setting the workpiece origin offset range setting screen

Procedure

1 Press

the

 function key.

2  Press the continuous menu key

 at the right edge of the

screen several times until the [GUARD] soft key is displayed.

3  Click the [GUARD] soft key.  The setting screen that was

displayed last with relation to any operation confirmation
function is displayed (the operation confirmation function setting
screen is the first such screen that appears after the system is
restarted).

4

If any screen other than the workpiece origin offset range setting
screen is displayed, click the [WORK] soft key.    The workpiece
origin offset range setting screen is displayed.



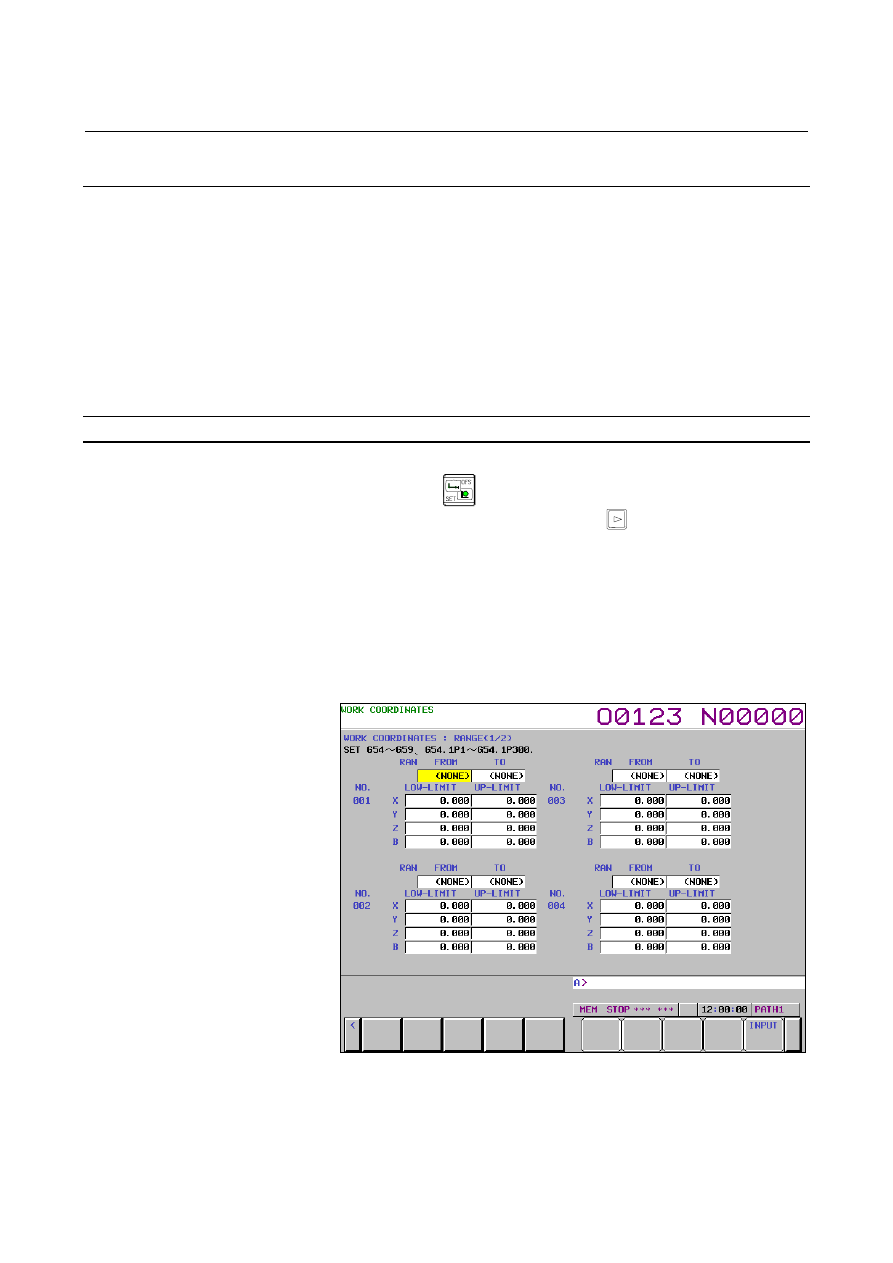

Fig. 6.5.3.3 (a) Workpiece origin offset range setting screen



B-63944EN/03

 OPERATION

6.SAFETY FUNCTIONS





- 1225 -

5

Move the cursor to the item you want to set, by using the



and

 keys,

,

,

, and

 keys, or the

[SWITCH] soft key.

6  Press the MDI key, enter necessary data, and then click the

[INPUT] soft key.


If the set effective data range is invalid for any of the reasons listed
below, the input data range check is not performed normally and the
input data is rejected.

•



There is a workpiece coordinate overlap.

•



The upper and lower limit values are reversed.

•

  The values are not effective (e.g., an invalid workpiece

coordinate system is set).

•



The upper limit value is set for the workpiece coordinate system
when 0 is set for the lower limit value.


Also, the input data range check is invalidated in the following cases.

•

  Both the upper and lower limit values for the workpiece

coordinate system are 0.

•



The upper and lower limit values for each offset are identical.



Explanation
  - What to set for the workpiece origin offset

For the workpiece origin offset, an effective data range is specified
using the following four items.

Displayed item

What to set

FROM

RANGE

TO

Specify a workpiece coordinate system range.

LOW-LIMIT

AXIS
NAME  UP-LIMIT

Specify a valid offset value range in connection with a
specified workpiece coordinate system range.



  - What to set for the external workpiece origin offset

For the external workpiece origin offset, an effective data range is
specified using the following two items.

Displayed item

What to set

LOW-LIMIT

AXIS
NAME  UP-LIMIT

Specify a valid external workpiece origin offset value range
on each axis.



6.SAFETY FUNCTIONS

 OPERATION

B-63944EN/03





- 1226 -

6.5.3.4

Y-axis tool offset range setting screen



T



In the case of a lathe system, this screen displays the setting status of
Y-axis tool offset effective data ranges and lets you change their
settings.  (Hereinafter, the screen is referred to as the Y-axis tool
offset range setting screen.)
Up to four pairs of values can be specified to identify Y-axis tool
offset number ranges, and an effective offset value range can be
defined for each of these four pairs.


Displaying and setting the Y-axis tool offset range setting screen

Procedure

1 Press

the

 function key.

2  Press the continuous menu key

 at the right edge of the

screen several times until the [GUARD] soft key is displayed.

3  Click the [GUARD] soft key.  The setting screen that was

displayed last with relation to any operation confirmation
function is displayed (the operation confirmation function setting
screen is the first such screen that appears after the system is
restarted).

4  If any screen other than the Y-axis tool offset range setting

screen is displayed, click the [OFST.2] soft key.  The Y-axis
tool offset range setting screen is displayed.    What is displayed
in this screen differs depending on such factors as whether tool
geometry/wear offsets are present.



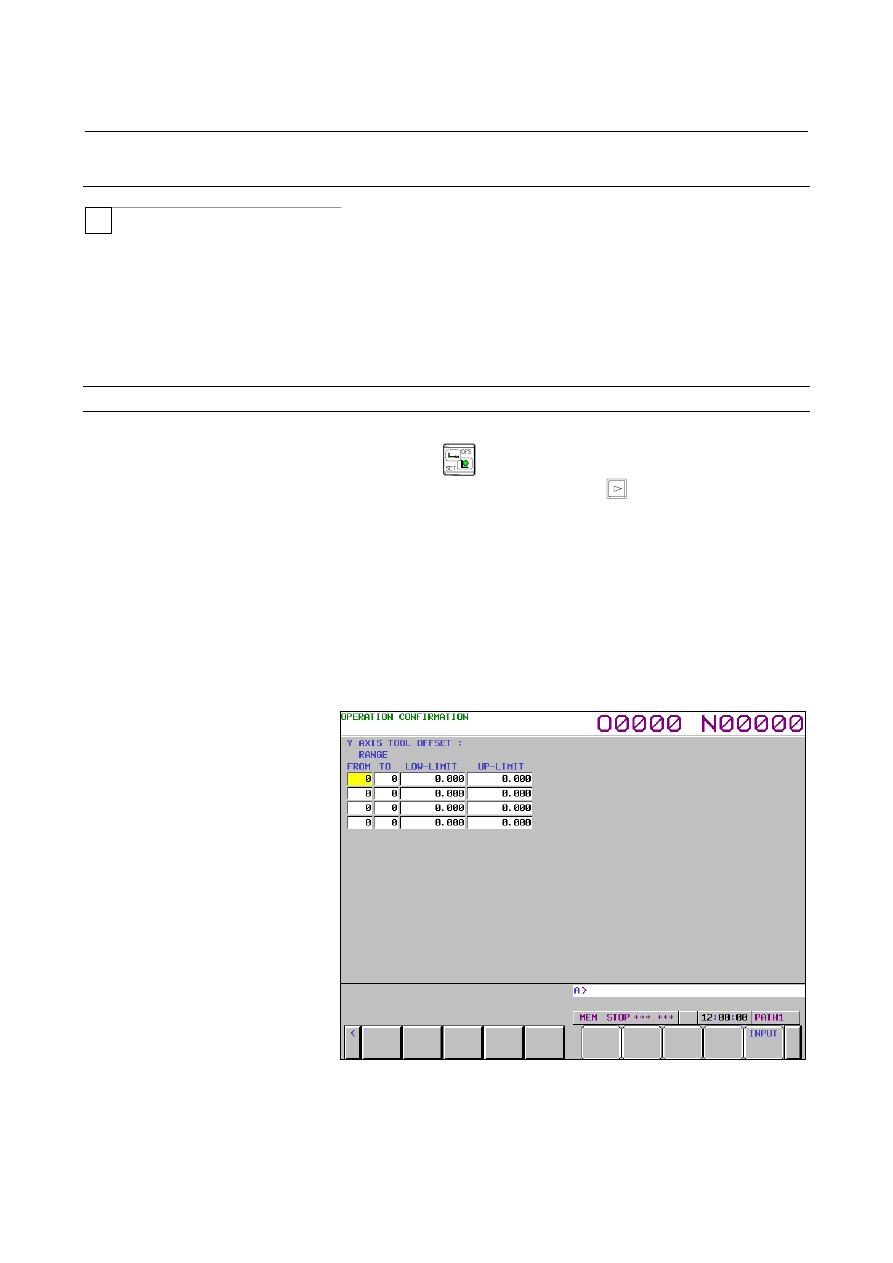

Fig. 6.5.3.4 (a) Y-axis tool offset range setting screen



B-63944EN/03

 OPERATION

6.SAFETY FUNCTIONS





- 1227 -

5

Move the cursor to the item you want to set, by using the



and

 keys,

,

,

, and

 keys, or the

[SWITCH] soft key.

6  Press the MDI key, enter necessary data, and then click the

[INPUT] soft key.


If the set effective data range is invalid for any of the reasons listed
below, the input data range check is not performed normally and the
input data is rejected.

•

  There is a tool offset number overlap.

•

  The upper and lower limit values are reversed.

•

  The values are not effective (e.g., more pairs of offset numbers

than allowed are set).

•

  Either of the tool offset numbers is 0.


Also, the input data range check is invalidated in the following cases.

•

  Both the upper and lower limit values for the tool offset number

are 0.

•

  The upper and lower offset limit values are identical.



Explanation
  - What to set without geometry/wear offsets

Without geometry/wear offsets, an effective data range is specified
using the following four items.

Displayed item

What to set

FROM

RANGE

TO

Specify a Y-axis tool offset number range.

LOW-LIMIT

-

UP-LIMIT

Specify a valid tool offset value range in connection
with a specified Y-axis tool offset number range.



  - What to set with geometry/wear offsets

With geometry/wear offsets, an effective data range is specified using
the following six items.

Displayed item

What to set

FROM

RANGE

TO

Specify a Y-axis tool offset number range.

LOW-LIMIT

GEOM

UP-LIMIT

Specify a valid tool offset value range for geometry in
connection with a specified Y-axis tool offset number
range.

LOW-LIMIT

WEAR

UP-LIMIT

Specify a valid tool offset value range for wear in
connection with a specified Y-axis tool offset number
range.
