6.SAFETY FUNCTIONS

OPERATION

B-63944EN/03

- 1212 -

6.5.2.3

Axis status display

This function displays the axis status to the left of the axis name in the
coordinate display screen.

Axis status display

Explanation

- Outline of the axis status display

This function displays the axis status to the left of the axis name in the
display of the machine coordinates, absolute coordinates, relative
coordinates, and remaining travel amounts.
For example, when the mirror image function is enabled for the X1
axis, the absolute coordinates are displayed as follows.

By displaying the axis status as shown above, the function prevents
improper operations at the time of execution.

- Axis status indication

The axis status is indicated as follows. These indications are listed in
order of priority.

AXIS DETACH

: D

INTERLOCK :

MACHINE LOCK

: L

SERVO OFF

: S

AXIS MOVING

: *

MIRROR IMAGE

: M

- Settings

In the operation confirmation function setting screen, check or
uncheck the "AXIS STATUS DISPLAY" box to enable or disable this
function. For information about how to display the setting screen,
how to set the function, and other details, see the item “Operation
confirmation setting” that describes the setting of the operation
confirmation function.

ABSOLUTE

M X1 10.000
Y1 10.000
Z1 0.000

B-63944EN/03

OPERATION

6.SAFETY FUNCTIONS

- 1213 -

6.5.2.4

Confirmation of the start from a middle block

This function displays a confirmation message when you attempt to
execute a memory operation with the cursor placed on a block in the
middle of the program.

Confirmation of the start from a middle block

Explanation

- Outline of the confirmation of the start from a middle block

This function displays the confirmation message "START FROM
MIDDLE OF PROG (START/RESET)" when you attempt to execute
a memory operation with the cursor placed on a block in the middle of
the program. It lets you confirm whether you really want to start
execution from that block or not before executing the program.
The function prevents you from inadvertently making a cycle start
from a block in the middle of the program.

- Settings

In the operation confirmation function setting screen, check or
uncheck the "START FROM MIDDLE OF PROGRAM" box to
enable or disable this function. For information about how to display
the setting screen, how to set the function, and other details, see the
item “Operation confirmation setting” that describes the setting of the
operation confirmation function.

6.SAFETY FUNCTIONS

OPERATION

B-63944EN/03

- 1214 -

6.5.2.5

Data range check

This function lets you set an effective data range and check whether
the data to be used for execution is within the set range.

Data range check

Explanation

- Outline of the data range check

This function lets you set an effective data range for each data item
listed later and check whether the data to be used for execution is
within the set range. If the data is out of the effective range, the
alarm PS0334 "OFFSET DATA OUT OF EFFECTIVE RANGE" is
displayed.
The function detects data setting mistakes and prevents the program
from running with invalid data.

- Data for which this function is effective

•

Tool

compensation

•

Workpiece origin offset

•

Y-axis tool offset

•

Workpiece

shift

NOTE

To use this function, you need to set each effective
data range correctly. For information about how to
set the data ranges, see the item “Effective value
range for each data”.

B-63944EN/03

OPERATION

6.SAFETY FUNCTIONS

- 1215 -

6.5.2.6

Maximum incremental value check

This function checks the maximum incremental value specified for
each axis by the NC command.

Maximum incremental value check

Explanation

- Outline of the maximum incremental value check

When the maximum incremental value is specified by the NC
command described later, make sure that the absolute value of the
travel distance by the incremental command does not exceed the
specified value. If the specified value is exceeded, the alarm PS0337
"EXCESS MAXIMUM INCREMENTAL VALUE" is displayed.
A maximum incremental value can be specified on a per-axis basis
and remains effective until 0 is set or the value is reset.
For example, when AI contour control is used, the function checks
whether the amount of movement between blocks is kept to the
specified value or less. Through this process, it detects erroneous
program settings and prevents the program from running with invalid
data.

- Format

The format of the NC command used to specify the maximum
incremental value is as follows.

G91.1 IP_ ;

IP_ ; Maximum incremental value

To cancel the maximum incremental value check, set 0.

6.SAFETY FUNCTIONS

OPERATION

B-63944EN/03

- 1216 -

6.5.3

Setting Screen

This section describes how to display the operation confirmation
function setting screen and how to set the individual data items on this
screen.
The operation confirmation function setting screen allows you to set
the following items:

•

Enabling or disabling each operation confirmation function

•

Effective value range for the tool offset

•

Effective value range for the workpiece origin offset

•

Effective value range for the Y-axis tool offset

•

Effective value range for the work shift

B-63944EN/03

OPERATION

6.SAFETY FUNCTIONS

- 1217 -

6.5.3.1

Operation confirmation function setting screen

This screen displays the enable/disable setting status of the following
operation confirmation functions and lets you change their settings.
(Hereinafter, the screen is referred to as the operation confirmation
function setting screen.)

•

Confirmation of incremental input

•

Prohibition of the absolute input by the soft key

•

Confirmation of the deletion of the program

•

Confirmation of the deletion of all data

•

Confirmation of a data update during the data setting process

•

Display of updated modal information

•

Axis status display

•

Confirmation of the start from a middle block

Displaying and setting the operation confirmation function setting screen

Procedure

1 Press

the

function key.

2 Press the continuous menu key

at the right edge of the

screen several times until the [GUARD] soft key is displayed.

3 Click the [GUARD] soft key. The setting screen that was

displayed last with relation to any operation confirmation
function is displayed (the operation confirmation function setting
screen is the first such screen that appears after the system is
restarted).

4 If any screen other than the operation confirmation function

setting screen is displayed, click the [GUARD] soft key. The
operation confirmation function setting screen is displayed.

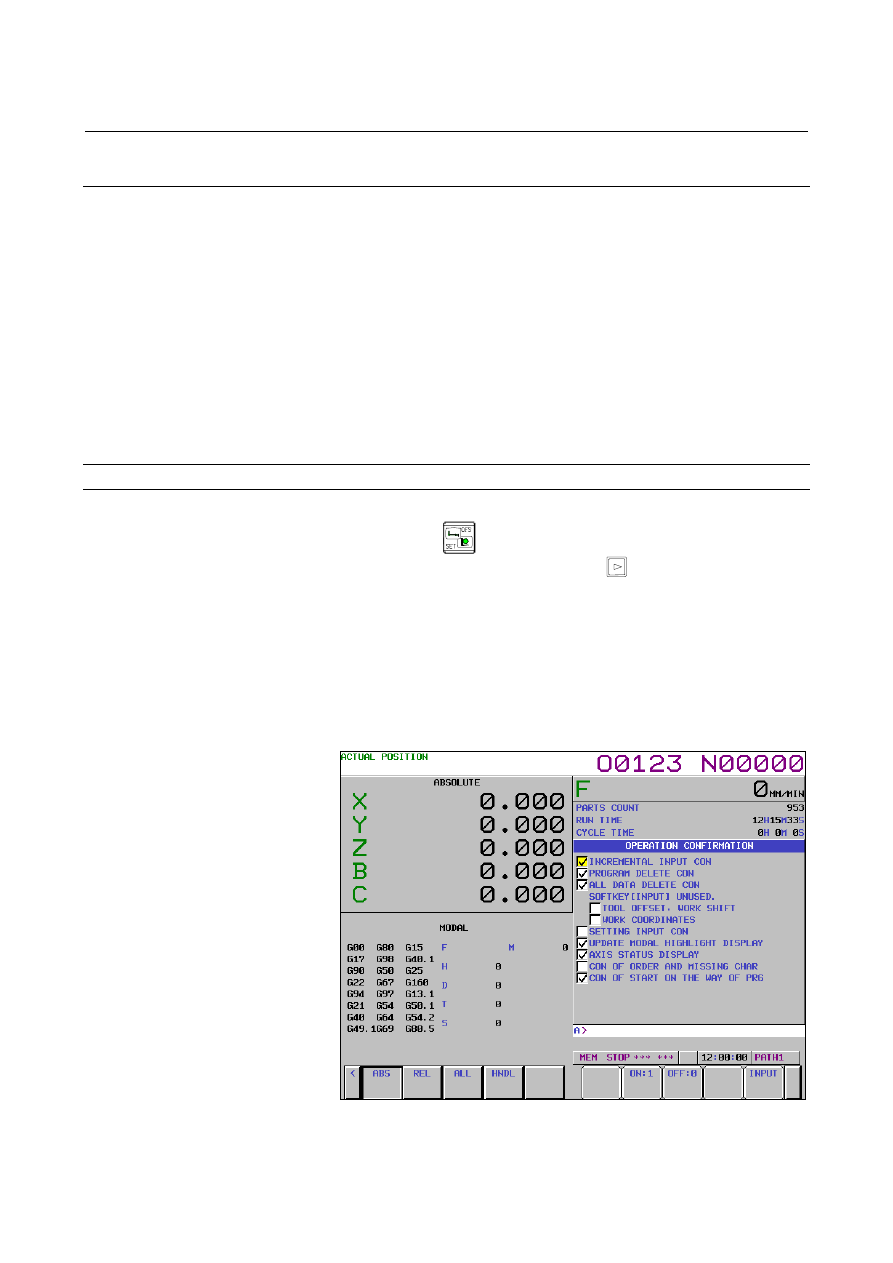

Fig. 6.5.3.1 (a) Operation confirmation function setting screen

6.SAFETY FUNCTIONS

OPERATION

B-63944EN/03

- 1218 -

In the operation confirmation function setting screen, the check
box of each enabled function is checked (

✓

). Move the cursor

to the check box of the item you want to set, by pressing the

, and

keys.

6 Click the operation soft key [ON:1] or [OFF:0]. When you

click the [ON:1] soft key, a check mark (

✓

) appears in the

corresponding check box, indicating that the function is enabled.
When you click the [OFF:0] soft key, the check mark disappears
from the check box, indicating that the function is disabled.

Explanation
- Items to be set

The following table shows what is displayed for each item to be set
and the corresponding functions.

Displayed item

Corresponding function

INCREMENTAL INPUT

Confirmation of incremental input

DISABLED SOFTKEY[INPUT] IN
TOOL OFFSET, WORK SHIFT

Prohibition of the absolute input by the
soft key (tool offset, Y-axis tool offset
(lathe system), and work shift (lathe
system))

DISABLED SOFTKEY[INPUT] IN
WORK COORDINATES

Prohibition of the absolute input by the
soft key (workpiece origin offset)

PROGRAM DELETE

Confirmation of the deletion of the
program

ALL DATA DELETE

Confirmation of the deletion of all data

INPUT IN SETTING

Confirmation of a data update during the
data setting process

UPDATE MODAL HIGHLIGHT
DISPLAY

Display of updated modal information

AXIS STATUS DISPLAY

Axis status display

START FROM MIDDLE OF PROGRAM

Confirmation of the start from a middle
block

B-63944EN/03

OPERATION

6.SAFETY FUNCTIONS

- 1219 -

6.5.3.2

Tool offset range setting screen

This screen displays the setting status of tool offset effective data
ranges and lets you change their settings. (Hereinafter, the screen is
referred to as the tool offset range setting screen.)
Up to 20 pairs of numbers can be specified to identify tool offset
number ranges, and an effective offset value range can be defined for
each of these 20 pairs.

Displaying and setting the tool offset range setting screen

Procedure

1 Press

the

function key.

2 Press the continuous menu key

at the right edge of the

screen several times until the [GUARD] soft key is displayed.

3 Click the [GUARD] soft key. The setting screen that was

If any screen other than the tool offset range setting screen is
displayed, click the [OFFSET] soft key. The tool offset range
setting screen is displayed. What is displayed in this screen
differs depending on the system configuration described later.

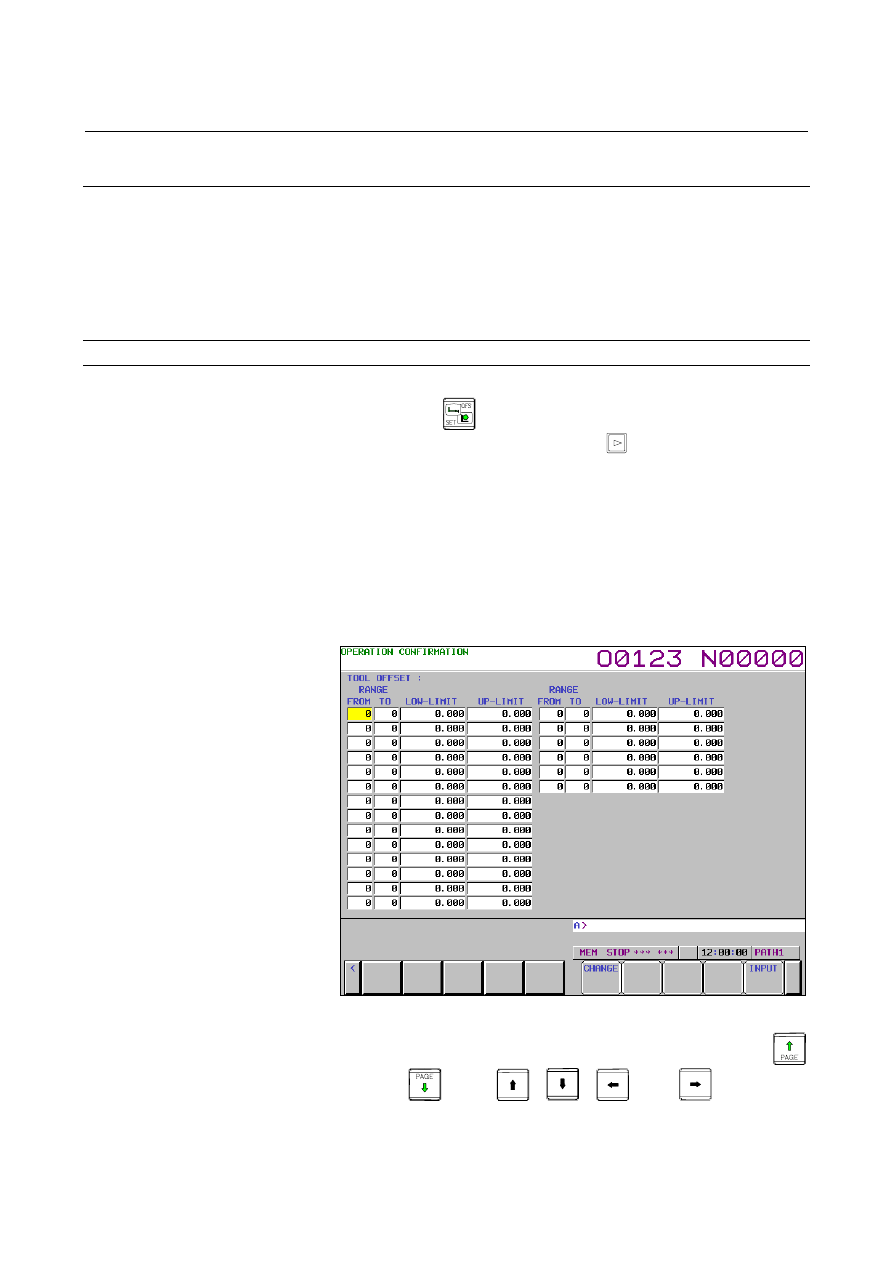

Fig. 6.5.3.2 (a) Tool offset range setting screen

Move the cursor to the item you want to set, by using the

and

keys,

, and

keys, or the

[SWITCH] soft key.

6 Press the MDI key, enter necessary data, and then click the

[INPUT] soft key.
