4.AUTOMATIC OPERATION

 OPERATION

B-63944EN/03





- 1148 -

 WARNING



As a rule, the tool cannot be returned to a correct position under
the following conditions.



Special care must be taken in the following cases since none of
them cause an alarm:

- Manual operation is performed when the manual absolute mode

is OFF.

- Manual operation is performed when the machine is locked.
- When the mirror image is used.    However, P type return is

possible for a block that switched between ON and OFF most
recently or a subsequent block.    In this case, the mirror image
signal status present when the program was interrupted must be
maintained.

- When no coordinate system is set up at the beginning of a

program in which main commands are executed in the
incremental mode.

- When manual operation is performed in the course of axis

movement for returning operation.

- When the program restart is commanded for a block between the

block for skip cutting and subsequent absolute command block.

- When program restart is specified in the machine lock state, then

the machine lock is canceled.

- When program restart specified for an intermediate block for a

multiple repetitive canned cycle

- In general, when a coordinate system is set up, changed, or

shifted after the search operation ends, the tool cannot be
returned to a correct position.



 CAUTION



Keep the following in mind when restarting a program including
macro variables.



- Common variable

When the program is restarted, the previous values are inherited
as common variables without being preset automatically.    Before
restarting the program, initialize the appropriate variables to the
original values used at start of the previous automatic operation.

 -

DI/DO

At restart of the program, DI can be read by a system variable, but
DO cannot be output.

 -

Clock

When the program is being restarted, the clock time can be
obtained by a system variable, but the time cannot be preset.



- Tool offset and workpiece origin offset

When the program is being restarted, the offset can be read by a
system variable, but change of the offset is allowed only for the Q
type.



B-63944EN/03

 OPERATION

4.AUTOMATIC OPERATION





- 1149 -

4.9

TOOL RETRACT AND RECOVER


The tool can be retracted from a workpiece to replace the tool, if
damaged during machining, or to check the status of machining. Then,
the tool can be returned to restart machining efficiently.



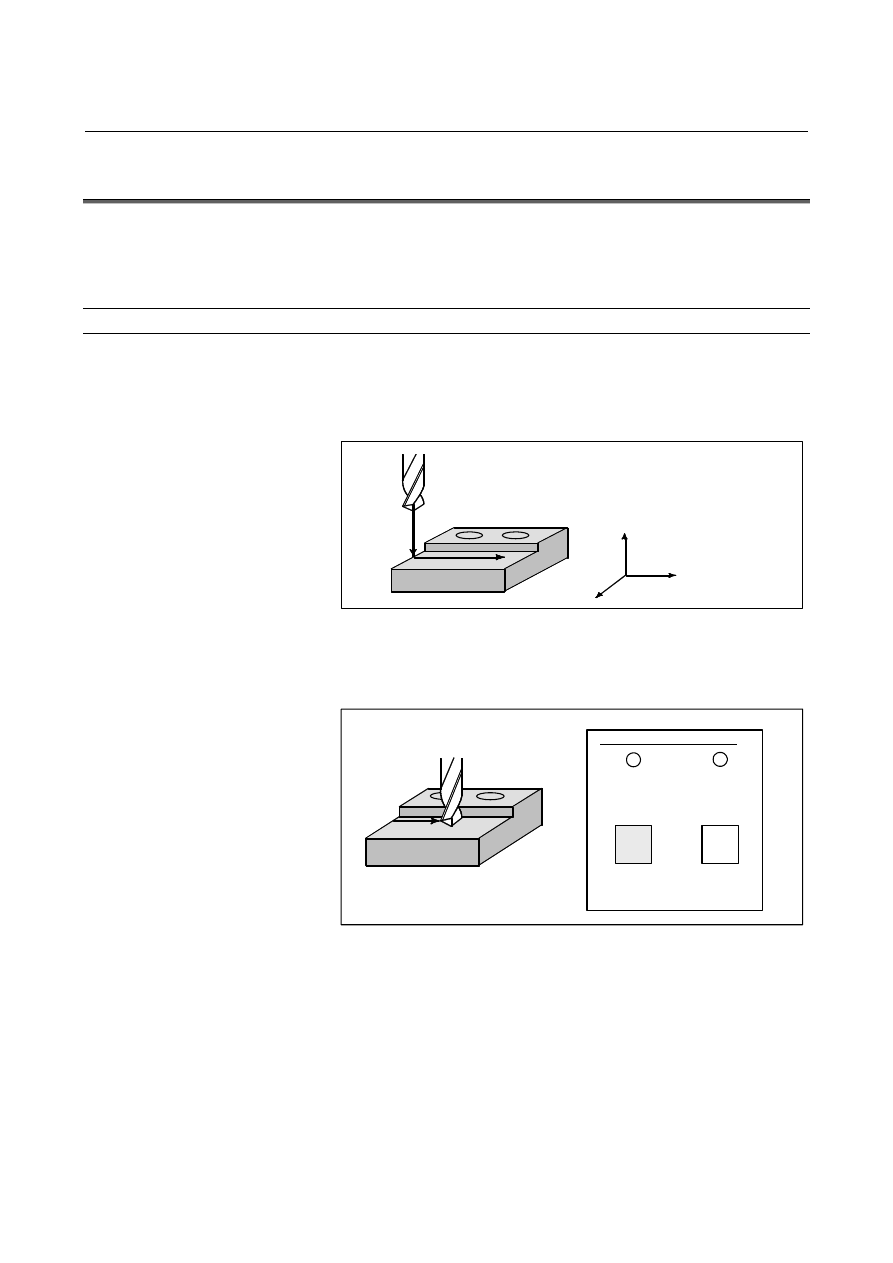

Procedure for tool retract and recover

Procedure1 - Programming

Specify a retraction axis and distance in command G10.6IP_
beforehand. In the sample program below, the N20 block specifies
that the Z-axis is the retraction axis and the retraction distance is to be
50 mm.



N30

N10

(Sample program)
N10 G91 Z-50.    ;
N20 G10.6 Z50.    ;
N30 G01 X150. F500.    ;

X

Z

Y





Procedure 2 - Retract

Suppose that the TOOL WITHDRAW switch on the machine
operator's panel is turned on when the tool is positioned at point A
during execution of the N30 block.

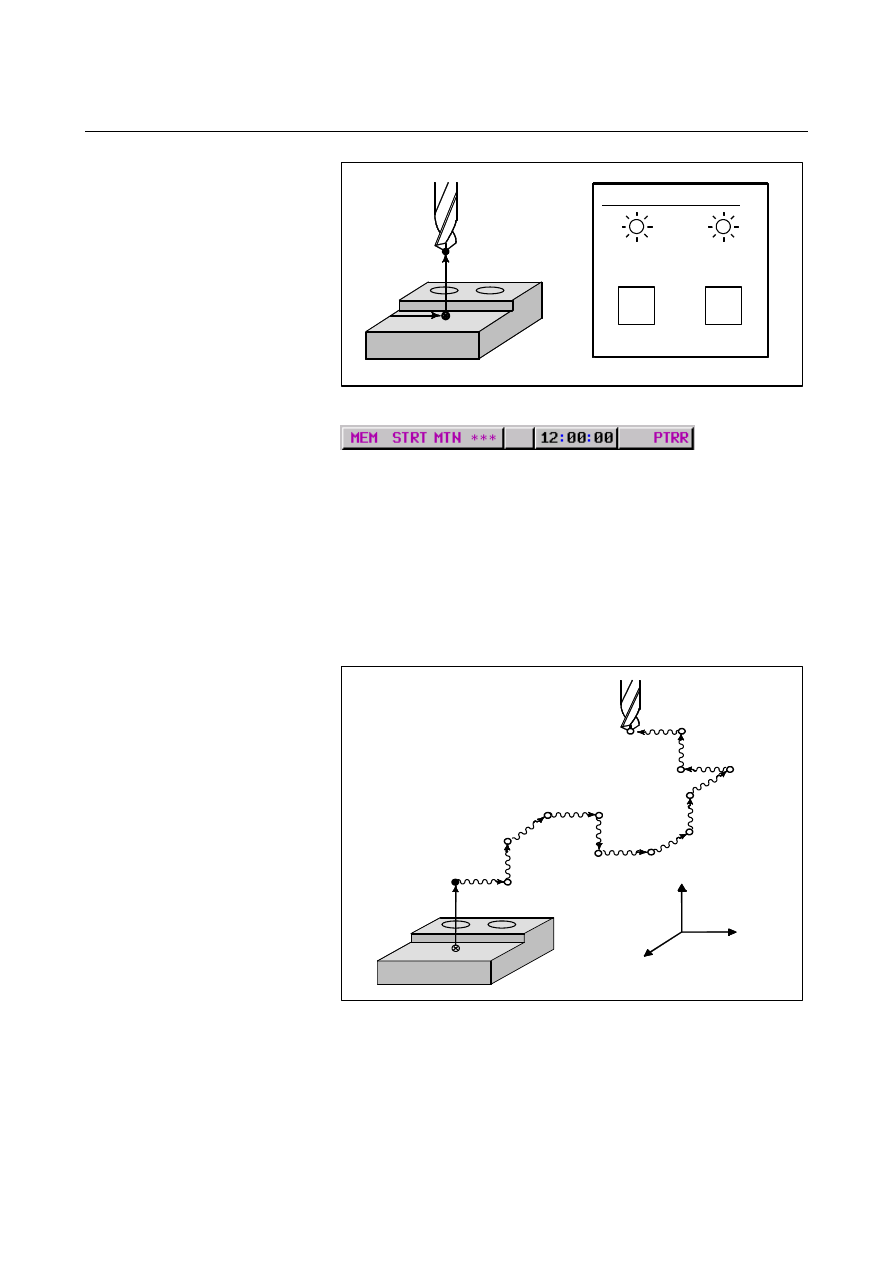

N30

A

Machine operator's panel

TOOL BEING
WITHDRAWN

RETRACTION

POSITION

TOOL
WITHDRAW

TOOL
RETURN




Next, the tool withdrawal mode is set and the TOOL BEING
WITHDRAWN LED goes on.  At this time, automatic operation is
temporarily halted.  The tool is then retracted by the programmed
distance.  If point A is the end point of the block, retraction is
performed after automatic operation is stopped.    Retraction is based
on linear interpolation.  The dry run feedrate is used for retraction.
Upon completion of retraction, the RETRACT POSITION LED on
the operator's panel goes on.


4.AUTOMATIC OPERATION

 OPERATION

B-63944EN/03





- 1150 -

N30

A

Point E

Machine operator's panel

TOOL BEING
WITHDRAWN

RETRACTION

POSITION

TOOL
WITHDRAW

TOOL
RETURN




During retraction, the screen displays PTRR and STRT.





•



PTRR blinks in the field for indicating states such as the program
editing status.

•



STRT is displayed in the automatic operation status field.

•

   MTN is displayed in the field for indicating status such as

movement along an axis.



Procedure 3 - Withdrawal

Set the manual operation mode, then withdraw the tool.    For manual
operation, either jog feed incremental feed, handle feed, or manual
numerical command is possible.



3

X

Y

Z

1

2

4

5

6

7

8

9

10

11

12

Point E

Point A





B-63944EN/03

 OPERATION

4.AUTOMATIC OPERATION





- 1151 -

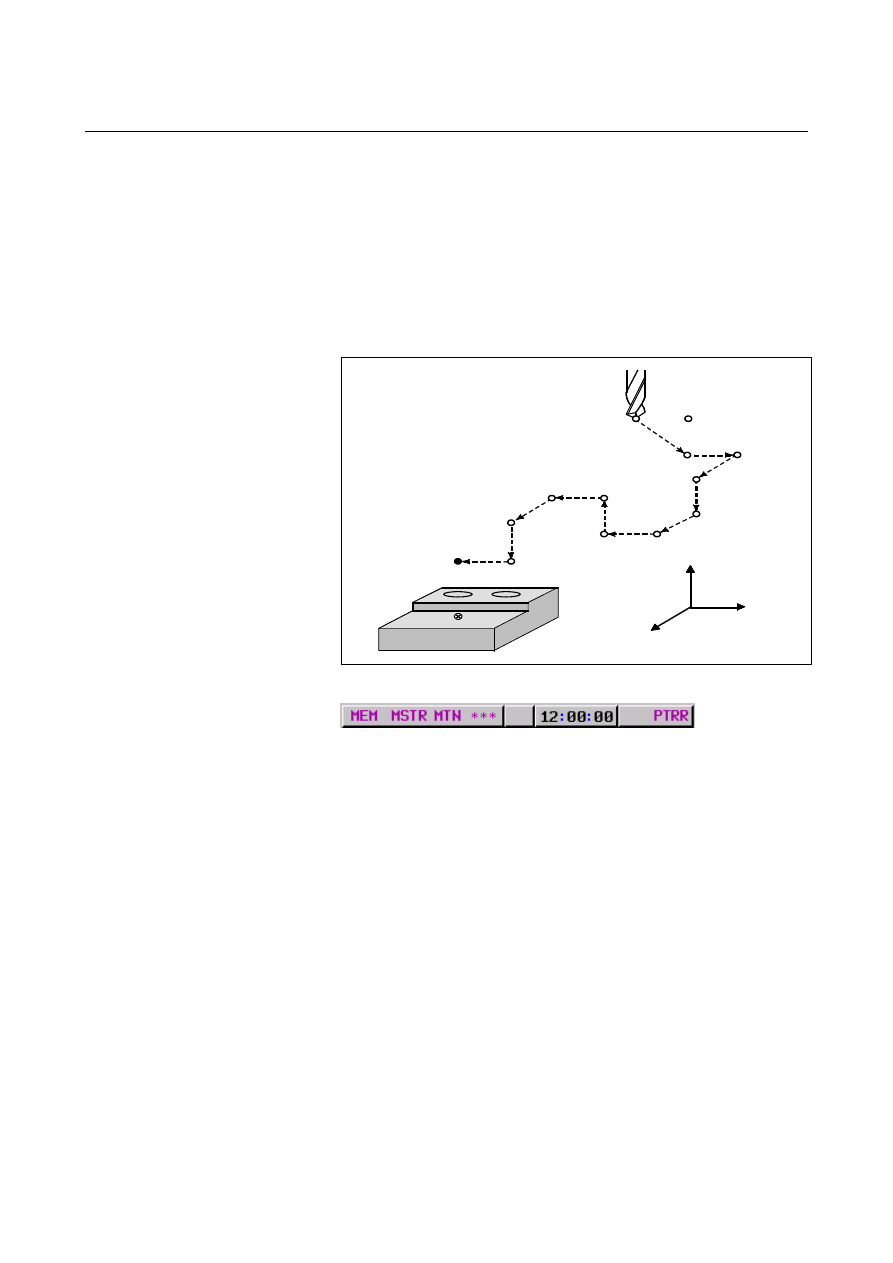

Procedure 4 - Return

After withdrawing the tool and any additional operation such as
replacing the tool, move the tool back to the previous retraction
position.  To return the tool to the retraction position, return the
mode to automatic operation mode, then turn the TOOL RETURN
switch on the operator's panel on then off again.    The tool returns to
the retraction position at the dry run feedrate, regardless of whether
the dry run switch is on or off.
When the tool has returned to the retraction position, the
RETRACTION POSITION LED comes on.

X

Y

Z

9

Point A

Point E

1

2

5

3

6

4

7

10

8

11

12


During return operation, the screen displays PTRR and MSTR.





•



PTRR blinks in the field for indicating states such as program
editing status.

•



MSTR is displayed in the automatic operation status field.

•

  MTN is displayed in the field for indicating states such as

movement along an axis.



4.AUTOMATIC OPERATION

 OPERATION

B-63944EN/03





- 1152 -

Procedure 5 - Repositioning

While the tool is at the retraction position (point E in the figure below)
and the RETRACTION POSITION LED is on, press the cycle start
switch.  The tool is then repositioned at the point where retraction
was started (i.e. where the TOOL WITHDRAW switch was turned on).
Repositioning is based on linear interpolation.    The dry run feedrate
is used for repositioning.

N30  A

Point E



Upon completion of repositioning, the tool withdraw mode is
cancelled, and the TOOL BEING WITHDRAWN LED goes off and
restart N30.


Limitation

1  If the origin, presetting, workpiece origin offset value (or

external workpiece origin offset value), or workpiece coordinate
shift amount (for a lathe system) is changed after the retraction
position is specified with G10.6 in the absolute mode, the change
is not reflected in the retraction position.  After such changes
are made or the workpiece origin offset value (or external
workpiece origin offset value) or workpiece coordinate shift
amount (for a lathe system) is changed, respectively the
retraction position with G10.6.

2

When retracting the tool manually in the tool withdrawal mode,
do not use the machine lock, mirror-image, or scaling function.



 WARNING



The retraction axis and retraction distance
specified in G10.6 must be changed in an
appropriate block according to the figure being
machined.    Be very careful when specifying the
retraction distance; an incorrect retraction distance
may damage the workpiece, machine, or tool.



B-63944EN/03

 OPERATION

4.AUTOMATIC OPERATION





- 1153 -

4.9.1

Retract



Explanation
  - When no retraction distance is specified

If no retraction distance or direction required for retraction are
specified, retraction is not performed when the TOOL WITHDRAW
switch on the operator's panel is turned on.    Instead, the block being
executed in automatic operation is interrupted (automatic operation is
held or stopped).  In this state, the tool can be withdrawn and
returned.

N30  Point APoint E





  - Retraction from the automatic operation hold or stop state

When the single block switch is turned on during automatic operation,
or the TOOL WITHDRAW switch is turned on after the automatic
operation hold or stop state is set by feed hold:  Retraction is
performed, then the automatic operation hold or stop state is set again.


 - Stopping retraction

During retraction, feed hold operation is ignored.  However, reset
operation is enabled (retraction is stopped at reset).    When an alarm
is issued during retraction, the retraction is stopped immediately.


  - Repositioning immediately after retraction

After retraction is completed, tool repositioning can be started without
performing the withdraw and return operations.


4.AUTOMATIC OPERATION

 OPERATION

B-63944EN/03





- 1154 -

4.9.2

Withdrawal



Explanation
 - Axis selection

To move the tool along an axis, select the corresponding axis selection
signal.    Never specify axis selection signals for two or more axes at a
time.


 - Path memorization

When the tool is moved in manual operation along an axis, the control
unit memorizes up to ten paths of movements.    If the tool is stopped
after being moved along a selected axis and is then moved along
another selected axis, the position where this switch takes place is
memorized.    After ten paths have been memorized, the control unit
does not memorize any additional switching points.


 - Reset

Upon reset, memorized position data is lost and the tool withdraw
mode is cancelled.


NOTE



If an attempt is made to move the tool
simultaneously along two axes using the manual
numeric command in the tool withdrawal mode, an
alarm (PS0015) is issued.



4.9.3

Return



Explanation
 - Return path

When there are more than ten return paths, the tool first moves to the
tenth position, then to the ninth position, then to the eighth position,
and so forth until the retraction position is reached.


 - Single block

The single block switch is enabled during return operation.  If the
single block switch is turned off, continuous return operation is
performed.    If the single block switch is turned off, the tool stops at
each memorized position.  In this case, return operation can be
resumed by turning the TOOL RETURN switch on then off again.


  - Interruption of return operation

When an alarm is issued during return operation, return operation
stops.


 - Feed hold

The feed hold function is enabled during return operation.


B-63944EN/03

 OPERATION

4.AUTOMATIC OPERATION





- 1155 -

4.9.4

Repositioning



Explanation
 - Feed hold

The feed hold function is disabled during repositioning.


  - Operation after completion of repositioning

The operation after completion of repositioning depends on the
automatic operation state present when the TOOL WITHDRAW
switch is turned on.

1

When automatic operation is being started
After completion of repositioning, the interrupted execution of
the block is resumed.

2

When automatic operation is held or stopped
After completion of repositioning, the tool stops once at the
repositioned point, then the original automatic operation hold or
stop state is set.  When the cycle start switch is pressed,
automatic operation is resumed.
