2.OPERATIONAL DEVICES

 OPERATION

B-63944EN/03





- 1028 -

2.5.2

Power Disconnection



Procedure of power disconnection



Procedure

1  Check that the LED indicating the cycle start is off on the

operator's panel.

2  Check that all movable parts of the CNC machine tool is

stopping.

3  If an external input/output device such as the Handy File is

connected to the CNC, turn off the external input/output device.

4  Continue to press the <POWER OFF> button for about 5

seconds.

5

Refer to the machine tool builder's manual for turning off the
power to the machine.



B-63944EN/03

 OPERATION

3.MANUAL OPERATION





- 1029 -

3

MANUAL OPERATION


MANUAL OPERATION are twelve kinds as follows :

3.1  MANUAL REFERENCE POSITION RETURN...................1030
3.2  JOG FEED (JOG)...................................................................1032
3.3 INCREMENTAL

FEED.........................................................1034

3.4  MANUAL HANDLE FEED ..................................................1036
3.5  MANUAL ABSOLUTE ON AND OFF ................................1040
3.6  MANUAL LINEAR/CIRCULAR INTERPOLATION .........1046
3.7  RIGID TAPPING BY MANUAL HANDLE.........................1052
3.8  MANUAL NUMERICAL COMMAND................................1055
3.9  THREE-DIMENSIONAL MANUAL FEED.........................1064
3.10 DISTANCE CODED LINEAR SCALE INTERFACE..........1080
3.11 LINEAR SCALE WITH DISTANCE-CODED REFERENCE

MARKS (SERIAL) ................................................................1087

3.12 MANUAL HANDLE RETRACE ..........................................1093
3.13 AUXILIARY FUNCTION OUTPUT BLOCK REVERSE

MOVEMENT FOR MANUAL HANDLE RETRACE .........1108



3.MANUAL OPERATION

 OPERATION

B-63944EN/03





- 1030 -

3.1

MANUAL REFERENCE POSITION RETURN


The tool is returned to the reference position as follows :
The tool is moved in the direction specified in bit 5 (ZMI) of
parameter No.1006 for each axis with the reference position return
switch on the machine operator's panel. The tool moves to the
deceleration point at the rapid traverse rate, then moves to the
reference position at the FL speed. The rapid traverse rate and FL
speed are specified in parameters Nos. 1424,1421, and 1425.
Four step rapid traverse override is effective during rapid traverse.
When the tool has returned to the reference position, the reference
position return completion LED goes on. The tool generally moves
along only a single axis, but can move along three axes
simultaneously when specified so in bit 0 (JAX) of parameter
No.1002.

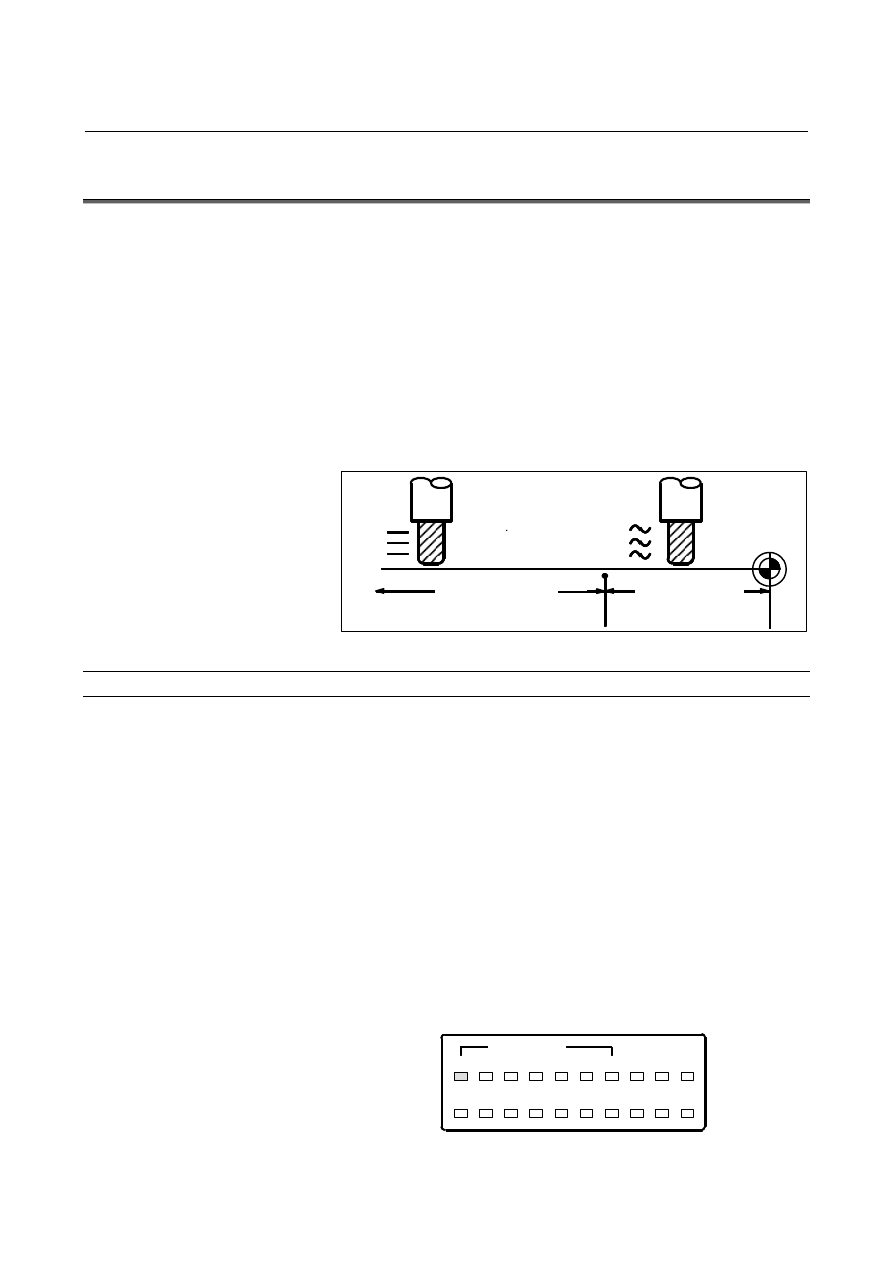

Deceleration point

Reference position

Rapid traverse motion
Rapid traverse rate
(rapid traverse

override is effective)

Decelerated motion

FL speed



Fig. 3.1 (a)    Manual reference position return



Procedure for manual reference position return

Procedure

1  Press the reference position return switch, one of the mode

selection switches.

2

To decrease the feedrate, press a rapid traverse override switch.

3

Press the feed axis and direction selection switch corresponding
to the axis and direction for reference position return. Continue
pressing the switch until the tool returns to the reference position.
The tool can be moved along three axes simultaneously when
specified so in an appropriate parameter setting. The tool moves
to the deceleration point at the rapid traverse rate, then moves to
the reference position at the FL speed set in a parameter. When
the tool has returned to the reference position, the reference
position return completion LED goes on.

4

Perform the same operations for other axes, if necessary.


The above is an example. Refer to the appropriate manual provided by
the machine tool builder for the actual operations.

X

MIRRROR IMAGE

Y

Z

C

X2

Y2

Z2

X

Y

Z

PROGRAM

STOP

M02/

M30

MANU

ABS

SPINDLE

ORI

TAP

ATC

READY

NC? MC?

ZERO POSITION



Fig. 3.1 (b)

B-63944EN/03

 OPERATION

3.MANUAL OPERATION





- 1031 -

Explanation
  - Automatically setting the coordinate system

Bit 0 (ZPR) of parameter No.1201 is used for automatically setting the
coordinate system. When ZPR is set, the coordinate system is
automatically determined when manual reference position return is
performed.
When

α

,

β

 and

γ

 are set in parameter 1250, the workpiece coordinate

system is determined so that reference point on the tool holder or the
position of the tip of the reference tool is X=

α

, Y =

β

, Z =

γ

 when

reference position return is performed.  This has the same effect as
specifying the following command for reference position return:
G92X

α

Y

β

Z

γ

;

However, when options of the workpiece coordinate system is
selected, it is not able to use.


Limitation
  - Moving the tool again

Once the reference position return completion LED lights at the
completion of reference position return, the tool does not move unless
the reference position return switch is turned off.


  - Reference position return completion LED

The reference position return completion LED is extinguished by
either of the following operations:

•

 Moving from the reference position.

•

 Entering an emergency stop state.



  - The distance to return to reference position

For the distance (Not in the deceleration condition) to return the tool
to the reference position, refer to the manual issued by the machine
tool builder.


3.MANUAL OPERATION

 OPERATION

B-63944EN/03





- 1032 -

3.2

JOG FEED (JOG)


In the jog mode, pressing a feed axis and direction selection switch on
the machine operator's panel continuously moves the tool along the
selected axis in the selected direction.
The jog feedrate is specified in a parameter No.1423.
The jog feedrate can be adjusted with the jog feedrate override dial.
Pressing the rapid traverse switch moves the tool at the rapid traverse
feedrate No. 1424 regardless of the position of the jog feedrate
override dial. This function is called the manual rapid traverse.
Manual operation is allowed for one axis at a time. 3 axes can be
selected at a time by bit 0 (JAX) of parameter No.1002.


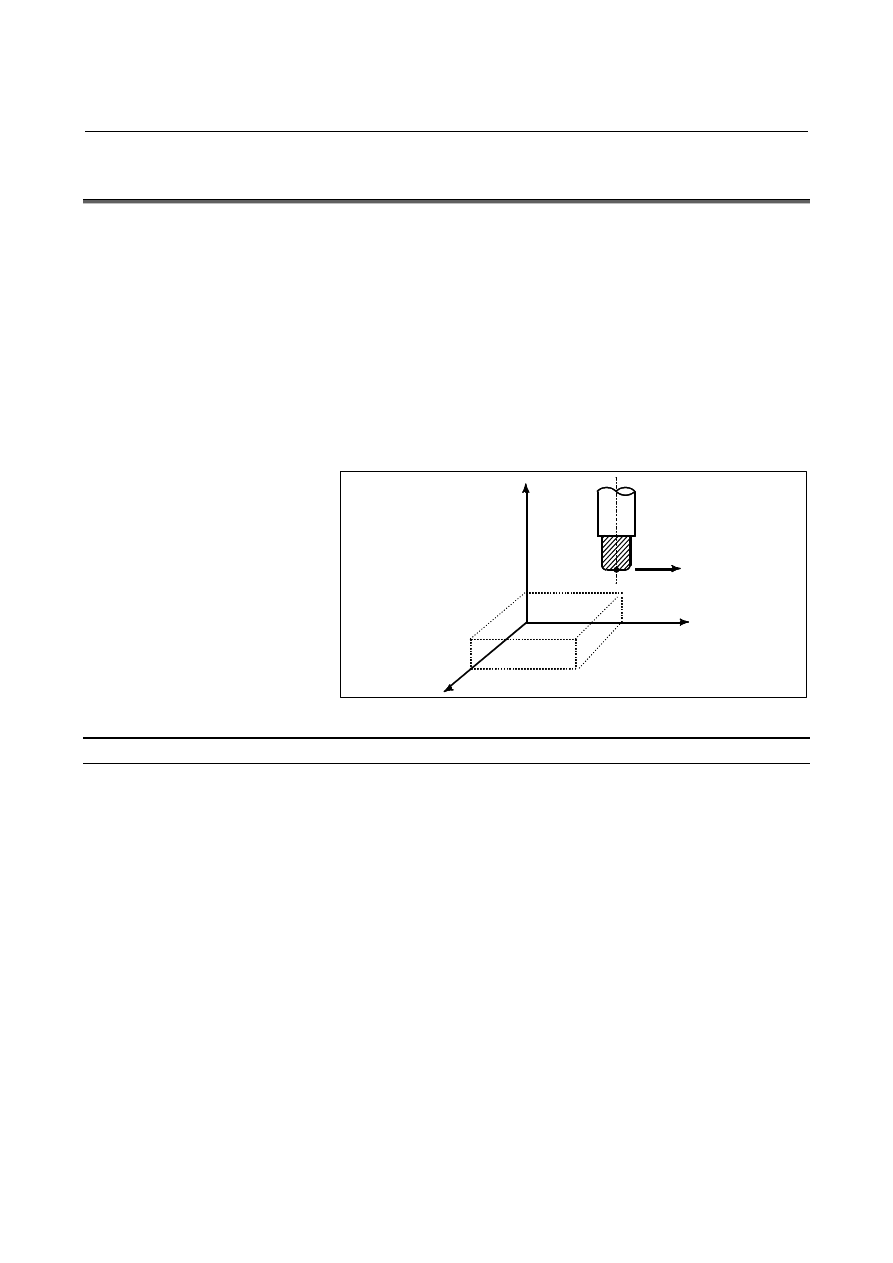

While a switch is pressed, the tool
moves in the direction specified by
the switch.

Z

X

Y



Fig. 3.2 (a)    Jog Feed (JOG)



Procedure for JOG feed

Procedure

1

Press the jog switch, one of the mode selection switches.

2

Press the feed axis and direction selection switch corresponding
to the axis and the direction where the tool is to be moved. While
the switch is pressed, the tool moves at the feedrate specified in
the parameter No. 1423. The tool stops when the switch is
released.

3

The jog feedrate can be adjusted with the jog feedrate override
dial.

4

Pressing the rapid traverse switch while pressing a feed axis and
direction selection switch moves the tool at the rapid traverse rate
while the rapid traverse switch is pressed. Rapid traverse
override by the rapid traverse override switches is effective
during rapid traverse.


The above is an example.    Refer to the appropriate manual provided
by the machine tool builder for the actual operations.


B-63944EN/03

 OPERATION

3.MANUAL OPERATION





- 1033 -

Explanation
  - Manual per revolution feed

The manual per revolution feed is enabled for jog feed by setting bit 4
(JRV) of parameter No.1402.
During the manual per revolution feed, the tool is jogged at the
feedrate that is obtained by multiplying the spindle speed by the feed
amount per revolution, which is calculated by multiplying the jog
feedrate override value by the feed amount per revolution specified
with the parameter (No. 1423).
During manual per revolution feed, the tool is jogged at the following
feedrate:
Feed distance per rotation of the spindle (mm/rev) (specified with
parameter No. 1423)

×

 JOG feedrate override

×

 actual spindle speed

(rev/min).


Limitation
 - Acceleration/deceleration for rapid traverse

Feedrate, time constant and method of automatic acceleration/
deceleration for manual rapid traverse are the same as G00 in
programmed command.


  - Change of modes

Changing the mode to the jog mode while pressing a feed axis and
direction selection switch does not enable jog feed. To enable jog feed,
enter the jog mode at first, then press a feed axis and direction
selection switch.


  - Rapid traverse prior to reference position return

If reference position return is not performed after power-on, pushing
rapid traverse button does not actuate the rapid traverse but the
remains at the JOG feedrate. This function can be disabled by setting
bit 0 (RPD) of parameter No.1401.


3.MANUAL OPERATION

 OPERATION

B-63944EN/03





- 1034 -

3.3

INCREMENTAL FEED


In the incremental (INC) mode, pressing a feed axis and direction
selection switch on the machine operator's panel moves the tool one
step along the selected axis in the selected direction.  The minimum
distance the tool is moved is the least input increment.    Each step can
be 10, 100, or 1000 times the least input increment.
With using bit 2 (HNT) of parameter No. 7103, each step can be
additionally 10 times the lest input increment.
The feedrate set in parameter No. 1423 is applied.
By using the manual feedrate override signal, the feedrate can be
increased or decreased.
The tool can also be moved at the rapid traverse rate by using the
manual rapid traverse selection signal, independent of the manual
feedrate override signal.

Y

X

Z

Tool

Each time a switch is
pressed, the tool moves one
step in the direction
specified by the switch.



Fig. 3.3 (a)    Incremental feed



Procedure for incremental feed

Procedure

1

Press the INC switch, one of the mode selection switches.

2  Select the distance to be moved for each step with the

magnification dial.

3

Press the feed axis and direction selection switch corresponding
to the axis and direction the tool is to be moved.    Each time a
switch is pressed, the tool moves one step.    The feedrate is the
same as the jog feedrate.

4

Pressing the rapid traverse switch while pressing a feed axis and
direction selection switch moves the tool at the rapid traverse
rate.



Rapid traverse override by the rapid traverse override switch is
effective during rapid traverse.


The above is an example. Refer to the appropriate manual provided by
the machine tool builder for the actual operations.


B-63944EN/03

 OPERATION

3.MANUAL OPERATION





- 1035 -

Explanation
  - Travel distance specified with a diameter

T



The distance the tool travels along the X-axis can be specified with a
diameter.
