FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 128

B-63944EN/03

 OPERATION

1.GENERAL





- 981 -

1

GENERAL


Chapter 1, "GENERAL", consists of the following sections:

1.1 MANUAL OPERATION..........................................................982
1.2  TOOL MOVEMENT BY PROGRAMING - AUTOMATIC

OPERATION ............................................................................984

1.3 AUTOMATIC OPERATION ...................................................986
1.4  TESTING A PROGRAM .........................................................988
1.5  EDITING A PROGRAM ..........................................................990
1.6  DISPLAYING AND SETTING DATA....................................991
1.7 DISPLAY..................................................................................994
1.8  ADJUSTMENT OF THE BRIGHTNESS OF THE

MONOCHROME LCD ............................................................997




1.GENERAL

 OPERATION

B-63944EN/03





- 982 -

1.1

MANUAL OPERATION



Explanation

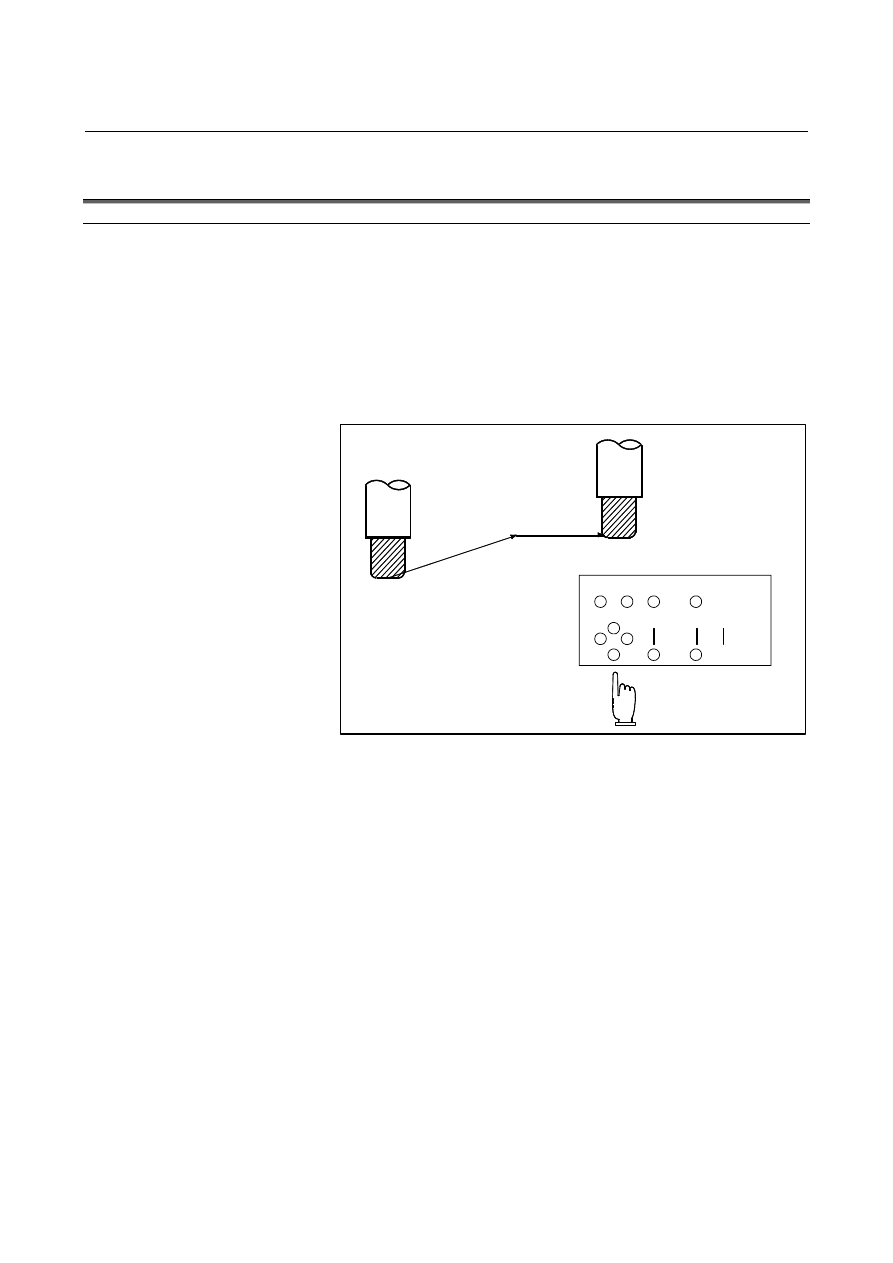

  - Manual reference position return

The CNC machine tool has a position used to determine the machine
position.
This position is called the reference position, where the tool is
replaced or the coordinate are set.  Ordinarily, after the power is
turned on, the tool is moved to the reference position.
Manual reference position return is to move the tool to the reference
position using switches and pushbuttons located on the operator's
panel. (See Section III-3.1)

Reference position

Tool

Machine operator's panel



Fig. 1.1 (a)    Manual reference position return


The tool can be moved to the reference position also with program
commands.
This operation is called automatic reference position return (See
Section II-6).

B-63944EN/03

 OPERATION

1.GENERAL





- 983 -

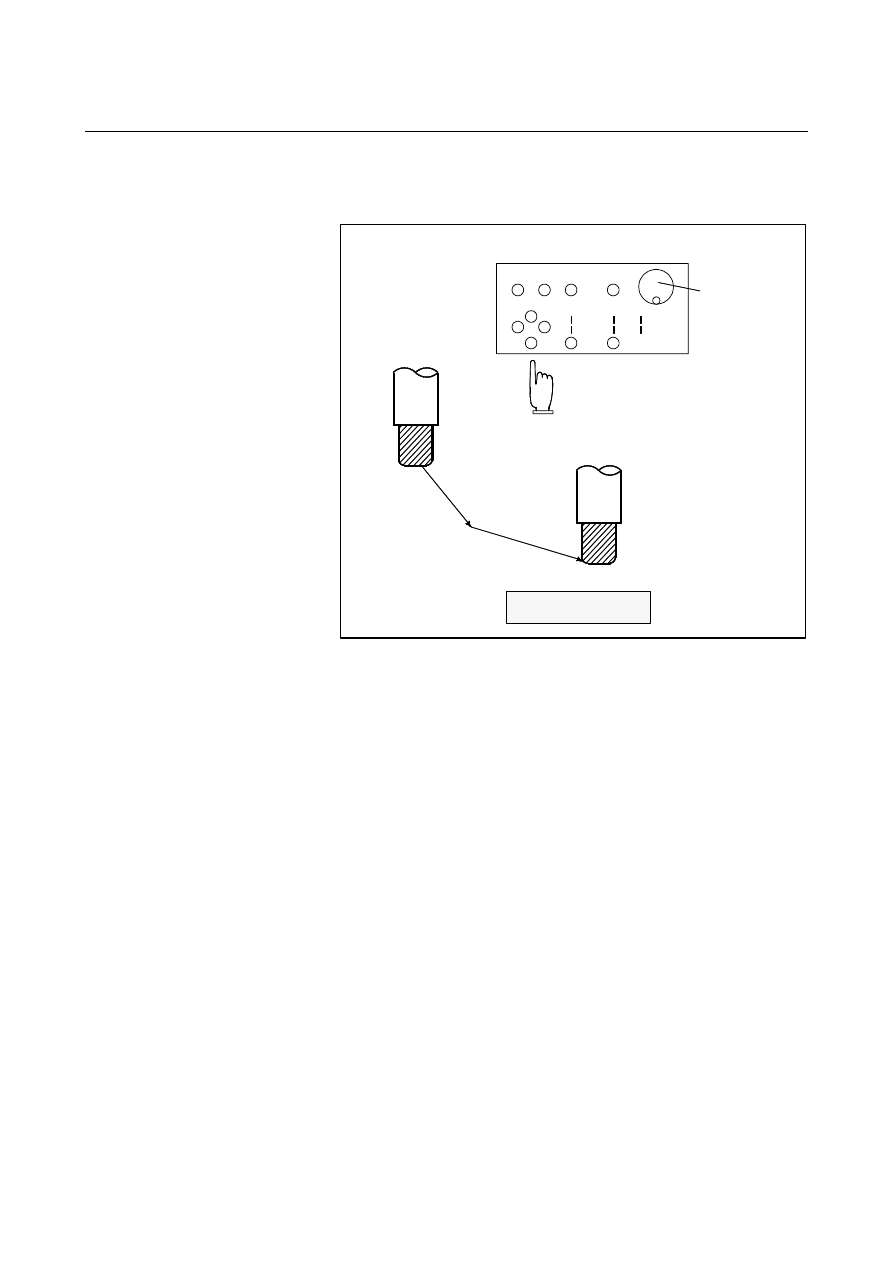

  - The tool movement by manual operation

Using machine operator's panel switches, pushbuttons, or the manual
handle, the tool can be moved along each axis.

Tool

Workpiece

Machine operator's panel

Manual pulse
generator



Fig. 1.1 (b)    The tool movement by manual operation


The tool can be moved in the following ways:
(i)  Jog feed (See Section III-3.2)


The tool moves continuously while a pushbutton remains
pressed.

(ii)  Incremental feed (See Section III-3.3)


The tool moves by the predetermined distance each time a button
is pressed.

(iii)  Manual handle feed (See Section III-3.4)


By rotating the manual handle, the tool moves by the distance
corresponding to the degree of handle rotation.



1.GENERAL

 OPERATION

B-63944EN/03





- 984 -

1.2

TOOL MOVEMENT BY PROGRAMING - AUTOMATIC
OPERATION


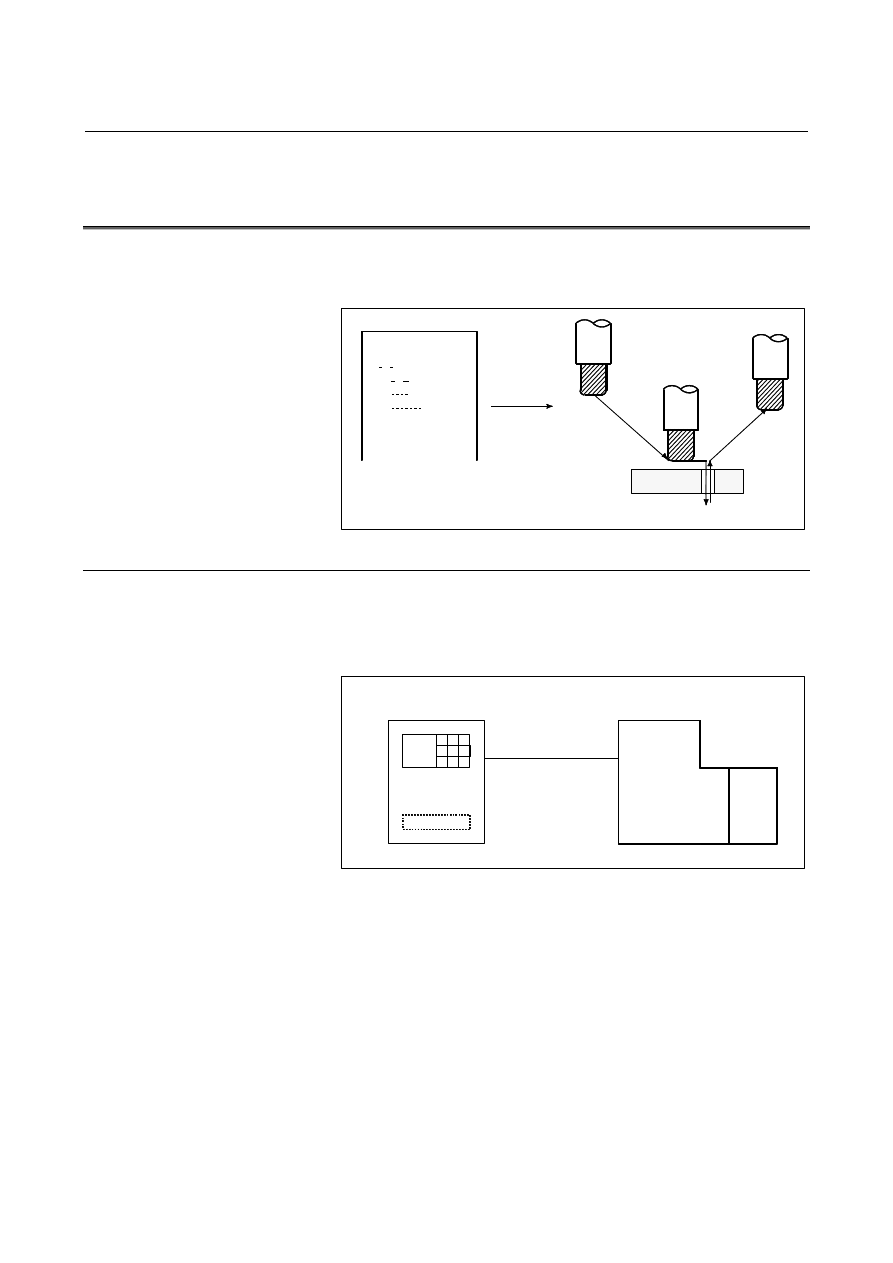

Automatic operation is to operate the machine according to the created
program. It includes memory, MDI and DNC operations. (See Section
III-4).



Program

Tool

01000 ;
M S T ;
G92 X      ;
G00   ;
G01     ;
 :
 :
 :



Fig. 1.2 (a)    Tool Movement by programming



Explanation
 - Memory operation

After the program is once registered in memory of CNC, the machine
can be run according to the program instructions. This operation is
called memory operation.

CNC

Machine

Memory



Fig. 1.2 (b)    Memory operation

B-63944EN/03

 OPERATION

1.GENERAL





- 985 -

 - MDI operation

After the program is entered, as an command group, from the MDI
keyboard, the machine can be run according to the program.  This
operation is called MDI operation.

CNC MDI keyboard

Machine

Manual program
input



Fig. 1.2 (c)    MDI operation



 - DNC operation

In this mode of operation, the program is not registered in the CNC
memory. It is read from the external input/output devices instead.
This is called DNC operation.

1.GENERAL

 OPERATION

B-63944EN/03





- 986 -

1.3

AUTOMATIC OPERATION



Explanation
 - Program selection

Select the program used for the workpiece.    Ordinarily, one program
is prepared for one workpiece. If two or more programs are in memory,
select the program to be used, by searching the program number
(Section III-9.3).



Programs in memory

Search for desired program by
file name or program number.

Automatic
operation

M30

G92

O1001



Fig. 1.3 (a)    Program selection for automatic operation



  - Start and stop

Pressing the cycle start pushbutton causes automatic operation to start.
By pressing the feed hold or reset pushbutton, automatic operation
pauses or stops. By specifying the program stop or program
termination command in the program, the running will stop during
automatic operation. When one process machining is completed,
automatic operation stops. (See Section III-4)



Cycle start

Start

Feed hold
Reset

Automatic
operation

Program stop
Program end

Stop caused
by program

Stop



Fig. 1.3 (b)    Start and stop for automatic operation

B-63944EN/03

 OPERATION

1.GENERAL





- 987 -

 - Handle interruption

While automatic operation is being executed, tool movement can
overlap automatic operation by rotating the manual handle. (See
Section III-4.4)



Z

X

Programmed
depth of cut

Tool position after
handle interruption

Tool position
during automatic
operation

Depth of cut
by handle
interruption



Fig. 1.3 (c)    Handle interruption for automatic operation
