FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 120

22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 916 -

<1>  When the current rotary axis angles are (B -70 degrees; C 30

degrees)



The "output angles" are (B -90 degrees; C 0 degree).
  0 degree is adopted because it is nearer to the current

position (30 degrees) of the C-axis that is the master axis.
For the B-axis, 270 degrees is adopted which is the same
group.  However, this is changed to -90 degrees (270
degrees - 360 degrees) which is the nearest to the current
position of the B-axis (-70 degrees).

<2>  When the current rotary axis angles are (B 80 degrees; C 500

degrees)



The "output angles" are (B 90 degrees; C 540 degrees).
  540 degrees (180 degrees

+

 360 degrees) is adopted because

it is nearer to the current position (500 degrees) of the C-axis
that is the master axis.  For the B-axis, 90 degrees is
adopted which is the same group.

<3>  When the current rotary axis angles are (B 60 degrees; C 90

degrees)



The "output angles" are (B 90 degrees; C 180 degrees).
  Since the two candidates are equally near to the current

position (90 degrees) of the C-axis that is the master axis, a
judgment is made based on the current position of the B-axis.
90 degrees is adopted because it is nearer to the current
position (60 degrees) of the B-axis that is the slave axis.
For the C-axis, 180 degrees is adopted which is the same
group.

<4>  When the current rotary axis angles are (B 180 degrees; C 90

degrees)



The "output angles" are (B 270 degrees; C 0 degree).
  Since the two candidates are equally near to the current

position (90 degrees) of the C-axis that is the master axis, a
judgment is made based on the current position of the B-axis.
In this case, however, the two candidates are also equally
near to the current position of the B-axis (180 degrees).
Therefore, the candidate is adopted in which the C-axis
(master axis) is nearer to 0 degree.

  That is, the pair is adopted whose C-axis angle is 0 degree

and whose B-axis angle is 270 degrees.

  When the slave axis angle is 0 degree, the direction of the

tool axis becomes fixed regardless of the master axis angle.


In that case, the master axis does not move from the current angle.

An explanation is shown below using a machine having a "BC type
tool axis Z" as an example.

B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 917 -

•

    BC type tool axis Z

X

Y

Z

C



Fig. 22.5.1.1 (v)    BC type tool axis Z


When the current rotary axis angles are (B 45 degrees; C 90 degrees),
the "output angles" are (B 0 degree; C 90 degrees).


22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 918 -

  - Angle of the rotary axis for type 2 (when the movement range is specified)

If the upper and lower limits of the movement range of the rotary axis
is specified using parameters No.19741 to No.19744, the rotary axis
will move only within the specified range when the direction is
specified using I, J, K, Q command for type 2 control.



Although the procedure for determining the angles is the same as that
used "when the movement range is not specified," the "output angles"
need to be selected from

those computed angles that are within the

specified movement range for both axes

.



Tool rotation type or table rotation type machine

<1>  Of the angle pairs whose master and slave axis angles are both within

the specified movement range, the rotary axis angle pair whose
master axis (first rotary axis) moving angle is smaller represents the
"output angles."



↓





↓

 When the master axis moving angle is the same



↓



<2>  The "output angles" are represented by the computed rotary axis

angle pair whose slave axis (second rotary axis) moving angle is
smaller.



↓





↓

 When the slave axis moving angle is the same



↓



<3>  The "output angles" are represented by the computed rotary axis

angle pair whose master axis (first rotary axis) angle is nearer to 0
degree (multiple of 360 degrees).



↓





↓

 When the master axis angle is equally near to 0 degree



↓



<4>  The "output angles" are represented by the computed rotary axis

angle pair whose slave axis (second rotary axis) angle is nearer to 0
degree (multiple of 360 degrees).

Composite type machine

<1>  Of the angle pairs whose master and slave axis angles are both within

the specified movement range, the rotary axis angle pair whose table
(second rotary axis) moving angle is smaller represents the "output
angles."



↓





↓

 When the table moving angle is the same



↓



<2>  The "output angles" are represented by the computed rotary axis

angle pair whose tool (first rotary axis) moving angle is smaller.



↓





↓

 When the tool moving angle is the same



↓



<3>  The "output angles" are represented by the computed rotary axis

angle pair whose table (second rotary axis) angle is nearer to 0
degree (multiple of 360 degrees).



↓





↓

 When the table angle is equally near to 0 degree



↓



<4>  The "output angles" are represented by the computed rotary axis

angle pair whose tool (first rotary axis) angle is nearer to 0 degree
(multiple of 360 degrees).

Fig. 22.5.1.1 (w)    Output judgment conditions

B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 919 -

When bit 5 (PRI) of parameter No.19608 is 1, the movement
judgements for the first rotary axis and second rotary axis are made in
reverse order.


 CAUTION

1  If the lower limit of the movement range is larger

than the upper limit, alarm PS5459 occurs when
G43.5 is specified.

2  If no "computed angle" is found within the

movement range because the range is too small,
alarm PS5459 occurs.

3  If 0 is set for both parameters that specify the

upper and lower limits of the movement range, the
tool operates assuming that there is no range
specification.

4  When the rotary axis rollover function or rotary axis

control function is used (in which case, set
parameter No.1260 (amount of movement per
rotation of the rotary axis) to 360 degrees), the tool
does not move beyond 0 degree (360 degrees)
(does not take the shortcut) if the movement range
is set between 0 and 360 degrees.    Also, do not
specify a negative value or a value larger than 360
degrees for the movement range.


An example of the "movement judgement" process is given below.
Assume that a tool rotation type or table rotation type machine has
rotary axis A (master) and rotary axis B (slave) and that there are two
pairs of basic computed angles as follows:
(A

θ

1 degree; B

φ

1 degree)

(A

θ

2 degrees; B

φ

2 degrees)   where

θ

1

≤



θ

2.

The "computed angle" is obtained from either of the following
expressions:  "basic computed angle" + 360 degrees

×

 N or "basic

computed angle" - 360 degrees

×

 N.

Assume that the current positions and movement ranges of rotary axis
A (master) and rotary axis B (slave) are as shown in Fig. 22.5.1.1 (x),
Fig. 22.5.1.1 (y).



360

×

 (N + 1) degrees

360

×

 N degrees

•

  Computed angle A

Current position A

Movement range A

θ

1 + 360

×

 N

θ

2 + 360

×

 N

θ

2 + 360

×

 (N - 1)

θ

1 + 360

×

 (N + 1)



Fig. 22.5.1.1 (x)    Computed angle of rotary axis A and its current

position and movement range



22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 920 -

360

×

 (N + 1) degrees

360

×

 N degrees

•

  Computed angle B

Current position B

Movement range B

φ

2 + 360

×

 N

φ

1 + 360

×

 N

φ

1 + 360

×

 (N - 1)

φ

2 + 360

×

 (N + 1)



Fig. 22.5.1.1 (y)    Computed angle of rotary axis B and its current

position and movement range


When the two axes have a positional relationship as shown in the
figure, the output angle of rotary axis A is (

θ

2 + 360

×

 N) degrees and

that of rotary axis B is (

φ

2 + 360

×

 N) degrees (when bit 5 (PRI) of

parameter No.19608 is set to 0).
More concretely, from the computed angles obtained for rotary axis A,
the nearest angle within the movement range, i.e.

θ

2 + 360

×

 N

degrees, is first adopted.    Then, from the computed angles obtained
for rotary axis B, the angle belonging to the same group as

θ

2, i.e.

φ

2

+ 360

×

 N, is adopted.


Note that, in this example, the output angles and moving direction
differ depending on whether the movement range is specified or not (0
to 360 degrees), even if N is set to 0 and coordinates are rounded to 0
to 360 degrees.
Namely, if the movement range is not specified,

θ

1 + 360 degrees

nearest to the current position is adopted as the computed angle for
rotary axis A and, from the computed angles belonging to the same
group as

θ

1,

φ

1 degrees nearest to the current position is adopted as

the computed angle for rotary axis B.  Rotary axis A moves in the
plus direction.  As its coordinate is rounded to 360 degrees, rotary
axis A reaches

θ

1 degrees while moving in the plus direction.

By contrast, when the movement range is set to 0 to 360 degrees, the
output angles are (A

θ

2 degrees; B

φ

2 degrees).    Neither rotary axis

A nor B moves in a way that it exceeds 0 degree (360 degrees).

B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 921 -

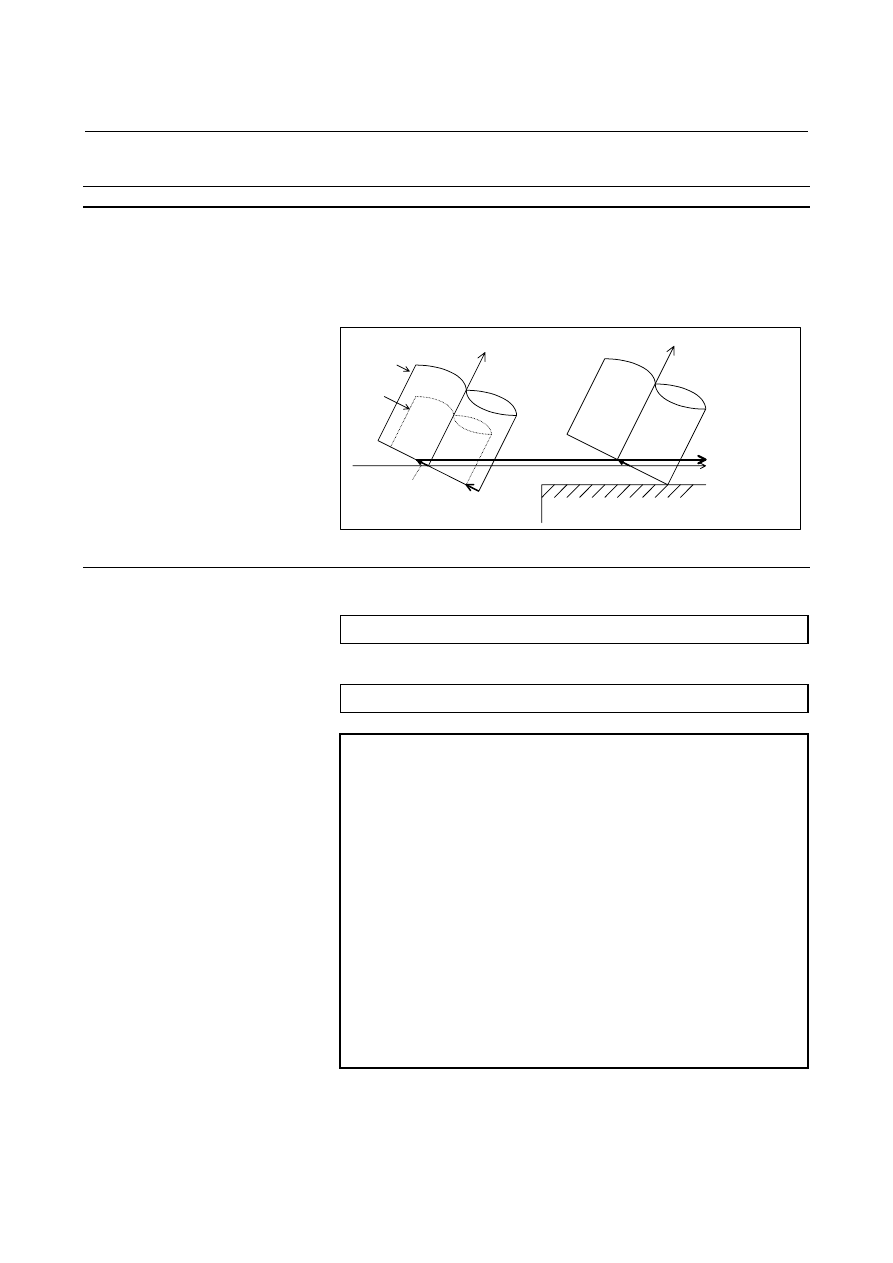

22.5.1.2

Leading edge offset



Overview

Leading edge offset is a type of cutter compensation used when a
workpiece is machined with the edge of a tool.  The tool is
automatically shifted by the amount of cutter compensation on the line
where a plane formed by a tool vector and tool movement direction
meets a plane perpendicular to the tool axis direction.

Tool used

Reference

tool

Cutter

compensation

vector

Cutter compensation

amount

Tool center path

(path after

compensation)

Programmed

path

Tool vector



Fig. 22.5.1.2 (a)  Leading edge offset



Format
  - Leading edge offset

G41.3 D_ ;



  - Canceling the leading edge offset

G40 ;



NOTE

1  G41.3 can be specified only in the G00 and G01

modes.    In a block containing G41.3 or G40, only
addresses D, O, and N can be specified.

2  The block that follows a block containing a G41.3

command must contain a move command.



In the block after G41.3, however, a tool movement
in the same direction as the tool axis direction or
the opposite direction cannot be specified.

3  No modal G code that belongs to the same group

as G00 and G01 can be specified in the G41.3
mode.    If such a modal G code is specified, alarm
PS5460 is issued.

4  Leading edge offset does not provide type 2

commands.    It does not allow the tool direction to
be specified with the I, J, and K commands.



22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 922 -

Explanation
  - Operation at startup and cancellation

The operation performed at leading edge offset startup and
cancellation does not vary.  When G41.3 is specified, the tool is
moved by the amount of compensation (Vc) in the plane formed by
the movement vector (V

M

) of the block after the G41.3 block and the

tool vector (V

T

) obtained at the time of G41.3 specification.    The tool

movement is perpendicular to the tool vector.    When G40 is specified,
the tool is moved to cancel V

C

.  The following illustrates how the

compensation is performed:

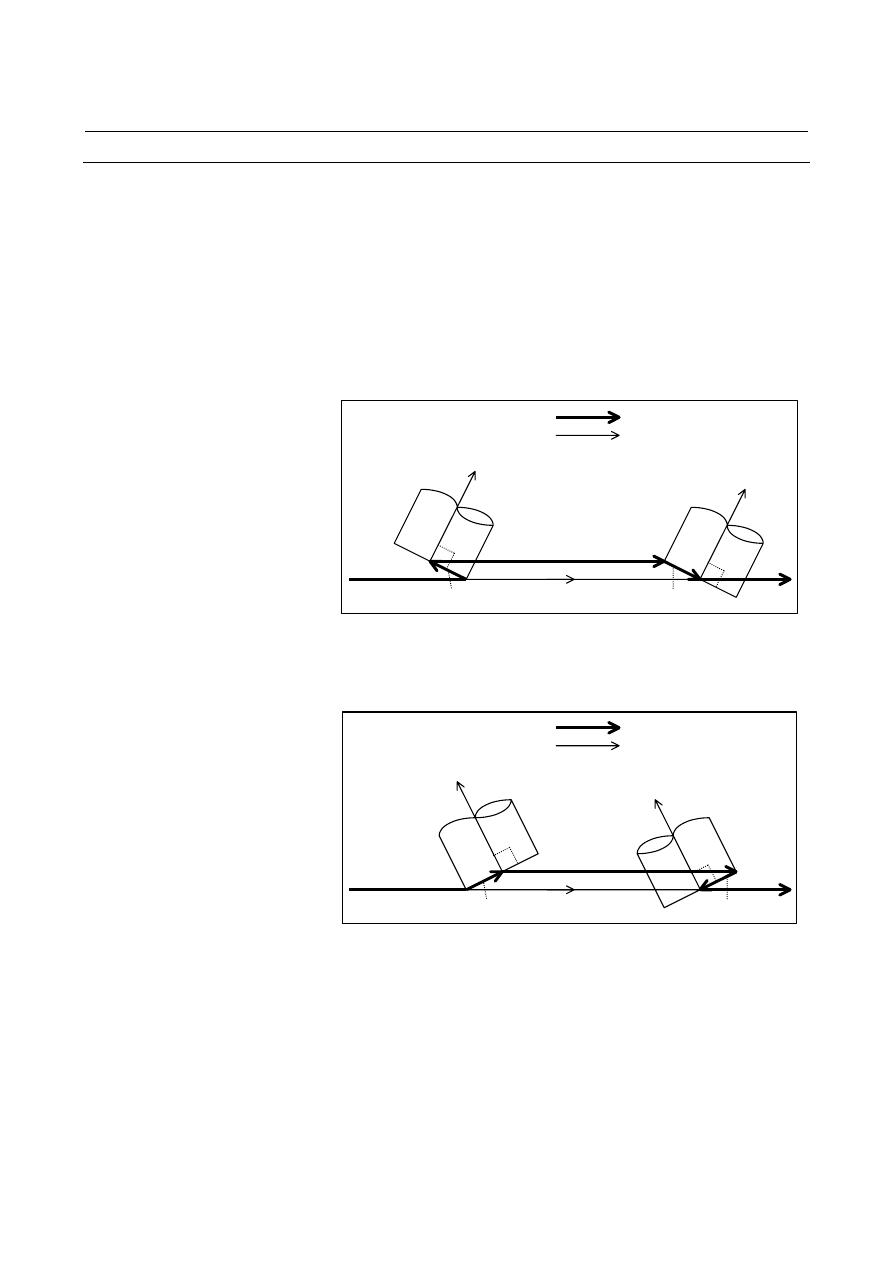

<1>  When the tool vector is inclined in the tool movement direction



Tool

Tool compensation vector (V

T

)

V

M

G41.3(V

C

)



G40



:  Tool center path
:  Programmed path



Fig. 22.5.1.2 (b)    When the tool vector is inclined in the tool movement

direction


<2> When the tool vector is inclined in the direction opposite to the

tool movement direction



:  Tool center path
:  Programmed path

Tool

Tool compensation vector (V

T

)

V

M

G41.3(V

C

)



G40





Fig. 22.5.1.2 (c)    When the tool vector is inclined in the direction

opposite to the tool movement direction



B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 923 -

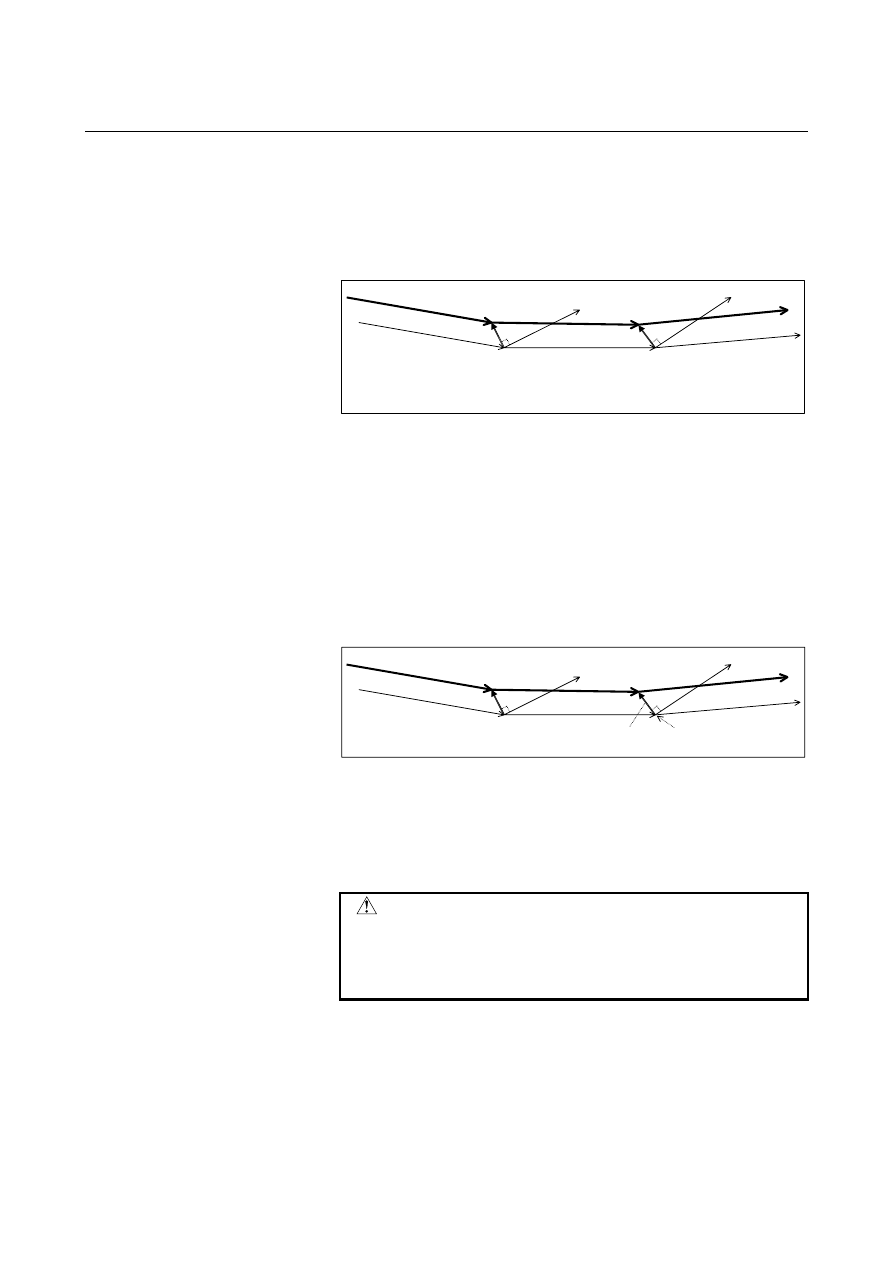

  - Operation during compensation

The tool center moves so that a compensation vector (VC)
perpendicular to the tool vector (VT) is created in the plane formed by
the tool vector (VT) at the end point of each block and the movement
vector (VM) of the next block.




V

Mn

: Movement vector of block n

V

Tn

: Tool vector at the end of block n

V

Cn

: Compensation vector of block n (that lies in the plane formed by V

Tn

 and V

Mn+1

and is perpendicular to V

Tn

)

Tool center path (path after compensation)

Programmed path

V

M1

V

M2

V

T1

V

C1

V

C2

V

T2

V

M3



Fig. 22.5.1.2 (d)    Operation during compensation


If a G code or M code that suppresses buffering is specified in the
compensation mode, however, the compensation vector created
immediately before the specification is maintained.

When a block specifying no movement (including a block containing
a move command for a rotary axis only) is specified in the
compensation mode, the movement vector of the block after the block
specifying no movement is used to create a compensation vector as
shown below.




Tool center path (path after compensation)

Programmed path

V

M1

V

M2

V

T1

V

C1

V

C2

= V

C3

V

T2

V

M4

There is one block that

specifies no movement





Fig. 22.5.1.2 (e)    When there is one block that specifies no movement


If block 3 specifies no movement, the compensation vector of block 2
(VC2) is created in a plane formed by the movement vector of block 4
(VM4) and the tool vector (VT2) at the end of block 2.  VC2 is
perpendicular to VT2.


 CAUTION



If two or more successive blocks specify no
movement, the previously created compensation
vector is maintained.    However, such specification
should be avoided.
