22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 860 -

The "output angle" is explained below using a tool rotation type
machine as an example.
This example illustrates a machine having a "BC type tool axis Z."


•

    BC type tool axis Z

X

Y

Z

C-axis:

First rotation axis
(master)

B-axis: Second rotation axis

(slave)



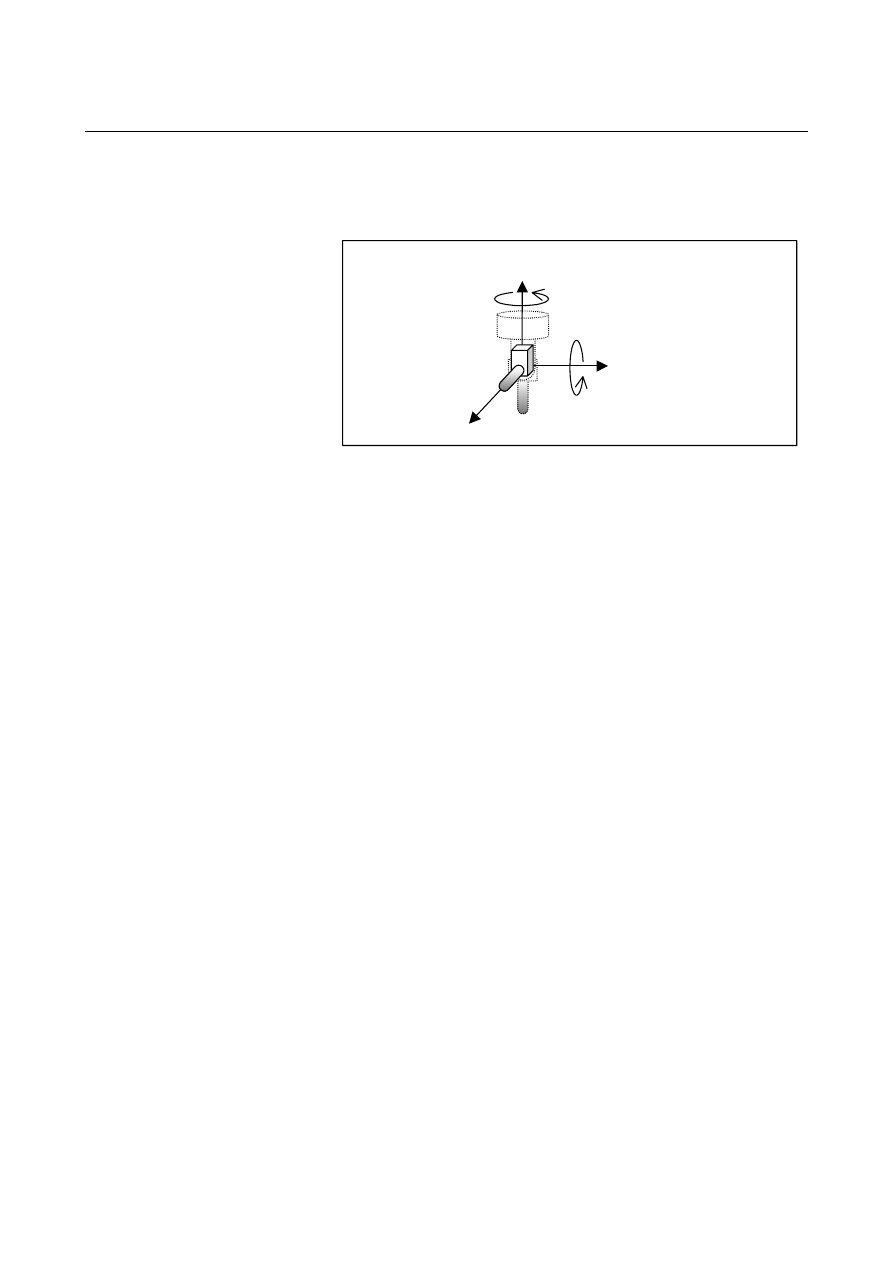

Fig. 22.3 (o)    BC type tool axis Z


The following two pairs of "computed basic angles" exist that direct
the tool axis toward the +X-axis direction.
(B 90 degrees; C 180 degrees)
(B 270 degrees; C 0 degree)

<1>  When the current rotary axis angles are (B -70 degrees; C 30

degrees)



The "output angles" are (B -90 degrees; C 0 degree).
  0 degree is adopted because it is nearer to the current

position (30 degrees) of the C-axis that is the master axis.
For the B-axis, 270 degrees is adopted which is the same
group.  However, this is changed to -90 degrees (270
degrees - 360 degrees) which is the nearest to the current
position of the B-axis (-70 degrees).

<2>  When the current rotary axis angles are (B 80 degrees; C 500

degrees)



The "output angles" are (B 90 degrees; C 540 degrees).
  540 degrees (180 degrees

+

 360 degrees) is adopted because

it is nearer to the current position (500 degrees) of the C-axis
that is the master axis.  For the B-axis, 90 degrees is
adopted which is the same group.

<3>  When the current rotary axis angles are (B 60 degrees; C 90

degrees)



The "output angles" are (B 90 degrees; C 180 degrees).
  Since the two candidates are equally near to the current

position (90 degrees) of the C-axis that is the master axis, a
judgment is made based on the current position of the B-axis.
90 degrees is adopted because it is nearer to the current
position (60 degrees) of the B-axis that is the slave axis.
For the C-axis, 180 degrees is adopted which is the same
group.

B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 861 -

<4>  When the current rotary axis angles are (B 180 degrees; C 90

degrees)



The "output angles" are (B 270 degrees; C 0 degree).
  Since the two candidates are equally near to the current

position (90 degrees) of the C-axis that is the master axis, a
judgment is made based on the current position of the B-axis.
In this case, however, the two candidates are also equally
near to the current position of the B-axis (180 degrees).
Therefore, the candidate is adopted in which the C-axis
(master axis) is nearer to 0 degree.

  That is, the pair is adopted whose C-axis angle is 0 degree

and whose B-axis angle is 270 degrees.


When the slave axis angle is 0 degree, the direction of the tool axis
becomes fixed regardless of the master axis angle.
In that case, the master axis does not move from the current angle.

An explanation is shown below using a machine having a "BC type
tool axis Z" as an example.


•

    BC type tool axis Z

X

Y

Z

C



Fig. 22.3 (p)    BC type tool axis Z


When the current rotary axis angles are (B 45 degrees; C 90 degrees),
the "output angles" are (B 0 degree; C 90 degrees).


  - Specification for rotary axes

The tilted working plane command assumes that positioning of a
rotary axis is performed by tool axis direction control (G53.1) and
then machining is performed without the rotary axis being moved.
When movement is made with the rotary axis specified directly, the
movement of the rotary axis is not considered in the movement of the
linear axis.    Do not specify the movement of the rotary axis during
execution of the tilted working plane command to ensure correct
machining.


22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 862 -

22.3.2

Tilted Working Plane Command by Tool Axis Direction



Overview

By specifying G68.3, a coordinate system (feature coordinate system)
where the tool axis direction is the +Z-axis direction can be
automatically specified.    When a feature coordinate system is used, a
program for cutting a hole or pocket in a plane tilted relative to the
workpiece coordinate system can be made simpler.
This function can automatically generate a feature coordinate system
that is normal to the tool direction.




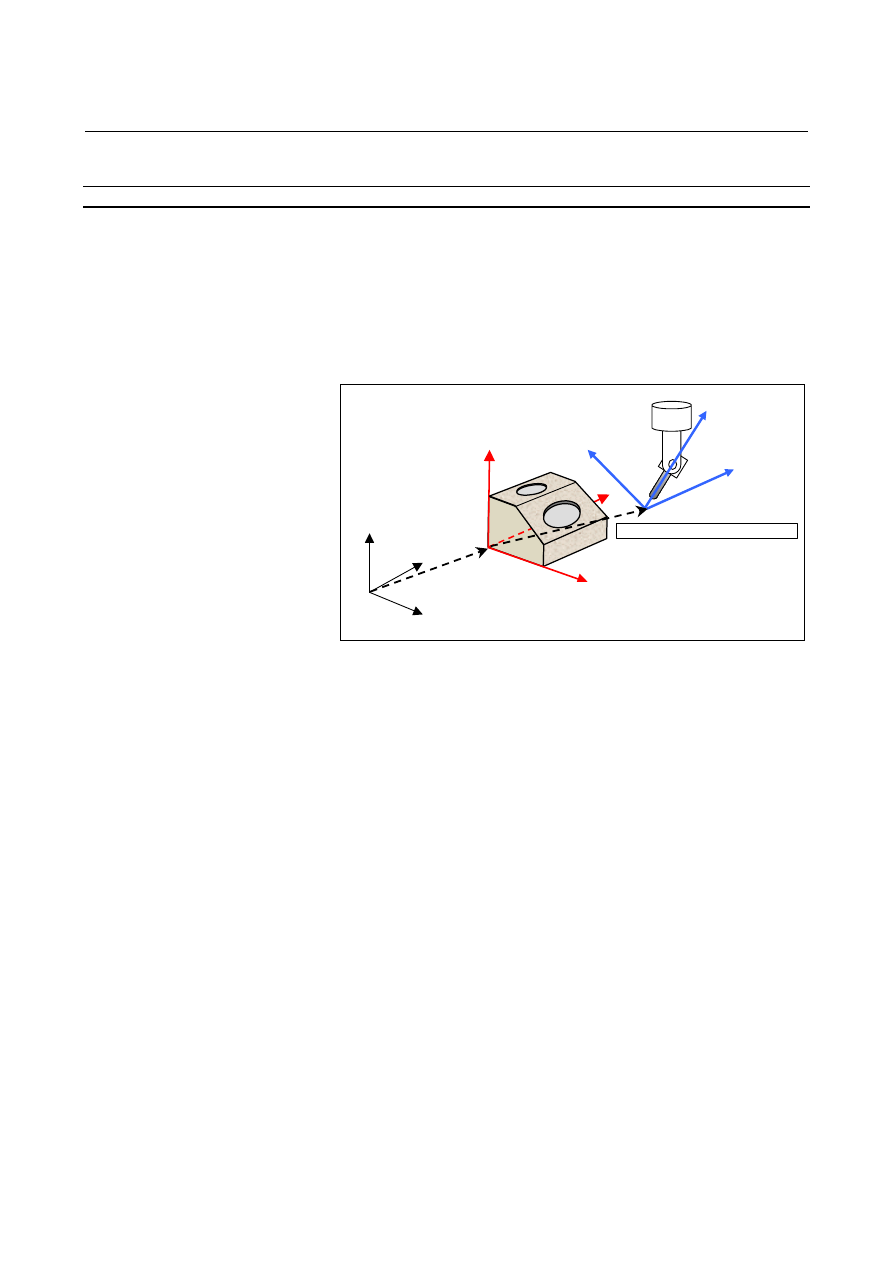

Feature coordinate system (G68.3)

Machine coordinate system

Workpiece coordinate system (G54)

Yc

Zc

Xc



Feature coordinate system


When G68.3 is specified in a block, the coordinate system for
programming is changed to a feature coordinate system.  All
commands after the block are regarded as commands in the feature
coordinate system until G69 is specified.


B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 863 -

Format



Format



G68.3 X x

0

 Y y

0

 Z z

0

R

α

 ;  Tilted working plane command


G69 ;

Cancel tilted working plane command (M series).

G69.1;  Cancel tilted working plane command (T series).

Explanation of symbols

X,Y,Z  : Origin of a feature coordinate system (absolute)


  By default, the current position is used as the origin of the

feature coordinate system.

R

: Angular displacement about the Z-axis in the feature

coordinate system.



  The default is 0°.





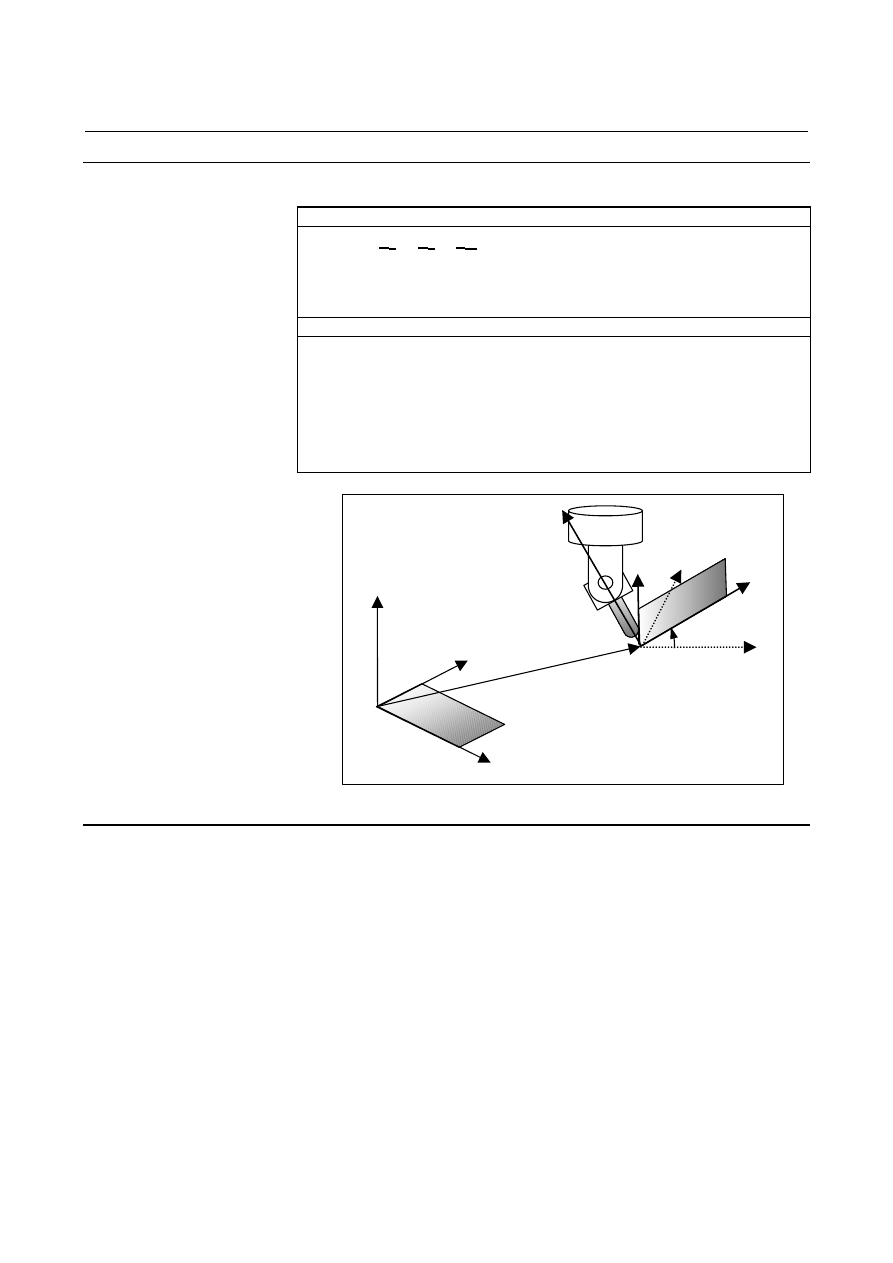

Coordinate system
origin shift (xo,yo,zo)

Workpiece
coordinate
system X-Y-Z

Feature coordinate
system Xc-Yc-Zc

α



X

Y

Z

Zc

Yc

Xc



G68.3 command



Explanation
  - Feature coordinate system

By specifying G68.3, a feature coordinate system with the tool axis
direction being the +Z-axis direction can be created.  The tool axis
direction means the tool axis direction based on the rotation axis
position reached by automatic operation or manual operation.


  - Origin of a feature coordinate system

The origin of a feature coordinate system must be specified using an
absolute command.
Even in the incremental command mode, the specified origin is
regarded as an absolute position.
When 1 address or 2 addresses are omitted in X, Y, Z, alarm PS5457
is issued.
When the origin of a feature coordinate system is not specified, the
position when G68.3 is specified is used as the origin.


22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 864 -

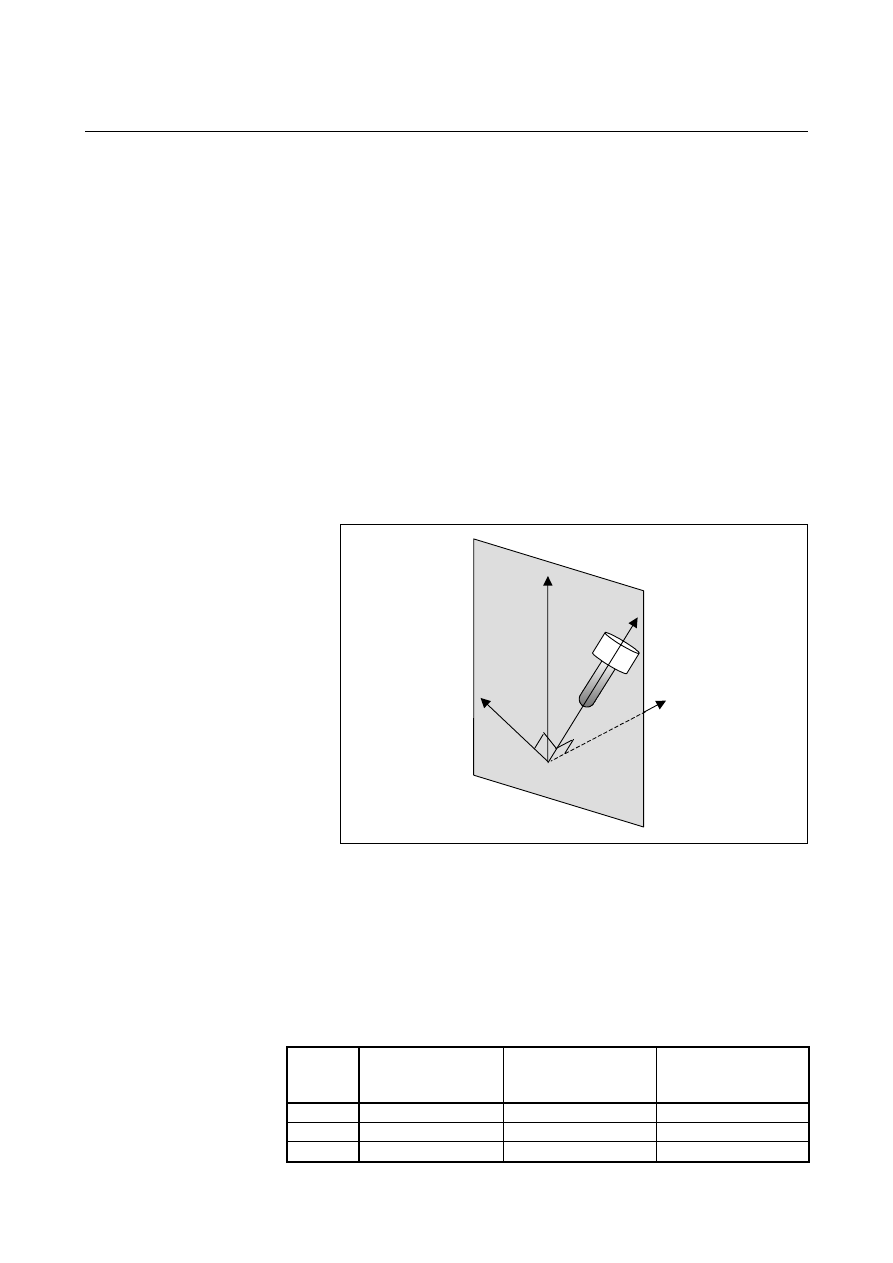

  - Determination of a feature coordinate system

When G68.3 is specified, the tool axis direction vector (

T

) represents

the +Z direction (

Zc

) of the feature coordinate system.

The vector normal to a plane formed by the +Z direction (

Zc

) of the

feature coordinate system and the vertical axis direction vector (

P

)

(parameter No. 12321) represents the +X direction (

Xc

) of the

feature coordinate system.
Expression:

Zc

P

Xc

×

=



The vector normal to the +Z direction (

Zc

) of the feature coordinate

system and the +X direction (

Xc

) of the feature coordinate system

represents the +Y direction (

Yc

) of the feature coordinate system.

Expression:

Xc

Zc

Yc

×

=



When R is commanded, a coordinate system rotated by R around Zc
from the above-mentioned coordinate system is the feature coordinate
system.







X-axis of feature coordinate
system

  Y-axis of feature
 coordinate system

Vertical axis direction:    P

Z-axis of feature coordinate
system (Tool axis direction:
T)

Xc

Yc

Zc



Determination of a feature coordinate system


When the tool axis direction vector (

T

) is parallel with the vertical

axis direction vector (

P

) (parameter No. 12321) (when the angle

between the vector (

T

) and the vector (

P

) is equal to or less than the

value of parameter No. 12322), the feature coordinate system
Xc-Yc-Zc is as indicated below.    By specifying angular displacement
R, a feature coordinate system rotated about the Z-axis of this
coordinate system can be specified.


Parameter

No. 12321

Z-axis of feature

coordinate system

Zc

X-axis of feature

coordinate system

Xc

Y-axis of feature

coordinate system

Yc

1

+X direction

+Y direction

+Z direction

2

+Y direction

+Z direction

+X direction

3

+Z direction

+X direction

+Y direction

B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 865 -


When 0 is set in parameter No. 12321, the vertical axis direction is the
reference tool axis direction (parameter No. 19697).
If a value other than 0 through 3 is set in parameter No. 12321, the
PS5459 alarm is issued.


 CAUTION



Tool axis direction is Z-axis direction of feature
coordinate system regardless of the reference tool
axis direction (parameter No. 19697).



  - Angular displacement R

Angular displacement R is positive when a rotation is made clockwise
viewed in the Z-axis direction of the feature coordinate system.    The
range of angular displacement R is:    0.0

°



≤

 R

≤

 360.0

°

.



  - Machine of table rotation type

On a machine of table rotation type, the tool direction remains
unchanged.    So, a feature coordinate system based on the reference
tool axis direction (parameter No. 19697) is set.    However, the origin
specification of the feature coordinate system and angular
displacement R about the Z-axis are valid.



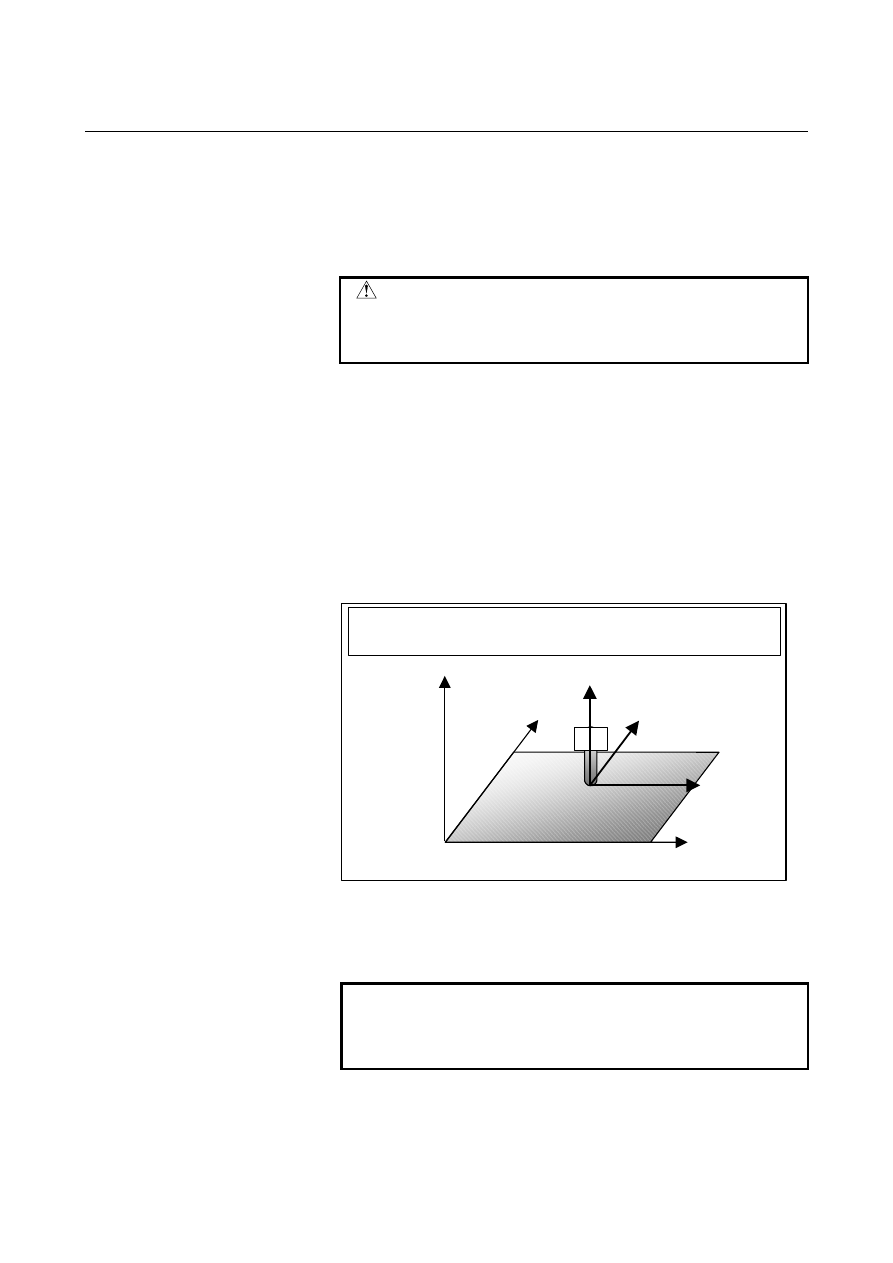

Workpiece coordinate system X-Y-Z

Example:  When reference tool axis direction represents +Z-axis

direction (with 3 set in parameter No. 19697)

Feature coordinate system
Xc-Yc-Zc

X

Y

Z

Xc

Yc

Zc





  - Use in combination with tool length compensation

The G68.3 command can be specified even during tool length
compensation.


NOTE



Do not specify G68.3 during workpiece setting
error compensation.    Otherwise, alarm PS0437 is
issued.



22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 866 -

  - Example of operation

An example of operation on a machine of tool rotation type is given
below.
The machine configuration is "BC type reference tool axis Z-axis".



B:  2nd rotation axis (slave)

C:    1st rotation axis (master)



Control point

Tool holder offset value
  = Parameter No. 19666

Tool length offset = H01



BC type tool axis Z-axis



(Axes are intersecting.)

Tool center point





Sample program 1

O0100 ;
N1 G55 ;
N2 G90 G01 X0Y0Z50.0 F1000 ;
N3 G43 H01 X0 Y0 Z0 ;
N4 B-45.0 ;
N5 G68.3 ;

:

N6 G69 ;

:



B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 867 -























Xc

Yc

Zc

X

Y

Z

X

Y

Z

X

Y

Z

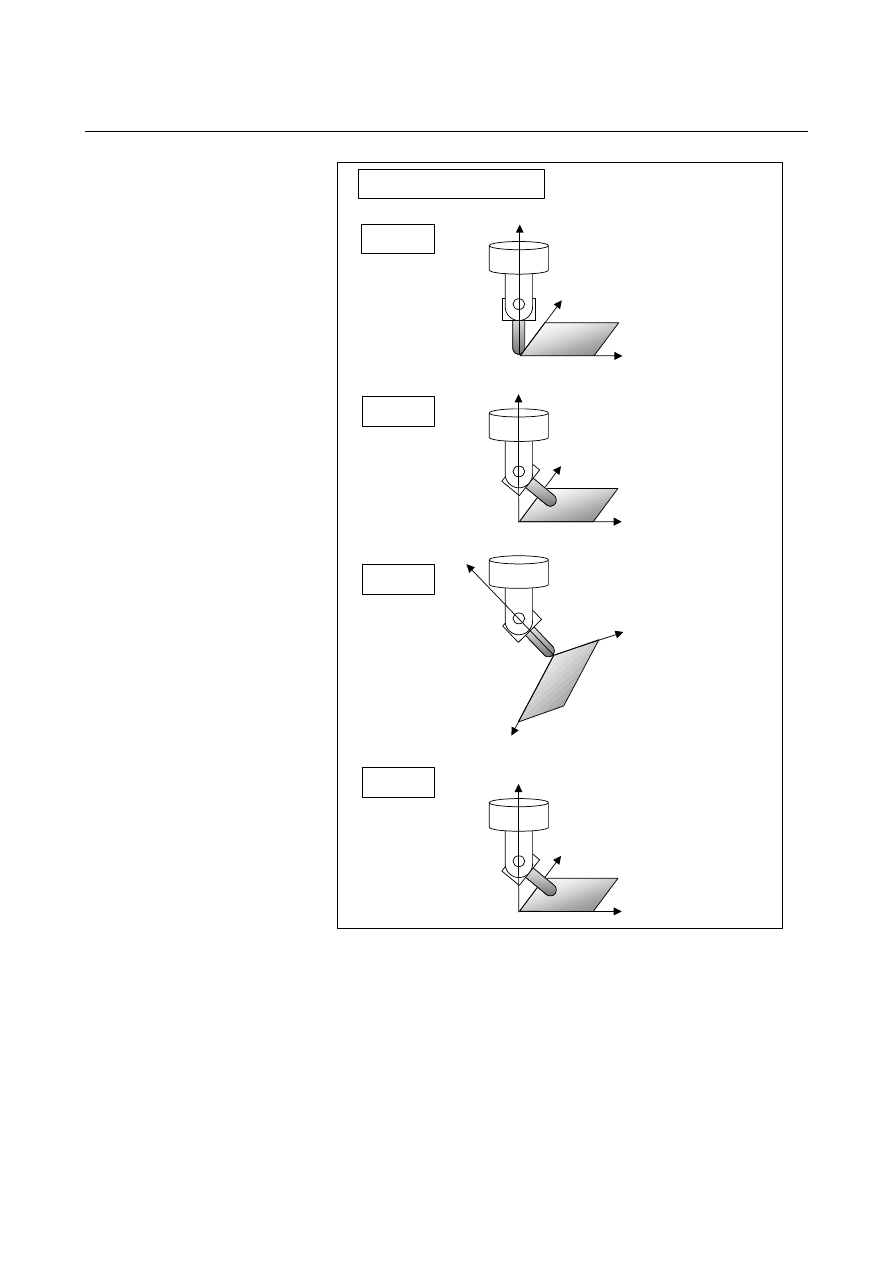

Machine operation by sample program 1

N3 command

N6 command

N5 command

N4 command

Workpiece coorditate system
X-Y-Z

Workpiece coordinate system
X-Y-Z

Feature coordinate system Xc-Yc-Zc





N3 block: Performs tool length compensation in the workpiece

coordinate system.



The tool center point moves to the origin of the workpiece
coordinate system.

N4 block:  Tilts the tool.
N5 block: Sets a feature coordinate system where the tool axis

direction is the Z-axis direction and the tool center point is
placed at the origin.

N6 block: Cancels the feature coordinate system to return to the

workpiece coordinate system.
