22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 836 -

  - When the operation range of rotary axes is specified

When tool center point control is used, the operation range of rotary
axes can be set in parameter No. 19741 to No. 19744.
If either of the rotary axes exceeds the set operation range during
program execution when tool posture control is enabled, alarm
DS0029 is issued.
If tool posture control is disabled, rotary axis operation range
specification based on parameter No. 19741 to No. 19744 is enabled
only when the tool center point control type 2 command (G43.5) is
specified.  If tool posture control is enabled, the check mentioned
above can be made even when the tool center point control type 1
command (G43.4) is specified.
If the operation range of the first rotary axis is not specified, set 0 in
both of parameter No. 19741 and No. 19742.
If the operation range of the second rotary axis is not specified, set 0
in both of parameter No. 19743 and No. 19744.


  - When tool center point control type 1 is used

Tool posture control can also be exercised by using the tool center
point control type 1 command (G43.4), which specifies the tool
posture at the end point of a block with the angular displacements of
the two rotary axes.    However, when tool posture control is exercised
using the tool posture at the end point of a block calculated from the
rotary axis angular displacement specified by the program, alarm
PS5421 is issued before execution of the block if the
program-specified rotary axis angular displacement does not result.
Example:


Suppose that a tool rotation type machine where the master axis
is the C-axis (about the Z-axis), the slave axis is the B-axis
(about the Y-axis), the reference tool axis direction is the Z-axis
direction, and the reference tool axis and rotary axes are not
inclined is used.    If the rotary axis angular displacements at the
end point of a block are specified as (B, C) = (-90

°

, -90

°

) (with

the tool posture being in the positive Y-axis direction) when the
rotary axis angular displacements at the start point of the block
are (B, C) = (90

°

, 0

°

) (with the tool posture being in the positive

X-axis direction), tool posture control needs to maintain the tool
posture in parallel with the XY plane.  In this state, however,
the specified end point (B, C) = (-90

°

, -90

°

) cannot be reached,

so that alarm PS5421 is issued.
If (B, C) = (90

°

, 90

°

) for representing the same tool posture in

the positive Y-axis direction at the end point of a block is
specified, tool posture control is possible.



B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 837 -

O0020
…
G43.4 H1 P1;
…
N10 X_ Y_ Z_ B90.0 C0.0;
N20 X_ Y_ Z_ B-90.0 C-90.0;
…
G49;
M30;

O0021
…
G43.4 H1 P1;
…
N10 X_ Y_ Z_ B90.0 C0.0;
N20 X_ Y_ Z_ B90.0 C90.0;
…
G49;
M30;



X

Y

B=90.0, C=0.0

B=90.0, C=90.0
or B=-90.0, C=-90.0

At the N20 end point of both of the programs
O0020 and O0021, the tool posture is in the
positive Y-axis direction.    However, the N20
end point (B=-90.0, C=-90.0) of O0020
cannot be reached from the N10 end point
(B=90.0, C=0.0) by tool posture control.    So,
alarm PS5421 is issued with O0020.
However, the N20 end point (B=90.0, C-90.0)
of O0021 can be reached by tool posture
control.



Fig. 22.2 (i)    Example where tool posture control is impossible when

type 1 is specified



  - When the tool posture directions at the start point and end point of a block match

each other

If the direction of the tool posture at the start point of a block matches
the direction of the tool posture at the end point of the block (same
direction or opposite direction), no plane can be determined by these
tool postures.  So, tool posture control in that block is temporarily
disabled.    However, whether to enable/disable tool posture control is
kept as modal information.  So, tool posture control temporarily
disabled for the cause mentioned above is enabled again in the
subsequent blocks.

For other notes, those described for tool center point control are

applicable.



Limitation

This function is enabled for positioning (G00) and linear interpolation
(G01).

For other restrictions, those described for tool center point control are
applicable.


22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 838 -

22.3

TILTED WORKING PLANE COMMAND



22.3.1

Tilted Working Plane Command



Overview

Programming for creating holes, pockets, and other figures in a datum
plane tilted with respect to the workpiece would be easy if commands
can be specified in a coordinate system fixed to this plane (called a
feature coordinate system).  This function enables commands to be
specified in the feature coordinate system.  The feature coordinate
system is defined in the workpiece coordinate system.
For explanations about the relationship between the feature coordinate
system and workpiece coordinate system, see Fig. 22.3 (a).


Feature coordinate

system

(G68.2)

Machine coordinate system

Workpiece

coordinate system

(G54)



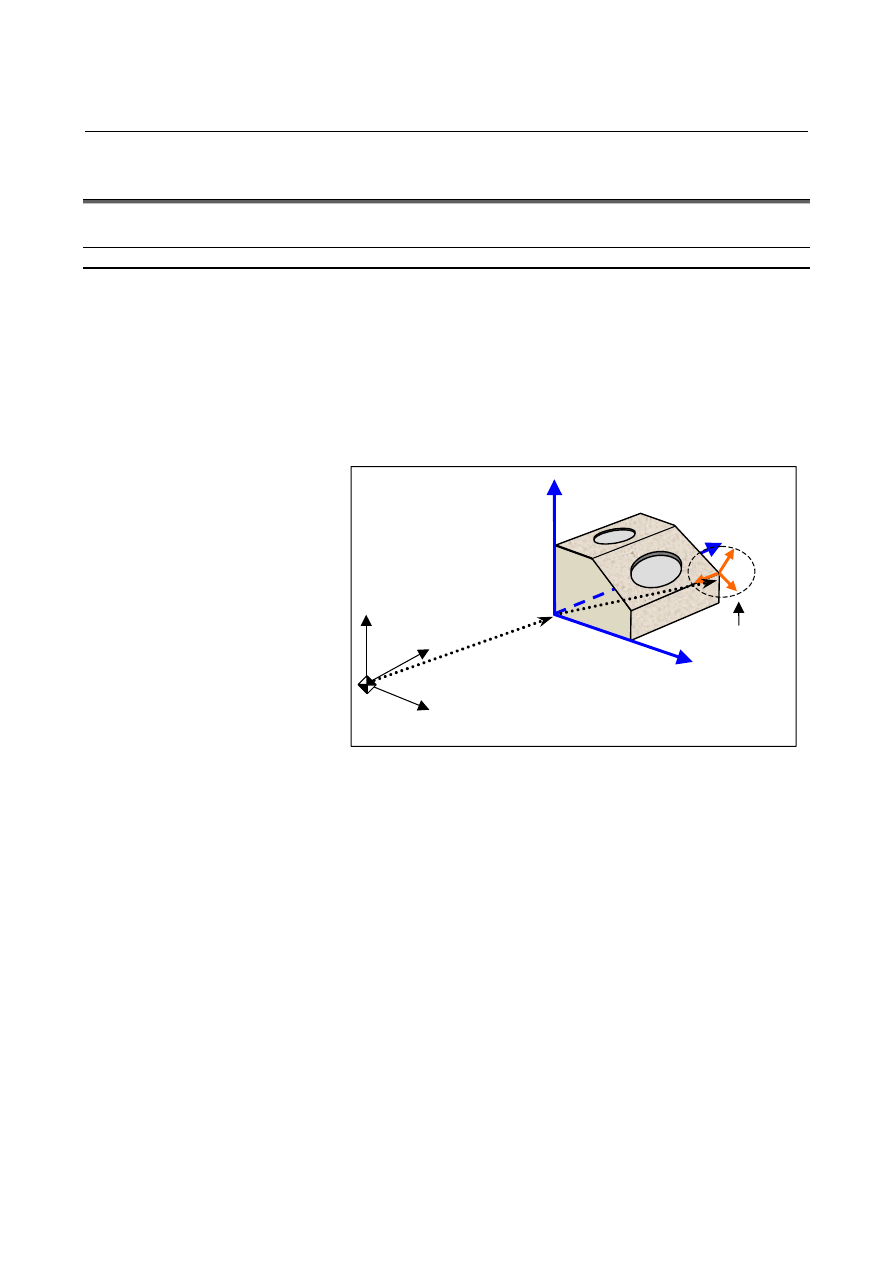

Fig. 22.3 (a)    Feature coordinate system


The G68.2 command causes the programming coordinate system to
switch to the feature coordinate system.  The commands in all
subsequent blocks are assumed to be specified in the feature
coordinate system until G69 appears.
If G68.2 specifies the relationship between the feature coordinate
system and the workpiece coordinate system, G53.1 automatically
specifies the +Z direction of the feature coordinate system as the tool
axis direction even if no angle is specified for the rotary axis.    (See
Fig. 22.3 (c).)
For explanations about the tool axis direction, see Fig. 22.3 (b).


B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 839 -

X

Y

Z

The tool axis direction is the
+Z-axis direction.

The tool axis direction is the
+Y-axis direction.

The tool axis direction is the +X-axis direction.



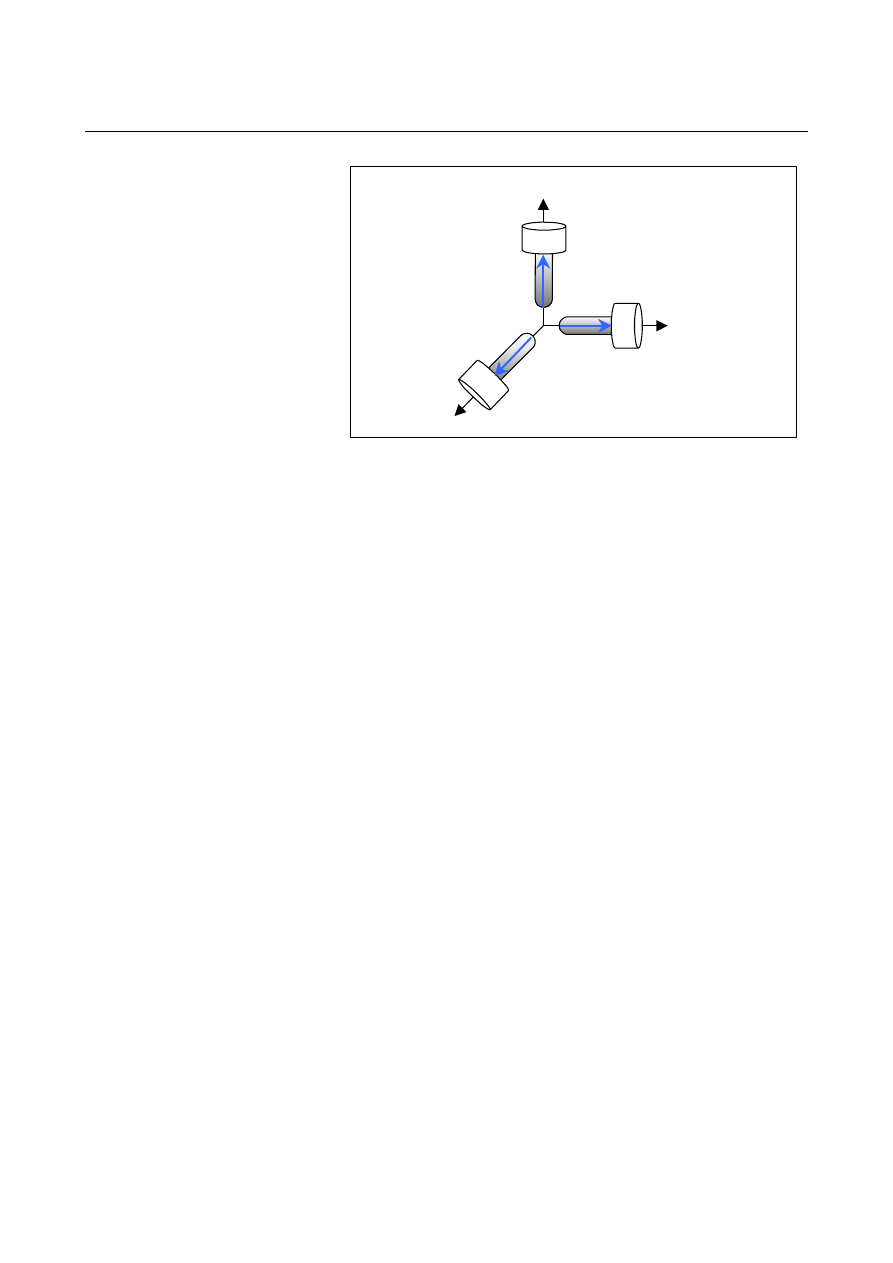

Fig. 22.3 (b)    Tool axis direction

22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 840 -

This function regards the direction normal to the machining plane as
the +Z-axis direction of the feature coordinate system.  After the
G53.1 command, the tool is controlled so that it remains perpendicular
to the machining plane.


Coordinate system

origin shift

(xo,yo,zo)

Xc

Yc

Zc

Workpiece

coordinate system

X-Y-Z

Feature coordinate

system

Xc-Yc-Zc

X

Y

Z

•

    Only G68.2 is specified

•

    G53.1 is specified after G68.2

Xc

Yc

Zc

Control point shift (by

another command)

G53.1 automatically controls

the rotary axis.

X

Y

Z

B

C

Feature coordinate

system

Xc-Yc-Zc

Coordinate system

origin shift

(xo,yo,zo)

Workpiece

coordinate system

X-Y-Z



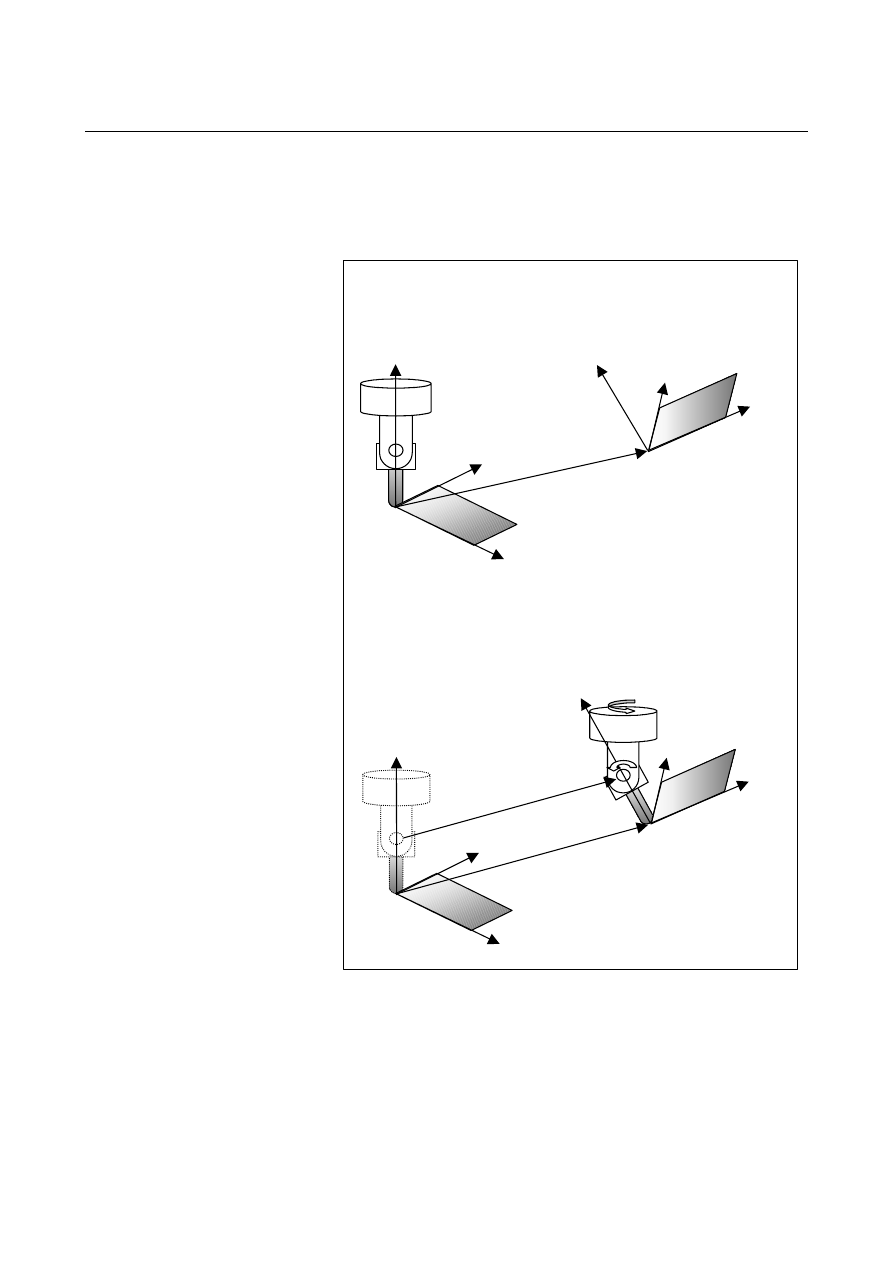

Fig. 22.3 (c)    G68.2 and G53.1 commands



B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 841 -

This function is applicable to the following machine configurations.
(See Fig. 22.3 (d).)
<1>  Tool rotation type machine controlled with two tool rotation

axes

<2>  Table rotation type machine controlled with two table rotation

axes

<3>  Composite type machine controlled with one tool rotation axis

and one rotary axis



The function can also be used for a machine configuration in which
the rotary axis for controlling the tool does not intersect the rotary axis
for controlling the table.



<2>  Table rotation type

machine



<3> Composite type

machine



<1> Tool rotation

type machine

X

C

B

Z

Y

A

C

X



Z

Y

B

Y

X



Z

C



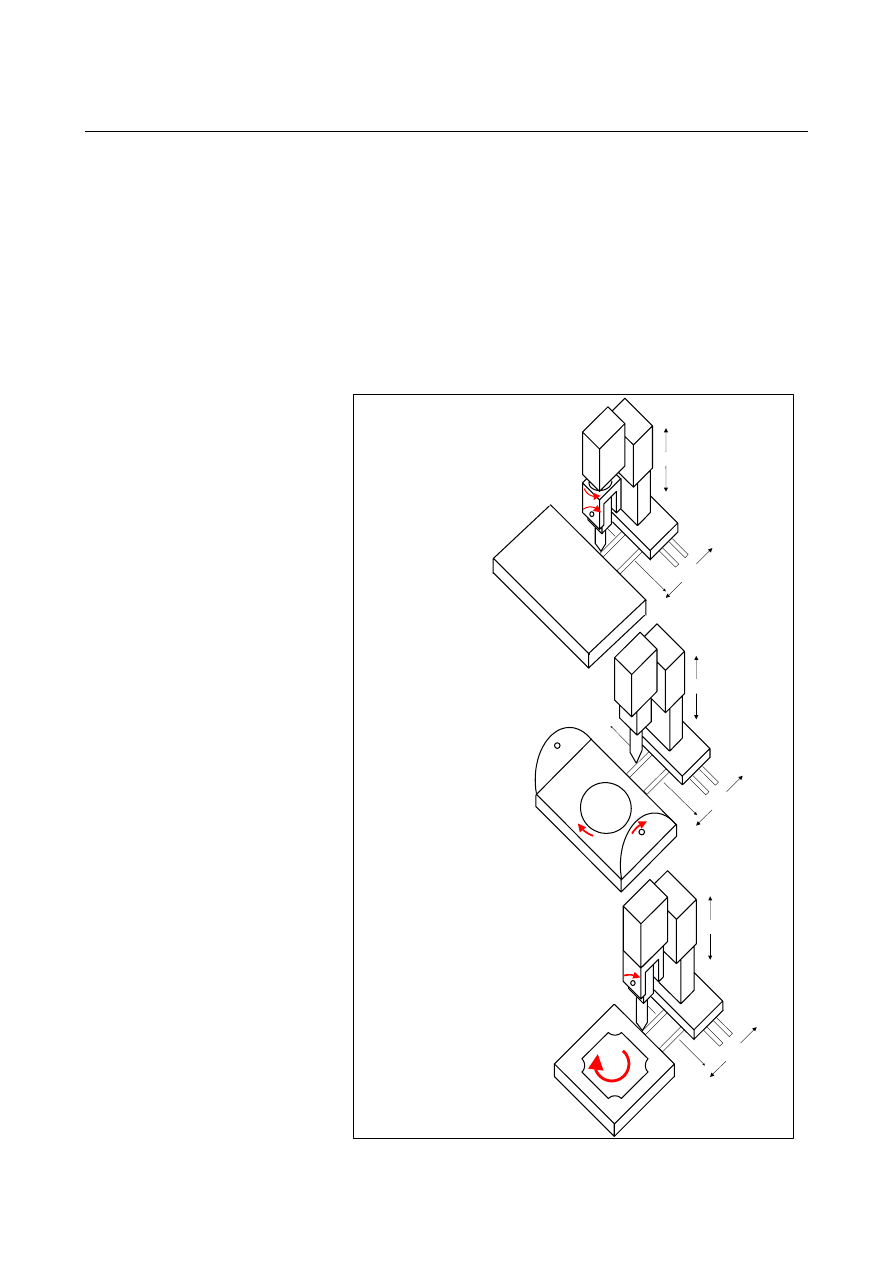

Fig. 22.3 (d)    Three types of 5-axis machine

22.5-AXIS MACHINING FUNCTION

 PROGRAMMING

B-63944EN/03





- 842 -

Format
  - Tilted working plane command (G68.2)

M



G68.2 X x

0

 Y y

0

 Z z

0

 I

α

 J

β

 K

γ

 ;

Tilted working plane command



G69 ;

Cancels the tilted working plane command.





X, Y, Z : Feature coordinate system origin


  The axes specified here are the three axes of the

feature coordinate system.    Specify the three
basic axes or parallel axes set by parameter No.
1022.    When specification is omitted, the X, Y,
and Z of the basic three axes are assumed to be 0.

I, J, K  : Euler's angle for determining the orientation of the

feature coordinate system





T



G68.2 X x

0

 Y y

0

 Z z

0

 I

α

 J

β

 K

γ

 ;

Tilted working plane command



G69.1 ;

Cancels the tilted working plane command.





X, Y, Z : Feature coordinate system origin


  The axes specified here are the three axes of the

feature coordinate system.    Specify the three
basic axes or parallel axes set by parameter No.
1022.    When specification is omitted, the X, Y,
and Z of the basic three axes are assumed to be 0.

I, J, K  : Euler's angle for determining the orientation of the

feature coordinate system





  - Tool axis direction control (G53.1)

G53.1 ;

Controls the tool axis direction.





 CAUTION

1  G53.1 must be specified in a block after the block

that contains G68.2.



An alarm occurs if G53.1 is specified without G68.2
being specified in a preceding block.

2  G53.1 must be specified in a block in which there is

no other command.

3  The rotary axis moves at the maximum rapid

traverse federate in the case of rapid traverse and
at the specified federate in the case of cutting feed.



B-63944EN/03

 PROGRAMMING

22.5-AXIS MACHINING FUNCTION





- 843 -

Explanation
  - Coordinate conversion using an Euler's angle

Coordinate conversion by rotation is assumed to be performed around
the workpiece coordinate system origin.
Let the coordinate system obtained by rotating the workpiece
coordinate system around the Z-axis by an angle of

α

 degrees be

coordinate system 1.  Similarly, let the coordinate system obtained
by rotating coordinate system 1 around the X-axis by an angle of

β

 be

coordinate system 2.    The feature coordinate system is the coordinate
system obtained by shifting the coordinate system that is obtained by
rotating coordinate system 2 around the Z-axis through an angle of

γ



degrees from the workpiece coordinate system origin by (Xo, Yo, Zo).
Fig. 22.3 (e) shows the relationship between the workpiece coordinate
system and the feature coordinate system.
The figure also gives examples of displacement on the X-Y plane.


γ

zc

yc

xc

x'

y''

γ

Conversion from workpiece
coordinate system X-Y-Z to
coordinate system 1 X'-Y'-Z

x

z

y

x'

y'

α

β

X'

z

y''

z''

y'

β

Conversion from coordinate
system 1 X'-Y'-Z to
coordinate system 2 X'-Y"-Z"

Conversion from coordinate system 2 X'-Y"-Z"
to feature coordinate system Xc-Yc-Zc



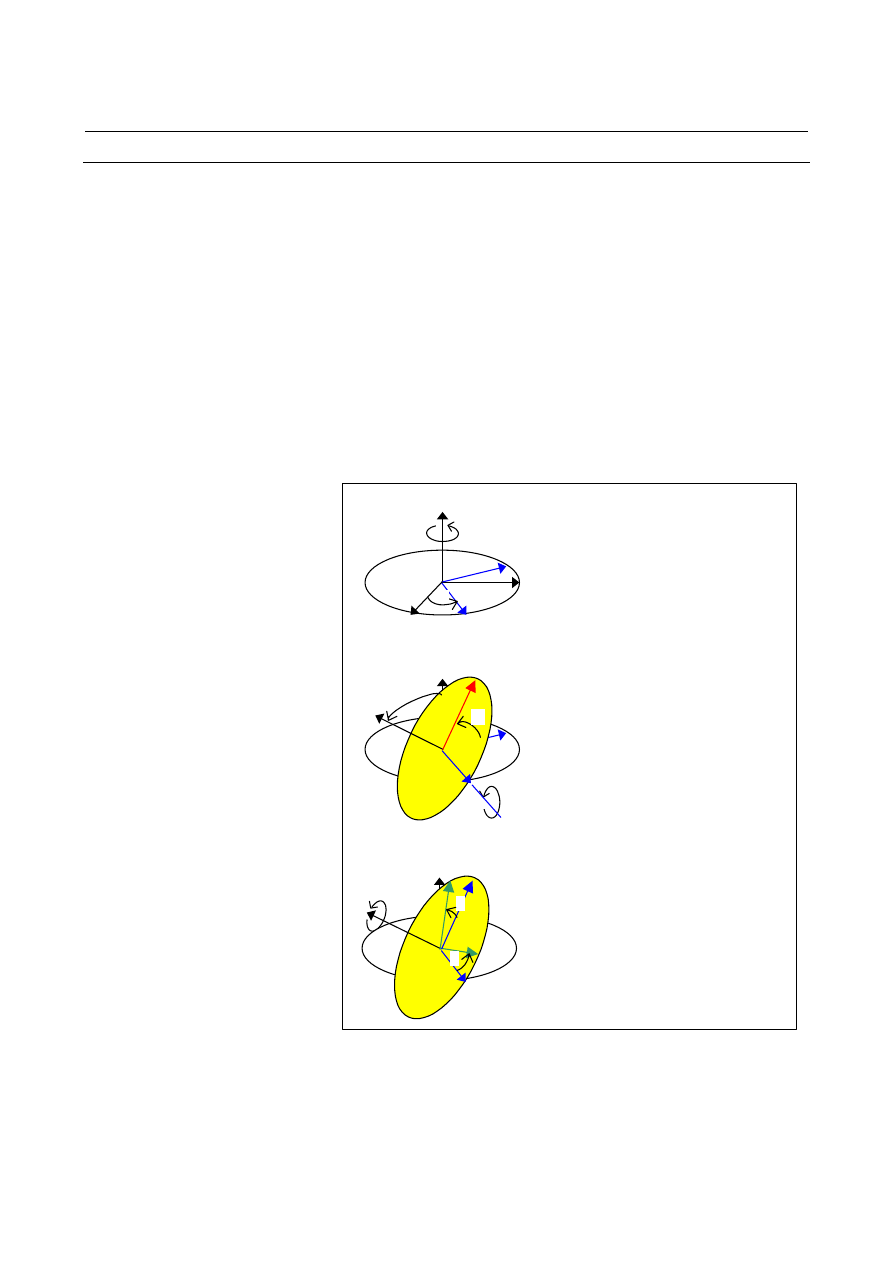

Fig. 22.3 (e)    Coordinate conversion using an Euler's angle



  - I0 J0 K0 command

When I0 J0 K0 is specified as an Euler's angle, the alarm (PS5457)
(G68.2 format error) usually occurs.  When bit 1 (ATW) of
parameter No. 13451 is set to 1, the feature coordinate system with a
tilted angle of 0 degree is used.
