4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 92 -

∆

V  :  Cutting point compensation value (

∆

V2 -

∆

V1) for

movement of

∆

L

∆

V1 :  C-axis component of the vector normal to N1 from

the tool center of the start point of

∆

L

∆

V2 :  C-axis component of the vector normal to N1 from

the tool center of the end point of

∆

L

R :

Arc

radius



Z-axis

C-axis on the
cylindrical surface

Y-axis

C0

N1

O



C1

V



Tool center path

Programmed path

V  : C-axis component of C1 - C0
C0  : Cutting surface at the start point of block N1



C1  : Cutting surface at the end point of block N1



R



S0

∆

V2



∆

V1



∆

L



C0



S1



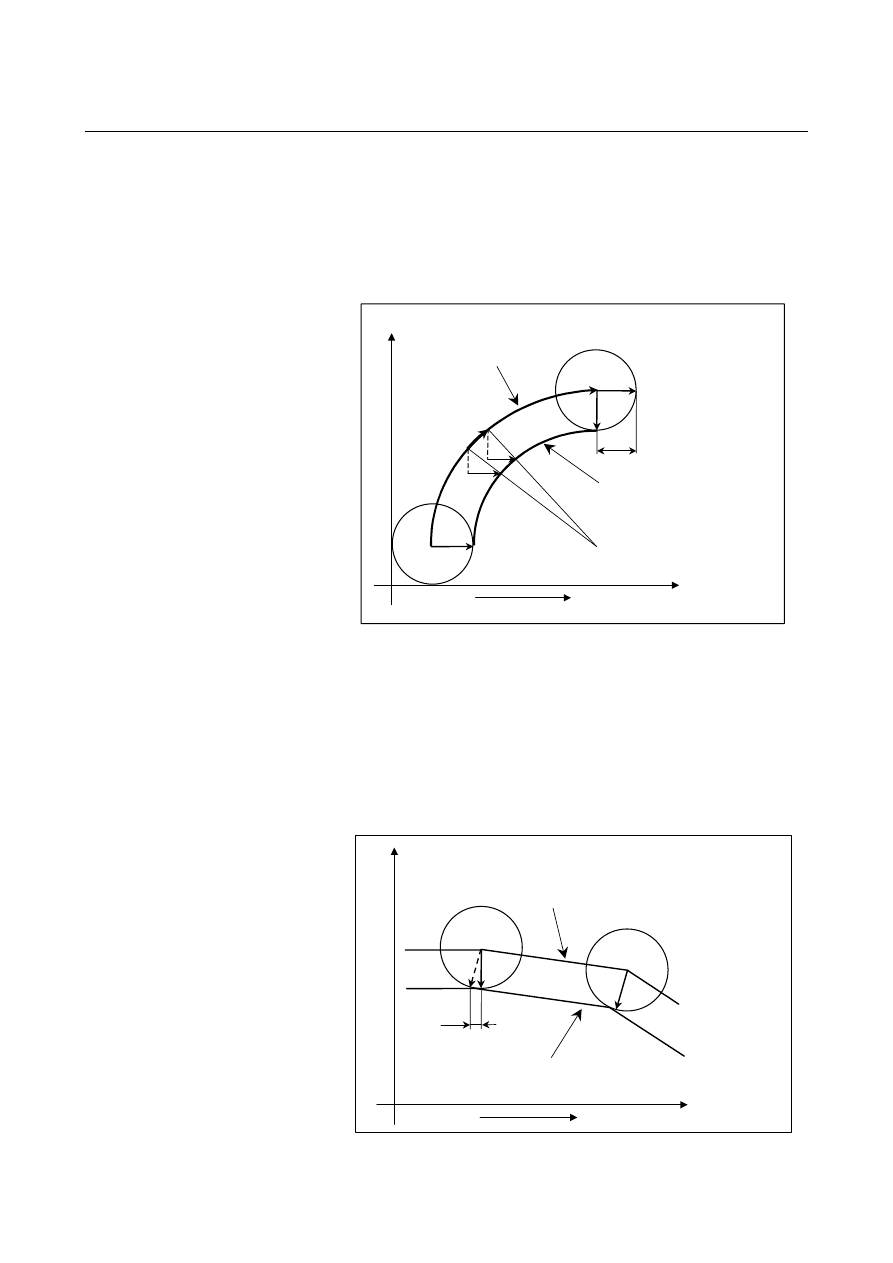

Fig.4.10 (c)    Cutting point compensation in a circular command block


(3)  When cutting point compensation is not applied between blocks


When, as shown in Fig. 4.10 (d) and Fig. 4.10 (e), the cutting
point compensation value (V in the figures) is less than the value
set in parameter No. 19534, one of the operations below is
performed. (The operation that is performed depends on the
setting of bit 6 (CYS) of parameter No.19530.
(a)  When bit 6 (CYS) of parameter No.19530 is set to 1

Cutting point compensation is not applied between blocks
N1 and N2, but is applied when block N2 is executed.

Z-axis

C-axis on the
cylindrical surface

Y-axis

S2

C2

C2

V

Tool center path

Programmed path

V : C-axis component of C2 - C1
C1 : Cutting surface of block N1
C2 : Cutting surface after the end of block N1

S1

C1

N1

N2

N3



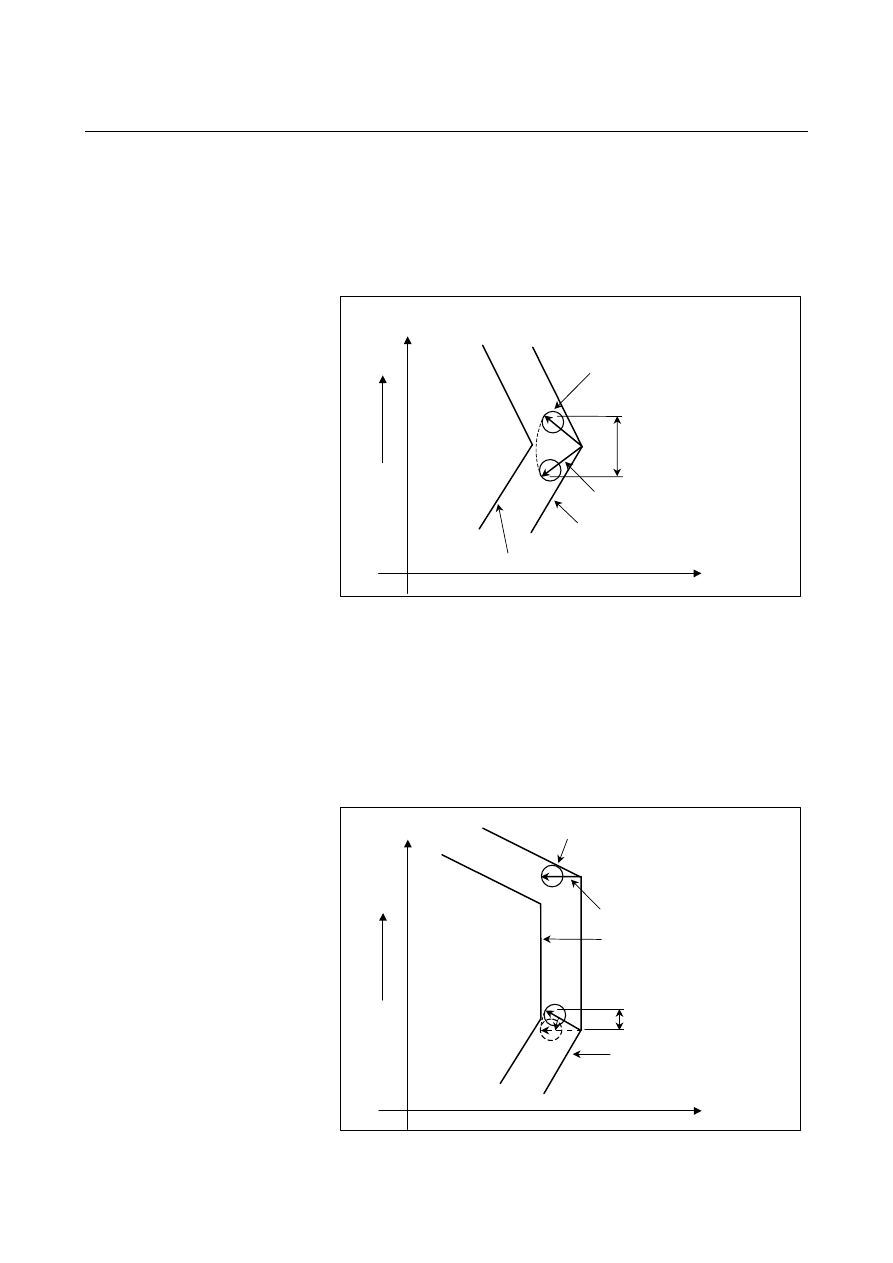

Fig.4.10 (d)    When bit 6 (CYS) of parameter No.19530 is set to 1



B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 93 -

(b)  When bit 6 (CYS) of parameter No.19530 is set to 0

Cutting point compensation is not performed between
blocks N1 and N2. Whether to apply cutting point
compensation between block N2 and N3 is determined by
taking the cutting point compensation value between blocks
N2 and N3 (V in the figure) into consideration.

Z-axis

C-axis on the
cylindrical surface

Y-axis

S2

C1

C2

V

Tool center path

Programmed path

V : C-axis component of C2 - C1
C1 : Cutting surface of blocks N1 and N2
C2 : Cutting surface at the end of block N3

S1

C1

N1

N2

N3



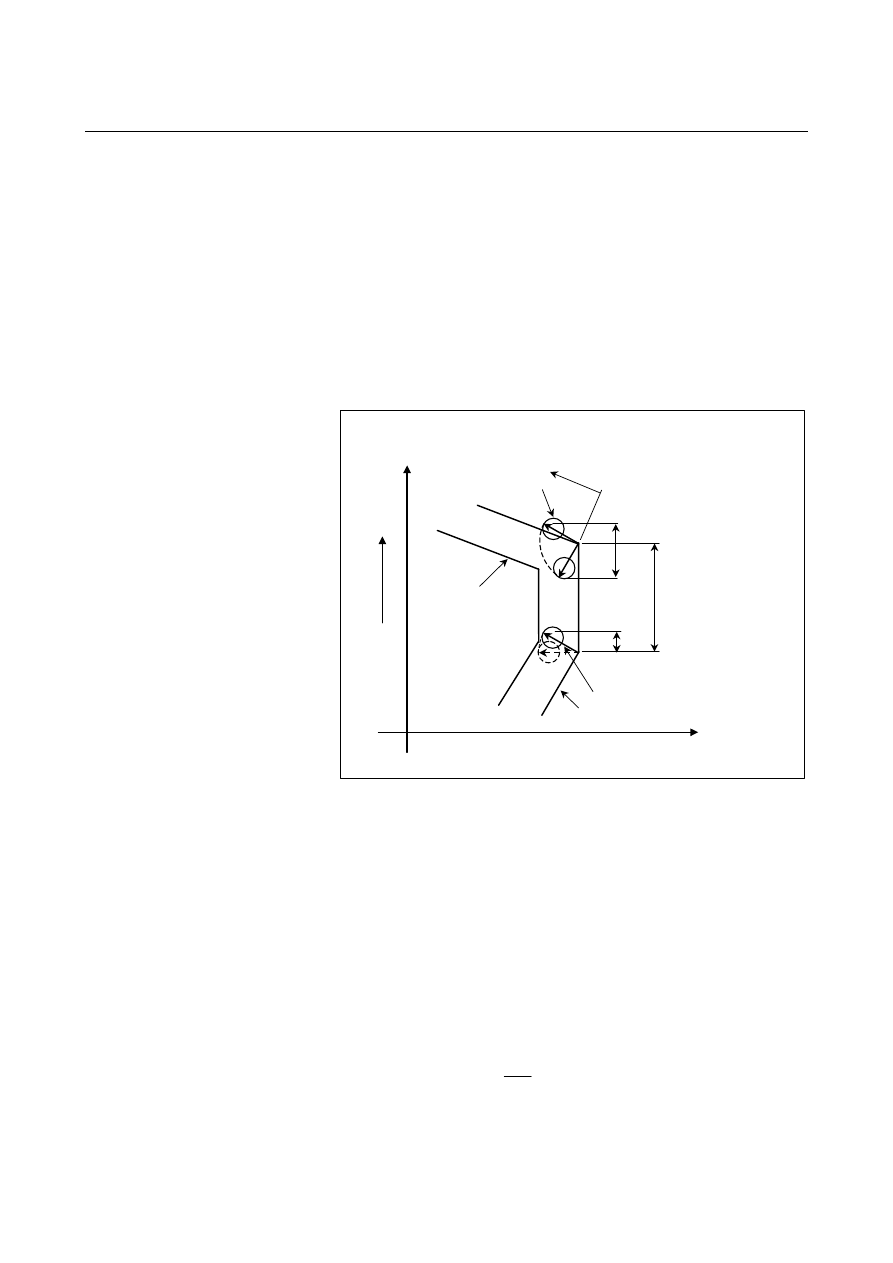

Fig.4.10 (e)    When bit 6 (CYS) of parameter No.19530 is 0



(b)  When the amount of travel (L1) of block N2 is less than the

value set in parameter No. 19535, as shown in Fig. 4.10 (f),
cutting point compensation is not applied between blocks
N1 and N2. Instead, block N2 is executed with the cutting
point compensation of the previous block. When the amount
of travel (L2) of block N3 is greater than the value set in
parameter No. 19535, cutting point compensation is applied
between blocks N2 and N3.



Z-axis

C-axis on the
cylindrical surface

Y-axis

C1



C2

V



Tool center path

Programmed path

V  : C-axis component of C2 - C1
C1  : Cutting surface of blocks N1 and N2



C2  : Cutting surface at the end of block N3



C1

N1

N2

N3



L1

L2





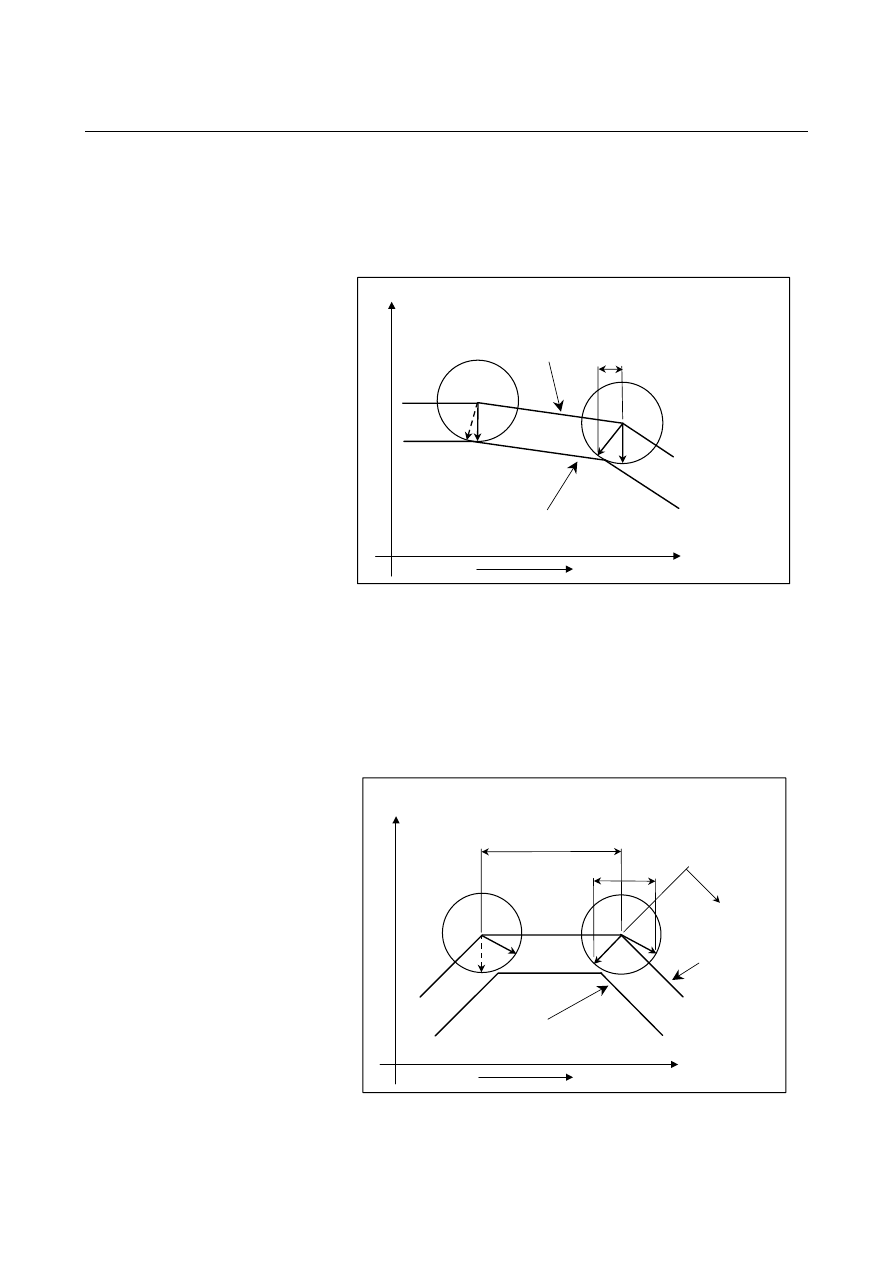

Fig.4.10 (f)    When the amount of travel (L1) of block N2 is less than the

parameter value



4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 94 -

(d)  When, as shown in Fig. 4.10 (g), the diameter of an arc (R

in the figure) is less than the value set in parameter No.
19535, cutting point compensation is not applied
simultaneously with circular interpolation



Z-axis

C-axis on the
cylindrical surface

Y-axis

C1

C2

V



Tool center path



Programmed path



V  : Cutting point compensation between blocks N2 and N3
C1  : Cutting surface of blocks N1 and N2



C2  : Cutting surface of block N3



C1

N1

N2

N3



L1

S2

S1

D





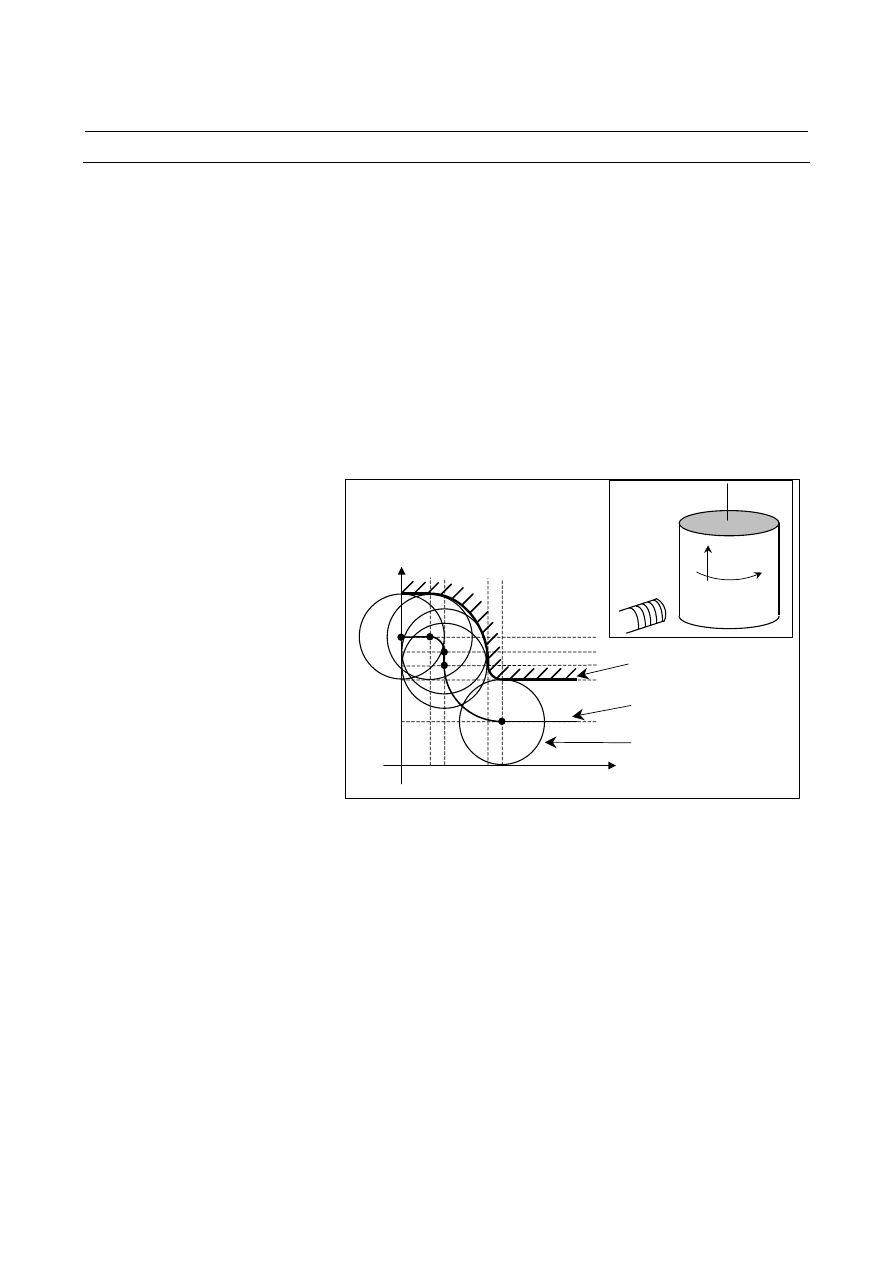

Fig.4.10 (g)    When the diameter of an arc is less than the parameter

value



  - When cutting point compensation is used with normal direction control

When cutting point compensation is used with normal direction
control, cutting point compensation between specified blocks is
performed regardless of the method described in "

Cutting point

compensation

"



above, but is performed simultaneously with the

movement of the normal direction control axis (C-axis).

Z axis

A axis

Y axis

X axis

C axis



Fig. 4.10 (h)    When used with normal direction control



B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 95 -

(1)  When the normal direction changes between blocks N1 and N2,

cutting point compensation is also performed between blocks N1
and N2.
As shown in Fig. 4.10 (i), cutting point compensation described
in (1) in "

Cutting point compensation

" is performed

simultaneously with the movement made by normal direction
control between blocks N1 and N2.

Y axis

X axis

C1

C2

V

Tool center path

Programmed path

V : A-axis component of C2-C1
C1 : Cutting surface of block N1
C2 : Cutting surface of block N2

N1

N2

S0

A-axis on the
cylindrical surface

Normal direction vector (G41.1)

Tool



Fig. 4.10 (i)    When the normal direction changes between blocks N1 and

N2


(2)  When gentle normal direction control changes the normal

direction as a specified block is executed, cutting point
compensation is performed simultaneously with the movement
made by the block. When the normal direction control axis
rotates by

θ

1 simultaneously with the movement made by blocks

N1 to N2 as shown in Fig. 4.10 (j), cutting point compensation
by the movement of vector V1 is also performed simultaneously
with the movement in N2.

Y-axis

X-axis

C1

C2

V1



Tool center path (G42)

Programmed path

V1 :

A-axis component of C2-C1

C1  : Cutting surface of block N1
C2’  : Cutting surface at the end point of

 block N2

N1

N2

S1

A-axis on the
cylindrical surface

Normal direction vector (G41.1)

Tool

C2’

S2

N3

θ

1





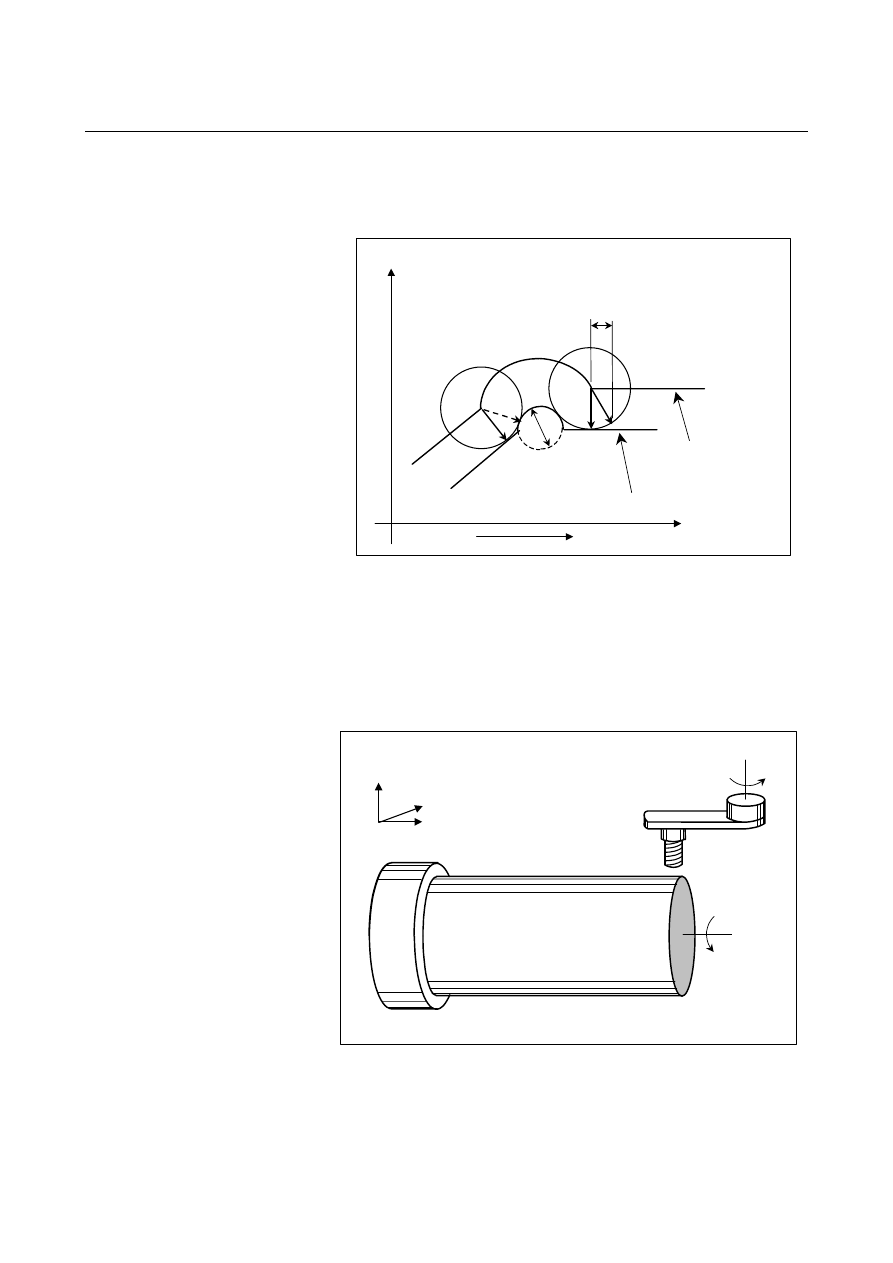

Fig. 4.10 (j)    Gentle normal direction control

4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 96 -


(3)  When a specified block is executed while the normal direction

control axis is held in the normal direction set at the end point of
the previous block, cutting point compensation is not performed,
and cutting point compensation applied in the previous block is
maintained. As shown in Fig. 4.10 (k), when the movement
amount in N2 (L1 in the figure) is smaller than the setting of
parameter No. 5483, so the normal direction control axis does not
rotate at S1 while the movement amount in N3 (L2 in the figure)
is greater than the setting of parameter No. 5483, so the normal
direction axis rotates at S2, cutting point compensation is not
performed at S1 but is performed by the movement for vector V2
at S2.

Y-axis

X-axis

C1

C2

V1



Tool center path (G42)

Programmed path

V2 : A-axis component of C3-C1'
C1  : Cutting surface of block N1
C1’ : Cutting surface of block N2
C3  : Cutting surface of block N3
Vector S2 C1 = vector S2 C1'

N1

N2

S1

A-axis on the
cylindrical surface

Normal direction vector (G41.1)

Tool

C3

S2

N3

V2



L1



C1’

L2



Fig. 4.10 (k)    When the normal direction is the same as in the previous

block



  - Feedrate during cutting point compensation

(1)  The tool moves at a specified feedrate while cutting point

compensation is being applied between blocks.

(2) The actual speed indication and feedrate during circular

interpolation are as described below.
Actual speed indication
The speed component of each axis after cutting point
compensation at a point in time during circular interpolation is as
follows:

Fz

Fz'

=



: Speed component of linear axis

Vcs)

-

(Vce

Fc

Fc'

+

=

  : Speed component of rotary axis

180

r

Vcs)

-

(Vce

-

Fy'

π

=

  : Speed component of offset axis

Fz :  Speed component of a cylindrical interpolation linear

axis before cutting point compensation

B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 97 -

Fc :  Speed component of cylindrical interpolation rotation

axis before cutting point compensation

Vcs: Rotation axis component of a tool contact point vector

  (Vs in the figure) at the start point at a point in time

Vce: Rotation axis component of tool contact point vector

  (Ve in the figure) at the end point at a point in time

r :  Radius of the cylinder of a rotary axis

Accordingly, the actual speed indication during circular
interpolation is greater than the specified value when |Fc’| >
|Fc|(inner offset of the arc). Conversely, the actual speed
indication during circular interpolation is less than the
specified value when |Fc’| < |Fc|(outer offset of the arc).

Z-axis

C-axis

Y-axis

Programmed path



Vs

Fc

Vce

Ve

Vcs

Tool

Fz = Fz’



Fc’

Tool center path



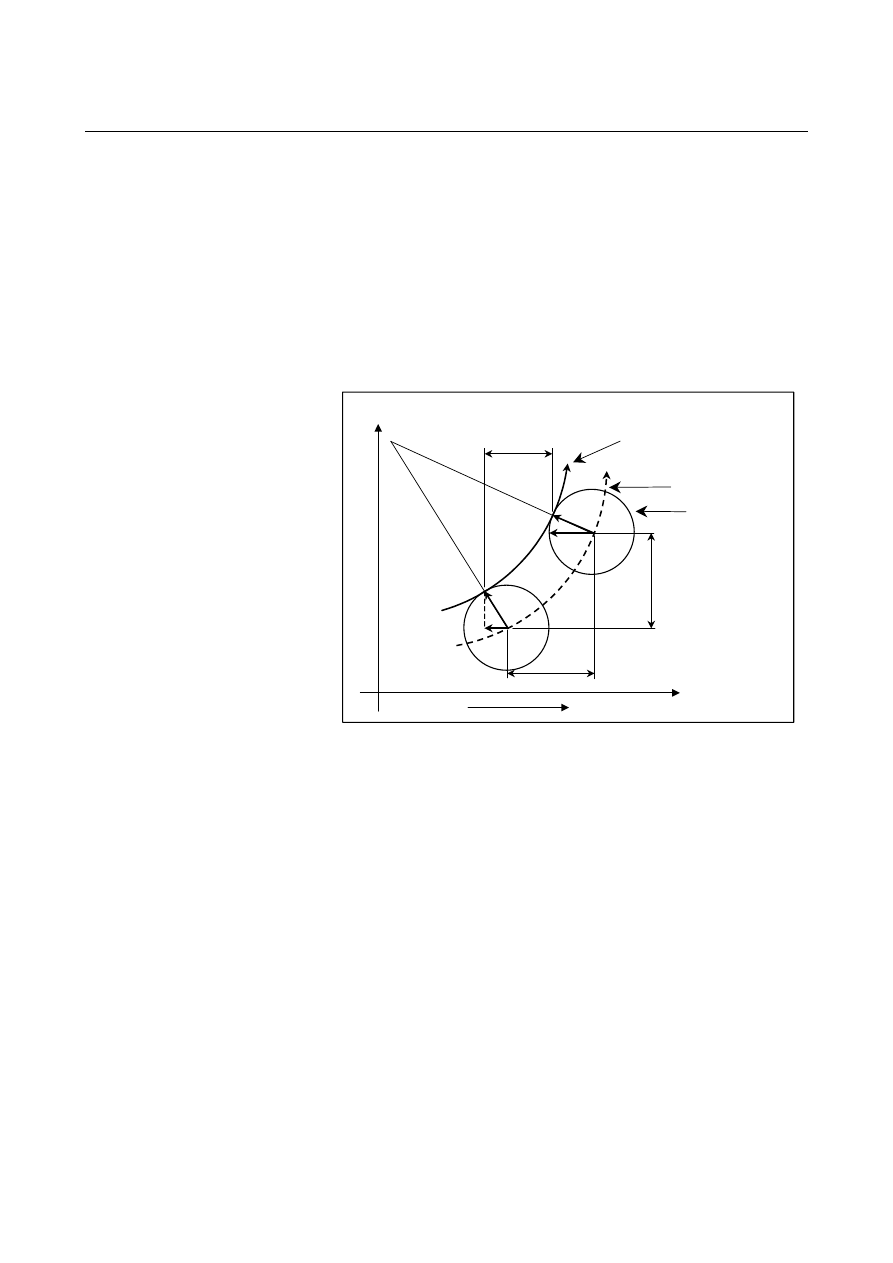

Fig.4.10 (l)    Actual speed indication during circular interpolation



  - Usable G codes

(1)  In any of the following G code modes, cutting point interpolation

for cylindrical interpolation can be specified:
G01, G02, G03:  Linear interpolation, circular interpolation
G17, G18, G19:  Plane selection
G22



:  Stored stroke check function on

G64

  :

Cutting

mode

G90, G91

:  Absolute programming, incremental

programming

G94

  :

Feed

per

minute

(2)  Any of the following G codes can be specified in cutting point

interpolation for cylindrical interpolation mode:

G01, G02, G03 :  Linear interpolation, circular interpolation
G04



:

Dwell

G40, G41, G42 :  Tool radius compensation
G40.1 to G42.1 :  Normal direction control
G64



:

Cutting

mode

G65 to G67

:  Macro call

G90, G91

:  Absolute programming, incremental

programming



4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 98 -

 - Parameter

To enable this function, set bit 5 (CYA) of parameter No. 19530 to 1.


Limitation
  - Overcutting during inner corner cutting

Theoretically, when the inner area of a corner is cut using linear
interpolation as shown in Fig. 4.10 (m), this function slightly overcuts
the inner walls of the corner. This overcutting can be avoided by
specifying a value of R that is slightly greater than the radius of the
tool at the corner.

Tool

Tool

Overcut portion



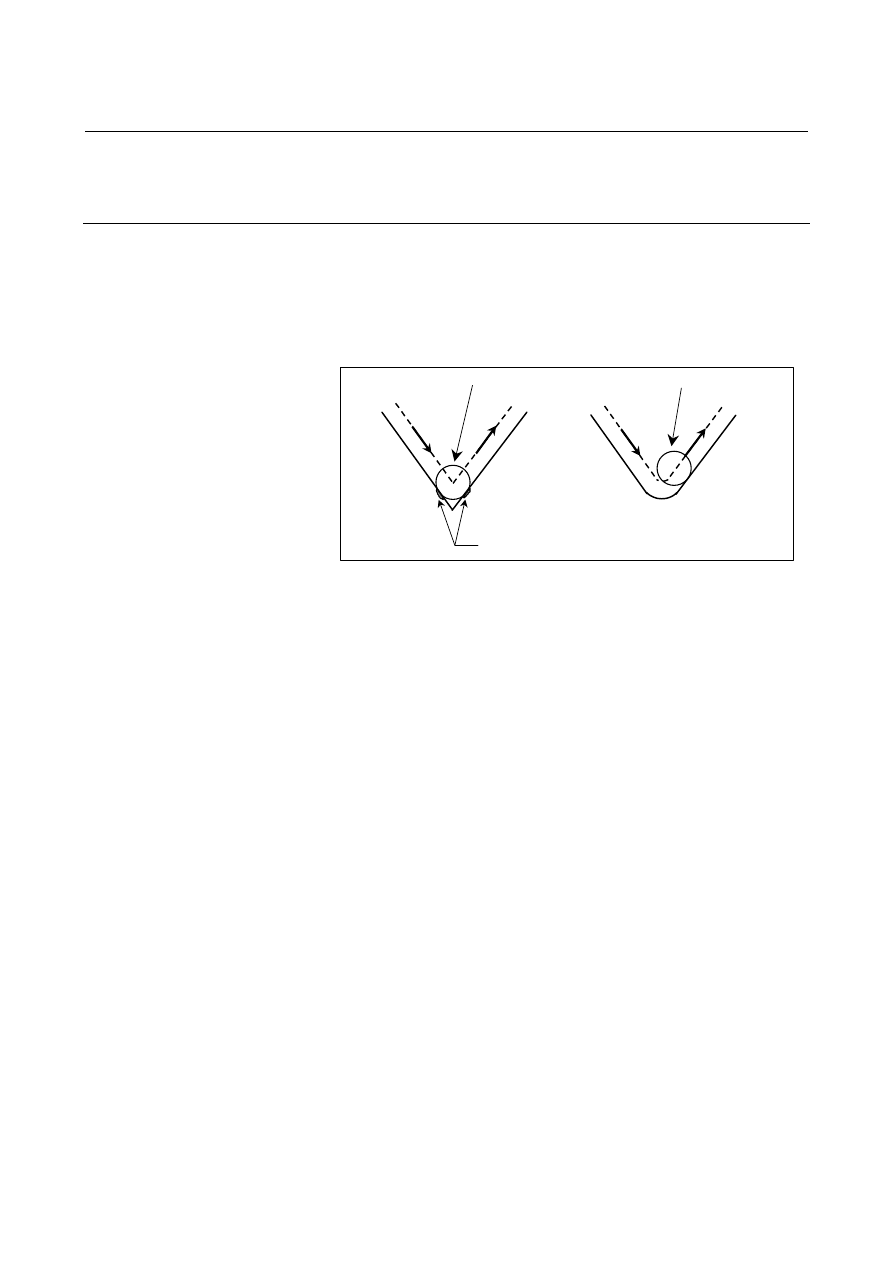

Fig.4.10 (m)  Overcutting



  - Setting the minimum input increment for an offset axis (Y-axis)

Set the same minimum input increment for an offset axis and linear
axis when cylindrical interpolation is performed.


  - Workpiece radius specification

When specifying the radius of a workpiece, use the minimum input
increment (with no decimal point) for the linear axis used in
cylindrical interpolation.


  - Reference axis setting (parameter No. 1031)

When different increment systems are used for a linear axis and a
rotary axis in cylindrical interpolation, specify the number of the
linear axis in cylindrical interpolation to set the axis as the reference
axis.


  - Rotary axis roll-over function

When a rotary axis for which the rollover function is used is specified
as a rotary axis to be used for cylindrical interpolation, the roll-over
function is disabled in the cylindrical interpolation mode.
When the cylindrical interpolation is canceled, the rollover function is
automatically enabled.


 - Program restart

In a program restart operation, G07.1 for the cylindrical interpolation
mode must not be specified.
Otherwise, PS0175 is issued.


B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 99 -

Example
  - Example of cutting point interpolation for cylindrical interpolation

The sample program below indicates the positional relationships
between a workpiece and tool.
O0001 (CYLINDRICAL INTERPOLATION1) ;
N01 G00 G90 Z100.0 C0 ;
N02 G01 G91 G19 Z0 C0 ;
N03 G07.1 C57299 ;
N04 G01 G42 G90 Z120.0 D01 F250. ; .......... (1)
N05 C20.0 ; ..................................................... (2)
N06 G02 Z110.0 C60.0 R10.0 ;....................... (3)
N07 G01 Z100.0 ; ............................................ (4)
N08 G03 Z60.0 C70.0 R40.0 ;......................... (5)
N09 G01 C100.0 ;
    :
M30 ;

Z-axis

C-axis on the Cylindrical surface

Tool center path

Programmed path

Tool



20 30

60 70

(deg)

30

60

70

80

90

120

(mm)

C-axis on the
Cylindrical
surface

Z-axis

Tool

(1)



(2) (3)

(4)

(5)



Fig. 4.10 (n)    Path of sample program for cutting point interpolation for

cylindrical interpolation
