Boeing 737 - 600/700/800/900. Operations Manual (1997 year) - page 23

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

Master Lights Test and Dim Switch

LIGHTS

TEST

BRT

1

DIM

LEFT FORWARD PANEL

1

Master LIGHTS TEST and DIM SWITCH

TEST - illuminates all system lights on forward and aft overhead panels, and

some lights on Captain and First Officer instrument panels to full brightness.

BRT (bright) - sets all system lights on forward and aft overhead panels, and some

lights on Captain and First Officer panels to full brightness.

DIM - sets all system lights on forward and aft overhead panels, and some lights

on Captain and First Officer panels to low brightness.

1.30.4

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

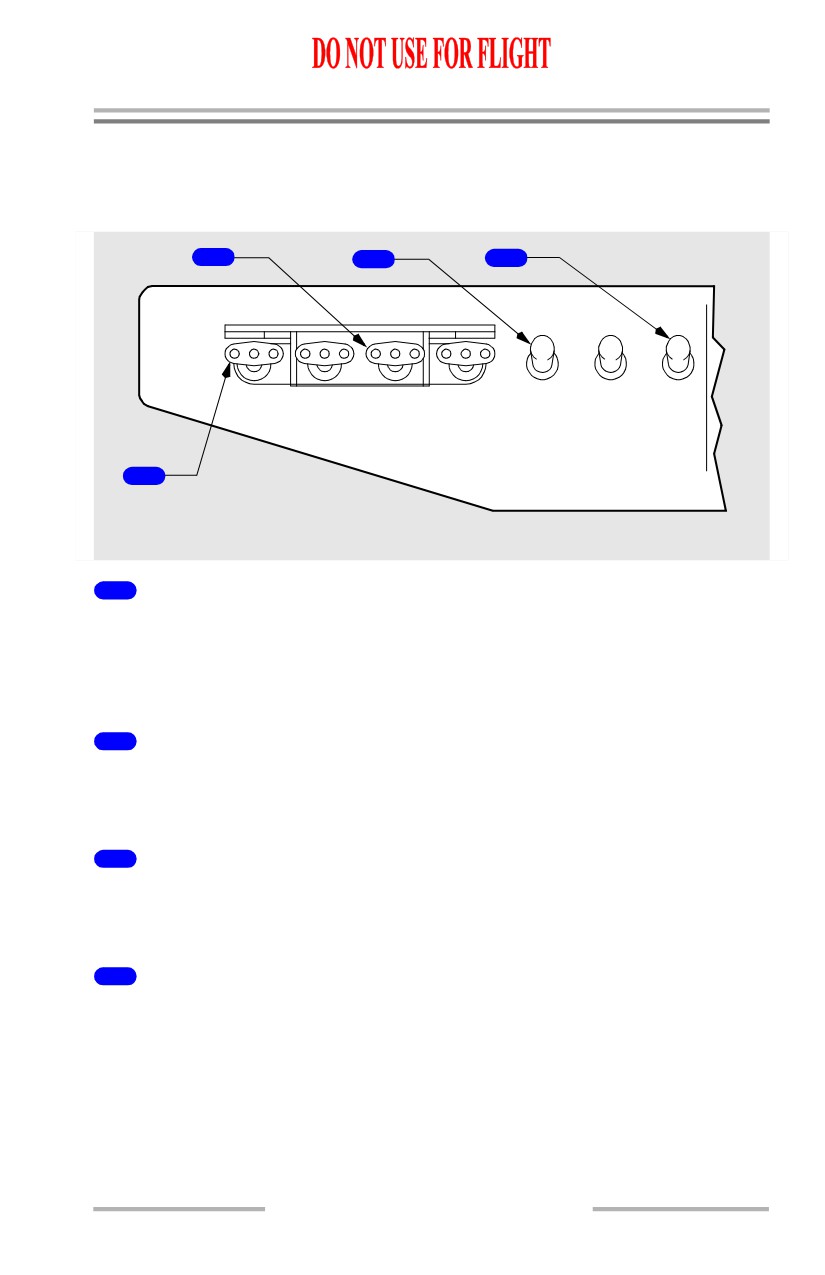

Exterior Lighting

Landing, Runway Turnoff and Taxi Lights

[Option - Typical]

2

3

4

LANDING

RUNWAY

E

RETRACT

OFF

TURNOFF

TAXI

X

L

R

T

OFF

OFF

E

N

ON

ON

D

L

ON

R

L

ON

R

RETRACTABLE

FIXED

1

FORWARD OVERHEAD PANEL

1

RETRACTABLE LANDING Light Switch

RETRACT - retractable landing lights are retracted and extinguished

EXTEND - retractable landing lights are extended and extinguished

ON - retractable landing lights are extended and illuminated.

2

FIXED LANDING Light Switch

OFF - fixed landing lights are extinguished.

ON - fixed landing lights are illuminated.

3

RUNWAY TURNOFF Light Switch

OFF - runway turnoff lights located in leading edge of wing root are extinguished.

ON - runway turnoff lights are illuminated.

4

TAXI Light Switch

OFF - nose wheel well taxi light extinguished.

ON - nose wheel well taxi light illuminated.

1.30.5

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

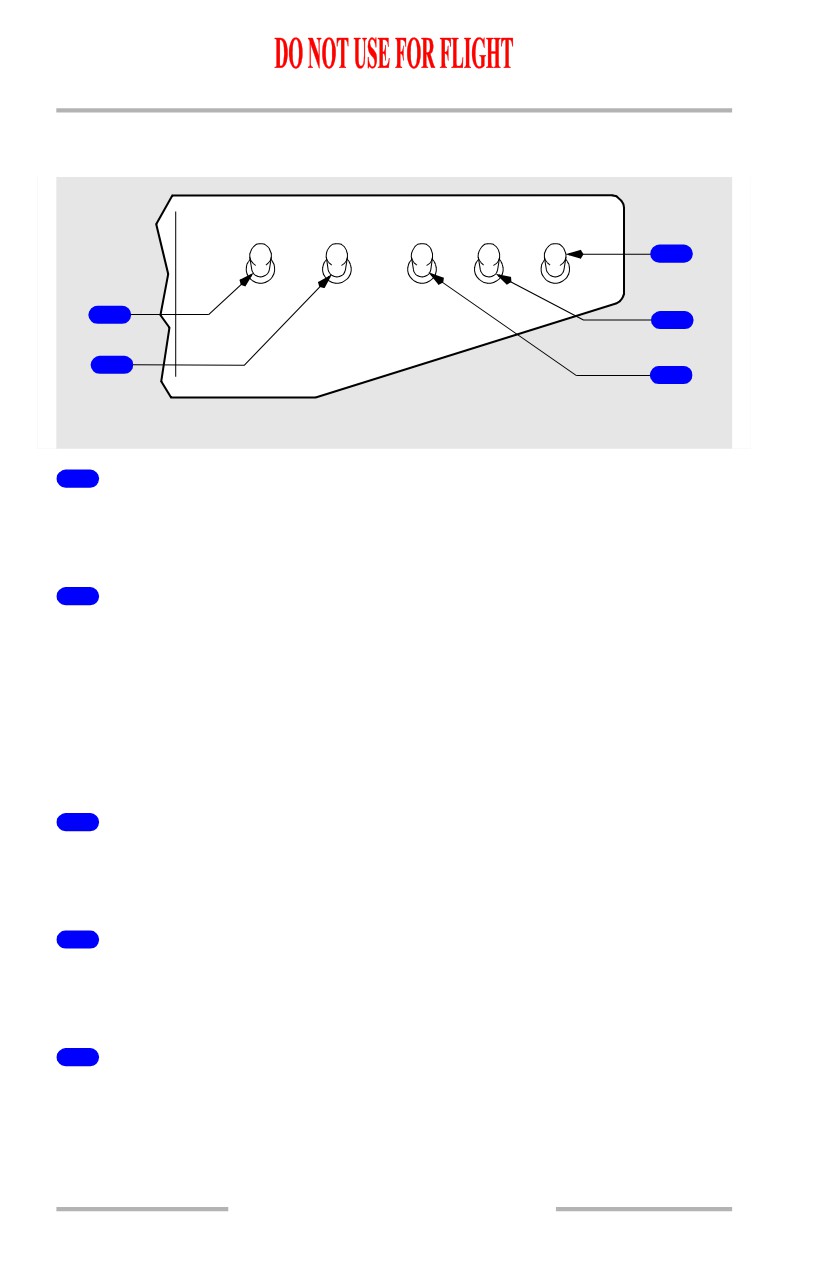

Miscellaneous Exterior Lights

[Option - Typical]

ANTI

WHEEL

LOGO

POSITION

COLLISION

WING

WELL

OFF

STEADY

OFF

OFF

OFF

3

OFF

ON

STROBE &

ON

ON

ON

STEADY

1

4

2

5

FORWARD OVERHEAD PANEL

1

LOGO Light Switch

OFF - logo lights on each side of vertical fin extinguished.

ON - logo lights illuminated.

2

POSITION Light Switch

STROBE & STEADY - red and green wing-tip position lights, white trailing

edge wing-tip lights and wing-tip and tail strobe lights illuminated.

OFF - red and green wing-tip position lights, white trailing edge wing-tip lights

and wing-tip and tail strobe lights extinguished.

STEADY - red and green wing-tip position lights and white trailing edge

wing-tip lights illuminated.

3

WHEEL WELL Light Switch

OFF - three wheel well lights extinguished.

ON - wheel well lights illuminated.

4

WING Illumination Switch

OFF - wing leading edge lights on fuselage forward of wing extinguished.

ON - wing leading edge lights illuminated.

5

ANTI-COLLISION Light Switch

OFF - red rotating beacon lights on upper and lower fuselage extinguished.

ON - red rotating beacon lights illuminated.

1.30.6

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

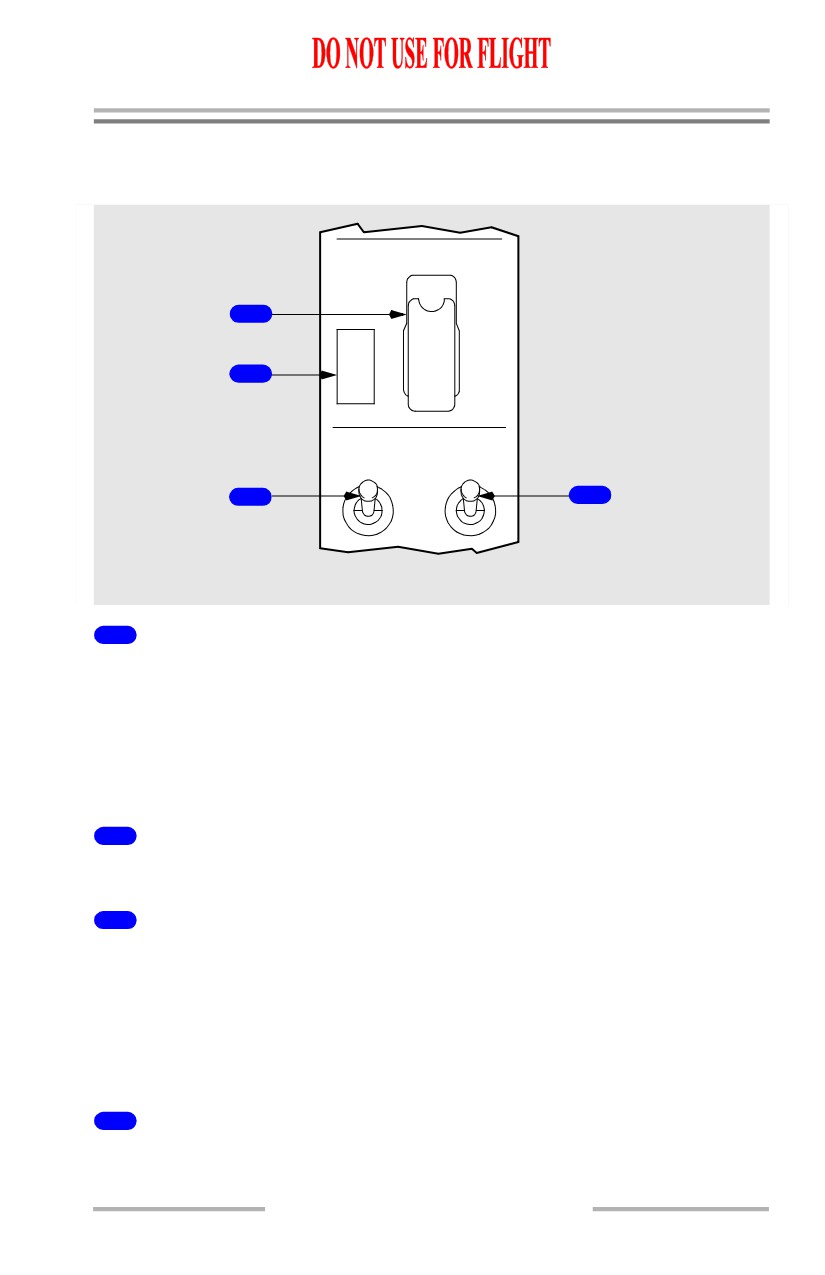

Emergency Lighting and Passenger Signs

Flight Deck

EMER EXIT LIGHTS

1

OFF

A

N

R

ARMED

O

M

2

T

E

D

ON

NO

FASTEN

SMOKING BELTS

OFF

3

4

AUTO

ON

FORWARD OVERHEAD PANEL

1

Emergency (EMER) EXIT LIGHTS Switch

OFF - prevents emergency lights system operation if airplane electrical power

fails or is turned off.

ARMED - (guarded position) all emergency lights illuminate automatically if

airplane electrical power to DC bus No. 1 fails or AC power is turned off.

ON - all emergency lights illuminate.

2

Emergency (EMER) EXIT LIGHTS NOT ARMED Light

Illuminated (amber) - EMER EXIT LIGHTS switch not in ARMED position.

3

NO SMOKING Switch

OFF - the NO SMOKING signs are not illuminated.

AUTO - the NO SMOKING signs are illuminated or extinguished automatically

with reference to airplane configuration (refer to the Lighting System Description

section).

ON - the NO SMOKING signs are illuminated.

4

SEAT BELTS Switch

OFF - the FASTEN SEAT BELTS and RETURN TO SEAT signs are not

illuminated.

1.30.7

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

AUTO - the FASTEN SEAT BELTS and RETURN TO SEAT signs are

illuminated or extinguished automatically with reference to airplane configuration

(refer to the Lighting System Description section).

ON - the FASTEN SEAT BELTS and RETURN TO SEAT signs are illuminated.

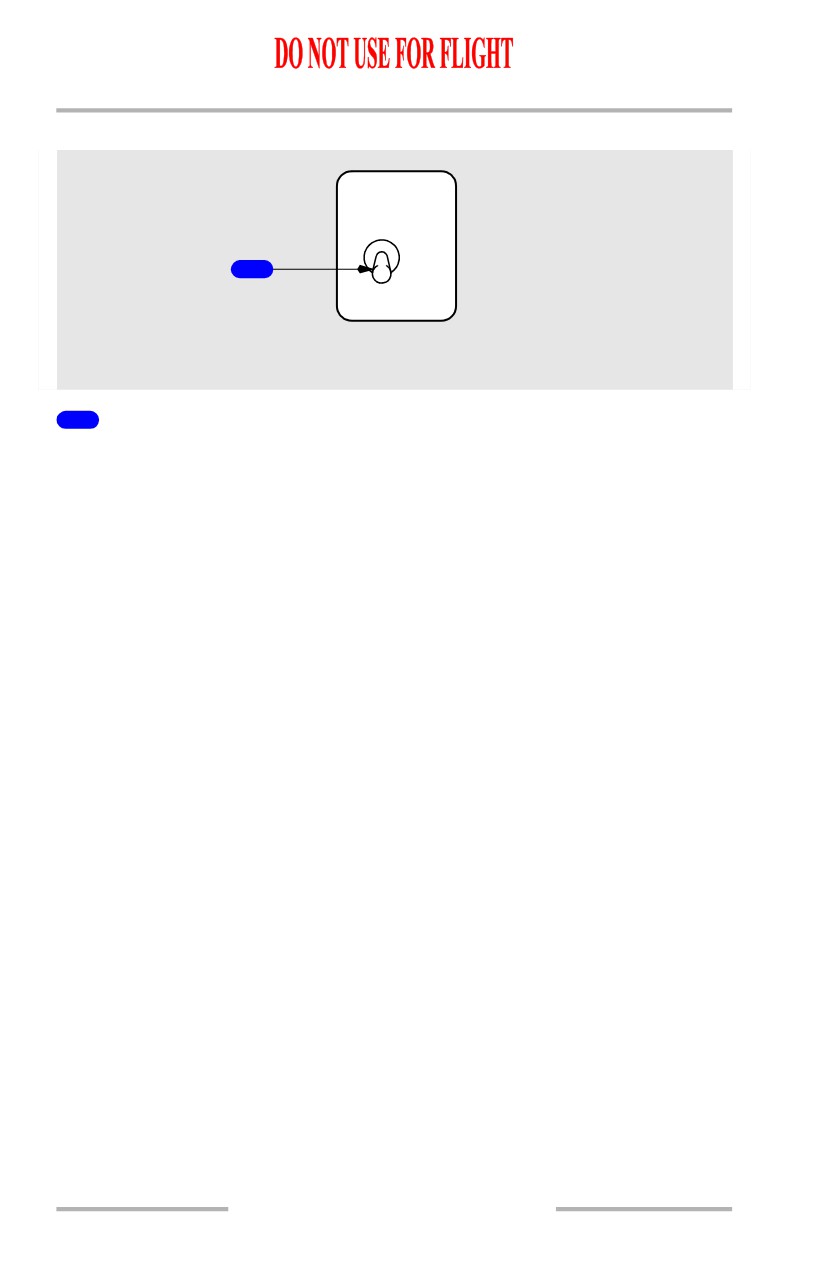

Passenger Cabin

1

EMERGENCY

EXIT LIGHTS

AFT ATTENDANT PANEL

1

Passenger Cabin Emergency Lights Switch (guarded)

On - illuminates all emergency lights and bypasses flight deck control.

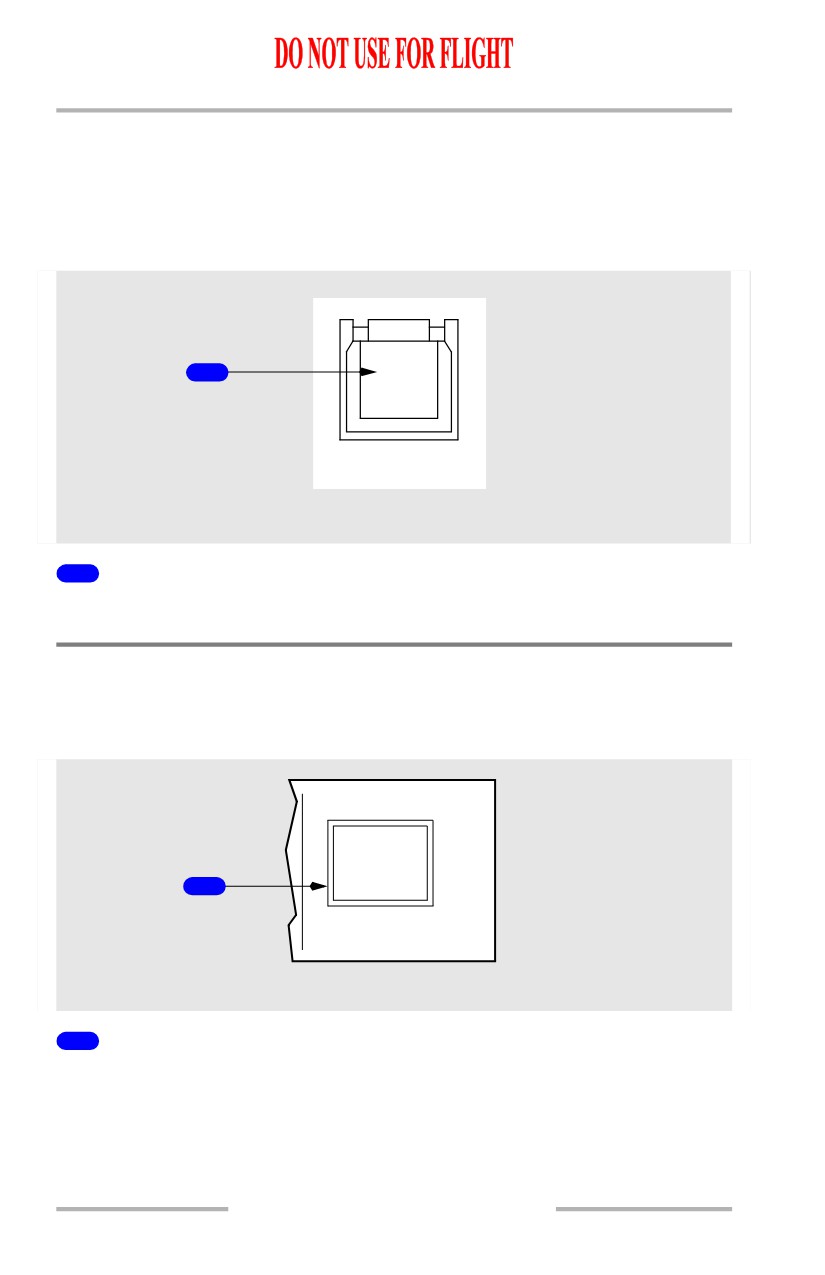

Doors

Cabin Door

[Original Flight Deck Door]

CAB DOOR

CAB DOOR

UNLOCKED

1

AISLE STAND

1

Cabin Door (CAB DOOR) Lock Switch

Illuminated (amber) - cabin door is unlocked.

Push - with DC power available, locks cabin door

1.30.8

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

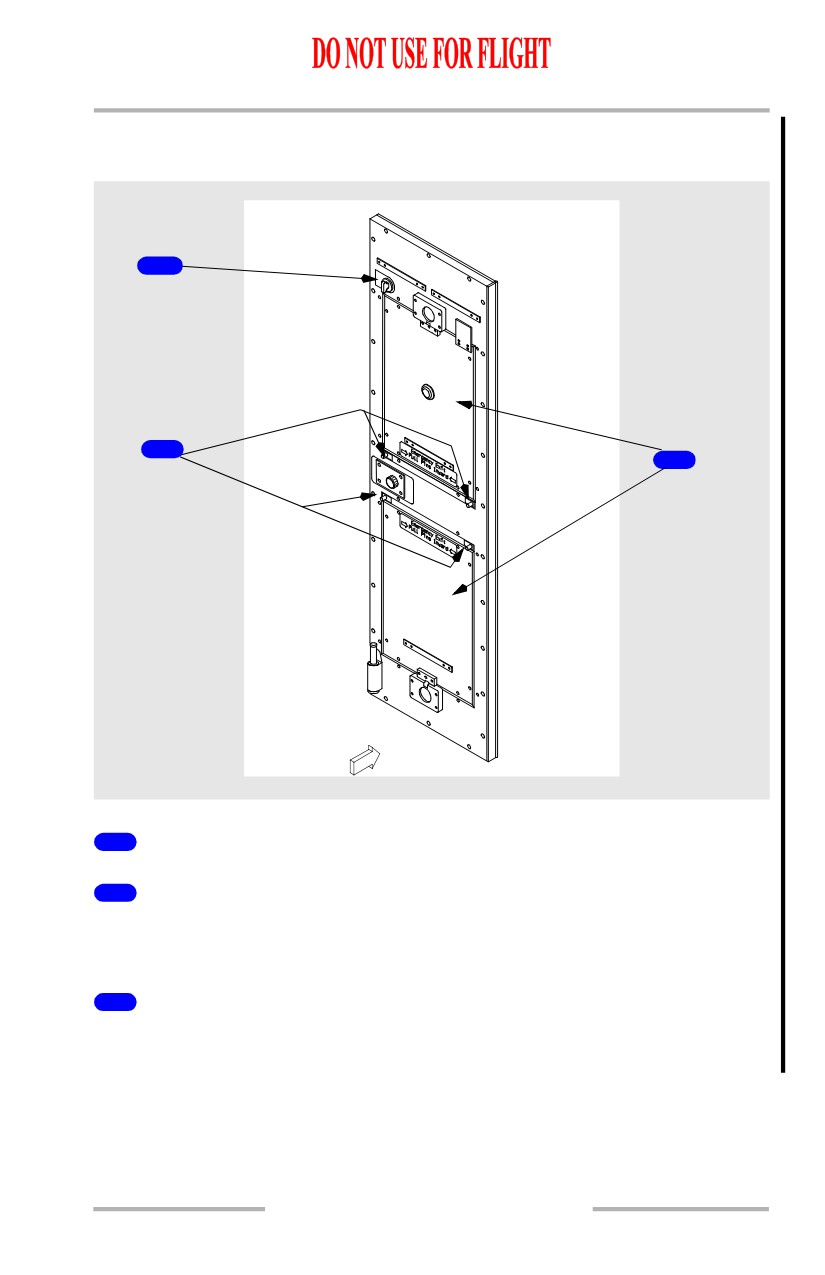

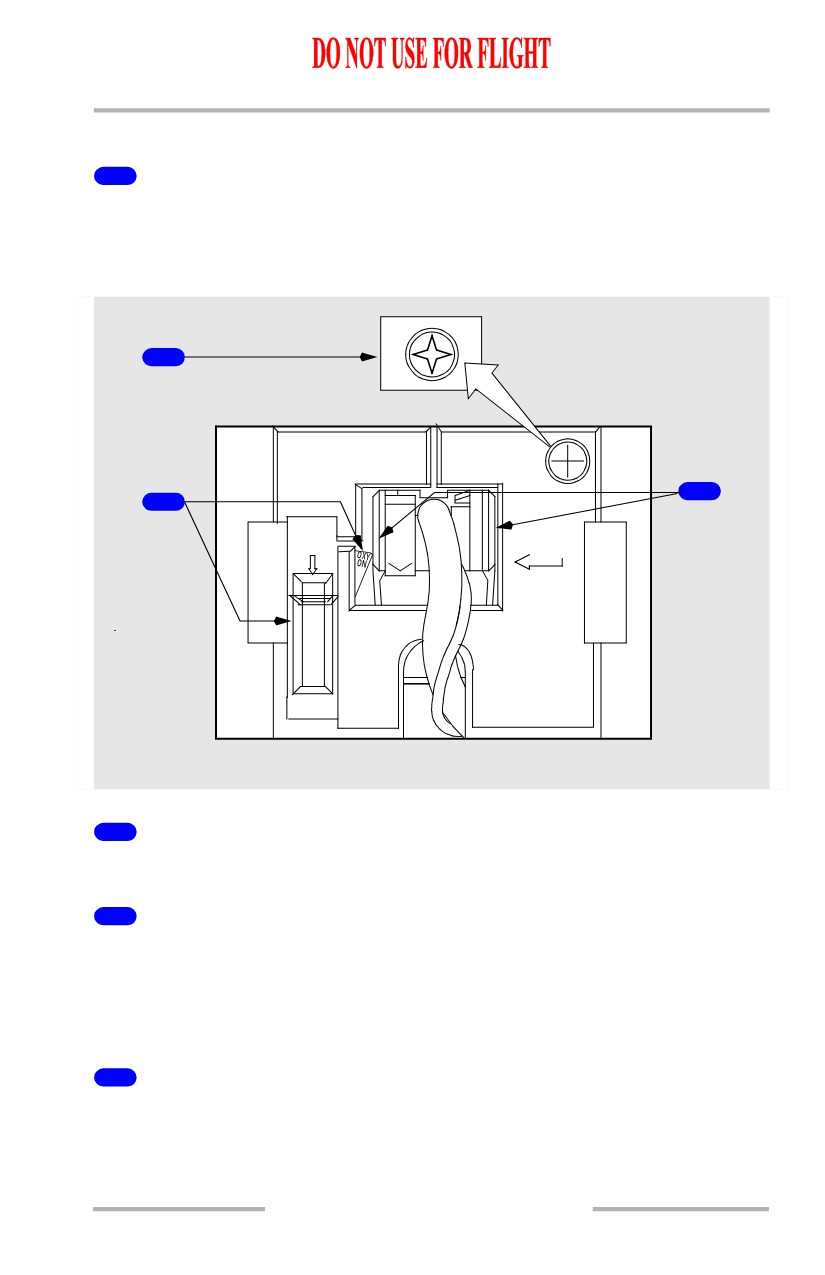

Flight Deck Security Door

[New Flight Deck Security Door]

1

2

3

AFT

1

Deadbolt

2

Release Pins

Pull pins inward - manually separates decompression panel from a jammed door

to allow panel opening and egress.

3

Decompression Panel

Provides emergency egress path and automatically opens during cabin

decompression.

1.30.9

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

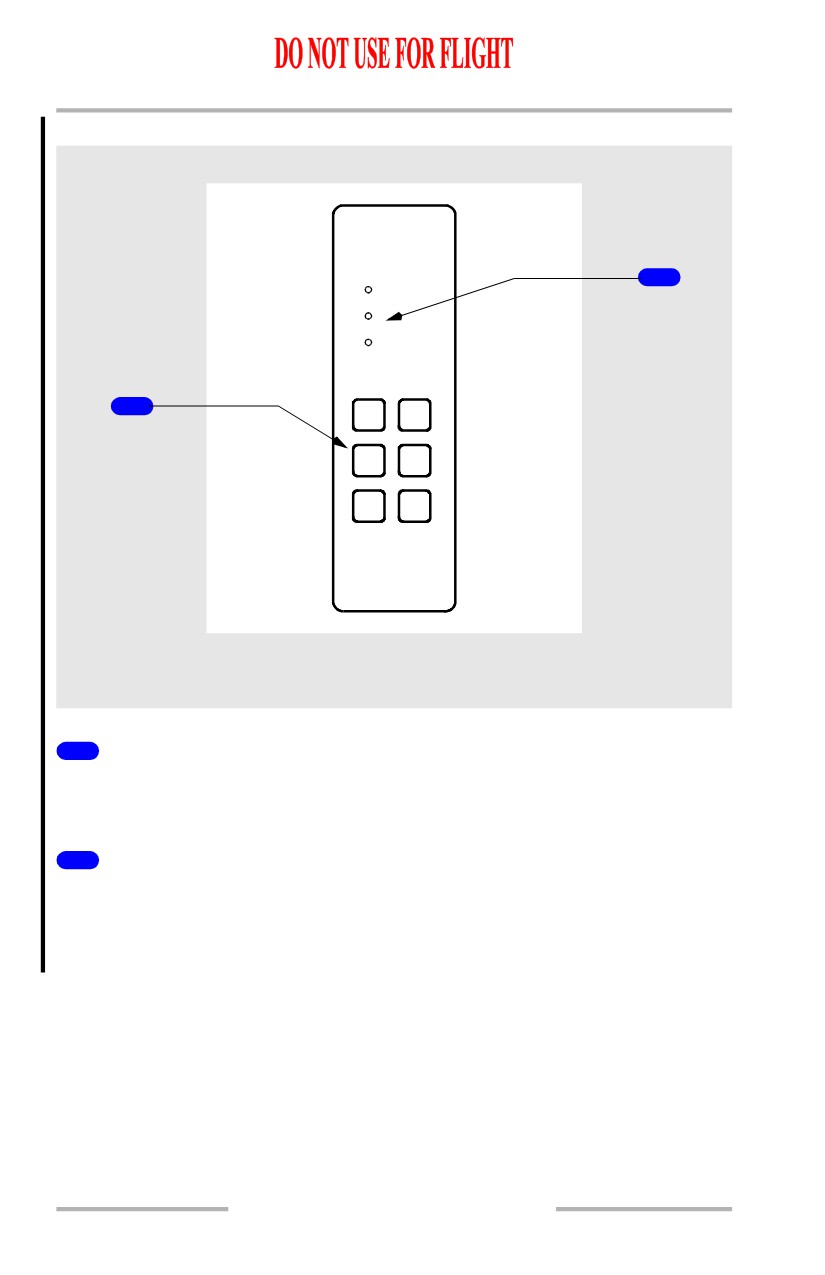

Flight Deck Emergency Access Panel

2

1

1

2

3

4

5

ENT

PASSENGER SIDE DOOR POST

1

Keypad

Push - enters 3 to 8 digit emergency numeric access code. Entry of correct

emergency access code sounds flight deck chime.

2

Access Lights

Illuminated (red) - door locked.

Illuminated (amber) - correct emergency access code entered.

Illuminated (green) - door unlocked.

1.30.10

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

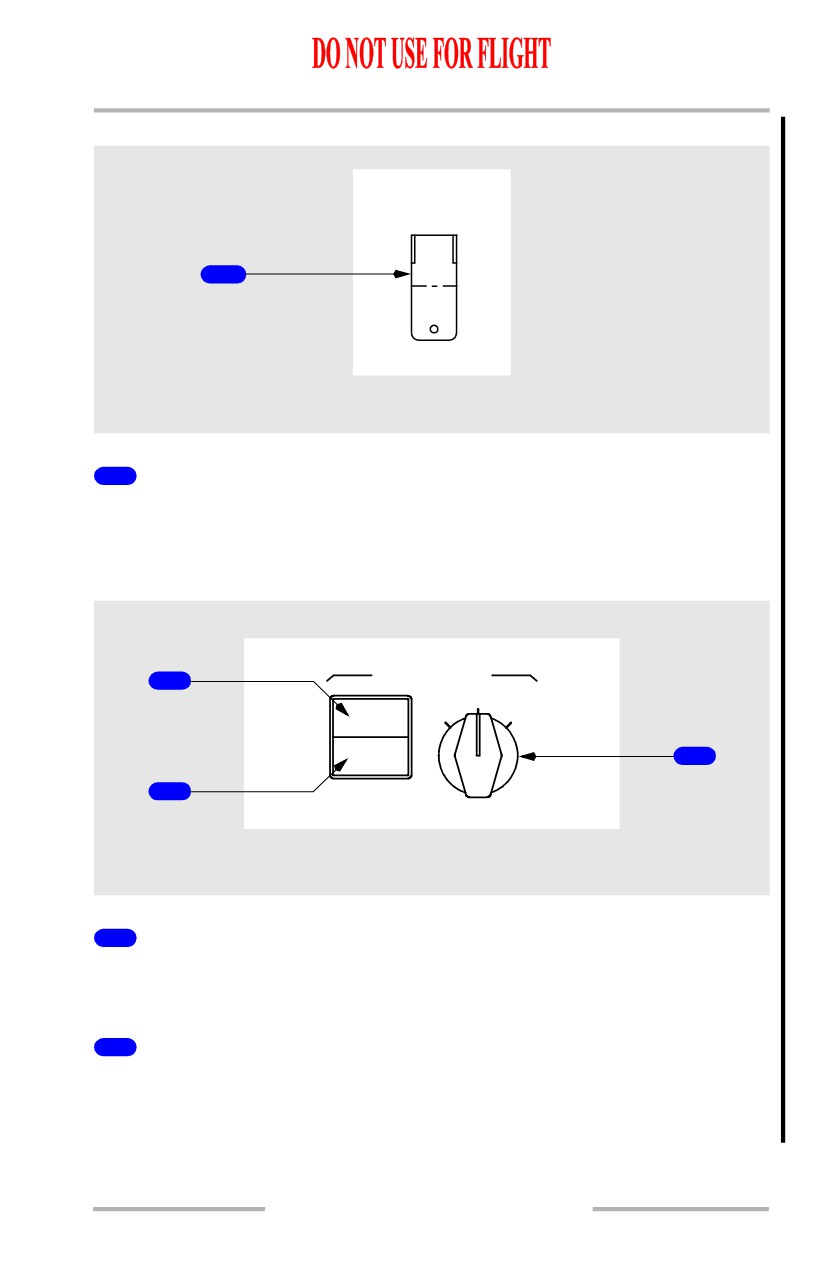

Flight Deck Access System Switch

FLIGHT DECK

ACCESS SYSTEM

OFF

1

NORM

FLIGHT DECK SIDE DOOR POST

1

Flight Deck Access System Switch

OFF - removes electrical power from door lock.

NORM (Normal) - flight deck access system configured for flight.

Flight Deck Door Lock Panel

1

FLT DK DOOR

AUTO

LOCK

UNLKD

DENY

FAIL

AUTO

3

UNLK

2

AISLE STAND

1

LOCK FAIL Light

Illuminated (amber) - Flight Deck Door Lock selector in AUTO and door lock has

failed or Flight Deck Access System switch is OFF.

2

AUTO Unlock (UNLK) Light

Illuminated (amber) - correct emergency access code entered in keypad. AUTO

UNLK light flashes and continuous chime sounds before timer expires and door

unlocks.

1.30.11

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

3

Flight Deck (FLT DK) Door Lock Selector

Spring loaded to AUTO. Selector must be pushed in to rotate from AUTO to

UNLKD. Selector must not be pushed in to rotate from AUTO to DENY.

UNLKD - door unlocked while selector in UNLKD.

AUTO - door locked. Allows door to unlock after entry of emergency access code

and expiration of timer, unless crew takes action.

DENY - rejects keypad entry request and prevents further emergency access code

entry for a time period.

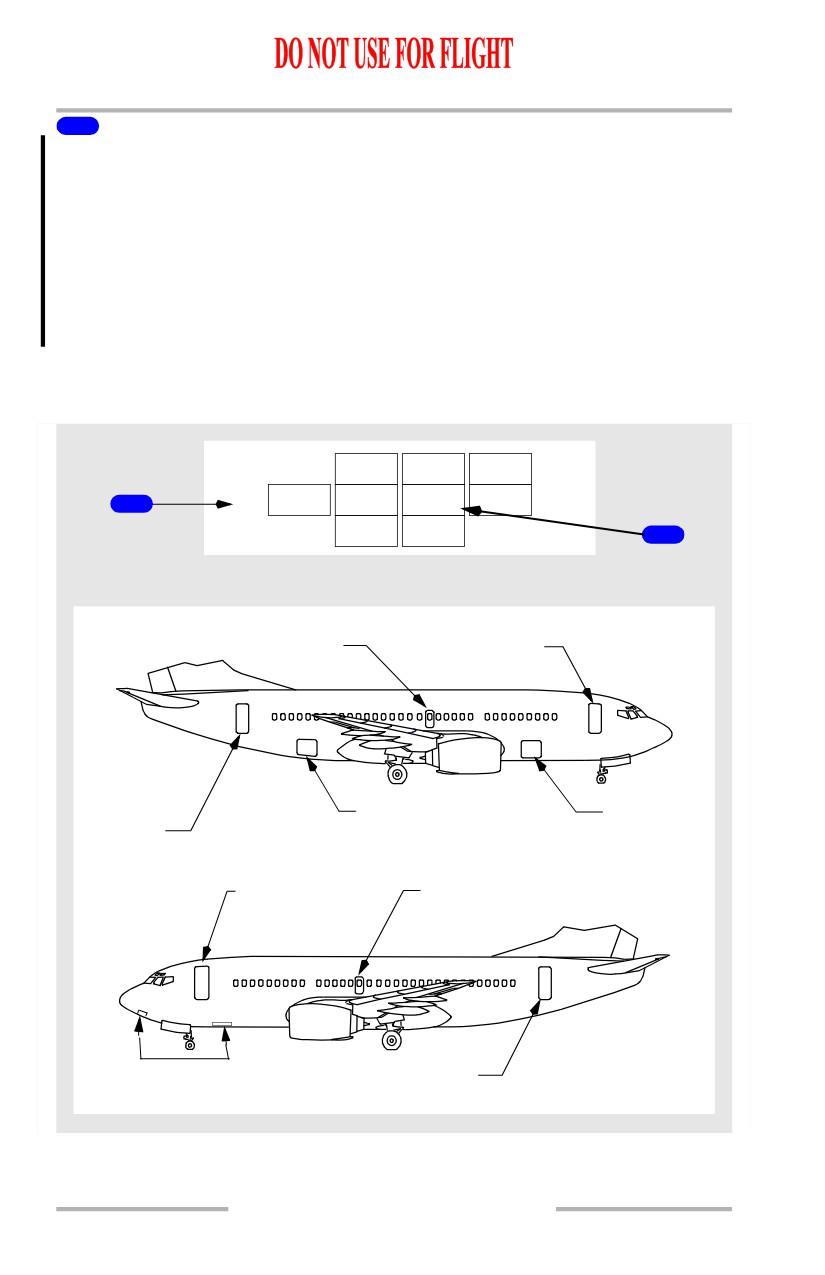

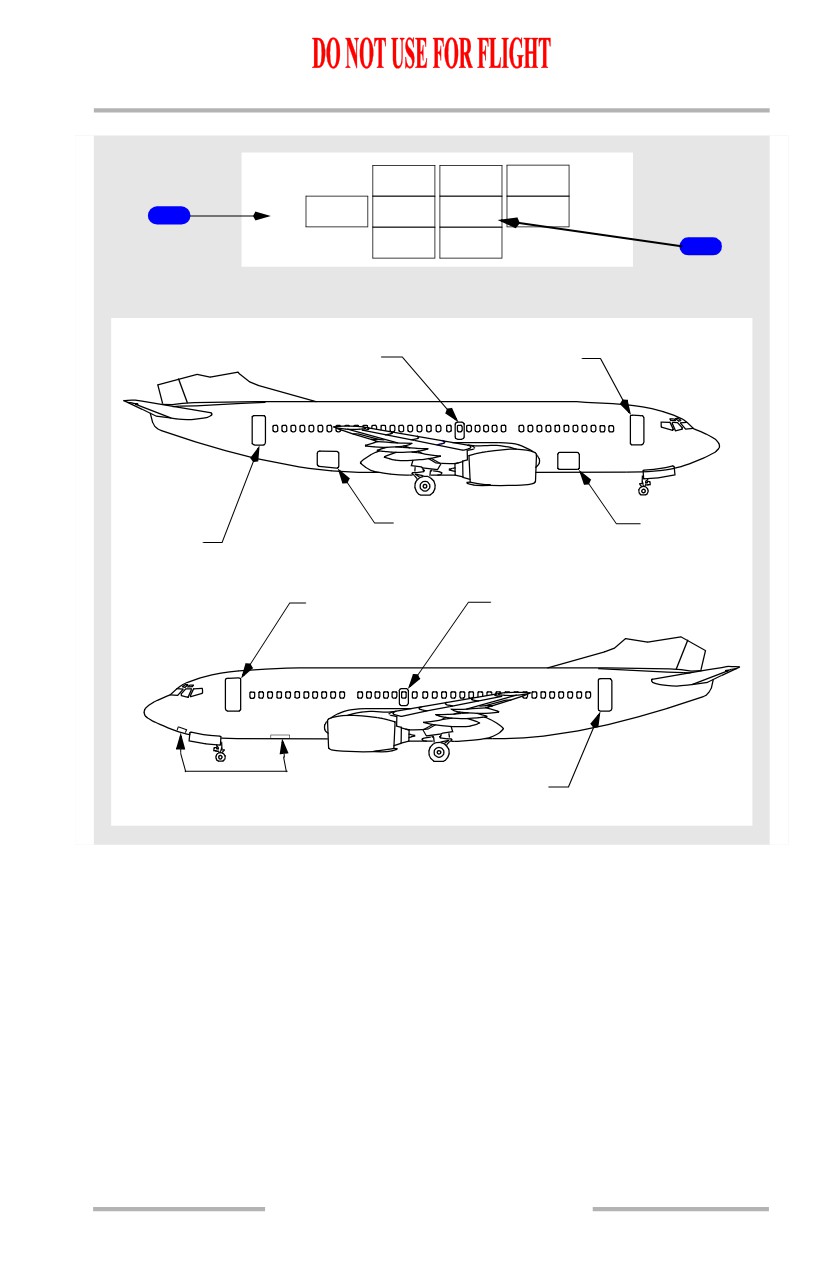

Exterior Door Annunciator Lights

[Option - Typical 737-600 without airstairs]

FWD

FWD

FWD

ENTRY

SERVICE

CARGO

LEFT

RIGHT

AFT

1

EQUIP

OVERWING

OVERWING

CARGO

AFT

AFT

ENTRY

SERVICE

2

FORWARD OVERHEAD PANEL

OVERWING

FWD

EXIT

SERVICE

AFT

AFT

FWD

SERVICE

CARGO

CARGO

FWD

OVERWING

ENTRY

EXIT

EQUIP

AFT

ENTRY

1.30.12

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

[Option - Typical 737-700 without airstairs]

FWD

FWD

FWD

ENTRY

SERVICE

CARGO

LEFT

RIGHT

AFT

EQUIP

1

OVERWING

OVERWING

CARGO

AFT

AFT

ENTRY

SERVICE

2

FORWARD OVERHEAD PANEL

OVERWING

FWD

EXIT

SERVICE

AFT

AFT

FWD

SERVICE

CARGO

CARGO

FWD

OVERWING

ENTRY

EXIT

EQUIP

AFT

ENTRY

1.30.13

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

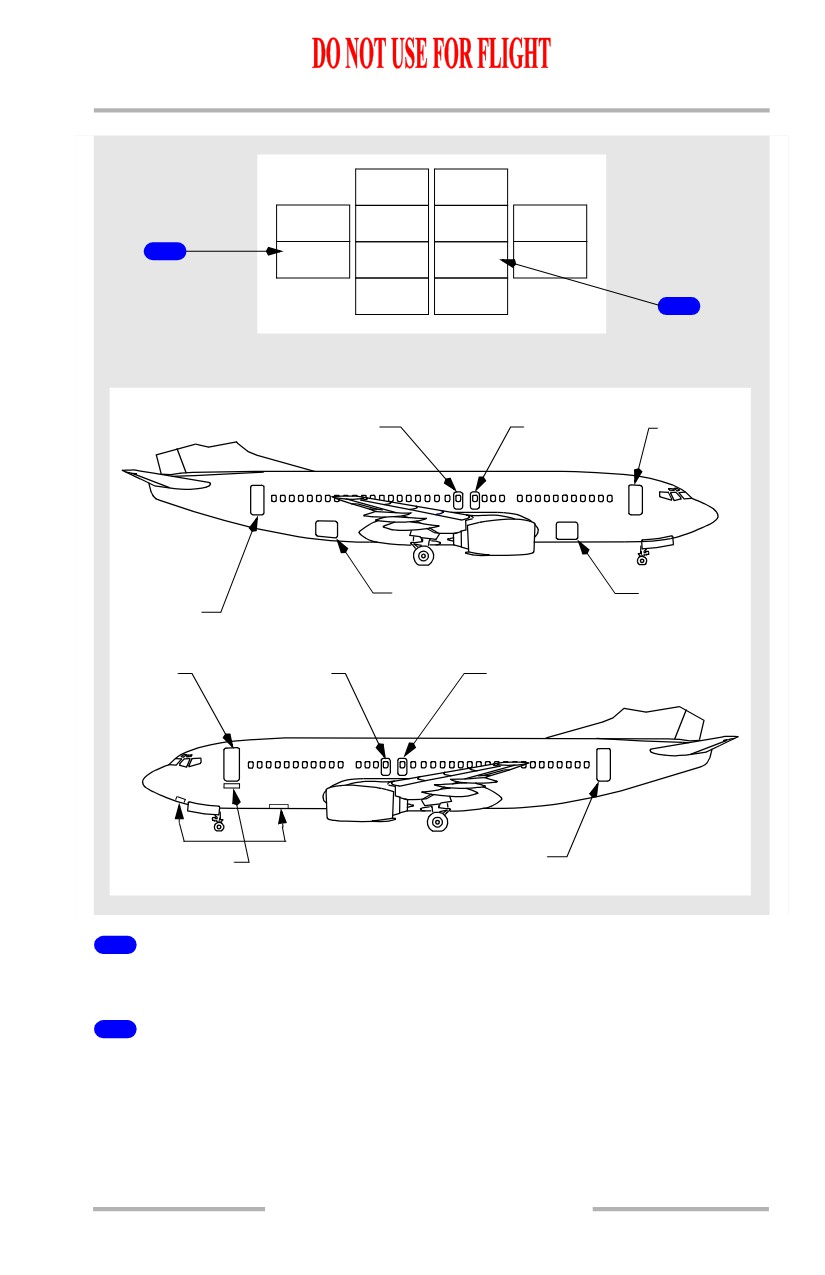

[Option - Typical 737-800/900 with airstairs and winglets]

FWD

FWD

ENTRY

SERVICE

LEFT FWD

RIGHT FWD

FWD

AIRSTAIR

OVERWING

OVERWING

CARGO

1

LEFT AFT

RIGHT AFT

AFT

EQUIP

OVERWING

OVERWING

CARGO

AFT

AFT

ENTRY

SERVICE

2

FORWARD OVERHEAD PANEL

RIGHT AFT

RIGHT FWD

FWD

OVERWING

OVERWING

SERVICE

AFT

AFT

FWD

SERVICE

CARGO

CARGO

FWD

LEFT FWD

LEFT AFT

ENTRY

OVERWING

OVERWING

EQUIP

AFT

AIRSTAIR

ENTRY

1.30.14

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

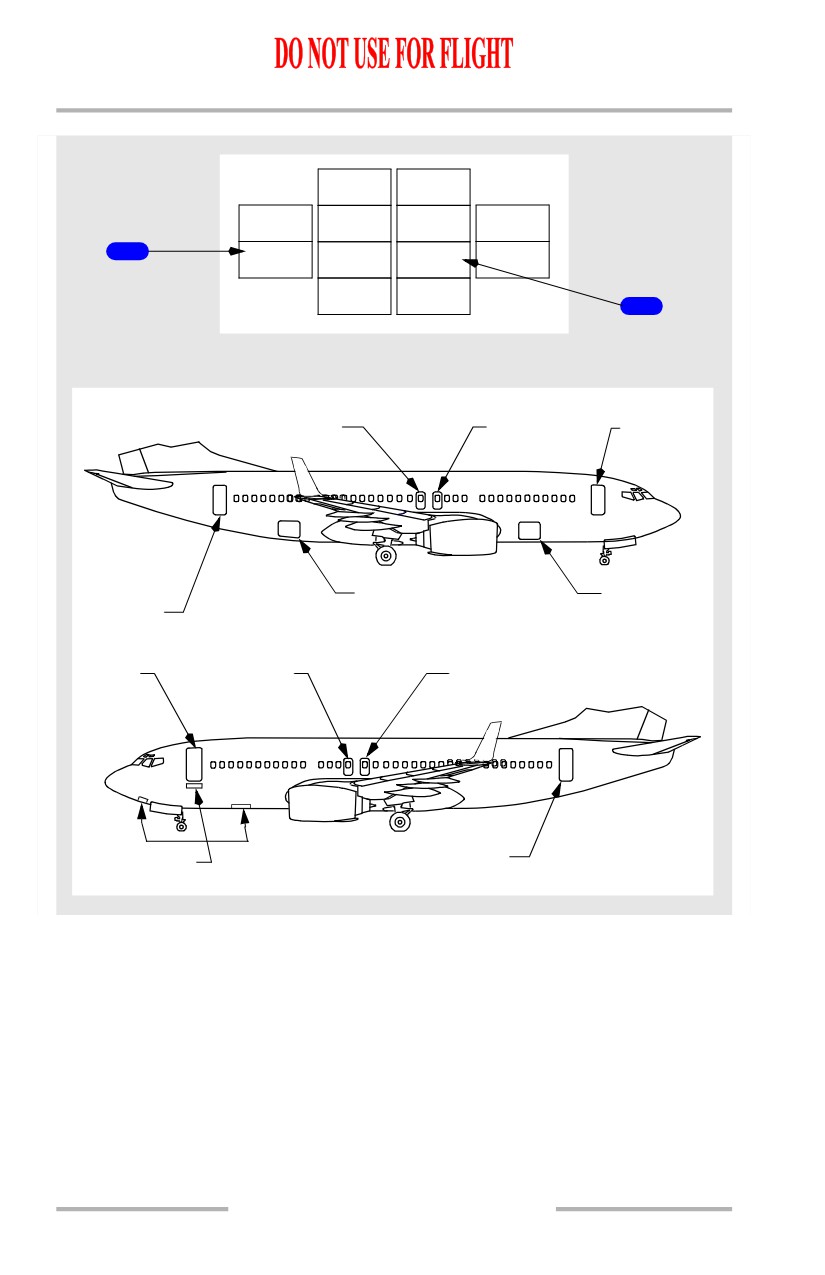

[Option - Typical 737-900 with airstairs]

FWD

FWD

ENTRY

SERVICE

LEFT FWD

RIGHT FWD

FWD

AIRSTAIR

OVERWING

OVERWING

CARGO

1

LEFT AFT

RIGHT AFT

AFT

EQUIP

OVERWING

OVERWING

CARGO

AFT

AFT

ENTRY

SERVICE

2

FORWARD OVERHEAD PANEL

RIGHT AFT

RIGHT FWD

FWD

OVERWING

OVERWING

SERVICE

AFT

AFT

FWD

SERVICE

CARGO

CARGO

FWD

LEFT FWD

LEFT AFT

ENTRY

OVERWING

OVERWING

EQUIP

AFT

AIRSTAIR

ENTRY

1

Exterior Door Annunciations

Illuminated (amber) - related door is not closed and locked.

2

Overwing Exit Annunciations

Illuminated (amber) -.

• related overwing exit is not closed and locked

• related flight lock failed to engage when commanded locked.

1.30.15

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

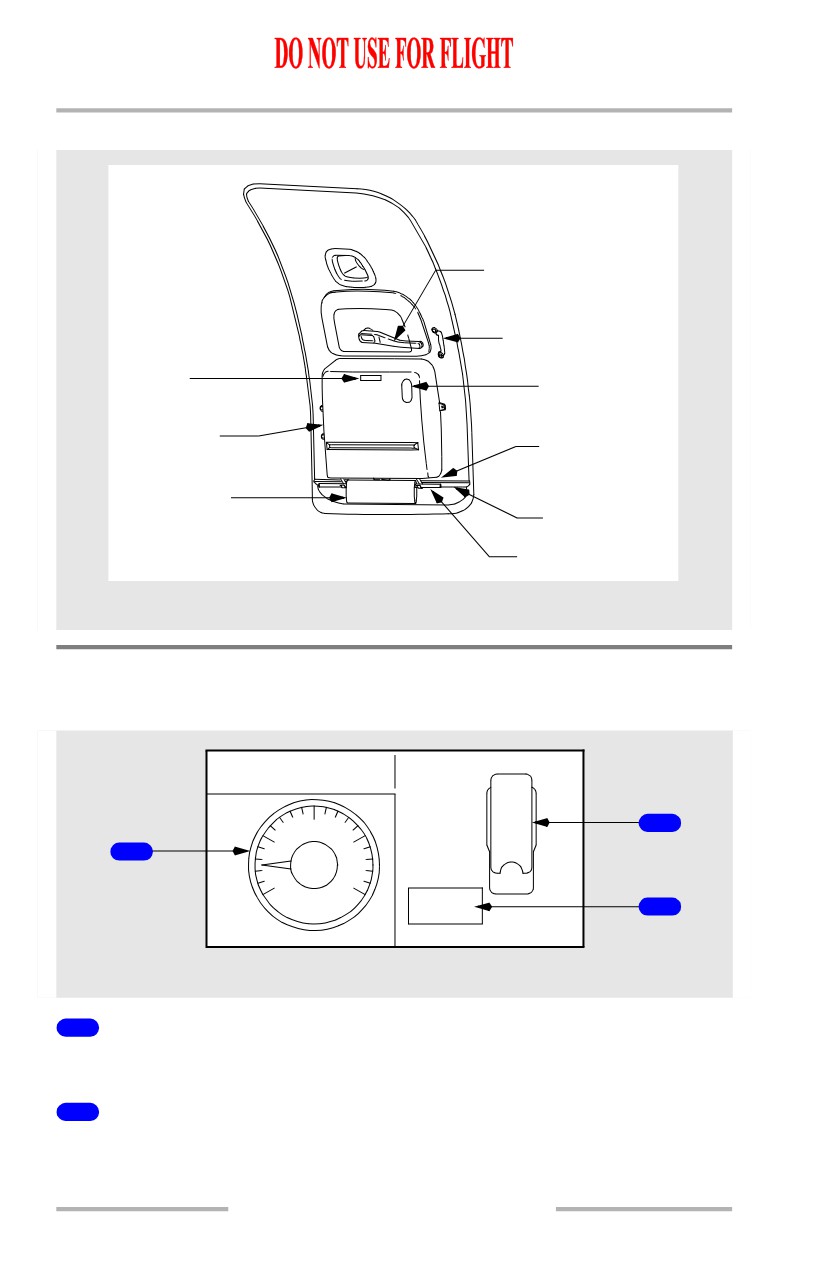

Passenger Entry/Galley Service Doors

CONTROL HANDLE

ASSIST HANDLE

INSTRUCTION

PLACARD

SLIDE PRESSURE

GAUGE VIEWER

SLIDE

COMPARTMENT

STOWAGE HOOKS

GIRT

FLOOR BRACKETS

GIRT BAR

PASSENGER CABIN

Oxygen

Oxygen Panel

CREW

PASS OXYGEN

OXYGEN

NORMAL

10

2

ON

5

15

1

0

20

OXY PRESS

PASS OXY

PS1 X 100

ON

3

AFT OVERHEAD PANEL

1

Flight CREW OXYGEN Pressure Indicator

Indicates pressure at the crew oxygen cylinder.

2

Passenger Oxygen (PASS OXYGEN) Switch

NORMAL - (guarded position) passenger masks drop and passenger oxygen

system activated automatically if cabin altitude climbs to 14,000 feet

1.30.16

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

ON - activates system and drops masks if automatic function fails.

3

Passenger Oxygen On Light

Illuminated (amber) - passenger oxygen system is operating and masks have

dropped.

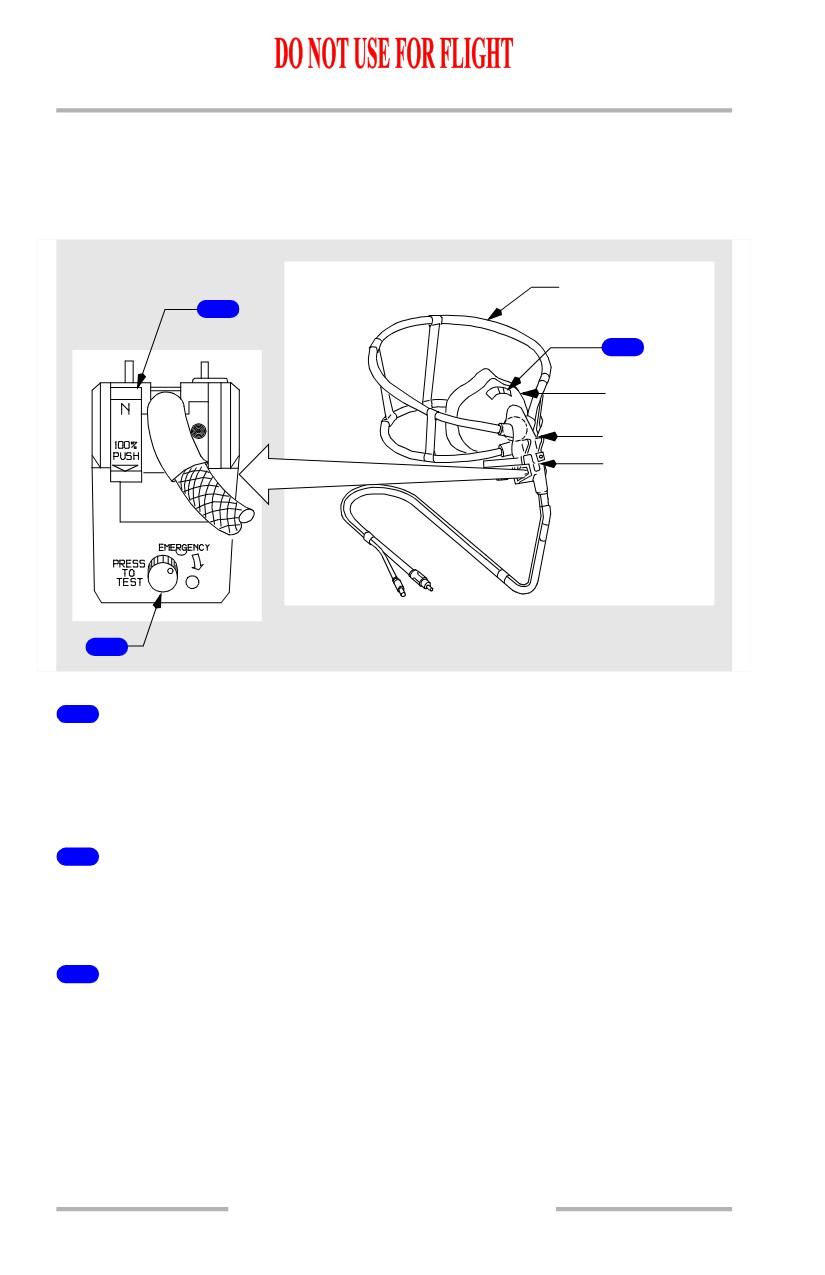

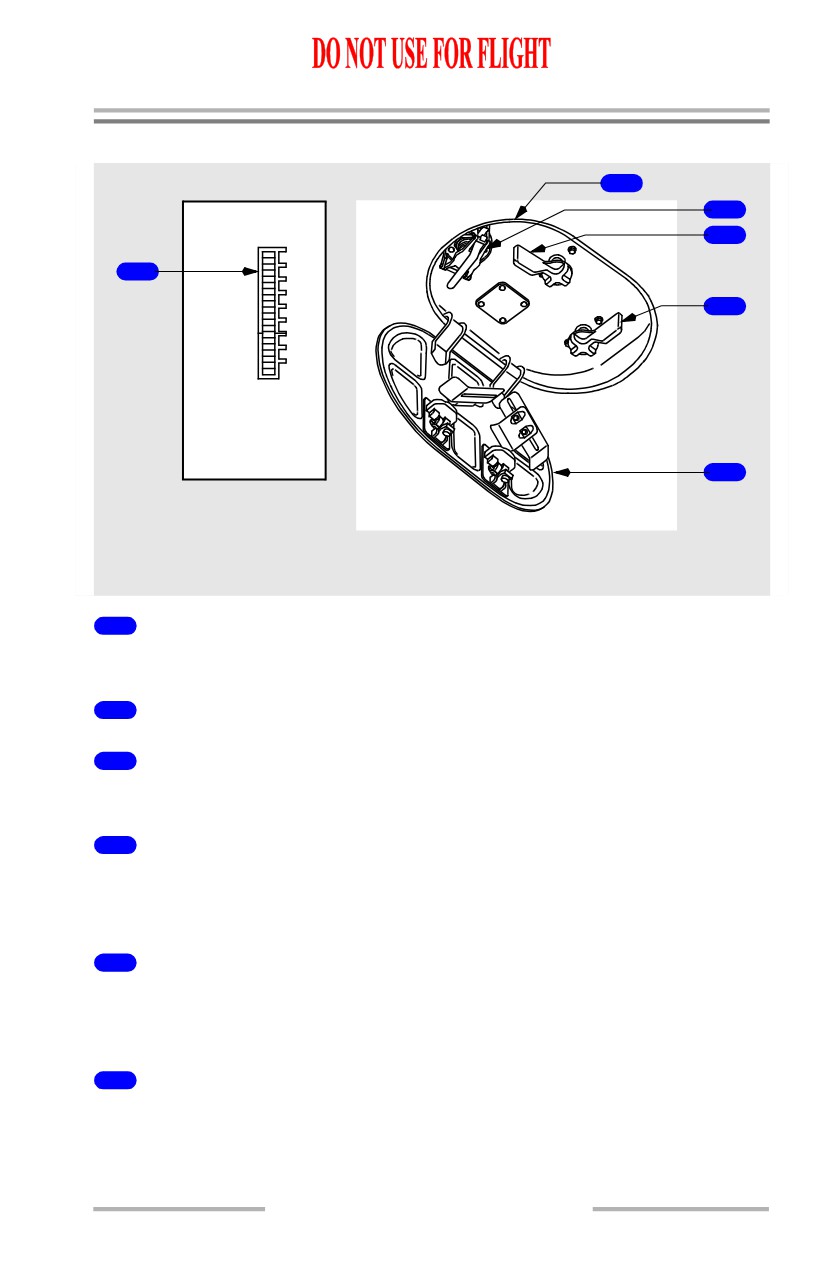

Oxygen Mask Panel

1

3

2

N

RESET

OXYGEN

TEST

100%

MASK

PUSH

CREWMEMBER STATION

1

Oxygen Flow Indicator

Indicates a yellow cross when oxygen is flowing.

2

RESET/TEST Slide Lever

Push -

• if mask is stowed, activates oxygen flow momentarily to test regulator

• if mask is not stowed and stowage box doors are closed, retracts OXY ON

flag, shuts off oxygen, and shuts off microphone.

3

Inflation Levers

Squeeze and pull up -

• releases mask from stowage box

• releases OXY ON flag when stowage box doors open

1.30.17

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

• activates oxygen and microphone

• inflates mask harness when inflation lever is squeezed

• flow indicator shows a yellow cross momentarily as harness inflates.

Oxygen Mask and Regulator

HARNESS

(shown inflated)

1

3

MASK

MICROPHONE

REGULATOR

2

CREWMEMBER STATION

1

NORMAL/100% Switch

N (normal) - supplies air/oxygen mixture on demand (ratio depends on cabin

altitude).

100% - supplies 100% oxygen on demand.

2

Oxygen Mask EMERGENCY/Test Selector (rotary)

Rotate - supplies 100% oxygen under positive pressure at all cabin altitudes.

PRESS TO TEST - tests positive pressure supply to regulator.

3

Smoke Vent Valve Selector

Up - vent valve closed.

Down - vent valve open, allowing oxygen flow to smoke goggles.

1.30.18

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

Forward Airstairs

Interior and Exterior Controls

[Option]

FORWARD AIRSTAIR

AUTO

OFF

ON

1

LIGHTS

AIRSTAIRS

POWER

5

RETRACT

STANDBY

6

2

2

EXTEND

NORMAL

RETRACT

EXTEND

STAIRS

3

OPER

4

STANDBY

FORWARD ATTENDANT

BELOW AND AFT OF

PANEL

FWD ENTRY DOOR

1

LIGHTS Switch

AUTO - the airstair tread lights illuminate automatically upon airstair extension

and extinguish upon retraction.

ON - illuminates the airstair tread lights.

2

Normal Control Switches

Note: AC and DC electrical power must be available on airplane.

RETRACT - retracts the airstair. The handrail extensions must be stowed prior to

retracting the airstair.

EXTEND - extends the airstair.

3

STANDBY Control Switch

Note: Switch must be held in while using EXTEND or RETRACT. Battery

switch must be ON.

Extend - extends the airstair.

Retract - retracts the airstair.

CAUTION: Use of standby bypasses all safety circuits. Airstair handrail

extensions must be stowed or substantial damage could result.

4

STAIRS Operating (OPER) Light

Illuminated (amber) - indicates the airstair is in transit.

1.30.19

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

Water System Controls

2

POTABLE WATER

3

4

F

1

3/4

1/2

5

1/4

E

6

AFT ATTENDANT

PANEL

BELOW AFT ENTRY

DOOR

1

Water Quantity Indicator

Indicates quantity of water in reservoir.

2

Water System Service Panel

3

Fill Fitting

Used to fill tank.

4

Fill and Overflow Valve Handle

Open - enables filling or gravity draining water tank.

Closed - normal position.

5

Tank Drain Valve Handle

Open - drains water from tank.

Closed - normal position.

6

Access Panel

Cannot be closed unless the Fill and Overflow Valve and Tank Drain Valve

Handles are in the closed position.

1.30.21

Airplane General, Emergency

Equipment, Doors, Windows -

Controls and Indicators

Boeing 737 Operations Manual

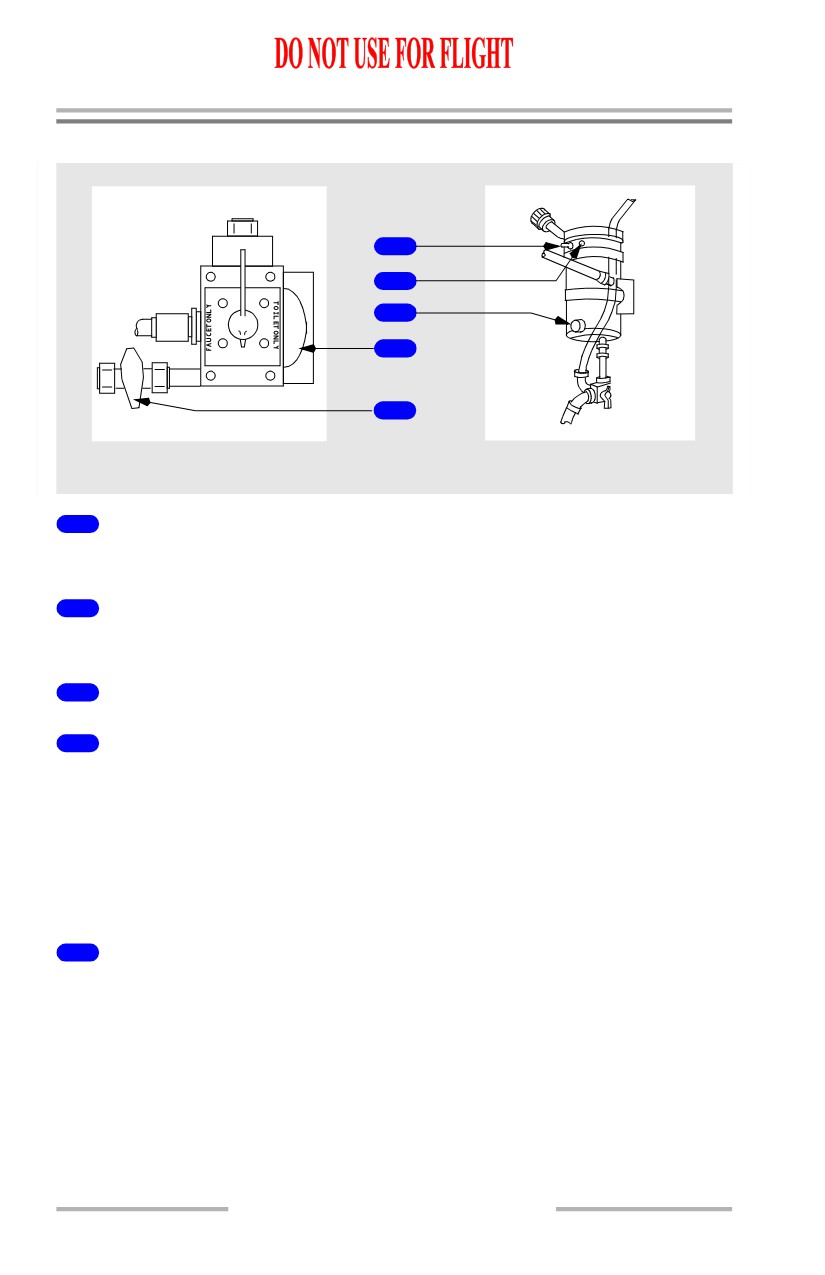

Lavatory Controls

1

2

OFF

3

4

SUPPLY ON

5

LAVATORY SINK CABINET

1

Water Heater Switch

On - activates the water heater.

2

Water Heater Light

Illuminated - heater operating.

3

Temperature Control Switch

4

Water Supply Selector Valve

SUPPLY ON - provides water to lavatory sink faucets and water heater (normal

position).

FAUCET ONLY- water is supplied to faucet only.

OFF - shuts off water to lavatory sink faucets and water heater.

TOILET ONLY- water is supplied to toilet only.

5

Drain Valve

Located in the forward lavatory.

1.30.22

Content      ..     21      22      23      24     ..
