Haima S5 1.5T. Service Manual - part 1

 Table

of

Contents



General Contents



Volume I



Chapter I

Engine Body ····················································································· 1A-1

Chapter 2

Electronic Fuel Injection Control System ··················································· 1B-1

Chapter 3

Fuel System ······················································································ 1C-1

Chapter 4

Intake and Exhaust System ···································································· 1D-1

Chapter 5

Cooling System·················································································· 1E-1

Chapter 6

Engine Accessory-Belt ········································································· 1F-1

Chapter 7

Engine Suspension ·············································································· 1G-1

Chapter 8

MF515M Transmission ········································································ 1H-1

Chapter 9

Gearshift Mechanism ··········································································· 1J-1





Volume II

Chapter 10

Clutch System ··················································································· 2A-1

Chapter 11

List of tires and drive shafts ··································································· 2B-1

Chapter 12

Wheels and tires ················································································· 2C-1

Chapter 13

Suspension system ·············································································· 2D-1

Chapter 14

Steering system·················································································· 2E-1

Chapter 15

Brake system····················································································· 2F-1




Volume III



Chapter 16

A/C System ······················································································ 3A-1

Chapter 17

Airbags and Restraint System ································································· 3B-1

Chapter 18

Body and Accessories ·········································································· 3C-1

Chapter 19

Electrical System················································································ 3D-1




 Table

of

Contents



Chapter 1  Engine Body



Table of Contents



1.1

How to use this manual ················································································  1A-0

1.1.1

Technical Parameters ·················································································  1A-1

1.1.2

Special tools···························································································  1A-10

1.2

Inspection and Maintenance of Complete Vehicle ·················································   1A-11

1.2.1

Inspection of Compression Pressure ..............................................................................1A-11

1.2.2

Inspection of the Engine Oil...........................................................................................1A-11

1.2.3

Inspection of Oil Pressure ..............................................................................................1A-12

1.2.4

Replacement of Engine Oil ............................................................................................1A-12

1.2.5

Replacement of Oil Filter ...............................................................................................1A-13

1.3

Application of Engine Maintenance Platform ······················································  1A-13

1.3.1

Mount the Engine onto Maintenance Platform...............................................................1A-13

1.3.2

Dismantle the Engine from Maintenance Platform ........................................................1A-14

1.4

Power Generator and Starter ··········································································  1A-14

1.4.1

Power Generator’s Dismantling/Mounting ....................................................................1A-14

1.4.2

Explanations on Inspection of Power Generator Belt.....................................................1A-14

1.4.3

Explanations on adjustment to tension of power generator and air conditioning drive belts

.................................................................................................................................................1A-14

1.4.4

Explanations on inspection of power generator .............................................................1A-15

1.4.5

Starter Dismantling/Mounting........................................................................................1A-15

1.4.6

Explanations on inspection of starter .............................................................................1A-15

1.5

Ignition, Control System···············································································  1A-16

1.5.1

Spark Plug Dismantling/Mounting.................................................................................1A-16

1.5.2

Control System Parts Dismantling/Mounting.................................................................1A-16

1.5.3

Crankshaft position sensor’s dismantling/mounting explanations .................................1A-17

1.5.4

Explanations to inspection of crankshaft position sensor...............................................1A-17

1.5.5

Explanations on water temperature sensor dismantling/mounting.................................1A-17

1.6

Intake and Exhaust System············································································   1A-18

1.6.1

Intake and Exhaust System Dismantling/Mounting .......................................................1A-18

1.6.2

Explanations on intake manifold dismantling .................................................................1A-19

1.6.3

Explanations on the intake manifold seal ring mounting ...............................................1A-19

1.6.4

Explanations on the throttle body seal ring mounting....................................................1A-19

1.6.5

Explanations on the exhaust manifold dismantling........................................................1A-19



1.6.6

Explanations on the turbocharger mounting

...................................................................1A-19



1.7

Timing System ··························································································  1A-19

1.7.1

Timing system dismantling/mounting ............................................................................1A-19

1.7.2

Explanations on timing chain tensioner assembly dismantling....................................1A-209

1.7.3

Explanations on crankshaft pulley dismantling..............................................................1A-20

 Table

of

Contents



1.7.4

Explanations on cylinder head hood dismantling...........................................................1A-20

1.7.5

Explanations on the timing chain dismantling ...............................................................1A-20

1.7.6

Explanations on the timing chain’s tensioner assembly mounting.................................1A-20

1.7.7

Explanations on the tensioner arm assembly mounting .................................................1A-21

1.7.8

Explanations on timing chain mounting.........................................................................1A-19

1.7.9

Explanations on the cylinder head hood mounting ........................................................1A-21

1.7.10

Explanations on the crankshaft pulley mounting .........................................................1A-22

1.7.11

Explanations on water pump pulley mounting .............................................................1A-22

1.8

Lubricating System·····················································································  1A-22

1.8.1

Oil Sump Dismantling/Mounting ...................................................................................1A-22

1.8.2

Explanations on the oil sump dismantling......................................................................1A-22

1.8.3

Explanations on the oil sump mounting .........................................................................1A-22

1.8.4

Oil Pump and Timing Chain Case Assembly Dismantling/Mounting............................1A-23

1.8.5

Explanations on oil pump’s oil seal dismantling ............................................................1A-23

1.8.6

Explanations on oil pump’s oil seal mounting................................................................1A-23

1.8.7

Explanations on the oil filter mounting ..........................................................................1A-24

1.8.8

Explanations on oil pump disassembling/ mounting......................................................1A-24

1.8.9

Inspection of Oil Pump...................................................................................................1A-24

1.9

Cooling System ·························································································  1A-25

1.9.1

Thermostat Dismantling/Mounting ................................................................................1A-25

1.9.2

Explanations on thermostat inspection and mounting ....................................................1A-25

1.9.3

Cooling water pipeline dismantling/mounting ...............................................................1A-26

1.9.4

Explanations on heater water pipe /O-ring mounting.....................................................1A-26

1.9.5

Water Pump Dismantling/Mounting...............................................................................1A-26

1.10

Cylinder Cover and Valve Mechanism ·····························································  1A-27

1.10.1

Cylinder Head Mechanism Dismantling/ Mounting.....................................................1A-28

1.10.2

Valve Mechanism Dismantling/ Mounting...................................................................1A-30

1.10.3

Cylinder Head Inspection /Repair ................................................................................1A-30

1.10.4

Inspection of Valve and Valve Guide ...........................................................................1A-32



1

.10.5

Explanations on inspection of valve seat......................................................................1A-32

1.10.6

Explanations on inspection of valve spring..................................................................1A-33

1.10.7

Explanations on the inspection of camshaft .................................................................1A-33

1.10.8

Explanations on inspection of tappet hole and tappet ..................................................1A-35

1.11

Flywheel, clutch ·······················································································  1A-36

1.11.1

Flywheel and Clutch Dismantling/Mounting ...............................................................1A-35

1.11.2

Explanations on Clutch Pressure Plate/Friction Disc Dismantling...............................1A-37

1,11.3

Explanations on the clutch friction disc inspection /mounting.....................................1A-38

1.11.4

Explanations on the clutch pressure plate inspection/mounting ...................................1A-38

1.12

Cylinder body, Crank Connecting Rod Mechanism··············································   1A-39

1.12.1

Cylinder Body, Crank Connecting Rod Mechanism Dismantling/Mounting...............1A-39

1.12.2

Cylinder Body Inspection /Repair ................................................................................1A-42

1.12.3

Connecting Rod Inspection ..........................................................................................1A-43

1.12.4

Inspection of Piston Connecting Rod Assembly ..........................................................1A-44

1.12.5

Crankshaft Inspection /Repair ......................................................................................1A-44



Engine block 1A-0



How to use this manual

Subject Scope

  This manual comprises procedures on engine

maintenance, and specific procedures fall into
5 basic operation steps:

I: dismantling/mounting; II disassembling
/mounting; III: resetting; IV inspection; V
adjustment.

  Simple operation may be completed by

inspecting the engine appearance, such as
dismantling/mounting of periphery parts,
parts cleaning, and appearance inspection etc.

Overhaul Steps:

1.  Prior to most overhaul work, illustrative

pictures shall be observed because they will
help distinguish parts & components,
illustrate the parts fastening way, and the way
of inspecting parts appearance. In addition,
illustration explanations are attached to
dismantling/mounting procedures in need of
systematic demonstration.

2.  On illustrations there are symbols of wearing

parts, tightening torque, lubricating oil, and
sealant, and also corresponding explanations
and marks are made to special tools or
equipments for dismantling or mounting.

3.  Corresponding numbers are marked on

pictures for the operation sequence and parts’
major operation process. In general,
information of this kind serves as key and
core content of the diagnosis procedure. Due
to this, please refer to these materials during
the overhauling process.

Symbol

Four kinds of symbols are used in this manual to
indicate application of lubricating oil, sealant, and
special tools etc., and they imply occasions where
foresaid materials shall be applied during the
maintenance period.

Symbol Connotation

Remark



Inject

lubricating oil

Inject new engine oil

  Inject sealant

Inject appropriate

sealant



Replace parts

wearing parts like
O-ring and gasket



Use special

Appropriate special

tools tools

or

equipments

Prompt signals

In this manual there are such signals as
“Warning”, “Caution”, “Attention”,
“Explanation”, and “Limit”.

Warning

  Warning is used to prompt that personal

injury may be caused due to negligence.

Caution

  Caution is used to prompt that engine damage

may be caused due to negligence.

Notice

  Notice is used to provide additional

information for completion of given
procedures.

Explanation

  Explanation is used to prompt the permissible

range for inspection or adjustment.

Limit

Limit is used to prompt the upper and lower limit
for the inspection or adjustment.





































Engine block 1A-1



1.1.1 Technical Parameters

Technical Parameters of Complete Equipment



Item Parameter Remark

Engine Model

HMA GN15-TF



Code

N01G N02G

N16G

N17G

N18G



Cylinder quantity and

arrangement

In-line 4-cylinder



Combustion chamber

Roof shape



Ignition sequence

1-3-4-2

By cylinder number

Rotation direction

Counterclockwise

From back to front (flywheel
side taken as the back end)

Valve timing mechanism

dual overhead camshaft, timing chain

drive (silent chain), intake VVT



Valve quantity

16



Displacement (cc)

1497



Bore× stroke (mm)

74.8×85.2



Compression ratio

9.5



ON

4～44 BTDC

Intake

OFF

48～8 ABDC

ON

36 BBDC

Valve

timing

(°)  Exhaust

OFF

4 ATDC

Max. power(kW/rpm)

113/5500

Net power

Max. torque(N·m/rpm)

210/1800～4000



Air conditioning idle speed:800±50

Heat Engine

Idle speed (rpm)

Target idle speed:750±50

Heat Engine

Ignition advance angle(°)

0～10 Idle

state



Starting mode

Electrical starter



Cooling mode

Water cooling forced circulation



Lubricating mode

Pressure, Split, Complex



Flywheel Type

Dual

Mass

Flywheel

Single-m

ass

flywheel

Flexible

flywheel

Dual

Mass

Flywheel

Single-ma

ss

flywheel



Clutch Type

No

Dry

No

No

Dry



Overall dimension (mm)

554.2×621.7×619.3

According to the exhaust side
15 degrees angle
measurement

Net weight (kg)

No more than 115kg





Engine block 1A-2



Technical Parameters of Maintenance

Item Parameter

Cylinder head

Standard

112.9～113.1

Height (mm)

Max. grinding

0.2

Deformation at cylinder gasket’s abutment surface (mm)

Max.

0.03

Max. 0.15

Deformation at manifold’s abutment surface (mm)

Max. grinding

0.20

Intake 0.18～0.26

valve clearance(engine in cold condition)(mm)

Exhaust 0.26～0.34

Valve and valve guide

Standard 1.35

Intake

Min. 0.85

Standard 1.85

Width of valve seal tape (mm)

Exhaust

Min. 1.35

Standard

89.51～90.01

Intake

Min.

89.31

Standard

90.69～91.19

Valve length (mm)

Exhaust

Min.

90.49

Standard 4.965～4.980

Intake

Min. 4.915

Standard 4.955～4.970

Valve stem diameter(mm)

Exhaust

Min. 4.905

valve guide’s inside diameter (mm)

Standard

5.0～5.012

Intake 12.7～13.3

valve guide’s protrusion height (mm)

Exhaust 12.7～13.3

Valve seat

Width of valve seat’s contact surface (mm)

1.1～1.5

Intake 43.5～44

Angle of valve seat (°)

Exhaust 43.5～44

Intake

38.46

Valve seat sinking (valve protrusion height)(mm)

Exhaust

38.46

Valve spring

Intake H1:

33.4mm

142.2～161.8{14.51～
16.51kgf}

valve spring height H pressure (N{kgf})

Exhaust H2:

24.9mm

293.4～324.4{29.94～
33.10kgf}

Verticality(mm) 1.50mm

Valve oil seal



Engine block 1A-3



Intake 15.7～16.3

Depth L(mm)

Exhaust 15.7～16.3

Tappet

Tappet hole’s diameter(mm)

Standard

31.000～31.025

Tappet diameter(mm)

Standard

30.964～30.980

Standard

0.020～0.061

Clearance between tappet and tappet hole (mm)

Max. 0.180

Camshaft

Camshaft’s radial run-out(mm) Max.

0.03

Standard

44.5

Intake

Min.

43.4

Standard

43. 8

Cam’s protrusion height
(mm)

Exhaust

Min.

42.7

Standard

25.945～25.960

Journal diameter(mm)

Min. 25.915

Journal clearance(mm)

Standard

0.040～0.076

Standard

0.08～0.20

End gap(mm)

Max. 0.21

Cylinder body

Standard 205

Height (division surface between upper surface and main

cover)(mm)

Max. grinding

0.20

Deformation of upper surface (mm)

Standard

0.1

Cylinder bore’s inside diameter

[measure inside diameter at the place 37mm below the top surface]
(mm)

Standard

74.8～74.815

Wearing limit (mm)

0.135

Piston diameter(mm)

[Measure the piston diameter at the place19.38mm below the
lower rim of oil control ring slot along the vertical direction of the
piston pin hole’s axial line.]

Standard

74.76～74.78

Standard

0.013～0.042

Clearance between piston and cylinder bore (mm)

Max. 0.10

Piston ring

Top ring

Standard

0.040～0.085

Second Ring

Standard

0.030～0.070

Oil Ring

Standard

0.020～0.060

Top ring / Second Ring

Max.

0.15

Clearance between piston
ring and ring slot (mm)

Oil Ring

Max.

0.15



Engine block 1A-4



Top ring

0.20～0.35

Second Ring

0.40～0.60

Oil Ring

0.20～0.40

Opening clearance [measure inside cylinder](mm)

Max. 1.0

Piston pin

Piston pin’s diameter(mm) Standard

17.996～18.000

Piston pin hole’s inside diameter (mm)

Standard

18.004～18.010

Clearance between connecting rod’s small end hole and piston
pin (mm)

Standard

0.010～-0.027

Clearance between piston pin hole and piston pin (mm)

Standard

0.004～0.014

Connecting rod

Length [center to center](mm)

Standard

133.32～133.40

Inside diameter of connecting rod’s small end (mm)

Standard

18.010～18.023

Standard

0.10～0.30

Connecting rod’s end gap(mm)

Max. 0.40

Connecting rod bearing

Connecting rod bush size (mm)

Standard

1.483～1.494

Standard

0.024～0.056mm

Connecting rod bearing clearance (mm)

Max. 0.10

Crankshaft

Crankshaft radial run-out(mm)

0.03

Main journal diameter(mm) Standard

45.982～46.000

Standard

0.018～0.036

Main journal clearance (mm)

Max. 0.1

Main bearing bush size (mm)

Standard

1.988～2.003

Crank pin diameter(mm)

Standard

43.979～44.000

Thrust bearing size (mm)

Standard

3.205～3.255

Standard

0.09～0.273mm

Crankshaft end gap(mm)

Max. 0.30

Inspection to complete vehicle

Standard value

1200{12.2}[300]

Minimum limit

980{10.0}[300]

Compression pressure

kPa{kgf/cm2}[rpm]

Max. limit of
pressure difference
between cylinders

100{1.0}

Oil pressure (kPa{kfg/cm2}[rpm])

375～450

{4.1～6.0}[2500]

Oil adding volume L

Oil replacement

4.6



Engine block 1A-5



Oil and oil filter

replacement

4.9

Oil grade

API engine oil grade higher
than

SJ



Higher than –25 ℃ SAE

10W–30

Oil viscosity level

-30 ℃～37 ℃

SAE 5W–30

Starter

Voltage (V)

11

Zero-load test

Current (A)

＜

95

Timing chain disassembling part

Automatic tensioner push rod’s extension strength (mm)

3

Crankshaft rotating speed sensor

Clearance between signal wheel and sensor (mm)

0.5～1.5

Thermostat

Opening temperature ( )

℃



80～84

Full-opening temperature ( )

℃

 95

Full-opening stroke (mm)

Min.

8.5

Clutch pressure plate

Diaphragn spring’s wearing depth (mm)

Max.

0.6

Diaphragn spring’s radial circle run-out (mm)

Max.

0.6

Pressure plate’s flatness (mm)

0.05

Clutch friction disc

Thickness of protrusion rivet (mm)

Min.

0.3

End-on circle run-out(mm)

Max.

0.7

Flywheel

End-on circle run-out(mm)

Max.

0.10

Oil pump

Standard

0.06～0.18

Clearance between inner rotor’s prong
and outer rotor (mm)

Max. 0.22

Standard 0.250～0.325

Clearance between outer rotor and pump

body (mm)

Max. 0.35

Standard 0.030～0.090

Backlash (mm)

Max. 0.14

Compression spring’s length (mm)[pressure:97.7～107.4N{9.96～10.96kgf}]

34.50

Front-end oil seal’s driving distance (mm)[from oil pump body’s rim]

0～0.5

Rear oil seal



Engine block 1A-6



Rear oil seal’s driving distance (mm)[from crankshaft back cover’s rim]

0～0.5

Plastic fixing bolt’s length

Cylinder head bolt(mm)

Standard

136.8～144.2

Standard 74.15～74.85

Main bearing cover bolt(mm)

Max. 75.3







Engine block 1A-7





Tightening torque

Torque value

Mounting place

N•m kgf•m

Remark

Power generator

Bracket

45

4.6

Adjusting arm

45

4.6

Adjusting slider

21.6

2.2



Power generator pivot’s bolt and nut

55 5.6



Ignition, control system

Ignition coil

8.8

0.9

8～10

Spark plug

25

2.6

20～30

Fuel rail

21.6

2.2



Camshaft position sensor

8.8

0.9

8～10

Water temperature sensor

15

1.53

13～15

Knock sensor

21.6

2.2



Knock sensor bracket

16.8

1.7



Crankshaft position sensor

8.8

0.9

8～10

OCV valve

8.8

0.9

8～10

Intake and exhaust system

Throttle

body



8.8 0.9

Intake manifold

21.6

2.2



Intake manifold bracket (manifold side)  21.6

2.2



Exhaust manifold

21.6

2.2



Exhaust manifold bracket (cylinder
body side)

21.6 2.2

Exhaust manifold bracket (manifold
side)

45.1 4.6

Exhaust manifold heat shield

8.8

0.9



Turbocharger 25

2.55

25～28

23.6 2.4



Turbocharger bracket



29 3.0



Turbocharger oil inlet pipe



25 2.55

25～28

Turbocharger oil return pipe



8.8 0.9

8～10

Turbocharger water inlet pipe



32 3.26

32～35

Turbocharger water return pipe



32 3.26

32～35

Turbocharger heat shield



8.8 0.9

8～10

Lubricating system

Oil switch

14.7

1.5





Engine block 1A-8



Oil

filter



14.0 1.43

Oil filter adapter

21.6

2.2



Oil

filter

8.8 0.9

Oil

sump



8.8 0.9

Cylinder body, crank connecting rod mechanism

Torque value

Mounting place

N•m kgf•m

Remark

50±2 16.7

Crankshaft pulley

60±2°

First set the pretension torque and
then tighten the angle.

30±2 3.1

Flywheel

45±2°

First set the pretension torque and
then tighten the angle.

Transmission baffle plate

8.8

0.9

6.9～9.8

Clutch

21.5

2.2

17.6～26.5

Crankshaft’s rear cover

8.8

0.9

8～11

35±2

3.5

Main bearing cover

Tightening 60°(0～ -4°)

First set the pretension torque and
then tighten the angle. Pay attention
to the bolt’s length, which has limit
value (see corresponding part)

20±2N·m 2.0kgf·m

Connecting rod cover

90°(0～4°)

First set the pretension torque for two
times, and then tighten the angle.
Pay attention to the bolt’s length,
which has limit value (see
corresponding part)

Cylinder head, valve train and others

29 2.96

Cylinder head

Tighten 90°+ 90°(0～4°)

First set the pretension torque, and
tighten the angle two times. Pay
attention to the bolt’s length, which
has limit value (see corresponding
part)

Camshaft’s front cover

20

2.04



Camshaft cover

11

1.12



Cylinder head hood

8.35

0.85



10 1.02

See

corresponding

part

Oil pump and timing chain case
assembly

39.5 4.03 See

corresponding

part

Timing chain guide rail

10

1.02



Tensioner arm

23.5

2.4



Timing

chain

tensioner



9.8 1.0

VVT fixing bolt

60

6.12



Front and rear hook

18.4

1.88



Cooling system



Engine block 1A-9



9.8 1.0 See

corresponding

part

Water pump

45

4.6 See

corresponding

part

Water pump pulley

9.35

0.95



Water inlet pipe seat

9.35

0.95



Heater water pipe assembly

9.35

0.95











Engine block 1A-10



1.1.2 Special tools

Oil pressure gauge



Oil seal erector

Valve spring ejector



Oil sump ejector



Belt tensiometer



Gear ring stop device



Valve oil seal ejector



Oil filter sleeve

Valve guide ejector / erector

Valve oil seal erector



Flywheel brake

Clutch guider







Engine block 1A-11



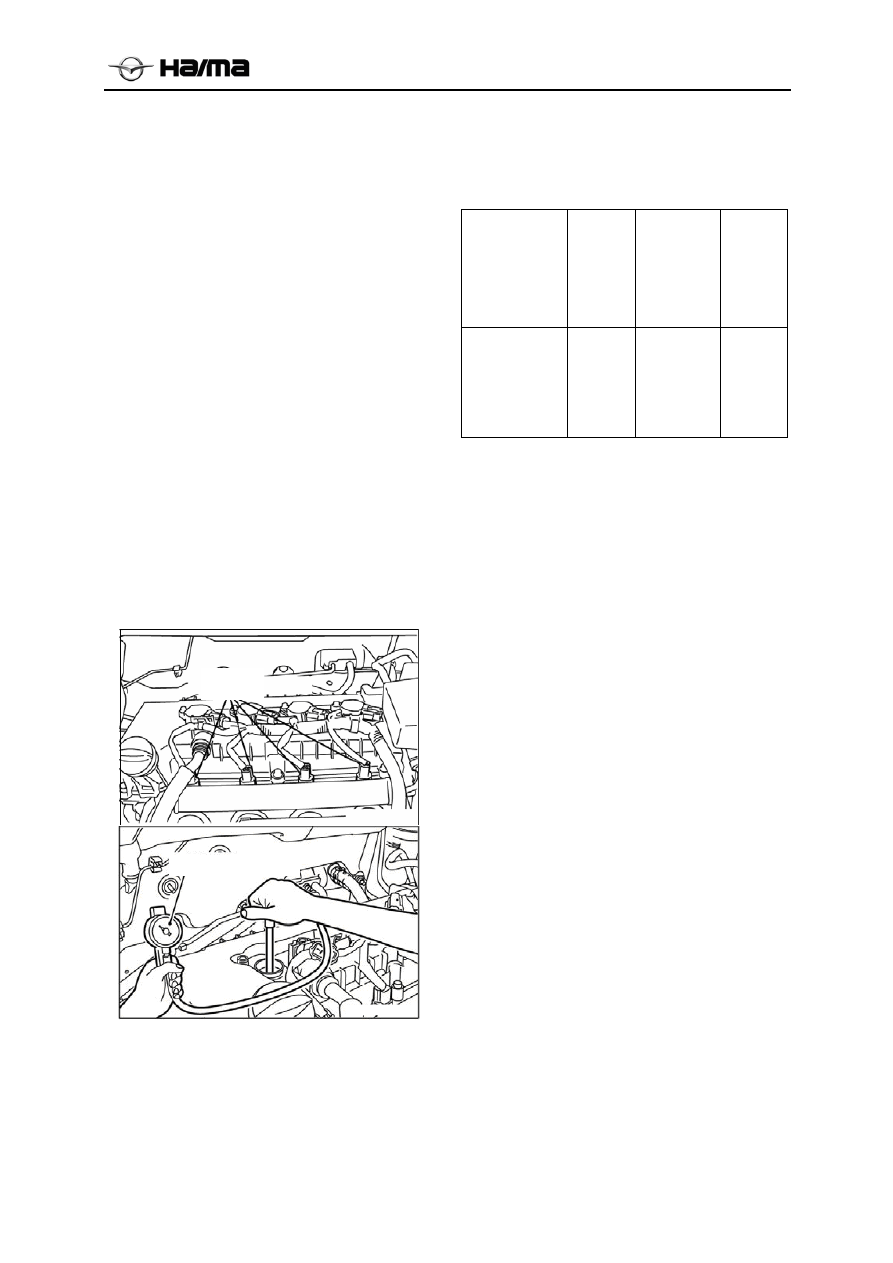

1.2 Inspection and Maintenance of
Complete Vehicle

1.2.1 Inspection of Compression Pressure

Warning

  When the engine is running, the oil

temperature is extremely high. Therefore,
keep cautious during dismantling and
mounting process since there is a danger of
burn.

1.  Set the vehicle into the normal pre-inspection

state: warm up the engine to a normal running
temperature; then stop the running and cool it
for 10 minutes.

2.  Dismantle the fuel pump relay (see

corresponding complete vehicle maintenance
manual).

3.  Disconnect ignition coil’s wiring harness joint

(see corresponding complete vehicle
maintenance manual).

4.  Dismantle Cylinder 1’s ignition coil and spark

plug(see Ignition, Control System part).



5.  Mount the gauge into Cylinder 1’s spark plug

hole.

6.  Floor the accelerator pedal and start the

engine.

7.  Record the gauge’s maximum reading.

8.  Measure all cylinders’ compression pressures

according to preceding method, and inspect if
the pressure difference between cylinders is
lower than the limit value.

Limit value (maximum):

 1300

(kPa)

Item

Standard

value

Minimum

limit

Maximum

pressure

difference

between

cylinders

compression

pressure

kPa{kgf/cm

2}[rpm]

1170

{12.0}

[300]

980

{10.0}

[300]

100

{1.0

kgf/cm2}

Note: If one cylinder or several cylinders
encounter excessively low pressure, or pressure
difference between cylinders goes beyond the limit
value specified, some drops of engine oil shall be
added for repeated operation. Repeat the
inspection following Step5-7.

■  If the compression pressure increases, the
fault cause should be attributed to piston, piston
ring, or cylinder inner surface’s wearing or
damage, and in turn an overhaul is needed.

■  If the adjacent cylinder encounters low
pressure, the cylinder gasket may be damaged, or
the cylinder head likely suffers deformation, and in
turn an overhaul is needed.

■  If the compression pressure is still low, the

valve seat is burnt or in poor quality, and the
valve’s sealing face has poor contact. Thus, an
overhaul is needed.

9.  Take off the gauge

10.  Mount the spark plug tightening torque:20～

30N·m{2.1～3.1kgf·m }

11. Connect the ignition coil wiring.

1.2.2 Inspection of the Engine Oil

1.  Park the automobile on the level ground.

2.  Warm up the engine to a normal running

temperature and stop the running.

3.  Wait for 5 minutes.

4.  Pull out the dipstick and observe the oil level

and oil state, inspect if the oil level ranges
between Scale F and Scale L.

5.  Add or replace oil according to needs.

Compression Gauge

Injector



Engine block 1A-12



6.  Confirm the dipstick O-ring’s installation (see

right figure).

7.  Insert the dipstick again.



1.2.3 Inspection of Oil Pressure

Warning

  Wasted and used oil is cancer-causing

substance, and so skin shall be cleaned with
soap and tap water immediately after the
work.

1.  Dismantle the oil pressure switch.

2.  Mount the special tools onto oil pressure

switch’s mounting hole.

3.  Warm up the engine to a normal running

temperature.

4.  Run the engine to a fixed rotating speed, and

cast attention to the oil pressure gauge’s
reading.

5.  Stop the running and cool the engine.

6.  Dismantle special tools.



★

Note: if the pressure goes beyond the
specified range, inspect the cause, and repair
the engine and replace the oil according to
needs.

Notice

  Oil with different viscosities and temperatures

may vary in pressure

7. Oil pressure:

375  ～  450kPa

{4.1  ～

6.0kgf/cm2}[2500rpm]

8.  Smear evenly the thread sealant (A6F011)

onto the oil pressure switch thread (see the

figure).





9.  Mount the oil pressure switch. Tightening

torque:14.7N·m{1.5kgf·m}.

10.  Start the engine and inspect if the engine oil

suffers leakage.

1.2.4 Replacement of Engine Oil

1.  Dismantle the oil cover and oil drain plug.

2.  Pour the oil into appropriate vessel.

3.  Mount the new oil drain plug. Tightening

torque: 30～41N·m{3.1～4.2kgf·m}.

4.  Add engine oil of specified model and volume

into the engine.

5.  Remount the oil cover.

6.  Inspect the dipstick’s scale value.

7.  Start the engine and inspect if there is

leakage.

8.  Inspect the engine oil level and add the oil if

necessary (see Inspection of Engine Oil).

Notice

  In some occasions, actual oil volume that is

added according to the oil scale may differ
from the oil volume specified.

Item

Oil capacity (L)

Oil replacement

4.6

Oil and oil filter replacement

4.9

  Engine Oil Grade: API Engine Oil Grade:

above

SJ



Oil viscosity standard

Oil viscosity level

Higher than–25℃ SAE10W–30

–30℃～37℃

      SAE5W–30

O-ring

Oil pressure gauge



Smearing
Sealant is needed when the bolt is reused.
