Steering system 2F-15





Check of steering tie rod end

1.  Check the tie rod end for damages or rubber

sleeve for cracks.

2.  Replace if necessary.

3.  Check the ball joint for loosening.

4.  Replace the tie rod end if necessary.

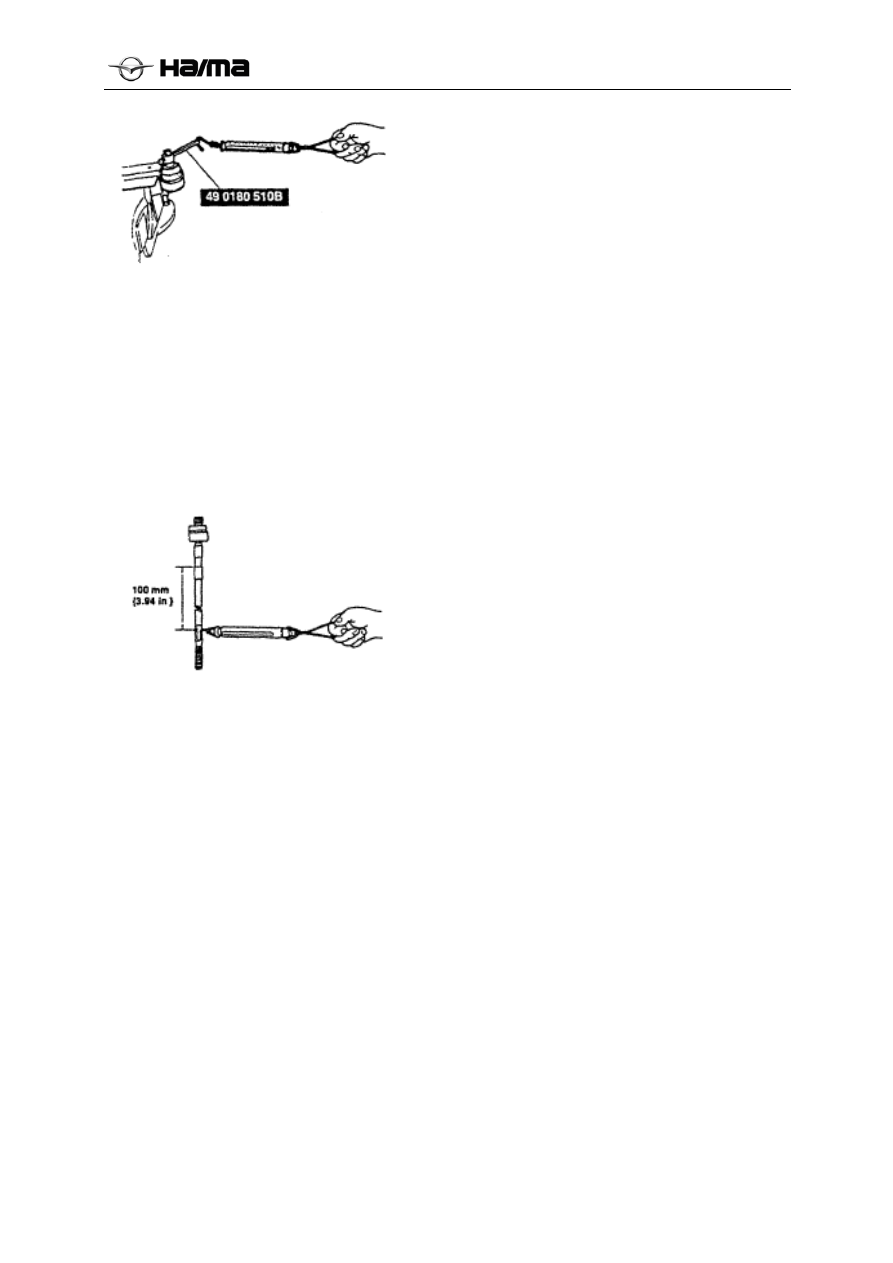

5.  Turn the ball head five times.

6.  Measure the rotation torque of ball head with a

special tool and spring.

•

If not within the specified range, replace the tie
rod end. Rotation torque:

0. 4-2.7N.m{3.5-26.0kgf.cm, 3.1-22.5in.lbf}

Reading of spring balance:

3. 4-25.5N{0.35-2.60kgf, 0.8-5.71bf}





Check of steering tie rod

1.  Check the tie rod for bends or damages, and

replace it if necessary.

2.  Check the ball joint for loosening, and replace

it if necessary.

3.  Swing the tie rod back and forth five times.

4.  Measure the swing torque with a spring

balance.

If the torque is not within the specified range,
replace the tie rod.

Swing torque:

0. 1-4. 0N·m(1-39kgf.cm, 0. 9-30. 8in.lbf}

Reading of spring balance:

0. 6-24. 5N.m{0. 06-2. 50kgf, 0. 13-5. 501bf}



-------------------------------------------------------------------------------------------------------------------------------------------------------------



Steering system 2F-16



Assembling of steering gear and connecting rod

1.  Assemble them in the sequence shown in the table.



Tie rod end rubber sleeve: refer to its
installation instructions.

 20

Snap

ring

Supporting rubber block: refer to its installation
instructions.



21

Socket sleeve bolt

3 Gearbox

  22

Dust

cover

Supporting block



23

“O” ring

Supporting block bracket



24

Limit washer

Oil seal: refer to its installation instructions.



25

Hold down spring

Bush: refer to its installation instructions.



26

Adjusting cover: refer to its installation
instructions.

“O” ring



27

Lock nut(adjusting cover)

9 Seal

ring

  28

Washer

10

Steering rack



29

Tie rod

11

“O” ring



30

Dust jacket

12

U seal gasket



31

Dust jacket wire

13

Hoop: refer to its installation instructions.



32

Spring clip

14

Valve chamber



33

Lock nut(tie rod end)

15

Oil seal: refer to its installation instructions.



34

Tie rod end

16

Upper bearing: refer to its installation
instructions.



35

Oil pipe 1

17

Gear shaft



36

Oil pipe 2

18

Seal ring: refer to its installation instructions.



37

Heat shield

19 Control

valve

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Steering system 2F-17









Keypoints for installing the tie rod end rubber
sleeve

1.  Wipe off the oil dirt from the ball joint.

2.  Put a little of grease into new dust jacket.

3.  Install the dust jacket on the end of tie rod with

a special tool and press.

4.  Wipe off all the exposed grease.





Keypoints for installing the supporting rubber
block

1.  Apply the soap water to the rubber of

supporting block.

2.  Press the rubber support block with a special

tool and press, until the rubber end comes out
of gear chamber.





3.  Turn back the gear chamber, and press the

rubber supporting block, until the rubber block
comes out of its other side.

4.  Align the rubber supporting block to steel pipe.



Attentions for installing the oil seal and bush

1.  Install a new “O” ring and seal ring on the rack

lever.

2.  After installing the seal ring, make it tightly

affix the lever.

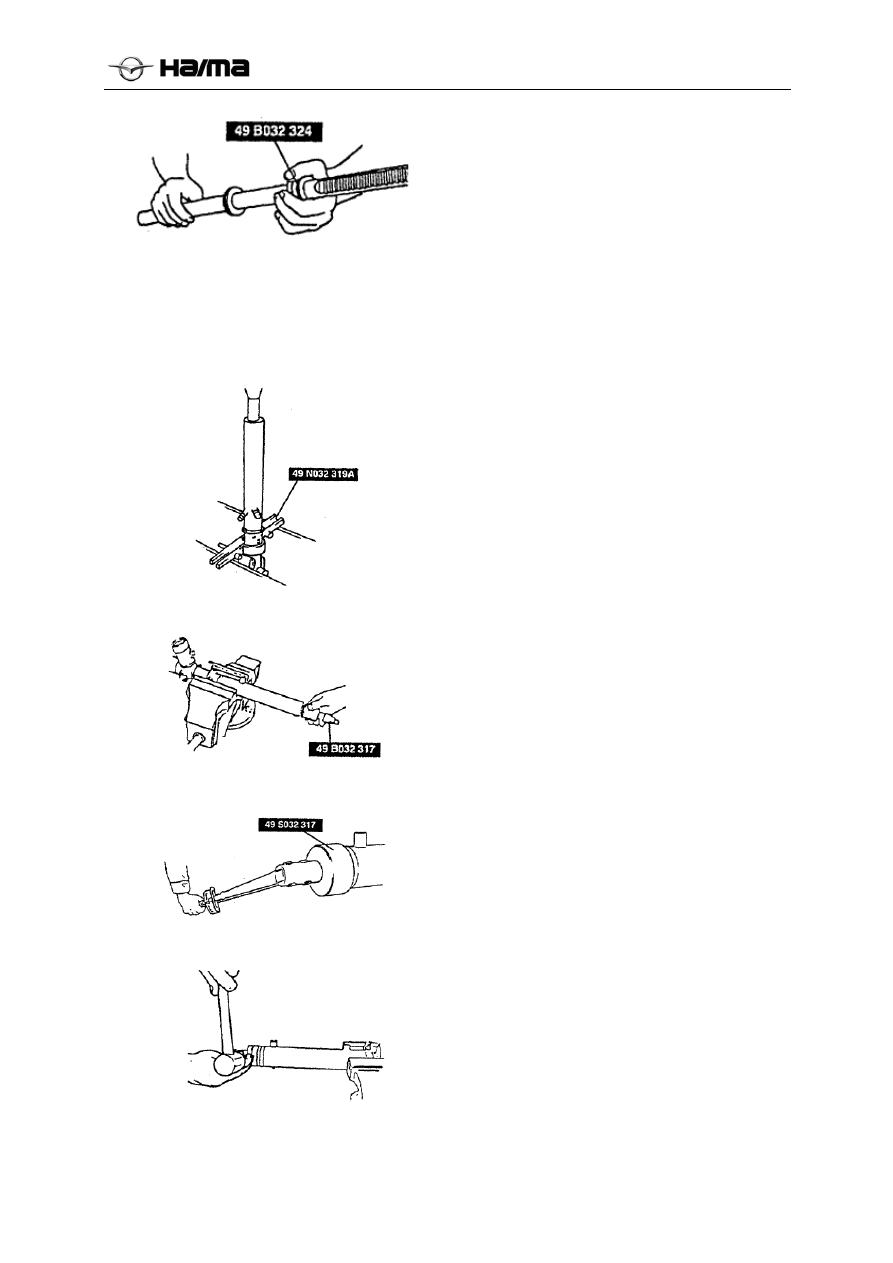

3.  Attach a new oil seal to (49B032 325) with a

special tool (49 B032 324).

Oil seal

Rubber mat

Steel pipe

The rubber block end is
aligned to steel pipe.

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Steering system 2F-18





4.  Remove the special tool (49B032325).

5.  Place the oil seal on the edge of rack lever with

a special tool, and remove the special tool.

6.  Attach a new bush to steering rack.

Note

  While pressing it in, the applied force shall not

exceed 39kpa{400kg}cm2, 5688psi} to avoid
the damages of oil seal and bush.

  Apply a little of grease to the seal ring and oil

seal bush.







7.  Install the steering rack into gearbox, and press

in the oil seal and bush with a special tool, until
it’s difficult to press.





Keypoints for installing the hoop

1.  Apply a little of lubricating oil to “O” ring and

U seal gasket.

2.  Install “O” ring and U seal gasket on the socket

sleeve.

3.  Install them on the steering gear with a special

tool.





4.  Install the hoop with a special tool.



5.  Fix the hoop on cylinder body with a chisel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Steering system 2F-19







Keypoints for installing the oil seal

1.  Apply the appropriate amount of grease to new

oil seal.

2.  Press in the new oil seal with a special tool.





Keypoints for installing upper bearing

1.  Apply the appropriate amount of grease to new

upper bearing.

2.  Press in the bearing with a special tool.





1.  Attach a new seal ring to the valve body of

gear shaft with a special tool.

2.  After the installation, place the seal ring in

position with a special tool.

3.  Install the snap ring.





Keypoints for installing the adjusting cover

1.  Place the rack in middle position.

2.  Tighten the adjusting cover up to its tightening

torque of 19.6N.m{2.0kgf.m} three times, and
then turn the end cover by 23° with a special
tool.



[Reading of spring balance]9.9-13.7N{1.0-1.4kgf}

Install the lock nut with a special tool.

Tightening torque: 40-49N·m{4. 0-5.0kgf.m}





Check of air tightness

1.  Connect the special tool to the gear chamber

booster cylinder.

2.  Apply a vacuum pressure of 53.3kpa

{400mmHg,15.7inHg) to cylinder with a
vacuum pump, and ensure that its vacuum
pressure can be kept for at least 30s.

  If this vacuum pressure can’t be kept, replace

the oil seal.



-------------------------------------------------------------------------------------------------------------------------------------------------------------



Steering system 2F-20



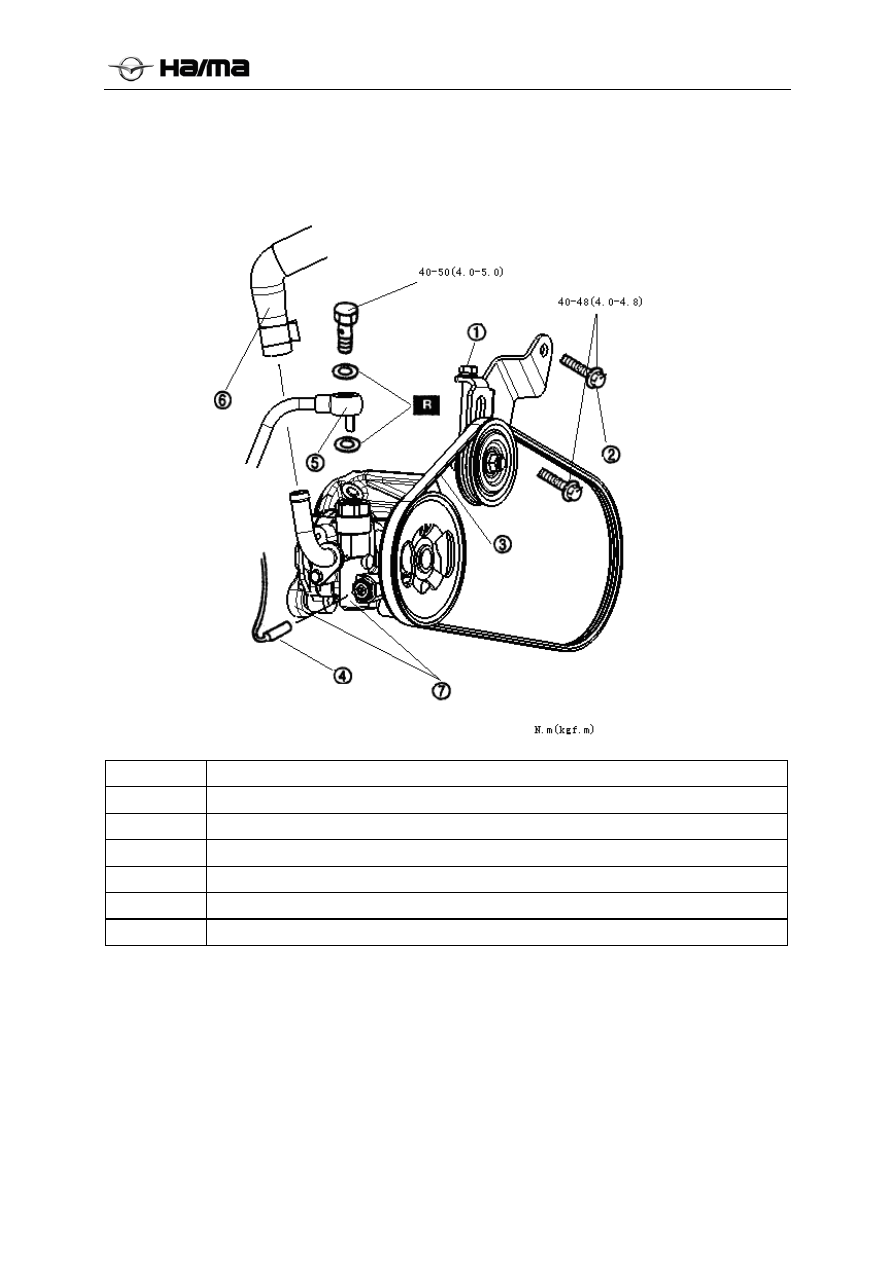

Removal and installation of power steering pump

1.  Remove it in the sequence shown in the table.

2.  Install it in the reverse sequence of removal.

3.  Adjust the drive belt (refer to the drive belt,

adjustment of drive belt).





1 Adjusting

bolt

2 Tightening

bolt

3 Drive

belt

Pressure switch plug

5 High-pressure

pipe

6 Oil

suction

hose

Oil pump and support



-------------------------------------------------------------------------------------------------------------------------------------------------------------



Steering system 2F-21



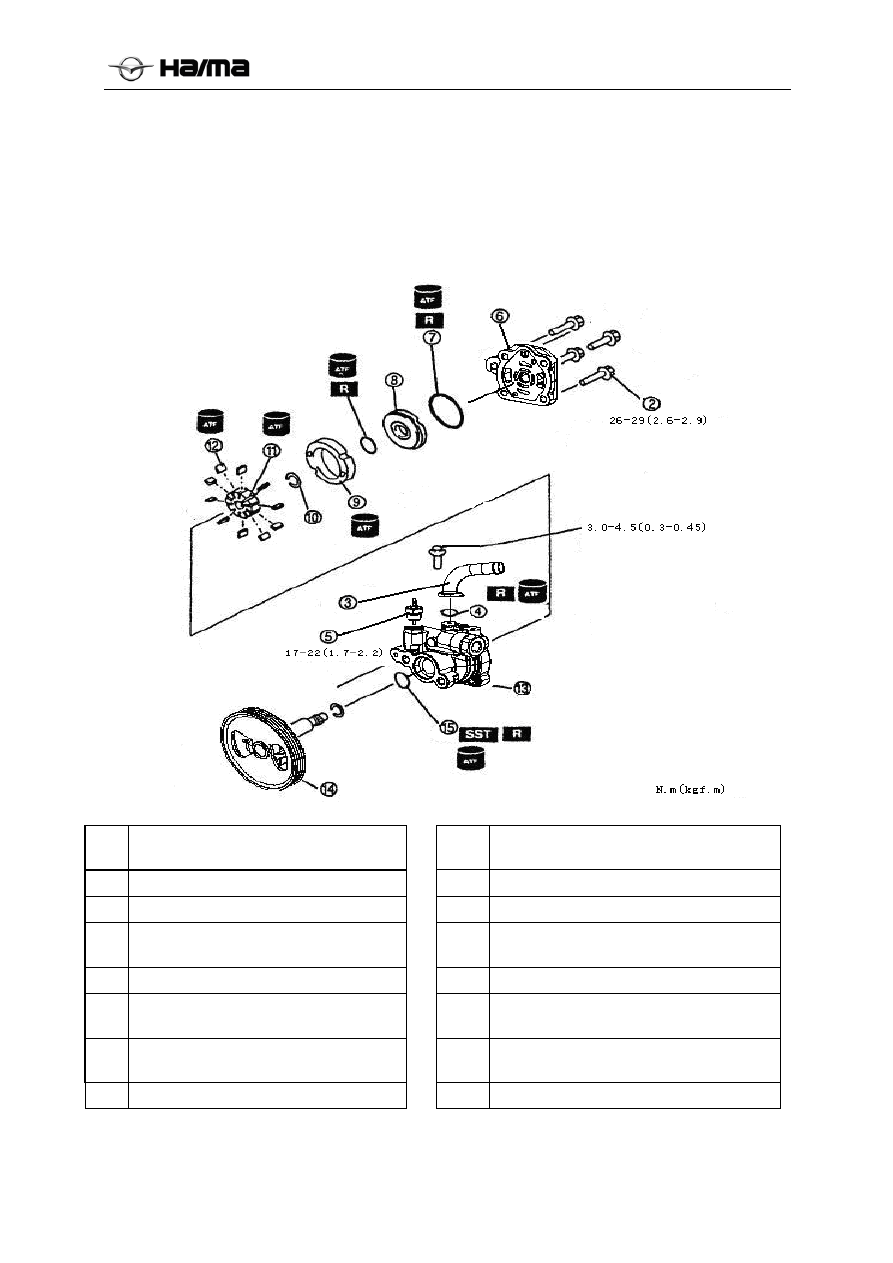

Disassembly and assembly of power steering pump

Note

  The following operation can be performed only after replacing “O”ring and oil seal. If it’s still

required to check other items, replace the pump body assembly.

1.  Disassemble it in the sequence shown in the table.

2.  Assemble it in the reverse sequence of disassembly.





Power steering pump assembly: refer to
its disassembly instructions.



Cam ring: refer to its installation
instructions.

2 Bolt



10 Snap

ring

Oil suction pipe



11

Rotor

4 O

ring



12

Impeller: refer to its assembling
instructions.

Pressure switch



13

Front pump body

Rear pump body: refer to its assembling
instructions.



14 Shaft

assembly

7 O

ring



15

Oil seal: refer to its assembling
instructions.

8 Side

disc





-------------------------------------------------------------------------------------------------------------------------------------------------------------



Steering system 2F-22









Keypoints for disassembling the power steering
pump assembly

Note

  While clamping the assembly with a vice, fix,

remove and assemble it with a special tool to
avoid the damages of oil pump.





Keypoints for installing the oil seal

Note

  Locate the pump body. Install the oil seal with

a special tool and hammer.





Keypoints for installing the blade

Place the blade inside the rotor, the round edge of
blade shall contact with that of inner cam ring.





Keypoints for installing inner cam ring

With the mark up, install the inner cam ring into
front pump body.



Keypoints for installing rear pump body

After installing rear pump body, turn the wheel shaft
by hands, and observe whether it rotates smoothly.



-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-1



Chapter 15

Brake system



General and operation ............................................................................................................................ 2F-2

Operation of brake caution light........................................................................................................ 2F-2

Description of ABS fault light .......................................................................................................... 2F-2

Description of ESP fault light ........................................................................................................... 2F-2

Description of ESP-OFF switch indicator lamp................................................................................ 2F-2

Parts of brake system.............................................................................................................................. 2F-3

Diagnostic data and procedures......................................................................................................... 2F-5

Faults of brake system....................................................................................................................... 2F-6

Manual exhaustion ............................................................................................................................ 2F-6

Check of pedal stroke........................................................................................................................ 2F-7

Check of brake pedal free stroke....................................................................................................... 2F-7

Repair instructions ............................................................................................................................ 2F-8

Specifications .................................................................................................................................. 2F-10

Circuit diagram.................................................................................................................................2F-11

Repair of parts....................................................................................................................................... 2F-12

Brake master cylinder with oil cup.................................................................................................. 2F-12

Diagnostic references and procedures............................................................................................. 2F-12

Brake master cylinder with brake fluid reservoir assembly ............................................................ 2F-12

Specifications .................................................................................................................................. 2F-13

Vacuum booster .............................................................................................................................. 2F-13

Check of vacuum ................................................................................................................................... 2F-13

Repair instructions .......................................................................................................................... 2F-14

Front and rear brakes....................................................................................................................... 2F-15

Check of front-disc brake................................................................................................................ 2F-16

Removal and installation of Front-disc brake ................................................................................. 2F-18

Check of rear-drum brake ............................................................................................................... 2F-20

Removal and installation of rear-drum brake.................................................................................. 2F-21

Check of rear-disc brake ................................................................................................................. 2F-23

Removal and installation of rear-disc brake.................................................................................... 2F-24

Parking brake system............................................................................................................................ 2F-25

General and operation ..................................................................................................................... 2F-25

Structure diagram ............................................................................................................................ 2F-25

Repair instructions .......................................................................................................................... 2F-25

Parameters ............................................................................................................................................. 2F-27

General technical parameters .......................................................................................................... 2F-27

Locking torque parameters.............................................................................................................. 2F-27

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-2



ABS system ............................................................................................................................................ 2F-27

Overview ................................................................................................................................................ 2F-27

I. Attentions..................................................................................................................................... 2F-27

II. Initial check ................................................................................................................................ 2F-29

Introduction of ABS 9 system .............................................................................................................. 2F-31

I. Composition of ABS 9 system..................................................................................................... 2F-31

II. Hydraulic diagram for Haima M3 ABS 9 X-type arrangement.................................................. 2F-31

III. Haima M3 ABS 9 ECU interface circuit................................................................................... 2F-33

Fault diagnosis ....................................................................................................................................... 2F-35

I. Diagnostic flow............................................................................................................................ 2F-35

II. For the faults without fault codes, repair it................................................................................. 2F-36

III. Repair of occasional faults ........................................................................................................ 2F-37

IV. Analysis of fault codes.............................................................................................................. 2F-38

Removal and installation ...................................................................................................................... 2F-44

I. Steps for removing ABS assembly .............................................................................................. 2F-44

II. Installation steps of ABS assembly ............................................................................................ 2F-44

III. Cross validation......................................................................................................................... 2F-44

IV. Exhaust instructions .................................................................................................................. 2F-44

Summary................................................................................................................................................ 2F-47

I. Attentions..................................................................................................................................... 2F-47

II. Initial check ................................................................................................................................ 2F-49

Introduction of ESP 9 system ............................................................................................................... 2F-51

I. Composition of ESP 9 system...................................................................................................... 2F-51

II. Hydraulic diagram for ESP 9...................................................................................................... 2F-52

III.Haima M3 ESP 9 ECU interface circuit..................................................................................... 2F-53

Fault diagnosis ....................................................................................................................................... 2F-55

I. Diagnostic flow............................................................................................................................ 2F-55

II. For the faults without fault codes, repair it................................................................................. 2F-56

III. Repair of occasional faults ........................................................................................................ 2F-56

IV. Analysis of fault codes.............................................................................................................. 2F-57

Removal and installation ...................................................................................................................... 2F-62

I. Steps for removing ESP assembly ............................................................................................... 2F-62

II. Installation steps of ESP assembly ............................................................................................. 2F-62

III. Exhaust instructions .................................................................................................................. 2F-62

IV. Instructions for calibrating the integrated inertial sensor (ESP9i system) ................................ 2F-64






-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-2



General and operation

Operation of brake caution light

The brake caution light (BRAKE)

 applied  in

this brake system is located inside the instrument
panel. When the ignition switch is in ON gear, the
brake caution light will go on. When the ignition
switch returns to ACC gear, the caution light will
go out. The following cases will make the caution
light go on.

   In case of applying the parking brake when

the ignition switch is in ON gear, the caution
light will go on.

  When the level of brake fluid is below a

certain value, “BRAKE”

 caution light will

go on.



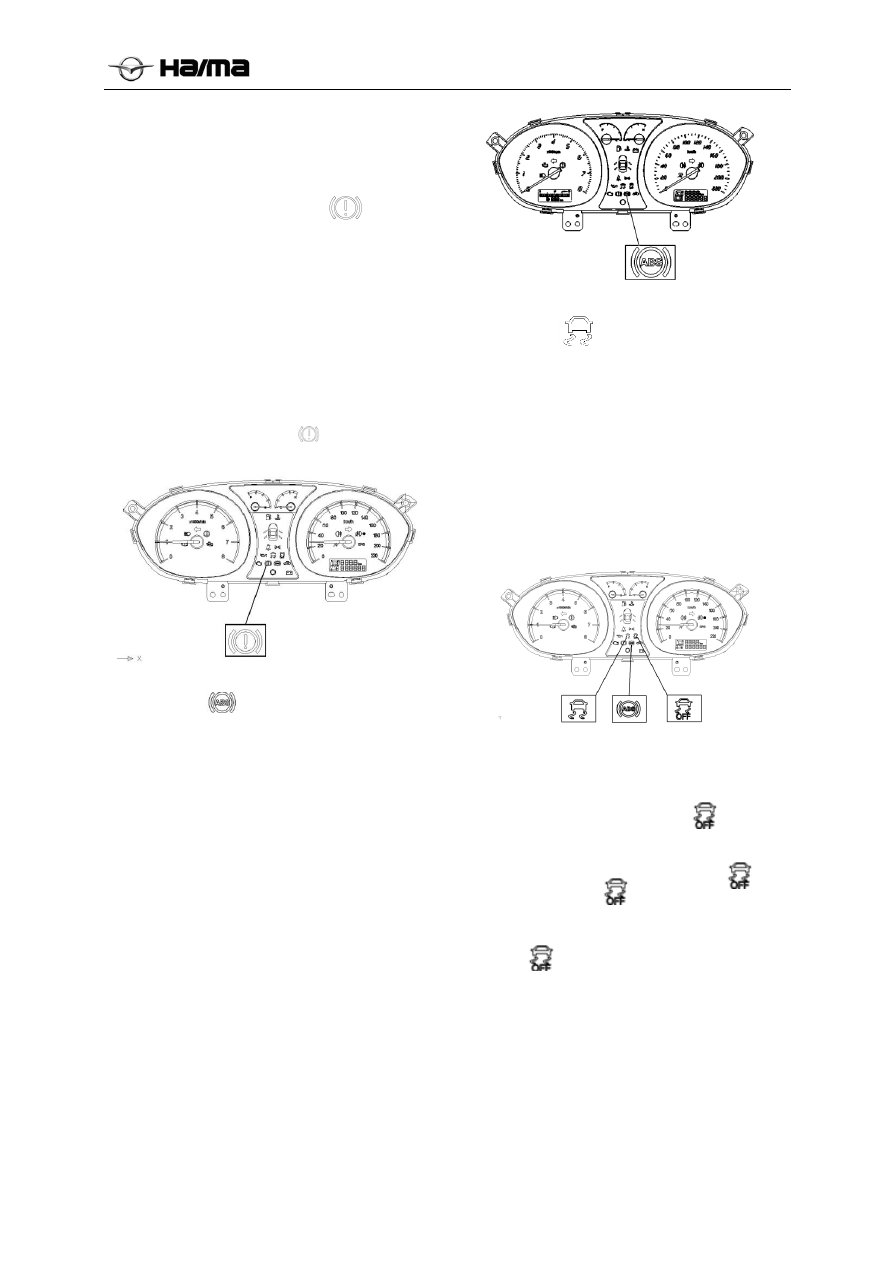

Description of ABS fault light

ABS fault light

 applied in this brake system is

located inside the instrument panel (as shown in
the figure).

Self-check of ABS: when the ignition switch is
turned from ACC to ON, the self-check of ABS is
started, and the fault light goes on. After finishing
its self-check within 0.7 to 3s, the fault light goes
out, it certifies the normality of ABS system; if it’s
constantly on, ABS system will be faulty, and the
professionals are required to check the faults of
ABS system (for its details, see the description of
ABS anti-lock system repair).



Description of ESP fault light

ESP fault light

 applied in this brake system

is located inside the instrument panel (as shown in
the figure).

ESP self-check: when the ignition switch is turned
from ACC to ON, the self-check of ESP is started,
and the fault light goes on at this time. After
finishing its self-check, the fault light goes out, and
it certifies the normality of ESP system; if it’s
constantly on, ESP system will be faulty, and the
professionals are required to check the faults of
ESP system (for its details, see the description of
ESP anti-lock system repair).





Description of ESP-OFF switch indicator
lamp

ESP manual switch indicator lamp

applied in

this brake system is located inside the instrument
panel (as shown in the figure).

When ESP-OFF light

goes on, it indicates the

functions of ESP is manually closed, its functions
can be started with ESP switch button, and ESP-

OFF light

will go out after starting it.





-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-3



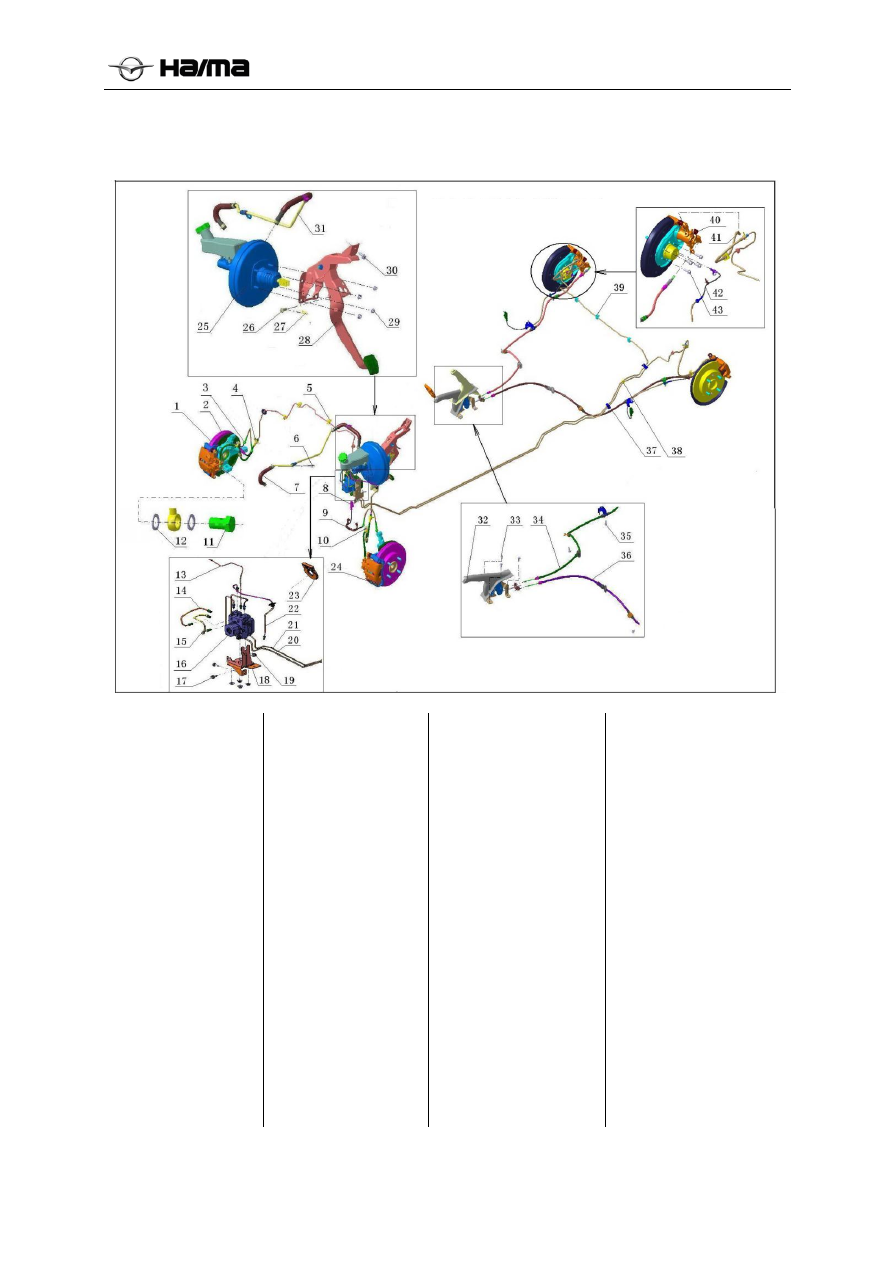

Parts of brake system

Brake system (I)





1. Front steering knuckle
with brake assembly(right)

2. Front brake hose assembly

3. Front wheel speed
sensor(right)

4. Elastic card

5. Pipe clamp B

6. Lock bolt

7. Vacuum power-assisting
hose assembly

8. Front wheel speed
sensor(left)

9. Front wheel speed sensor
support (left)

10. lock bolt

11. Hollow bolt

12. Washer

13. Rear brake pipe front
section(right)



14. Front brake pipe(left)

15. Brake master cylinder
rear chamber oil pipe
assembly

16. brake master cylinder
front chamber oil pipe
assembly

17. Combination nut

18. Lock bolt

19. ABS support

20. ABS support cushion

21. ASB controller

22. Rear brake pipe front
section (left)

23. Front brake pipe(right)

24. Front steering knuckle
with brake assembly(right)

25. With master cylinder
vacuum booster assembly



26. Pin shaft

27. Split pin

28. Brake pedal assembly

29. Flange nut

30. Lock bolt

31. Vacuum power-assisting
hose assembly

32. Parking brake handle
assembly

33. Lock bolt

34. Parking cable assembly
(right)

35. Lock bolt

36 .parking cable assembly
(left)

37. Pipe clamp E

38. Pipe clamp F

39. Pipe clamp A



40. Rear-drum brake
assembly(left or right)

41. Hexagon flange bolt

42. Rear wheel speed sensor

43. Rear brake pipe rear
section (left or right)

44. Rear brake hose
assembly





Brake system(with ABS)

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-4





Brake system (II)







1. Front steering knuckle
with brake assembly(right)

2. Front brake hose
assembly

3. Front wheel speed
sensor(right)

4. elastic card

5. pipe clamp B

6. lock bolt

7. vacuum power-assisting
hose assembly

8. Front wheel speed
sensor(left)

9. front wheel speed sensor
support (left)

10. lock bolt

11. hollow bolt

12. washer



13. Front brake pipe(right)

14. brake master cylinder
rear chamber oil pipe
assembly

15. Brake master cylinder
front chamber oil pipe
assembly

16. ESP controller

17. Lock bolt

18. ESP upper support,
ESP lower support

19. combination nut

20. Rear brake pipe front
section (left)

21. Rear brake pipe front
section(right)

22. front brake pipe(left)

23. steering angle sensor



24. Front steering knuckle
with brake assembly(right)

25. With master cylinder
vacuum booster assembly

26. Pin shaft

27. split pin

28. brake pedal assembly

29. flange nut

30. lock bolt

31. Vacuum power-assisting
hose assembly

32. parking brake handle
assembly

33. lock bolt

34 .parking cable
assembly(right)

35. Lock bolt



36. Parking cable assembly
(left)

37. Pipe clamp E

38. Pipe clamp F

39. Pipe clamp A

40. Rear-disc brake
assembly(left or right)

41. Rear brake hose assembly

42. Rear wheel speed sensor

43. Hexagon flange bolt





Brake system(with ESP)

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-5



Diagnostic data and procedures

Brake system test

The brake test must be performed on dry, clean and
flat road without slope. If the road surface is wet
and slippy, oil dirty or soft, the vehicle can’t stick
to the ground evenly, thus its real braking
performance can’t be tested.

The brake test shall be performed with lighter and
heavier pedal-applying forces at different speeds,
but the lock of brake and slippage of vehicle must
be avoided. Even if the vehicle is braked with a
large force, its lock and slippage can show its
braking ability. During the rotation of wheel, its
braking distance is less than the one while it’s
locked, the friction force between the wheel and
ground is also below the force of wheel while it’s
slipped. The higher its deceleration speed is, the
higher the required brake pedal force is. Three key
external factors can influence its braking ability:

  The uneven adhesion between the tire and

ground will lead to uneven braking force, the
air pressures of left and right tires shall be
equal to each other, and the patterns of left
and right tires shall be the same.

  Uneven load will also influence its braking

ability, because the wheel with higher load
requires a higher braking input force than any
other wheel, so it can also produce a higher
braking force.

  Projected or unflat road surface will cause the

runout of brake.

Check of brake fluid leakage: make the engine
idling, put the gear in neutral gear, and step down
the brake pedal with a consistent force. If the pedal
sinks, the hydraulic system may be leaked, so the
system shall be checked.

Check of fluid level in master cylinder fluid
reservoir: the slow drop of fluid in fluid reservoir
is caused by normal wears of friction liner.
However, its fluid level shows very low, it
indicates the leakage of system. The system may
be internally or externally leaked. Sometimes, if no
faults of system are found out during the following
check, it may be slightly leaked. If its fluid level is
normal, check the length of vacuum booster
pushrod. In case of finding out the improper length
of pushrod, adjust or replace the pushrod.

Check the master cylinder through the
following procedures:

  Check the casting cracks of master cylinder or

leakage of brake fluid around it. If at least one
drop of brake fluid exists outside the master

cylinder, it indicates the leakage of master
cylinder, but its problems can’t be explained
only as per the wetting conditions of master
cylinder.

  Check the lengths of linkage and pushrod

connected to the pedal. If these two parts
don’t conform to the requirements,
disassemble the master cylinder, and check
whether the leather cup is extended or
expanded. If it’s expanded, the brake fluid
may be unqualified or polluted. In case of
confirming the pollution of brake fluid, all the
parts shall be removed for cleaning, and all
the brake pipes must be also cleaned.

Unqualified brake fluid, other mineral oil or water
in brake fluid will cause the gasification of brake
fluid or deterioration of rubber parts,e.g. the
expansion of master cylinder piston rubber cup
indicates the deterioration of rubber part.
Meanwhile, the same case also occurs to the brake
slave cylinder rubber cup.

In case of finding out the deterioration of rubber
parts, disassemble all the hydraulic parts, and clean
themwith alcohol; blow the alcohol dry with
compressed air before reassembling them, and
replace all the rubber parts from the system,
including the hose.

Check of brake hose

The hydraulic brake hose shall be checked at least
once every two years. After the occurrence of
accidental damages, broken surface scratches,
leakage or bubbles, the hose must be also checked.
Check the trends and fixing conditions of hose. If
the friction of brake hose with other parts occurs, it
will lead to final failure of surface damages, and its
check may require a mirror or light. If the above
cases are found, the hose must be adjusted or
replaced.

Operation of caution light

A warning indicator lamp “BRAKE

 exists

on the panel of brake system. When the ignition
switch is in Position III, the warning lamp will go
on. When the switch is in position II, the warning
lamp will go out.

If the following cases occur, the warning lamp will
give an alarm:

  Application of parking brake: in case of

applying the parking brake, the ignition
switch is in position II at this time, the
warning lamp will go on. When the level of
brake fluid is overlow: when the level of fluid
in fluid reservoir is overlow, the warning
lamp will go on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-6



Faults of brake system

Fault symptom



Cause



Remedy



Leakage of brake fluid



Repair or add in the brake fluid.



Short circuit of parking brake
switch



Repair its short circuit part.



The brake warning lamp is

constantly on.



Fault of fluid level sensor



Replace the sensor.



Fault of brake lamp switch



Replace the brake lamp switch.



Too short length of pushrod



Adjust the length of vacuum
booster pushrod.



The brake lamp goes on.



Short circuit of brake lamp switch



Repair its short-circuit part.



Lack or leakage of brake fluid



Repair or add in brake fluid.



Pollution of brake fluid



Replace the brake fluid.



Air in brake system



Drain the fluid out of brake
system again.



Damages of brake pipe



Replace the brake pipe.



Insufficient braking force



Damages of vacuum power-
assisting hose or non-return valve



Replace the vacuum power-
assisting hose or non-return valve.

Seizure of brake pedal



Replace the brake pedal.



Fault of caliper piston return



Replace the return rubber ring.



Fault of brake master cylinder



Replace the brake master
cylinder.



Braking drag



Air in brake system



Exhaust the air.



Insufficiency or leakage of brake
fluid



Replace the leaked part or add in
the brake fluid.





Overlong stroke of pedal



Overlong free stroke of brake pedal

Adjust the length of vacuum
booster pushrod.





Manual exhaustion

Important hints: the sequence of exhaustion: left
rear, left front, right front, right rear. During the
drainage of fluid, check the level of fluid
continually, and add in the brake fluid.

1.  Lift up the vehicle.

2.  Loosen the bleed bolt and dust cover.



3.  Connect a transparent pipe to bleed screw,

and make its other end soaked in the brake
fluid of transparent container.



4.  After stepping the brake pedal slowly several

times, keep it stepped.

5.  Loosen the bleed screw, drain the brake fluid,

and then tighten the screw.

Note:  Step the pedal until the bleed screw is

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-7



tightened.

6.  Repeat Steps 4 and 5 until all the air is bled.

7.  Check whether the bleed screw is tightened.

Check of pedal stroke

1.  Start the engine.

2.  Step down the pedal three times.

3.  Step down the brake pedal with about 30Kg

(66.15Ib) force, and measure the distance
between the pedal and the lowest part of front
barrier.

Unit: mm



Parameter 60



4.  If the distance is below 60mm(2.36in.), it may

be caused by the worn size of rear brake shoe
over its specified value or existence of air in
the pipe. After replacing the brake shoe and
bleeding all the air, if the distance is still
below 60mm (2.36in.), it may be caused by
the faults of rear brake shoe regulator or

overlong stroke of vacuum booster pushrod,
but this case seldom occurs.

5.  After removing the brake drum, check the

automatic clearance regulator. If it’s damaged,
repair or replace it.

Check of brake pedal free stroke

1.  Step the brake pedal several times to

eliminate the vacuum of vacuum booster.

2.  Push the brake pedal by hands, and measure

the stroke of pedal from its free state to
hardening position.

Unit: mm

Specified value

5-10

3.  The free stroke of brake pedal can’t be

adjusted.





-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     2      3      4      5     ..
