Haima M3. Chassis System. Service Manual - part 2



List of tires and drive shafts 2B-7



sleeve

Note:  the dustproof rubber sleeves are different
from each other on wheel side and transmission
drive axle side; apply the specified grease supplied
in kits of dustproof rubber sleeve.

1.  Apply the specified grease to the dustproof

rubber sleeve on wheel side.

Filling capacity: 90-110 g {3.13- 3.82oz}

2.  Since the spline of shaft has been wrapped

with a taper during the removal, the dustproof
rubber sleeve can be mounted at this time.

3. Remove

the

tape.

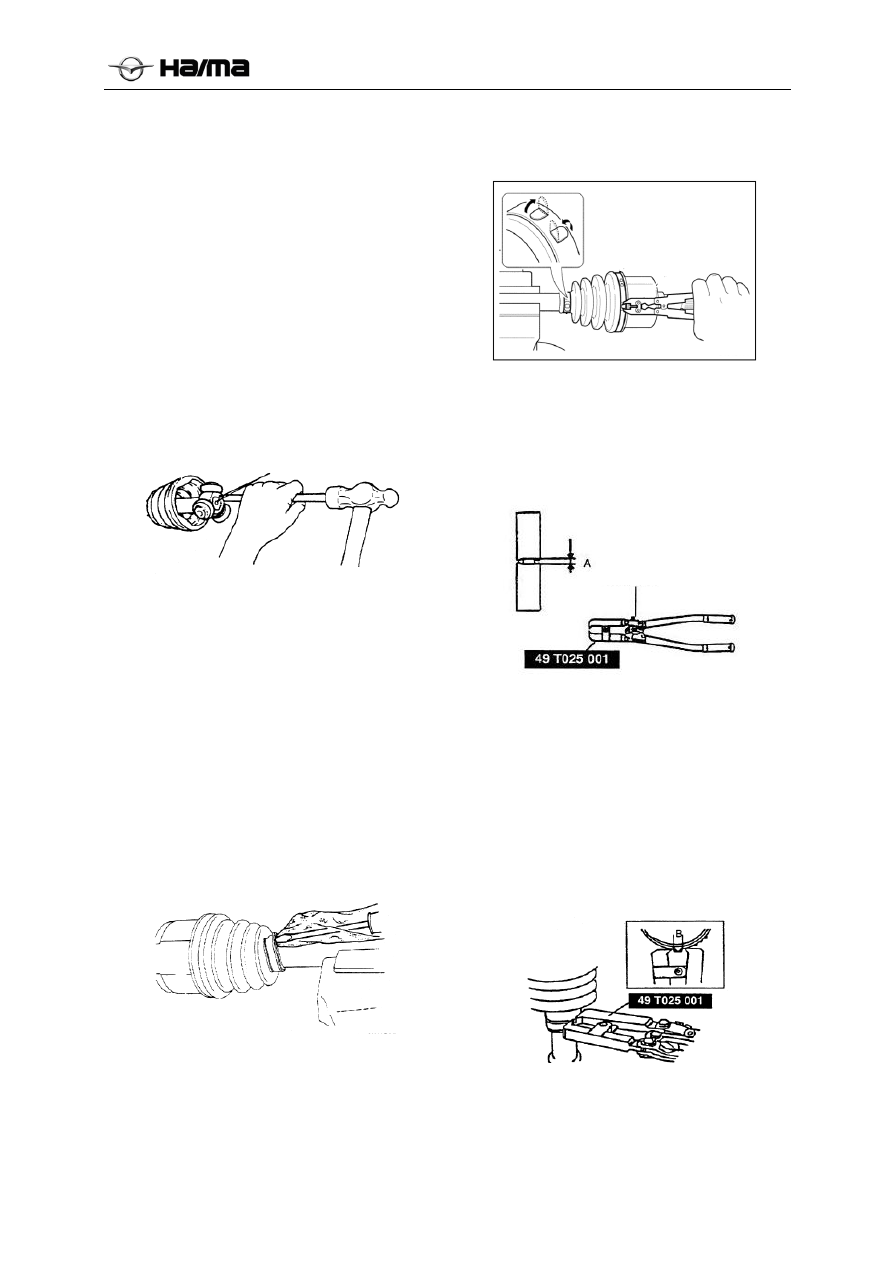

Keypoints for assembling 3-foot universal joint

1.  nstall 3-foot universal joint with a crowbar

and hammer by aligning to the mark;



2.  Install the new stop ring with clip forceps.

Keypoints for assembling outer ring

Note: apply the specified grease supplied in kits of
dustproof rubber sleeves.

1.  Apply the specified grease to the outer ring

and transmission drive axle side dustproof
rubber sleeve;

Filling capacity of grease:130-140g {4.59-4.95oz}

2.  Assemble the outer ring;

3.  Wrap the head of screwdriver with a cloth,

then lift up the small end of each dustproof
rubber sleeve carefully, and drain the air
remaining in dustproof rubber sleeve.



Keypoints for assembling the transmission drive
axle side dustproof rubber sleeve clamp

Note:  the new hoop must be used every time. The
wrapping direction of hoop should be reverse to
forward rotation direction of drive shaft.

1.  After wrapping the hoop by a turn, clamp it

with clip forceps;

2.  Lock the hoop with a locking clamp;





Keypoints for assembling the dustproof rubber
sleeve clamp on wheel side

1.  Turn SST adjusting bolt to adjust the

clearance A.

Clearance A:2.9 mm {0.11 in}



2.  Lock the small dustproof rubber sleeve clamp

on wheel side with SST, and ensure the
clearance B conforms to the provisions for
technical requirements. If the clearance B
exceeds the specified value, reduce the
clearance A of SST, and re-lock the dustproof
rubber sleeve. If the clearance B is below the
specified value, replace the dustproof rubber
sleeve clamp, increase the clearance A of SST,
and lock the new dustproof rubber sleeve;

Clearance B: 2.4-2.8 mm



{0.095-0.110 in}

3.  Ensure the dustproof rubber sleeve clamp

shall not be outside the clip mounting area. If

Adjusting screw



List of tires and drive shafts 2B-8



any of above cases occurs, replace the hoop,
and repeat Steps 2 and 3;

4.  Fill in the dustproof rubber sleeve with the

grease supplied in repair kits;

5.  Turn SST adjusting bolt to adjust the

clearance A.

Clearance A: 3.2 mm {0.13 in};

6.  Lock the big dustproof rubber sleeve clamp

on wheel side with SST;

7.  Ensure the clearance B conforms to the

provisions for technical requirements;

If the clearance B exceeds the specified value,
reduce the clearance A of SST, and re-lock the

dustproof rubber sleeve. If the clearance B is
below the specified value, replace the dustproof
rubber sleeve clamp, increase the clearance A of
SST, and turn the edges of new dustproof rubber
sleeve up to clearance B: 2.4-2.8 mm {0.095-0.110
in};

8.  Ensure the dustproof rubber sleeve clamp is

not outside the hoop mounting area. If any of
above cases occurs, replace the hoop, and
repeat Steps 7 and 8.









Wheels and tires 2C-1



Chapter 12

Wheels and tires



Description and operation ......................................................................................................................2C-2

Tires and wheels................................................................................................................................ 2C-2

Tread ................................................................................................................................................. 2C-2

Buffer layer ....................................................................................................................................... 2C-2

Tire body ........................................................................................................................................... 2C-2

Tire bead ........................................................................................................................................... 2C-2

Tire tube ............................................................................................................................................ 2C-2

Sidewall of tire .................................................................................................................................. 2C-2

Tire .................................................................................................................................................... 2C-2

Tire hydroplaning.............................................................................................................................. 2C-2

Standing wave ................................................................................................................................... 2C-3

Tire rotation....................................................................................................................................... 2C-3

All season tire.................................................................................................................................... 2C-3

Tire label ........................................................................................................................................... 2C-3

Spare tire ........................................................................................................................................... 2C-3

Wheel ................................................................................................................................................ 2C-3

Tire pressure...................................................................................................................................... 2C-3

Tire rotation....................................................................................................................................... 2C-4

Wheel balance ................................................................................................................................... 2C-4

Diagnostic data and procedures.............................................................................................................2C-4

Tire wears.......................................................................................................................................... 2C-4

Repair instructions ............................................................................................................................ 2C-6

Instructions........................................................................................................................................ 2C-7









Wheels and tires 2C-2



Description and operation

Tires and wheels

Tread

The portion contacting the road surface outside the
buffer layer and tire body. It’s made of high wear-
resistant rubber. Its operation is determined by its
surface details.

Buffer layer

The fabric layer between the tread and tire body is
used to prevent the damages of tires caused by
road impacts and vibration.

Tire body

This main portion is a tire-like structure consisting
of high-strength synthetic fiber cord fabric. Since it
must maintain the tire pressure and bear all the
loads and vibrations of tires, so it must have high
fatigue-resistant properties.

Tire bead

The steel wire coil on ends of tire body, which is
covered with rubber layers and wrapped with
nylon threads. It’s used to fix the tire on the rim.



Tire tube

The most tires applied in modern vehicles are
tubeless tires.

Sidewall of tire

It’s used to protect the tire body, flexing resistant
and improve the driving comfort.

Tire

Structure of tubeless tire









185

Width (mm)



60

Flatness rate 60%

(Height/width)×100



R



Radial tire



15

Rim diameter

(Inner diameter of tire, feet)

84

Max. load index



185/60R1

5

84H



H



Max. speed rating



Tire hydroplaning

When the vehicle is driving on the road surface
with water at high speed, it will make the tires
unable to drive like rolling on the good road
surface, thus the tires may float on it. This is called
as tire hydroplaning.It will cause the failure of
brake, low friction force and steering failure, so
it’s very dangerous.



High-speed driving

Low-speed driving

Buffer layer



Tread

Sidewall

Tire body

Tire bead

Inflating

valve

Width

Outer

diameter

Inner

diameter



Height

Width



Wheels and tires 2C-3



Standing wave

During the rotation of tires, the tread will produce
the repeated deformations and restoring torques.
However, the new deformation has been produced
and the previous deformation still exists at higher
speed, so a vibration wave will be produced on
local part of tread. The lower the tire pressure is,
the more serious its vibration wave is, especially at
high speed.





Tire rotation

As indicated in the tire performance criteria (TPC),
the numbers have been engraved in the tire side
mold near to tire size. It indicates that these
numbers include the traction force index, strength,
size and rolling resistance conforming to the
criteria. Generally speaking, each size of tire shall
have different TPC numbers.

Note:  Don’t use different types of tires on the
same vehicle, e.g.radial tire and bias tire, except in
emergency cases, because the vehicle will be
seriously influenced, and it may cause the control
failure of vehicle.

Replace the original tires with the tires of the same
size, load and structure. The use of other sizes or
structures of tires will seriously influence the ride
comfort, steering properties, speedometer /
mileometer values, vehicle ground clearance, and
clearance from tire to vehicle body or chassis. But
it’s not applicable for spare tires.

It’s recommended to replace a pair of tires on the
same shaft synchronously during the renewal of
tires.

If it’s required to replace a tire, find a nearest tread
to compensate the braking coefficients.

Different producers design different tread patterns,
but the same TPC number may be used on the
same vehicle.



All season tire

Now, most of vehicles are equipped with all season
PCR tires as standard configurations. These tires
can be used as snow tires. During the use in the
snow, their average ratio is 37% higher than
friction coefficient of non-all season tires. In other
aspects, e.g.their wet water friction coefficient,
rolling resistance, tread service life and air
resistance are all improved, because the design of
tread patterns and tread compound are also
improved. These tires have “M+S” engraved
behind their tire side marked size codes. The suffix
“MS” is also engraved behind the instructions for
tire side TPC numbers.

Not all the steering wheel tires are all season tires.
These tires have no “MS” marks behind the tire
sizes or behind the instructions for TPC numbers.

Tire label

The tire labels shall be permanently affixed behind
the side door of driver’s seat, and the tires shall be
inflated as per the above tire pressure. The
maximum vehicle load, tire specifications
(including the spare tire) and inflating pressure
((including the spare tire) are described on the tire
labels.

Spare tire

This vehicle is equipped with full-size wheels and
spare tires on it.

Wheel

If any of the following cases occur to the wheels,
they must be replaced: bends, indentions, flanging
or deflected jumps, air leakage of weld joints,
enlargement of bolt holes, or fixing failure or
serious rusting of bolts. The jumps of wheel
transition will cause the vibration of vehicle. Any
replaced wheel must have the same load, diameter,
rim width, offset distance and mounting size as
those of original wheel. The inconformity of wheel
size or type will influence the service life of wheel
and bearing, cooling of brake, readings of
speedometer/kilometer, vehicle ground clearance,
and clearance from tire to vehicle body and chassis.

Tire pressure

The recommended air pressure of any vehicle tire
shall be carefully calculated, which will give your
driving/ride comfort, good steering ability, extend
the service life of tire, and ensure its loading
capacity.

Check the tire every 5,000km. The tire pressure
must be checked every month or before driving it
for long distance. The tire must be checked at low



Wheels and tires 2C-4



temperature, i.e. when the vehicle drives for about
3 minutes or at less than 1. 6km/hour. Inflate the
tire as per the air pressure indicated in the tire label
on driver’s seat side door. The inflation pressure of
tire has been given in “Instructions for Tire
Specifications and Inflation Pressure” of this
section.

The inflating valve must have a nut cap on it,
which is used to prevent the dust and water from
entering into it.

The air pressure above the recommended pressure
will lead to:

●

  Harder ride and driving

●

  Explosion or damages of tire

●

  Rapid wears of tread in the middle of tire

The air pressure below the recommended pressure
will lead to:

●

  Large noises while turning

●

 Difficult

steering

●

  Rapid or uneven wears of both sides of tire

●

  Scratches or cutting of tire edges

●

  Fracture of tire cord

At higher tire temperature, its different tire
pressure on the same shaft will lead to:

●

 Uneven

braking

force

●

 Heavy

steering

●

  Reduction of handling stability

●

  Sudden steering during the acceleration

●

  Direction of torque control

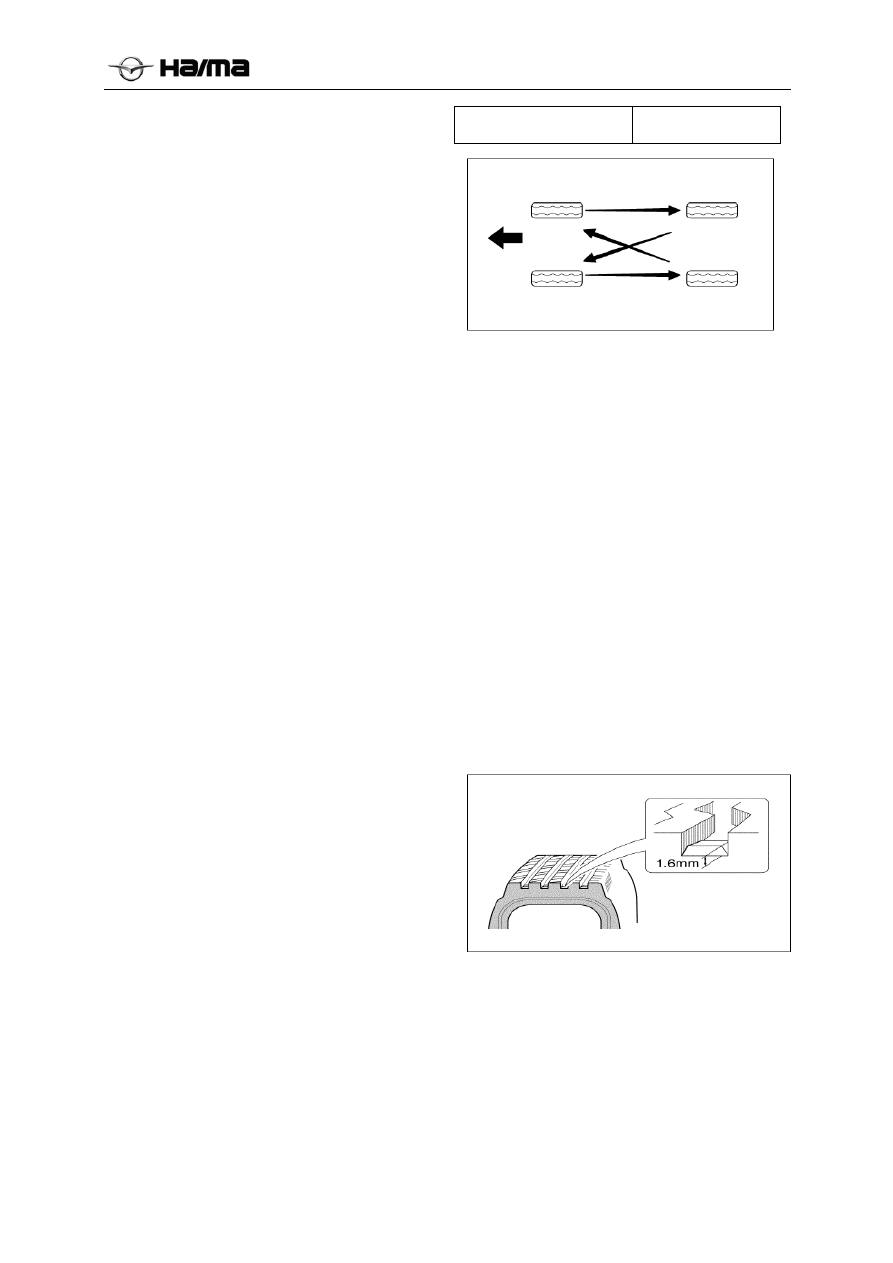

Tire rotation

Front and rear tires have different functions and
will lead to uneven wears, which is determined by
road surfaces for driving and different driving
habits,etc. The wear rate of front wheel tire is
below that of rear wheel tire.

In order to avoid uneven wears of tire and extend
its service life, rotate the tire every 10,000km.
After rotating the tire, adjust its air pressure, and
ensure that the torque of hub nut meets the
specified requirements.

Minimum pattern depth

1.6mm(0.06 inch)



Wheel balance

It’s a simple process to check the wheel balance. If
the wheel jumps at high speed, it shall be first
checked by you. During the replacement of wheels
and tires, their balances must be checked.

While checking the wheel balance, be sure to
follow the rules below:

①

  The number of balance blocks shall not

exceed two on inner or outer side of one
wheel;

②

  The total weight of one wheel balance block

shall not exceed 100g (3.5 ounce);

Diagnostic data and procedures

Tire wears

①

  Check the depth of tire pattern.

②

  If the depth of its pattern is below the given

value, please replace the tire.



It can be seen from the specifications that the tire
must be replaced when the depth of tire pattern is
reduced (below 1. 6mm (0. 06 inch)).





Wheels and tires 2C-5





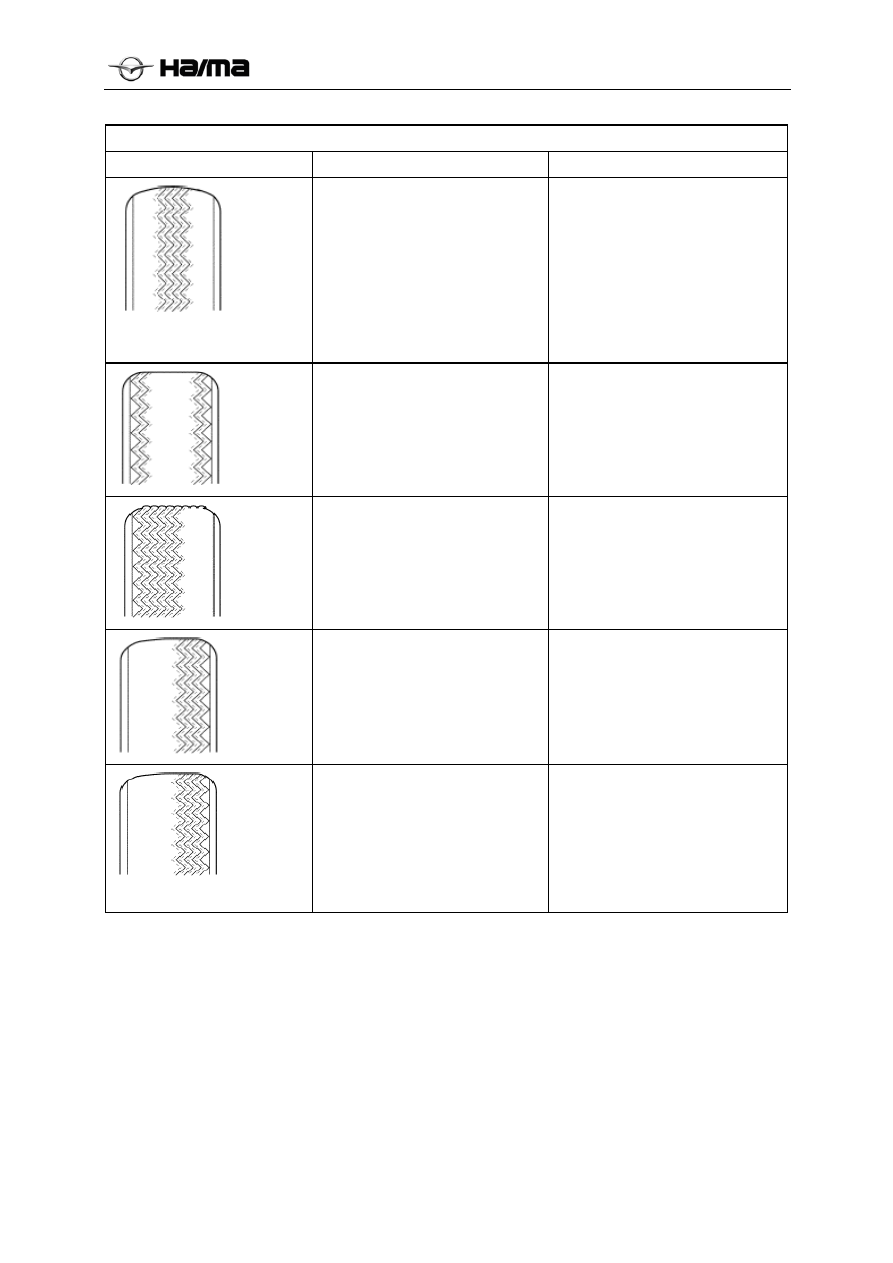

Irregular or excessive wears of tire



Fault



Possible causes



Corrective measures







●

  Overlow tire pressure

●

 Improper tire rotation



●

  Adjust the tire pressure.

●

 Rotate the tire.





●

  Overhigh tire pressure

●

 Improper tire rotation



●

  Adjust the tire pressure.

●

 Rotate the tire.





●

 Improper toe-in



●

  Adjust the toe-in.





●

 Reverse toe-in



●

  Adjust the toe-in.





●

  Improper kingpin caster angle

or improper front-wheel
camber

●

 Suspension failure

●

  Improper wheel balance

●

 Improper tire rotation



●

 Check the steering knuckle,

control connecting rod, drive
shaft and suspension. Replace
if necessary.

●

  Adjust the balance of wheel.

●

 Rotate the tire.







Wheels and tires 2C-6



Repair instructions

(I) Vehicle

repair















Wheel

I.

Sequence of removal

①

  Remove the steel wheel outer trim cover;

②

  Remove the hub nut;

③

  Lift the wheel stably.

Note:  don’t loosen the tightened wheel by heating
it. It will shorten the service life of wheel, hub nut
and wheel bearing. Excessive force application, e.g.

hitting the wheel or tire, will also cause the
damages, which can’t be recovered. It’s allowed to
hit the sides of wheel slightly with a hand or
rubber hammer.

④



Remove the wheel.

If it’s difficult to remove the wheel from the
vehicle, it may be caused by the existence of
sundries or excessive close fit among the wheel
middle holes, nuts and hubs. At this time, the
wheel can be removed from the vehicle by
adopting the following methods:

A.  Re-tighten any influenced hub nut, and then

turn the hub nut two circles in its loosening
direction.

B.  Lower the vehicle, try to shake the vehicle,

and adopt the weight of one or several
persons to loosen the wheel.

C.  Lift up the vehicle again, and then remove the

wheel.

Note:  don’t apply the lubricating oil to vertical
surface of wheel and hub (or brake disc), because
the existence of lubricating oil in these positions
will lead to the wheel loosening when the vehicle
is driven, control failure of vehicle and even
serious accidents. The lubricating oil is not good
for removal of tightened wheel. If the lubricating
oil is required, don’t apply too much oil, and only
to the centerhole area of wheel.

II.  Sequence of installation

Note:  before installing the wheel, please remove
the sundries from the mounting faces of wheel,
brake drum and hub with a hairbrush. If the surface
contact is poor during the installation, it will
loosen the hub nut. While the vehicle is driving,
there may be a risk of disengaging the wheel from
the vehicle. The hub nut must be tightened as per
the specified torque, but its tightening force shall
not be excessive, thus the bends of wheel, brake
drum or hub can be avoided.

①

  Install the wheel.

②

  Install the hub nuts in diagonal order. Don’t

tighten the hub nut.

③

  Lower the vehicle.

④

 Tighten

it.

Tighten the hub nuts up to the torque of 100 to 120
N.m (73.3 to 88.3 lb-ft).

⑤

 Wheel

balance

Measure the balance of wheel with an automatic
balancing machine. The balancing machine is
convenient in operation, its static and dynamic



Wheels and tires 2C-7



balance can be also measured. Unlike the balance
of vehicle, don’t calibrate the unbalance of vehicle,
brake drum or hub. This defect can be resolved by
precision. During the balancing work, make the
taper part through the wheel center hole to fix the
wheel, and don’t do so through the mounting hole
of hub nut.

⑥

  Calibrate the unbalanced tire.

Provide two methods to calibrate the unbalanced
tire.

One method is to fix the tire through this automatic
device, and then hit small yellow rubber blocks on
both sides of tire tread. Such calibration method is
usually permanent.

If it’s well handled, it won’t influence its
appearance or tire service life.

It’s not recommended to calibrate any tire with a
blade-shape machine, because it can reduce the
service life of tire tread, and the tire can’t be
permanently calibrated.

The other method is to remove the tire, and then
turn it by 180

ﹾ on the rim. The unbalance of wheel

or tire must be known before doing so, because
this method can ensure the balance of its assembly.

⑦

 Installation of tire and wheel

The tire and wheel shall be installed in the
assembling workshop. During the installation,
install them by aligning the radial hard point or
heavy balancing point of tire to the radial dot or
light balancing point of wheel.

The heavy balancing point of tire is marked with a
red dot during the start of its production, or marked
on the tire side with a label.

The light balancing point of wheel is located at the
inflating valve.

Before installing the tire and wheel, scribe a line
on the tire and inflating valve to ensure that they
can be installed in the same position during the re-
installation.

The quality of spare tire and original tire shall be
the same, and their heavy and light points shall be
marked with the same method.

Instructions

Instructions for tire size and air pressure

Inflation pressure



Front Rear



Tire Wheel

kPa psi kPa psi

185/60 R15

15×5. 5J (steel)

220

32

220

32

195/55 R15

15×6J (aluminum)

220

32

220

32



Instru`ctions for converting the inflation pressure



kPa psi

kPa

psi

kPa  psi

140 20

186

27

234  34

145 21

193

28

241  35

152 22

200

29

248  36

159 23

207

30

276  40

166 24

214

31

310  45

172 25

220

32

345  50

179 26

228

33

379  55

Instructions for tightening torque

Type



N.m



Ib.Ft



Ib.In



Hub nut(aluminum alloy

wheel)



100 to 120



66 to 81



－



Hub nut(steel wheel)



100 to 120



66 to 81



－





Suspension system 2D-2







Suspension system 2D-1



Chapter 13  Suspension system



General procedures .................................................................................................................................2D-2

Attentions for suspension system......................................................................................................2D-2

Front suspension......................................................................................................................................2D-3

Check of front shock absorber ..........................................................................................................2D-2

Warning for scrapping the front shock absorber ...............................................................................2D-2

Removal/installation of front suspension lower swing arm assembly ..............................................2D-3

Removal/installation of front transverse stabilizer bar......................................................................2D-4

Rear suspension .......................................................................................................................................2D-5

Removal/installation of rear shock absorber and spring ...................................................................2D-5

Notes for mounting rear spiral spring................................................................................................2D-6

Removal/installation of torsion beam integral axle...........................................................................2D-6







Suspension system 2D-2



General procedures

Attentions for suspension system

Removal/installation of wheel and tire

1.  Its tightening torque during the installation of

wheel:100-120N.m {10. 0-12. 0kgf.m,77. 3-
88. 3in.lbf}

Removal/installation of suspension tie rod

1.  Each part of suspension with rubber bush can

be tightened only after the vehicle is laid
down and at empty load.

Empty load: the fuel tank is full, the levels of
cooling oil and lubricating oil in engine reach the
specified liquid level, the spare tire jack and tool
are placed in specified positions.

Cutoff/connection of brake pipe

Note:  the brake oil will damage the paint surface.
If the brake oil contacts with the paint surface,
remove it immediately.

1.  Tighten the brake pipe taper nut with SST

special service tool 490 259 770B, and
confirm the adjustment of brake pipe taper nut
tightening torque to ensure the combined use
of torque wrench and SST special service tool.

2.  If any brake pipe is disconnected in this

process, add in the brake oil, remove the
residual air out of brake system, and check it
for leakage after terminating the operation.

Removal/installation of power steering part

1.  If any power steering oil line is disconnected

in this process, add in DEXRON-III or ATF-
III oil, remove the residual air out of oil line,
and check it for leakage after terminating the
operation.

Location of wheel

Initial check of wheel location

1.  Check the inflation of tire, and adjust its

pressure to the recommended pressure as per
the demands.

2.  Check the front wheel bearing clearance, and

apply the necessary calibrations to it as per
the demands (refer to the check of M wheel
bearing clearance).

3.  Check the radial runout of wheel and tire

(refer to TD suspension).

4.  Check the ball joint and steering linkage for

excessive loosening.

5.  Shake the vehicle body to check the operation

of shock absorber.

Note:  the vehicle must be placed on horizontal
road surface at empty load.

Empty load: the fuel tank is full, the levels of
engine cooling oil and lubricating oil reach the
specified liquid level, the spare tire jack and tool
are placed in specified positions.

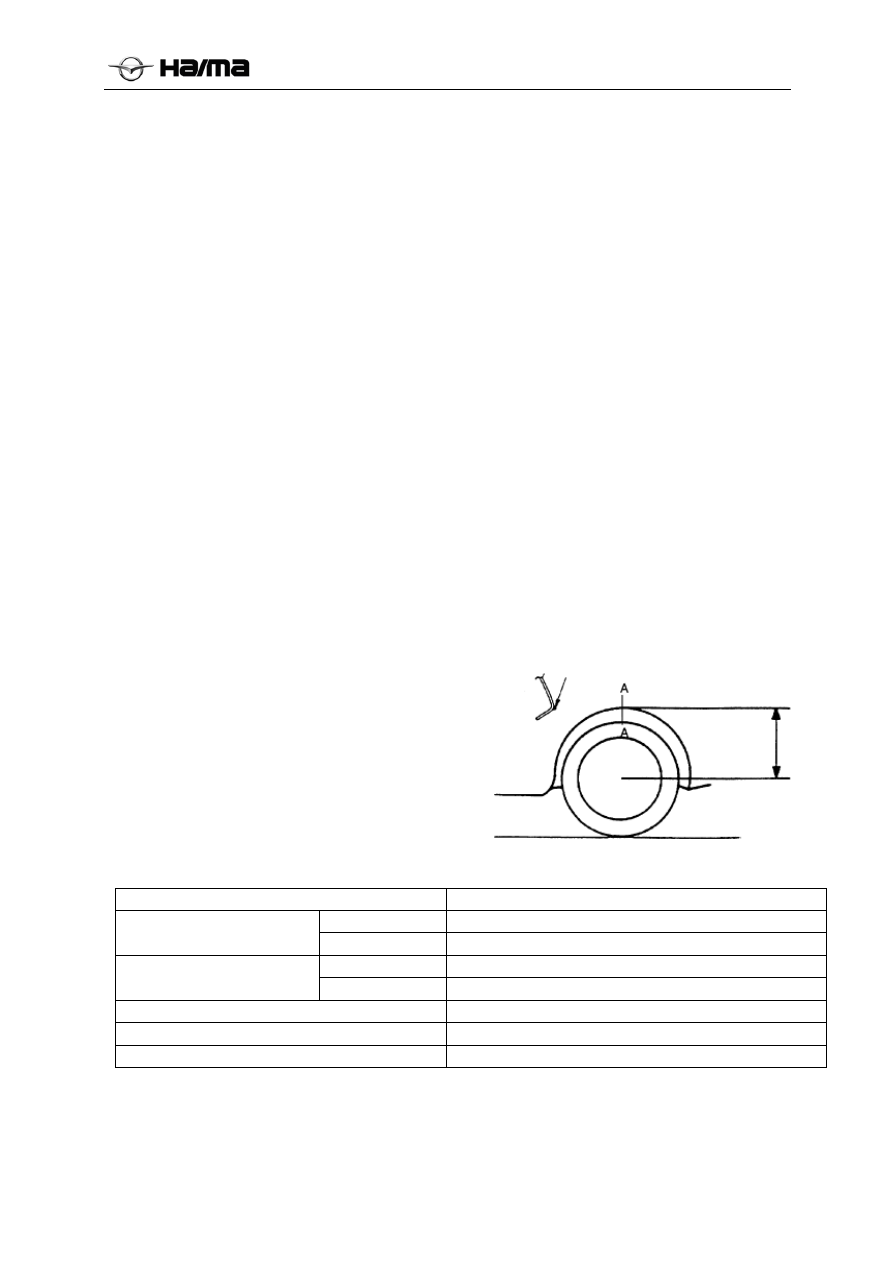

6.  Measure the vertical height from wheel center

to wheel fender edge, and the difference
between the values measured on left and right
sides can’t exceed 10mm {0.39 in}.



Location of front wheel Technical parameters (empty load)

*1



Item

Parameters

mm {in}

0±2

Total toe-in

°

0°00’±0°12’

Inner side wheel

37. 79°

Maximum value of steering
angle

Outer side wheel

33. 36°

kingpin caster angle(reference value) *2

2°35'±30'

front-wheel camber

-0°30'±30'

Kingpin inclination angle (reference value)*2

13°20'±30'

1. The levels of engine cooling oil and lubricating oil reach the specified liquid level, and the spare tire jack
and tool are placed in specified positions.

2. The difference between the values measured on left and right sides can’t exceed 1º30’.

Measured point

A-A section



Suspension system 2D-3



Adjustment of maximum steering angle

1.  Loosen the end lock nuts of steering linkage.

2.  Remove the steering gear boot clamp.

3.  Make the length of steering linkage equal to L.



Maximum difference between left/right values of
3mm {0.12 in}

4.  Adjust the steering linkage evenly to ensure

its corresponding maximum steering angle.

5.  Tighten the end lock nut of steering linkage.

Tightening torque: 66-86N.m {6.0-
8.6kgf.m,48.7-63. 4in.lbf}

6.  Ensure that the gland cover is not twisted, and

install the boot clamp.

7.  Adjust the toe-in after adjusting the steering

angle.

Adjustment of total toe-in

1.  Locate the steering wheel in middle position,

and ensure that the wheel/tire is right ahead.

2.  Loosen left and right steering linkage lock

nuts, keep the rotations of both side linkages
equal to each other, both side steering
linkages are right hand threads, so right
steering linkage shall be turned in front of
vehicle, and left steering linkage shall be
turned back to increase the toe-in.

Note:  turn each of both steering linkages by a
complete circle, and change the toe-in by about
6mm {0.24 in} 0º36’.

3.  Tighten the lock nut of steering linkage up to

the specified tightening torque: 66-86N.m

{6.0-8.6kgf.m, 48.7-63.4in.lbf}

Location of rear wheel

Technical parameters (empty load)

Indications of fuel

meter

Empty--full

Total toe-

out

mm 3±3

Rear wheel camber

angle (reference value)

-1°00’±45’



Front suspension

Removal/installation of front shock
absorber and spring

Note

In case of not removing ABS anti-lock brake
system wheel speed sensor first, carry out the
following operation procedures. If the sensor is
inadvertently pulled, it may cause the broken
circuit of wire. Before carrying out the following
operation procedures, remove ABS wheel speed
sensor from axle side, and fix it in appropriate
position to prevent the sensor from inadvertent
pulling during the repair of vehicle.

1.  Remove it in the sequence shown in the table;

2.  Install it in the reverse sequence of removal;

3.  Check the location of front wheel. In case of

not conforming to the standard provisions,
adjust the location of front wheel (refer to the
location of R front wheel).

Difference between left and right
values is below 3mm(0. 12in)



Suspension system 2D-4







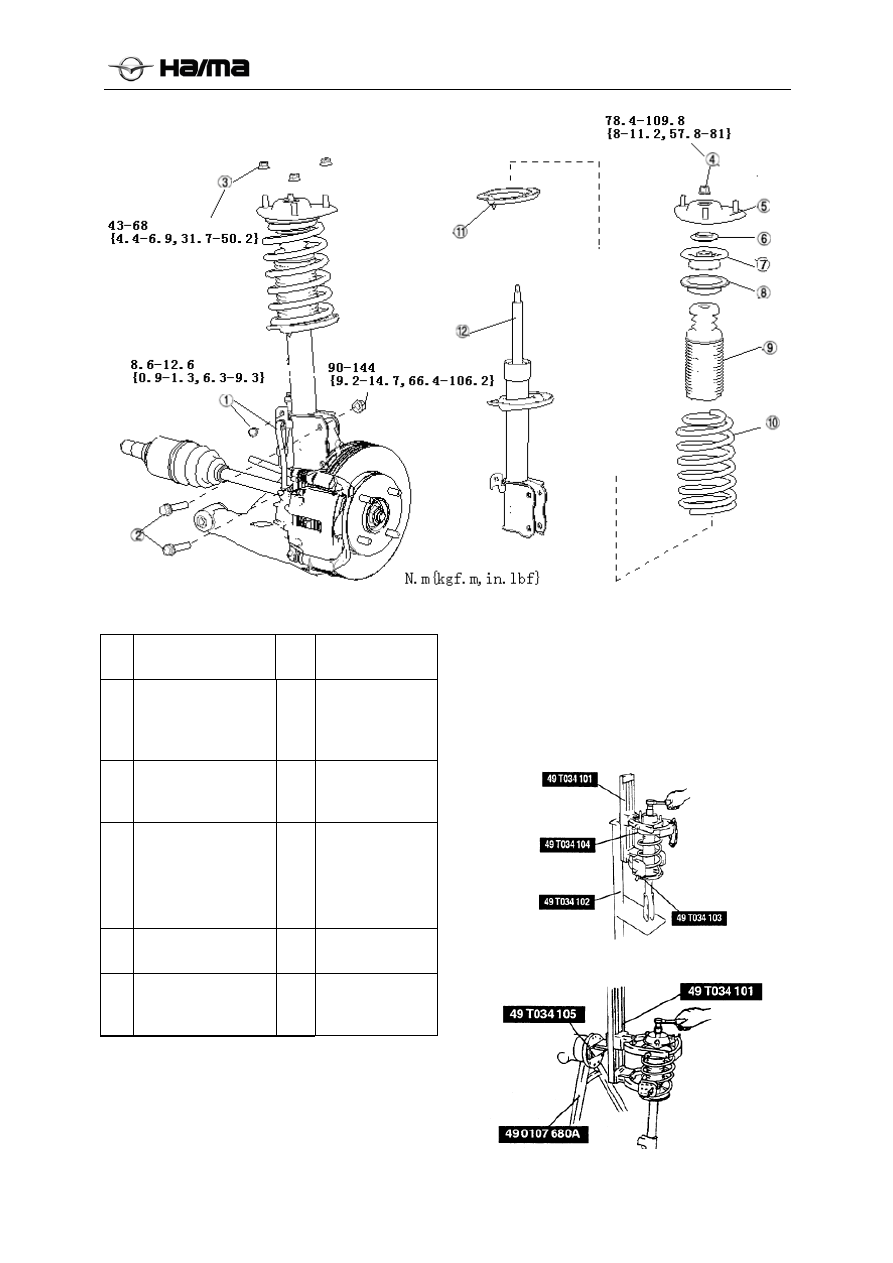

1

Bolt and brake
hose

7

Upper bracket
of spiral spring

2

Fixing bolt and nut
of shock absorber
andsteering
knuckle

8

Upper rubber
mount

3

Fixing nut of shock
absorber and
vehicle body

9

With a stop
block dust cover

4

Piston rod nut
Refer to the
keypoints for
removal of R-4
piston rod nut.

10

Front spiral
spring

5

Upper support of
damping column

11

Lower rubber
mount

6

Damping column
bearing

12

Front shock
absorber
assembly

Keypoints for removal of piston rod nut

Warning:

It’s dangerous to remove the piston rod nut, the
shock absorber and spring may pop up due to huge
pressure, thus it will lead to serious personal injury

and death. Ensure that the shock absorber shall be
installed inside SST special service tool before
removing the piston rod nut.

1.  Protect the spiral spring with a cloth, and then

place SST special service tool.

2.  Compress the spiral spring and remove the

piston rod nut with SST special service tool.



In case of applying the engine support





Suspension system 2D-2



Keypoints for installing the stop block

Apply the grease to the contact surface of stop
block and dust cover.

Keypoints for installing the dust cover

Apply the grease to the contact surface between
the dust cover and upper spring retainer.

Keypoints for installing the spiral spring

1.  First install the upper spring rubber retainer

and upper spring retainer on the shock
absorber to make the lower end of helical
spring placed on lower spring retainer.

2.  As shown in the figure, make the marks on

upper spring rubber retainer and upper spring
retainer on spiral spring for the purpose of
correct installation.



3.  Align the marks on upper spring rubber

retainer and upper spring retainer of spiral
spring, protect the spiral spring and upper
retainer spring with cloth, and then set SST
special service tool.

4.  Compress the spiral spring with SST special

service tool.

5.  Install the lower spring rubber retainer on

lower spring retainer.

6.  Install the shock absorber to make the lower

end of spiral spring placed on lower spring
retainer.

7.  Ensure that the marks of shock absorber and

upper spring retainer are aligned to each other.

8.  As shown in the figure, install the bearing

fixing rubber seat and piston rod nut, and then
remove SST special service tool.



Tightening torque of piston rod nut:80-90N.m{8-9
kgf.m, 59-66. 4in.lbf}

Keypoints for installing front shock absorber
and spring

The upper support of shock absorber has wrong-
installation-proofing functions, which ensure no
wrong installation during the installation.

Check of front shock absorber

1.  Remove front shock absorber from the

vehicle.

2.  Check the shock absorber for damages or oil

leakage.

3.  Check the rubber bush for aging and wears.

4.  Compress and stretch the shock absorber

piston at least three times, confirm the
unchanged operating force and no abnormal
noises. If it can’t conform to the standards,
replace the shock absorber.

(1)  Compress the shock absorber piston, and then

release it.

(2)  Confirm that the piston stretches and returns

at normal speed.



Warning for scrapping the front shock
absorber

  Wear the safety goggles in case of each

drilling of shock absorber, because the high-
pressure gas in the shock absorber may inject
the metal shavings to the eyes and faces while
drilling.

1.  Clamp the shock absorber down on the plane

by making the piston down.

2.  Drill a hole φ2-3 mm {0.08-0.12 in} in the

position 20-30mm {0.8-1.2 in} away from the
pipe bottom to make the gas leaked out.

Upper spring

retainer

Dent

Exterior

of vehicle

Mark



Suspension system 2D-3





3.  Make the hole down.

4.  Collect the oil by moving up and down the

piston rod several times and cutting the pipe
ends.

5.  Handle the waste oil as per the waste material

processing regulations.

Note:  the gas applied in the shock absorber is
nitrogen, and the oil applied in the shock absorber
is mineral oil.

Removal/installation of front suspension

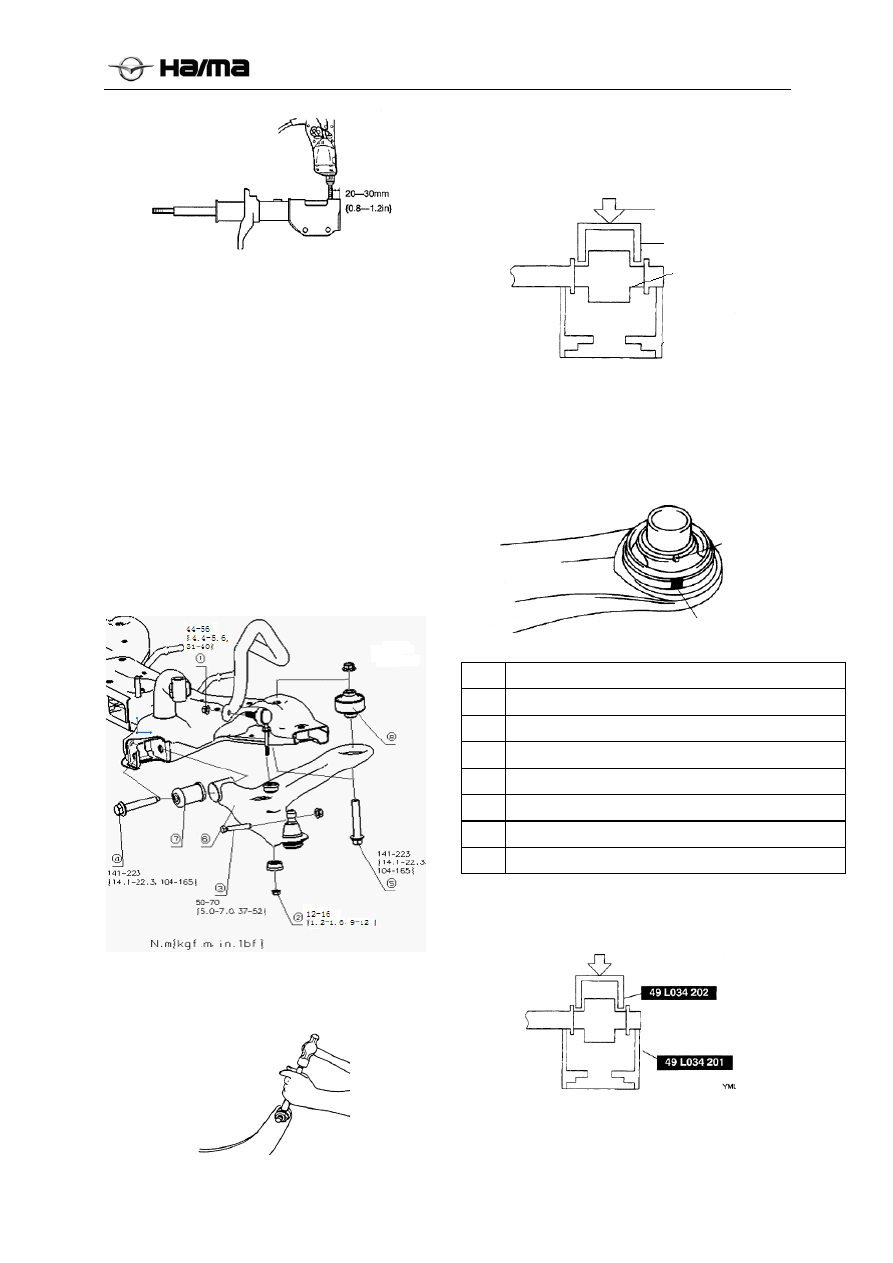

lower swing arm assembly

1.  Remove it in the sequence shown in the

table.

2.  Install it in the reverse sequence of

removal.





Keypoints for removing the dust cover

Remove the dust cover with a chisel, and don’t
damage the ball joint and arm lever.



Keypoints for removing the lower swing arm
front bush

Press it down with SST special service tool, and
remove the lower swing arm front bush.



Keypoints for removing the lower swing arm
rear bush

1.  As shown in the figure, align to rear small

bump of lower swing arm bush, and make the
mark on lower swing arm for the purpose of
correct installation.





1 Self-lock

nut

2 Self-lock

nut

3 Hexagon

flange

bolt

4 Hexagon

flange

bolt

5 Hexagon

flange

bolt

6

Front suspension lower swing arm assembly

7

Swing arm front bush

8

Swing arm rear bush

2.  Press it down with SST special service tool to

remove the bush of lower swing arm.



Keypoints for installing lower swing arm rear
bush

Hydraulic machine is
pressed in by force

Special tools

Special tools

Front bush

Small bump

Mark



Press in
