 Clutch

System 2A-2



Basic steps

Removal/installation of clutch oil pipe

Note

●

  The oil reservoir is shared by the clutch and

brake system.

1.  Provided the clutch is disassembled in any

case, add in the clutch oil (brake oil) and
drain the air, check the oil for leakage after
installing the clutch.

2.  Disassemble the clutch oil pipe with a special

tool, i.e. double open end wrench, and
assemble it together with a torque connecting
rod and above tool.

3.  Ensure that the clutch flange nut shall be

tightened up to the specified torque.(refer to
the basic steps, torque and specifications)

Cluch pedal

Check of clutch pedal

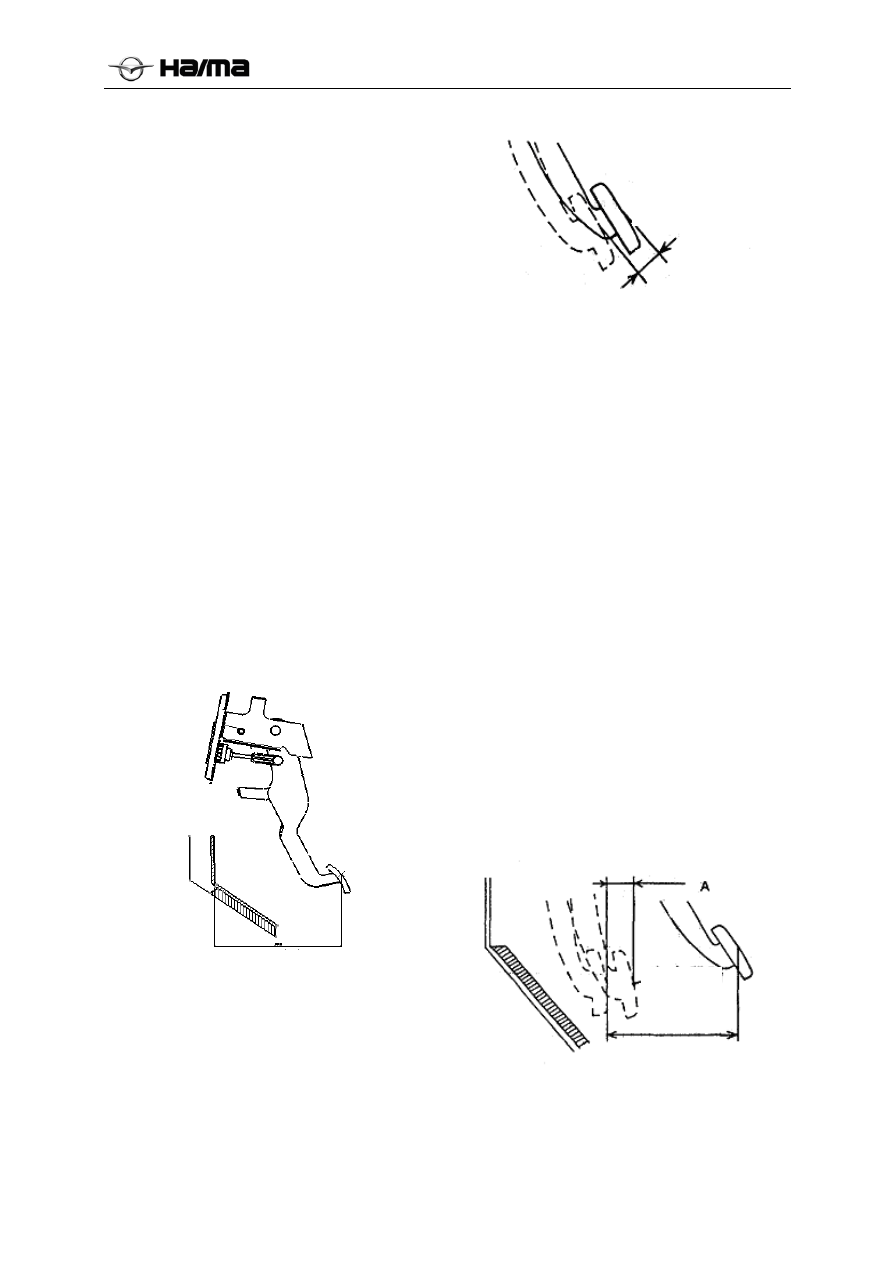

Measure the distance from upper surface of clutch
pedal rubber to the carpet.

●  If incorrect, check whether the clutch pedal is

wrongly assembled.

206- 212mm (8. 11- 8. 35in) (for reference)



Height of pedal



Free stroke of clutch pedal

Measure the free stroke of clutch. The free stroke
of clutch pedal is the distance required until a
resisting force is felt by pressing down the clutch
pedal by hands.

●  If incorrect, check whether the clutch pedal is

wrongly assembled.

Free stroke of pedal: 5 to 14mm (0. 2 to 0. 55in)



Decoupling point of clutch pedal

1.  Apply the parking brake, and pack the mat

wood under front and rear wheels.

2.  Start the engine, and make it idling.

3.  Don’t step the clutch pedal, and put the gear

lever slowly in reverse gear.

4.  In case of hearing the gear noises, keep the

gear lever in position.

5.  Step down the clutch pedal slowly.

6.  When the noises of gear disappears, keep the

clutch pedal unchanged (decoupling point of
clutch pedal).

7.  Measure the distance a (pedal stroke until the

clutch pedal decoupling point is fully stepped
down) and pedal stroke.

8.  Confirm the release stroke is within the

specified value.

If it’s outside the specified value, check whether
the clutch pedal and clutch master cylinder are
correctly assembled, and drain the air out of
clutch pipe.

Release stroke of clutch pedal

102.5 to 110.5(4.04 to 4.35in) (for reference)

Pedal stroke: 116mm (4.57in) (for reference)



Removal/installation of clutch pedal

1.  Remove the air filter (refer to its external

Free stroke of pedal



Release point
of clutch pedal



Pedal stroke



 Clutch

System 2A-3



accessories, removal/installation of air filter).

2.  Remove the battery and its cover.

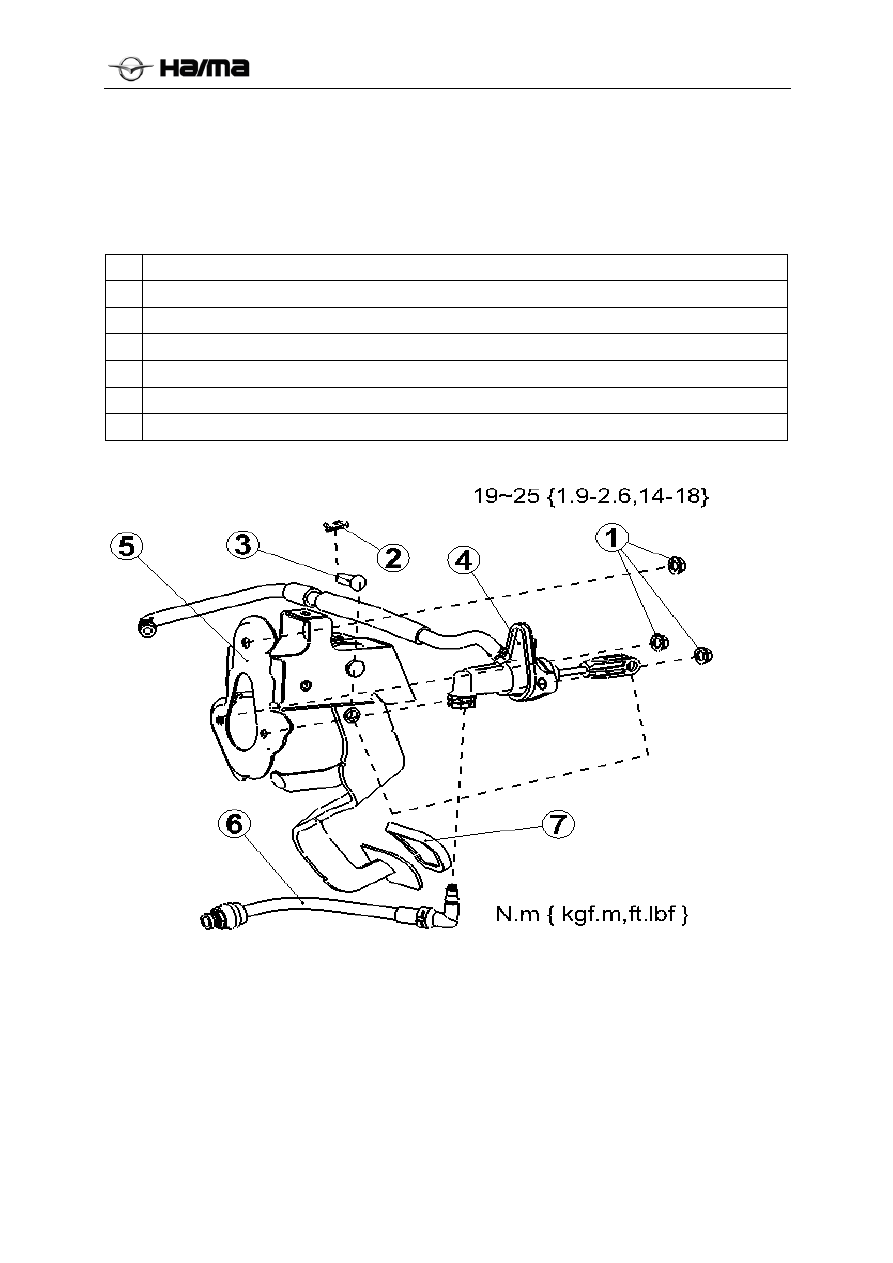

3.  Disassemble as per the shown sequence.

4.  Assemble it in the reverse sequence of

removal.

5.  After installing it

, check the clutch pedal

again (refer to the check of clutch pedal).





1



Lock nut



2



Split pin



3



Pin shaft



4



Clutch master cylinder



5



Clutch pedal assembly(refer to its mounting instructions)



6



Clutch hose



7



Pedal rubber mat





















 Clutch

System 2A-4



Mounting instructions for clutch pedal

After installing it, adjust the height and free stroke
of pedal (refer to the check of clutch pedal).



Clutch master cylinder

Removal/installation of clutch master
cylinder

1.  Disassemble the air filter (refer to its external

accessories, removal/installation of air filter).

2.  Disassemble the battery and its cover.

3.  Disassemble them in the shown sequence.

4.  When removing the oil pipe, immediately

choke it up with a plug to avoid the oil
leakage.

5.

Install it in the reverse sequence of removal.











1 Lock

nut

2 Split

pin

3 Mineshaft

4 Clutch

oil

pipe

5 Elastic

clamp

6 Clutch

master

cylinder

7

Clutch pedal assembly

8 Clutch

hose



 Clutch

System 2A-5



Disassembly/assembly of clutch master cylinder

1.  Disassemble it in the shown sequence.

2.  Assemble it in the reverse sequence of disassembly.





1 Snap

ring

2 Clamp

3

Clutch oil inlet hose

4 Position-limiting

seat

5 O

ring

6 Pushrod

assembly

7 Piston

seat

8 Secondary

cup

9 Limit

mat

10 Primary

cup

11 Piston

12 Compensation

pad

13 Bush

14 Washer

15 Cylinder

body





 Clutch

System 2A-6



Instructions for disassembly/assembly of
position-limiting seat

Draw back the pour card of position-limiting seat
inside with a special tool to remove the position-
limiting seat and piston.

●  During the disassembly, remove the position-

limiting seat; during the assembly, install the
position-limiting seat.

Clutch slave cylinder

Removal/installation of clutch slave
cylinder

1.  Remove the mudguard.

2.  Remove it in the shown sequence.

3.  Install it in the reverse sequence of removal.







1 Snap

spring

2 Clutch

pipe

3 Bolt

4 Clutch

slave

cylinder



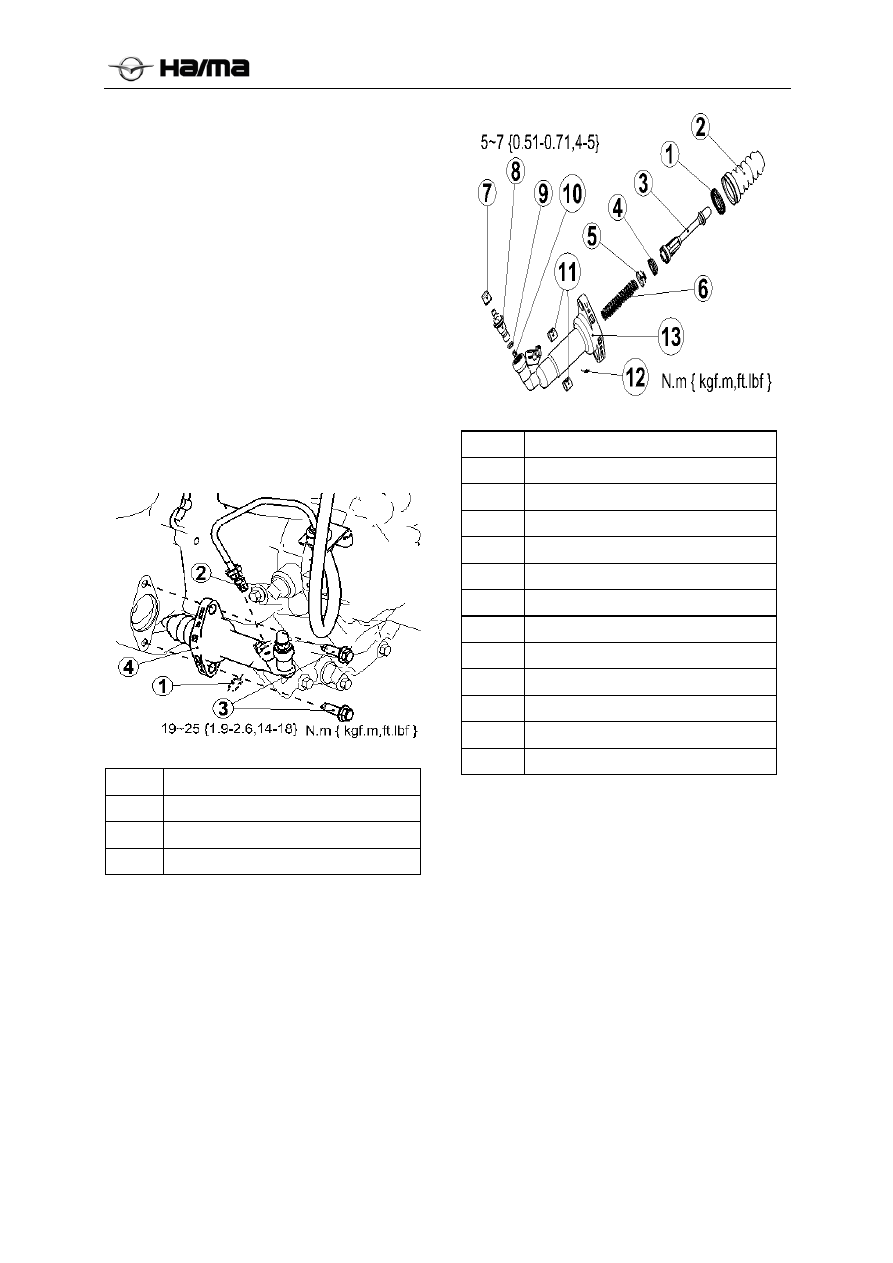

Disassembly/assembly of clutch slave
cylinder

1.  Disassemble it in the shown sequence.

2.  Assemble it in the reverse sequence of

disassembly.





1 Piston

stopper

2 Shield

3 Piston

assembly

4 Leather

cup

5 Spring

seat

6 Spring

7 Dust

cap

8 Bleed

screw

9 O

ring

10 Bleed

screw

gasket

11 Bush

12 Snap

ring

13 Cylinder

body



 Clutch

System 2A-7



Clutch device

Check of clutch release bearing

Note

●

  While cleaning the release bearing with

cleaning oil or vapor detergent, remove the
grease sealed in the bearing.

1.  Turn the release bearing hardly in axial

direction.

●

  If the bearing can’t be turned or meets its high

resisting force, replace the clutch release
bearing in case of abnormal noises.

2.  Install it in the reverse sequence of removal.



1 Clutch

slave

cylinder

2 Manual

transmission

3 Protection

cover

4

Clutch release bearing

5

Clutch release fork

6 Clutch

assembly

7

Clutch friction plate

8 Guide

bearing

9 Flywheel

Instructions for removal of clutch
pressure plate and friction plate (see the
details of HM483Q engine repair manual)

1.  Attach the special tool SST(as shown in the

figure).

2.  Loosen the bolt at a time in cross mode, until

its spring pressure is released.

3.  Disassemble the clutch pressure plate and

friction plate.



Instructions for removal of guide bearing

Note

●

  The guide bearing shall not be commonly

removed, unless it needs to be replaced.
Remove the guide shaft with a special tool

SST (as shown in the figure).





Instructions for flywheel removal

1.  Lock the flywheel with a special tool SST(as

shown in the figure).

2.  Disassemble the mounting bolt evenly in the

cross sequence.

3.  Disassemble the flywheel.





Mounting instructions of flywheel

1.  Install the flywheel on the crankshaft.

2.  Before installing the bolt, clean its threads

and apply the sealant to its threads.

Note

●

  In case of applying the new bolt, don’t apply

the sealant to it.

3.  Pre-tighten the lock bolt of flywheel by hands.

4.  Install the special tool SST on the flywheel

(as shown in Figure).

5.  Tighten the lock bolt gradually in the cross

sequence.





Mounting instructions for guide bearing

Note

●

 Install the guide bearing as per the

instructions below. Installed depth of guide
bearing

0 - 0.4mm (0-0.115in)



 Clutch

System 2A-8





1.  Install the new guide bearing with a special

tool SST (as shown in Fig.).



Mounting instructions for clutch friction
plate

1.  Keep the position of clutch friction plate with

a special tool SST (as shown in Fig.).



Mounting instructions for clutch pressure
plate

1.  Install the special tool SST(as shown in Fig.).

2.  Tighten the bolt evenly in the cross sequence.



Check of clutch pressure plate

1.  Measure the wears of diaphragm spring.

  If above-normed, replace the clutch pressure

plate.

Depth<0.6mm (0.024in )



2.  Measure the flatness of pressure plate with a

ruler and thickness gauge.

  If above-normed, replace the clutch assembly.

Max. clearance 5mm(0. 02in)

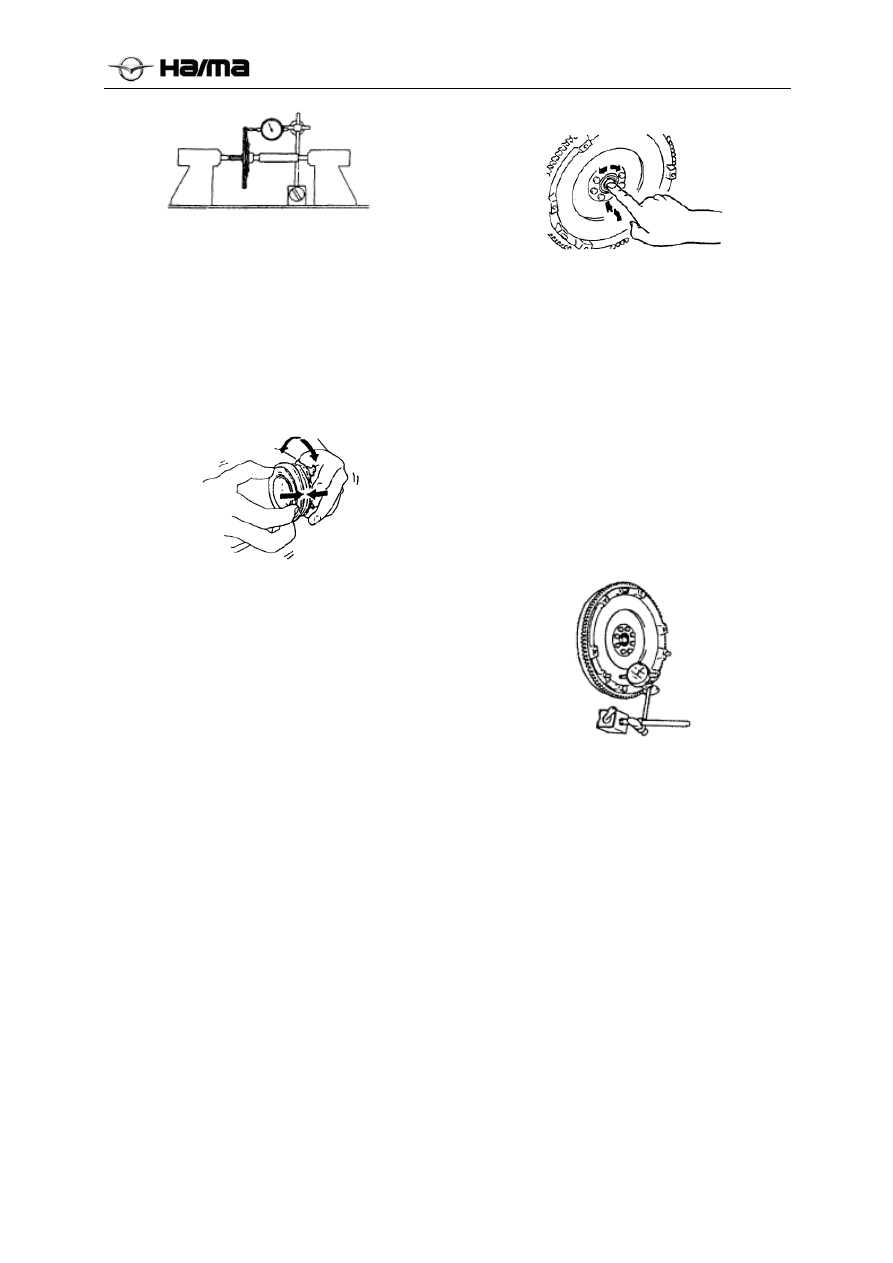

3.  Apply the dial indicator when checking the

diaphragm spring.

4.  Turn the flywheel to check the axial runout of

diaphragm.

  If above-normed, replace the clutch pressure

plate.

Axial runout≤0.6mm(0. 024in)



Check of clutch friction plate

1.  Measure the depth of rivets to friction plate

surface with a vernier gauge.

  If above-normed, replace the clutch friction

plate with depth≤0.3mm(0.01in).





2.  Measure the axial runout of clutch friction

plate with a dial indicator.

  If above-normed, replace the clutch friction

plate.

Axial runout ≤ 0.7mm (0.028in)



Flywheel



Guide bearing



 Clutch

System 2A-9







Check of clutch release bearing

Note

●

  While cleaning the release bearing with

cleaning oil or vapor detergent, remove the
grease sealed in the bearing.

Turn the release bearing hardly in axial direction.

●

  If the bearing can’t be turned or meets its high

resisting force, replace the clutch release
bearing in case of abnormal noises.





Check of guide bearing

Don’t disassemble the guide bearing, and turn the
bearing hardly in axial direction.

  If the bearing can’t be turned or meets its high

resisting force, replace the clutch release
bearing in case of abnormal noises.



Mounting instructions for clutch pressure
plate

1.  Install the special tool SST (as shown in Fig.).

2.  Tighten the bolt evenly in the cross sequence.

Flywheel

Check of flywheel

1.  Install the dial indicator on the cylinder body.

2.  Measure the axial runout of flywheel.

  If above-normed, replace the flywheel.

Axial runout≤0.2mm (0. 0084in)







List of tires and drive shafts 2B-1



Chapter 11  List of tires and drive shafts



Common procedures ............................................................................................................................... 2B-2

Description and operation ...................................................................................................................... 2B-2

Diagnostic data and procedures............................................................................................................. 2B-4











List of tires and drive shafts 2B-2



Common procedures

Attentions for wheels and tires

Removal and installation of wheels and tires

The removal and installation steps of wheels and
tires are not mentioned in this section. In case of
removing the wheels, their tightening torque is
100-120N.m {10-12.0kgf.m, 73.5-88ft.lbf} during
the installation.

Keypoints for removal of lock nut

1.  Hit the flattening of lock nut out with a small

chisel and hammer.

2.  Apply a braking force to lock the hub.

3.  Remove the lock nut.



Keypoints for mounting the lock nut

1.  Apply a braking force to lock the nut.

2.  Install the new lock nut up to fixed torque of

300-350N.m {30-35.0kgf.m, 219-255.5ft.lbf}.
At the fixed torque, first hit it up to the
specified torque before loosening it, and hit it
up to the specified torque again.

3.  Flatten the lock nut as per the shown

requirements.



Drive shaft

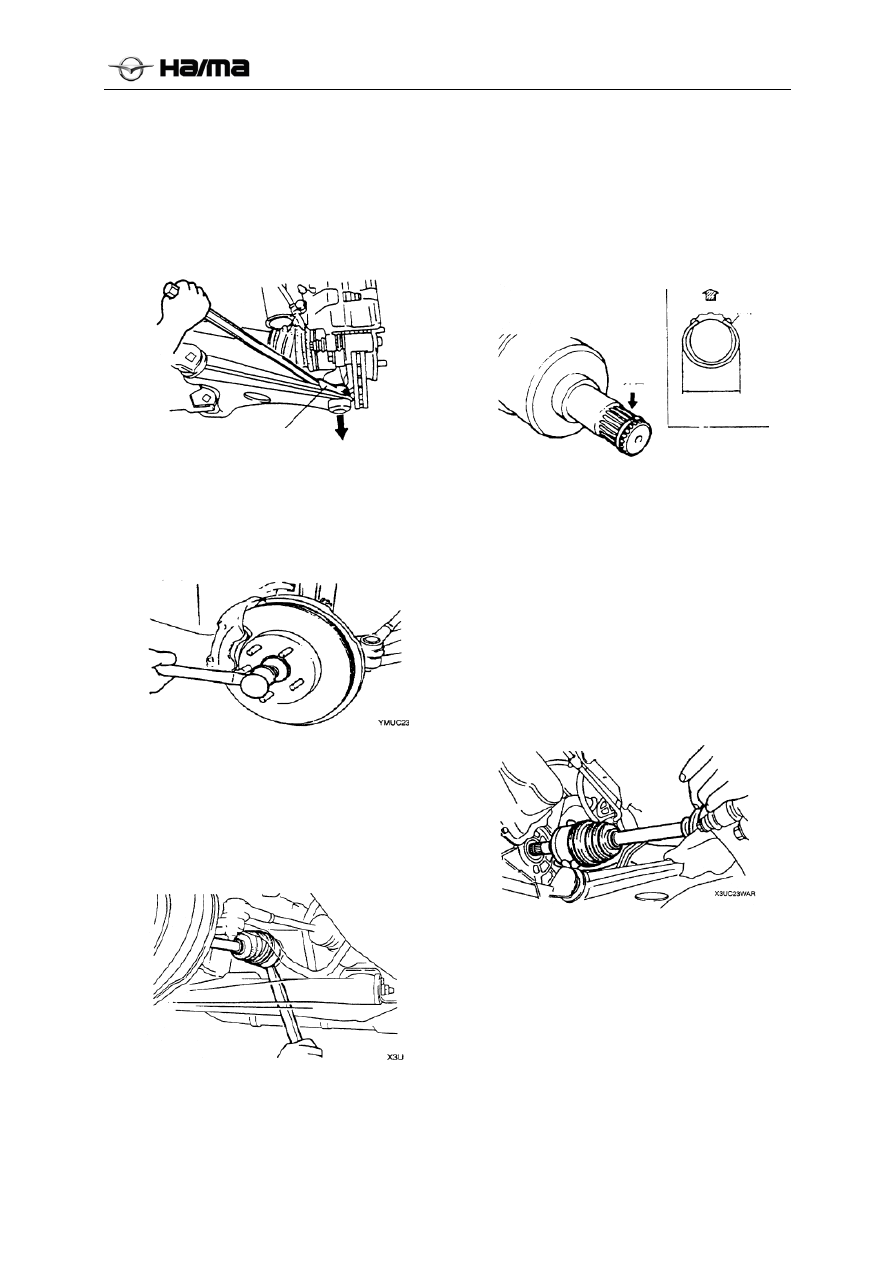

Keypoints for removal of right drive shaft and
drive axle

1.  Remove the riveting bolt and nut.

2.  Wrap the cloth on the ball joint dust cover.

3.  Pry down the lower swing arm from steering

knuckle.





4.  As shown in figure, insert a crowbar between

right drive shaft and transmission drive axle,
and disengage the drive shaft from the
transmission drive axle.



Keypoints for installation of snap ring

1.  Attach a new snap ring to the connecting shaft,

make its opening up, and ensure that the
diameter of snap ring shall not exceed the
value specified in technical requirements for
installation.

2.  After installing the snap ring, measure its

outer diameter. In case of exceeding the value
specified in technical requirements,
additionally renew the snap ring and repeat
Steps 1& 2.



Check of drive shaft

1.  Check the dustproof rubber sleeve of drive

shaft for cracks or damages, grease for
leakage or hoop for loosening.

2.  Check the drive shaft for bends or cracks,

universal joint or spline for wears. If
necessary, repair or replace the drive shaft

Technical requirements for snap
ring outer diameter snap ring

Snap ring

Outer diameter

Opening

0.5mm(0.2in)
or above

Fabric



List of tires and drive shafts 2B-3



and dustproof rubber sleeve or hoop.



Removal and installation of drive shaft

Attentions

1.  Before performing the following procedures,

be sure to first remove ABS wheel speed
sensor, otherwise it may the open circuit of
wires due to wrong pull or operation.

Therefore, first remove the axle end of ABS
wheel speed sensor, place it in appropriate
position, and ensure it can’t be wrongly
pulled during the repair of car.

2.  In case of removing the drive shaft with a

shaft bracket, it may cause the deformation of
connecting shaft bracket, so the drive shaft
and connecting shaft shall be removed and
installed as a whole.

.

①

  Drain all the oil out of transmission drive axle.

.

②

  Remove the hub of steering knuckle.

.

③

  Remove it in the sequence shown in the table.

.

④

  Install it in the reverse sequence of removal.



1 Lock

nut

Refer to the keypoints for removal of M lock nut. Refer to the keypoints for installation of
M lock nut.

2

Ball joint of steering tie rod end socket
Refer to the keypoints for steering tie rod end socket ball joint.

3

Lower control arm ball joint

4

Left drive shaft
Refer to the keypoints for removal and installation of M drive shaft.

5

Drive shaft and connecting shaft
Refer to the keypoints for removal and installation of M drive shaft and transmission drive
axle.

6 Drive

shaft

Refer to the keypoints for removal of M drive shaft.

7 Snap

ring

Refer to the keypoints for installation of M snap ring.



List of tires and drive shafts 2B-4





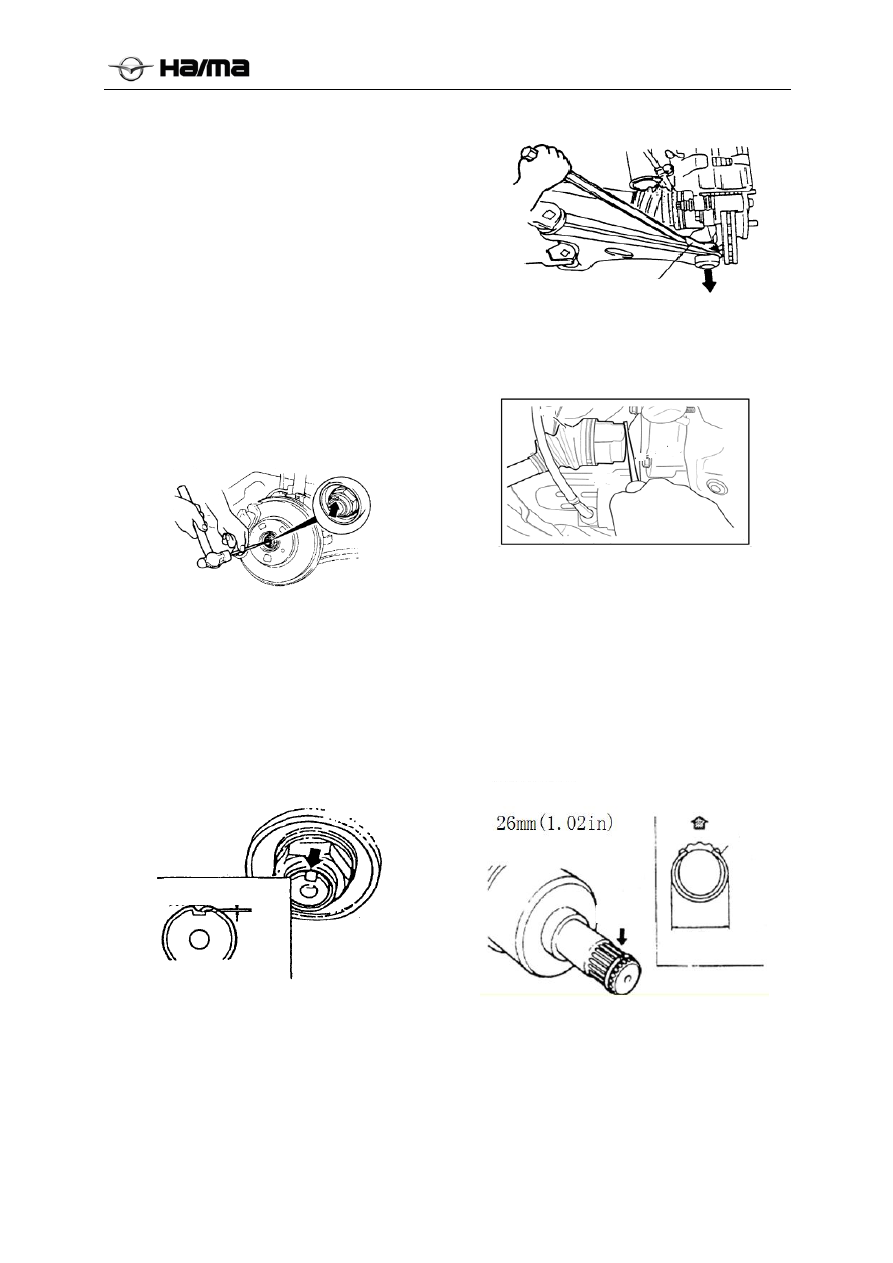

Keypoints for removal of drive shaft

1.  Remove the riveting bolt and nut.

2.  Wrap the cloth on the dustproof rubber sleeve

of ball joint.

3.  Pry the lower control arm out of steering

knuckle.



4.  Attach the spare nut to drive shaft to make the

nut flush with the end of drive shaft.

5.  Hit the nut lightly with a copper hammer to

loosen the drive shaft from front hub.

6.  Take the drive shaft out of hub.



Note: the sharp edge of drive shaft will scratch the
oil seal, so it’s specially careful to remove the
drive shaft from the transmission drive axle.

7.  Insert a crowbar between outer ring and

transmission drive axle, and pry the left drive
shaft from transmission drive axle, as shown
in the figure below.



Keypoints for installation of snap ring

1.  While attaching a new snap ring to the

connecting shaft, make the opening of snap
ring up, and ensure the diameter of snap ring

shall not exceed the specified value in
installation technology requirements.

2.  After the installation, measure the outer

diameter of snap ring. If it exceeds the
specified value, additionally renew a snap
ring, and repeat Steps 1-2.

Technical requirements for snap ring outer
diameter: 26 mm {1. 02 in}



Keypoints for installation of drive shaft and
transmission drive axle

Note

The sharp edges of connecting shaft may scratch
the oil seal, so it should be specially careful to
install the drive shaft into the transmission drive
axle.

1.  Insert the drive shaft into the hub.

2.  Apply ATF to the lip of oil seal.

3.  Push the drive shaft into the transmission

drive axle.





4.  After the installation, draw the outer ring on

one end of transmission drive axle forward,
and confirm that the drive shaft is locked by
the snap ring.

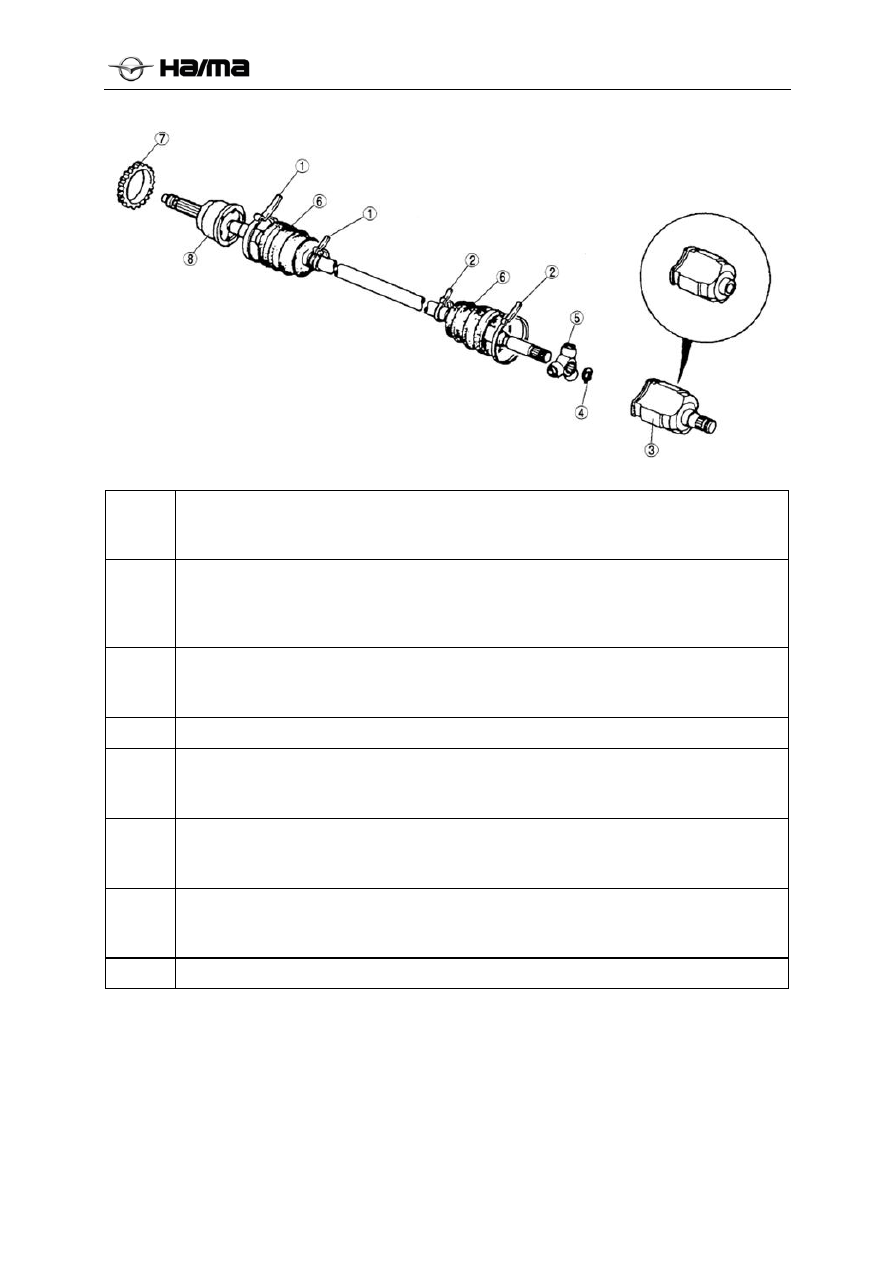

Disassembly and assembling of drive shaft

1.  Disassemble it in the sequence shown in the

table.

2.  Assemble it in the reverse sequence of

disassembly.

Cloth



Opening

Snap ring

Outer diameter



List of tires and drive shafts 2B-5







1

Wheel side dustproof rubber sleeve clamp
Refer to the keypoints for disassembling M wheel side dustproof rubber sleeve clamp. Refer
to the keypoints for assembling M wheel side dustproof rubber sleeve clamp.

2

Transmission drive axle side dustproof rubber sleeve clamp
Refer to the keypoints for disassembling M transmission drive axle side dustproof rubber
sleeve clamp. Refer to the keypoints for assembling M transmission drive axle side dustproof
rubber sleeve clamp.

3 Outer

ring

Refer to the keypoints for disassembling M outer ring. Refer to the keypoints for assembling
M outer ring

4 Snap

ring

5

3-foot universal joint
Refer to the keypoints for disassembling M 3-foot universal joint. Refer to the keypoints for
assembling M 3-foot universal joint.

6

Dustproof rubber sleeve
Refer to the keypoints for disassembling M dustproof rubber sleeve. Refer to the keypoints for
assembling M dustproof rubber sleeve.

7

ABS sensor rotor
Refer to the keypoints for disassembling M ABS sensor rotor. Refer to the keypoints for
assembling M ABS sensor rotor.

8

Shaft and ball joint assembly















List of tires and drive shafts 2B-6



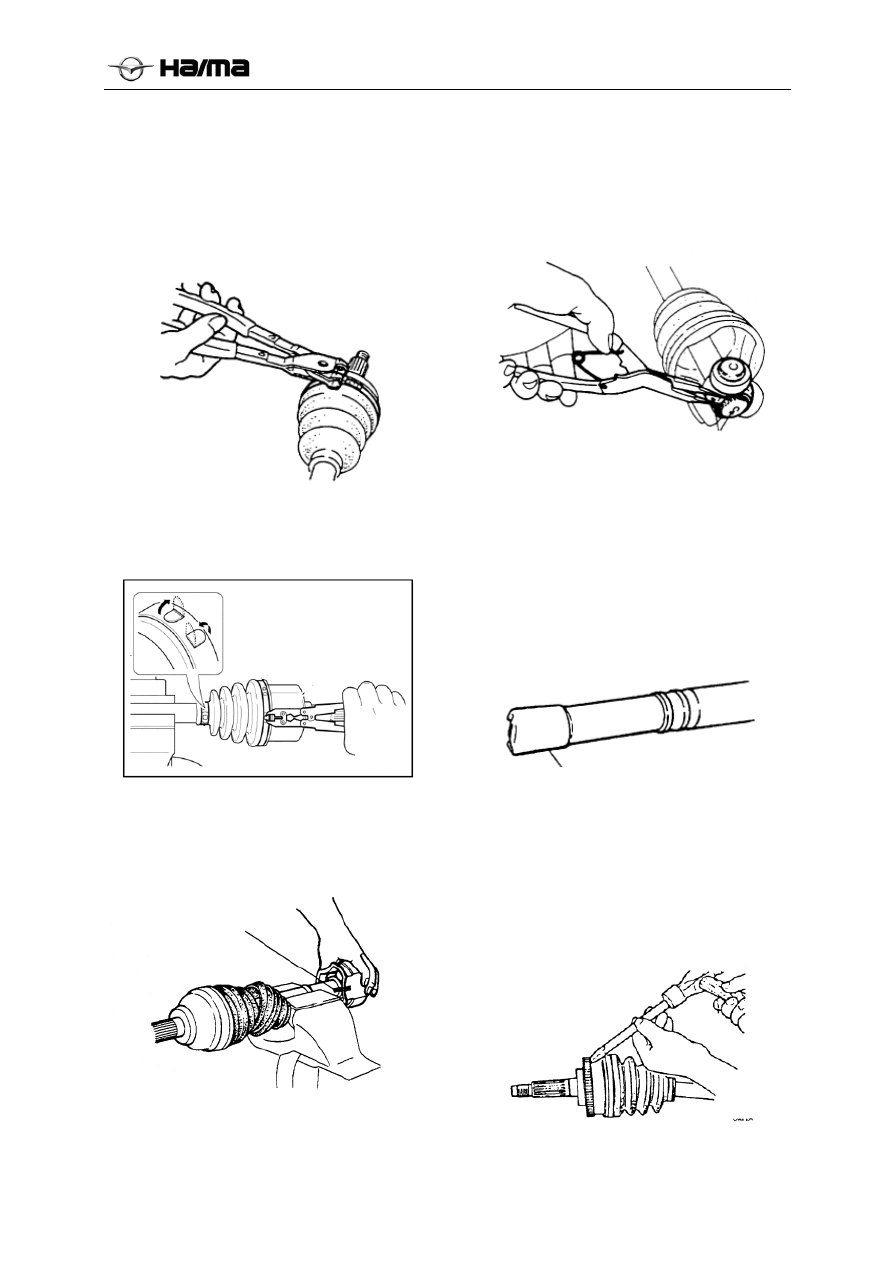

Keypoints for disassembling wheel side
dustproof rubber sleeve clamp

Note

Only when the dustproof rubber sleeve clamp is
replaced, it’s required to remove the dustproof
rubber sleeve clamp with clamp forceps and scrap
it, as shown in the figure below.



Keypoints for disassembling transmission drive
axle side dustproof rubber sleeve clamp

Remove big or small clamp with clamp forceps.



Keypoints for disassembling outer ring

1.  Make a mark for correct assembling on the

outer ring and shaft.

2.  Remove the outer ring.



Keypoints for disassembling 3-foot universal
joint

Note:  make the mark with paint, and don’t punch
the mark.

1.  For the purpose of correct assembly, make the

mark on the shaft and 3-foot universal joint.

2.  Remove the stop ring with clip forceps.

3.  Remove 3-foot universal joint from the shaft.



Keypoints for disassembling dustproof rubber
sleeve

Note: unless it’s necessary to replace the dustproof
rubber sleeve ball joint and shaft assembly, don’t
remove the dustproof rubber sleeve on wheel side
under common conditions; remove the paper tape
after assembling the dustproof rubber sleeve.



1.  Wrap the spline of shaft with a tape.

2.  Remove the dustproof rubber sleeve.



Keypoints for disassembling ABS sensor rotor

Note:remove the sensor rotor only if
necessary. Once the sensor rotor is removed,
it can’t be used any longer.

1.  Hit down ABS sensor rotor from the drive

shaft lightly with a chisel.



Keypoints for assembling dustproof rubber

Mark

Mark

Paper tape
