Engine Suspension

 1G-1



Chapter 7  Engine Suspension

Table of Contents



Engine Suspension ·································································································1G-2

Engine Dismantling/Mounting ·································································1G-2

Engine Suspension Dismantling/Mounting···················································1G-2

Engine Suspension Diagram····································································1G-4

























































Engine Suspension

 1G-2



Engine Suspension

Engine Dismantling/Mounting

Warning

  Fuel vapor is combustible, and keep away the

spark and naked flame.

  Fuel leakage and splash are dangerous, which

will irritate the skin and eye. Due to this,
follow the “Oil Circuit Safety Inspection
Procedure” (see Fuel System, Preparatory
Work before Repair).

Complete the dismantling work

  Respectively discharge A/C refrigerant,

power steering liquid, gearbox oil, and engine
coolant:

1.  Disconnect the accumulator’s negative cable.

2.  Dismantle the left/right driving axles (see

Driving Axle Dismantling/Mounting).

3.  Dismantle the air filter (see Intake System

Dismantling/Mounting).

4.  Dismantle heat sink(see Heat Sink, Heat Sink

Dismantling/Mounting).

5.  Dismantle the throttle cable(see Throttle

Cable Inspection /Adjustment).

6.  Dismantle the fuel hose (see  Fuel System,

Preparatory Work before Repair)(see Fuel
System, Inspection Work after Repair).

7. Dismantle three-way catalyst converter

assembly (see Exhaust System, Exhaust
System Mounting/Dismantling).

8.  Dismantle the accumulator and accumulator

tray (see Engine Electrical System,
Accumulator Dismantling/Mounting).

9.  Dismantle PM wiring harness and engine’s

connector (see PM Wiring Harness
Dismantling/Mounting).

10.  Dismantle the reverse switch joint and gear

shift cable that are connected with the
gearbox.

11.  Dismantle power steering pump’s oil pipe

connection.

12.

Dismantle A/C compressor’s pipeline
connection.

13.  Dismantle the engine and engine suspension

according to the sequence illustrated in the
figure.

14. Mount parts according to the sequence

reverse to the dismantling process.

15. Inject A/C refrigerant and discharge the

power steering liquid, gearbox oil, and engine
coolant.

16.  Correct the driving belt’s tension (see Driving

Belt, Driving Belt Dismantling/Mounting).

17.  Star the engine and conduct the following

inspection work:

(1) Inspect the belt pulley and driving belt’s
deflection and interference.

(2) Inspect if there is engine oil, engine
coolant, gearbox oil, and fuel leakage.

(3) Inspect the idling speed (see Engine
Running, Idling Speed Inspection).

18.  Confirm the road test.

19. Inspect the engine oil, engine coolant,

gearbox oil and power steering liquid’s level
again.

Engine Suspension Dismantling/Mounting

Engine1# Suspension Bracket Dismantling/
Mounting

Dismantle engine1# suspension bolt ①— take off
engine1# suspension to inspect if the rubber is
broken, hardened, or damaged --Dismantle
engine1# Bracket Bolt ② (Engine End).

Mount parts according to the sequence reverse to
the dismantling process.



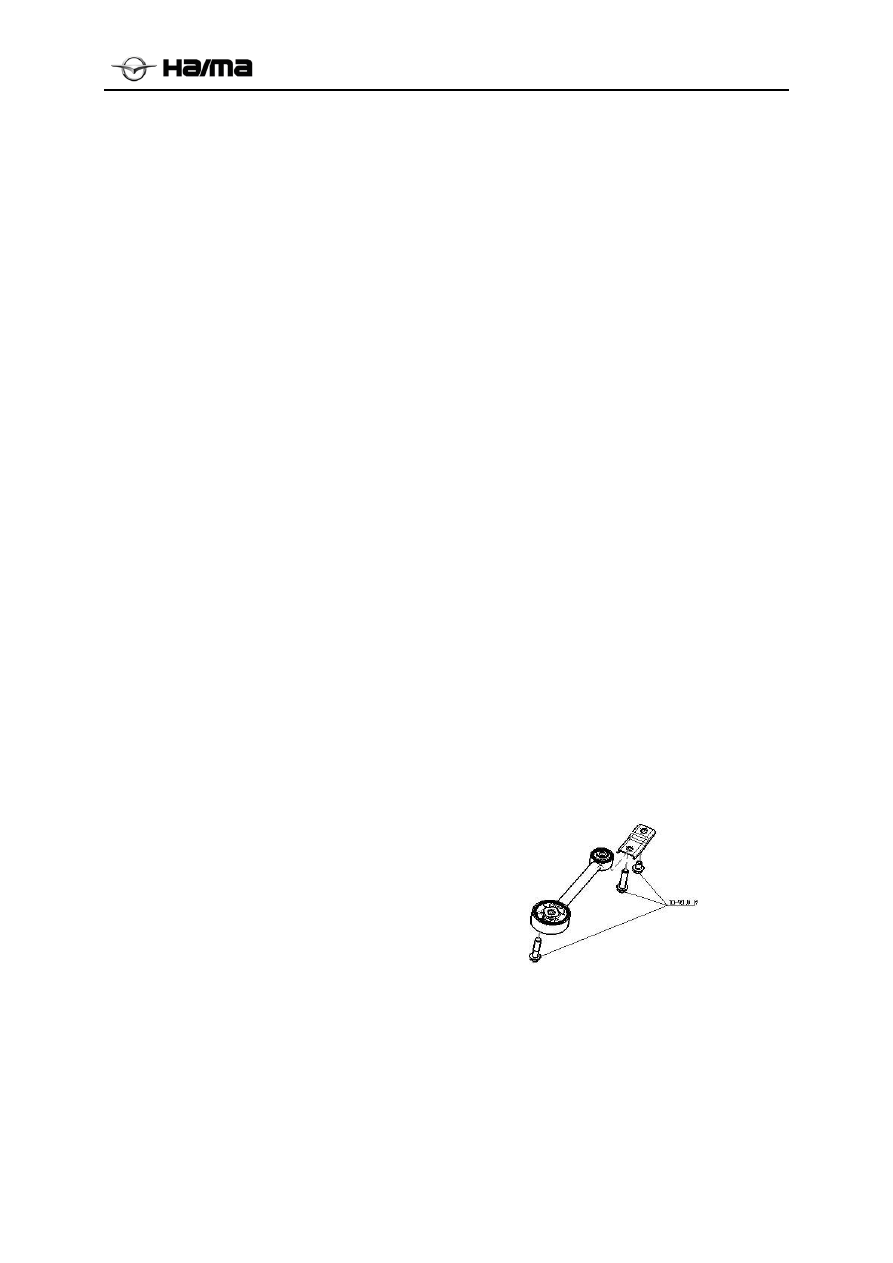

Engine3# Suspension Bracket Dismantling/
Mounting

Dismantle 3# suspension bracket bolt and nut ③
(engine end)--Dismantle engine3# suspension bolt
②

 (body end)—take off engine3# suspension to

inspect if the resonance block rubber is damaged,
and inspect if 3# suspension seat suffers oil
leakage or damage.



Engine Suspension

 1G-3



Mount parts according to the sequence reverse to
the dismantling process.





Engine Suspension

 1G-4



Engine4# Suspension Bracket
Dismantling/Mounting

Dismantle 4# suspension bracket bolt ①
(transmission end)--Dismantle 4# suspension nut ③
—take off 4# suspension to inspect if the rubber is
broken, hardened, or damaged --Dismantle engine4#
suspension bolt ② (body end). Mount parts
according to the sequence reverse to the dismantling
process.

Engine Suspension Diagram

1 Engine1#

suspension



2 Engine3#

suspension

3 Engine4#

suspension



1

2

3



MF515L Transmission

 1H-1





Chapter 8  MF515L Transmission

Table of Contents



MF515L Transmission·····························································································1G-2

Overview ······································································································1G-2

Transmission Troubleshooting and Maintenance ························································1G-3

Troubleshooting ······························································································1G-3

Transmission Emits High Noise or Abnormal Sound Reasons and Solutions ·······················1G-3

Transmission Assembly Dismantling······································································1G-5

Transmission Components Dismantling, Overhaul, and Remounting ································1G-7

Differential Unit Dismantling and Mounting·····························································1G-12

Left/right box body ··························································································1G-14

Attached Table 1: Special Tools············································································1G-15

Attached Table 2: Reference List of MF515L
Transmission Bolt Tightening Torques····································································1G-16







































MF515L Transmission

 1H-2



MF515L Transmission

Overview

The transmission, through three synchronizers and
three transmission shafts (input shaft, intermediate
shaft, and reverse gear shaft), can provide five
forward gears and one reverse gear, of which all
forward gears belong to constant-mesh type, but
the reverse gear is a sliding idle gear.

Low-speed synchronizer is mounted onto the
intermediate shaft, and coupled with the
intermediate shaft’s first gear and second gear.
High-speed synchronizer is mounted onto the input
shaft, and coupled with the input shaft’s third gear
and fourth gear.

On the input shaft the fifth-gear synchronizer is
engaged with the fifth gear on the input shaft.

Intermediate shaft drives the main reduction gear
and differential device, so as to rotate the front
driving axle that is connected with the front wheel.

As for the maintenance work, sealant or equivalent
products shall be smeared on gearbox housing
surface’s corresponding parts, and the gearbox
housing is made of aluminum. On the housing, the
fixing bolt shall be tightened to specific torque
with the torque wrench. Before remounting, all
parts shall be cleaned thoroughly with cleaning
agent or liquid and dry air, which is very
important.





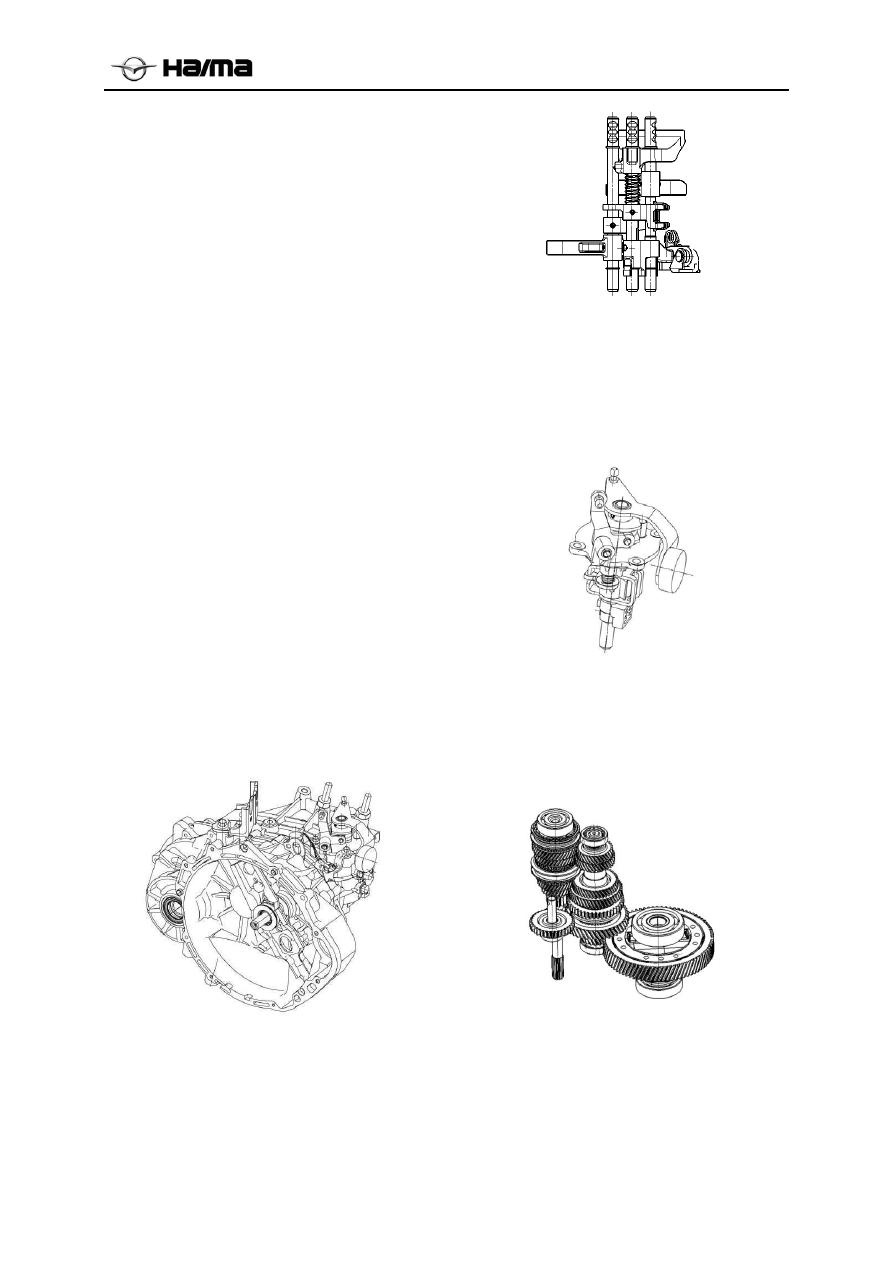

Transmission assembly











Internal gear shift mechanism









Gearshift Actuator











Gear Mechanism





MF515L Transmission

 1H-3



Transmission Troubleshooting and
Maintenance

The gearshift control lever’s motion is transmitted
to transmission shaft and shift shaft through the
transmission control shaft, and then transmitted to
the transmission and gear shift lever, shaft, and
fork or arm through the transmission cross arm and
yoke. In addition, transmission interlocking plate is
prepared to avoid the gear’s double engagement. In
the mechanism there are five-gear and reverse-gear
cams, cam guide spring, and fifth gear-reverse gear
interlocking guide pin, in order to avoid the gear’s
direct shifting from fifth gear to reverse gear.

1)  When the transmission shifts to the fifth gear,

the fifth gear-reverse gear shift cam will
rotate with the shift shaft along the clockwise
direction, and cam return spring will jack the
cam to shift to the reverse gear.

2)  Shift from the fifth gear to the neutral gear is

permitted, but further shift to the reverse gear
is prohibited.

3)  Shift position is located at the neutral gear

position of the fifth gear-reverse gear (see Fig.
1-4). When the shift shaft moves upwards to
facilitate the gear shift lever’s shift from fifth
gear to the reverse gear, shift cam will stop
due to blockage by the guide rod.

4)  At this time, the system can shift to the

reverse gear when there is not interference by
shift cam.

Troubleshooting

Transmission’s main faults and troubleshooting
methods:

Out of Gear

Reasons and Solutions:

a.  Reason: shift rod suffers serious abrasion and

distortion

Solution: calibrate the shift rod manually. If the
shift rod bends or suffers serious abrasion, replace
it in time.

b.  Reason: shift rocker suffers serious abrasion

and distortion

Solution: replace the shift rocker in time.

c.  Reason: Self-locking spring’s elasticity is

weakened

Solution: Replace the self-locking spring in time.

d.  Reason: Gear’s axial clearance is too large,

which should be mainly attributed to the gear
check ring’s serious abrasion

Solution: Replace the gear check ring.

e.  Reason: shift fork’s abrasion and distortion

Solution: Calibrate the shift fork manually when it

suffers distortion. Replace it when suffering
serious abrasion.

f.  Reason: Synchronizer gear housing, gear

sleeve, or gear ring suffer abrasion

Solution: If there is out of gear, replace the
wear-out parts.

g.  Reason: After being adjusted, transmission

fails to reach the “Neutral Gear” position, or
the adjusting mechanism is loosened.

Solution: Place it to the “Neutral Gear”’ position
again, and adjust the clearance.

h.  Reason: the engine’s connection with the

transmission and complete vehicle is too loose,
or the clearance adjustment is inappropriate.

Solution: Adjust the clearance

Transmission Emits High Noise or Abnormal
Sound Reasons and Solutions

a.  Reason:Transmission has insufficient oil or the

oil is not clean

Solution: Inject sufficient oil or replace the oil.

b.    Reason: Gear’s axial clearance is too large

Solution: Replace gear or gear check ring.

c.  Reason: Gear suffers abrasion or gear teeth is

broken

Solution: If the gear backlash exceeds the specified
range, replace the gear. Standard backlash of the
five-gear transmission is 0.1mm, and the operating
limit is 0.3mm.

d. Reason: synchronizer’s gear ring suffers

abrasion or the gear is broken

Solution: Replace the gear ring.

e.  Bearing suffers damage or abrasion

Solution:Replace bearing.

f.  Bearing press plate suffers damage or

abrasion.

Solution: Replace the gear check ring.

Shifting Difficulty



MF515L Transmission

 1H-4



Reasons and Solutions

a.  Shift rod or shift fork incurs distortion or

uneven abrasion

Solution: Replace parts.

b.  Self-locking steel ball and shift fork shaft’s

groove suffer abrasion

Solution: Replace parts.

c.  Synchronizer’s gear ring gets stuck on the

gear’s conic section

Solution: Replace the gear ring.

d.  Synchronizer spring is damaged

Solution: Replace the synchronizer spring.

e.  Gear sleeve and gear end suffer abrasion or

abrasion of gear ring’s key groove becomes
wider.

Solution: Replace corresponding parts.

Oil Leakage

a.  Oil leakage at the drain plug

Solution: first, the plug’s tightening torque is less
than the specified value, and so inspect the tightening
torque. If the tightening torque does not comply with
requirements, tighten the plug. Second, there is
deflection in engagement or thread teeth damage,
replace corresponding parts.

b.  Oil Leakage at Sealing Parts

Solution: Replace sealing parts while abiding by
operation specifications.

c.  Oil Leakage at the Bonding Surface

Solution: Conduct inspection and make all
connection bolt’s tightening torques accord with
specifications.

d.  Oil Leakage at the Input Shaft’s Seal Ring

Solution: first, inspect if the seal ring is damaged.
If damaged, replace the sealing parts. Second,
inspect if the right tank body’s supporting port
suffers excessive abrasion. If it suffers, replace
right tank body.

On-spot Maintenance

Replace Oil

1)  While replacing and inspecting the lubricating

oil, be sure to stop the engine and lift the
automobile steadily.

2)  Oil level and leakage cannot be inspected

until the automobile has been lifted. If there is
leakage, remedial actions shall be taken in
time.

3)  Drain original lubricating oil and inject new

and specified lubricating oil.

4)  Drain plug and oil filler plug’s torque

specifications are as follows, and the drain
plug itself has sealant.

Tightening torque:12～18N·m

Gear oil:GB13895-1992 heavy-load vehicle gear
oil (GL-4) grade:75W.

Oil filling volume:1.8～2.0L

Notice

  When the automobile is jacked for other

maintenance work besides the lubricating oil
replacement, inspection to leakage of
lubricating oil shall be conducted as well.

Differential Right/Left Oil Seal Replacement

1) Jack the automobile and drain the

transmission lubricating oil.

2)  Dismantle the driving shaft from the

differential.

3)  Use the special tool and hammer to dismantle

the oil seal and mount a new part. special
tools(A): oil seal erector1(right); oil seal
erector2(left)

Oil seal’s mounting degree “a” on the differential
side: 1.0-1.5mm

4)  Smear lubricating grease on the oil seal’s rim,

in addition to inspecting the contacting part
between the driving shaft and oil seal, as well
as ensure the smoothness.

“A”: Suzuki Lubricating Grease A.





MF515L Transmission

 1H-5



Differential oil seal replacement

5)  Mount driving shaft into the differential.

Caution

  When inserting the driving shaft’s bolt, do not

scratch the oil seal’s rim. Make sure the
driving shaft’s bolt has been inserted
sufficiently, and the elastic check ring is fixed
as original.

6)  Inject transmission oil according to the

requirements, and make sure the oil has been
sealed tightly by the oil seal.

Transmission Assembly Dismantling

Dismantle Gearshift Actuator

Dismantle the locking bolt assembly and the
gearshift box’s assembling bolt, in addition to
taking off the gearshift box’s components.

Dismantle Gearshift Actuator







1 Locking

bolt

assembly



2 Assembling

bolt

M8×20(four)

3

Gearshift box components

4

Gearshift stop pin

Notice

  Make sure the gearshift box’s components are

dismantled when the transmission stays at the
“Neutral Gear” position

1.  Dismantle the assembling bolt to split the box

1)  Dismantle the assembling bolt from internal

and external sides of the transmission;

2)  Dismantle the reverse gear shaft bolt from

lateral side of transmission;

3)  Use the soft hammer to knock the left box’s

rim and dismantle the left box.

Special tool: Box splitter (A).





Dismantle assembling bolt

1 Assembling

boltM8×40(nine)

2 Assembling

boltM8×40(five)



Dismantle assembling bolt

1

Assembling boltM8×40(fourteen)

2 Left

box



3

reverse gear shaft bolt(one)



Split the Box



MF515L Transmission

 1H-6



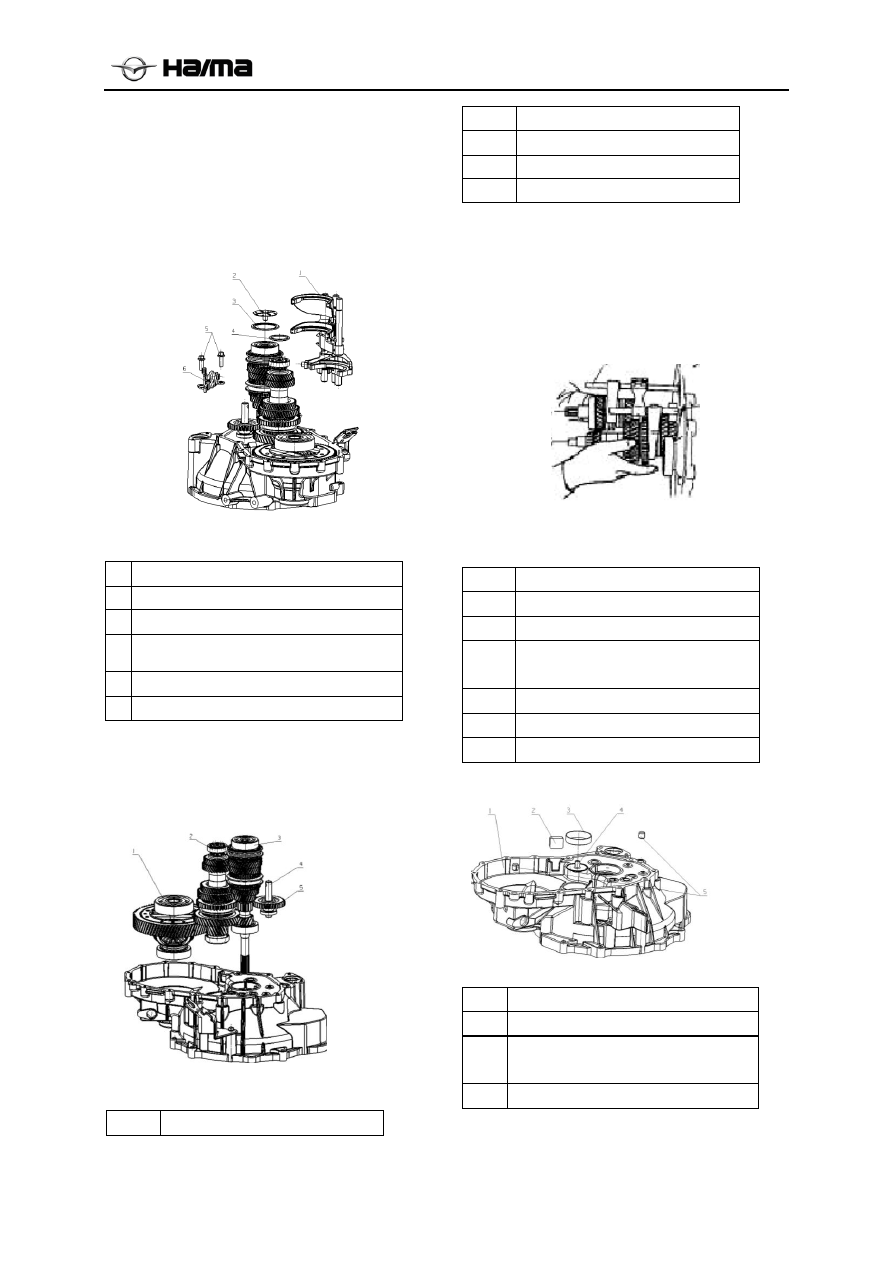

Dismantle Reverse Gearshift Mechanism and
Reverse Gear

1)  Take off input shaft’s oil tray and shim, and

the intermediate shaft’s left bearing adjusting
shim;

2)  Dismantle the reverse shift fork bolt, and take

off reverse shift fork assembly;



Dismantle the reverse gear shift mechanism and

reverse gear

1  Internal gear shift mechanism
2  Input shaft’s oil tray
3  Input shaft’s shim

4

Intermediate shaft’s left bearing adjusting
shim

5  5. reverse shift fork bolt
6  6. reverse shift fork assembly

3)  Take off reverse idler gear shaft and reverse

idler gear assembly.

4)  Dismantle gear mechanism and gear shift

mechanism



Dismantle Gear Mechanism and Gear Shift

Mechanism

1 Differential

unit

2 Intermediate

shaft

components

3

Input shaft components

4

Reverse gear shaft

5 Reverse

gear

assembly



5)  Use the soft hammer to knock input shaft

lightly;

6)  Take out the input shaft components,

intermediate shaft components, first /second
gear shift components, third/fourth gear shift
components, fifth/reverse gear shift
components from the box once for all.



Take off the gear mechanism and gear shift

mechanism

1

Internal gear shift mechanism

2

Input shaft oil tray

3

Input shaft shim

4

Intermediate shaft’s left bearing
adjusting shim

5

Reverse gear shaft bolt

6

Reverse gear shift fork assembly

7

Reverse gear fork spacer block

Dismantle left box’s other components



Take off other components

1 Right

box



2 Magnet



3

Intermediate shaft’s right bearing
outer ring

4

Intermediate shaft oil tray





MF515L Transmission

 1H-7



1)  Take off other components

2)  Dismantle differential unit from the right box

3) Dismantle

bolt,



4)  Use special tools to dismantle the

input shaft’s oil seal

Special tools: (A): Slide shaft;

(B): Oil seal ejector

5) Use special tools to dismantle the

intermediate shaft’s ring bearing outer ring.

Special tools: (A): slide shaft;

(B):Bearing ejector

6)  Dismantle the differential’s right oil seal from

right box.



Dismantle the input shaft’s oil seal

1

Input shaft oil seal

2

Intermediate shaft’s right bearing
outer ring



Transmission Components Dismantling,
Overhaul, and Remounting

Dismantle input shaft’s components

1)  Use the bearing puller and extrusion device to

dismantle the input shaft’s right bearing.

2)  Use the puller and extrusion device to extrude

left bearing, fifth gear synchronizer unit, and
fifth gear once for all.

3)  Take off the fifth gear needle bearing.

4)  Take off the fifth gear shaft sleeve, fourth

gear shaft sleeve, fourth gear synchronizer
gear ring, fourth gear assembly, fourth gear
needle bearing, third gear synchronizer gear
ring, third gear assembly, and high-speed
synchronizer unit.

Notice:

  To prevent the gear teeth from being damaged,

make the teeth lean against the smooth and
straight side of the bearing puller.

Caution

  Be sure to use the puller’s flat surface, in

order to avoid the damage to third gear

6)  Take out the third gear needle bearing from

the shaft.



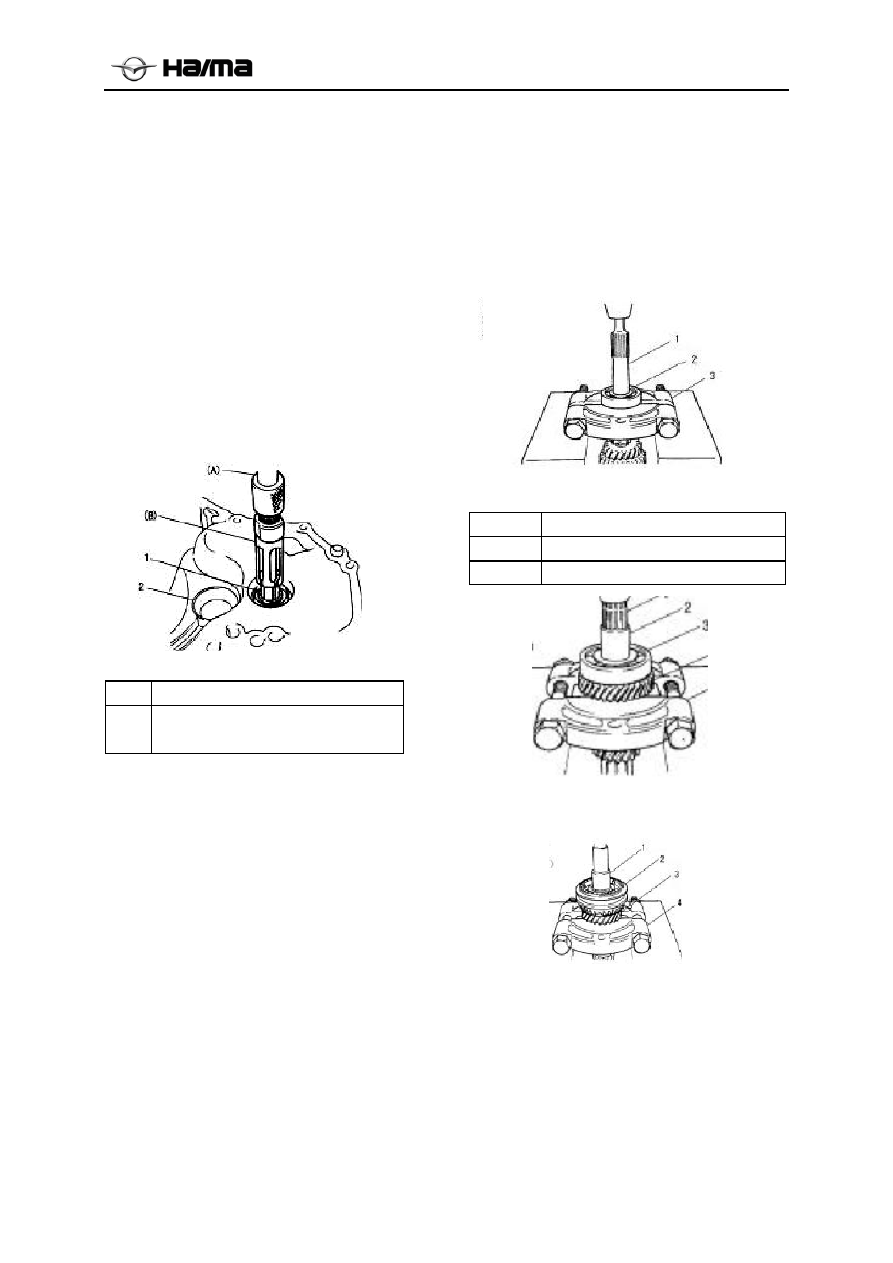

Dismantle the input shaft’s right bearing

1 Input

shaft



2 Right

bearing



3 Bearing

puller





Dismantle the input shaft’s left bearing, fifth gear,
and fifth-gear synchronizer unit



Dismantle the fifth gear shaft sleeve, four gear
shaft sleeve, four gear synchronizer gear ring,
fourth gear assembly, fourth gear needle bearing,
third gear ring, third gear assembly, and
high-speed synchronizer unit

Assemble Input Shaft Components

1.Input shaft

2.Right bearing

3.Bearing puller



MF515L Transmission

 1H-8







Input Shaft Components

1

Input shaft right bearing

2 Input

shaft



3

Input shaft third gear needle bearing

4

Input shaft third gear assembly

5

Third gear synchronizer gear ring

6 Synchronizer

spring



7

High-speed synchronizer gear hub

8

High-speed synchronizer slide block

9

High-speed synchronizer gear sleeve

10

Input shaft fourth gear shaft sleeve

11

Input shaft fourth gear needle bearing

12

Four gear synchronizer gear ring

13

Input shaft fourth gear assembly

14

Input shaft fifth gear shaft sleeve

15

Input shaft fifth gear needle bearing

16

Input shaft fifth gear assembly

17

Fifth gear synchronizer gear ring

18

Fifth gear synchronizer gear hub

19

Fifth gear synchronizer slide block

20

Fifth gear synchronizer gear sleeve

21

Input shaft left bearing

1)  Clean all parts thoroughly and inspect if there

is abnormal situation. Then mount the new
one according to demands.

  Notice

Before assembling, clean every component
and smear designated gear oil to slide the gear
and the bearing surface. During the
remounting process, use new gear ring on the
shaft, and application of used gear ring is
prohibited.

2)  If the synchronizer’s components will be

repaired, inspect the clearance “a” between
the gear ring and the gear ring, and then
inspect every gear’s crowned teeth, ring, and
sleeve. After that, determine if the
replacement shall be conducted.

Clearance a: Theoretical value: 0.95- 1.45mm

Ultimate value: 0.5mm

3)  Ensure the lubrication, and blow air to every

oil port to make sure that there is not
blockage.



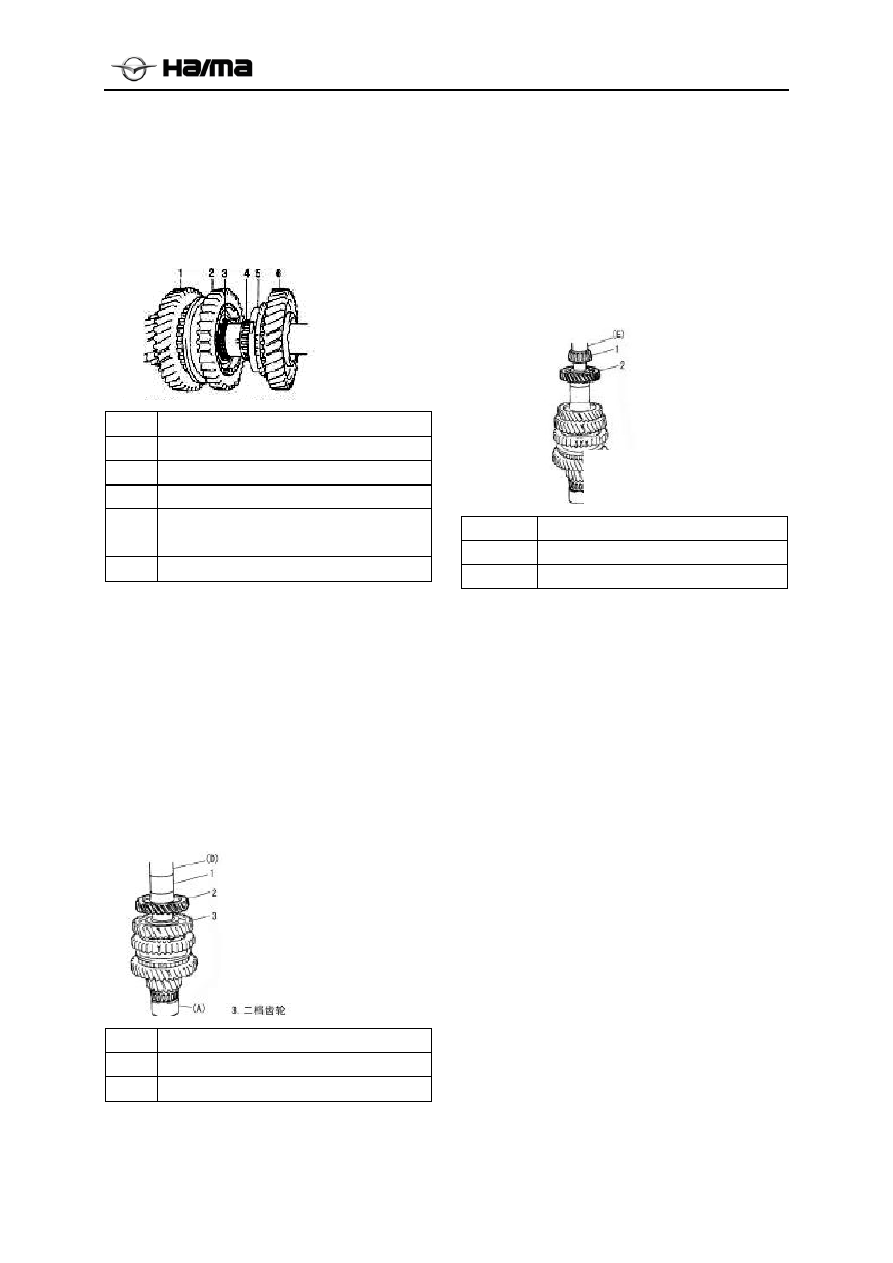

1 Gear

wheel

2 Gear

ring







4)  Mount the high-speed synchronizer onto the

hub, insert three slide blocks, and then mount
the spring according to the illustration.



1

High-speed synchronizer spring

2 Slide

block



3

High-speed synchronizer gear hub





MF515L Transmission

 1H-9



4

High-speed synchronizer gear
sleeve

5)  Use special tool and hammer to mount the

right bearing.

Special tools(A):bearing erector



1 Right

bearing



2 Input

shaft



6)  Mount the third gear needle bearing, smear

the lubricating grease, and mount the third
gear and synchronizer gear ring.

7)  Use special tool and hammer to drive in the

high-speed synchronizer assembly.

Note: when pressing and mounting the gear hub
and gear sleeve, make sure the synchronizer gear
ring’s teeth groove aligns with the synchronizer
unit’s slide block.

After pressing and mounting the synchronizer
unit, inspect the third gear’s free rotation.

Special tools(B):bearing erector1



1 Input

shaft



2 Third

gear



3 Gear

ring

4 Synchronizer

unit



7)  Mount the four gear shaft sleeve and needle

bearing, smear lubricating grease on the
bearing, and then mount synchronizer gear
ring and fourth gear.

Notice

  Make sure the four gear shaft sleeve is

properly mounted.



1 Shaft

sleeve



2 Needle

bearing

3 Gear

ring

4 Fourth

gear

9)  Mount the fifth gear shaft sleeve and needle

bearing, smear lubricating grease on the
bearing, and the mount the synchronizer gear
ring and fifth gear synchronizer.

10)  Press and mount the left bearing with special

tool and hammer.

special tools(C):bearing erector4

Dismantle Intermediate Shaft Components

1)  Use the puller and holding-down device to

pull out the left conical bearing.

Caution

Use the puller and holding-down device that can
support at least 5t load.



1 Holding-down

device

2

Intermediate shaft’s left bearing

3 Puller

2)  Use special tool to dismantle the fifth gear

snap ring

Special tools(A):snap ring plier

3)  Use puller and holding-down device to pull

out the fifth gear and fourth gear together.

Notice

  To prevent the gear teeth from being damaged,



MF515L Transmission

 1H-10



make the teeth lean against the smooth and
straight side of the bearing puller.

4)  Use the puller to operate the second gear and

make use of the holding-down device to pull
out the third gear and the second gear
together. After that, pull out the needle
bearing and third/ fourth gear spacer bushes.

Caution

  If the extrusion force exceeds 5t, release the

extrusion immediately, and remount the
puller bracket. Then, continue the push and
compression.





1 Intermediate

shaft

2

Third/fourth gear spacer bushes

3 Third

gear



4 Second

gear



3)  Take out the second gear synchronizer gear

ring.

4)  Use the puller to operate the first gear, and

make use of the holding-down device to pull
out the low-speed synchronizer unit, and first
gear and second gear shaft sleeves.



1 Low-speed

synchronizer

unit

2 First

gear



3

Puller(with plane facing upward)

5)  Dismantle the synchronizer unit.

6)  Take out first gear needle bearing from the

shaft.

7)  Use the puller to dismantle right conical

bearing.



1

Metal  rod

2

Intermediate shaft’s right conical bearing
puller

Mount Intermediate Shaft Components

1)  Clean all parts thoroughly, inspect if there is

abnormal situation, and mount new parts
according to demands.



1. Intermediate shaft’s left bearing assembly  2.
Intermediate shaft snap ring 3. Intermediate shaft
fifth gear  4. Intermediate shaft fourth gear 5.
Third/fourth gear spacer bush 6. Intermediate shaft
third gear  7. Intermediate shaft second gear
assembly  8. Second gear needle bearing  9.
Second gear shaft sleeve  10. low-speed
synchronizer gear ring components 11. low-speed
synchronizer unit 12.intermediate shaft second
gear needle bearing 13. intermediate shaft first
gear assembly 14. intermediate shaft right bearing
assembly 15. intermediate shaft

2)  If the synchronizer’s components will be

repaired, inspect the clearance “a” between
the ring and the gear, and then inspect every
gear’s crowned teeth, ring, and gear ring.
After that, determine if the replacement shall
be conducted.

Clearance “a”: standard value:1.45-2.35mm

Ultimate value:0.5mm

Puller (with plane

facing upward)



MF515L Transmission

 1H-11





1

Right conical bearing

2 Intermediate

shaft

3)  Ensure the lubrication, and blow air into

every oil port to inspect if there is blockage.



1 intermediate

shaft

2 Oil

port



4)  Mount the low-speed synchronizer onto the

gear sleeve, insert three slide blocks, and the
mount the spring according to the illustration.

Notice: Direction will not be specified to slide
blocks, but slide blocks are defined as an
assembled unit.



1

Low-speed synchronizer snap ring

2 Slide

block



3

Low-speed synchronizer gear hub

4

Low-speed synchronizer gear sleeve



5)  Use special tool and hammer to tighten the

right conical bearing.

Special tools(A):bearing erector3





1

Right conical bearing

2 Synchronizer

gear

ring

6) Mount the needle bearing, smear the

lubricating grease, and then mount the first
gear and first gear synchronizer’s gear ring
components.

7)  Use special tool and hydraulic pressure to

drive in the low-speed synchronizer unit.

Notice

  Lean the shaft against special tool according

to the illustration, in order to prevent the
conical bearing retainer from being extruded.

  When pressing and mounting the

synchronizer assembly, make sure the
synchronizer slide block groove is aligned
with the slide block

  After pressing and mounting the

synchronizer assembly, inspect the first
gear’s free rotation.

Special tools(A):bearing erector3;

(B):bearing erector2;

(C):bearing erector5



1 Low-speed

synchronizer

unit

2

First-gear synchronizer gear ring components

3

Intermediate shaft first gear

4

Intermediate shaft right bearing

A

Key groove aligned with slide block

1. Right conical bearing
2. Intermediate shaft







MF515L Transmission

 1H-12



8)  Mount second gear shaft sleeve and needle

bearing, smear lubricating grease on the
bearing, and then mount second gear
synchronizer ring and second gear.

Caution

  Make sure the shaft sleeve is properly

mounted



1

Intermediate shaft first gear

2 Low-speed

synchronizer

unit

3 Shaft

sleeve

4 Needle

bearing

5

Second gear synchronizer gear ring
components

6

Intermediate shaft second gear

9)  Use special tool and holding-down device to

press and mount the third gear and spacer
bush.

Notice

  It is recommended that bush and third gear

shall be firstly pressed and mounted before
the fourth gear pressing and mounting, which
can prevent the intermediate shaft from being
excessively extruded.

Special tools (A):bearing erector3

(D): bearing erector



1

Third/fourth gear spacer bushes

2 Third

gear

3 Second

gear

10)  Press and mount the fourth gear and fifth

gear ditto.

11)  Mount the intermediate shaft snap ring with

special tool and the left conical bearing with
hammer.

Notice

  To protect the conical bearing, make the shaft

lean against the special tool according to the
illustration.

Special tools (A):bearing erector3

(E):bearing erector4



1

Left conical bearing

2 Fourth/fifth

gear

3

Right conical bearing

Differential Unit Dismantling and
Mounting

Differential Unit Dismantling

1)  Use special tool to dismantle the right

bearing.

Special tools(A)bearing puller;(B) bearing puller
accessories

Notice

  As for the bearing dismantling, if semilune

puller is used together with holding-down device,
the main reduction gear shall be dismantled in
advance.

2)  Use the puller to dismantle the left bearing,

during which protect well the bearing.

3)  Use the soft bench clamp to clamp the

differential housing, and dismantle eight
differential bolts. After that, take off the main
reduction gear.

4)  Use the snap ring plier to dismantle the

differential planet gear shaft check ring, and
then dismantle components and parts.

1. Third/fourth gear spacer bushes
2. Third gear
3. Second gear

1. Left conical bearing
2. Fourth/fifth gear
3. Right conical bearing
