Haima M3. Body Repair Manual - part 5









Waterproof and Rust-proof Treatment

V-1



                      Chapter 5



Waterproof and Rust-proof Treatment



Seal of Car Body ................................................................................................................................ V-2



PVC Spraying .................................................................................................................................... V-6



Anti-rust Treatment............................................................................................................................ V-7






-------------------------------------------------------------------------------------------------------------------------------------------------------------





Waterproof and Rust-proof Treatment

V-2


Seal of Car Body

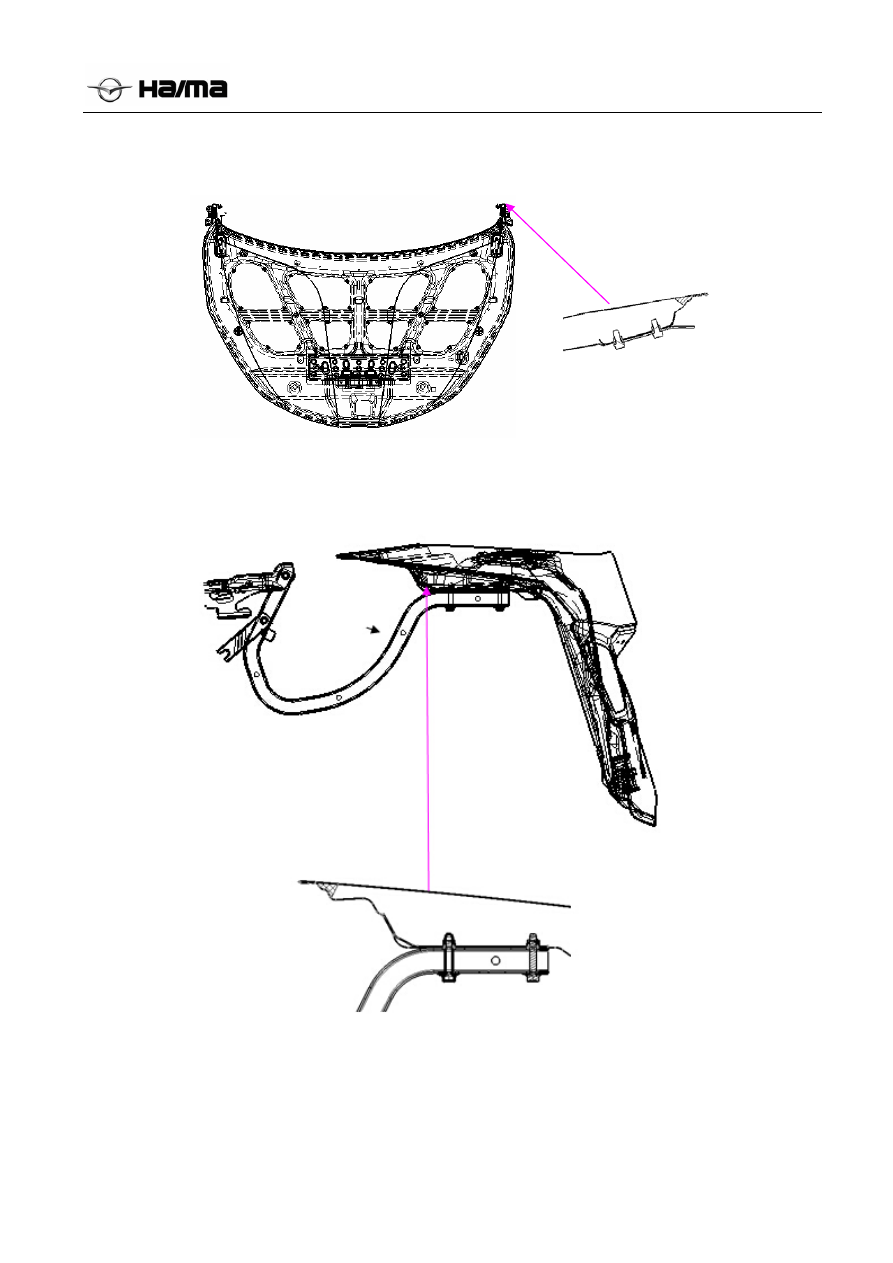

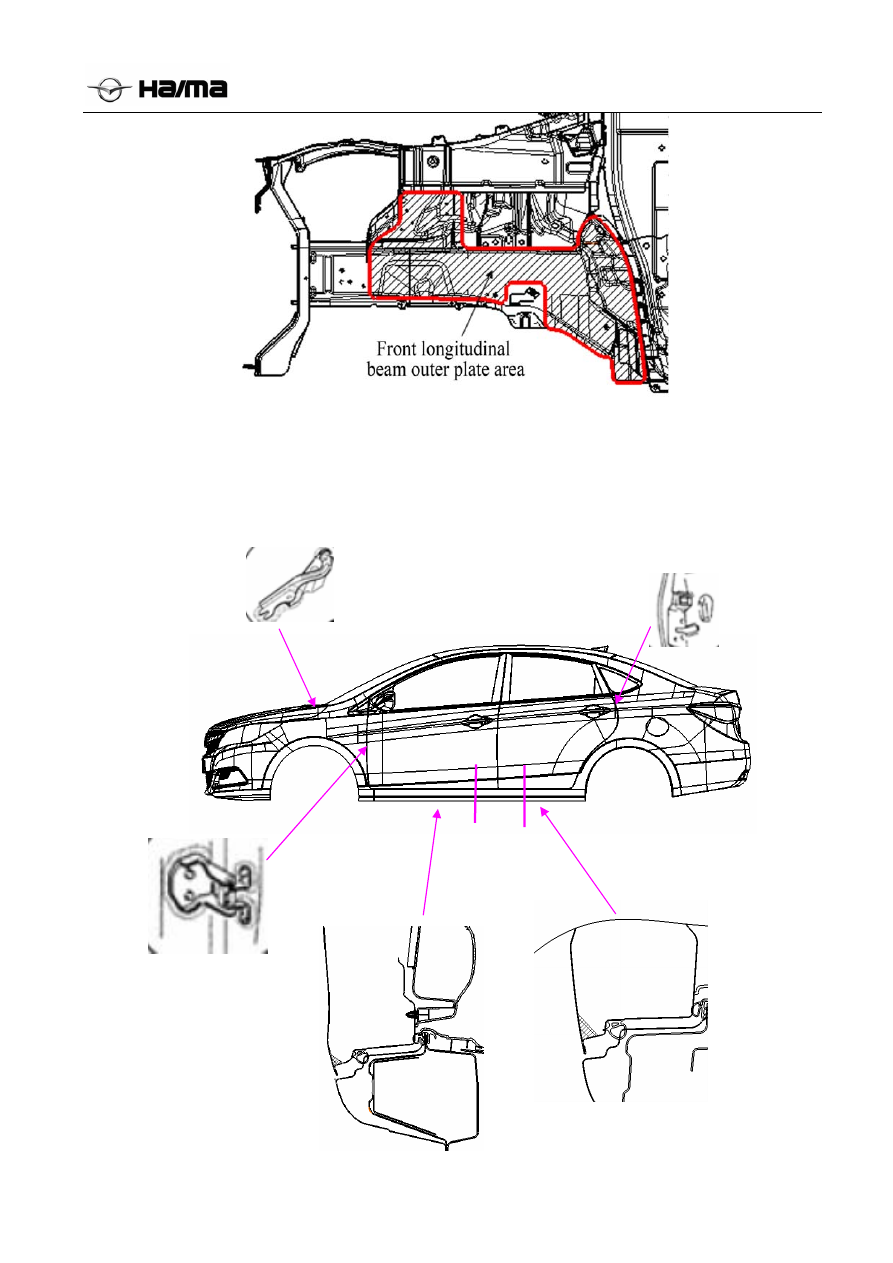

Sealant shall be applied on joints between plates, door sheet gaps and engine hood edges for

waterproof and anti-rust effects.










-------------------------------------------------------------------------------------------------------------------------------------------------------------





Waterproof and Rust-proof Treatment

V-3

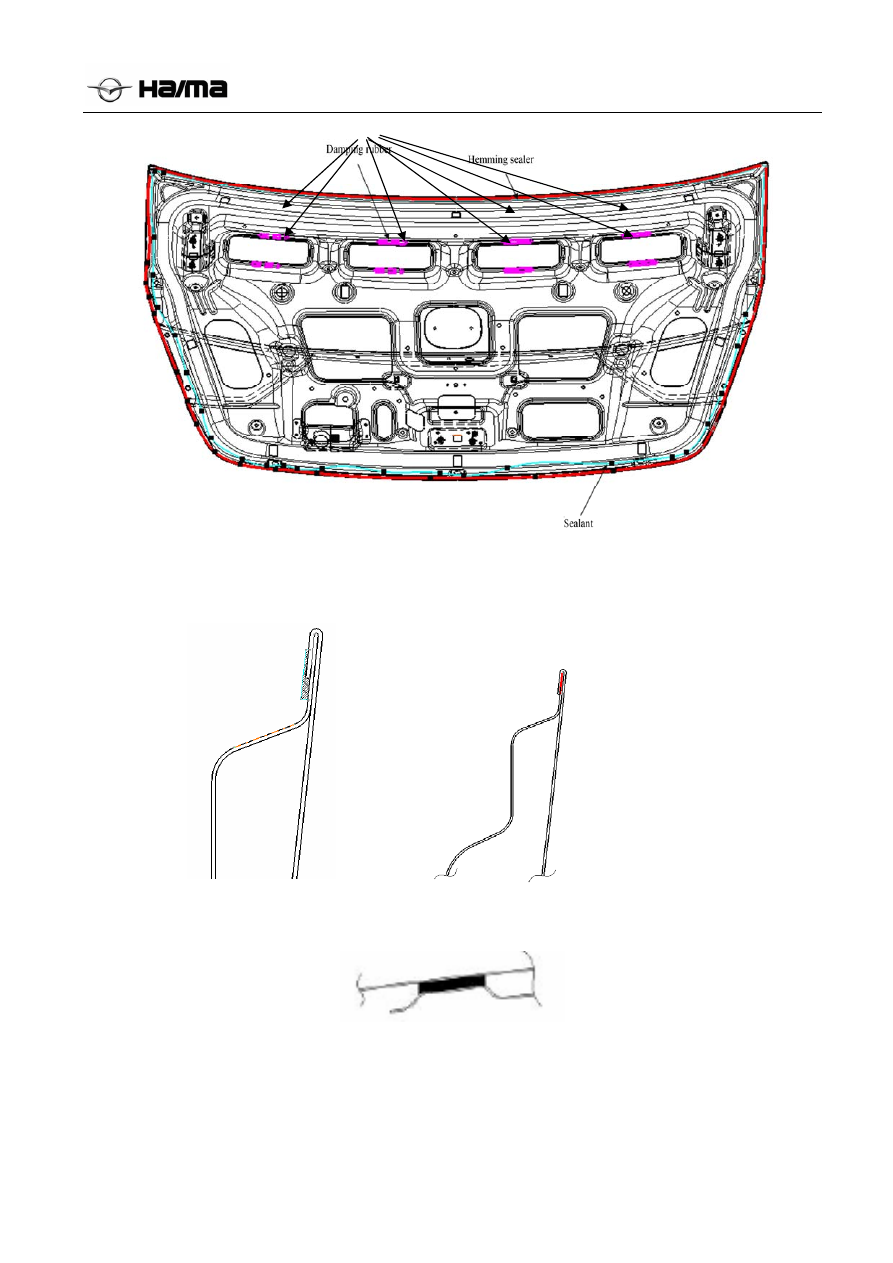

Sealant

Damping rubber

Hemming sealer

-------------------------------------------------------------------------------------------------------------------------------------------------------------





Waterproof and Rust-proof Treatment

V-4











-------------------------------------------------------------------------------------------------------------------------------------------------------------





Waterproof and Rust-proof Treatment

V-5







-------------------------------------------------------------------------------------------------------------------------------------------------------------





Waterproof and Rust-proof Treatment

V-6

PVC Spraying








-------------------------------------------------------------------------------------------------------------------------------------------------------------





Waterproof and Rust-proof Treatment

V-7





There are mounting holes on gluing area, which shall be covered for protection with an area of
50mm×50mm;
The gluing thickness is 2mm.

Anti-rust Treatment




-------------------------------------------------------------------------------------------------------------------------------------------------------------





Waterproof and Rust-proof Treatment

V-8



















-------------------------------------------------------------------------------------------------------------------------------------------------------------
